I 394 mnpass

I-394 MnPASS

Janelle Anderson, P.E.

Mn/DOT

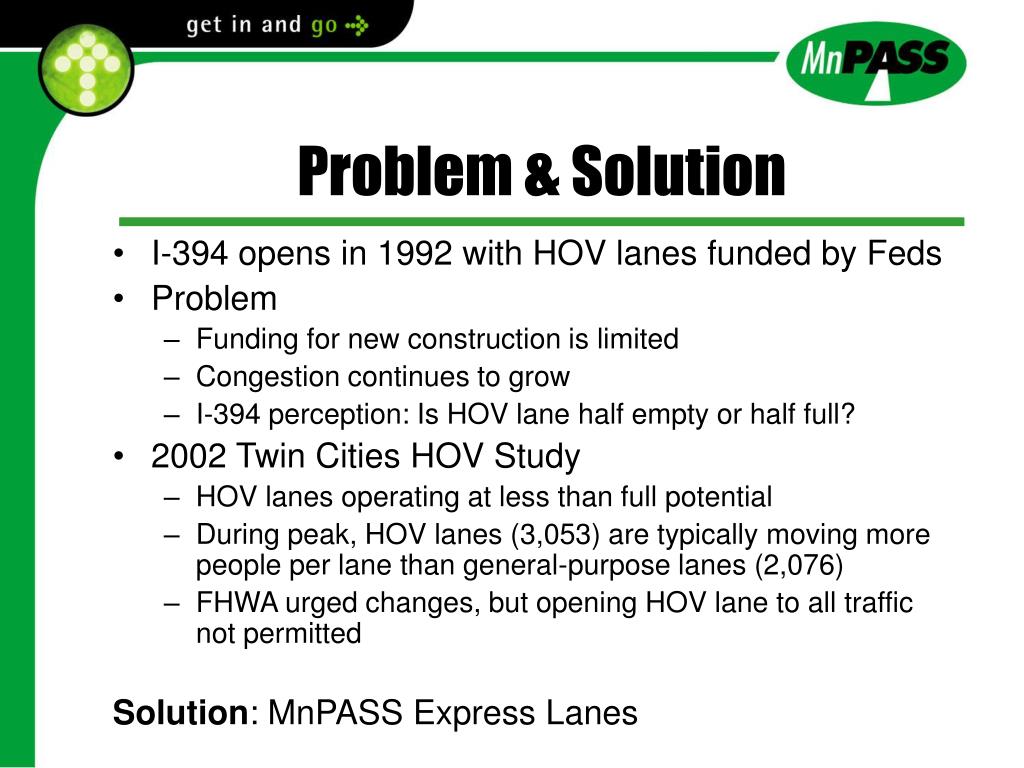

Problem solution

Problem & Solution

  • I-394 opens in 1992 with HOV lanes funded by Feds

  • Problem

    • Funding for new construction is limited

    • Congestion continues to grow

    • I-394 perception: Is HOV lane half empty or half full?

  • 2002 Twin Cities HOV Study

    • HOV lanes operating at less than full potential

    • During peak, HOV lanes (3,053) are typically moving more people per lane than general-purpose lanes (2,076)

    • FHWA urged changes, but opening HOV lane to all traffic not permitted

      Solution: MnPASS Express Lanes


I 394 mnpass project goals

I-394 MnPASS Project Goals

  • Improve I-394 efficiency

  • Maintain free flow speeds for transit and carpoolers

  • Use revenues to improve highway and transit in corridor

  • Employ new technologies for pricing and enforcement


Orientation

Orientation

  • 11 mile corridor

    • 3 mile barrier separated reversible section

    • 8 mile diamond lane section

  • 5 EB and 6 WB access points in diamond section

  • HOVs, transit and motorcycles free

  • Fully electronic & dynamically priced


Toll collection

Set up a pre-paid MnPASS account

Install transponder

Antennae reads transponder in vehicle

Toll Collection


Technology tolling antenna

Technology - Tolling Antenna

  • Approximate antenna weight = 10 lbs

  • Multiple antenna readers are used over each HOT lane.

  • Antenna readers are located at five locations along HOT lanes.


High compliance

High Compliance


Access control crash condition

Access Control- Crash Condition

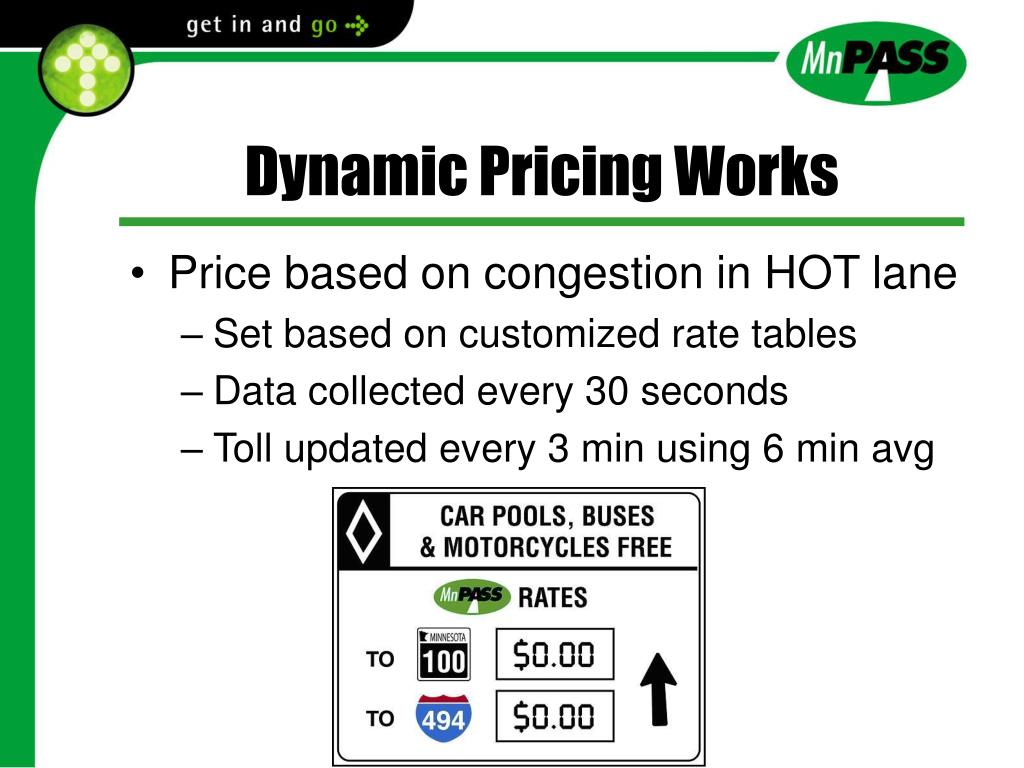

Dynamic pricing works

Dynamic Pricing Works

  • Price based on congestion in HOT lane

    • Set based on customized rate tables

    • Data collected every 30 seconds

    • Toll updated every 3 min using 6 min avg


Dynamic pricing works1

Dynamic Pricing Works

Toll ranges $0.25 - $8.00 max

  • Overall average $1.10 (March 2007)

  • Peak average $1.00 - $4.00

  • Off-peak average $0.25 per section

  • EB average $1.37

  • WB average $0.76


Peak period transit ridership 6 to 9 am 3 to 6 pm

Peak Period Transit Ridership(6 to 9 AM, 3 to 6 PM)

  • External issues impacting transit

  • Transit operators indicate:

    • Access points improve safety for drivers

    • Express lanes remain free flowing

Source: Mn/DOT HOV Quarterly Reports


Enforcement

Enforcement

  • Increased enforcement thru partnerships with:

    • Minneapolis Police Department

    • Golden Valley Police Department

    • Minnesota State Patrol

  • Petty misdemeanor with $142 fine

  • Initial planning and equipment cost of $250K

  • 8 hrs of enforcement on weekdays (annual cost of $165K)


Mnpass enforcement

MnPASS Enforcement


Year 1 enforcement results

Year 1 Enforcement Results

  • Over 3,300 enforcement stops

  • 50% of stops involved HOV or double white line crossing violations

  • I-394 violations dropped by 50%

  • HOV violations on I-394 are much lower than on I-35W


Safety 12 decrease in crashes

Safety: 12% Decrease in Crashes

Average 2003-05 =560

* Compares data for year starting May 16 to May 15 of the next year


Diamond lane design

Diamond Lane Design


I 394 mnpass

Speeds and Usage

  • Travel speeds in the general purpose lanes increased by 2% to 15%

  • Peak hour volumes increased 7 to 30%, while miles of congestion decreased

  • 95% of time speeds above 50 mph (required to be above 45 mph 90% of time)

  • Eastbound has 52% of trips and 65% of revenue

  • Heavy usage days: Tue, Wed, Thu

  • 70% of trips start or end in reversible road

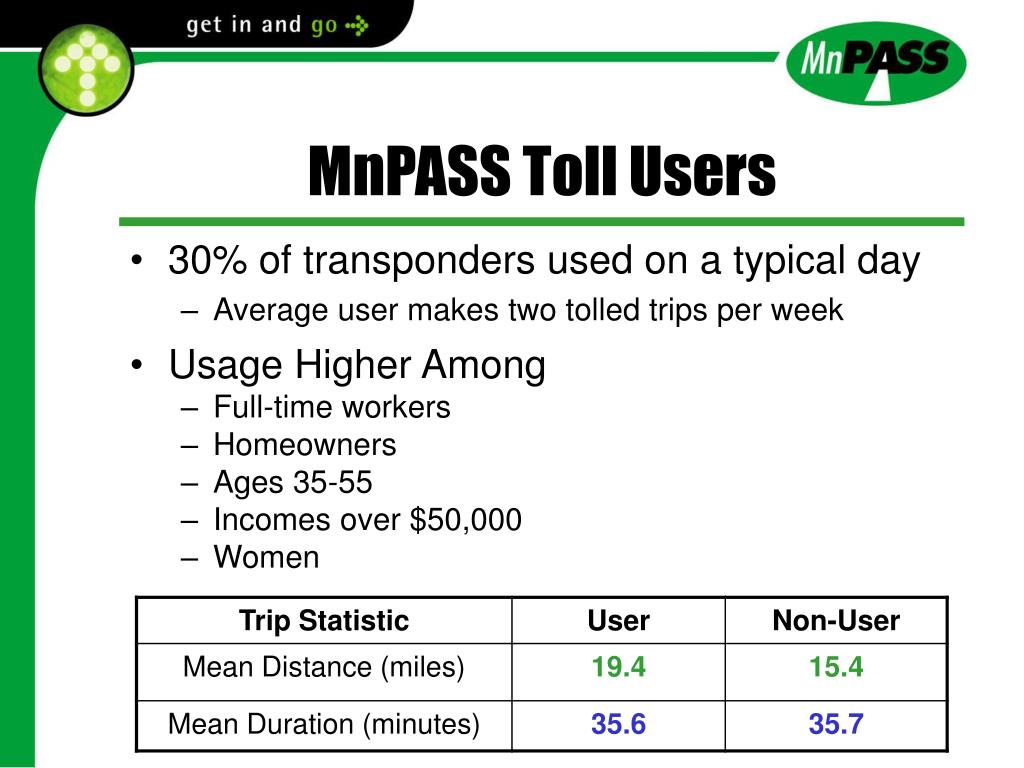

Mnpass toll users

MnPASS Toll Users

  • 30% of transponders used on a typical day

    • Average user makes two tolled trips per week

  • Usage Higher Among

    • Full-time workers

    • Homeowners

    • Ages 35-55

    • Incomes over $50,000

    • Women


Mnpass user satisfaction

MnPASS User Satisfaction

  • 95% satisfaction with all electronic tolling

  • 85% satisfaction with traffic speed in lane

  • 65% satisfaction with dynamic pricing

  • 65% satisfaction safety of merging

Source: May 2006 survey of 106 MnPASS users


Mnpass acceptance good idea by income

MnPASS Acceptance “Good Idea” by Income

What do you think of allowing single drivers to use the carpool lanes by paying a toll?


Key first year milestones

Key First Year Milestones

  • May 05: MnPASS lanes open

  • June 05: Change to peak period operations in non-barrier section

  • Nov 05: New auxiliary lane opens

  • Jan 06: Pricing algorithm adjustment

  • May 06: 1-year anniversary

  • Sept 06: 10,000 transponders leased

  • Feb 07 surpassed $10,000 in tolls for one day and had highest weekly revenue (over $110,000)

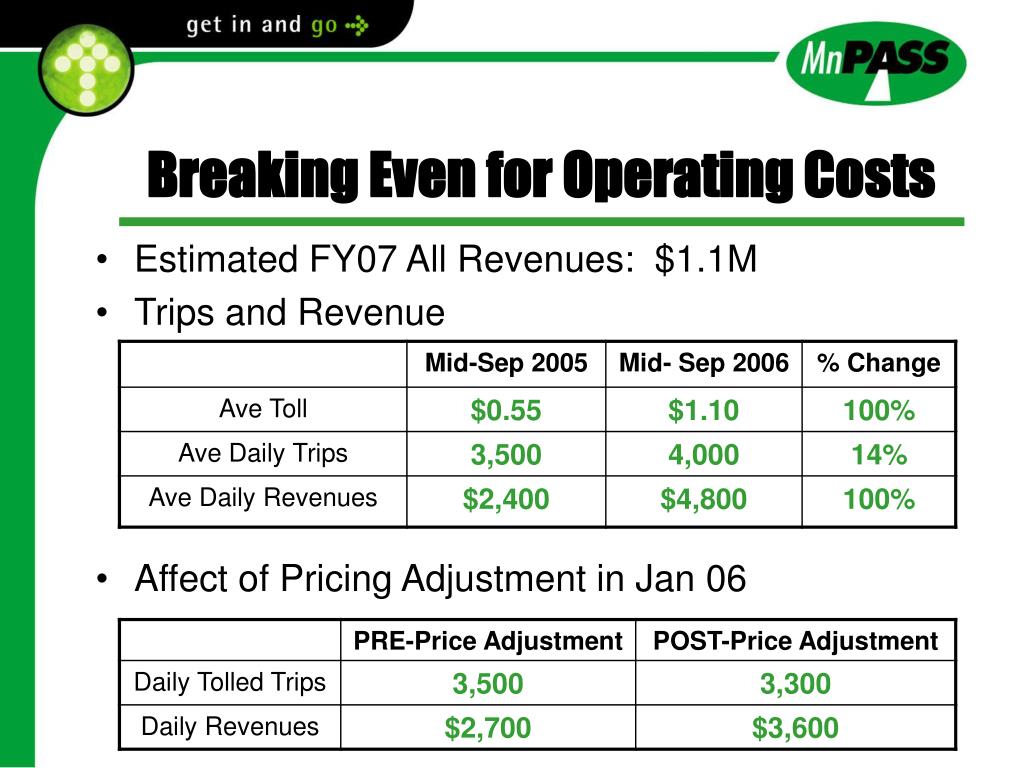

Breaking even for operating costs

Breaking Even for Operating Costs

  • Estimated FY07 All Revenues: $1.1M

  • Trips and Revenue

  • Affect of Pricing Adjustment in Jan 06


International award winning project

International Award Winning Project

TEAM FL


I 394 mnpass meeting it s goals

I-394 MnPASS Meeting It’s Goals

  • Reduces congestion and increases safety

    • Non-barrier separated access is safe and reduces infrastructure requirements

  • Dynamic pricing and technology works

    • Free flow speeds maintained

    • Lower violation rates

  • Revenues meet operating costs in Year 2

  • Studying I-394 MnPASS Phase 2 & expansion of MnPASS system


Questions and more information

Questions and More Information

Visit www.mnpass.org

Janelle Anderson, P.E.

651-234-7024

[email protected]
