Presentation Transcript

Bipolar disorder

Bipolar Disorder

The effects of nutrition on the process of demyelination

By Elise Handley

University of Colorado

EPOB 4800

Symptoms of bipolar disorder

Symptoms of bipolar disorder

  • Roller Coaster of Mood Swings

  • Definitive changes in energy or activity level

  • Changes in thinking and perception

  • Suicidal thoughts

  • Destructive/Impulsive behavior

  • Sleep Problems

Bpdi vs bpdii

BPDI is defined as at least 1 episode of manic or mixed disorder and at least one episode of major depressive disorder

BPDII is defined as at least 1 hypomanic disorder and one major depressive episode

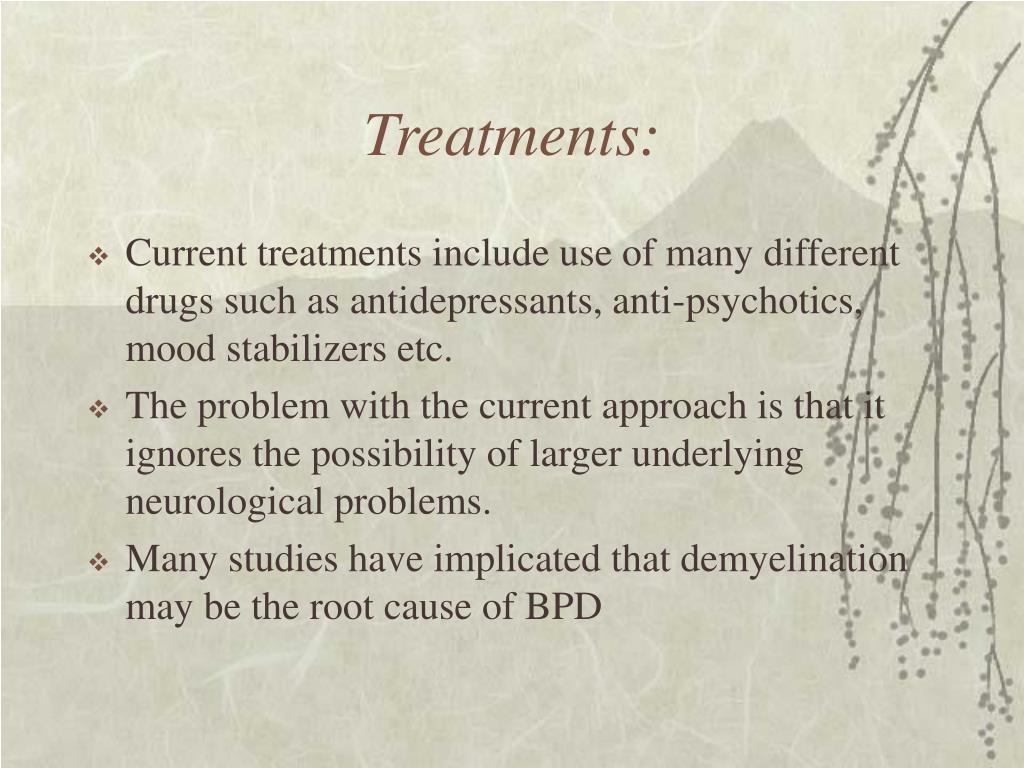

  • Current treatments include use of many different drugs such as antidepressants, anti-psychotics, mood stabilizers etc.

  • The problem with the current approach is that it ignores the possibility of larger underlying neurological problems.

  • Many studies have implicated that demyelination may be the root cause of BPD

Brain basics

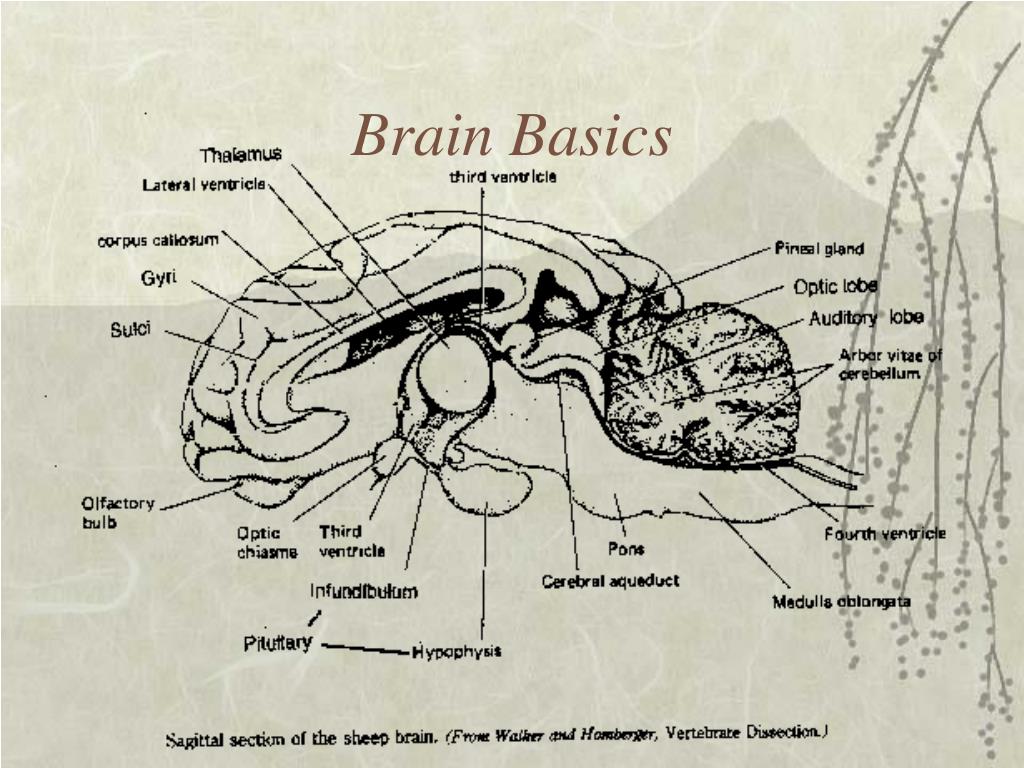

Brain Basics

Brain basics1

Brain Basics

  • Before we talk about demyelination, let’s talk about the structure of the brain.

  • White matter consists of bundles of myelinated fibers, which are supported by the neuroglia.

  • The neuroglia are comprised of astrocytes, oligodendrocytes, and microglia.

  • Oligodendrocytes support myelin formation and are key to this whole process

  • Astrocytes are primarily responsible for neuron maintainance

Brambilla et al

Brambilla et al.

  • Anatomical abnormalities have been found in the corpus callosum of BPD patients

  • The decreased size may indicate degeneration or improper aging of white matter tracts as well as decreased connectivity between the two hemispheres

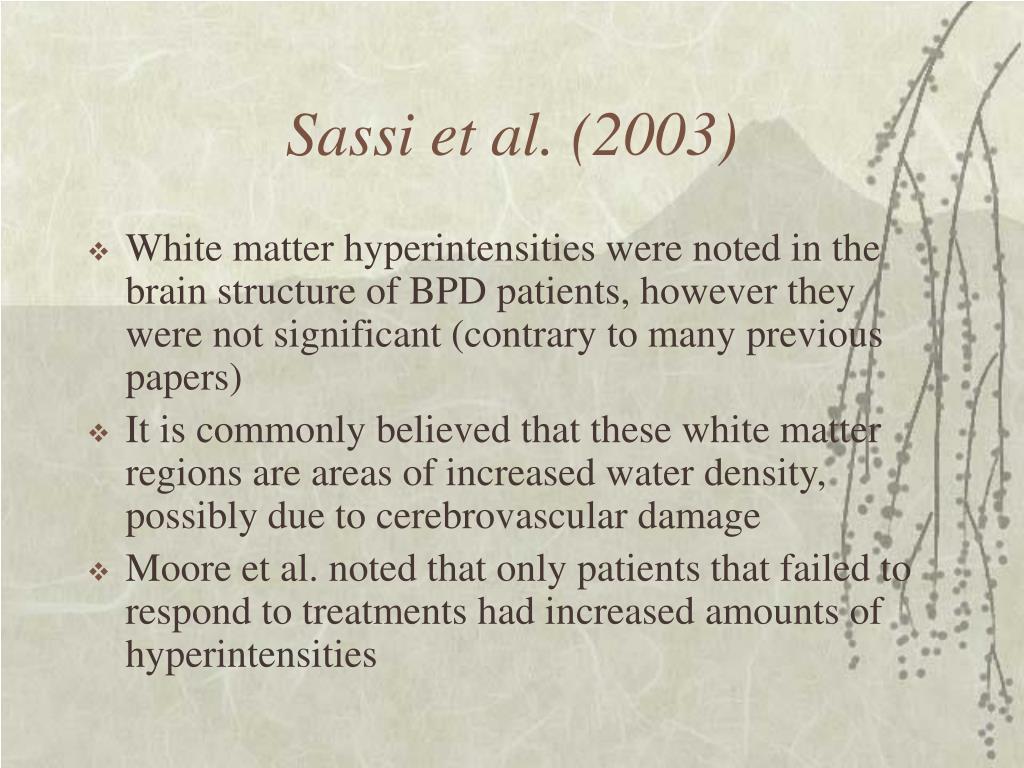

Sassi et al 2003

Sassi et al. (2003)

  • White matter hyperintensities were noted in the brain structure of BPD patients, however they were not significant (contrary to many previous papers)

  • It is commonly believed that these white matter regions are areas of increased water density, possibly due to cerebrovascular damage

  • Moore et al. noted that only patients that failed to respond to treatments had increased amounts of hyperintensities

Kieseppa et al 2003

Kieseppa et al. (2003)

  • This twin study indicated that identical twins (where one had BPD and the other did not) both had more hyperintensities than the healthy control twins. However, only the BPD twin had a significant increase.

  • This study failed to report an increased ventricular size, perhaps due to the sample population

Possible conclusions to kieseppa et al 2003

Possible Conclusions to Kieseppa et al (2003)

  • The hyperintensities may be due to a genetic pre-disposition

  • They may be case-specific, not a marker of this disease

  • They may be a marker of mental-illness in general, as they are often noted in schizophrenia

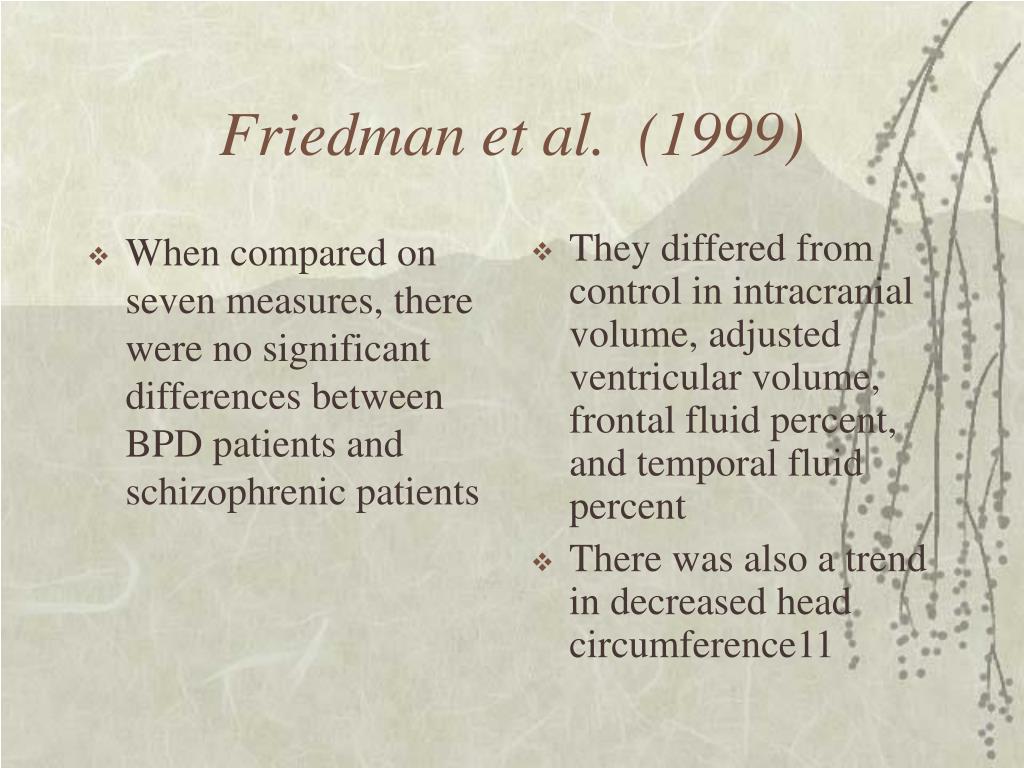

Friedman et al 1999

When compared on seven measures, there were no significant differences between BPD patients and schizophrenic patients

They differed from control in intracranial volume, adjusted ventricular volume, frontal fluid percent, and temporal fluid percent

There was also a trend in decreased head circumference11

Friedman et al. (1999)



  • Micrencephaly is a sign of mental disorder in general, not of BPD or schizophrenia.

  • To further this claim, Friedman et al. believes that the increased ventricular size and sulcal prominence are also indicative of mental disorder, not BPD

Uranova et al 2001

Uranova et al. (2001)

  • Uranova focused on abnormalities in the physical make-up of the brain

  • It was found that BPD brains had several symptoms indicative of myelin breakdown

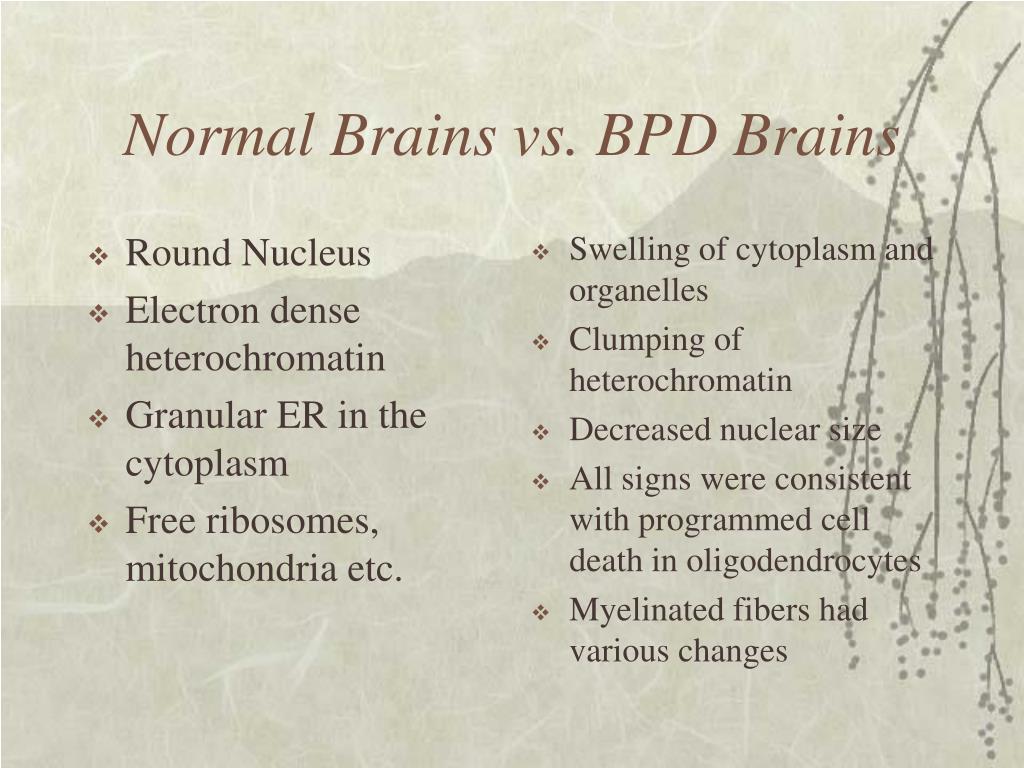

Normal brains vs bpd brains

Round Nucleus

Electron dense heterochromatin

Granular ER in the cytoplasm

Free ribosomes, mitochondria etc.

Swelling of cytoplasm and organelles

Clumping of heterochromatin

Decreased nuclear size

All signs were consistent with programmed cell death in oligodendrocytes

Myelinated fibers had various changes

Normal Brains vs. BPD Brains

Uranova et al 20011

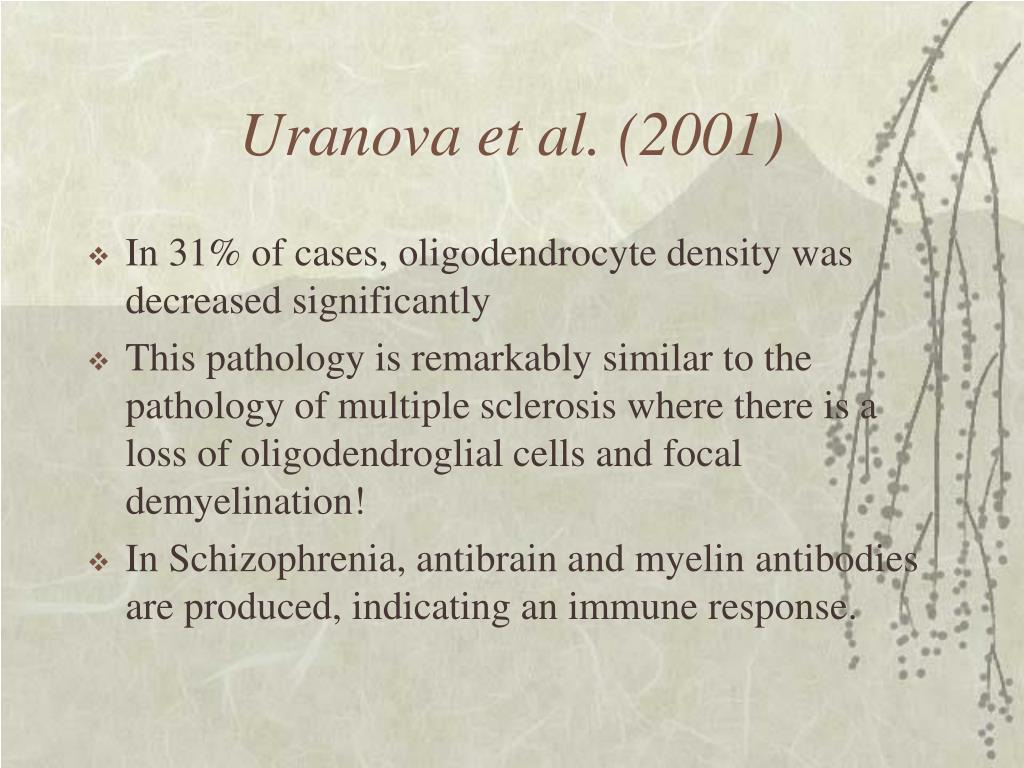

Uranova et al. (2001)

  • In 31% of cases, oligodendrocyte density was decreased significantly

  • This pathology is remarkably similar to the pathology of multiple sclerosis where there is a loss of oligodendroglial cells and focal demyelination!

  • In Schizophrenia, antibrain and myelin antibodies are produced, indicating an immune response.

So what is going on in bpd

So what is going on in BPD?

  • More studies are required to determine to what extent demyelination occurs.

  • Demyelination can occur in several ways. Thus, before appropriate therapies can be developed, the mechanism must be discovered.

Demyelination the rat model

Demyelination: The Rat Model

  • Arvanitogiannis and Shizgal (1999) induced severe demyelination with NMDA

  • Because demyelination occurred in 24 hrs, it was not a result of immune response

How did demyelination occur

It is believed that the elevation of glutamate levels at the lesion site caused subsequent activation of AMPA receptors

This resulted in the selective killing of oligodendrocytes

The elevation in glutamate may be due to a thinning in the astrocyte population.

Another possibility is that NO (which is a ROS) levels increased

NO is known to damage oligodendrocytes

How did demyelination occur?

Rats again

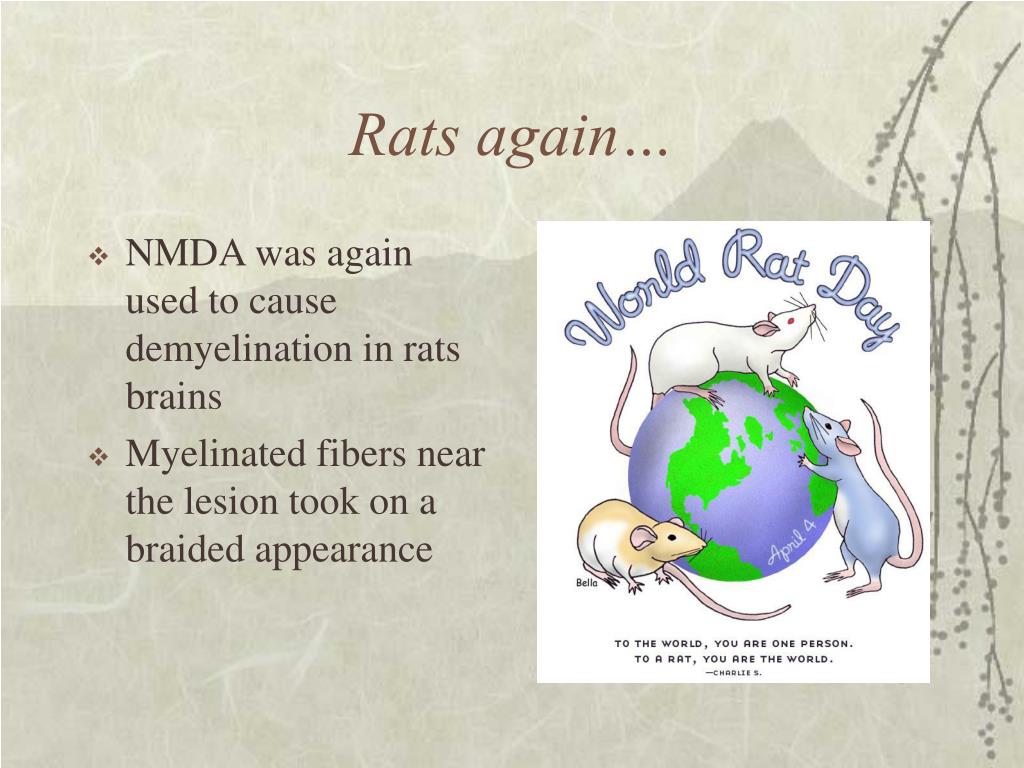

Rats again…

  • NMDA was again used to cause demyelination in rats brains

  • Myelinated fibers near the lesion took on a braided appearance

The after effects

The after-effects

  • Within 14 days, the myelinated strands at the edge of the lesion were less abnormal

  • After 4 weeks, myelin dots could be seen at the center of the lesion

  • After 2 months, strands of myelin passed through the lesion

  • Myelin growth predominantly occurred near blood vessels

  • HOWEVER, this myelin was not entirely normal

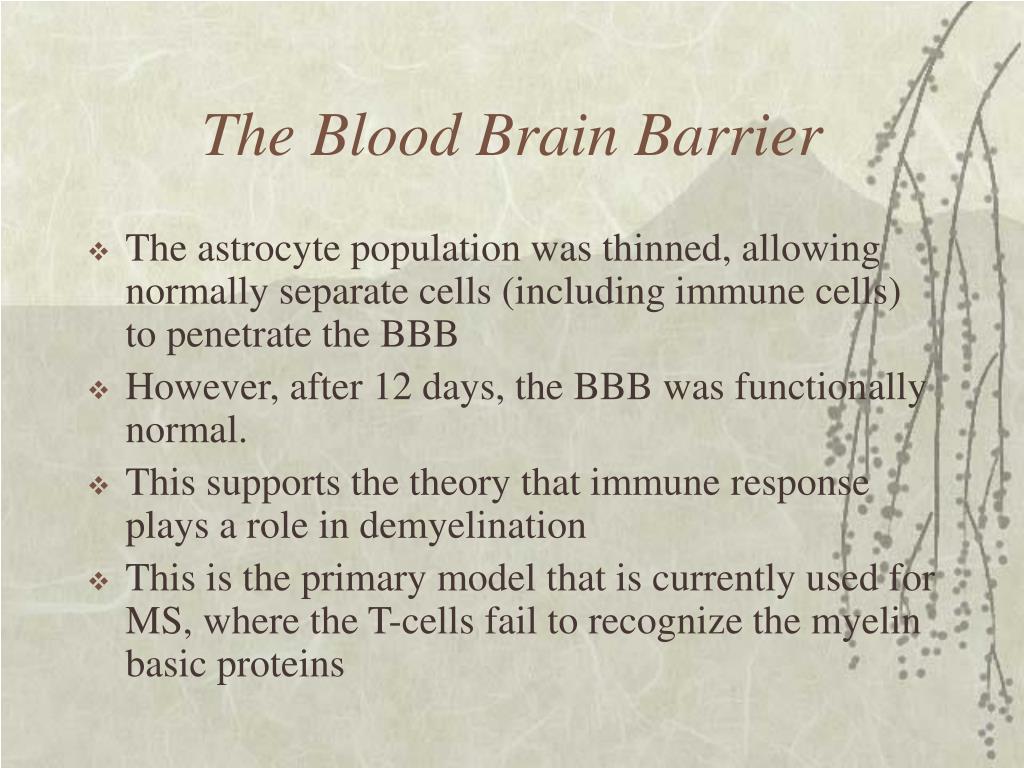

The blood brain barrier

The Blood Brain Barrier

  • The astrocyte population was thinned, allowing normally separate cells (including immune cells) to penetrate the BBB

  • However, after 12 days, the BBB was functionally normal.

  • This supports the theory that immune response plays a role in demyelination

  • This is the primary model that is currently used for MS, where the T-cells fail to recognize the myelin basic proteins

Reactive oxygen species

Reactive Oxygen Species

  • Oligodendrocytes require a large portion of energy to form myelin.

  • This means that oligodendrocytes form a lot of reactive oxygen species as a result of mitochondrial respiration



  • Flavonoids are most commonly found in fruits and vegetables

  • They have antioxidant properties, which allow them to scavenge oxidants like superoxide, hydrogen peroxide, nitric oxide, and hydroxyl radicals

Oxidation in the brain

Oxidation in the Brain

  • Flavonoids have been reported to inhibit the transcription factor NF-kappaB, thus suppressing the production of pro-inflammatory cytokines and nitric oxide

  • Macrophages, which are essential in immune-mediated response (as may occur with demyelination) is one possible source for inflammatory mediators like cytokines and prostaglandins

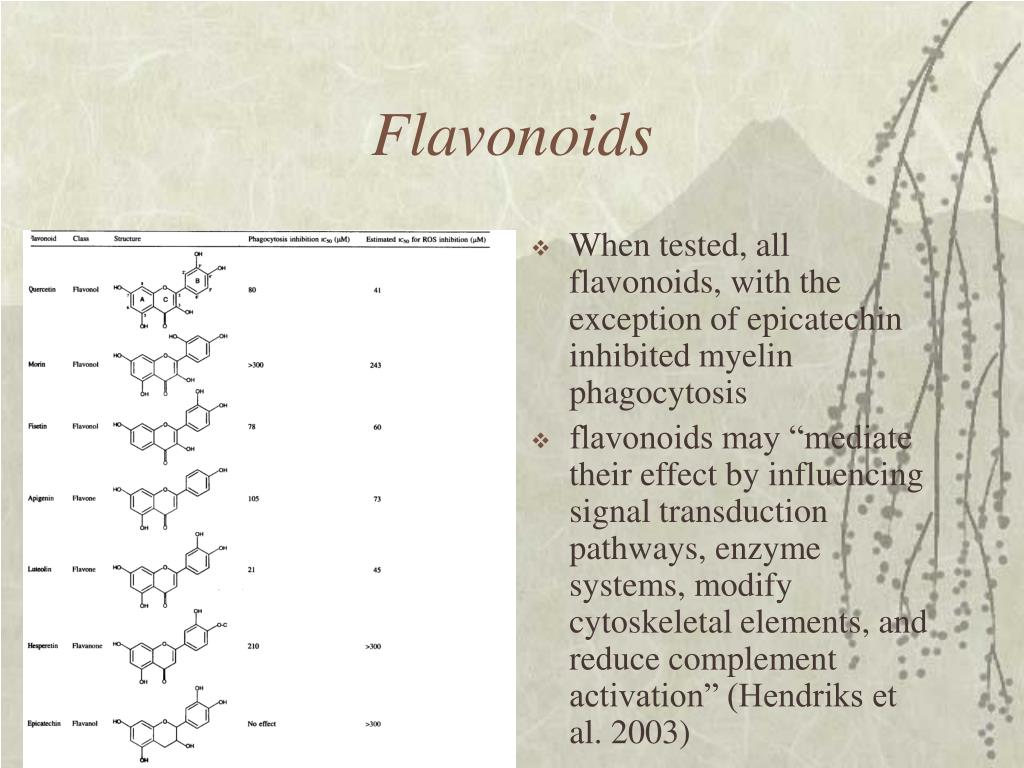

  • When tested, all flavonoids, with the exception of epicatechin inhibited myelin phagocytosis

  • flavonoids may “mediate their effect by influencing signal transduction pathways, enzyme systems, modify cytoskeletal elements, and reduce complement activation” (Hendriks et al. 2003)

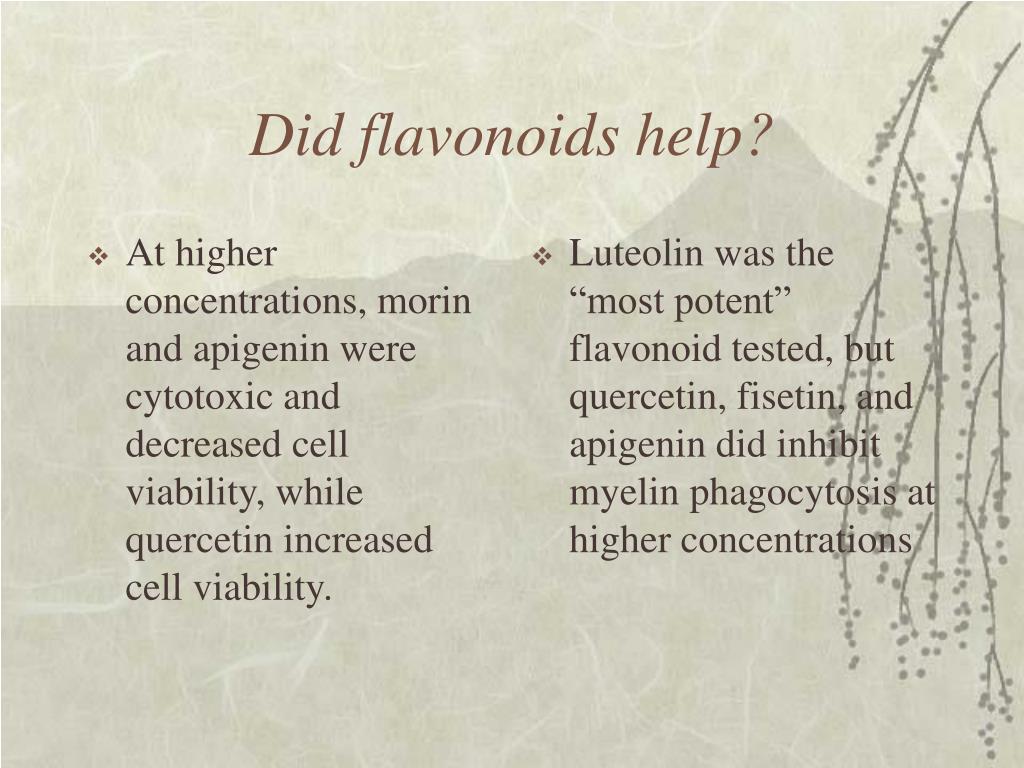

Did flavonoids help

At higher concentrations, morin and apigenin were cytotoxic and decreased cell viability, while quercetin increased cell viability.

Luteolin was the “most potent” flavonoid tested, but quercetin, fisetin, and apigenin did inhibit myelin phagocytosis at higher concentrations

Did flavonoids help?

Other antioxidants

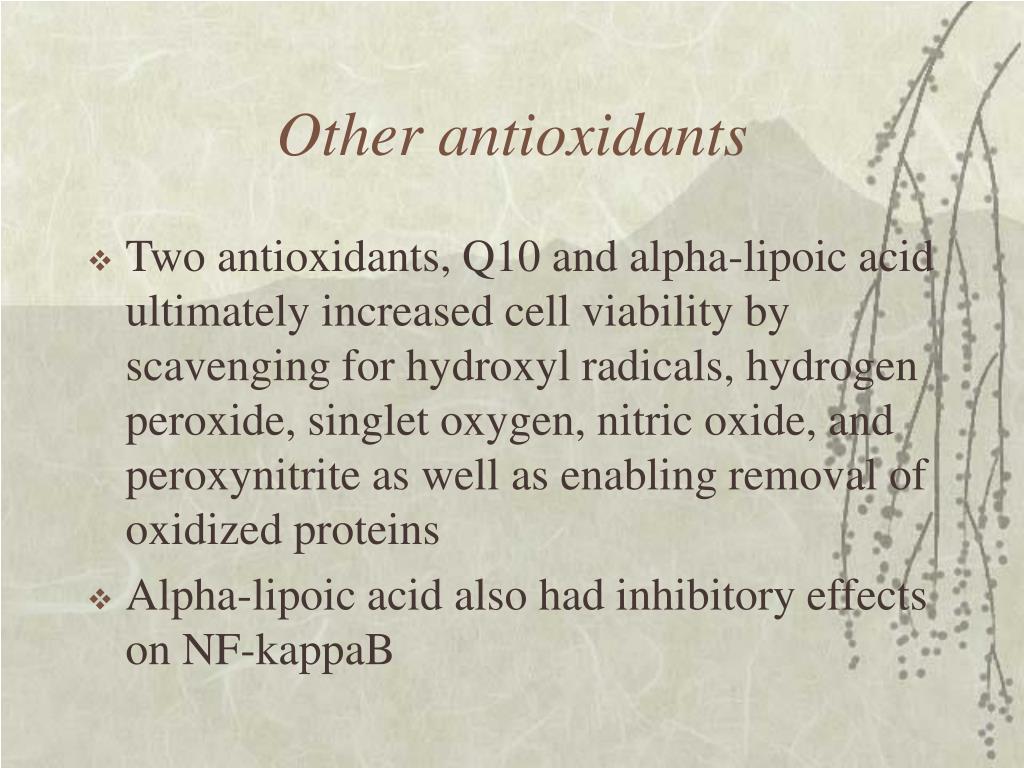

Other antioxidants

  • Two antioxidants, Q10 and alpha-lipoic acid ultimately increased cell viability by scavenging for hydroxyl radicals, hydrogen peroxide, singlet oxygen, nitric oxide, and peroxynitrite as well as enabling removal of oxidized proteins

  • Alpha-lipoic acid also had inhibitory effects on NF-kappaB

Antioxidant regeneration

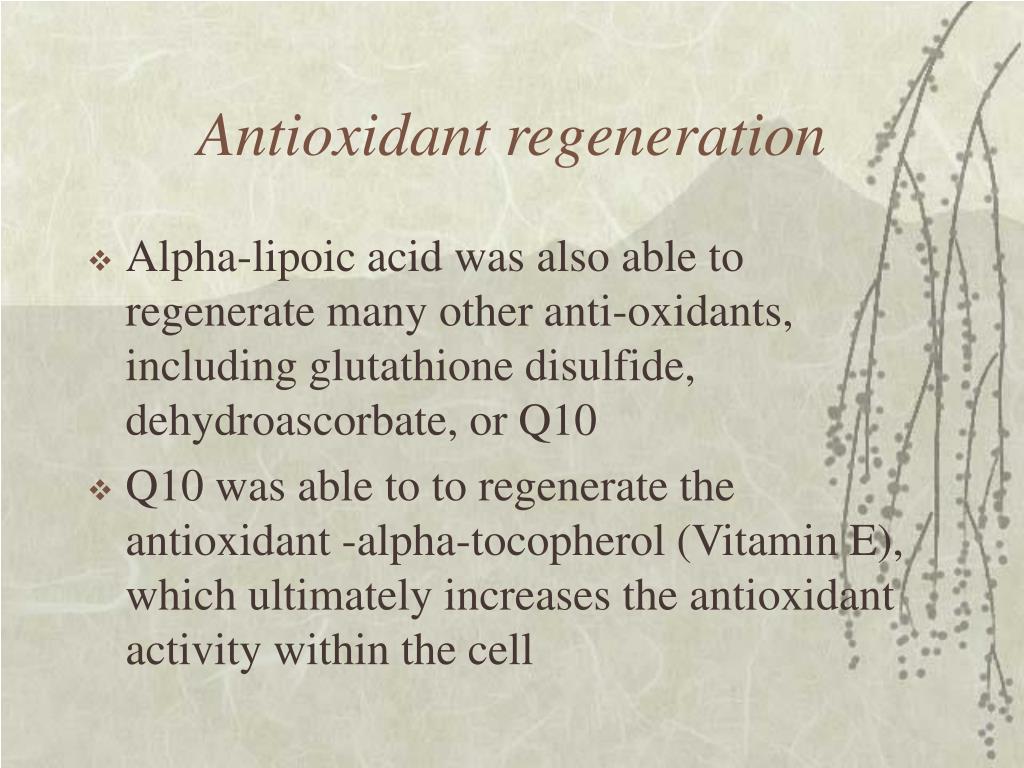

Antioxidant regeneration

  • Alpha-lipoic acid was also able to regenerate many other anti-oxidants, including glutathione disulfide, dehydroascorbate, or Q10

  • Q10 was able to to regenerate the antioxidant -alpha-tocopherol (Vitamin E), which ultimately increases the antioxidant activity within the cell

Polyunsaturated fatty acids

The focus was on arachidonic acid (AA; 20:4 n-6) and eicosapentaenoic acid (EPA; 20:5 n-3), metabolites of linoleic (18:2 n-6), and linolenic acid (18:3 n-3), respectively.

EPA affected the expression of proteolipid proteins (PLP) by means of accelerating the developmental expression, while AA caused no significant changes

Polyunsaturated Fatty Acids

Epa and apoptosis

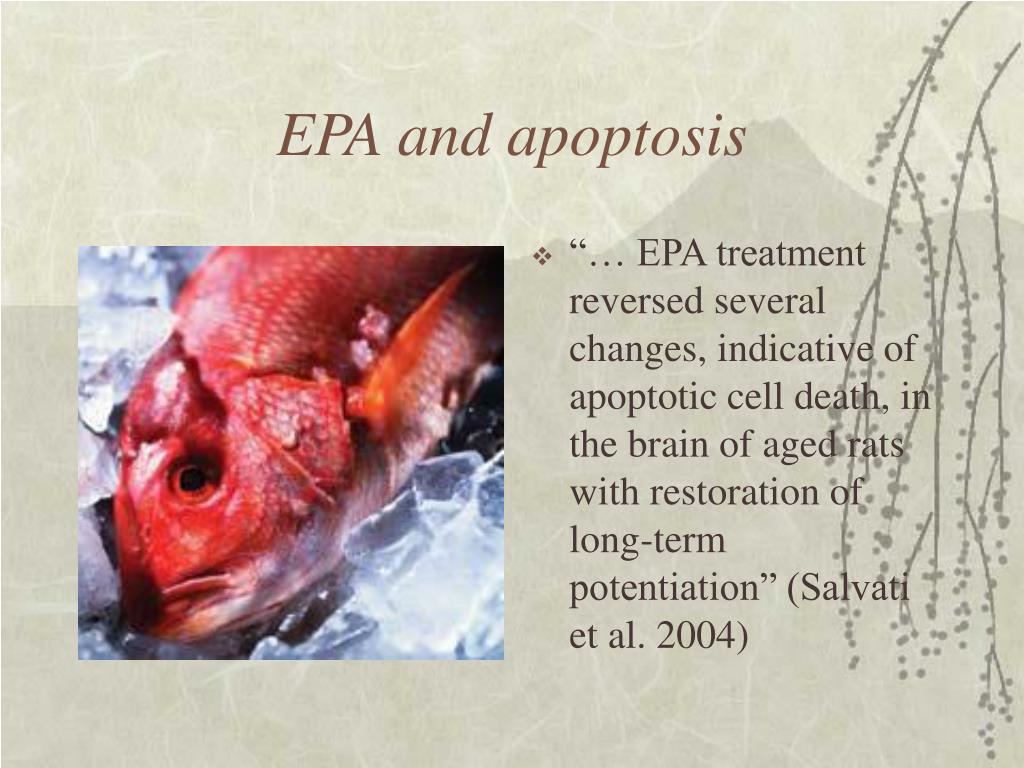

EPA and apoptosis

  • “… EPA treatment reversed several changes, indicative of apoptotic cell death, in the brain of aged rats with restoration of long-term potentiation” (Salvati et al. 2004)

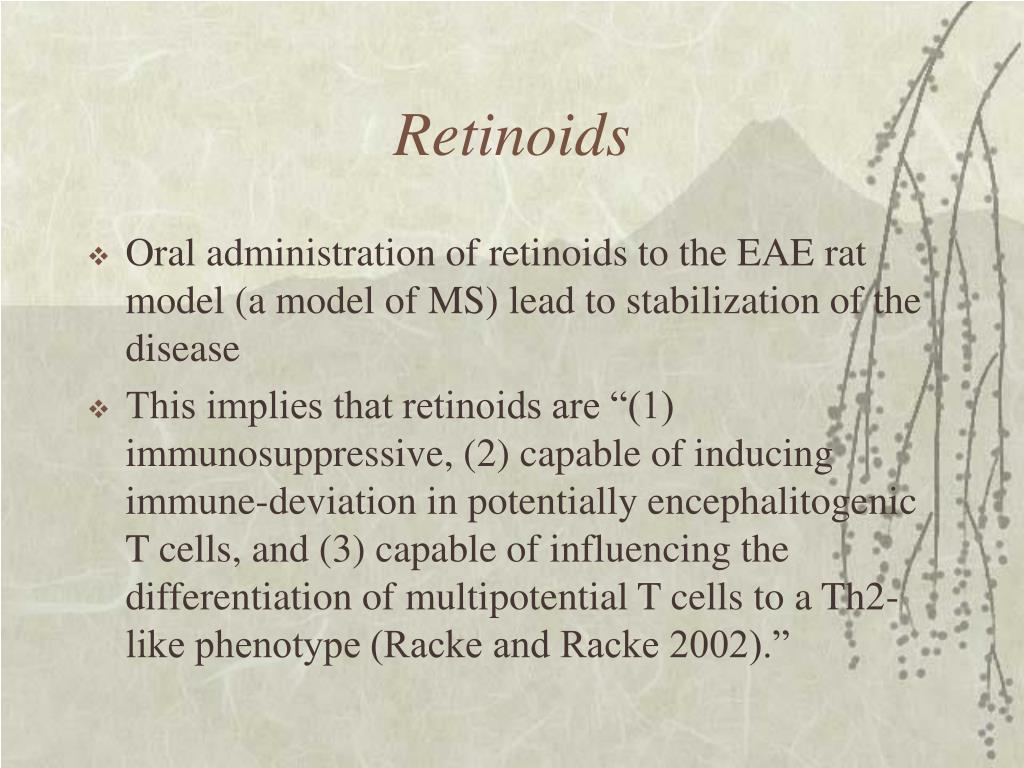

  • Oral administration of retinoids to the EAE rat model (a model of MS) lead to stabilization of the disease

  • This implies that retinoids are “(1) immunosuppressive, (2) capable of inducing immune-deviation in potentially encephalitogenic T cells, and (3) capable of influencing the differentiation of multipotential T cells to a Th2-like phenotype (Racke and Racke 2002).”

The th 2 switch

There are Th2-mediated illnesses (such as asthma) that may involve inflammation

This means that use a switch to a Th2 pathway may aggravate these illnesses

There is decreased incidence of allergic disease in patients with MS

The Th-2 switch

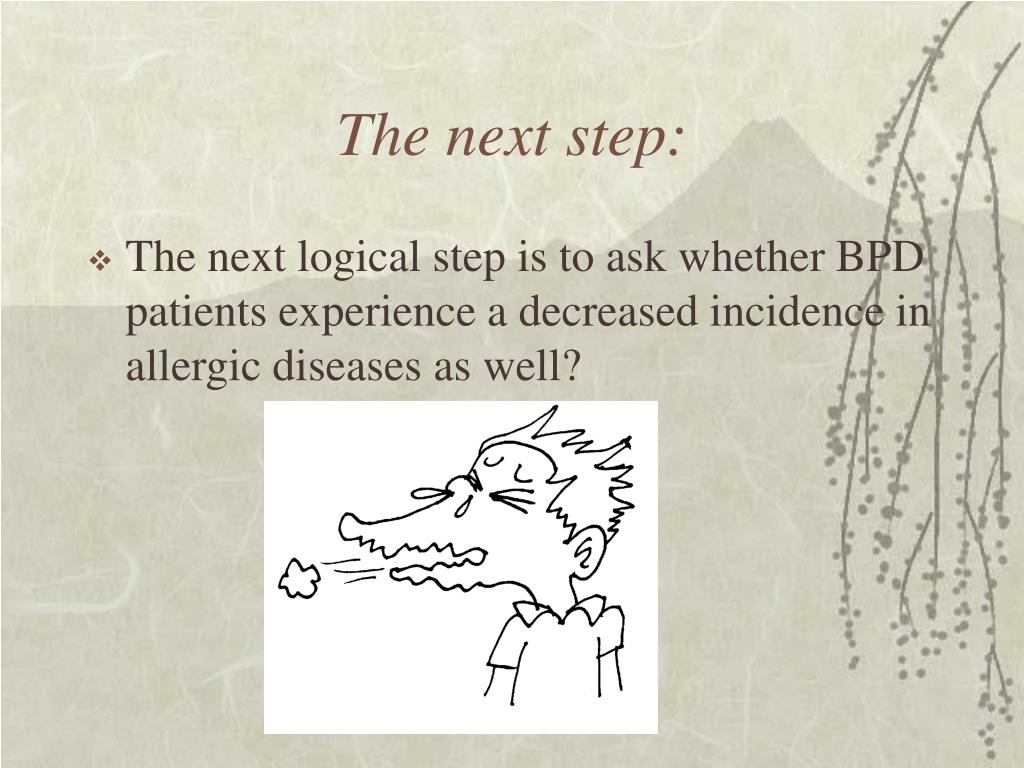

The next step

The next step:

  • The next logical step is to ask whether BPD patients experience a decreased incidence in allergic diseases as well?

The results

If they experience this decreased incidence in allergic disease… then it may be immune mediated like MS

More research is needed in this field

Both vitamin A and D have been shown to suppress EAE, and vitamin D3 has been shown to enhance the Th2 cell development (Racke and Racke 2002).

Thus, these treatments may be effective in the fight against BPD

The results

Any questions

Any Questions?
