  1. Electron poor materials research group Group meeting Jan 27, 2011 Theory- ZnSb Hybrid Structures; Equations of State. Bandstructures and atomic parameters.

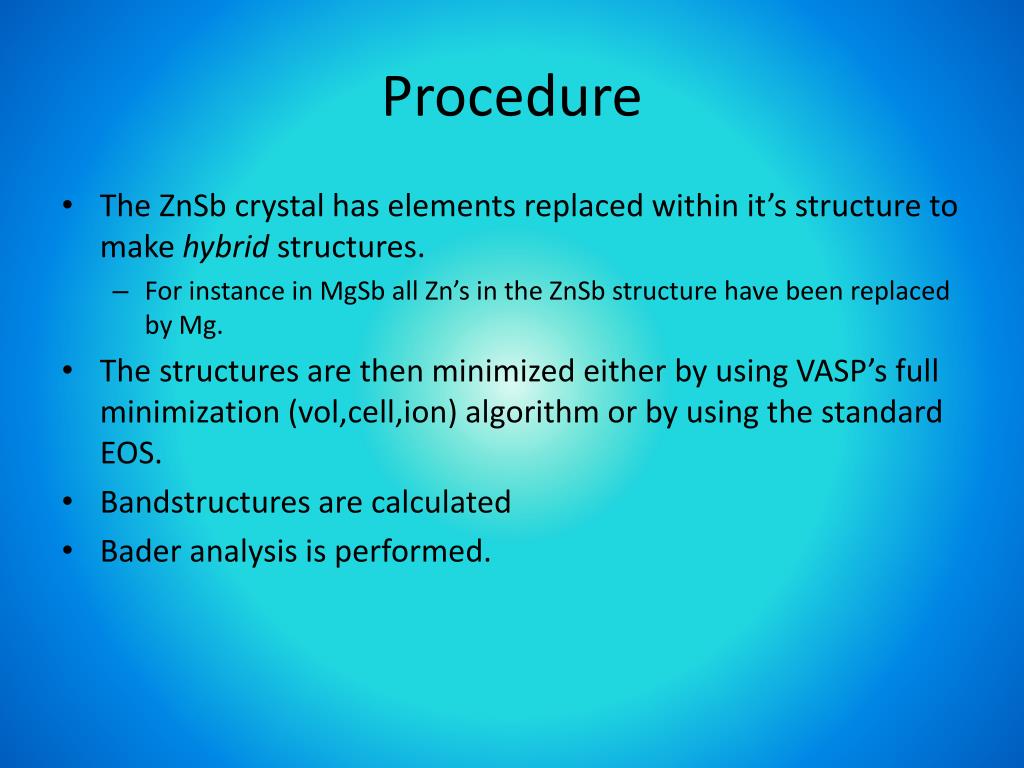

  2. Procedure • The ZnSb crystal has elements replaced within it’s structure to make hybrid structures. • For instance in MgSb all Zn’s in the ZnSb structure have been replaced by Mg. • The structures are then minimized either by using VASP’s full minimization (vol,cell,ion) algorithm or by using the standard EOS. • Bandstructures are calculated • Bader analysis is performed.

  3. ZnSb ACF.dat # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 2.8910 0.8296 7.1852 11.7353 1.1719 18.5852 2 0.2526 6.9946 3.0706 11.7353 1.1719 18.5852 3 3.3962 4.7417 5.1587 11.7353 1.1719 18.5852 4 6.0346 3.0825 1.0441 11.7353 1.1719 18.5852 5 3.3962 6.9946 1.0441 11.7353 1.1719 18.5852 6 6.0346 0.8296 5.1587 11.7353 1.1719 18.5852 7 2.8910 3.0825 3.0706 11.7353 1.1719 18.5852 8 0.2526 4.7417 7.1852 11.7353 1.1719 18.5852 9 0.8900 0.6496 0.9006 5.2645 1.3747 32.0161 10 2.2536 7.1746 5.0153 5.2650 1.3833 32.0181 11 5.3972 4.5617 3.2140 5.2650 1.3833 32.0181 12 4.0336 3.2625 7.3286 5.2645 1.3747 32.0161 13 5.3972 7.1746 7.3286 5.2650 1.3833 32.0181 14 4.0336 0.6496 3.2140 5.2645 1.3747 32.0161 15 0.8900 3.2625 5.0153 5.2645 1.3747 32.0161 16 2.2536 4.5617 0.9006 5.2650 1.3833 32.0181 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 136.0000 Charge Transfer: 0.2645

  4. ZnAs ACF.dat # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 3.1025 4.5260 4.8534 11.5272 1.0976 15.9814 2 5.5241 2.8161 1.0239 11.5272 1.0976 15.9816 3 2.6485 0.8550 6.6352 11.5272 1.0976 15.9816 4 0.2270 6.4871 2.8056 11.5272 1.0976 15.9814 5 2.6485 2.8161 2.8056 11.5272 1.0976 15.9816 6 0.2270 4.5260 6.6352 11.5272 1.0976 15.9814 7 3.1025 6.4871 1.0239 11.5272 1.0976 15.9814 8 5.5241 0.8550 4.8534 11.5272 1.0976 15.9816 9 0.7864 0.5428 0.7776 5.4722 1.1688 24.4421 10 2.0891 6.7993 4.6072 5.4734 1.1816 24.4455 11 4.9647 4.2138 3.0519 5.4734 1.1816 24.4455 12 3.6619 3.1283 6.8814 5.4722 1.1688 24.4421 13 4.9647 6.7993 6.8814 5.4734 1.1816 24.4455 14 3.6619 0.5428 3.0519 5.4722 1.1688 24.4421 15 0.7864 3.1283 4.6072 5.4722 1.1688 24.4421 16 2.0891 4.2138 0.7776 5.4734 1.1816 24.4455 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 136.0000 Charge Transfer: 0.4722

  5. MgSb (ZnSb hybrid) EOS E0 = -49.7934727219105 V0 = 464.743672688069 K0 = 36.0609146374116 K0p = 3.58999025661542 FIT= 3.19655183762E-008

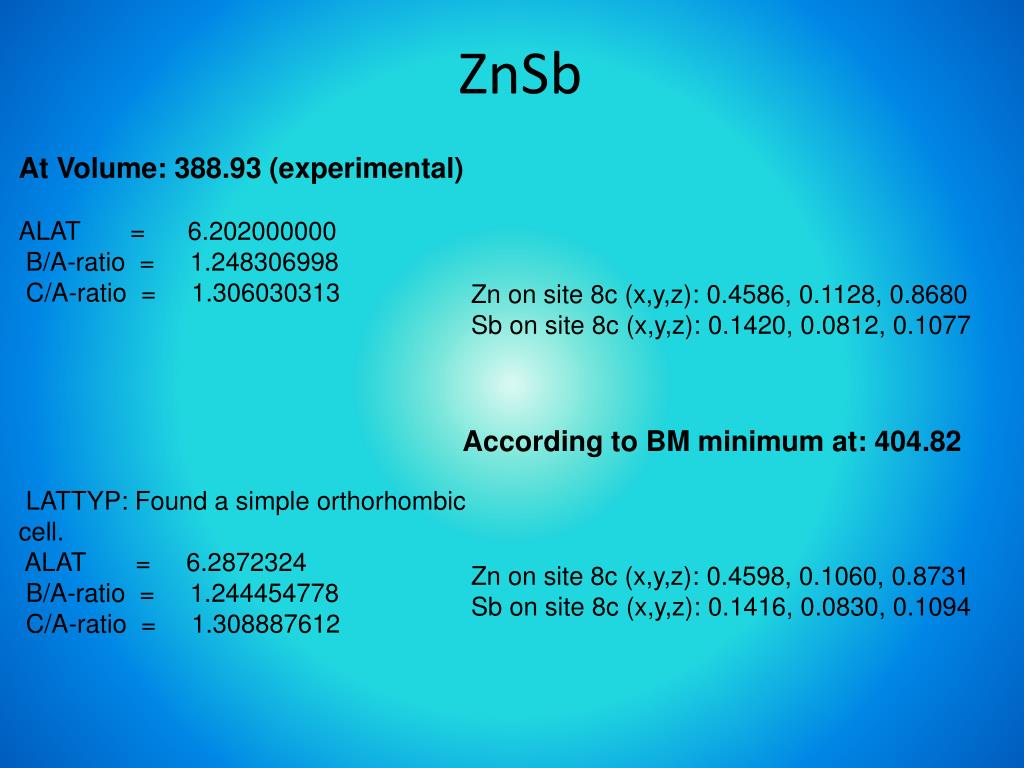

  6. ZnSb At Volume: 388.93 (experimental) ALAT = 6.202000000 B/A-ratio = 1.248306998 C/A-ratio = 1.306030313 Zn on site 8c (x,y,z): 0.4586, 0.1128, 0.8680 Sb on site 8c (x,y,z): 0.1420, 0.0812, 0.1077 LATTYP: Found a simple orthorhombic cell. ALAT = 6.2872324 B/A-ratio = 1.244454778 C/A-ratio = 1.308887612 According to BM minimum at: 404.82 Zn on site 8c (x,y,z): 0.4598, 0.1060, 0.8731 Sb on site 8c (x,y,z): 0.1416, 0.0830, 0.1094

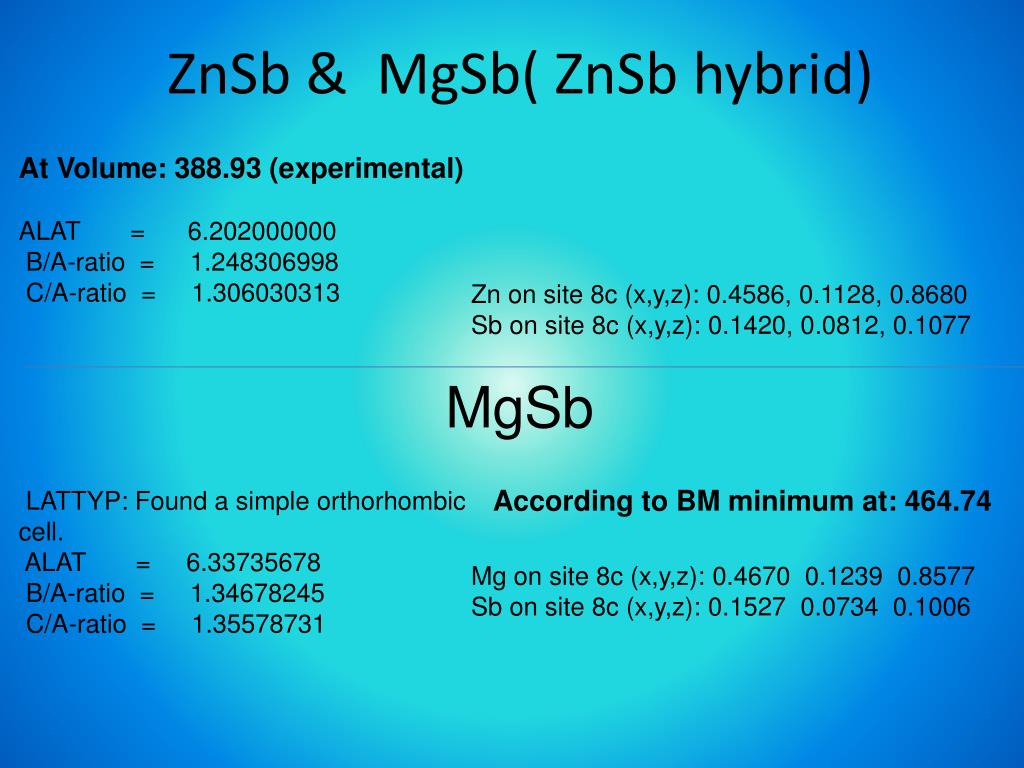

  7. ZnSb & MgSb( ZnSb hybrid) At Volume: 388.93 (experimental) ALAT = 6.202000000 B/A-ratio = 1.248306998 C/A-ratio = 1.306030313 Zn on site 8c (x,y,z): 0.4586, 0.1128, 0.8680 Sb on site 8c (x,y,z): 0.1420, 0.0812, 0.1077 MgSb LATTYP: Found a simple orthorhombic cell. ALAT = 6.33735678 B/A-ratio = 1.34678245 C/A-ratio = 1.35578731 According to BM minimum at: 464.74 Mg on site 8c (x,y,z): 0.4670 0.1239 0.8577 Sb on site 8c (x,y,z): 0.1527 0.0734 0.1006

  8. Bandstructures ZnSb gap: 0.046 eV gap: 0.916 eV

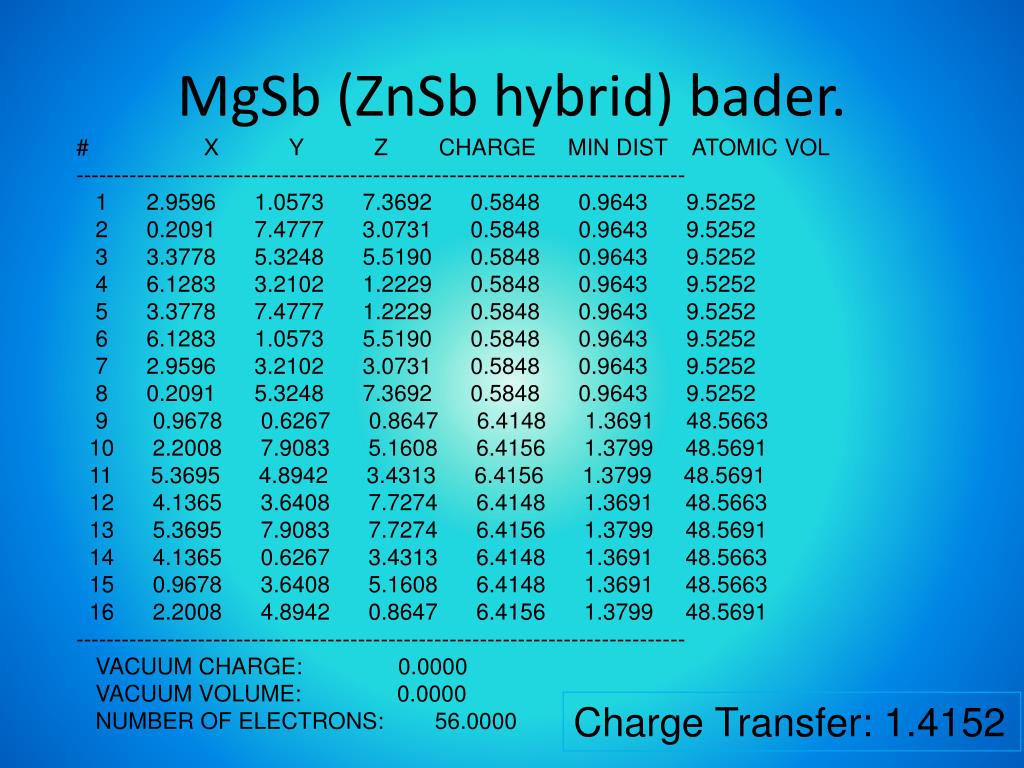

  9. MgSb (ZnSb hybrid) bader. # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 2.9596 1.0573 7.3692 0.5848 0.9643 9.5252 2 0.2091 7.4777 3.0731 0.5848 0.9643 9.5252 3 3.3778 5.3248 5.5190 0.5848 0.9643 9.5252 4 6.1283 3.2102 1.2229 0.5848 0.9643 9.5252 5 3.3778 7.4777 1.2229 0.5848 0.9643 9.5252 6 6.1283 1.0573 5.5190 0.5848 0.9643 9.5252 7 2.9596 3.2102 3.0731 0.5848 0.9643 9.5252 8 0.2091 5.3248 7.3692 0.5848 0.9643 9.5252 9 0.9678 0.6267 0.8647 6.4148 1.3691 48.5663 10 2.2008 7.9083 5.1608 6.4156 1.3799 48.5691 11 5.3695 4.8942 3.4313 6.4156 1.3799 48.5691 12 4.1365 3.6408 7.7274 6.4148 1.3691 48.5663 13 5.3695 7.9083 7.7274 6.4156 1.3799 48.5691 14 4.1365 0.6267 3.4313 6.4148 1.3691 48.5663 15 0.9678 3.6408 5.1608 6.4148 1.3691 48.5663 16 2.2008 4.8942 0.8647 6.4156 1.3799 48.5691 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 56.0000 Charge Transfer: 1.4152

  10. MgAs (ZnAs hybrid) EOS E0 = -56.8213683268219 V0 = 366.183953684789 K0 = 48.5606655201809 K0p = 4.22953877702706 FIT= 1.16168941378E-008

  11. ZnAs At Volume: 312.38 (experimental) ALAT = 5.679000000 B/A-ratio = 1.281387568 C/A-ratio = 1.331044198 Zn on site 8c (x,y,z): 0.53, 0.614, 0.639 As on site 8c (x,y,z): 0.141, 0.076, 0.10 LATTYP: Found a simple orthorhombic cell. ALAT = 5.7510850 B/A-ratio = 1.276639034 C/A-ratio = 1.331760285 According to BM minimum at: 323.403 Zn on site 8c (x,y,z): 0.5395 0.6164 0.6337 As on site 8c (x,y,z): 0.1367 0.0739 0.1015

  12. ZnAs & MgAs (ZnAs hybrid) At Volume: 312.38 (experimental) ALAT = 5.679000000 B/A-ratio = 1.281387568 C/A-ratio = 1.331044198 Zn on site 8c (x,y,z): 0.53, 0.614, 0.639 As on site 8c (x,y,z): 0.141, 0.076, 0.10 MgAs LATTYP: Found a simple orthorhombic cell. ALAT = 5.827109433 B/A-ratio = 1.35933542 C/A-ratio = 1.361485925 According to BM minimum at: 366.18 Zn on site 8c (x,y,z): 0.5320 0.6340 0.6417 As on site 8c (x,y,z): 0.1491 0.0627 0.0962

  13. Bandstructures ZnAs gap: 0.297 eV gap: 1.111 eV

  14. MgAs (ZnAs hybrid) bader. # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 3.1001 5.0220 5.0911 0.5187 0.9490 8.1001 2 5.6406 2.8990 1.1243 0.5187 0.9490 8.1001 3 2.7270 1.0615 6.8092 0.5187 0.9490 8.1001 4 0.1865 6.8595 2.8424 0.5187 0.9490 8.1001 5 2.7270 2.8990 2.8424 0.5187 0.9490 8.1001 6 0.1865 5.0220 6.8092 0.5187 0.9490 8.1001 7 3.1001 6.8595 1.1243 0.5187 0.9490 8.1001 8 5.6406 1.0615 5.0911 0.5187 0.9490 8.1001 9 0.8691 0.4970 0.7632 6.4811 1.2049 37.6724 10 2.0445 7.4240 4.7300 6.4815 1.2123 37.6734 11 4.9580 4.4575 3.2036 6.4815 1.2123 37.6734 12 3.7826 3.4635 7.1703 6.4811 1.2049 37.6724 13 4.9580 7.4240 7.1703 6.4815 1.2123 37.6734 14 3.7826 0.4970 3.2036 6.4811 1.2049 37.6724 15 0.8691 3.4635 4.7300 6.4811 1.2049 37.6724 16 2.0445 4.4575 0.7632 6.4815 1.2123 37.6734 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 56.0000 Charge Transfer: 1.4813

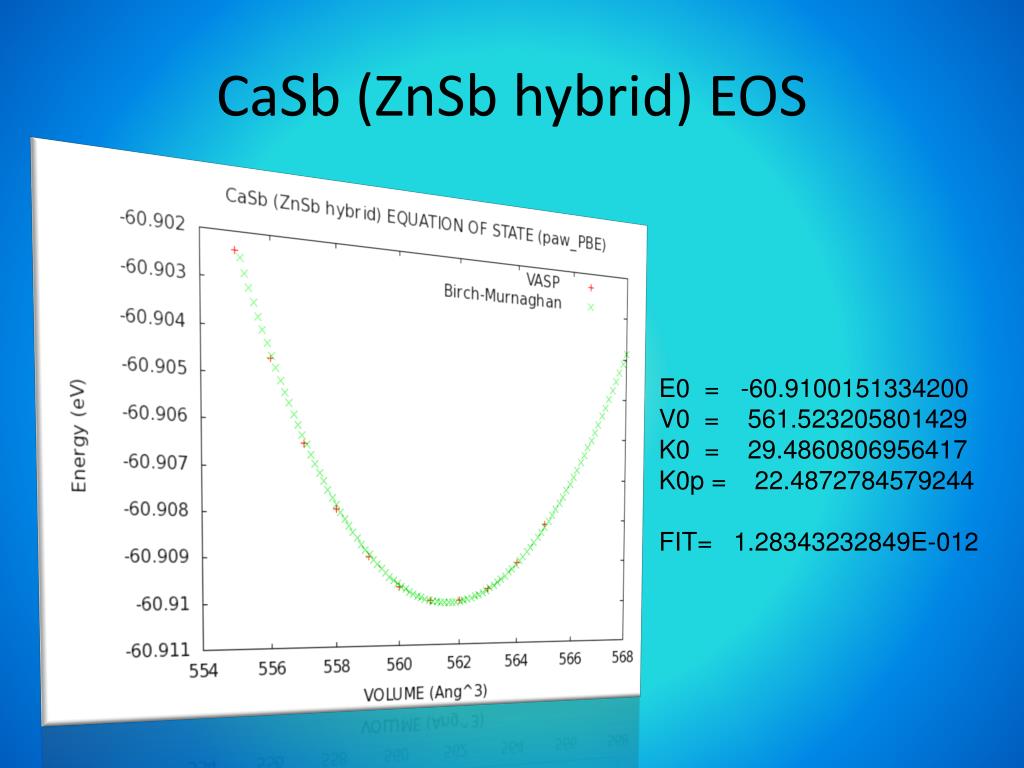

  15. CaSb (ZnSb hybrid) EOS E0 = -60.9100151334200 V0 = 561.523205801429 K0 = 29.4860806956417 K0p = 22.4872784579244 FIT= 1.28343232849E-012

  16. ZnSb & CaSb( ZnSb hybrid) At Volume: 388.93 (experimental) ALAT = 6.202000000 B/A-ratio = 1.248306998 C/A-ratio = 1.306030313 Zn on site 8c (x,y,z): 0.4586, 0.1128, 0.8680 Sb on site 8c (x,y,z): 0.1420, 0.0812, 0.1077 CaSb LATTYP: Found a simple orthorhombic cell. ALAT = 7.18491415 B/A-ratio = 1.26718982 C/A-ratio = 1.19390605 According to VASP minimum at: 561.15 Ca on site 8c (x,y,z): 0.5028 0.1245 0.8088 Sb on site 8c (x,y,z): 0.1657 0.0842 0.0447

  17. Bandstructures ZnSb gap: 0.046 eV gap: 0.686 eV

  18. CaSb (ZnSb hybrid) bader. # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 3.6124 1.1336 6.9382 6.6651 1.2880 17.2560 2 7.1650 7.9711 2.6492 6.6651 1.2880 17.2560 3 3.5725 5.6859 5.9290 6.6651 1.2880 17.2560 4 0.0199 3.4188 1.6399 6.6651 1.2880 17.2560 5 3.5725 7.9711 1.6399 6.6651 1.2880 17.2560 6 0.0199 1.1336 5.9290 6.6651 1.2880 17.2560 7 3.6124 3.4188 2.6492 6.6651 1.2880 17.2560 8 7.1650 5.6859 6.9382 6.6651 1.2880 17.2560 9 1.1908 0.7667 0.3837 6.3348 1.4033 52.8868 10 2.4016 8.3380 4.6728 6.3351 1.4071 52.8878 11 5.9941 5.3190 3.9053 6.3351 1.4071 52.8878 12 4.7833 3.7856 8.1944 6.3348 1.4033 52.8868 13 5.9941 8.3380 8.1944 6.3351 1.4071 52.8878 14 4.7833 0.7667 3.9053 6.3348 1.4033 52.8868 15 1.1908 3.7856 4.6728 6.3348 1.4033 52.8868 16 2.4016 5.3190 0.3837 6.3351 1.4071 52.8878 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 104.0000 Charge Transfer: 1.3349

  19. ZnAs & CaAs (ZnAs hybrid) At Volume: 312.38 (experimental) ALAT = 5.679000000 B/A-ratio = 1.281387568 C/A-ratio = 1.331044198 Zn on site 8c (x,y,z): 0.53, 0.614, 0.639 As on site 8c (x,y,z): 0.141, 0.076, 0.10 CaAs LATTYP: Found a simple orthorhombic cell. ALAT = 6.27525455 B/A-ratio = 1.22661508 C/A-ratio = 1.5172582 According to VASP minimum at: 459.90 Ca on site 8c (x,y,z): 0.5689 0.5770 0.6593 As on site 8c (x,y,z): 0.1300 0.0982 0.0679

  20. Bandstructures ZnAs gap: 0.297 eV gap: 0.640 eV

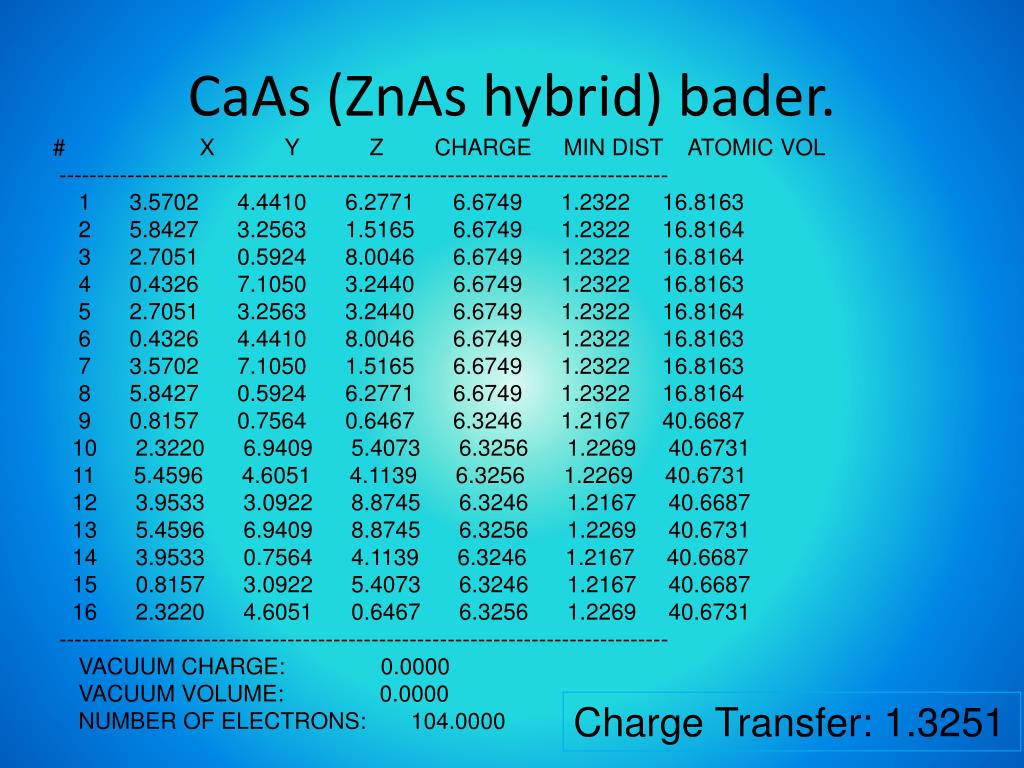

  21. CaAs (ZnAs hybrid) bader. # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 3.5702 4.4410 6.2771 6.6749 1.2322 16.8163 2 5.8427 3.2563 1.5165 6.6749 1.2322 16.8164 3 2.7051 0.5924 8.0046 6.6749 1.2322 16.8164 4 0.4326 7.1050 3.2440 6.6749 1.2322 16.8163 5 2.7051 3.2563 3.2440 6.6749 1.2322 16.8164 6 0.4326 4.4410 8.0046 6.6749 1.2322 16.8163 7 3.5702 7.1050 1.5165 6.6749 1.2322 16.8163 8 5.8427 0.5924 6.2771 6.6749 1.2322 16.8164 9 0.8157 0.7564 0.6467 6.3246 1.2167 40.6687 10 2.3220 6.9409 5.4073 6.3256 1.2269 40.6731 11 5.4596 4.6051 4.1139 6.3256 1.2269 40.6731 12 3.9533 3.0922 8.8745 6.3246 1.2167 40.6687 13 5.4596 6.9409 8.8745 6.3256 1.2269 40.6731 14 3.9533 0.7564 4.1139 6.3246 1.2167 40.6687 15 0.8157 3.0922 5.4073 6.3246 1.2167 40.6687 16 2.3220 4.6051 0.6467 6.3256 1.2269 40.6731 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 104.0000 Charge Transfer: 1.3251
