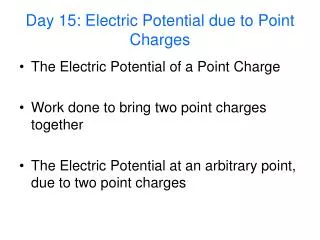

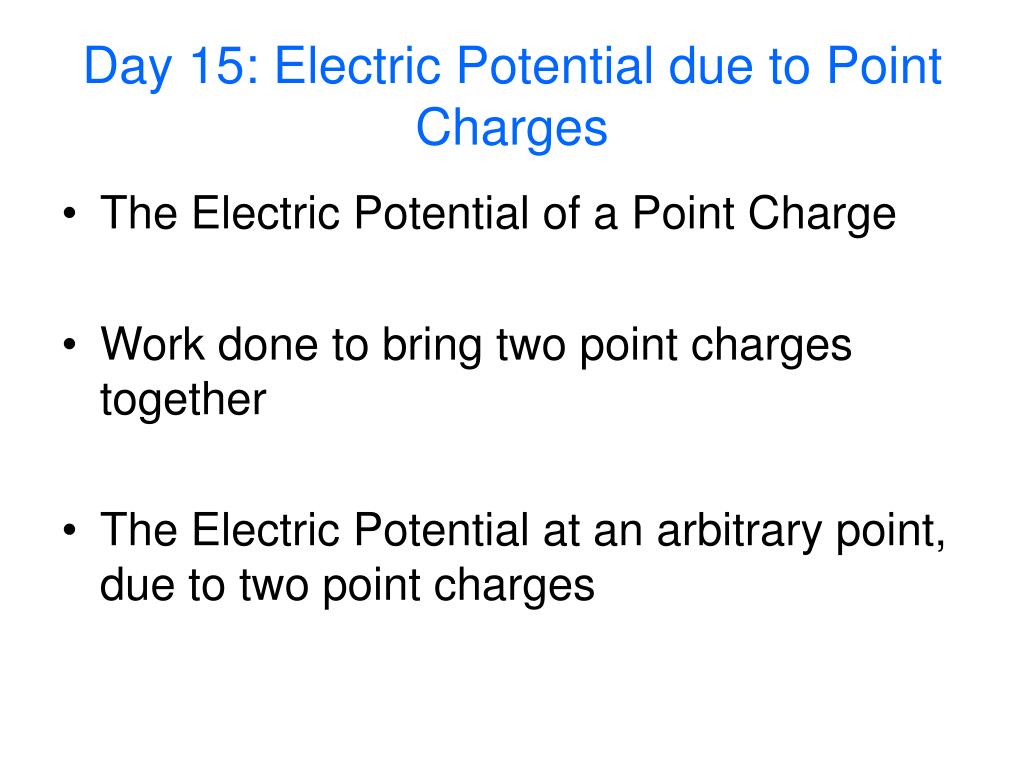

  1. Day 15: Electric Potential due to Point Charges • The Electric Potential of a Point Charge • Work done to bring two point charges together • The Electric Potential at an arbitrary point, due to two point charges

  2. The Electric Potential of a Point Charge • The Electric Field at a distance r away from a point charge Q is: • The Electric Potential difference between points a and b can be derived as:

  3. The Electric Potential of a Point Charge • It is common to choose the potential at ∞ as zero. For rb = ∞, Vb = 0 and:

  4. Work Done to Bring Two Point Charges Together • The work done to bring two point charges together is equivalent to the change in the potential energy of the two charges +Q q rb ra = ∞ • If ra = ∞, then:

  5. Electric Potential at an Arbitrary Point due to Two Point Charges • To find the electric potential due to two point charges, simply take the sum of the potentials, at that point, due to each charge. r1 P +Q1r2 Q2 • Note – these arenot vector quantities !
