Presentation Transcript
Electronic utility plan mark up workflow and data exchange l.jpg

ELECTRONIC UTILITY PLAN MARK-UP: WORKFLOW AND DATA EXCHANGE

Presented to:

Florida Local Users Group

by:

Michael Melendez, P.E.

June 1, 2005


Slide2 l.jpg
GOAL: EXCHANGE

To improve the accuracy and efficiency of preliminary utility location by employing common CADD software and utility-specific tools to create electronic plan mark-ups.


Traditional process l.jpg

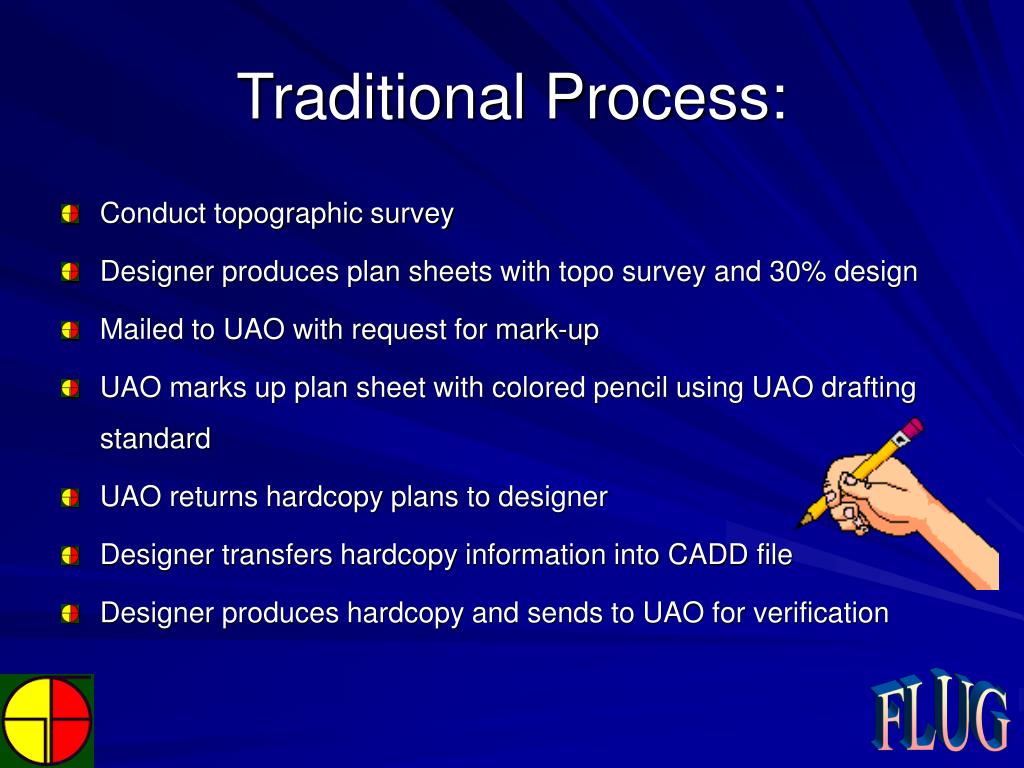

Traditional Process: EXCHANGE

  • Conduct topographic survey

  • Designer produces plan sheets with topo survey and 30% design

  • Mailed to UAO with request for mark-up

  • UAO marks up plan sheet with colored pencil using UAO drafting standard

  • UAO returns hardcopy plans to designer

  • Designer transfers hardcopy information into CADD file

  • Designer produces hardcopy and sends to UAO for verification


Electronic process l.jpg

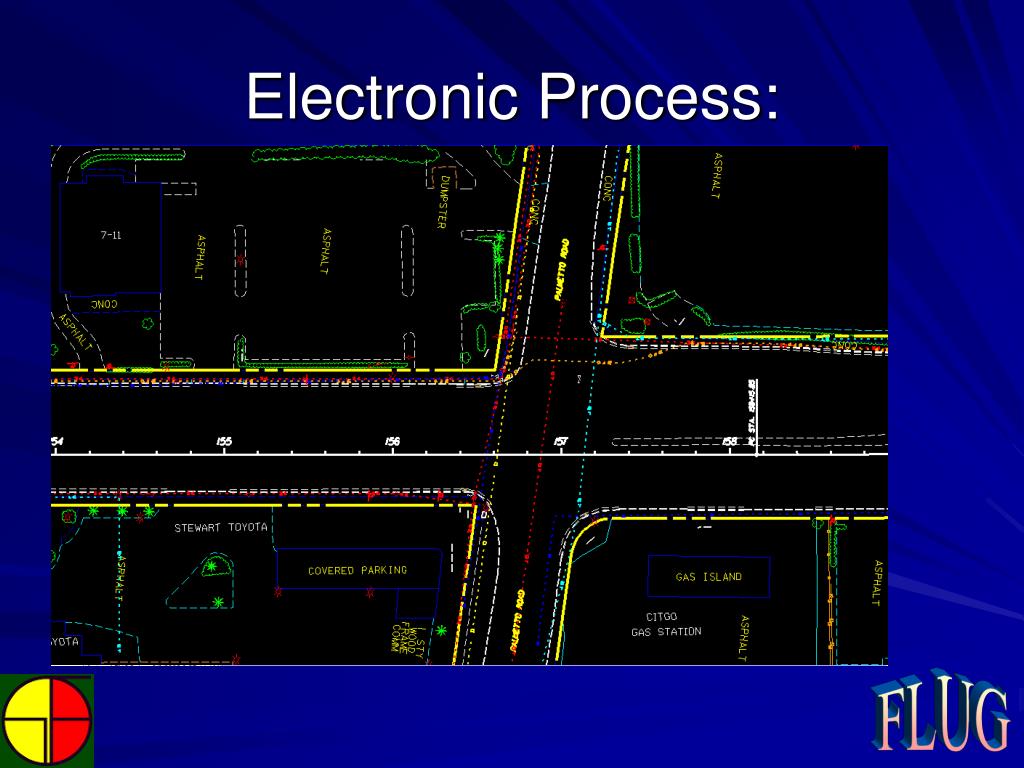

Electronic Process: EXCHANGE

  • Notify UAO’s of upcoming project

  • Conduct topographic survey

  • Designer transmits survey & blank mark-up file to UAO

    • MicroStation (DGN) Format, unless previously coordinated

  • UAO’s conduct mark-up with CADD and FDOT Utility Tools

  • UAO returns mark-up file to designer (topo survey excluded)

  • Designer compiles UAO mark-ups to produce plan sheets

  • Designer transmits PDF to UAO via email for verification


  • Benefits l.jpg
    Benefits: EXCHANGE

    • Time Savings (reduction in request/response)

    • Encourages Standardization of Plan Mark-up

    • Allows Historical Archiving for Wide-Scale Use

    • Improved Accuracy and Clarity of Plan Submittal

    • Eliminates Need for Hardcopy Retention

    • Format Promotes Internal/External Use

    • Reduced Paper Consumption (Save the Trees!)

    • Reduced liability


    Phase i phase ii phase iii phase iv l.jpg

    Workflow: EXCHANGE

    Phase IPhase IIPhase IIIPhase IV

    Designer

    FDOT Utilities

    UAO

    • Hardcopy Plans

    • CADD Files (survey, blank mark-up files)

    Mark-up /Review /Return to FDOT

    SubmitPhase Plans

    Contact UAOandTransmit

    Package May Consist of….


    Standardization l.jpg

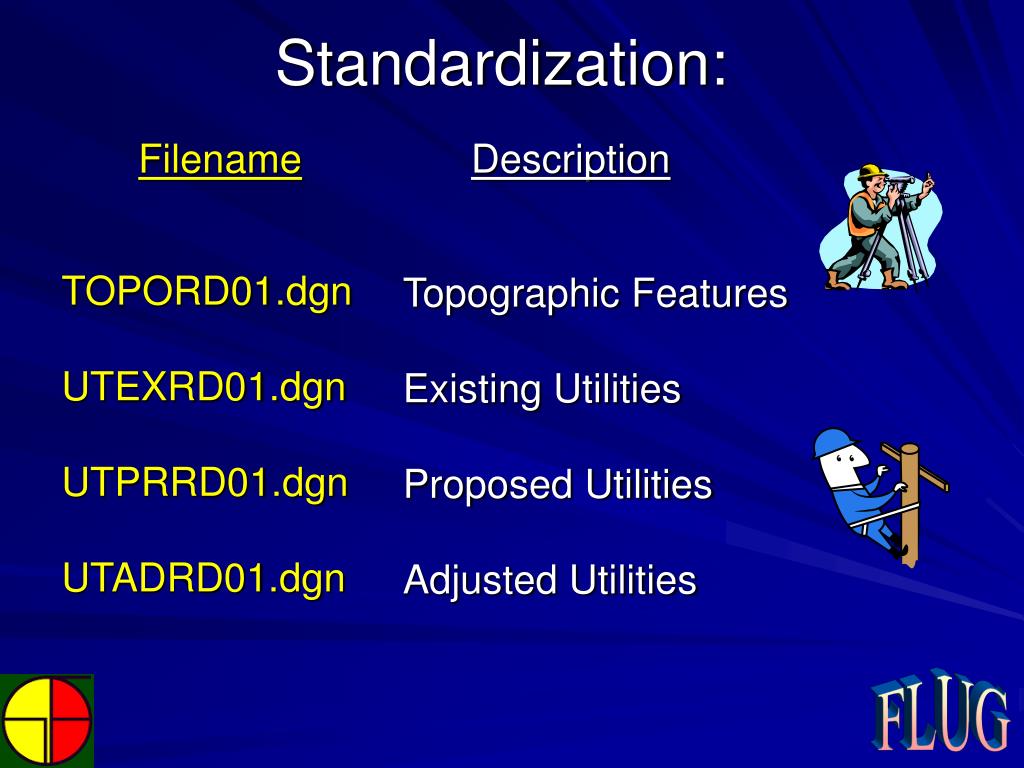

    Standardization: EXCHANGE

    Filename

    Description

    TOPORD01.dgnUTEXRD01.dgnUTPRRD01.dgnUTADRD01.dgn

    Topographic FeaturesExisting UtilitiesProposed UtilitiesAdjusted Utilities


    Standardization8 l.jpg
    Standardization: EXCHANGE

    Underground TelephoneBuried Telephone

    Cable is placed in conduit which is buried or boredCable is placed directly into open trench and buried.

    What is the difference?How can you tell on the plans?


    Use and feedback l.jpg
    Use and Feedback: EXCHANGE

    Use and feedback are necessary at this early stage in the process to achieve meaningful results.

    • Unification of ASCE Quality Standards

    • Symbology Standardization

    • Tool Development


    Resources l.jpg
    Resources: EXCHANGE

    • FDOT CADD Manual

    • FDOT CADD Criteria Handbook

    • ASCE Utility Document (39-02)

    • UAO Standards

    • Workshop Handout


    Data import alternatives l.jpg
    Data Import Alternatives: EXCHANGE

    FDOT Approved Formats

    • Graphic Files

    • ASCII Input Files


    Data import alternatives12 l.jpg
    Data Import Alternatives: EXCHANGE

    Graphic Files

    References = UAO Files

    Merge Into Master

    Master = Blank DGN


    Data import alternatives13 l.jpg
    Data Import Alternatives: EXCHANGE

    ASCII Input Files

    Naming Convention: utilex**.inp or utilpr**.inp

    Station/Offset (format)

    LOC 100 ON CHA BLSR5 STA 20+00 OFF -7.5 EL 10.2 GAS100

    Northing/Easting (format)

    S 100 N 429860.963 E 127442.321 EL 2.5100 $ GAS100


    Element tagging ad hoc l.jpg
    Element Tagging (Ad-Hoc): EXCHANGE

    What is Ad-Hoc Tagging?

    Assigning (tagging) extraneous information to CADD elements that is not typically visible to the user.


    Element tagging ad hoc15 l.jpg
    Element Tagging (Ad-Hoc): EXCHANGE

    Why use Ad-Hoc Tagging for Utilities?

    • Inventory and asset management

    • Geographic Information Systems (GIS)

    • Labeling


    Element tagging ad hoc16 l.jpg

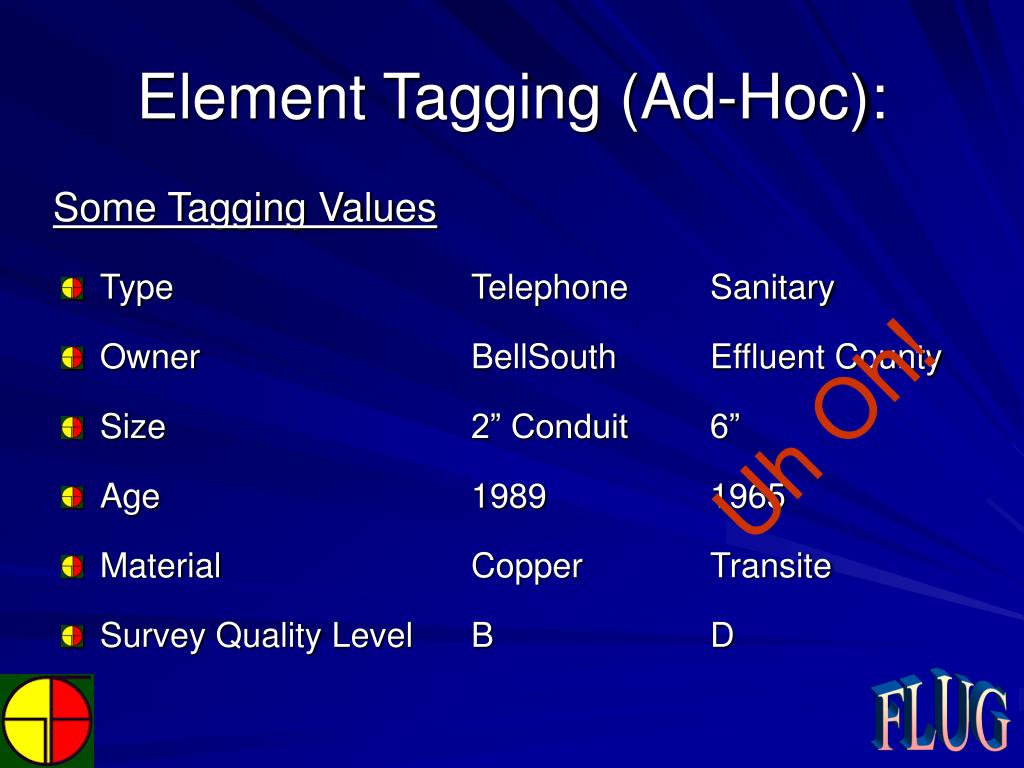

    Element Tagging (Ad-Hoc): EXCHANGE

    Some Tagging Values

    • Type

    • Owner

    • Size

    • Age

    • Material

    • Survey Quality Level

    Telephone

    BellSouth

    2” Conduit

    1989

    Copper

    B

    Sanitary

    Effluent County

    6”

    1965

    Transite

    D

    Uh Oh!


    Element tagging ad hoc17 l.jpg
    Element Tagging (Ad-Hoc): EXCHANGE

    How to tag Ad-Hoc’s

    Currently…

    • ACAD – pending development (VBA?)

    • MicroStation w/ Civil Extension – SiteMenu VBA

    • MicroStation w/ Geopak – Ad Attribute Manager or SiteMenu VBA

      Future…

    • SiteMenu VBA Tool


    Element tagging ad hoc18 l.jpg

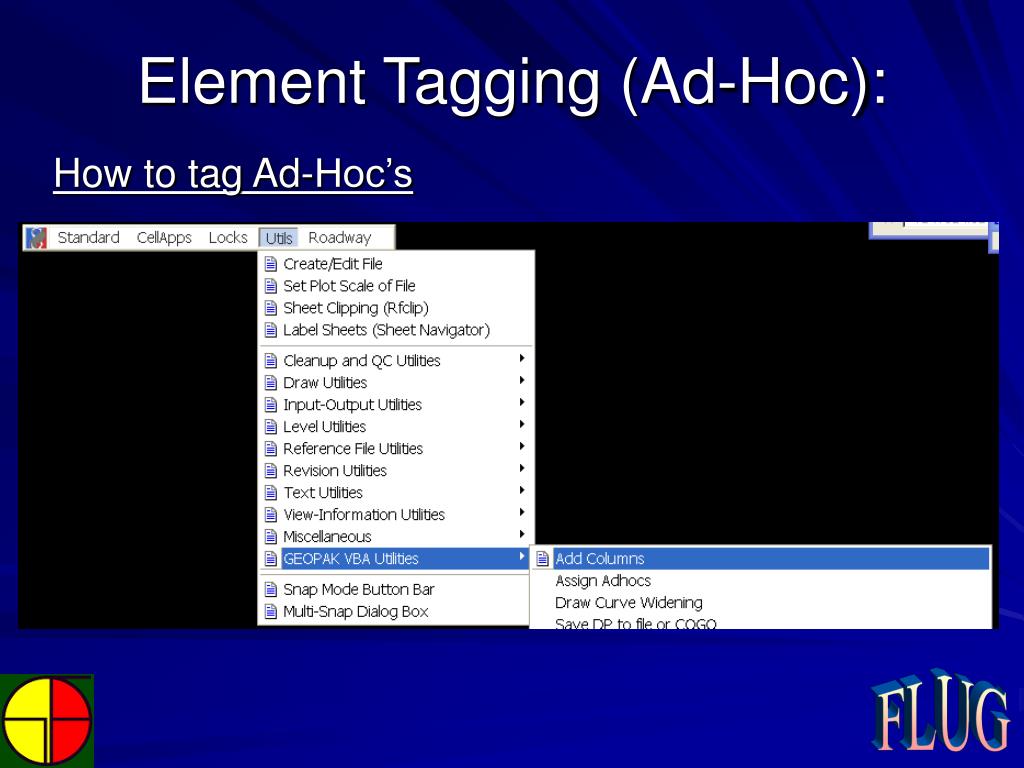

    Element Tagging (Ad-Hoc): EXCHANGE

    How to tag Ad-Hoc’s


    Element tagging ad hoc19 l.jpg
    Element Tagging (Ad-Hoc): EXCHANGE

    Labeling tagged element with Ad-Hoc

    Currently…

    • ACAD – n/a for FDOT process

    • MicroStation w/ Civil Extension – Plan View Labeler

    • MicroStation w/ Geopak – Ad Attribute Manager or SiteMenu VBA

      Future…

    • SiteMenu VBA Tool


    Element tagging ad hoc20 l.jpg
    Element Tagging (Ad-Hoc): EXCHANGE

    Labeling tagged element with Ad-Hoc

    Extract w/ AdHoc Attribute Manager (Geopak Menu)

    Place w/ Plan View Labeler (Geopak Menu)


    Information integration l.jpg

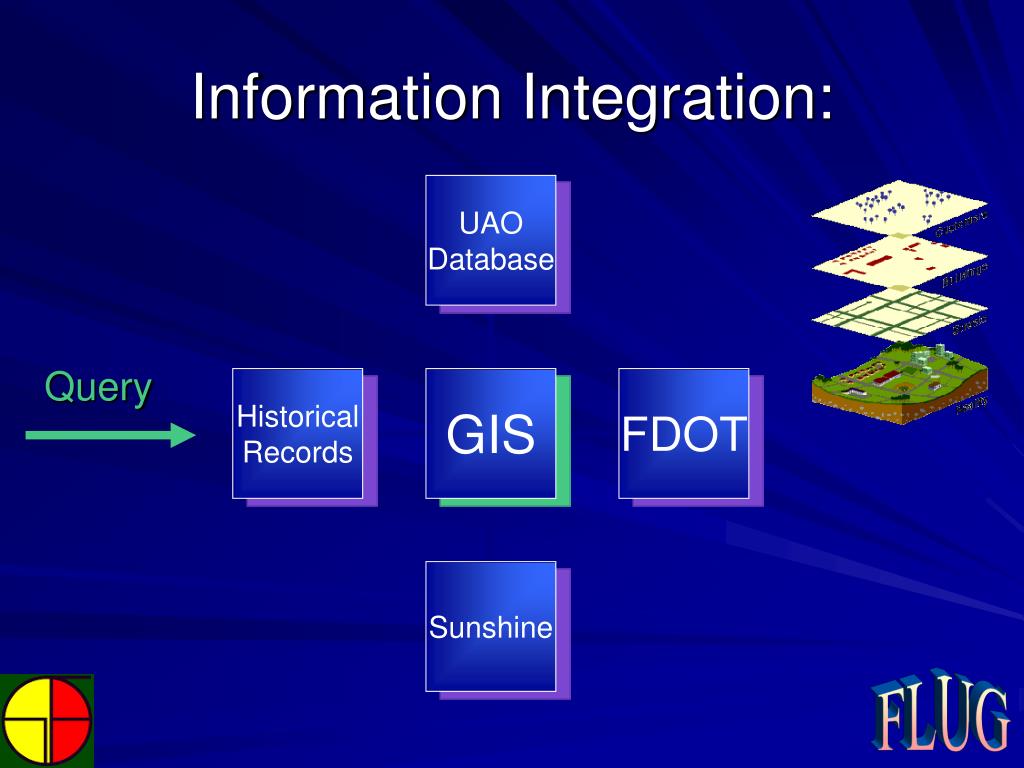

    Information Integration: EXCHANGE

    Query


    Cadd platform options l.jpg
    CADD Platform Options: EXCHANGE

    FDOT Utility Tools function with:

    • AutoCAD

    • Bentley MicroStation

    • Bentley PowerDraft (MicroStation Lite)

      • $1205 + $295/yr (upgrades and support)

      • $1295 (one time cost w/out upgrades)


    Slide23 l.jpg

    DEMO EXCHANGE


    Slide24 l.jpg

    ELECTRONIC UTILITY PLAN MARK-UP: WORKFLOW AND DATA EXCHANGE

    Thank You!

    Primary Contact:

    Michael Melendez, P.E.

    (954) 492-9921

    [email protected]

    QUESTIONS?
