Intersection 13

Electrochemistry


Outline l.jpg

Outline

  • Ed’s Demos: hydrolysis of water, oxidation states of V, potato clock, Zn/Cu electrochemical cell

  • Electrochemistry

    • Balancing redox equations

    • Electrochemical cells and Standard Hydrogen Electrodes

    • Nernst

    • Quantifying current


Ed s demos l.jpg

Ed’s Demos


Oxidation states of vanadium reduction of v 5 to v 2 l.jpg

Oxidation States of Vanadium: Reduction of V5+ to V+2

  • Reaction 1

    • Zn (s) + 2 VO3- (aq) + 8 H3O+ (aq) ↔ 2 VO2+ (aq) + Zn+2 (aq) + 12 H2O (l)

  • Reaction 2

    • Zn (s) + 2 VO2+ (aq) + 8 H3O+ (aq) ↔ 2 V3+ (aq) + Zn+2 (aq) + 6 H2O (l)

  • Reaction 3

    • Zn (s) + 2 V3+ (aq) ↔ 2 V2+ + Zn+2 (aq)

V+5 (aq) → V+4 (aq)yellow to green

V+4 (aq) → V+3 (aq)green to blue

V+3 (aq) → V+2 (aq)blue to violet


Oxidation states of manganese mn 7 mn 6 mn 4 and mn 2 l.jpg

Oxidation States of Manganese: Mn+7, Mn+6, Mn+4, and Mn+2

  • +7 (purple) to +2 (colorless)

    • 2 MnO4- (aq) + H+ (aq) + 5 HSO3- (aq) ↔ 2 Mn+2 (aq) + 5 SO4-2 (aq) + 3 H2O(l)

  • + 7 (purple) to +4 (brown)

    • OH- + 2 MnO4- (aq) + 3 HSO3- (aq) ↔ 2 MnO2 (s) + 3 SO4-2 (aq) + 2 H2O(l)

  • + 7 (purple) to + 6 (green)

    • 2 MnO4- (aq) + 3 OH- + HSO3- (aq) ↔ 2 MnO4-2(aq) + SO4-2 (aq) + 2 H2O(l)


Electrolysis l.jpg

Electrolysis

The process of using electrical current to drive a redox reaction that is not spontaneous. Balance the reaction in acid.

At the anode (where oxidation occurs):

H2O (l) → O2 (g)

At the cathode (where reduction occurs):

H3O+ (aq) → 2 H2 (g)

Overall reaction:


Slide7 l.jpg

Overall reaction: 2 H2O (l) → 2 H2(g) + O2 (g)

Overall reaction: 2 H2O (l) → 2 H2(g) + O2 (g)

p.951


Standard reduction potentials l.jpg

Standard Reduction Potentials

What is the standard potential for the electrolysis of water?


Slide9 l.jpg

Electrolysis Reactions

How many coulombs of charge are required to electrolyze 1 mol of water?

Note that 6 water are consumed at the anode, but 4 are produced at the cathode.

At the anode (where oxidation occurs): 6 H2O (l) → O2 (g) + 4 H3O+ (aq) + 4e-

At the cathode (where reduction occurs): 4 H3O+ (aq) + 4 e-→ 2 H2 (g) + 4 H2O (l)

The net amount of water consumed per every 4 electrons is 2 molecules.

= 190000 C


Slide10 l.jpg

Electrolysis Reactions

A power supply puts out a maximum current of 10 amps. How long will it take to

electrolyze 18 g (1 mole) water?

= 5.4 hours


Electrolysis11 l.jpg

Electrolysis

What similarities do you find between voltaic cells and electrolysis?

What differences?

Overvoltage: However, the potential that must be applied to electrolysis cell is always greater than that calculated from standard reduction potentials.  This excess potential is called an overvoltage. This additional voltage is needed to overcome limitations in electron transfer rate at the interface between electrode and solution.


Balancing redox reactions l.jpg

Balancing Redox Reactions

When KMnO4 (potassium permanganate) is mixed with Na2C2O4 (sodium oxalate) under acidic conditions, Mn+2(aq) ions and CO2(g) form.

The unbalanced chemical equation is:

KMnO4(aq) + Na2C2O4(aq) Mn+2(aq) + CO2(g) + K+(aq) + Na+(aq)

K+ and Na+ are spectator ions, so we can ignore them at this point.

MnO4- (aq) + C2O4-2(aq) Mn+2(aq) + CO2(g)


Half reactions l.jpg

Half-Reactions

MnO4- (aq) + C2O4-2(aq) Mn+2(aq) + CO2(g)

  • Reduction reaction

  • Oxidation reaction


Reduction reaction l.jpg

Reduction reaction

MnO4- Mn+2

Step 1: Balance all elements other than oxygen and hydrogen.

Step 2: Balance the oxygens by adding water.

Step 3: Balance the hydrogens using H+

Step 4: Balance the electrons

Mn+7 on reactants side

Mn+2 on products side

Step 5: Check charge balance and elemental balance


Oxidation reaction l.jpg

Oxidation reaction

C2O4-2 CO2


Combine half reactions l.jpg

Combine Half Reactions

5 e- + 8H+ + MnO4- Mn+2 + 4 H2O

C2O4-2 2 CO2 + 2e-

Under acidic conditions!


Balancing in base l.jpg

Balancing in Base

5 e- + 8H+ + MnO4- Mn+2 + 4 H2O

C2O4-2 2 CO2 + 2e-

Change H+ to water by adding OH- to each side


Definitions l.jpg

Definitions

  • Voltaic cell (battery): An electrochemical cell or group of cells in which a product-favored redox reaction is used to produce an electric current.

  • Electrochemical cell: A combination of anode, cathode, and other materials arranged so that a product-favored redox reaction can cause a current to flow or an electric current can cause a reactant-favored redox reaction to occur

  • Galvanic cell: A cell in which an irreversible chemical reaction produces electrical current

  • Electrolytic cell: electrochemical reactions are produced by applying electrical energy


A copper zinc battery what matters l.jpg

Cu+2 + 2e- → Cu(s)0.3419 V

Zn(s) → Zn+2 + 2e-0.7618 V

A Copper-Zinc battery – What Matters?

Consider reduction potentials:

Cu+2 + 2e-→ Cu(s)0.3419 V

Zn+2 + 2e-→ Zn(s)-0.7618 V

Place Zn electrode in copper sulfate solution – What happens?

Copper is plated on Zn electrode

E > 0, spontaneous

Cu+2 + Zn(s) → Zn+2 + Cu(s)1.1 V

Note, no need for electron to flow external to cell for reaction to occur!!


A copper zinc battery what matters23 l.jpg

Cu(s) → Cu+2+ 2e--0.3419 V

Zn+2 + 2e- → Zn(s)-0.7618 V

A Copper-Zinc battery – What Matters?

Consider reduction potentials:

Cu+2 + 2e- → Cu(s)0.3419 V

Zn+2 + 2e- → Zn(s)-0.7618 V

Place Cu electrode in zinc sulfate solution – What happens?

Zn doesn’t plate on copper electrode?!

E < 0, not spontaneous

Zn+2 + Cu(s) → Cu+2 + Zn(s)-1.1 V

No reaction occurs !!


Slide24 l.jpg

Fig. 19-3, p.918


Slide25 l.jpg

What are the ½ reactions?

What is the overall reaction?

Identify the oxidation, reduction, anode, and cathode


Slide26 l.jpg

SHE: Standard Hydrogen Electrode

2 H3O+(aq, 1.00 M) + 2e- <->

H2(g, 1 atm) +2H2O(l)

Eo = 0V

Standard conditions:

1M, 1atm, 25oC

Fig. 19-7, p.922


Measuring relative potentials l.jpg

Measuring Relative Potentials

Table of Standard

Reduction Potentials


Standard reduction potentials28 l.jpg

Standard Reduction Potentials

What is the standard potential of a Au+3/Au/Mg+2/Mg cell?


Slide29 l.jpg

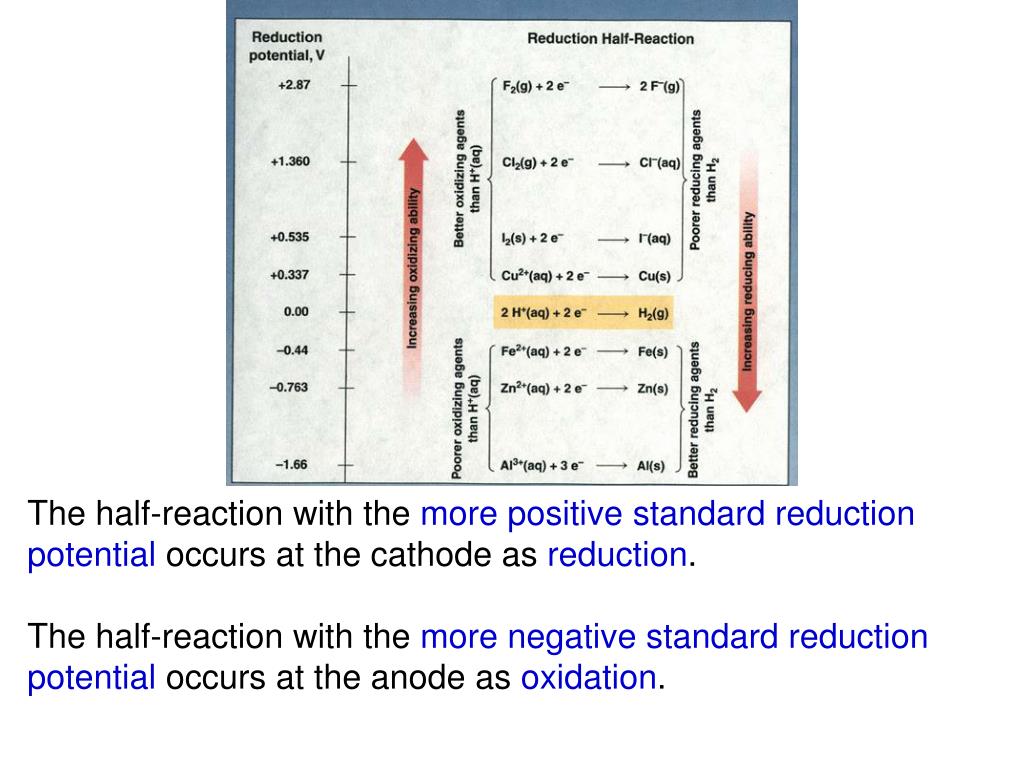

The half-reaction with the more positive standard reduction potential occurs at the cathode as reduction.

The half-reaction with the more negative standard reduction potential occurs at the anode as oxidation.


Slide31 l.jpg

Nernst

Picture from: www.corrosion-doctors.org/ Biographies/images/


Is potential always the same l.jpg

Is potential always the same?

Standard conditions: 1 atm, 25oC, 1 M

What will influence the potential of a cell?


Mathematical relationships nernst l.jpg

Mathematical Relationships: Nernst

The Nernst Equation:

Eo = standard potential of the cell

R = Universal gas constant = 8.3145 J/mol*K

T = temperature in Kelvin

n = number of electrons transferred

F = Faraday’s constant = 96,483.4 C/mol

Q = reaction quotient (concentration of anode divided by the concentration of the cathode)

E = Eo - RT ln Q

nF

Cu+2 + Zn(s) → Zn+2 + Cu(s) Q =


Applying the nernst equation l.jpg

Applying the Nernst Equation

Cu+2 + Zn(s) → Zn+2 + Cu(s)

This cell is operating at 25oC with 1.00x10-5M Zn2+ and 0.100M Cu2+?

Predict if the voltage will be higher or lower than the standard potential

E = Eo - RT ln Q

nF


Cu 2 zn s zn 2 cu s l.jpg

Cu+2 + Zn(s) → Zn+2 + Cu(s)

E = Eo - RT ln Q

nF

Zn+2 + 2e- -> Zn -0.76 V

Cu+2 + 2e- -> Cu 0.34 V

Eo = standard potential of the cell

R = Universal gas constant = 8.3145 J/mol*K

T = temperature in Kelvin

n = number of electrons transferred

F = Faraday’s constant = 96,483.4 C/mol

Q = reaction quotient (concentration of anode divided by the concentration of the cathode)

25oC + 273 = K

n =

Q = [Zn+2]/[Cu+2]

1.00x10-5M Zn2+ and 0.100M Cu2


Were your predictions correct l.jpg

Were your predictions correct?


Slide38 l.jpg

Ampere

Picture from: musee-ampere.univ-lyon1.fr/


The units of electrochemistry l.jpg

The Units of Electrochemistry

  • Coulomb

    • 1 coulomb equals 2.998 x 109 electrostatic units (eu)

    • eu is amount of charge needed to repel an identical charge 1 cm away with unit force

    • Charge on one electron is -1.602 x 10-19 coulomb

Problem:An aluminum ion has a +3 charge.

What is this value in coulombs?

magnitude of charge is same at that of e-, opposite sign

3 x 1.602 x10-19 = 4.806 x 10-19 coulomb

Key Point: electrons or ions charges can be measured in coloumbs


The units of electrochemistry40 l.jpg

The Units of Electrochemistry

  • Ampere

    • Amount of current flowing when 1 coulomb passes a given point in 1 second

    • Units of Amperes are Coulombs per second

    • Current (I) x time (C/s x s) gives an amount of charge.

Problem:How much current is flowing in a wire in which 5.0 x 1016 electrons are flowing per second?

The charge transferred each second

= (5.0 x 1016 electrons/sec) x (1.602 x 10-19 coulomb/electron)

= 8.0 x 10-3 coulombs/sec = amps


The units of electrochemistry41 l.jpg

The Units of Electrochemistry

  • Ampere

    • Amount of current flowing when 1 coulomb passes a given point in 1 second

    • Units of Amperes are Coulombs per second

    • Current (I) x time (C/s x s) gives an amount of charge.

    • We can express electron or ION flow in amps!

Problem:If 1 mol Al+3 ions passes a given point in one hour, what is the current flow?

1 hour = 3600 seconds; Al+3 charge is 4.806 x 10-19 coulomb

= 80 C/s

= 80 A

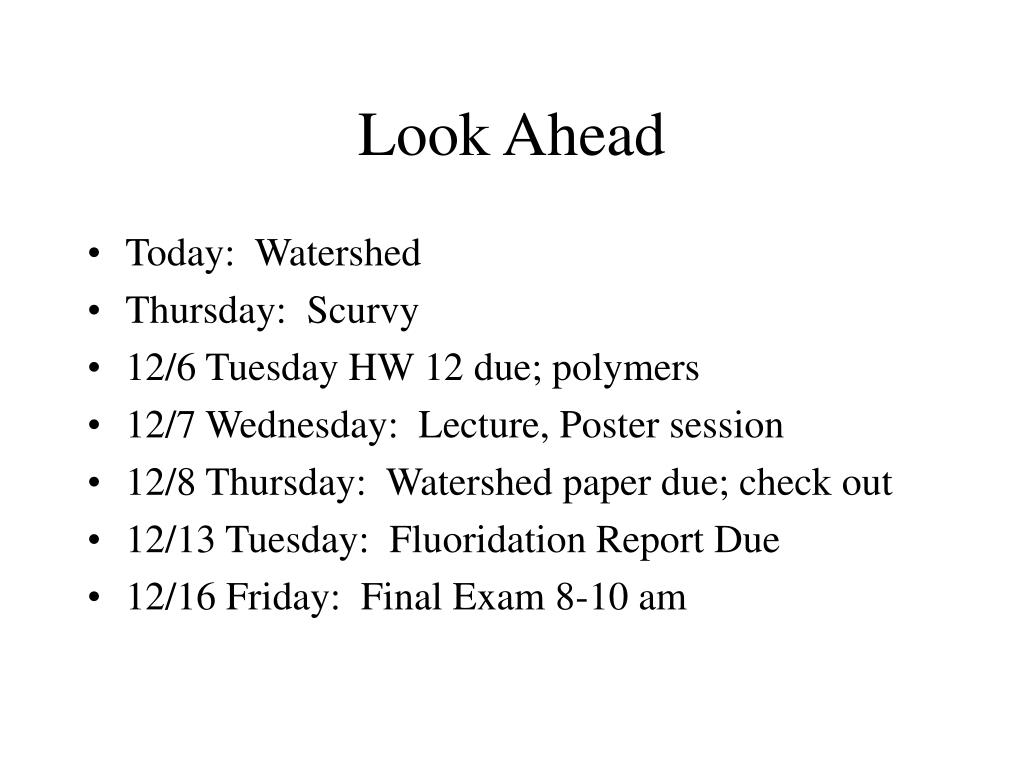

Look ahead l.jpg

Look Ahead

  • Today: Watershed

  • Thursday: Scurvy

  • 12/6 Tuesday HW 12 due; polymers

  • 12/7 Wednesday: Lecture, Poster session

  • 12/8 Thursday: Watershed paper due; check out

  • 12/13 Tuesday: Fluoridation Report Due

  • 12/16 Friday: Final Exam 8-10 am


Exam 3 l.jpg

Exam 3

Range: 16.4-41.7

Mean: 31.6

Median: 33
