  1. OTM 1000

  2. OTM 1000 Advanced Waveform Monitor and Signal Generator Industry standard half-width 3RU enclosure High resolution 1024 x 768 LCD display 3Gb/s, Dual-Link, HD & SD

  3. OTM 1000 • High quality picture monitor • Comprehensive input status • High resolution waveform & vectorscope displays • Advanced Colour Analysis: real-time CIE colour chart, histograms, gamut

  4. Dual Simultaneous monitoring Two inputs of different video standards can be monitored at the same time

  5. Video Formats • Standard Definition SDI - 625 & 525 • High Definition SDI • Dual-link - RGB, XYZ 4:4:4, 12 bit 2K • 3G SDI - Level A and B - inc RGB, XYZ 4:4:4, 12 bit 2K

  6. 3Gb/s, Dual-Link, HD & SD Eye & Jitter option Peak to peak UI meter Amplitude and overshoot Jitter Histogram Automatic rise and fall time measurements

  7. Jitter measurement • SMPTE spec high-pass filters • 10 Hz (timing) • 100 Hz • 1kHz (SD alignment) • 10 kHz • 100 kHz (HD, 3G alignment) • Jitter waveform: frame, field, double line, line • Jitter meter

  8. CIE Color Chart Unique colour monitoring Different Gamuts Ideal for Camera alignment Compare Gamut of source material with display device

  9. Status display Error highlighted in RED Timecode reader Input preview with format info

  10. SNMP & Alarms • Ideal for automated production testing • Complete system control and monitoring via SNMP • With integrated GEN provides complete production solution.

  11. Event logging • Comprehensive error detection and logging • All Video, Audio and Metadata is monitored • Time stamped with time code and time of day • XML event log report

  12. Event logging Time code stamp Session type Event description

  13. Data View • Individual pixel values • Colour-coded display for different data types • Auto decode of ANC and TRS data • Custom ANC definition

  14. Pixel # Line # Data View Active Picture data TRS data ANC data

  15. Picture Monitor • High resolution on VGA output • Zoom view • Region of interest • Pulse cross • Cage and on screen cursors • Raster Video File view • Time code • Subtitles and CC

  16. Picture Monitor – Raster Video Field 1 Ancillary Data Field 2

  17. Picture Monitor – Region Of Interest Region Of Interest selected using H and V controls Applies to CIE, WFM Vector & Histo

  18. Picture Monitor – Zoom View Unique Zoom View Ideal for DCI and color grading

  19. High Quality Waveforms • Full 12-bit resolution with V-mag • 1024 x 1024 resolution waveforms • XYZ, RGB, YUV, Psuedo Comp - color space • Line mode – easy to select line using H knob • Split view – perfect for color-grading • Waveform zoom

  20. High Quality Waveforms

  21. Waveforms continued Line Mode with line select H Mag: x1, x2, x5 & x10

  22. Histograms

  23. Histograms with overlay RGB histogram overlay

  24. Gamut View

  25. Audio options • In-built speaker for easy audio monitoring • Stereo jack for headphones • Loudness monitoring (ITU-R BS.1770) • Surround-sound lissajous • Dolby-E and Dolby-D metadata and decode • A/V timing for PPM and Dolby • AES option

  26. Surround Sound display Centre of loudness Decode pair

  27. 16-Channel Embedded PPMs Stereo pair decode Phase meters

  28. Single Lissajous

  29. Surround Sound Lissajous

  30. Generator • Basic Generator option provides: • Colour Bars • Pathalogical • Black • Audio Tone

  31. Generator option

  32. Generator option continued • Generator option provides: • Industry standard test patterns • Programmable Zone plates • Still image play-out from different file formats • Audio tone generator • User selectable levels of gain, noise and bounce • Plus several metadata functions

  33. Generator option

  34. Gen and Cap Motion options • Freeze – SDI input and capture is standard • Gen Motion – play-out of uncompressed full motion video sequences from RAM. • Gen Advanced – create and edit video frames comprising full raster with H & V blanking. • Cap Motion – capture of uncompressed full motion sequences to RAM. • Cap Advanced – capture of full raster video frames with H & V blanking

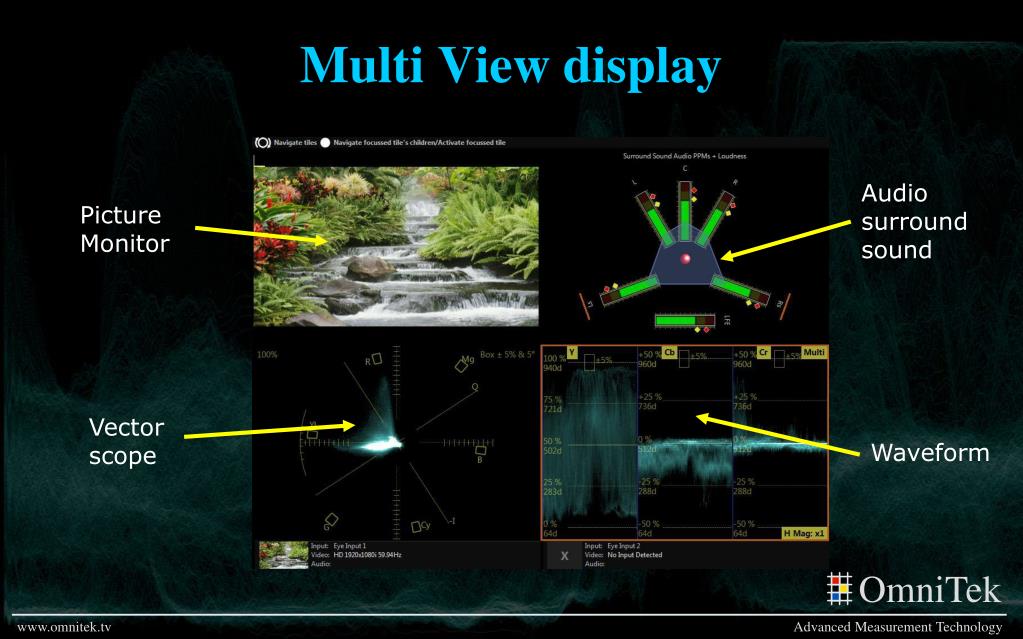

  35. Multi View display Audio surround sound Picture Monitor Vector scope Waveform
