Metal Cutting Fluids Why do we need them?

  • Cooling

  • Lubrication

    Also provides:-

    • Swarf Flushing

    • Corrosion Protection


Metalworking fluids l.jpg

Metalworking Fluids

Basic Principles of Metal CuttingFluids ; What they are & how to use them correctly


What are neat cutting oils l.jpg
What are neat cutting oils?

The performance of a neat cutting oil is influenced by 3 factors:-

  • Viscosity

  • Additives

  • Levels of additives


Viscosity l.jpg
Viscosity

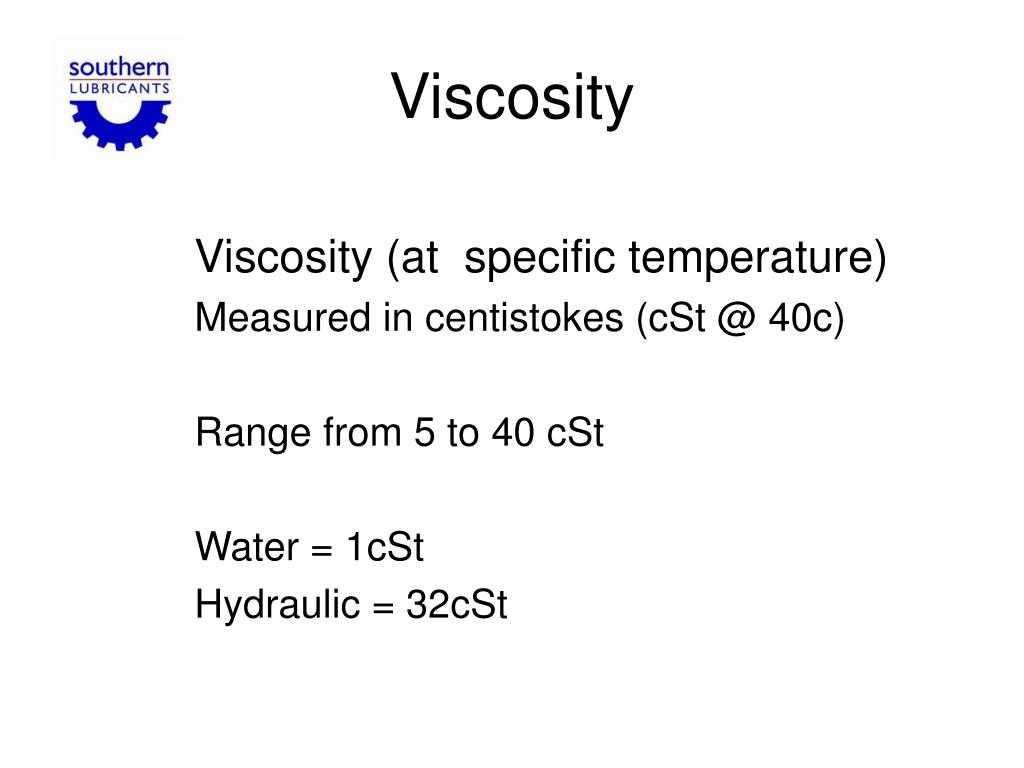

Viscosity (at specific temperature)

Measured in centistokes (cSt @ 40c)

Range from 5 to 40 cSt

Water = 1cSt

Hydraulic = 32cSt


Effects of viscosity l.jpg
Effects of viscosity

Cooling &

Swarf Flushing

Lubricity

Viscosity Viscosity


Lubricity additives l.jpg
Lubricity additives

  • Base Mineral Oils

    Highly refined oils of high, medium or low viscosity

  • Esters

    Natural fats

    Vegetable oils

    Synthetic esters


Slide7 l.jpg

Lubricity additives

  • Anti-wear additives

    Typically phosphorous compounds or ZDDP

  • E.P. (extreme pressure ) additives

    Chlorinated paraffins

    Sulphur

    Usually sulphurised esters or polysulphides


Neat oils vs soluble coolants l.jpg
Neat Oils vs Soluble Coolants

Cooling

Lubrication

Neat

Oils

Soluble

Coolants


What are coolants l.jpg
What are coolants?

Lubricity

Additives

Add to

water

Emulsifiers &

detergents

Metalworking

coolant

or

emulsion

HOCUT ?

Corrosion

Inhibitors

Bio-

Protection



Coolant jargon l.jpg
Coolant jargon

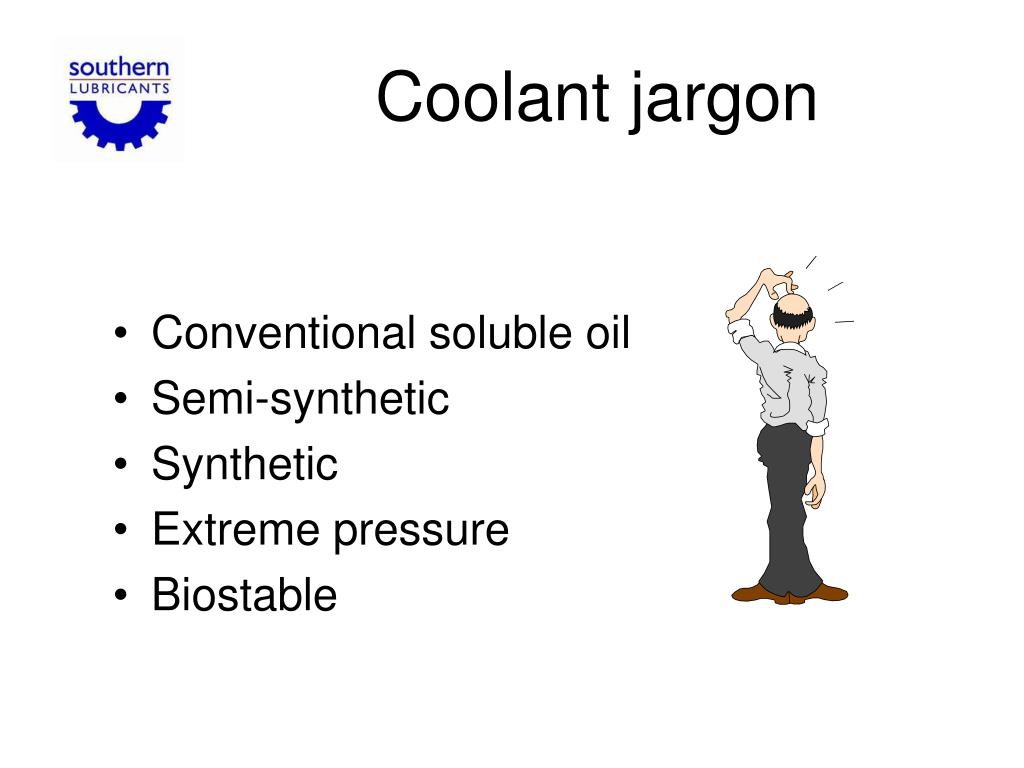

  • Conventional soluble oil

  • Semi-synthetic

  • Synthetic

  • Extreme pressure

  • Biostable


Factors affecting coolant life l.jpg
Factors affecting Coolant life

  • Micro-Organisms

  • Tramp oil

  • Water Quality

  • System Design

  • People


Micro organisms typically bacteria fungi l.jpg
Micro-Organisms ( typically bacteria / fungi)

  • Results in:-

    • Bad smells

    • Coolant separation

    • Corrosion

    • Increased disposal costs


Common types of micro organisms l.jpg
Common Types Of Micro -Organisms

  • Aerobic bacteria

    -live in the presence of airAnaerobic bacteria

    -live in the absence of air(bad eggs)

  • Yeasts/ Moulds /Fungi

    -visible organism (rubber-like)


Tramp oil l.jpg
Tramp Oil

  • Oil from positive lubrication & leaks

  • Often resulting in:-

    • Bacteria attack

    • Coolant separation

    • Smoke and fume

    • High disposal cost


Water quality l.jpg
Water Quality

  • The presence of inorganic

  • salts in coolant make up

  • water will affect:-

    • Coolant stability

    • Foaming


Water quality17 l.jpg
Water Quality

Ideal Water

Hardness =

100-200ppm.

Chloride zero

Sulphate zero

Low

salts

High

salts

Soap formation

Coolant instability

Corrosion

Bacterial attack

Excessive

foaming

Water hardness expressed as ppm. (parts per million )

as calcium carbonate.


Coolant mixing l.jpg
Coolant mixing

  • Always add oil to water(use a

  • mixing valve if possible)

  • Always mix coolant before

  • adding to the coolant sump


Monitoring control l.jpg
Monitoring & control

Always

maintain

concentration

between

specified limits.


Slide20 l.jpg

Monitoring & control

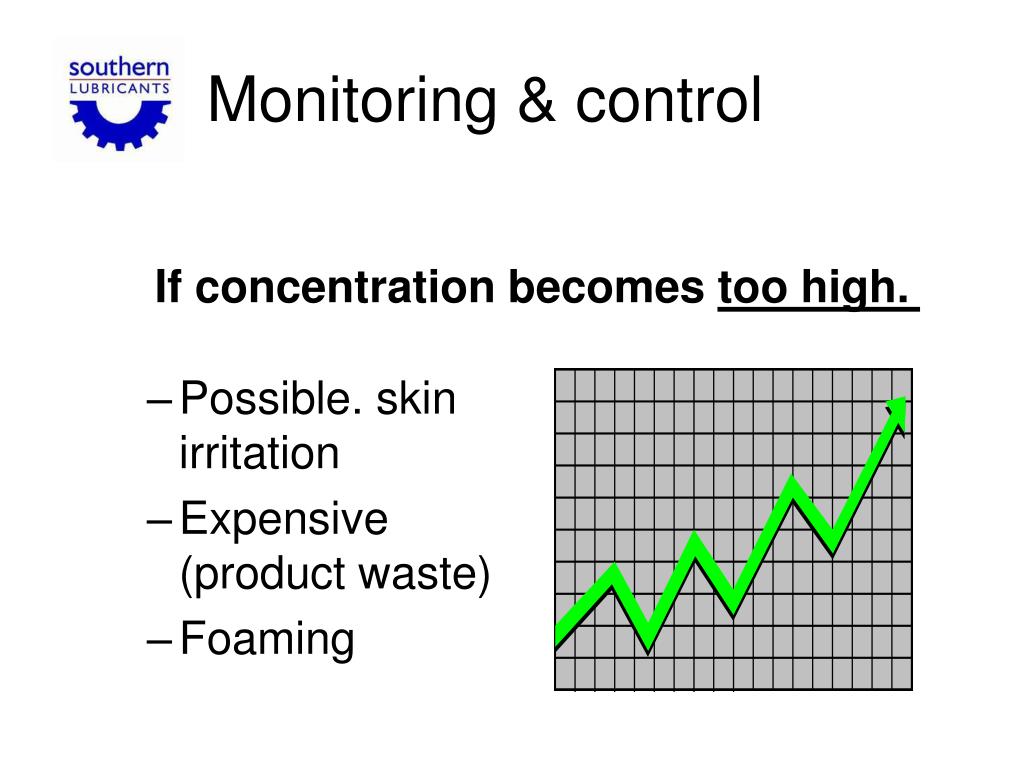

  • Possible. skin irritation

  • Expensive (product waste)

  • Foaming

If concentration becomes too high.


Monitoring control21 l.jpg
Monitoring & control

  • Bacterial attack

  • Corrosion

  • Increased disposal

  • Expensive

If concentration becomes too low.


Monitoring and control l.jpg
Monitoring and control

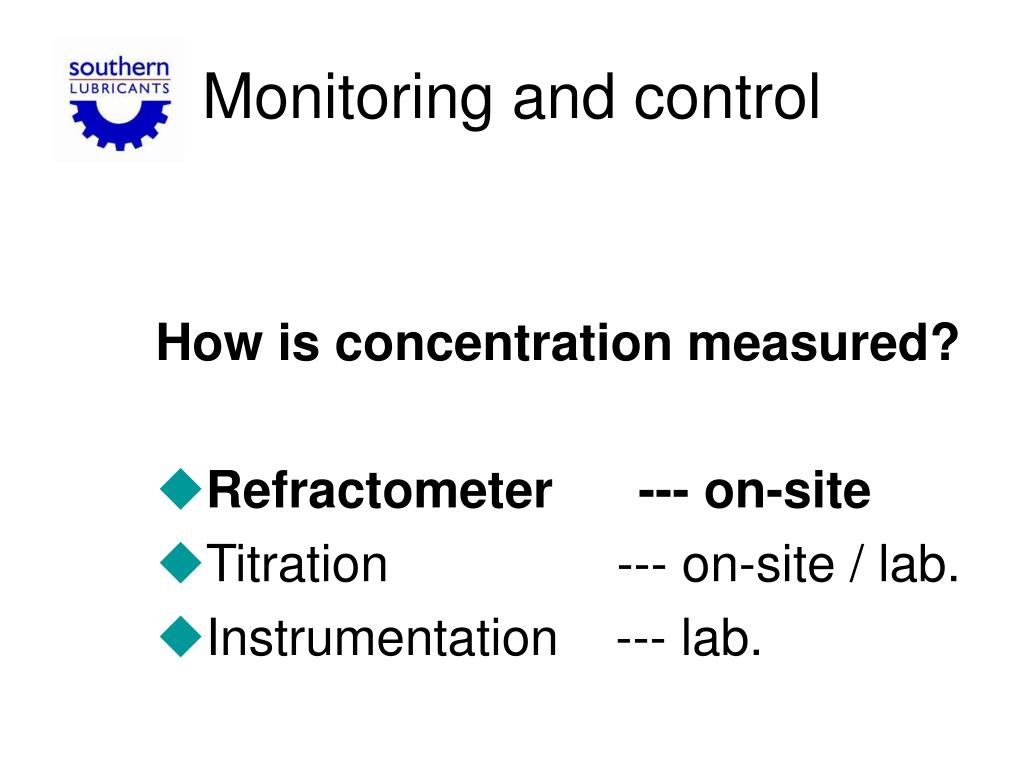

  • How is concentration measured?

  • Refractometer --- on-site

  • Titration --- on-site / lab.

  • Instrumentation --- lab.



How is condition measured ph readings l.jpg
How is Condition Measured? pH readings

4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0

acidic

neutral

alkaline

soluble

oils

favours bacterial

growth

good corrosion

protection

acceptable to skin


Monitoring corrosion protection l.jpg

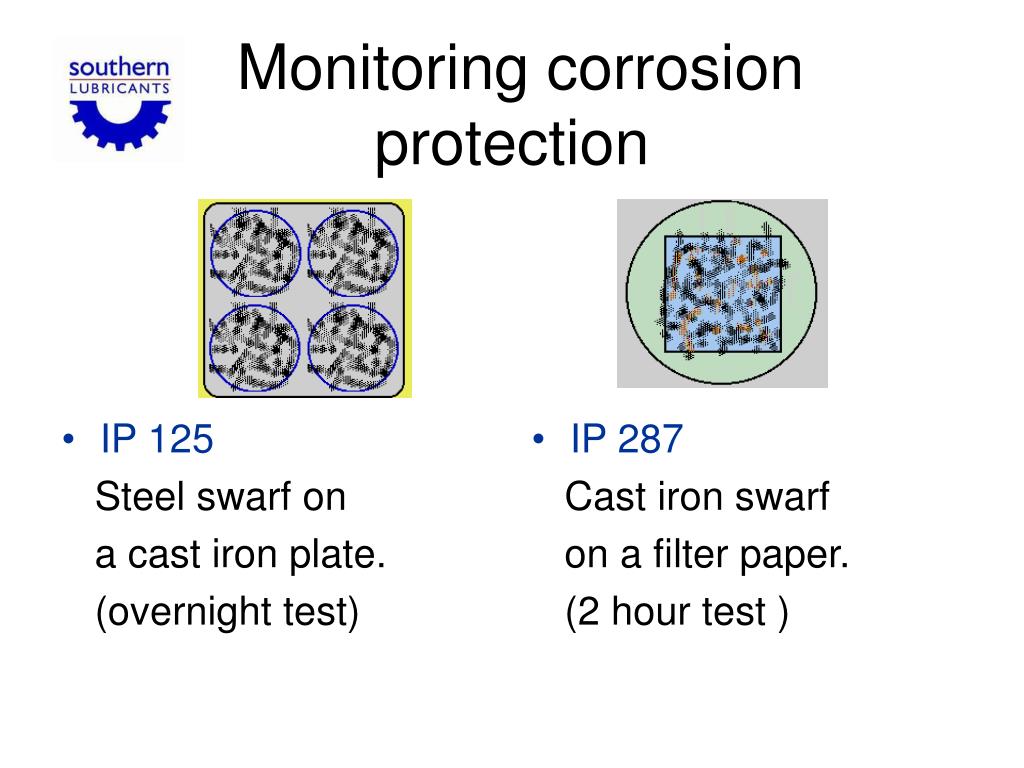

IP 125

Steel swarf on

a cast iron plate.

(overnight test)

IP 287

Cast iron swarf

on a filter paper.

(2 hour test )

Monitoring corrosion protection


Soluble oil trials machine cleaning l.jpg
Soluble Oil Trials Machine Cleaning

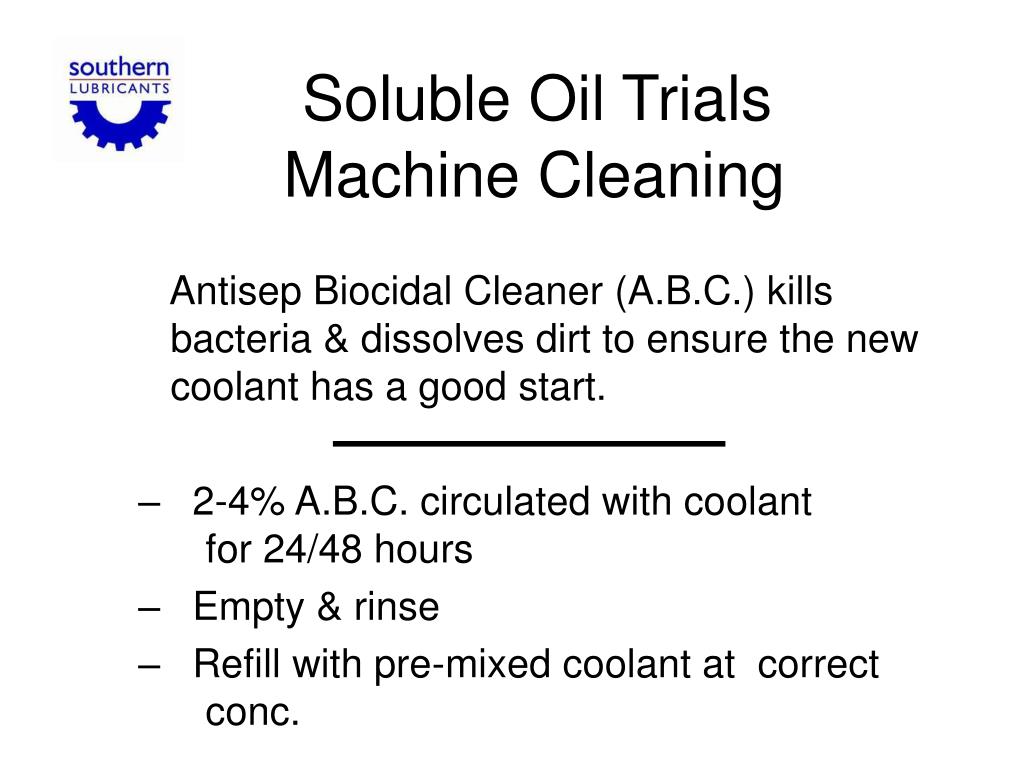

Antisep Biocidal Cleaner (A.B.C.) kills bacteria & dissolves dirt to ensure the new coolant has a good start.

  • 2-4% A.B.C. circulated with coolant for 24/48 hours

  • Empty & rinse

  • Refill with pre-mixed coolant at correct conc.


Health and safety skincare l.jpg
Health and safety Skincare

  • Handling concentrates

  • Concentration control

  • Hygiene

  • Proper use of skin creams

  • Good housekeeping

  • HSE guide to metalworking


Environmental h s issues l.jpg
Environmental & H&S Issues

There is an increasing demand for products that are ‘FREE’- from e.g.:-

  • Nitrite-free

  • Chlorine-free

  • PCA -free

  • Phenol-free

  • DEA-free


Environmental h s issues29 l.jpg
Environmental & H&S Issues

  • Nitrite

    Can react with amines to form ‘nitrosamines’ (carcinogenic).

  • DEA -diethanolamine

    Can react with nitrogen from the air to form ‘nitrosamines.

Nitrite/DEA in fluids is a health and safety issue, not environmental


Environmental h s issues30 l.jpg
Environmental & H&S Issues

  • Chlorine

    Disposal by burning can form dioxin, a carcinogen

    Special incinerators needed for safe disposal

    Disposal cost is very high in Europe

Chlorine is an environmental issue, not health and safety


Slide31 l.jpg

FLUIDCARE SERVICES Health risks and MWF mists

  • HSE are demanding that metalworking fluids users should clearly demonstrate that they take every practicable step to control fluids, improve their condition and reduce exposure.

  • We recognise that the new guidance on health risks especially regarding asthma and respiratory diseases will pose problems for users. We offer a package of services aimed at helping customers identify the risks and effective measures of prevention and control.

  • Risk assessment

  • Fluids testing and bio-audits

  • Exposure monitoring

  • Atmosphere control

  • New Scandmist air filtration products are also available to remove both mist and bacteria from machine enclosures. Click on the download to learn more about the issues and to see Houghton products and services.

  • Visit www.hse.gov.uk/metalworking for further information.
