  1. EXPERTENTREFFEN | NETWORKING | BEST PRACTICE | KNOW-HOW Speichermigration “Simple like a Snapshot“ xxxxx Referent: Thomas Thalmann, Manager Products & Services

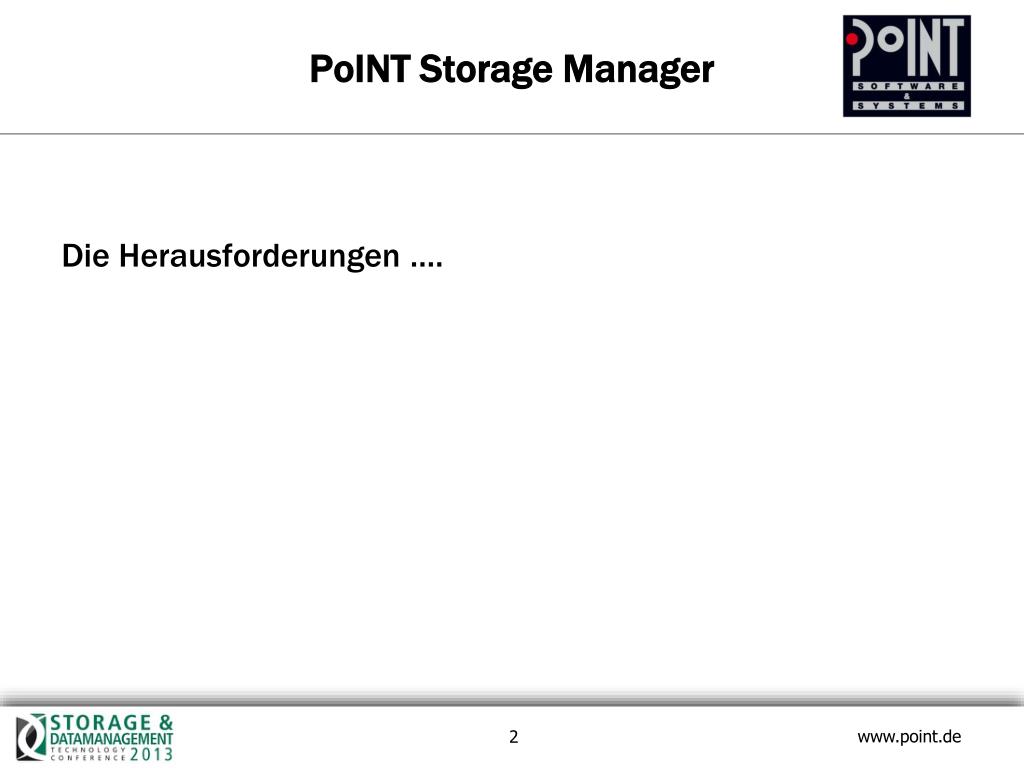

  2. PoINT Storage Manager Die Herausforderungen ….

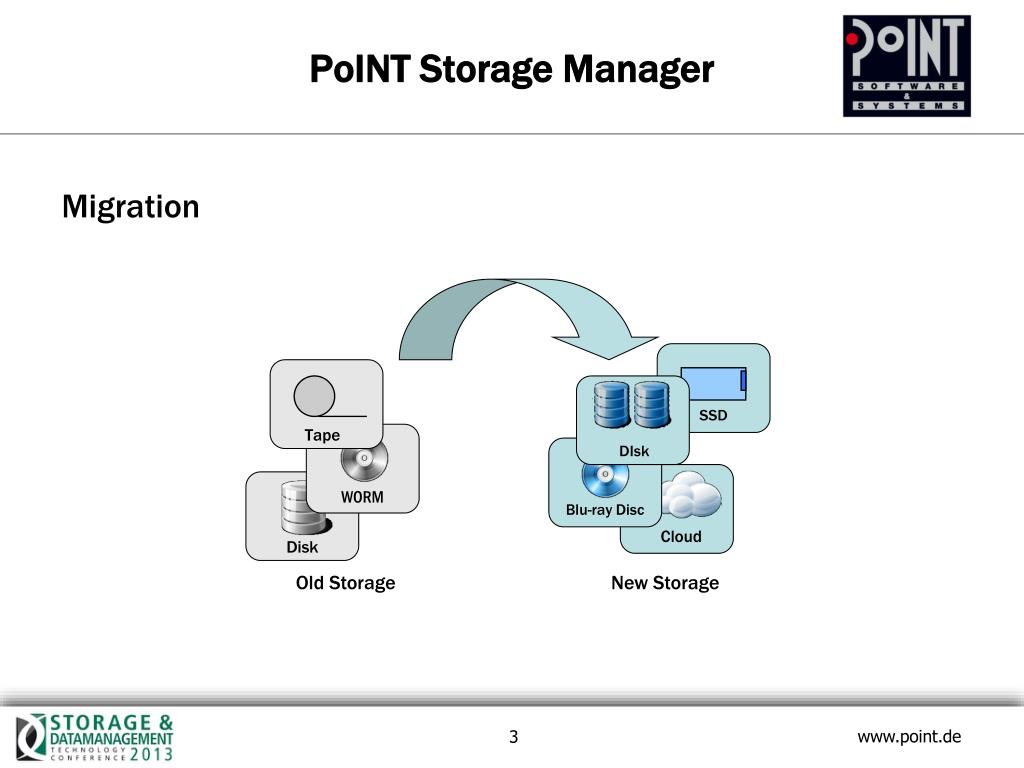

  3. PoINT Storage Manager WORM Migration Blu-ray Disc SSD Tape DIsk Disk Cloud Old Storage New Storage

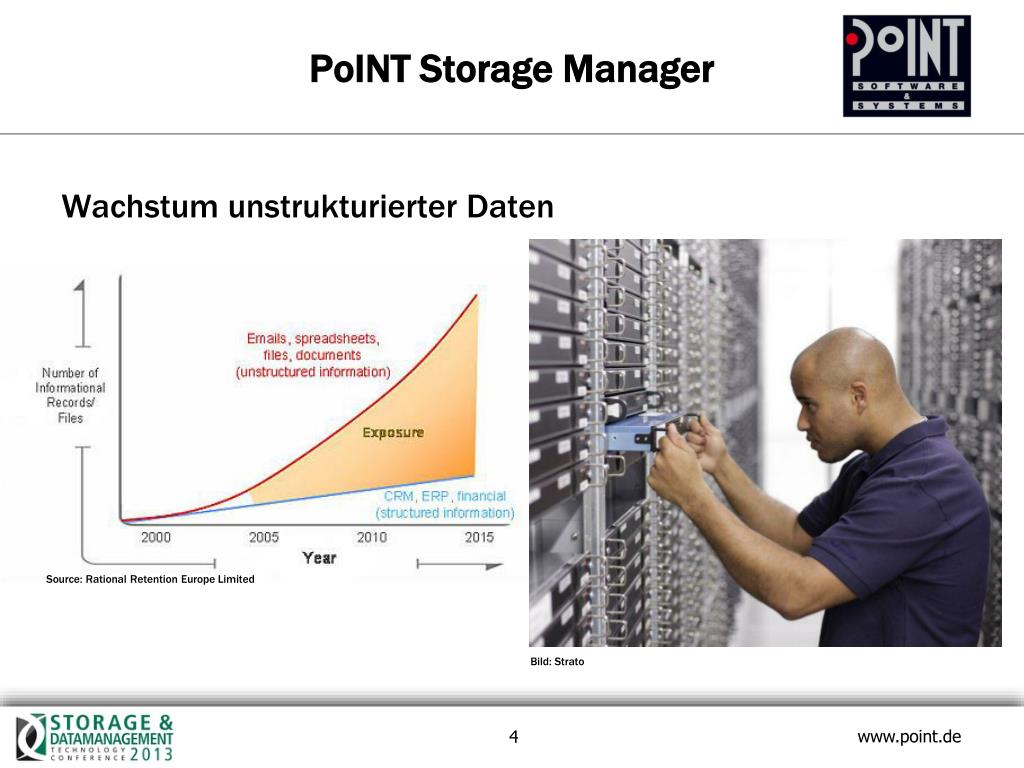

  4. PoINT Storage Manager Wachstum unstrukturierter Daten Source: Rational Retention Europe Limited Bild: Strato

  5. PoINT Storage Manager Basel II Capital Accord Canadian Electronic Evidence Act Electronic Ledger Storage Law (Japan) SEC 17a-4 (USA) HIPAA (USA) 11MEDIS-DC (Japan) ISO 18501/18509 AIPA (Italy) FDA 21 CRF Part 11 GDPdU & GoBS (Germany) NF Z 42-013 (France) Sarbanes-Oxley Act (USA) Public Records Office (UK) Financial Services Authority (UK) BSI PD0008 (UK) Archivierung Bild: Softwarebüro Krekeler

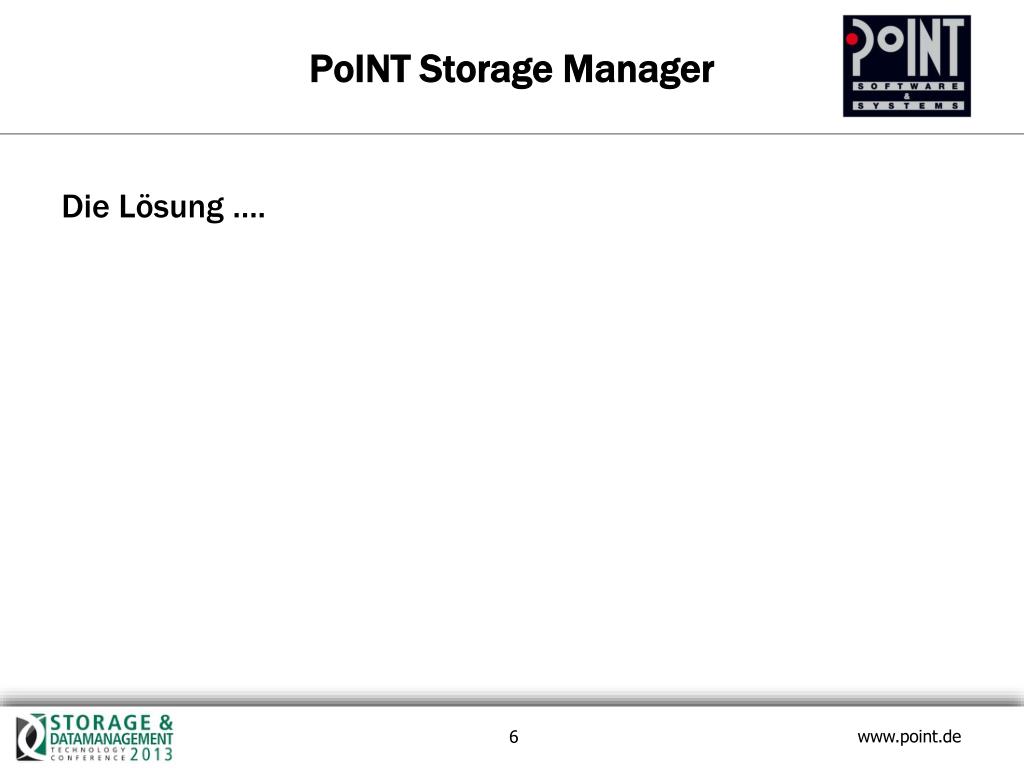

  6. PoINT Storage Manager Die Lösung ….

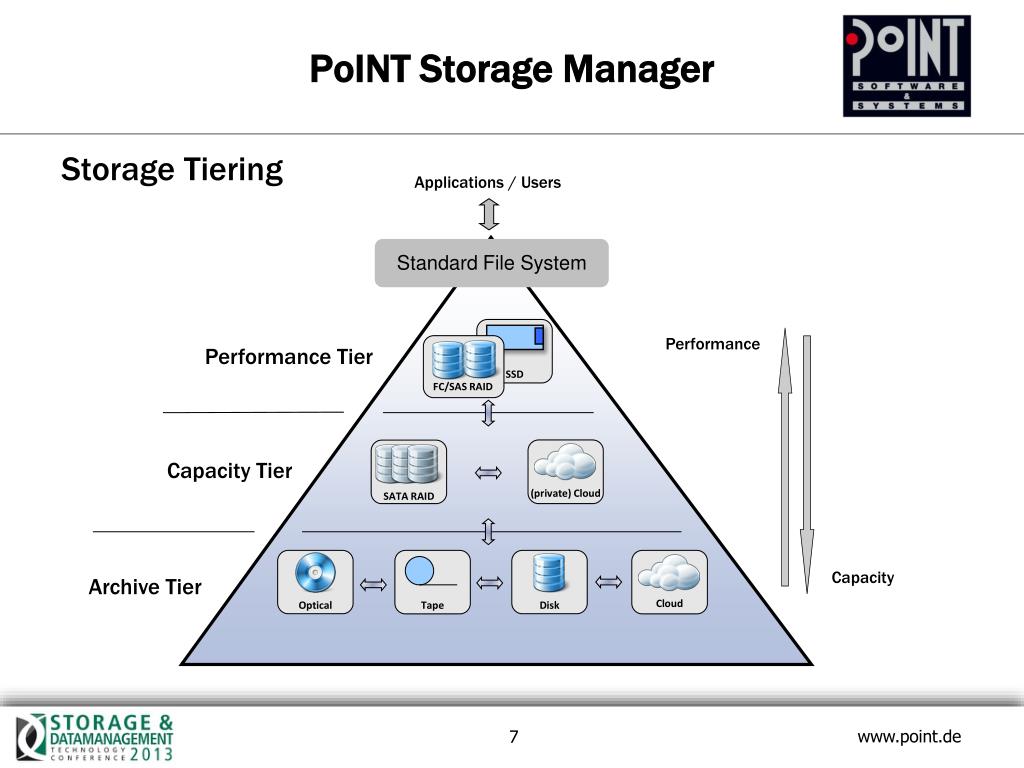

  7. PoINT Storage Manager Applications / Users Tape Storage Tiering Cloud (private) Cloud Optical Standard File System FC/SAS RAID Disk SSD Performance Performance Tier Capacity Tier SATA RAID Capacity Archive Tier

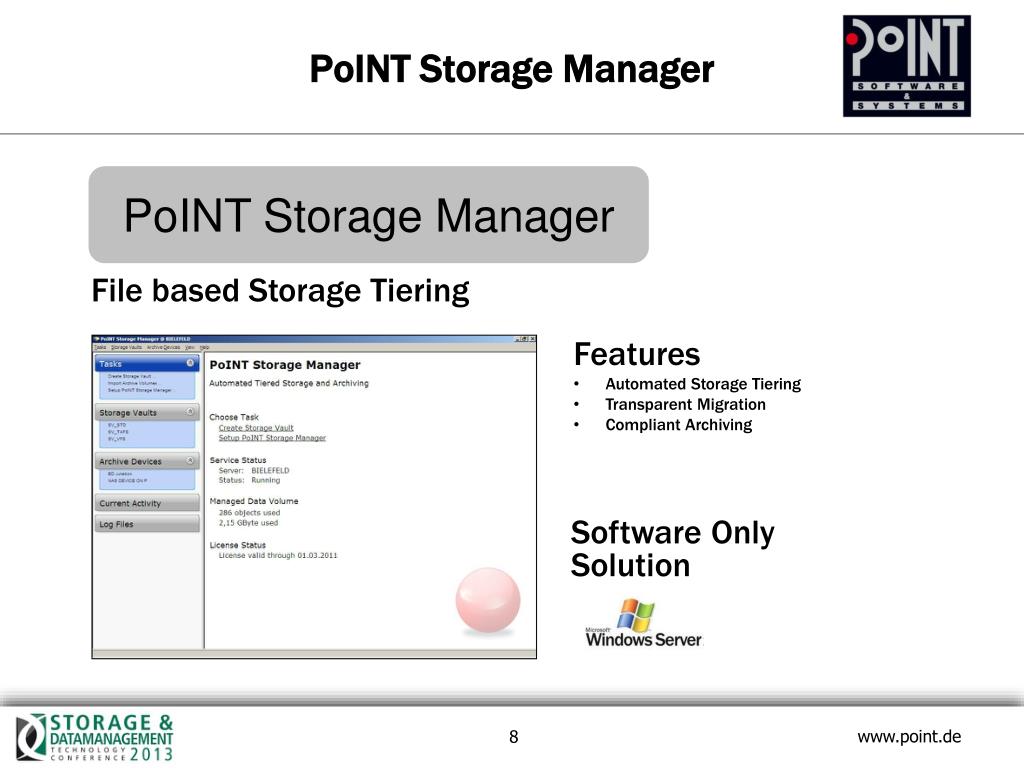

  8. PoINT Storage Manager PoINT Storage Manager File based Storage Tiering • Features • Automated Storage Tiering • Transparent Migration • Compliant Archiving Software Only Solution

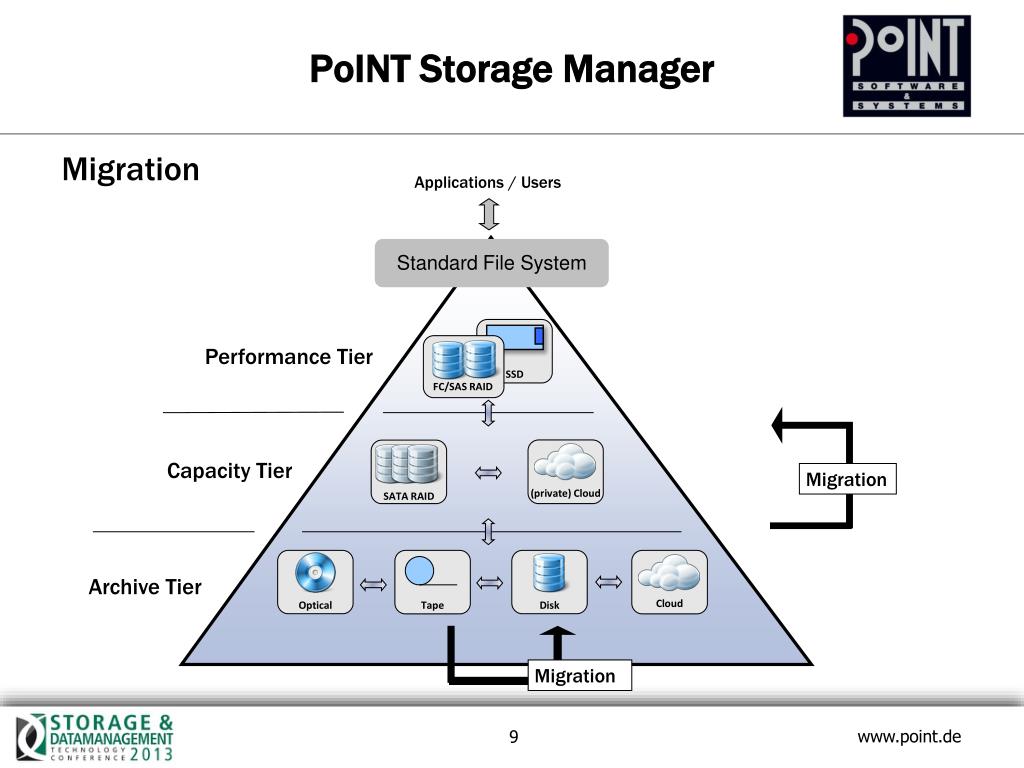

  9. PoINT Storage Manager Applications / Users Tape Migration Cloud (private) Cloud Optical Standard File System FC/SAS RAID Disk SSD Performance Tier Capacity Tier Migration SATA RAID Archive Tier Migration

  10. PoINT Storage Manager Applications / Users Tape Tiering inkl. Archivierung Cloud (private) Cloud Optical Standard File System FC/SAS RAID Disk SSD Performance Tier Tiering Policies Capacity Tier SATA RAID Archiving Policies Archive Tier

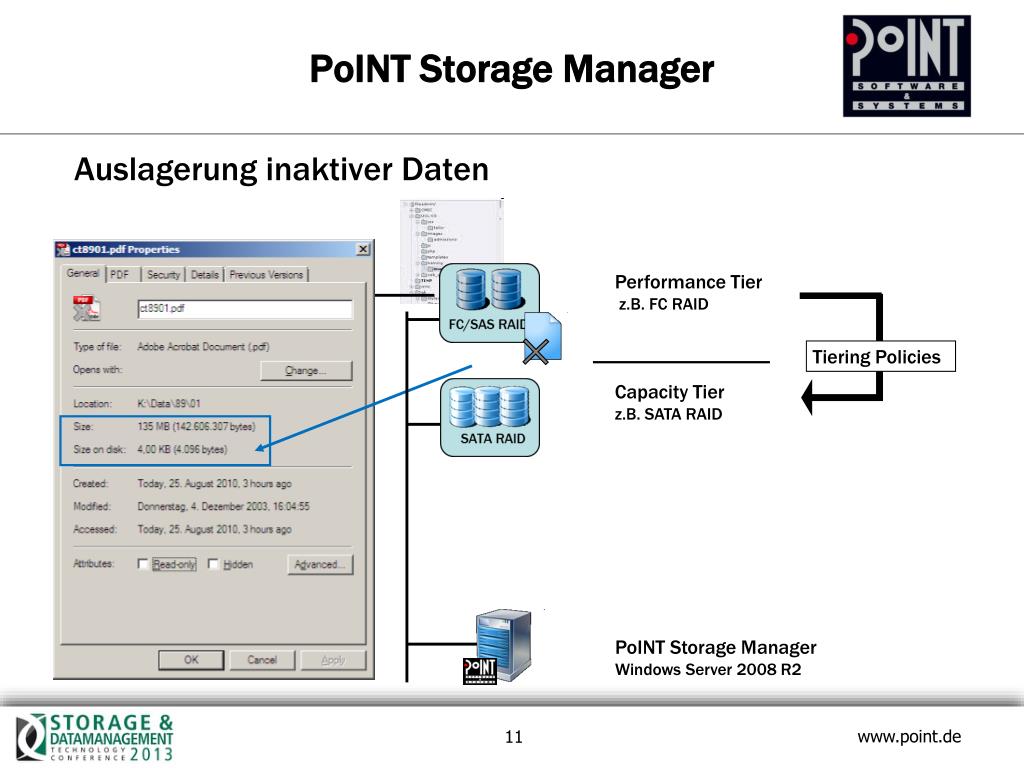

  11. PoINT Storage Manager Auslagerung inaktiver Daten Performance Tier z.B. FC RAID Tiering Policies Capacity Tier z.B. SATA RAID PoINT Storage Manager Windows Server 2008 R2

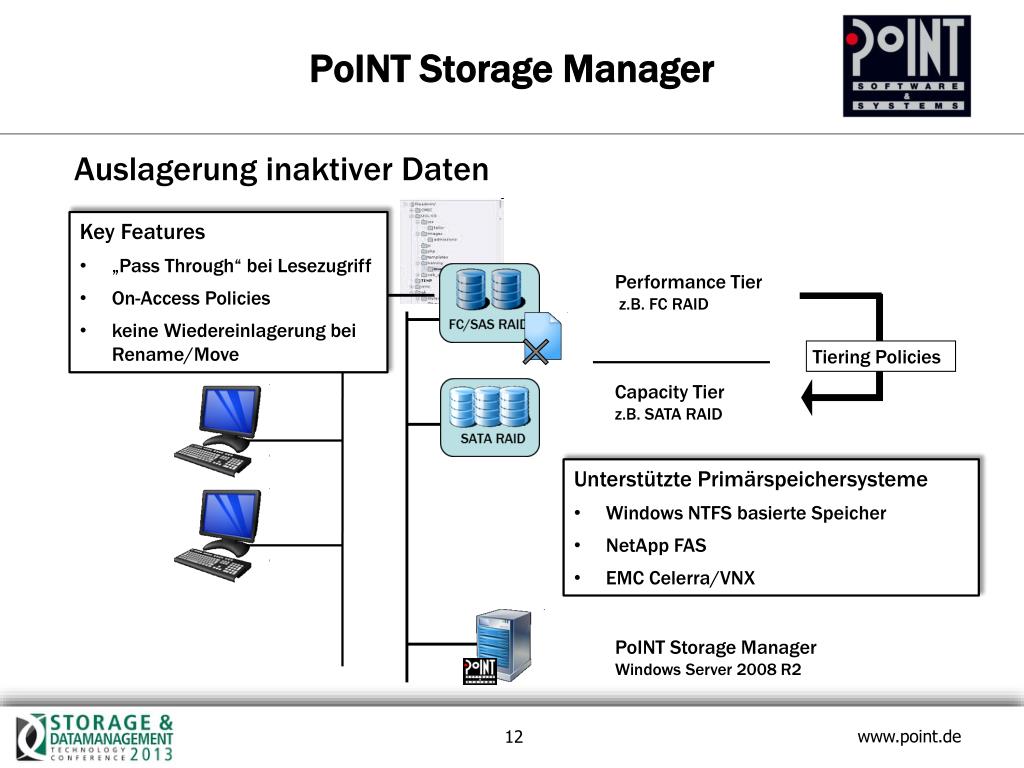

  12. PoINT Storage Manager Auslagerung inaktiver Daten • Key Features • „Pass Through“ bei Lesezugriff • On-Access Policies • keine Wiedereinlagerung bei Rename/Move Performance Tier z.B. FC RAID Tiering Policies Capacity Tier z.B. SATA RAID • Unterstützte Primärspeichersysteme • Windows NTFS basierte Speicher • NetApp FAS • EMC Celerra/VNX PoINT Storage Manager Windows Server 2008 R2

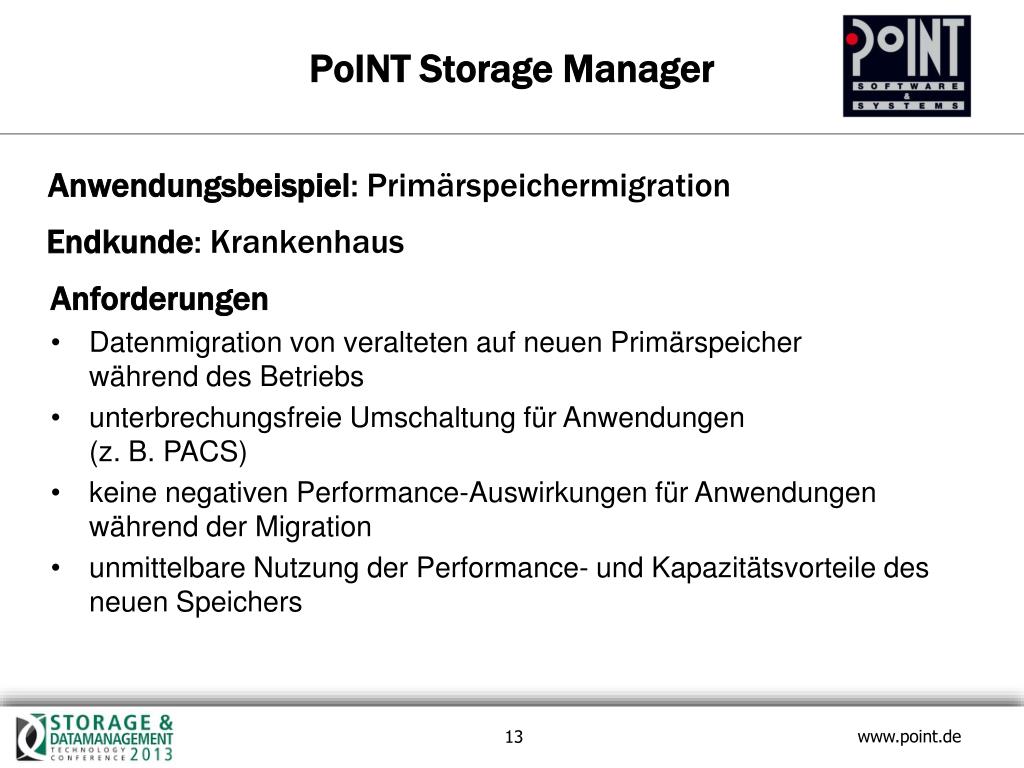

  13. PoINT Storage Manager Anwendungsbeispiel: Primärspeichermigration Endkunde: Krankenhaus Anforderungen • Datenmigration von veralteten auf neuen Primärspeicher während des Betriebs • unterbrechungsfreie Umschaltung für Anwendungen (z. B. PACS) • keine negativen Performance-Auswirkungen für Anwendungen während der Migration • unmittelbare Nutzung der Performance- und Kapazitätsvorteile des neuen Speichers Customer Requirements

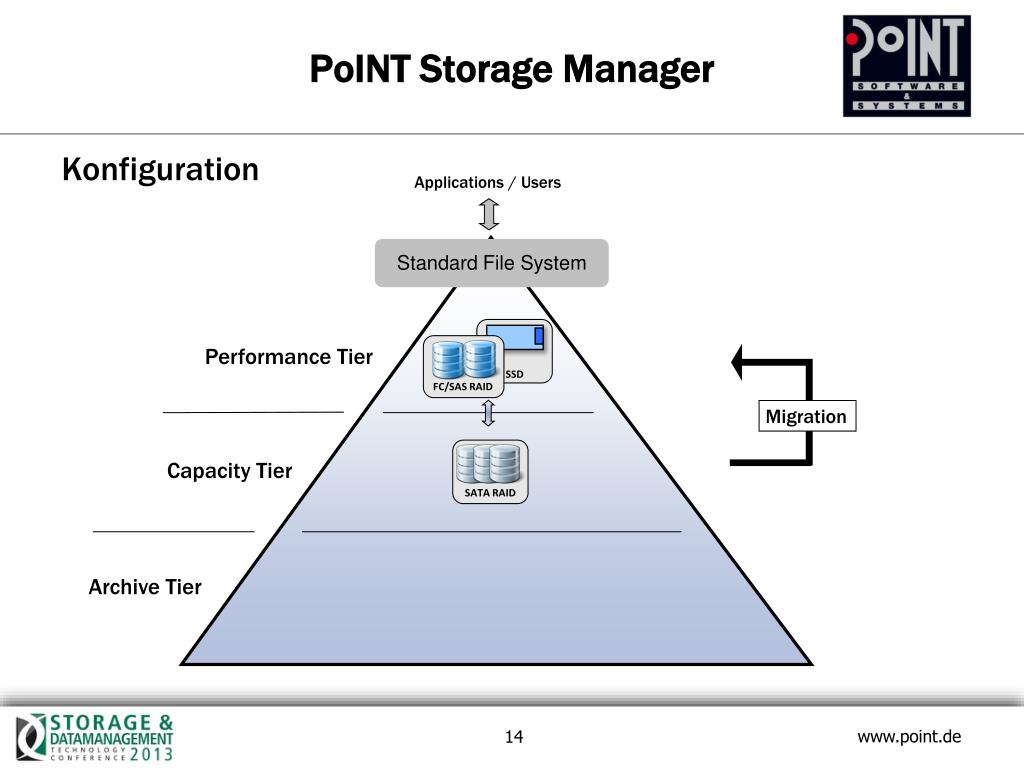

  14. PoINT Storage Manager Applications / Users Konfiguration Standard File System FC/SAS RAID SSD Performance Tier Migration Capacity Tier SATA RAID Archive Tier

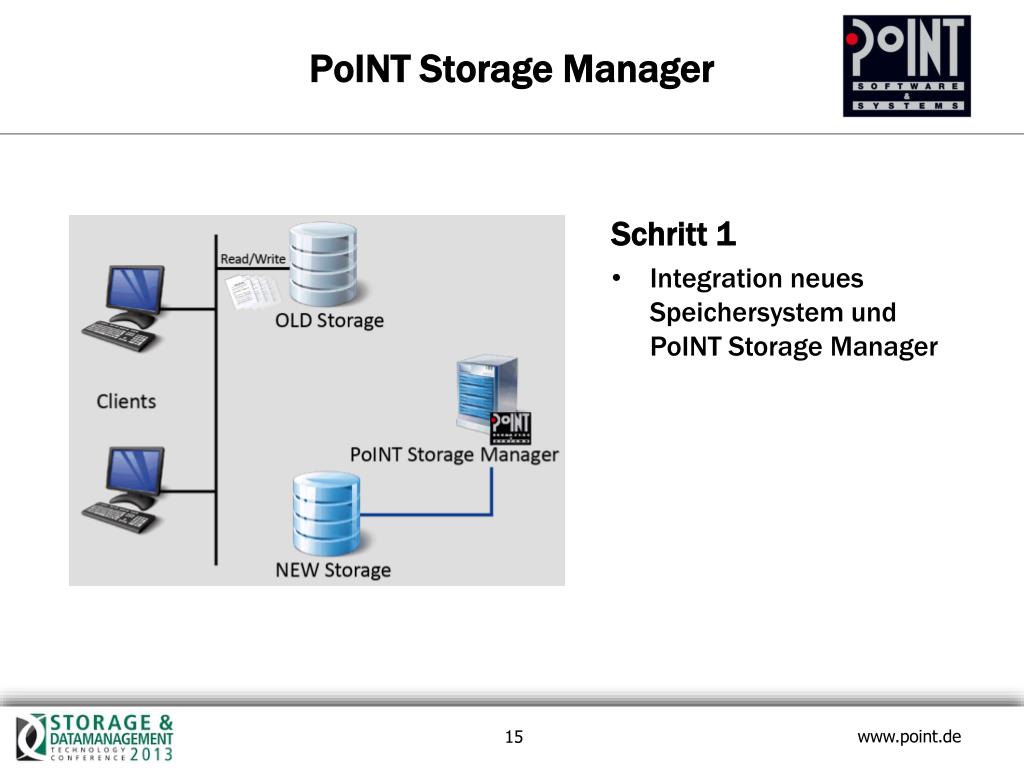

  15. PoINT Storage Manager Schritt 1 • Integration neues Speichersystem und PoINT Storage Manager

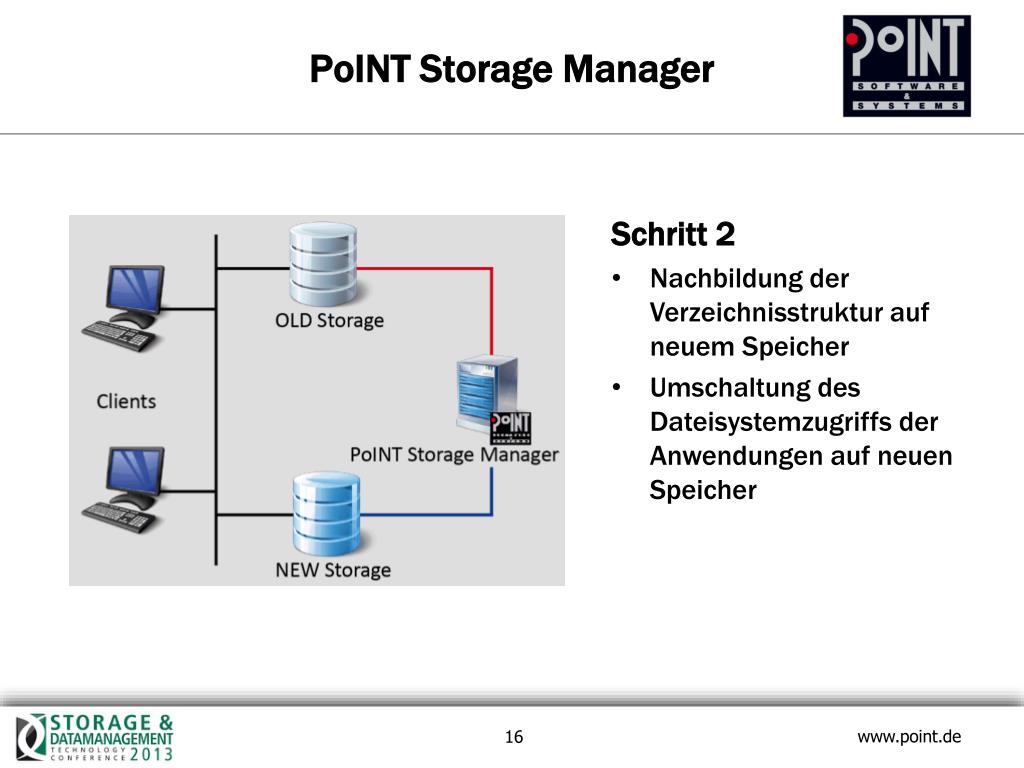

  16. PoINT Storage Manager Schritt 2 • Nachbildung der Verzeichnisstruktur auf neuem Speicher • Umschaltung des Dateisystemzugriffs der Anwendungen auf neuen Speicher

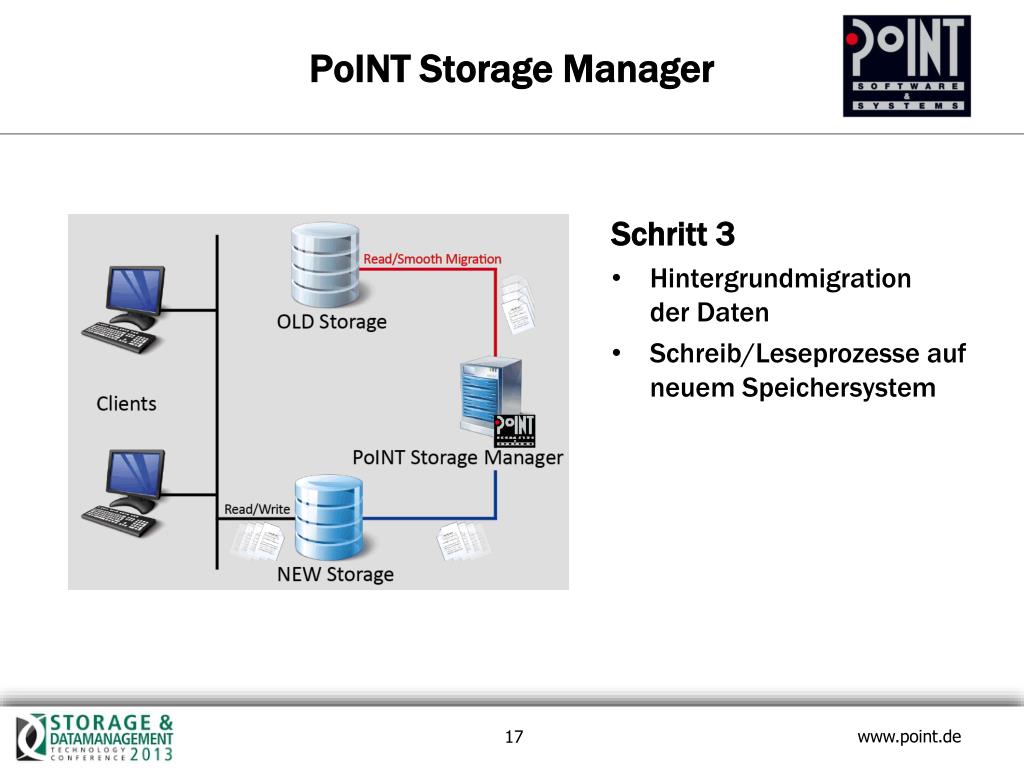

  17. PoINT Storage Manager Schritt 3 • Hintergrundmigration der Daten • Schreib/Leseprozesse auf neuem Speichersystem

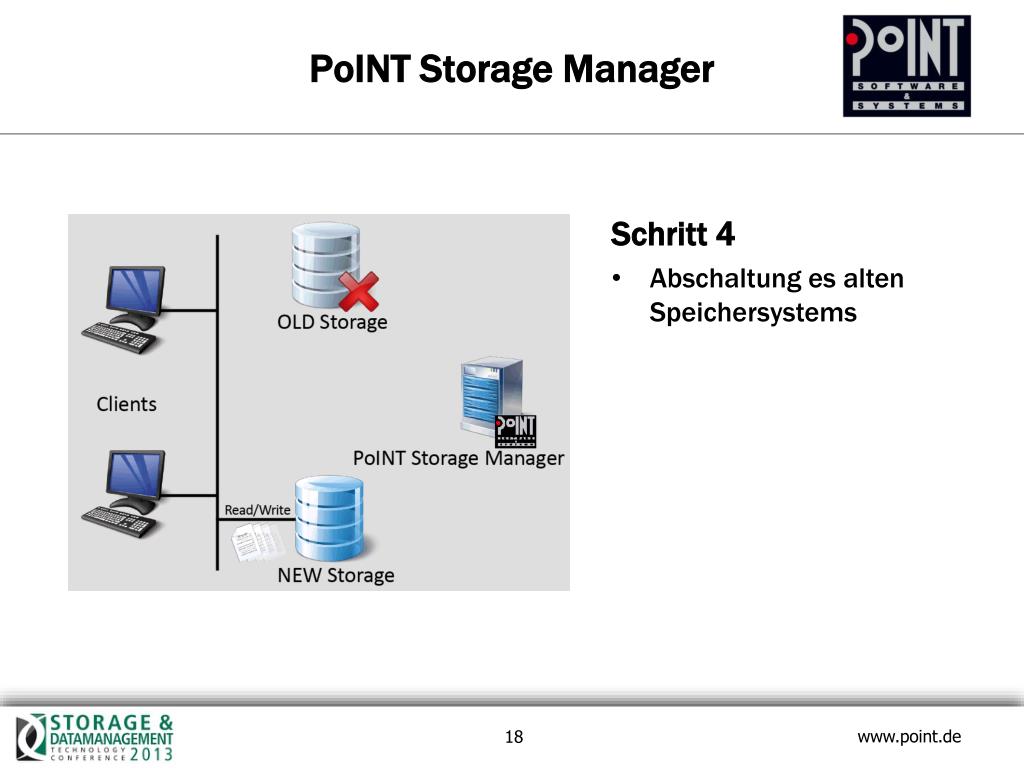

  18. PoINT Storage Manager Schritt 4 • Abschaltung es alten Speichersystems

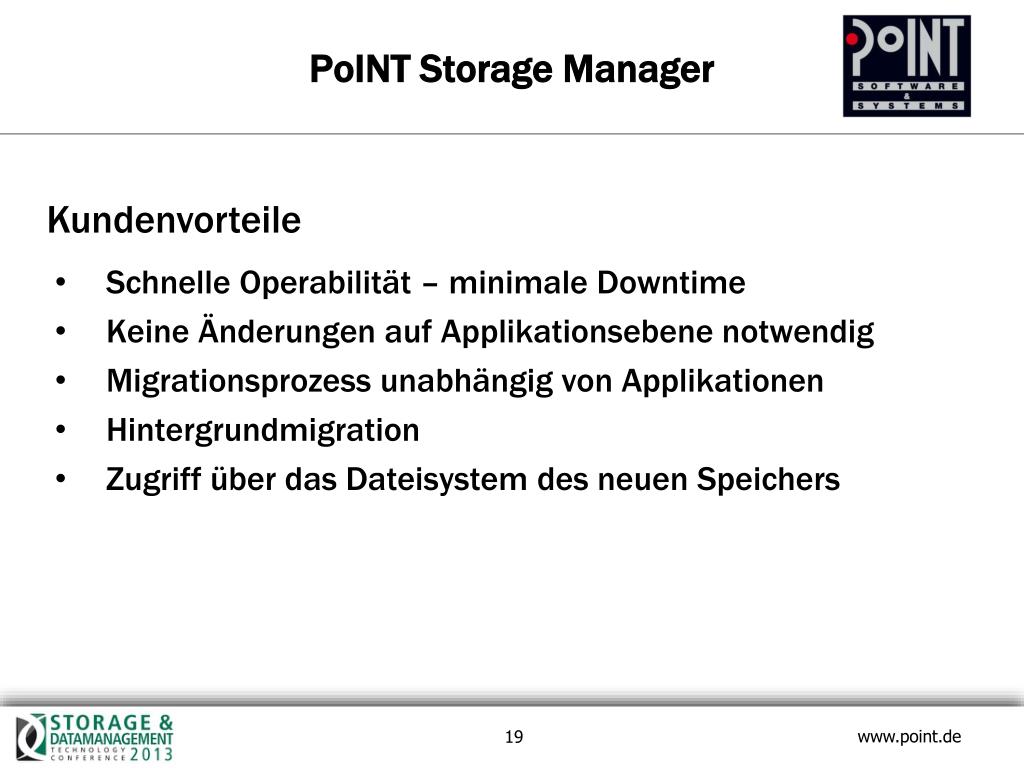

  19. PoINT Storage Manager Kundenvorteile • Schnelle Operabilität – minimale Downtime • Keine Änderungen auf Applikationsebene notwendig • Migrationsprozess unabhängig von Applikationen • Hintergrundmigration • Zugriff über das Dateisystem des neuen Speichers

  20. PoINT Storage Manager Vielen Dank für Ihre Aufmerksamkeit!
