Design for PrintabilityFrom Device to CircuitforFlexible Electronics

Tsung-Ching (Jim) Huang

Tim Cheng

February 10th 2007


Outline l.jpg

Outline

  • Introduction

    • Motivation – Why design with flexible electronics

    • Limitation – What difference from Si MOFET circuit design

      • A-Si:H TFT

      • Organic TFT

  • Robust Circuit Design for Flexible Electronics

    • A-Si:H TFT

      • Robust building blocks

    • Organic TFT

      • Cell library design

      • Printable circuit layout


Why design with flexible electronics l.jpg

U. Tokyo

Poly IC

ASU

Plastic Logic

Polymer Vision

Why Design with Flexible Electronics


What differences from si mofet circuit design l.jpg

What Differences from Si MOFET Circuit Design


Outline5 l.jpg

Outline

  • Introduction

    • Motivation – Why design with flexible electronics

    • Limitation – What difference from Si MOFET circuit design

      • A-Si:H TFT

      • Organic TFT

  • Robust Circuit Design for Flexible Electronics

    • A-Si:H TFT

      • Robust building blocks

    • Organic TFT

      • Cell library design

      • Printable circuit layout


Pseudo complementary a si h tft inverter l.jpg

Pseudo-ComplementaryA-Si:H TFT Inverter


A si h tft inverter transfer function l.jpg

A-Si:H TFT Inverter Transfer Function


Output reponses of n tft inverter chain l.jpg

Output Reponses ofN-TFT Inverter Chain

  • Signal strength after propagation will diminish due to insufficient noise margin

  • Insufficient for circuit design with a certain degree of complexity


Output reponses of c tft inverter chain l.jpg

Output Reponses ofC-TFT Inverter Chain

  • Signal strength after propagation remains at the same level as input signal

  • Sufficient for circuit design of higher complexity


Immunity to threshold voltage variation l.jpg

Immunity to Threshold Voltage Variation


Compensation to threshold voltage variation l.jpg

Compensation to Threshold Voltage Variation


Outline12 l.jpg

Outline

  • Introduction

    • Motivation – Why design with flexible electronics

    • Limitation – What difference from Si MOFET circuit design

      • A-Si:H TFT

      • Organic TFT

  • Robust Circuit Design for Flexible Electronics

    • A-Si:H TFT

      • Robust building blocks

    • Organic TFT

      • Cell library design

      • Printable circuit layout


Published otft model l.jpg

Published OTFT Model

~ pF

~ pF

~ kΩ

~ kΩ

Top Gate

Bottom Contact

Ref: M. Fadlallah et al, Plastic Logic, J. Applied Physics 2006


Printed passive component l.jpg

Printed Passive Component

Physical dimension for high-impedance resistance:

1KΩ 2mm x 1mm

(190ºC, 1-layer)

  • Ink-jetted resistance normally can have much higher value than standard clean-room process

  • High impedance resistance can be beneficial in implementing pseudo-complementary design

Resistance

50 μm drop size

Capacitance

Ref: D. Radinger et al, J. Electron Device ‘04


Pseudo complementary otft inverter l.jpg

Pseudo-ComplementaryOTFT Inverter

Ratio-less Logic

  • PMOS together with necessary series resistance is used for OTFT equivalent model


Inverter layout l.jpg

Inverter Layout

32 Units

46 Units

1 Unit = 50 μm


Output response to threshold voltage variation l.jpg

Output Response toThreshold Voltage Variation

  • PC-OTFT exhibits robustness again VTH variation due to electrical or chemical degradation


Output response of inverter chain l.jpg

Output Response of Inverter Chain

  • Signal propagation will not diminish in PC-OTFT inverter design because of ratio-less design

  • After 10-stage signal propagation, ordinary OTFT inverter can not generate the same signal strength


2 input nand layout l.jpg

2-Input NAND Layout

79 Units

85 Units


3 input nand layout l.jpg

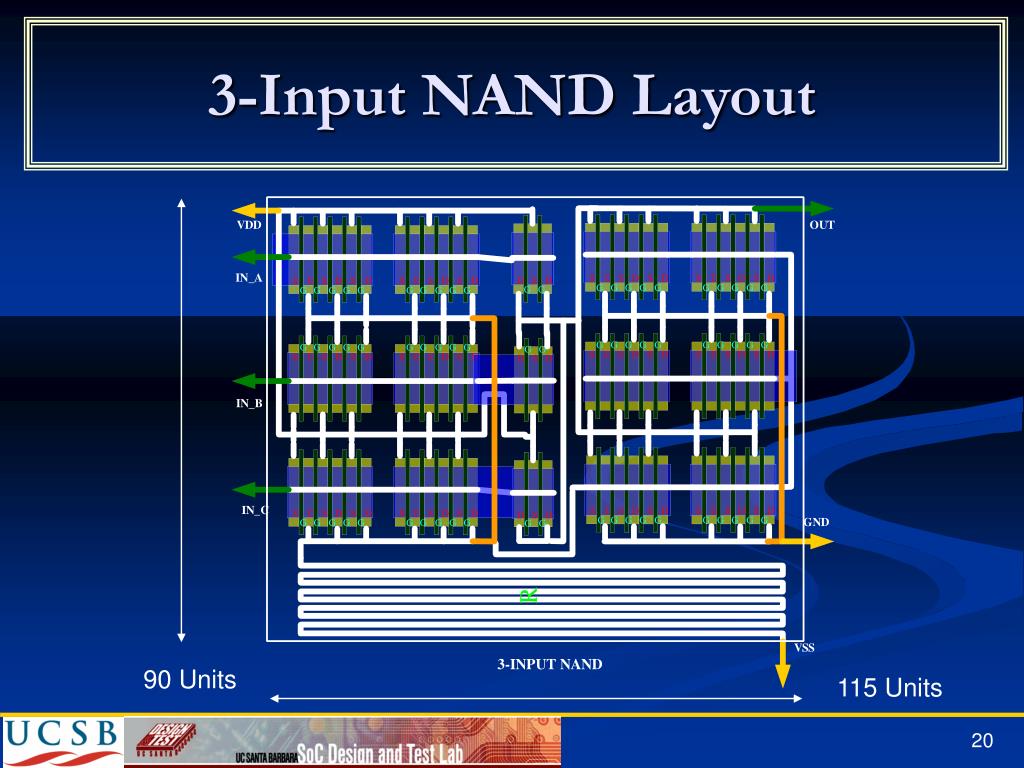

3-Input NAND Layout

90 Units

115 Units


2 input nor layout l.jpg

2-Input NOR Layout

79 Units

61 Units


Pc otft d flip flop output response l.jpg

PC-OTFTD Flip-Flop Output Response

  • D-FF composed of PC-OTFT NAND gates exhibits good noise-margin in output response


2 bit rom layout l.jpg

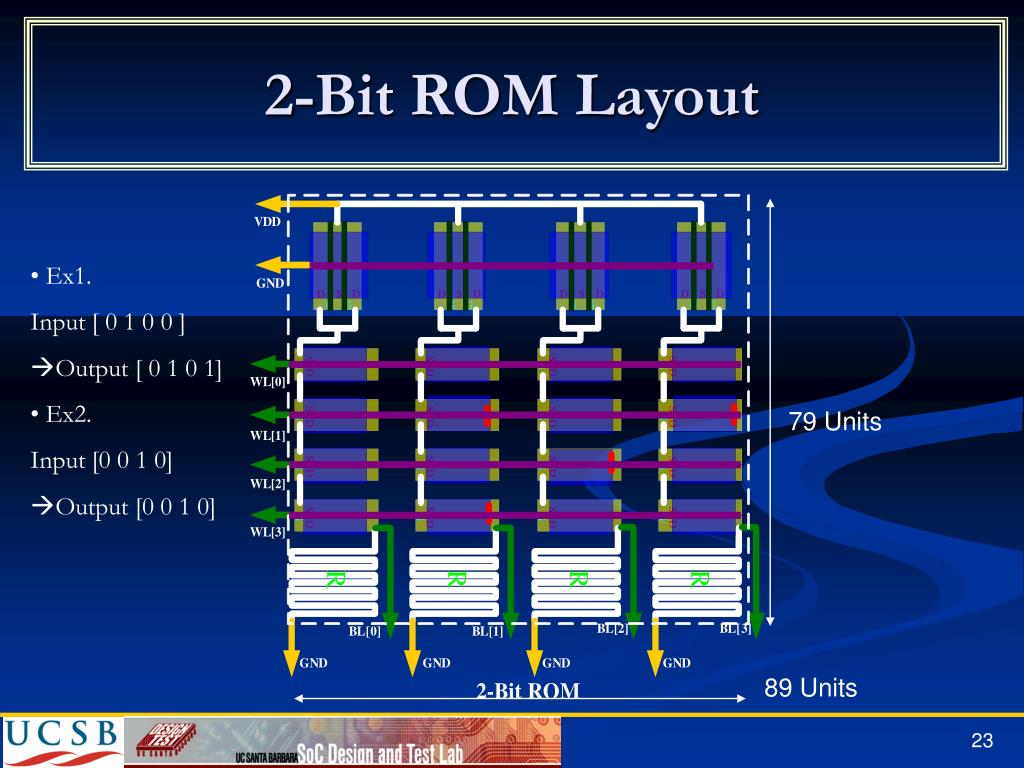

2-Bit ROM Layout

  • Ex1.

  • Input [ 0 1 0 0 ]

  • Output [ 0 1 0 1]

  • Ex2.

  • Input [0 0 1 0]

  • Output [0 0 1 0]

79 Units

89 Units


Summary l.jpg

Summary

  • Flexible electronics technology is now emerging and more commercial applications will become available

  • Low-cost, bendable, thin-film, and light-weight properties are highly desirable in consumer electronics

  • Circuit reliability and lifetime remain to be the biggest challenges to make wide use and market penetration

  • Novel circuit building blocks and printable layout are demonstrated to extend circuit lifetime

  • Significant innovations in material/device/design/testing area are still required


Slide25 l.jpg

Q & A

Thank you for your attention !!
