Presentation Transcript


The uts modules

The UTS MODULES

Following are the various modules in UTS project:

1. The Accounting Module

2. Ticketing ( also called client) module

3. Fare module

4. UDM(User definition module)

5. TDM( Terminal definition module)

6. Route management module

7. Recovery module


The accounting module

The Accounting Module

Introduction

  • The Accounting Reports Menu offers Daily, Periodic ,Monthly reports and DTC

  • which can be viewed and printed from the system. The steps for logging and

  • printing/viewing the reports are given in this document.


The uts modules

  • Procedure To Login IN DUMP TERMINAL

  • Following steps are to be taken to login

  • Telnet utsirca2

  • Give the following Userid and Password

  • Userid: utsrepwr

  • Password:Utsrepwr

  • Procedure to login in Thin client

  • Userid :utsrep

  • Password: Utsrep


The uts modules

ENTER LOCATION CODE:


The uts modules

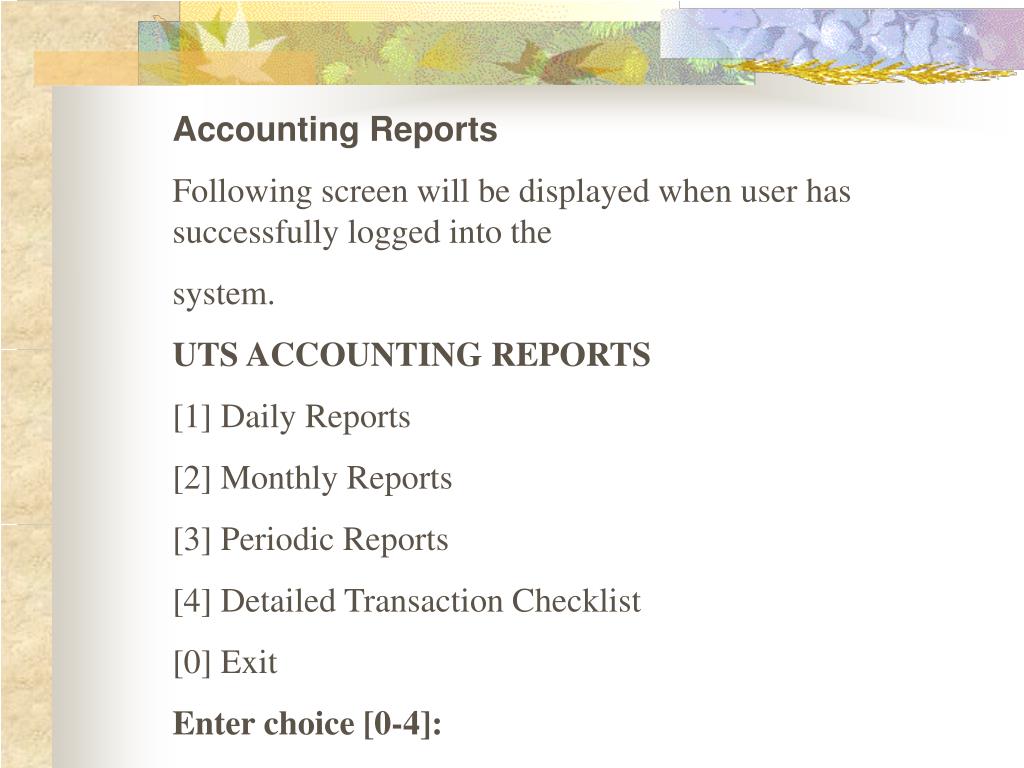

Accounting Reports

Following screen will be displayed when user has successfully logged into the

system.

UTS ACCOUNTING REPORTS

[1] Daily Reports

[2] Monthly Reports

[3] Periodic Reports

[4] Detailed Transaction Checklist

[0] Exit

Enter choice [0-4]:


The uts modules

  • Enter Choice<0-32>:

  • User has to choose among 32 choices. On entering the choice the user is prompted

  • for date (DD), month (MM) and year (YYYY) and the location (LOC).


Uts periodic reports menu these reports are generated on the 1 st 11 th 21 st of every month

UTS Periodic Reports Menu : These reports are generated on the 1st, 11th & 21st of every month)


Uts monthly reports menu these reports are generated on the 1 st of every month

UTS Monthly Reports Menu : These reports are generated on the 1st of every month


User definition management module

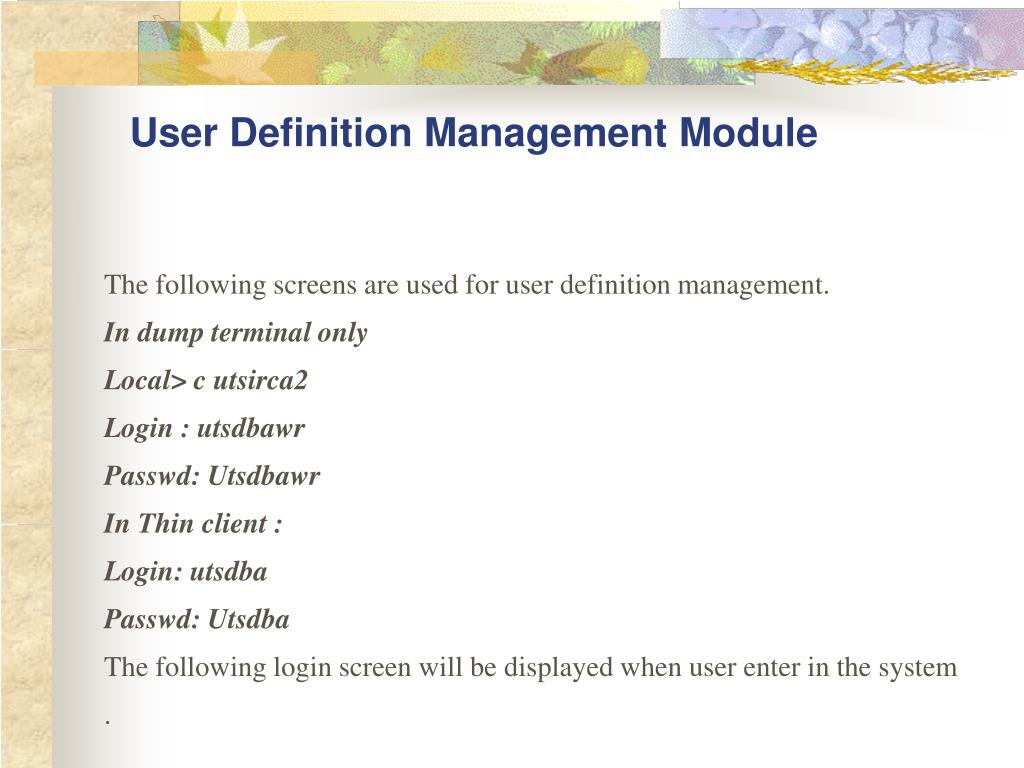

User Definition Management Module

The following screens are used for user definition management.

In dump terminal only

Local> c utsirca2

Login : utsdbawr

Passwd: Utsdbawr

In Thin client :

Login: utsdba

Passwd: Utsdba

The following login screen will be displayed when user enter in the system

.


Uts user definition management

UTS USER DEFINITION MANAGEMENT

1 – ADD A NEW USER RECORD

2 – MODIFY AN EXISTING USER RECORD

3 – DELETE AN EXISTING USER RECORD

4 – DISPLAY AN EXISTING USER RECORD

5 - DUMP OF ALL USER RECORDS

6 – MODIFY USER TYPE PRIVILEGES

7 – MODIFY SPECIFIC USER PRIVILEGES

8 – HOT KEY

9 – FAST KEY

10 – EXIT

SELECT YOYR OPTION:


Add a new user record

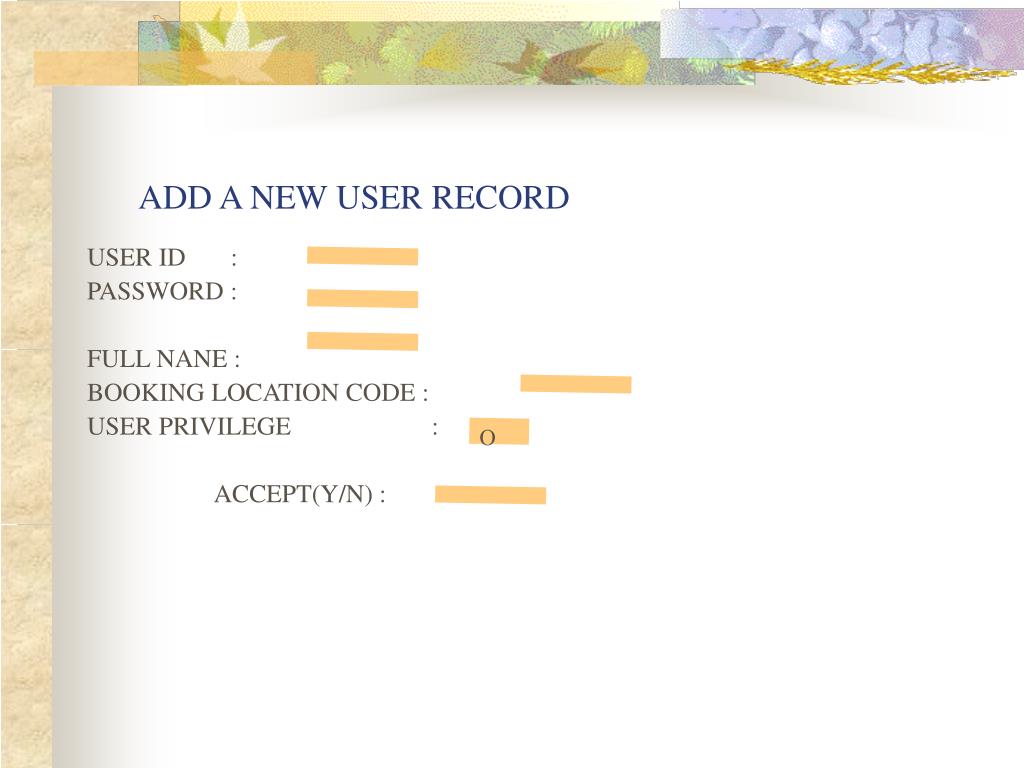

ADD A NEW USER RECORD

USER ID :

PASSWORD :

FULL NANE :

BOOKING LOCATION CODE :

USER PRIVILEGE :

ACCEPT(Y/N) :

O


The uts modules

MODIFY AN EXISTING USER RECORD


Delete an existing user record

DELETE AN EXISTING USER RECORD

USER ID :

PASSWORD :

FULL NANE :

BOOKING LOCATION CODE :

USER PRIVILEGE :

DELETE(Y/N) :


How to issue ticket through fast form

How to issue ticket through FAST Form?


Terminal definition management

TERMINAL DEFINITION MANAGEMENT


Uts terminal definition management

UTS TERMINAL DEFINITION MANAGEMENT

1 – ADD A TERMINAL ENTRY

2 – MODIFY TERMINAL ENTRY

3 – DELETE A TERMINAL ENTRY

4 – GET THE FILE DUMP

5 – EXIT

SELECT YOUR OPTION :


The uts modules

UTS Zonal Server

UTS Mobilink Server

Thin Client


The uts modules

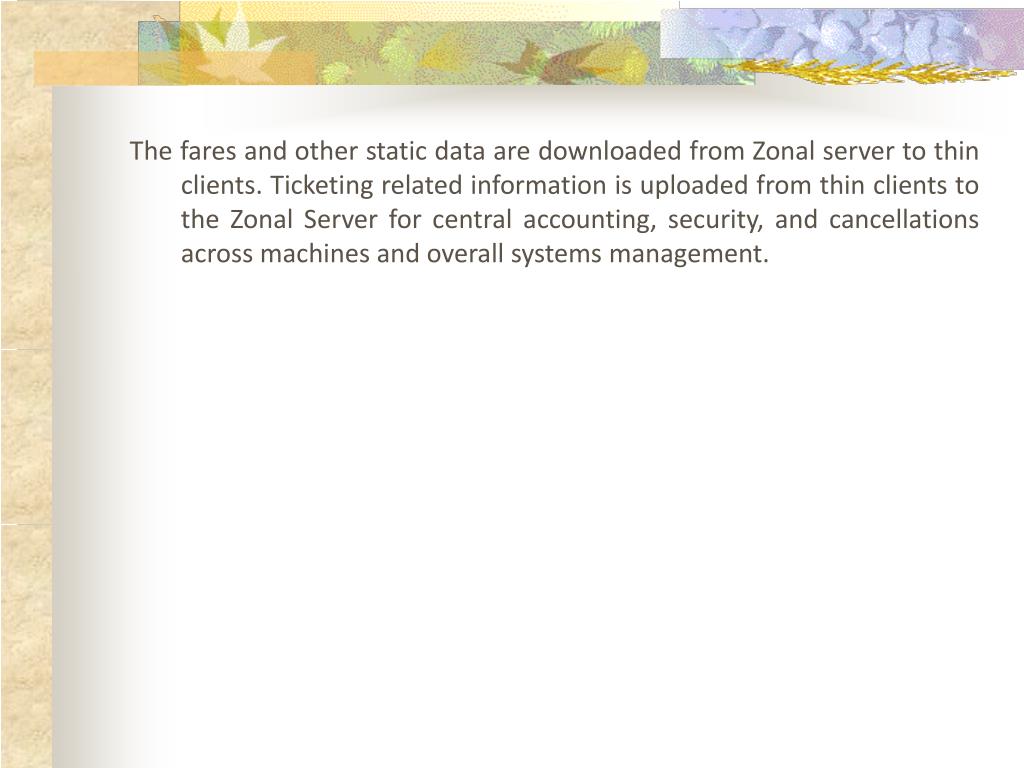

The fares and other static data are downloaded from Zonal server to thin clients. Ticketing related information is uploaded from thin clients to the Zonal Server for central accounting, security, and cancellations across machines and overall systems management.


  • Login
