Presentation Transcript
Slide1 l.jpg

Preparing for a Successful

R7 Migration

Ruth Pharr

CISTECH, Inc.


Slide2 l.jpg

Session Objectives

  • Part 1 - Planning and Preparation

    • Gain an understanding of the planning and preparation tasks to implement R7, including initial server installation and migration.

  • Part 2 - Client Architecture Implementation

    • Discuss the requirements and review the process for implementing the R7 Power Architecture including Link Manager, Power Link and Net Link.


Slide3 l.jpg

Agenda

  • R7 Requirements

  • Technical Planning

  • Installation and Migration

  • Integration and Testing

  • Go-Live and Support

  • Helpful Resources

  • Summary


Slide4 l.jpg

iSeries Requirements

Minimum OS/400 release for R7 is V5R2

Latest iSeries fixes (V5R4)

SF99540 Latest cumulative package

SF99504 Database PTFs

SF99539 Group Hipers

SF99369 Java PTFs

R7 Requirements


Slide5 l.jpg

XA Requirements

RPG Compiler (for migration tools)

XAR6 client must be at level 17 or higher or conversion will not work

User definitions

Integrator customizations

R7 Requirements


Slide6 l.jpg

R7 Online Questionnaire

http://support.mapics.com/r7orderhm.htm

Required to order R7

Can your iSeries run R7 clients

Ensure successful implementation

Current system configuration

5250 users and Power users

Typical PC configuration

Will you need help

Technical Planning



Slide8 l.jpg

Infor and your affiliate will work with you to verify that your machine will handle new requirements for Java applications (Power Architecture)

Collect performance data

Use capacity planning tools to determine if hardware upgrades are recommended

Perform upgrades in advance

Customers who approach R7 implementation this way achieve better results.

Technical Planning


Slide9 l.jpg

Create custom R7 checklist based on your path your machine will handle new requirements for Java applications (Power Architecture)

CISTECH’s template Excel Worksheet *

Update with latest information from Infor documentation

Assign responsibilities and target dates

Manage your implementation effort

*Not intended to be used as a complete step-by-step guide

Technical Planning


Slide10 l.jpg

Questions your machine will handle new requirements for Java applications (Power Architecture)

on R7 Requirements

or Technical Planning?


Slide11 l.jpg

Five Phases your machine will handle new requirements for Java applications (Power Architecture)

Planning and Preparation

Initial Install and Test Migration

Integration, Tuning and User Training

Final Migration and Go-Live

Post-Migration Support

Technical Planning


Slide12 l.jpg

1. Planning and Preparation your machine will handle new requirements for Java applications (Power Architecture)

Review R7 application changes

SH14411 Technical Newsletter

Review R7 Upgrade information

SH14412 Technical Planning Guide

SH14413 R7 Install/Upgrade Guide

SH15308 R6 to R7 Migration Steps

Check Third-Party Applications

Analyze changes to custom code

Technical Planning


Slide13 l.jpg

2. Initial Install and Test Migration your machine will handle new requirements for Java applications (Power Architecture)

Enter keys

Perform initial installation (CAS)

Install applications that will be migrated to R7 and run tailoring

Apply latest PCMs

Download and apply migration fixes

Run migration process

Installation and Migration


Slide14 l.jpg

Installation and Migration your machine will handle new requirements for Java applications (Power Architecture)

  • XAR6 to XAR7 Migration Example:

    • XAR6 - apply SH14057 and activate new Security Areas to be migrated to R7 (one time)

    • Same applications installed in the from and to environments

      • Install any new applications in a duplicate environment for testing and training

    • Verify migration was successful

      • View migration report MIGRnR7P

        • (n = your current release)


Slide15 l.jpg

Installation and Migration your machine will handle new requirements for Java applications (Power Architecture)


Slide16 l.jpg

Installation and Migration your machine will handle new requirements for Java applications (Power Architecture)

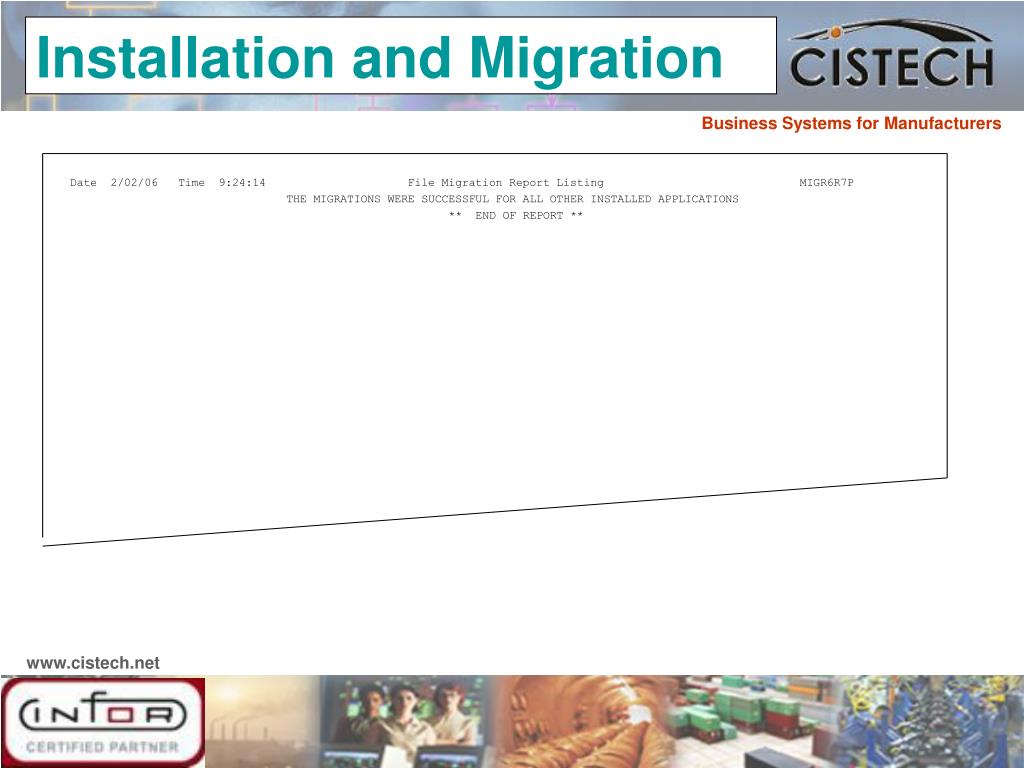

Slide17 l.jpg

Installation and Migration your machine will handle new requirements for Java applications (Power Architecture)

Date 2/02/06 Time 9:24:14 File Migration Report Listing MIGR6R7P

THE MIGRATIONS WERE SUCCESSFUL FOR ALL OTHER INSTALLED APPLICATIONS

** END OF REPORT **


Slide18 l.jpg

3. Integration, Tuning and User Training your machine will handle new requirements for Java applications (Power Architecture)

Integrate R7 with custom code

CISTECH’s Upgrade Assistant:

Minimize effort and cost

Minimize risk

Tune the environment (clients)

Conduct User Training

Integration and Testing


Slide19 l.jpg

Questions your machine will handle new requirements for Java applications (Power Architecture)

on R7 Migration

or Integration?


Slide20 l.jpg

4. Final Migration and Go-Live your machine will handle new requirements for Java applications (Power Architecture)

Download and apply latest migration tool fixes

Run migration process again

5. Post-Migration Support

User Support

Download/apply PTFs as needed

Client Tuning

Go-Live and Support


Slide21 l.jpg

Contact CISTECH or your affiliate for help with: your machine will handle new requirements for Java applications (Power Architecture)

Planning for R7

iSeries Upgrades

R7 Installation and migration

User Training for R7 applications

Integrate your custom code using Upgrade Assistant

Performance analysis and tuning

Training for IT Personnel

Helpful Resources


Slide22 l.jpg

R7 requires extra planning, particularly with the client applications

Minimum OS Release is V5R2

R7 server installation has not changed

R7 migration supported for R4, R5 & R6

You have resources and tools to help you succeed

Summary


Slide23 l.jpg

R7 Implementation applications

Java Architecture Implementation


Slide24 l.jpg

Agenda applications

  • R7 Requirements

  • Host and Network Configuration

  • R7 Java Architecture

  • Client Installation

  • Performance Considerations

  • Summary


Slide25 l.jpg

IT Skills Needed applications

Familiar with iSeries Integrated File System (IFS)

Experience configuring TCP/IP on the iSeries

Basic networking skills

Understanding of iSeries Database (for tuning clients by creating logical files)

R7 Requirements


Slide26 l.jpg

Infor and your affiliate will work with you to verify that your machine will handle new requirements for Java applications (“Browser” Architecture)

Collect performance data

Use capacity planning tools to determine if hardware upgrades are recommended

Perform upgrades in advance

Customers who approach R7 implementation this way achieve better results.

Technical Planning


Slide27 l.jpg

iSeries Requirements your machine will handle new requirements for Java applications (“Browser” Architecture)

5722JC1 Toolbox for Java

5722JV1 Java Developer Kit Options

*BASE Developer Kit for Java

Java Developer Kit 1.4

OS400 (5722SS1) Option 30 – QSHELL

5722TC1 TCP/IP Connectivity Utilities

Latest iSeries Java PTFs from IBM

Latest iSeries Cumulative Package

R7 Requirements


Slide28 l.jpg

PC Requirements (Recommended) your machine will handle new requirements for Java applications (“Browser” Architecture)

OS Windows

Memory 512 (256 MB free)

better: 1GB (512 MB free)

Processor Pentium II 400

Disk 20 GB (200 MB free)

Display XGA

Resolution 1024x768

Internet Browser with Java enabled

R7 Requirements


Slide29 l.jpg

Questions your machine will handle new requirements for Java applications (“Browser” Architecture)

On

R7 Requirements?


Slide30 l.jpg

iSeries Configuration Requirements your machine will handle new requirements for Java applications (“Browser” Architecture)

Domain Entry for host to participate on the network

Host Table Entry for identifying the host

Configure Netserver to view IFS directories

Host Configuration


Slide31 l.jpg

Host Configuration your machine will handle new requirements for Java applications (“Browser” Architecture)

CFGTCP Option 12


Slide32 l.jpg

Host Configuration your machine will handle new requirements for Java applications (“Browser” Architecture)

CFGTCP Option 10


Slide33 l.jpg

Network Configuration Requirements your machine will handle new requirements for Java applications (“Browser” Architecture)

Domain Name Services (DNS)

Must be able to ping using host names:

From iSeries to the PC

From PC to iSeries

Create a share to MAPICS directory in the IFS

Network Configuration


Slide34 l.jpg

Questions your machine will handle new requirements for Java applications (“Browser” Architecture)

On

Configuration?


Slide35 l.jpg

LinkManager your machine will handle new requirements for Java applications (“Browser” Architecture)

Management and maintenance for client environment

PowerLink

Browser with new look and feel

Internal LAN only

NetLink

Thin client

Internet Access

R7 Java Architecture


Slide36 l.jpg

SH14777 (download from E:Info) your machine will handle new requirements for Java applications (“Browser” Architecture)

Installation Guide for R7 Clients

LinkManager User Guide

New Features at latest fix level

Install IFS Client Objects from CD (SH14608)

Restore server objects to the AMXLIBx library

Initialize IFS for the environment

Sign on to environment as QSECOFR

Enter the XA environment to be installed

Key INZIFS on command line

Enter to accept English as default help text

Client Installation


Slide37 l.jpg

iSeries IFS Environment your machine will handle new requirements for Java applications (“Browser” Architecture)

Folders created in IFS when you run environment initialization

\\hostname\root\MAPICS\AMALIBx

(x=application designator)

Contain Java applications (.jar files)

Client configuration stored here

Fixes for clients are placed in IFS for download and applying to clients at login

R7 Java Architecture


Slide38 l.jpg

R7 Java Architecture your machine will handle new requirements for Java applications (“Browser” Architecture)

XA R7 Environments

R7, RE, ZC, and ZB


Slide39 l.jpg

R7 Java Architecture your machine will handle new requirements for Java applications (“Browser” Architecture)

To manually create a new environment from an existing one, you run an XA command to copy folders and restart all the Java Server Jobs

*refer to E:Info knowledge base

XA R7 Environments

R7, RE and RV


Slide40 l.jpg

Start the Global Environment your machine will handle new requirements for Java applications (“Browser” Architecture)

Log on to iSeries

Start Global Environment

PSICTLUJB ENV(xy) UJOB(PSVJUP) OPTION(*GLOBAL)

(xy) is the environment designator

WAIT for the two jobs in QUSRWRK to reach JVAW status

MPXREGSRV

MPXMGRSRV

IMPORTANT: Do not start U-jobs for environment until instructed to do so in the installation guide

Client Installation


Slide41 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide42 l.jpg

Install Java Runtime Environment your machine will handle new requirements for Java applications (“Browser” Architecture)

Java Runtime 1.4.2 is required

Remove previous versions using Add/Remove Programs before installing

Installed only once per PC

Navigate to URL for LinkManager or PowerLink installation (in next slides)

Click on Java Runtime Environment 1.4.2 in the Title to begin installation

Follow prompts and accept certificates

Client Installation


Slide43 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)

Click


Slide44 l.jpg

Install LinkManager your machine will handle new requirements for Java applications (“Browser” Architecture)

Only IT Personnel PCs or a server

Open your web browser

Navigate to this address

Http://<<host>>.<<domain>>:36001/LinkManager/

(host) is the name of your iSeries

(domain) is the name of your domain

Click on Infor XA Link Manager in the title to begin installation

Follow prompts and accept certificates

Client Installation

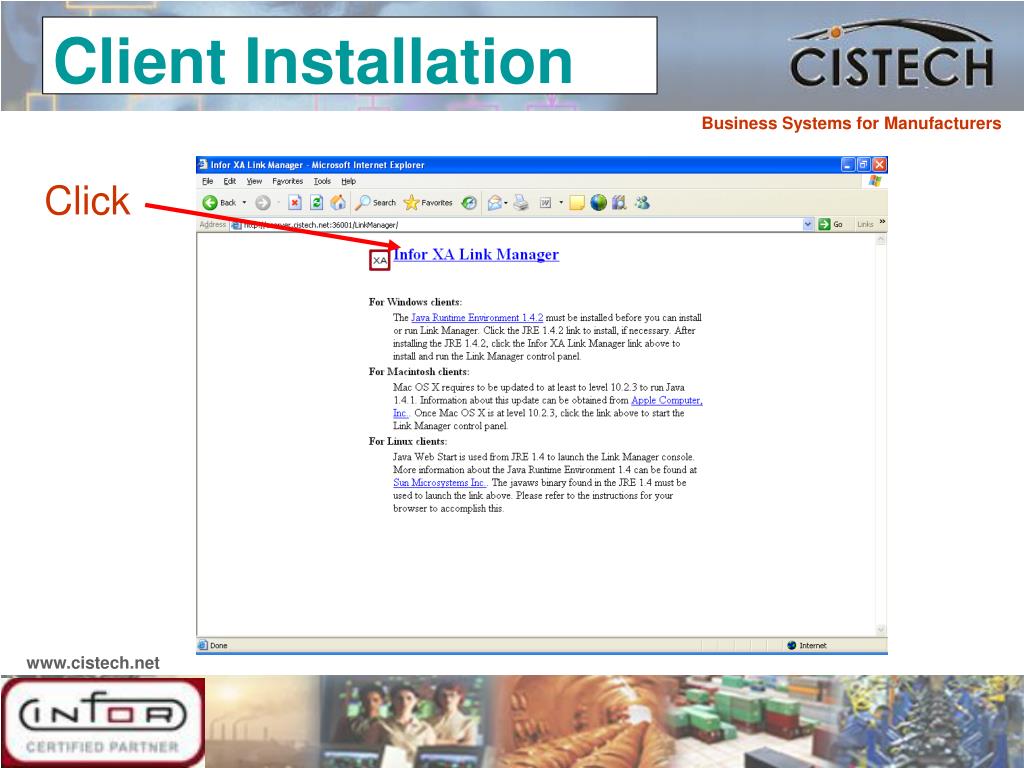

Slide45 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)

Click


Slide46 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide47 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide48 l.jpg

Install PowerLink your machine will handle new requirements for Java applications (“Browser” Architecture)

Apply client fix package before initial installation of PowerLink

SH14855 (look for future session on PTFs)

Start U-Job for MAPICS Java Server in the desired environment

PSICTLUJB ENV(xy) UJOB(PSVJUP) REQUEST(*START)

OR Start the PSVJUP U-Job in CAS

NOTE: Conversion of User Definitions and Integrator Business Objects will occur the first time you start the U-Job for the environment (after a data migration)

Wait for U-Job to become active

Client Installation


Slide49 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)

PSVJUP is active

Active Job is in DEQW status


Slide50 l.jpg

Install PowerLink your machine will handle new requirements for Java applications (“Browser” Architecture)

Navigate to this address

Http://<<host>>.<<domain>>:36001/PowerLink/xy

(host) is the name of your iSeries

(domain) is the name of your domain

(xy) is the designator for the R7 environment

Click on Infor XA Power-Link R7 in the title to begin installation

Follow prompts and accept certificates

Client Installation


Slide51 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)

Click


Slide52 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide53 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide54 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide55 l.jpg

Questions your machine will handle new requirements for Java applications (“Browser” Architecture)

On

Client Installation?


Slide56 l.jpg

Install NetLink your machine will handle new requirements for Java applications (“Browser” Architecture)

NOTHING TO INSTALL

Web Browser Access over Internet

Navigate to this address

Http://<<host>>.<<domain>>:36001/NetLink/

(host) is the name of your iSeries

(domain) is the name of your domain

Client Installation


Slide57 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide58 l.jpg

Client Installation your machine will handle new requirements for Java applications (“Browser” Architecture)


Slide59 l.jpg

NetLink vs. PowerLink your machine will handle new requirements for Java applications (“Browser” Architecture)

Create, Change, Copy and Delete actions are supported in both

The following are available only in PowerLink:

Mass actions (Mass change, mass delete…)

Quick Change, Compare, Host Print and Host Jobs

Wizards (MO close, Create PO from requisition, Check Component Availability…)

Client Installation


Slide60 l.jpg

Performance Considerations your machine will handle new requirements for Java applications (“Browser” Architecture)

Logicals for faster data access

Apply latest Database PTF package from IBM

Switches vs. Hubs

Network traffic – Performance Assessment

iSeries Performance configuration

Meet recommended PC requirements

Auxiliary Servers for NetLink and SystemLink

Response Time depends

on your network and PC configuration

more than ever before

Performance


Slide61 l.jpg

iSeries Performance Configuration (SH14413) your machine will handle new requirements for Java applications (“Browser” Architecture)

MAXACT for *BASE pool (WRKSYSSTS) - start high, adjust as needed

System Values

QACTJOB 400

QADLTOTJ 50

QMAXACTLVL *NOMAX

QPRCMLTTSK 1

QTOTJOB 1000

QUTCOFFSET Offset for your time zone

Performance


Slide62 l.jpg

iSeries Performance Configuration (SH14413) your machine will handle new requirements for Java applications (“Browser” Architecture)

Prestart Jobs – set maximum usage to 1

CHGPJE SBSD(QSYS/sbsd) PGM(QSYS/pgm) MAXUSE(1)

SBSD PGM

QUSRWRK QZDASOINIT

QUSRWRK QZRCSRVS

QSERVER QZDAINIT

QSERVER QPWFSERVSO

Performance


Slide63 l.jpg

Contact CISTECH or your affiliate for help with: your machine will handle new requirements for Java applications (“Browser” Architecture)

Planning for R7

iSeries Upgrades

R7 Installation and migration

User Training for R7 applications

Integrate your custom code using Upgrade Assistant

Performance analysis and tuning

Training for IT Personnel

Helpful Resources


Slide64 l.jpg

R7 Power Architecture has more hardware resource considerations

LinkManager provides maintenance and administration to application servers

PowerLink has replaced the Browser

NetLink should be installed on an auxiliary server for best performance

Summary


Slide65 l.jpg

Technical Information considerations

Ruth Pharr Belinda Daub

[email protected] [email protected]

704-814-0007 704-814-0004

Sales Information

Mike Taylor

[email protected]

423-266-3011

Thank You!


ad
