Ge nav update

PPT shrinker v 11b - FJ

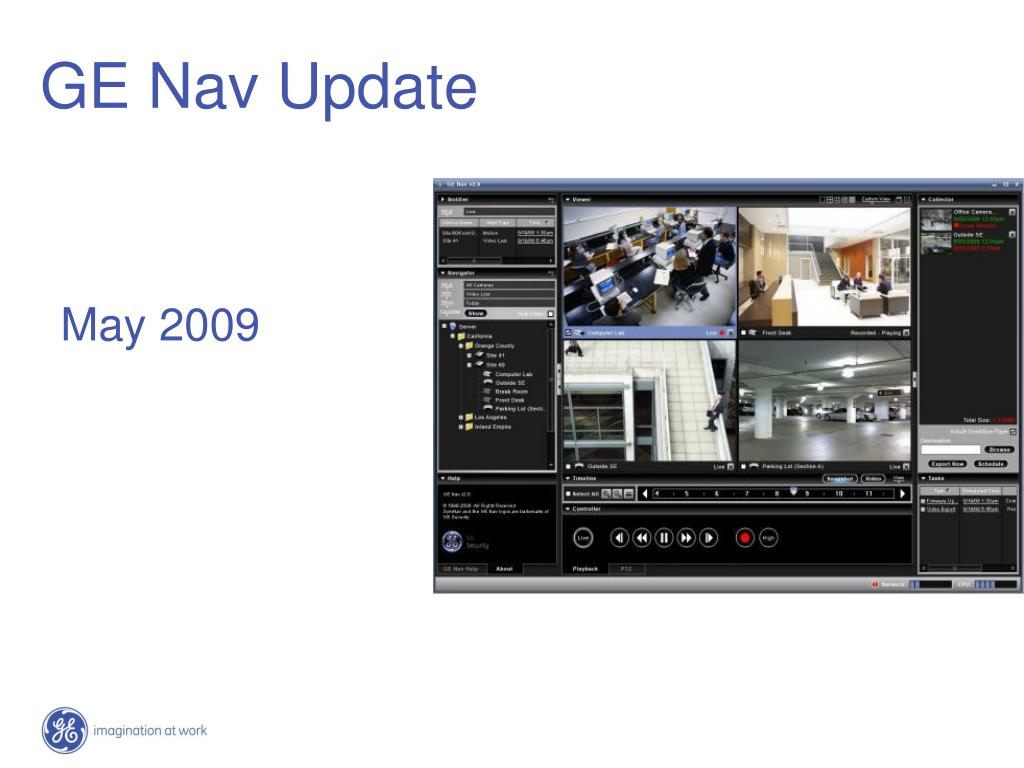

GE Nav Update

May 2009

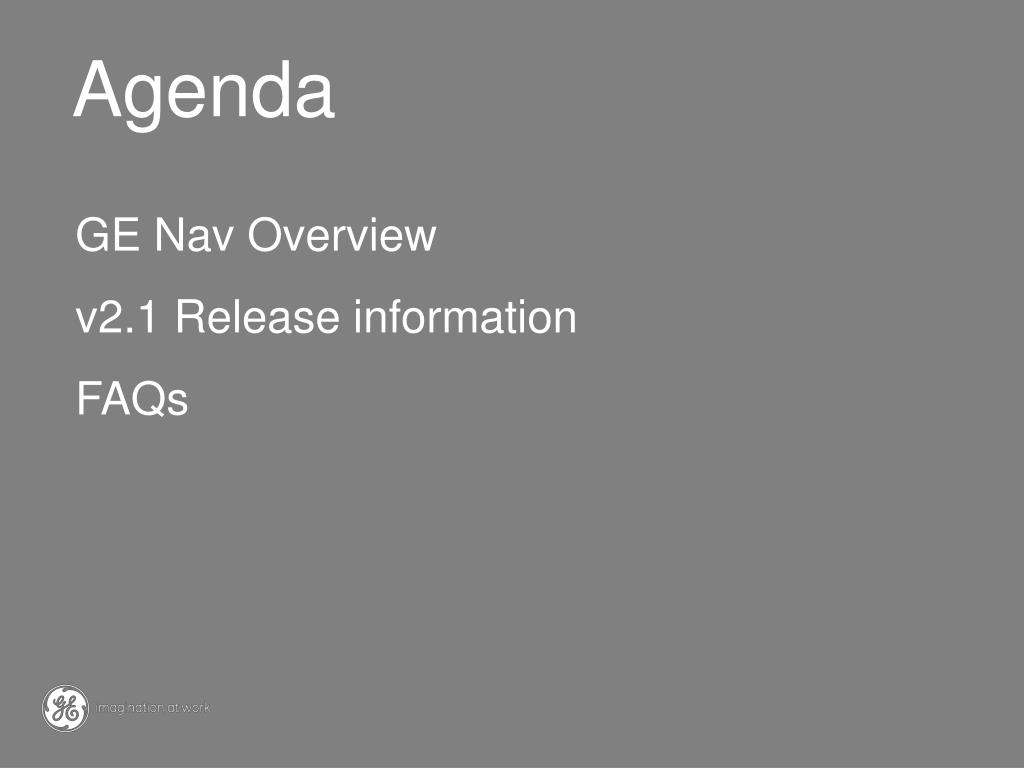

Agenda
Agenda

GE Nav Overview

v2.1 Release information

FAQs


Agenda1

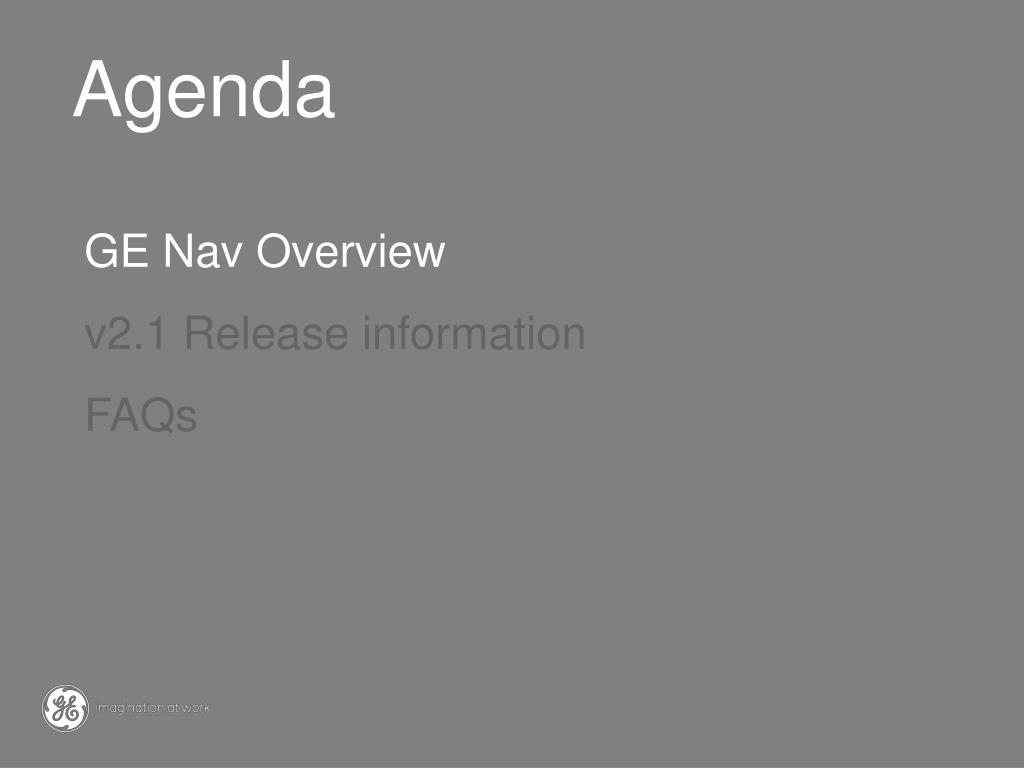

Agenda

GE Nav Overview

v2.1 Release information

FAQs


Ge nav v2

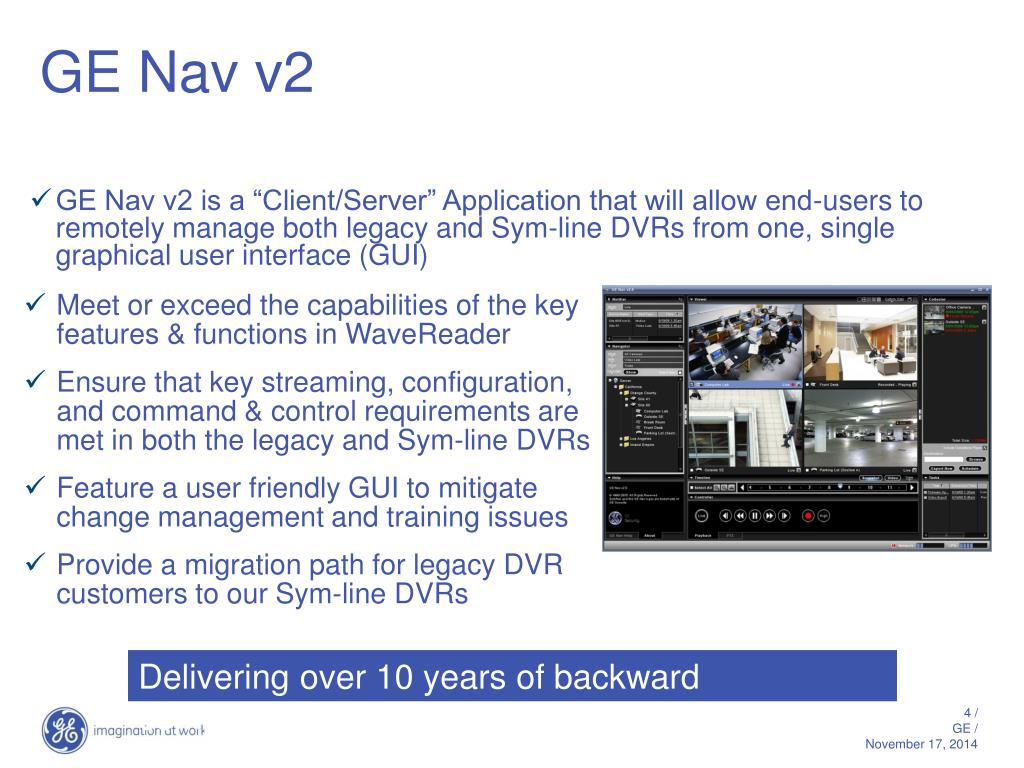

GE Nav v2

  • GE Nav v2 is a “Client/Server” Application that will allow end-users to remotely manage both legacy and Sym-line DVRs from one, single graphical user interface (GUI)

  • Meet or exceed the capabilities of the key features & functions in WaveReader

  • Ensure that key streaming, configuration, and command & control requirements are met in both the legacy and Sym-line DVRs

  • Feature a user friendly GUI to mitigate change management and training issues

  • Provide a migration path for legacy DVR customers to our Sym-line DVRs

Delivering over 10 years of backward compatibility



Key features of ge nav
Key features of GE Nav

Unique

Unique

Unique


Powerful new gui allows for different levels of user interaction

Admin and system maintenance

Video monitoring and review

Managing all aspects of a system

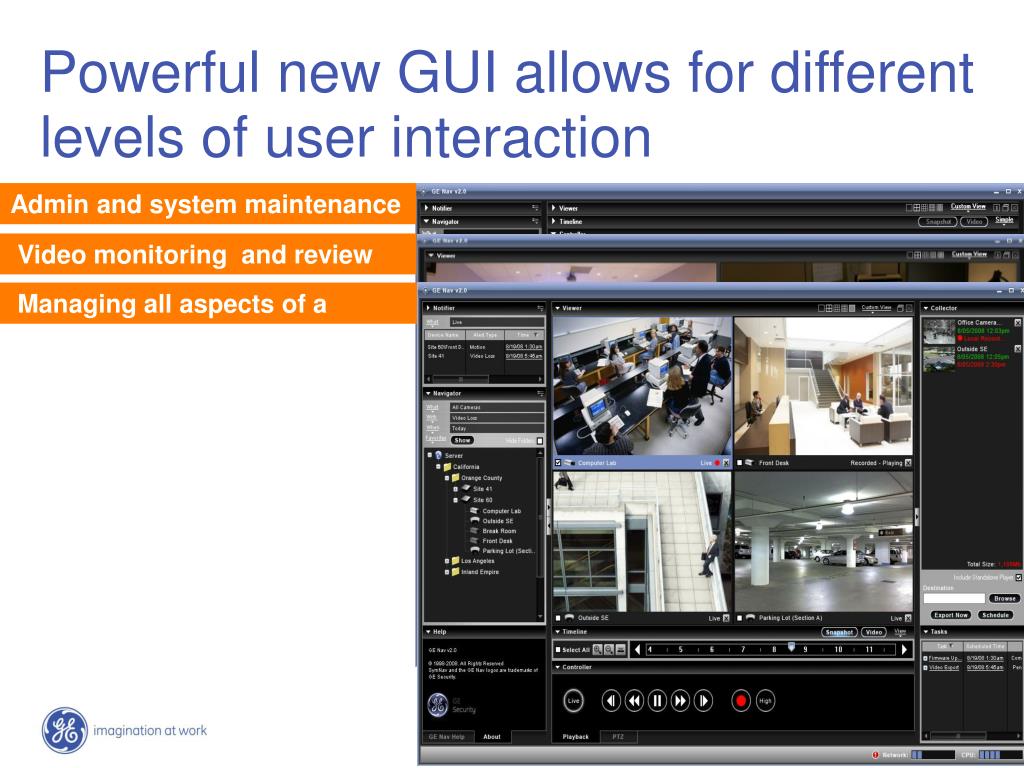

Powerful new GUI allows for different levels of user interaction


Key functions

Viewer

Collector

Notifier

Navigator

Tasks

Help

Controller

Timeline

Key functions


Agenda2

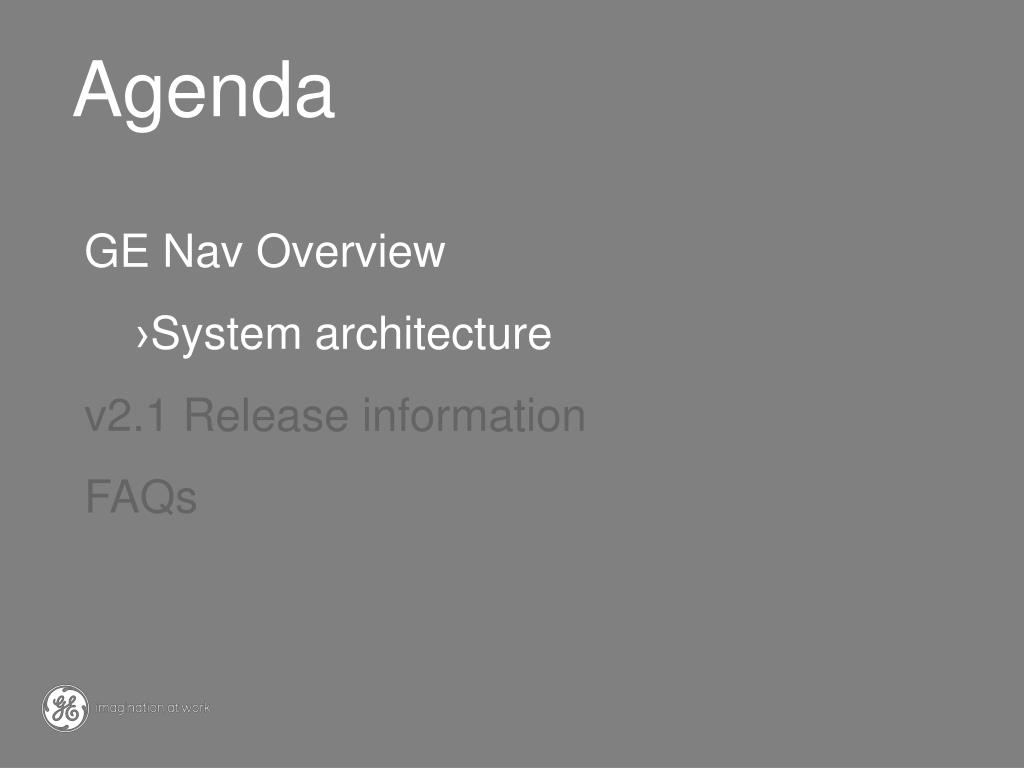

Agenda

  • GE Nav Overview

    • System architecture

  • v2.1 Release information

  • FAQs


The 3 ge nav software roles

GN Db

The 3 GE Nav Software “Roles”

GN Services

GN Client

Load all 3 of these components on 1 single machine or distribute each of those 3 components to individual machines for scale.



Direct database connection

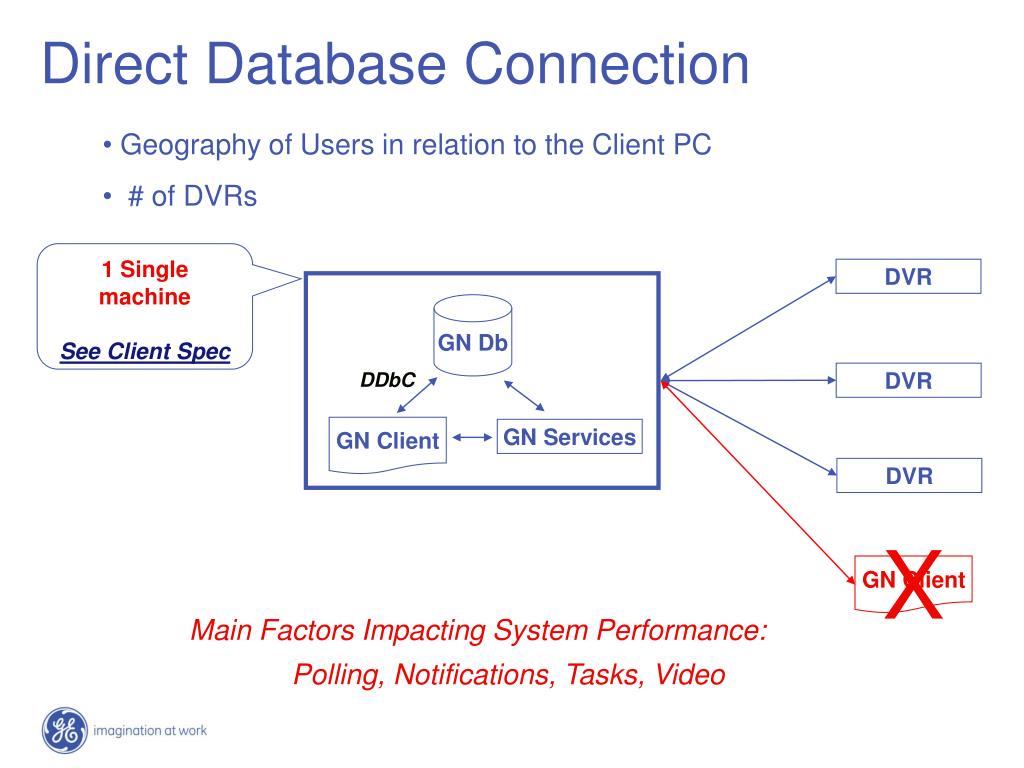

Direct Database Connection

  • Geography of Users in relation to the Client PC

  • # of DVRs

1 Single machine

See Client Spec

DVR

GN Db

DDbC

DVR

GN Client

GN Services

DVR

X

GN Client

Main Factors Impacting System Performance:

Polling, Notifications, Tasks, Video


Traditional client server typical

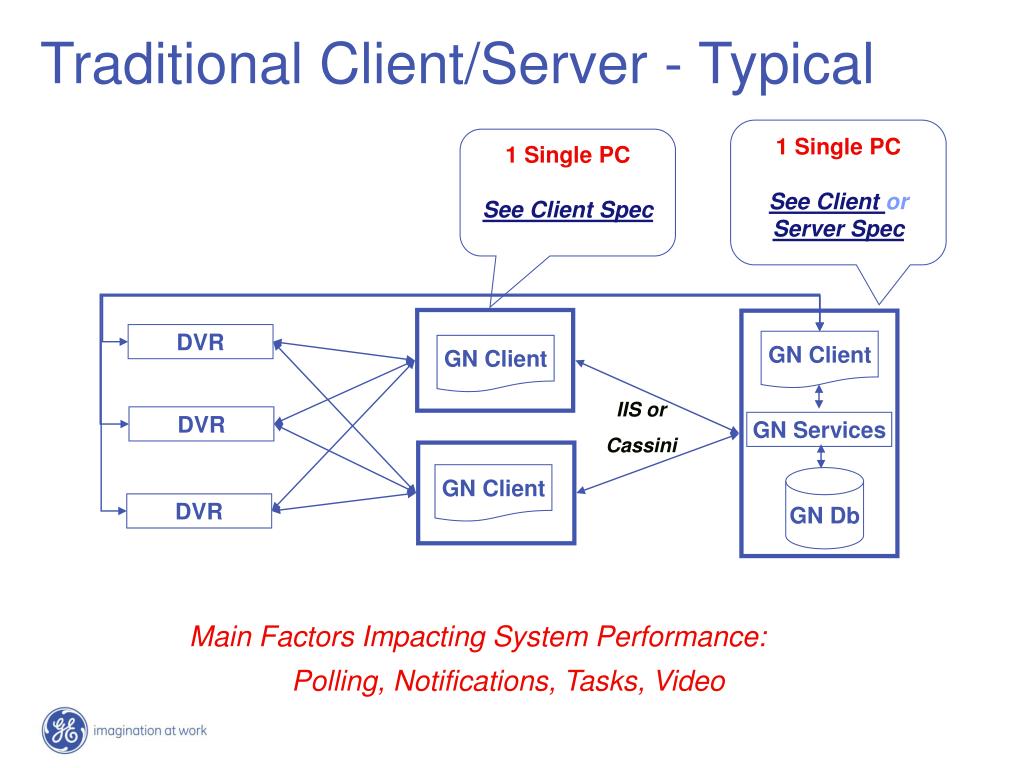

Traditional Client/Server - Typical

1 Single PC

See Client or Server Spec

1 Single PC

See Client Spec

DVR

GN Client

GN Client

IIS or

Cassini

DVR

GN Services

GN Client

GN Db

DVR

Main Factors Impacting System Performance:

Polling, Notifications, Tasks, Video


Traditional client server advanced

Traditional Client/Server - Advanced

1 Single PC

See Client Spec

1 Single PC

See Server Spec

DVR

IIS or

Cassini

GN Client

GN Services

DVR

GN Db

GN Client

DVR

Main Factors Impacting System Performance:

Polling, Notifications, Tasks, Video


Client specifications software

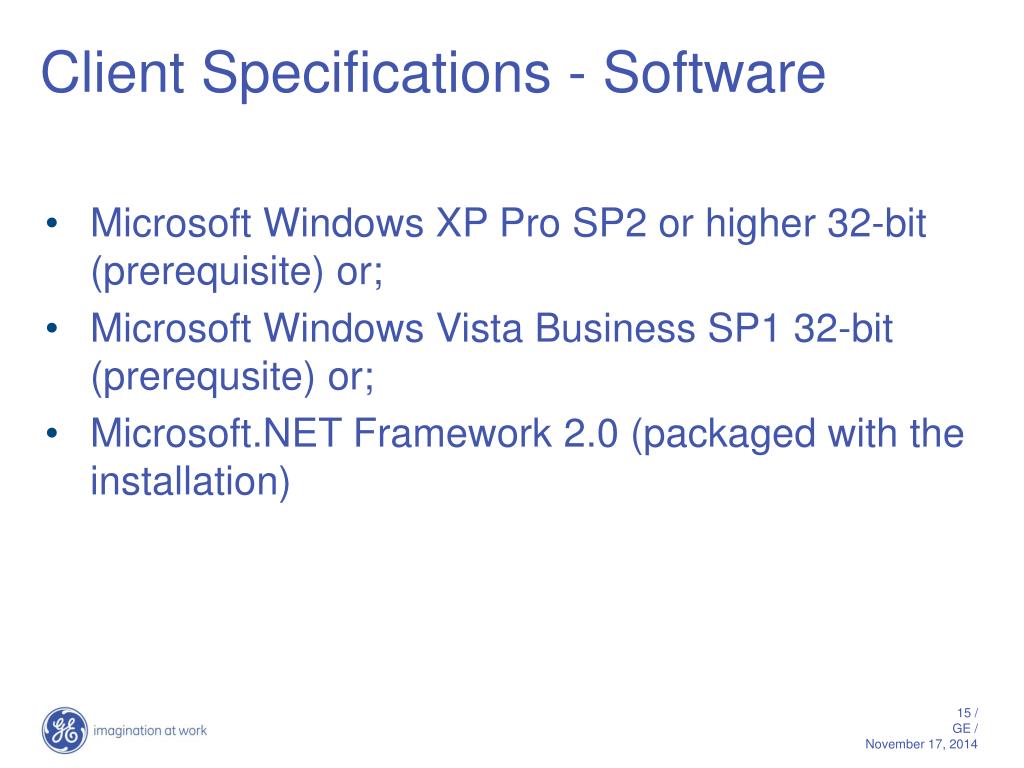

Client Specifications - Software

  • Microsoft Windows XP Pro SP2 or higher 32-bit (prerequisite) or;

  • Microsoft Windows Vista Business SP1 32-bit (prerequsite) or;

  • Microsoft.NET Framework 2.0 (packaged with the installation)



Server specifications software
Server Specifications - Software

  • Operating System

  • Microsoft Windows Server 2003 R2 Standard Edition (prerequisite) or;

  • Microsoft Windows XP Pro SP2 or higher 32-bit (prerequisite) or;

  • Microsoft Windows Vista Business SP1 32-bit (prerequisite)

  • Microsoft.Net Framework 2.0 (packaged with the installation)

  • Web Service

  • Microsoft Internet Information Services (IIS) 6.0 or higher (prerequisite) or;

  • Cassini (packaged with installation)

  • Database

  • SQL 2005 (However SQL Express 2005 is packaged with the installation)


Server specifications hardware
Server Specifications - Hardware

  • Intel Core 2 Duo Processor, 2.33 GHz, 4 MB Cache

  • 2.0 GB of RAM

  • At least 5 GB of storage or more

  • 256 MB ATI Radeon 2400XT or comparable 256 MB NVIDIA GeForce 6200 video card (optional if not viewing video)

  • 1024 x 768, 32-bit color or higher screen resolution 32-bit monitor (optional if not viewing video)


Agenda3
Agenda

GE Nav Overview

v2.1 Release information

FAQs


Ge nav v2 1 overview
GE Nav v2.1 Overview

  • Scope includes defect resolution and incremental features designed for Ease of Use

    • Direct input from Customers, End Users, Manufacturer’s Reps, Sales, Field Application Engineers, and Tech Support

  • 2.1 Is now available via download from www.gesecurity.com and will be shipping in SymDVRs by the end of May





Features not in v2 1 but planned for v3
Features not in v2.1 but planned for v3

  • Camera Sequencing

    • Ability to sequence up to 16 cameras on configurable dwell times within a single video tile

  • 64-bit Operating Systems


Agenda4
Agenda

GE Nav Overview

v2.1 Release information

FAQs
