Presentation Transcript

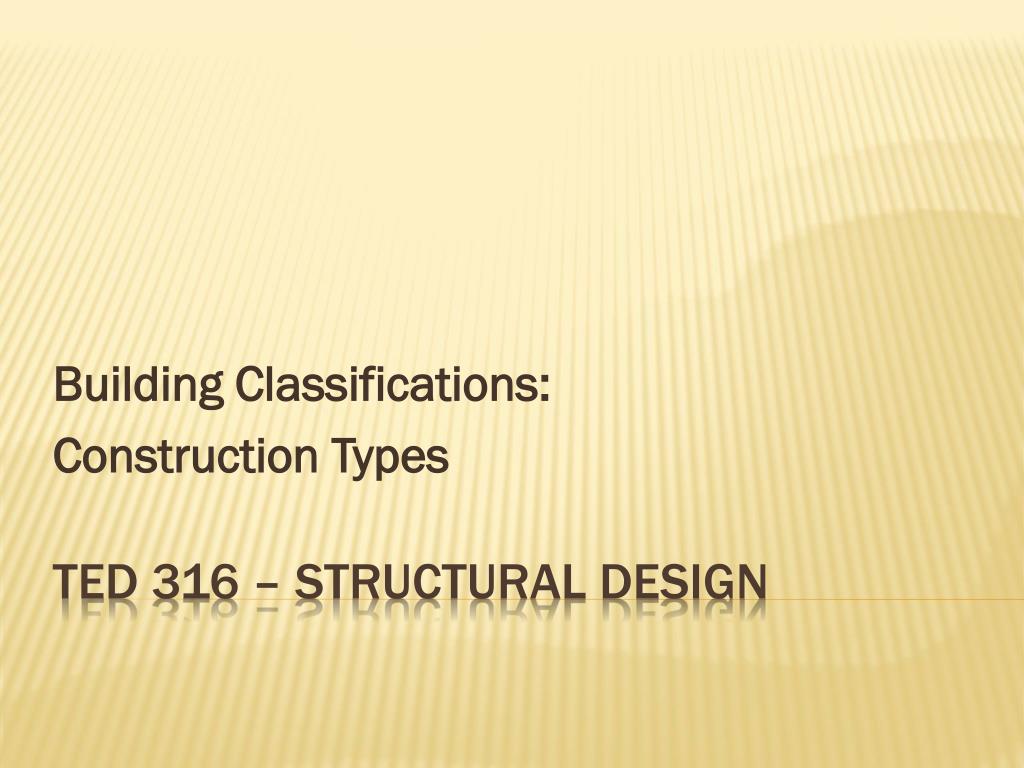

Building classifications construction types

Building Classifications:

Construction Types

TED 316 – Structural Design

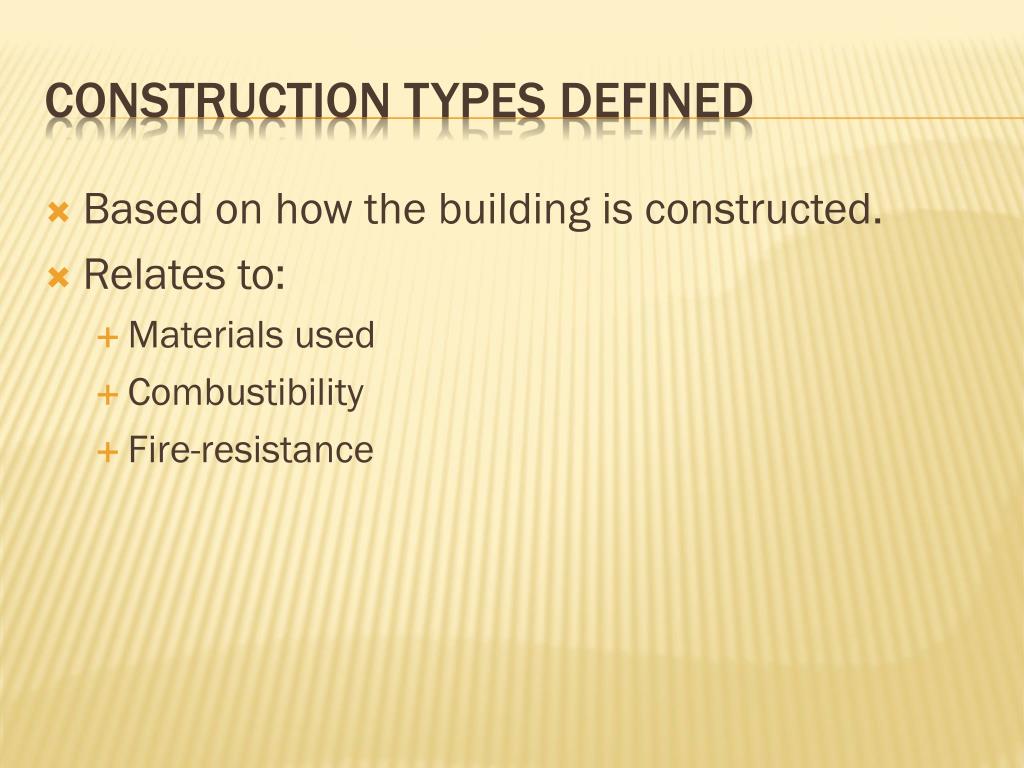

Construction types defined

  • Based on how the building is constructed.

  • Relates to:

    • Materials used

    • Combustibility

    • Fire-resistance

Construction types defined


Construction types

Types IA and IB

Types IIA and IIB

Types IIIA and IIIB

Type IV

Types VA and VB

Construction types


Construction types1

  • Types IA and IB

    • Noncombustible and fire-resistive

    • IA has a higher fire-resistance

    • Only noncombustible materials allowed

  • IBC does not determine combustibility

  • Done through the American Society for Testing and Materials (ASTM)

Construction types


Construction types2

Types IIA and IIB

Also noncombustible

Little or no fire-resistance

IIA has minimum of 1-hour fire-resistance

IIB has no requirement for fire-resistance unless required by other sections of the code

Construction types


Construction types3

Types IIIA and IIIB

Combustible

Permits wood framing

Little to no fire-resistance

IIIA requires 1-hour fire-resistance throughout with exterior bearing walls 2-hour

IIIB only requires 2-hour fire-resistance for exterior bearing walls

Construction types


Construction types4

  • Type IV

  • Combustible

  • Heavy timber construction only

    • Columns at least 8” thick

    • Floor and roof framing at least 6” thick

    • Floor and roof decks 3-4” thick (built up)

  • Exterior walls noncombustible construction

Construction types


Construction types5

Types VA and VB

Combustible

Slightly less fire-resistance than Type III

VA exterior bearing wall fire-resistance is 1-hour

VB has no fire-resistance rating

Construction types


Mixed ratings lowest rating

A building or portion thereof shall not be required to conform to the details of a type of construction higher than that type, which meets the minimum requirements based on occupancy even though certain features of such a building actually conform to a higher type of construction.

Mixed ratings = lowest rating


Sources

http://www.specsandcodes.com/Articles.htm#CodeArticles

http://www.specsandcodes.com/Articles/The%20Code%20Corner%20No.%2015%20%20Building%20Classification%20Part%202%20-%20Construction%20Types.pdf

http://en.wikipedia.org/wiki/International_Building_Code

http://en.wikipedia.org/w/index.php?title=Special%3ASearch&search=ibc+building+code

http://en.wikipedia.org/wiki/Uniform_Building_Code
