Parton distributions at hadronization from bulk dense matter produced at RHIC

Jin-Hui Chen

Shanghai Institute of Applied Physics, CAS

In collaboration with F. Jin, D. Gangadharan, X. Cai, H. Huang and Y. Ma

Introduction and Motivation

Phenomena @ RHIC in favor of quark Coalescence/Recombination mechanism

Results and Discussions

Constituent quark pT distribution at hadronization

s/d quark ratio at hadronization

Parton freeze-out properties

Dynamical model calculation

Summary and Outlook

p t dependence physical process

STAR RunII Au+Au @ 200 GeV


0 1 2 3 4 5 6 7 8 9 10 11 12 GeV/c




pT dependence physical process
  • pT dependence physical process at RHIC
  • We will focus on the intermediate pT region, and let’s visit the data again…
intriguing phenomena at rhic large p p ratio
Intriguing phenomena at RHIC ----large p/p ratio
  • Unexpected large p/p ratio at intermediate pT in central Au+Au collisions
  • The hadronization scheme at RHIC must be different from e+e- !
intriguing phenomena at rhic v 2 r cp grouping

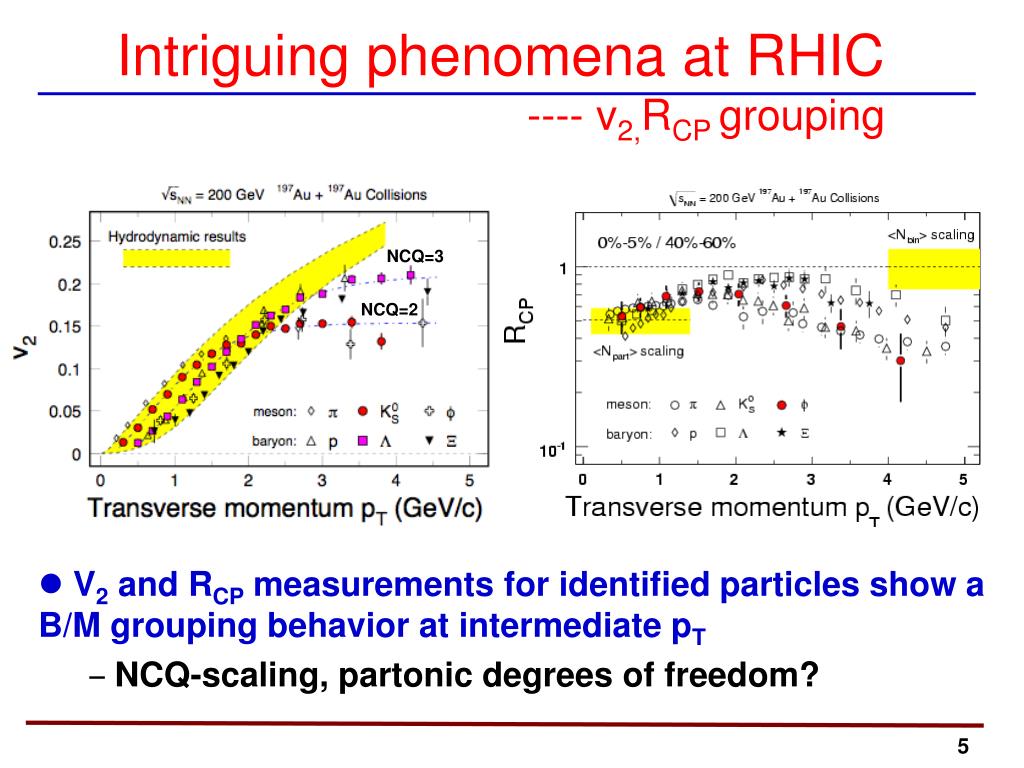

Intriguing phenomena at RHIC ---- v2,RCP grouping
  • V2 and RCP measurements for identified particles show a B/M grouping behavior at intermediate pT
    • NCQ-scaling, partonic degrees of freedom?
what can we learn from those phenomena
What can we learn from those phenomena?
  • At RHIC intriguing experimental features:
    • enhanced baryon over meson production
    • strong elliptic flow
    • B/M type grouping behavior of v2 and RCP for indentified particles
  • Hadronization of bulk dense matter created at RHIC must be different from e+e- collisions!
  • Evidence for quark Coal/Reco!
  • The essential degrees of freedom at hadronization seem to be effective constituent quarks that have developed a collective flow during the partonic evolution.
    • v2/nq represents the constituent quark v2, what about the constituent quark pT distribution?
    • p,K,p: large resonance decay and hadronic re-scattering effect.
    • our approach is made possible because of high stat. W, f measurements.
focus on w and f

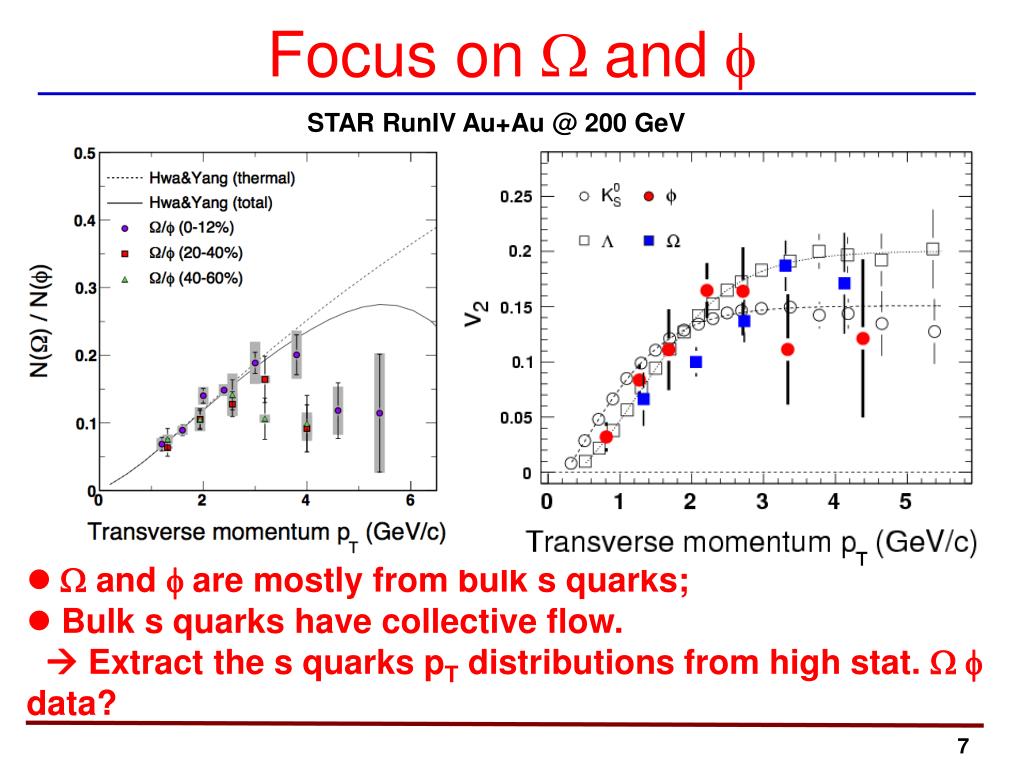

Focus onW and f

STAR RunIV Au+Au @ 200 GeV

  • W and fare mostly from bulk s quarks;
  • Bulk s quarks have collective flow.

 Extract the s quarks pT distributions from high stat. W f data?

parton p t distributions at hadronization
Parton pT distributions at hadronization

If baryons of pT are mostly formed from coalescence of partons at pT/3 and mesons of pT are mostly formed from coalescence of partons at pT/2 [1,2,3]

[1] R.C. Hwa et al., Phys. Rev. C 66, 025205 (2002);

[2] V. Greco et al., Phys. Rev. Lett. 90, 202302 (2003);

[3] R.J. Fries et al., Phys. Rev. Lett. 90, 202303 (2003).

  • W and f particles have no decay feed-down contribution.
  • These particles will freeze-out earlier from the system and have small hadronic re-scattering cross sections.
strange and light quark distribution

The constitute quark pT distributions have been extracted from the multi-strange data;

  • The s-quark shows a flatter pTdistribution than the d-quark.
  • The s-quark and d-quark have a similar KET distribution: partons have undergone a partonic evolution possibly described by hydrodynamics.
Strange and light quark distribution
s d quark ratio from primordial hyperon

Consistent s/d ratio derived from primordial hyperon data

  • Sfeed-down:
    • S(1385)[2]: 26%+-5.9%;
    • S0: no data available yet
      • THERMUS[3]: 36%
      • String frag[4]: 25%

[2] B.I. Abelev et al., Phys. Rev. Lett. 97, 132301 (2006);

[3] S. Wheaton and J. Cleymans, J. Phys. G 31, S1069 (2005);

[4] M. Bleicher et al., J. Phys. G 25, 1859 (1999); H.J. Drescher et al., Phys. Rep. 350, 93 (2001).

s/d quark ratio from primordial hyperon
  • s/d ratio from hyperonX0(1530) feed-down[1]: 46%+-14%

[1] R. Witt, J. Phys. G 34, S921 (2007);


s/d ratio compared with Reco. model calculation

 Good agreement with the data; Large exp. uncertainty;

  • Quark Reco. model predicted a consistent shape between s/d ratio and the hyperon ratio.
parton freeze out properties
Parton freeze-out properties
  • Significant radial flow though with large uncertainty involved from the data:
    • ms = 460 MeV
    • md = 260 MeV

Thermal parton distribution function:

R.J. Fries et al.,Phys. Rev. C 68,044902 (2003);

Phys. Rev. Lett. 90,202303 (2003).

constraints on the system evolution dynamics
Constraints on the system evolution dynamics
  • Theoretical model for particle production at RHIC typically involve initial conditions, partonic evolutions, hadronization and hadronic evolutions.
  • Theoretical uncertainties due to hadronization scheme and hadronic evolution are major issues for quantitative description of properties of QCD medium created at RHIC.

i.e. the hadronic evolution process have been added to the hydrodynamic models as an afterburner and have been shown to significantly alter the spectra shapes of ordinary hadrons[1].[1] T. Hirano et al., Phys. Rev. C 77, 044909 (2008)

Can our derived quark distributions, representing a cumulative effect from initial conditions through partonic evolution, be used to determine the final-state hadron momentum distribution?

dynamical model calculation 1

Original version failed to reproduce the spectra data:

    • Insufficiency parton cascading cross sections in the ZPC model where only pQCD processes have been included?
    • Wrong choice of hadronization scheme?
Dynamical model calculation (1)
  • A Multi-Phase Transport model[1]
    • Initial condition: HIJING
    • Partonic evolution: ZPC
    • Hadronization: coalescence
    • Hadronic evolution: ART

[1] Z.W. Lin et al., Phys. Rev. C 72, 064901 (2005)

dynamical model calculation 2

It can faithfully reproduce the data at intermediate pT.

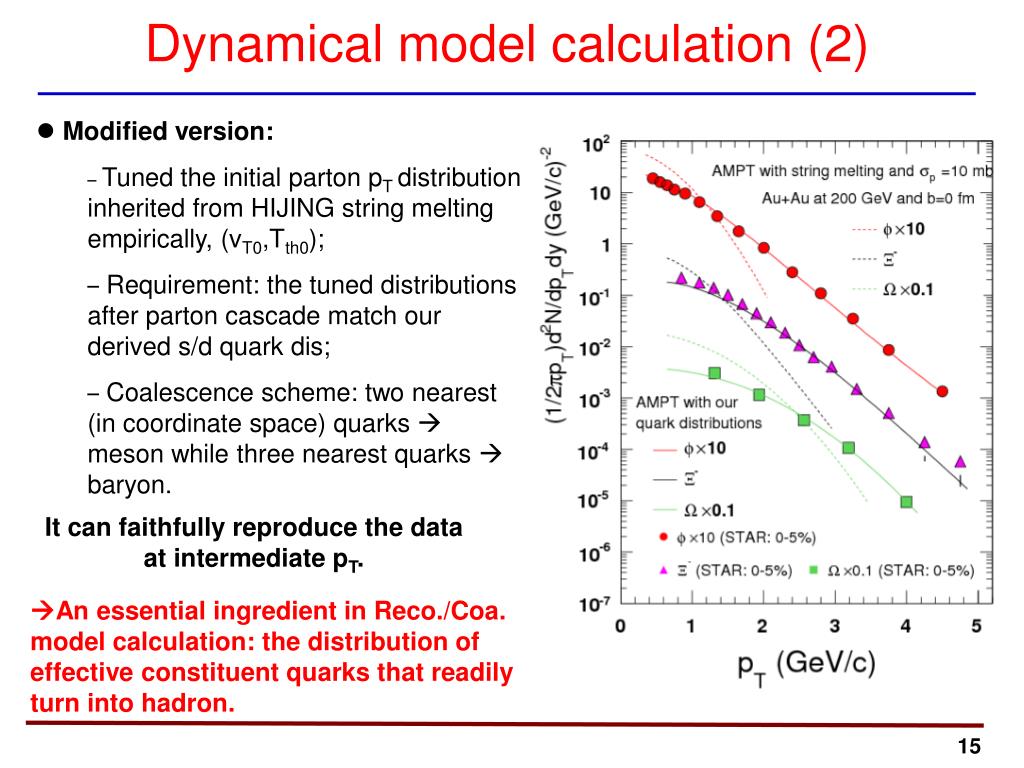

Dynamical model calculation (2)
  • Modified version:
    • Tuned the initial parton pT distribution inherited from HIJING string melting empirically, (vT0,Tth0);
    • Requirement: the tuned distributions after parton cascade match our derived s/d quark dis;
    • Coalescence scheme: two nearest (in coordinate space) quarks  meson while three nearest quarks  baryon.

An essential ingredient in Reco./Coa. model calculation: the distribution of effective constituent quarks that readily turn into hadron.

  • Our analysis provided an empirical confirmation of recombination/ coalescence framework for hadronization of bulk partonic matter produced at RHIC. We derived transverse momentum distributions for effective constituent quarks at hadronization.
  • Our results suggest that partons develop a significant collective radial flow during partonic evolution.
  • The validity of our approach to explore quark transverse-momentum distributions at hadronization has been tested with independent particle ratios.

Our approach in complement with the constituent quark number scaling in elliptic flow provides a means to measure quantitative parton distributions at hadronization.

c.f. Phys. Rev. C 78 (2008) 034907

outlook extend pid capability
Outlook: Extend PID Capability
  • /K separation to 1.6 GeV/c (0.7 TPC)
  • (+K)/p to 3 GeV/c (1.2 TPC)
  • Clean electron ID down to 0.2 GeV
  • ToF detector updated:
  • 90 (of 120) ToF trays to be installed for Run 9 and will be completed before Run 10.
  • This will allow a more precise quantitative measurement of multi-strange hadron production at RHIC.

Quantify the parton distributions at hadronization

  • v2/nq vs. pT/nq distributions
  • pT/nq vs. pT/nq distributions
