  1. Delivering Voice, Video, Data & Mobility to SMBs Technical Overview

  2. Introducing… UCM6100 Series IP PBX Appliance UCM6102 UCM6104 UCM6108 UCM6116 Asterisk is a Registered Trademark of Digium

  3. UCM61xx Hardware Specifications • 1GHz ARM Cortex processor • 512MB DDR RAM • 4GB NAND Flash • Integrated 2/4/8/16 PSTN trunk FXO ports, 2 analog FXS ports • Gigabit network port with integrated PoE Plus (802.3at-2009) • USB and SD peripheral ports • LED indicators for power, network, FXO and FXS statuses • 128x32 graphic LCD Display

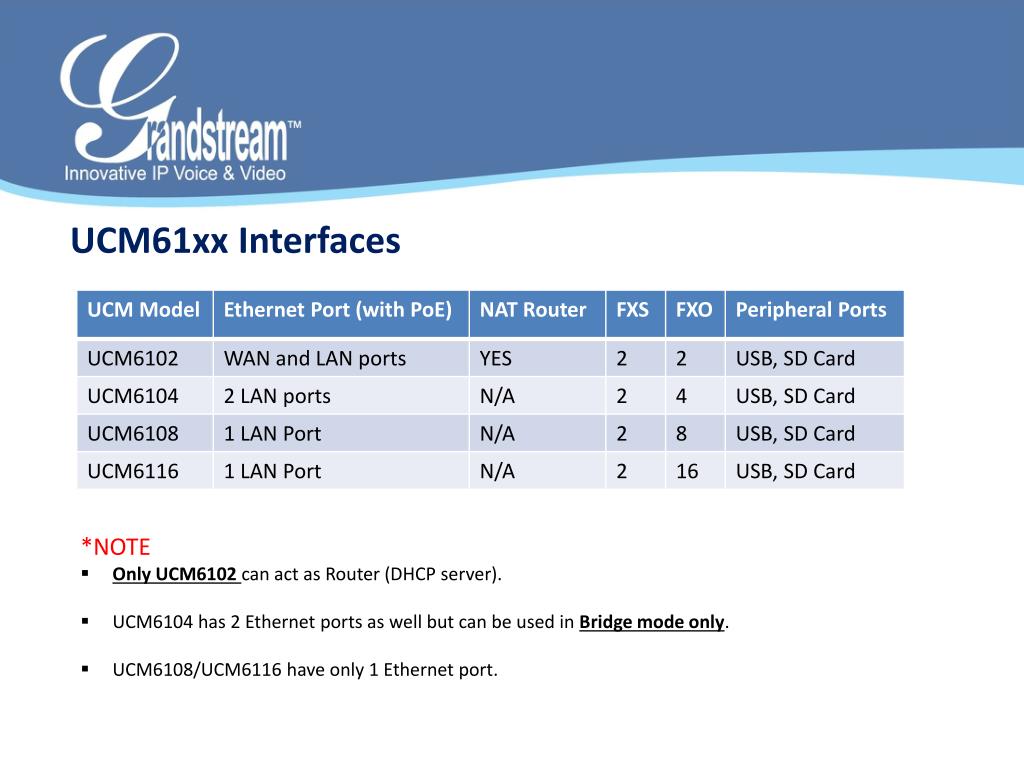

  4. UCM61xx Interfaces • *NOTE • Only UCM6102 can act as Router (DHCP server). • UCM6104 has 2 Ethernet ports as well but can be used in Bridge mode only. • UCM6108/UCM6116 have only 1 Ethernet port.

  5. UCM61xx Voice/Fax and Video • Voice and Fax Codecs • G.711 aLaw/uLaw • G.722 (HD Voice) • G.723 (5.3K / 6.3K) • G.726 • G.729 A/B • iLBC • GSM • T.38 • Video Codecs • H.264 • H.263 • H.263+ • *NOTE: Hardware Transcoding • Up to 8 between 2 different LBRs • Up to 16 between PCM and LBR • Up to Max concurrent calls when codecs are the same

  6. UCM61xx Signaling and Control • VoIP Protocols • Open source SIP (RFC3261) • Asterisk proprietary IAX • DTMF Methods • In Audio • RFC2833 • SIP INFO • Provisioning Protocol and Plug-and-Play • TFTP/HTTP/HTTPS • Auto-Discovery and Auto-Provisioning of Grandstream Endpoints. • Network Protocols • TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, TLS/SIP

  7. UCM61xx Calling Features • SIP Trunk and Endpoint Registrations • Up to 50 SIP Trunk Accounts • Up to 500 SIP Endpoint Registrations. • Concurrent Calling • UCM6102: Up to 30 simultaneous calls • UCM6104: Up to 45 simultaneous calls • UCM6108/UCM6116: Up to 60 simultaneous calls • Conference Bridges • UCM6102/UCM6104: Up to 3 password-protected conference bridges allowing up to 25 simultaneous participants • UCM6108/UCM6116: Up to 6 password-protected conference bridges allowing up to 32 simultaneous participants

  8. UCM61xx Calling Features (continued) • Advanced Features • Record Server • LDAP Server • Busy Lamp Field (BLF) • 802.1X Access • Zero Configuration • Video Codec Negotiation • DID • Mobile Extension • Firewall/Router • FAX server • Fax-to-Email • TLS • Media Security (SRTP) • FXO Automatic Detection • 3-way Video Conference • Basic Features • Auto Attendant (IVR) • Caller Record (CDR) • Conference Bridge • Do Not Disturb • Call Forward • Call Queue • Call Park • Call Pickup • Call Waiting • Black/White List • Callback • Intercom/Paging • Ring Group • Multi-Language • Attended/Blind Transfer • Music on Hold • Voicemail • Call Forwarding

  9. UCM61xx Security • Network • LLDP support on data link layer authentication • 802.1x authentication for network access • Firewall/ACL access control • System Configuration • Inbound route/outbound route with privilege assignment • Log printout • Automatic system backup • Application • HTTPS for secure remote access • AES-128 encryption for data transmission • Random generated passwords for SIP extensions • TLS Signaling encryption between UCM and end-point • SRTP real-time media encryption between UCM to end-point

  10. Let’s take a look at the UCM6100 series intuitive web interface…
