Data structures and algorithms

Data Structures and Algorithms

Graphs I:

Representation and Search

Gal A. Kaminka

Computer Science Department


Outline

Outline

  • Reminder: Graphs

    • Directed and undirected

  • Matrix representation of graphs

    • Directed and undirected

  • Sparse matrices and sparse graphs

  • Adjacency list representation

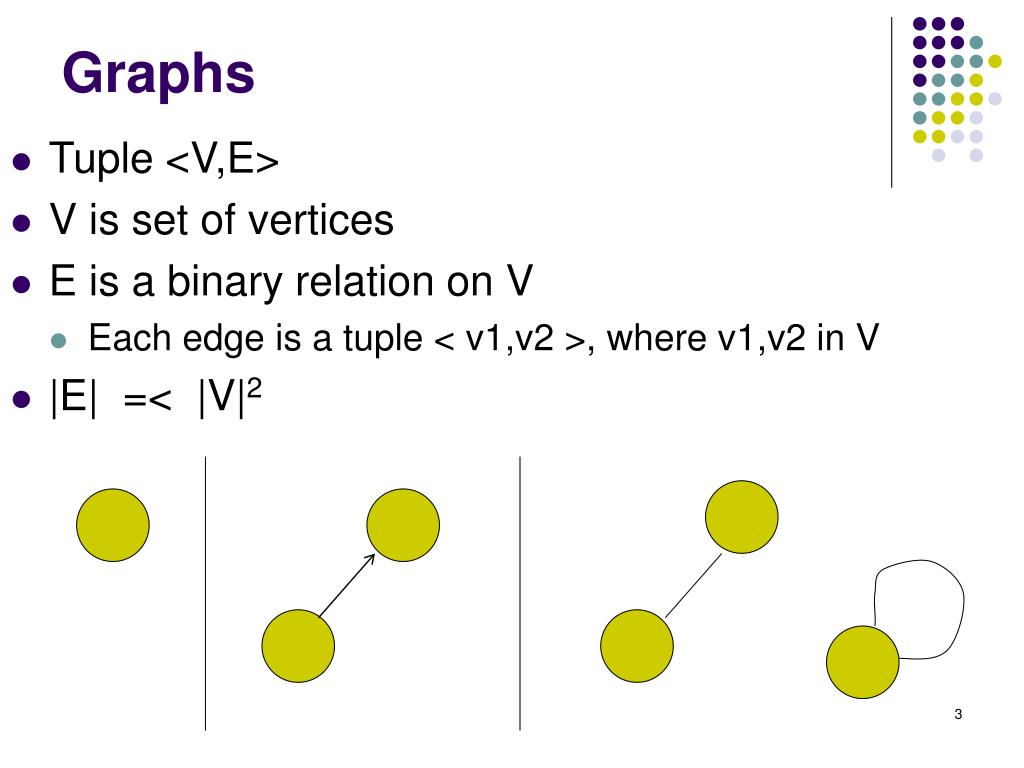

Graphs

Graphs

  • Tuple <V,E>

  • V is set of vertices

  • E is a binary relation on V

    • Each edge is a tuple < v1,v2 >, where v1,v2 in V

  • |E| =< |V|2

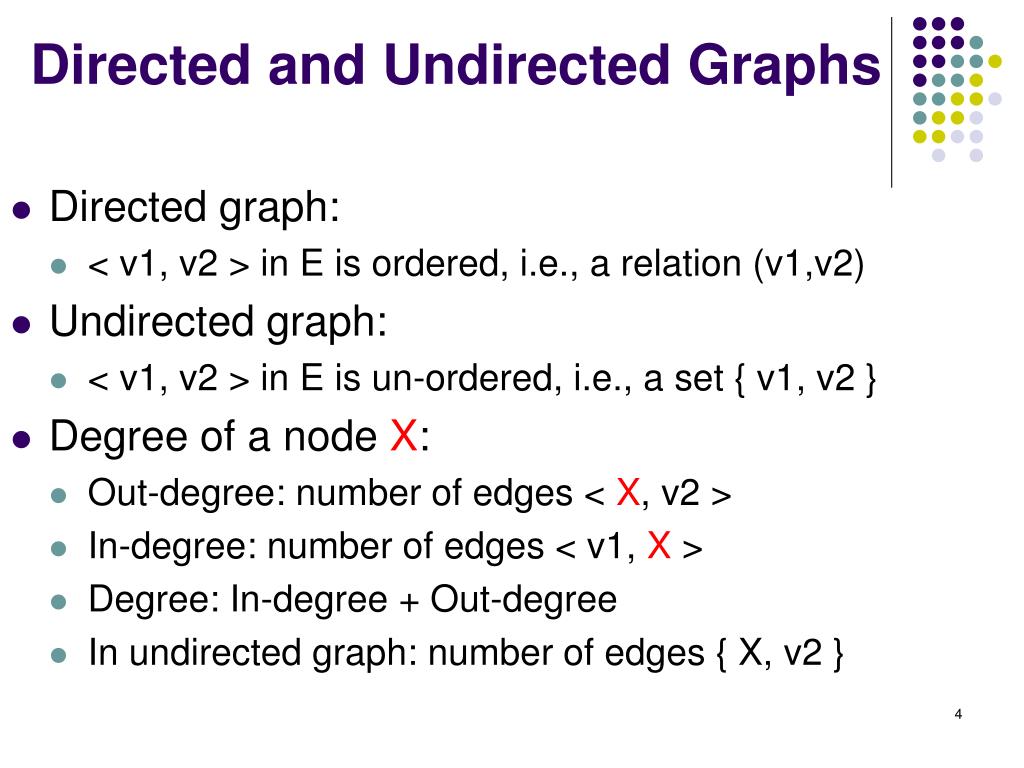

Directed and undirected graphs

Directed and Undirected Graphs

  • Directed graph:

    • < v1, v2 > in E is ordered, i.e., a relation (v1,v2)

  • Undirected graph:

    • < v1, v2 > in E is un-ordered, i.e., a set { v1, v2 }

  • Degree of a node X:

    • Out-degree: number of edges < X, v2 >

    • In-degree: number of edges < v1, X >

    • Degree: In-degree + Out-degree

    • In undirected graph: number of edges { X, v2 }

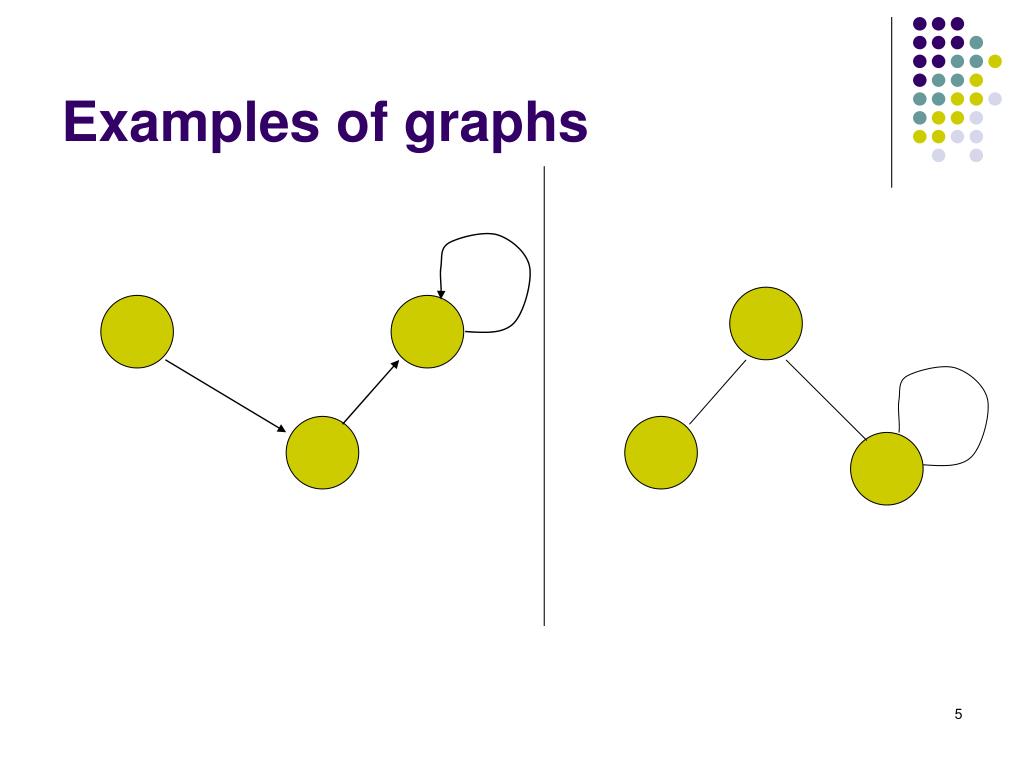

Examples of graphs

Examples of graphs


Paths

Paths

  • Path from vertex v0 to vertex vk:

    • A sequence of vertices < v0, v1, …. vk >

    • For all 0 =< i < k, edge < vi, vi+1 > exists.

    • Path is of length k

  • Two vertices x, y are adjacent if < x, y > is an edge

  • Path is simple if vertices in sequence are distinct.

  • Cycle: if v0 = vk

    • < v, v > is cycle of length 1


Connected graphs

Connected graphs

  • Undirected Connected graph:

    • For any vertices x, y there exists a path xy (= yx)

  • Directed connected graph:

    • If underlying undirected graph is connected

  • Strongly connected directed graph:

    • If for any two vertices x, y there exist path xy

      and path yx

    • Clique: a strongly connected component

  • |V|-1 =< |E| =< |V|2

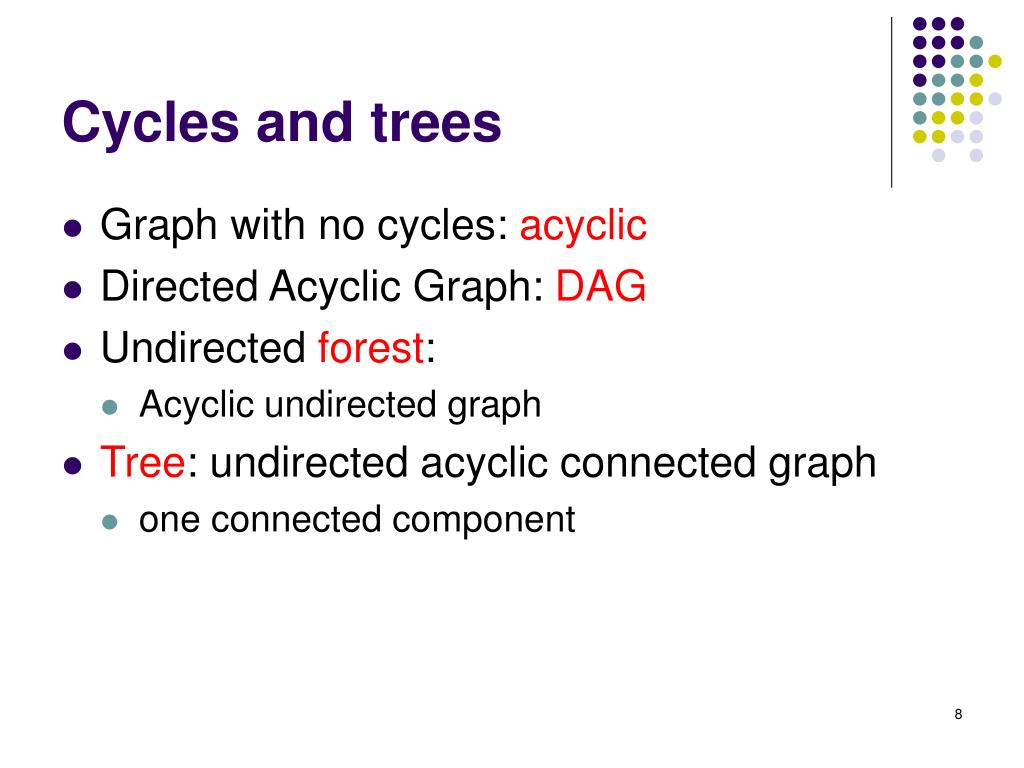

Cycles and trees

Cycles and trees

  • Graph with no cycles: acyclic

  • Directed Acyclic Graph: DAG

  • Undirected forest:

    • Acyclic undirected graph

  • Tree: undirected acyclic connected graph

    • one connected component


Representing graphs

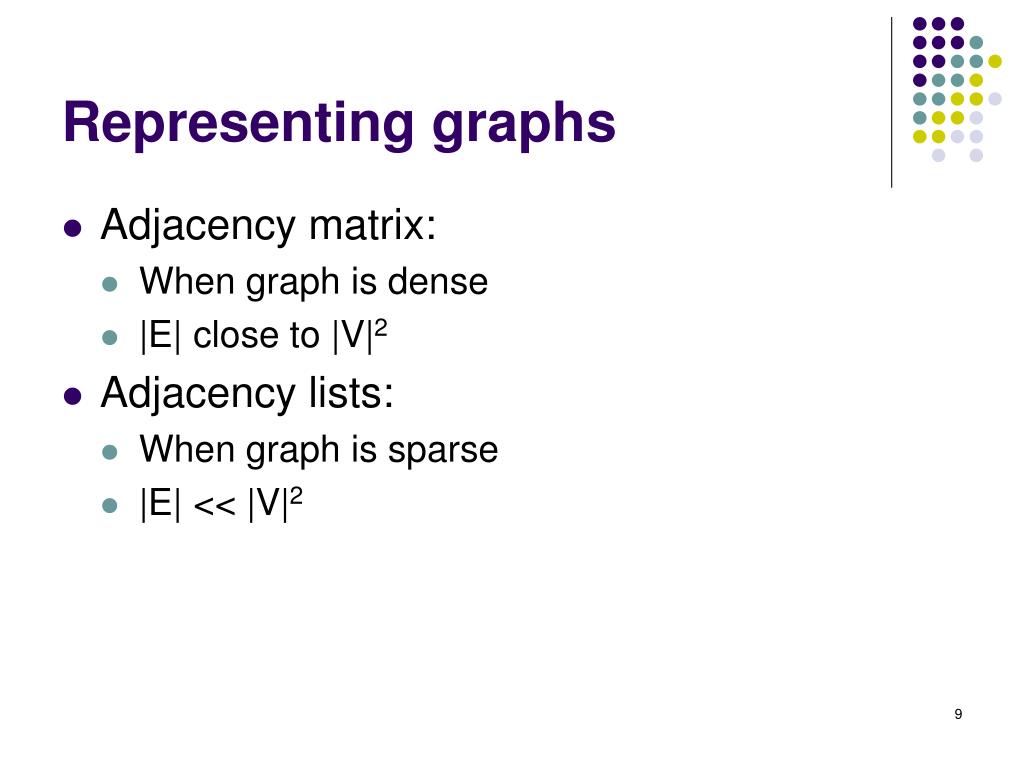

Representing graphs

  • Adjacency matrix:

    • When graph is dense

    • |E| close to |V|2

  • Adjacency lists:

    • When graph is sparse

    • |E| << |V|2


Adjacency matrix

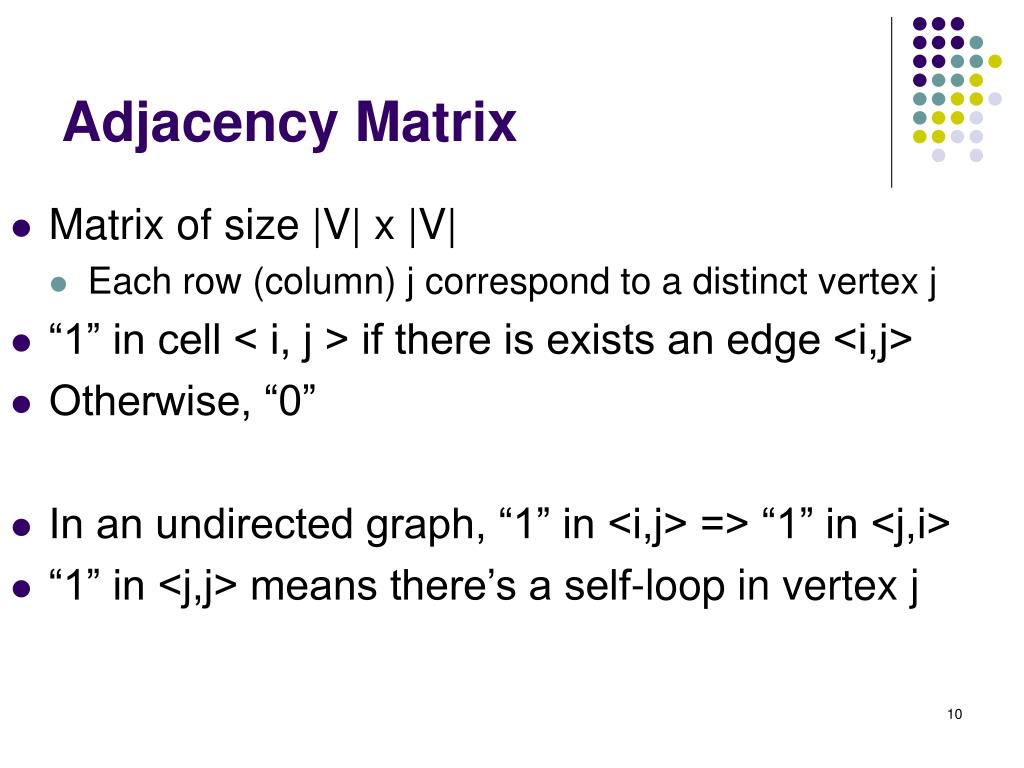

Adjacency Matrix

  • Matrix of size |V| x |V|

    • Each row (column) j correspond to a distinct vertex j

  • “1” in cell < i, j > if there is exists an edge <i,j>

  • Otherwise, “0”

  • In an undirected graph, “1” in <i,j> => “1” in <j,i>

  • “1” in <j,j> means there’s a self-loop in vertex j

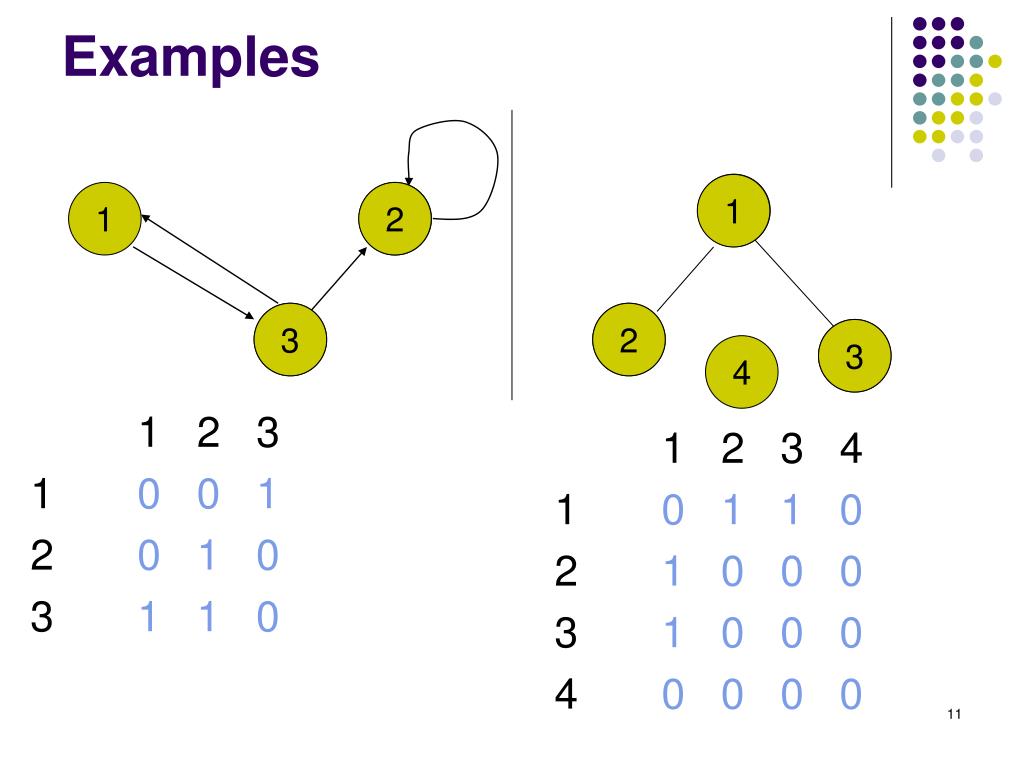

Examples

Examples

1

1

2

1 2 3

1 0 0 1

2 0 1 0

3 1 1 0

3

2

3

4

1 2 3 4

1 0 1 1 0

2 1 0 0 0

3 1 0 0 0

4 0 0 0 0


Adjacency matrix features

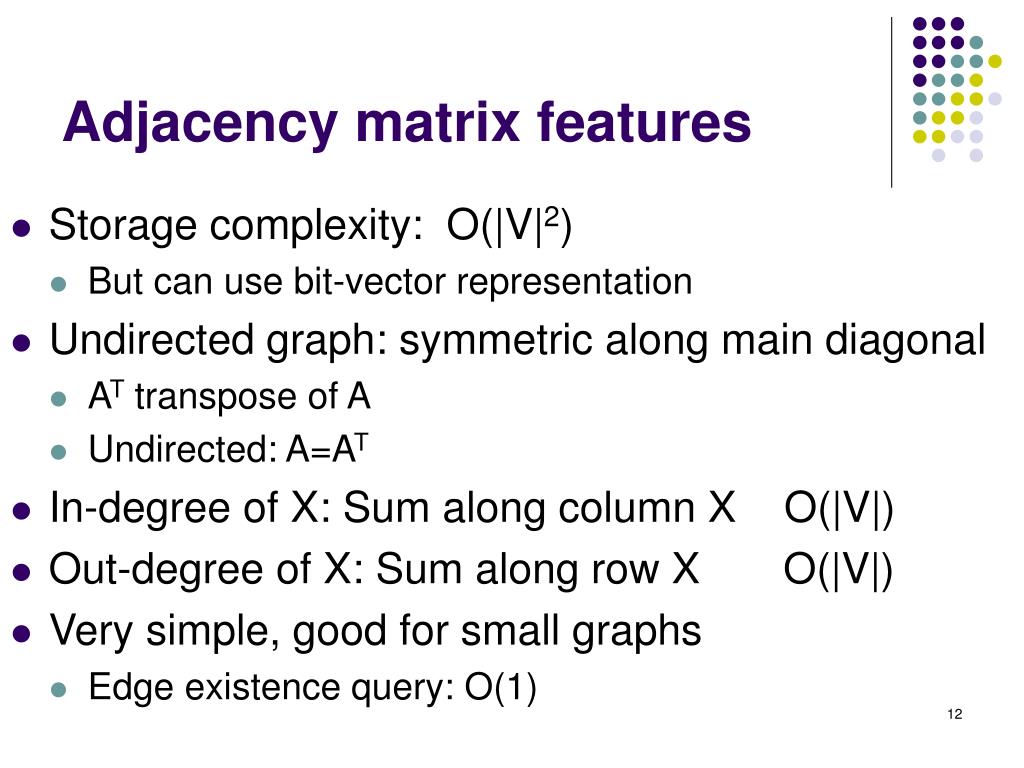

Adjacency matrix features

  • Storage complexity: O(|V|2)

    • But can use bit-vector representation

  • Undirected graph: symmetric along main diagonal

    • AT transpose of A

    • Undirected: A=AT

  • In-degree of X: Sum along column X O(|V|)

  • Out-degree of X: Sum along row X O(|V|)

  • Very simple, good for small graphs

    • Edge existence query: O(1)


Data structures and algorithms

But, ….

  • Many graphs in practical problems are sparse

    • Not many edges --- not all pairs x,y have edge xy

  • Matrix representation demands too much memory

  • We want to reduce memory footprint

    • Use sparse matrix techniques


Adjacency list

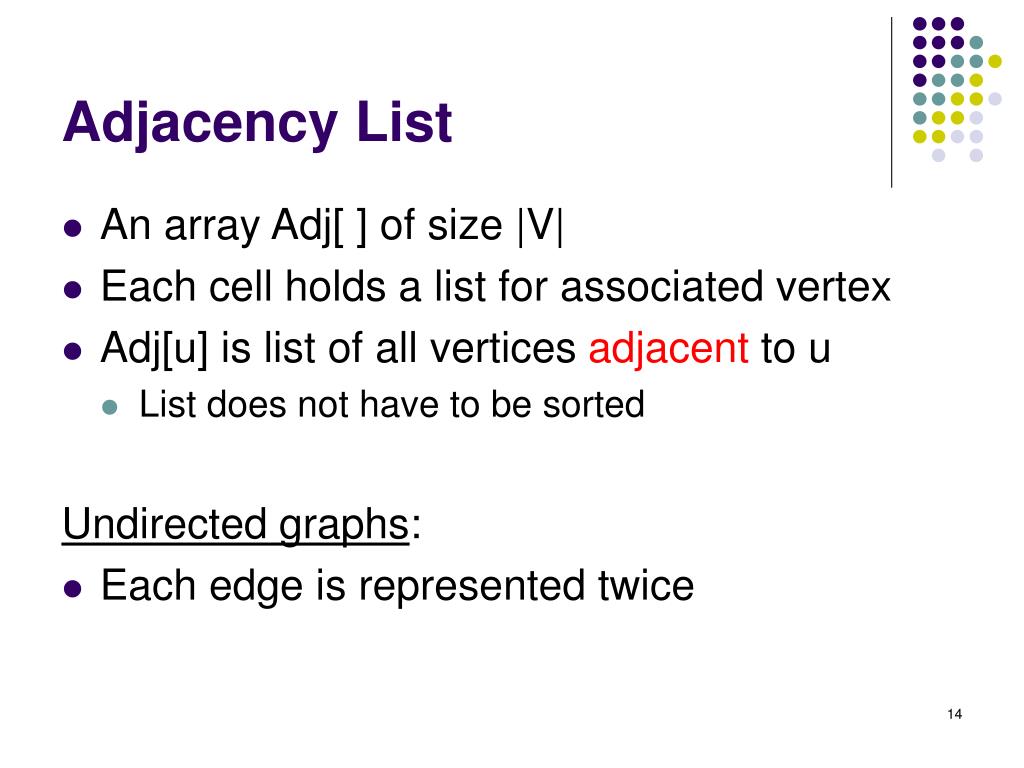

Adjacency List

  • An array Adj[ ] of size |V|

  • Each cell holds a list for associated vertex

  • Adj[u] is list of all vertices adjacent to u

    • List does not have to be sorted

      Undirected graphs:

  • Each edge is represented twice

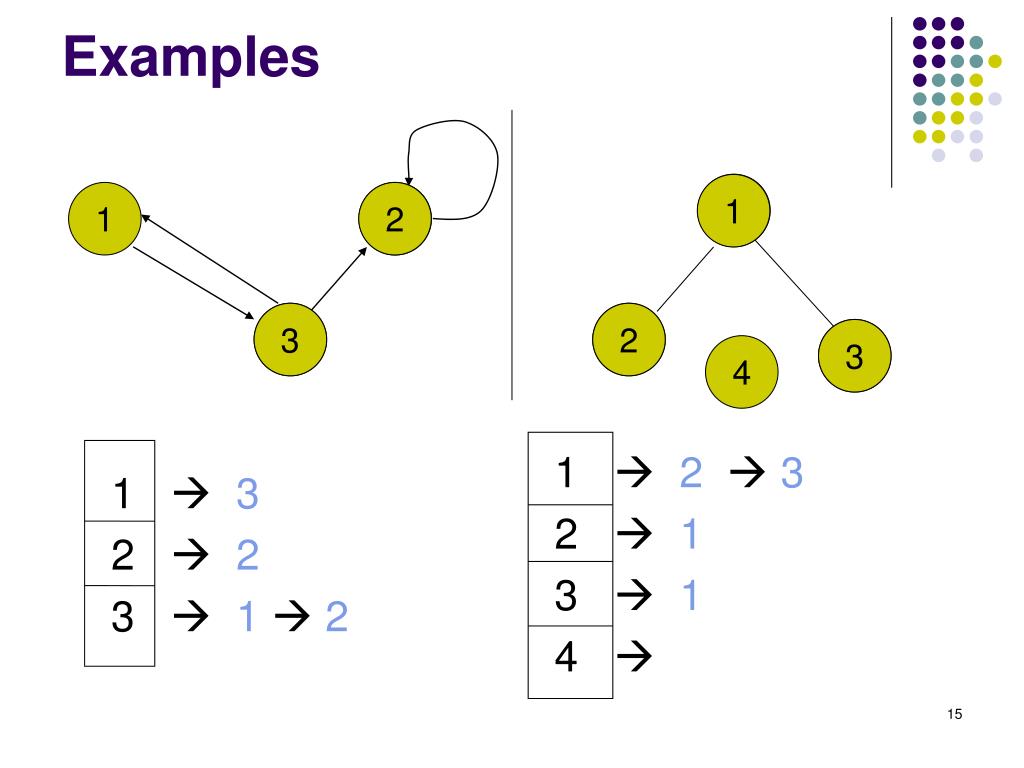

Examples1

Examples

1

1

2

1 3

2 2

3 1  2

3

2

3

4

1 2  3

2 1

3 1

4


Adjacency list features

Adjacency list features

  • Storage Complexity:

    • O(|V| + |E|)

    • In undirected graph: O(|V|+2*|E|) = O(|V|+|E|)

  • Edge query check:

    • O(|V|) in worst case

  • Degree of node X:

    • Out degree: Length of Adj[X] O(|V|) calculation

    • In degree: Check all Adj[] lists O(|V|+|E|)

    • Can be done in O(1) with some auxiliary information!


Data structures and algorithms

שאלות?


Graph traversals search

Graph Traversals (Search)

  • We have covered some of these with binary trees

    • Breadth-first search (BFS)

    • Depth-first search (DFS)

  • A traversal (search):

    • An algorithm for systematically exploring a graph

    • Visiting (all) vertices

    • Until finding a goal vertex or until no more vertices

      Only for connected graphs


Breadth first search

Breadth-first search

  • One of the simplest algorithms

  • Also one of the most important

    • It forms the basis for MANY graph algorithms

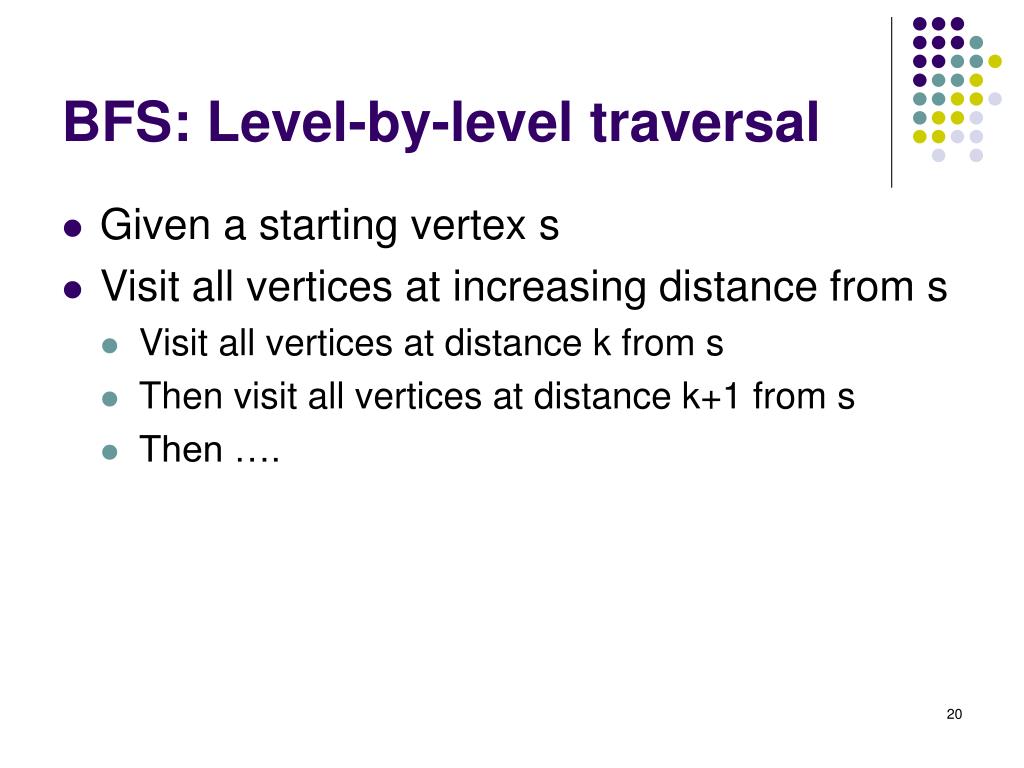

Bfs level by level traversal

BFS: Level-by-level traversal

  • Given a starting vertex s

  • Visit all vertices at increasing distance from s

    • Visit all vertices at distance k from s

    • Then visit all vertices at distance k+1 from s

    • Then ….


Bfs in a binary tree reminder

5

2

1

3

8

6

10

7

9

BFS in a binary tree (reminder)

BFS: visit all siblings before their descendents

5 2 8 1 3 6 10 7 9

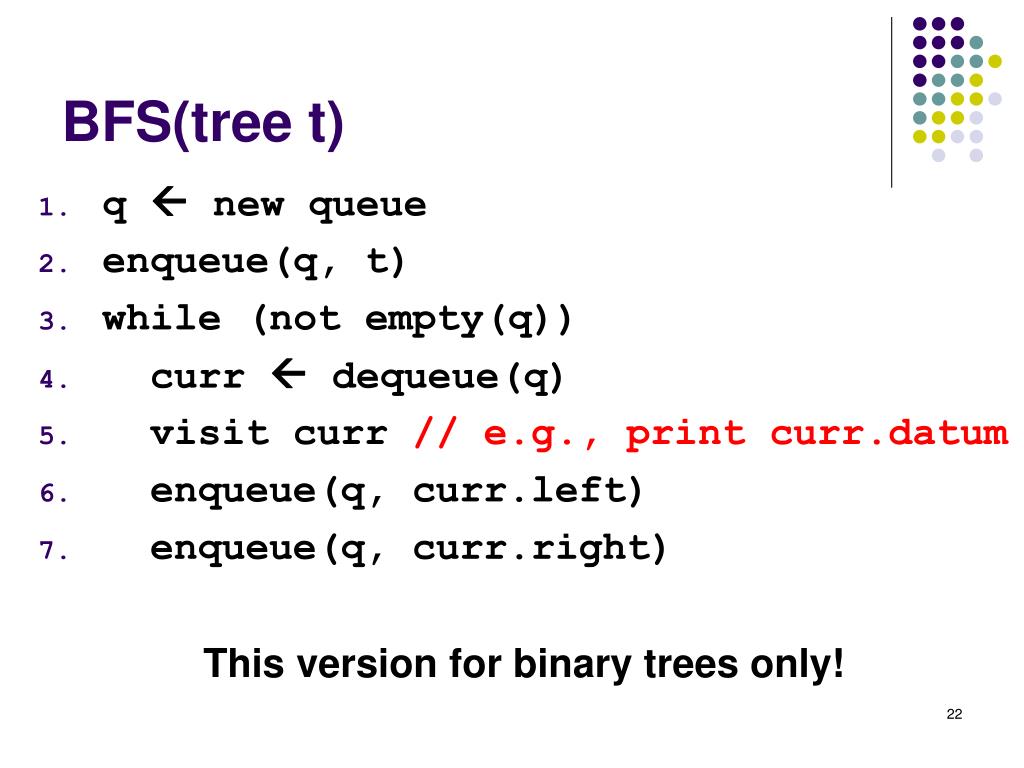

Bfs tree t

BFS(tree t)

  • q  new queue

  • enqueue(q, t)

  • while (not empty(q))

  • curr  dequeue(q)

  • visit curr // e.g., print curr.datum

  • enqueue(q, curr.left)

  • enqueue(q, curr.right)

    This version for binary trees only!


Bfs for general graphs

BFS for general graphs

  • This version assumes vertices have two children

    • left, right

    • This is trivial to fix

  • But still no good for general graphs

  • It does not handle cycles

    Example.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A

Start with A. Put in the queue (marked red)


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A B E

B and E are next


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A B E C G D F

When we go to B, we put G and C in the queue

When we go to E, we put D and F in the queue


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A B E C G D F

When we go to B, we put G and C in the queue

When we go to E, we put D and F in the queue


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A B EC G D F F

Suppose we now want to expand C.

We put F in the queue again!


Generalizing bfs

Generalizing BFS

  • Cycles:

  • We need to save auxiliary information

  • Each node needs to be marked

    • Visited: No need to be put on queue

    • Not visited:Put on queue when found

      What about assuming only two children vertices?

  • Need to put all adjacent vertices in queue


Bfs graph g vertex s

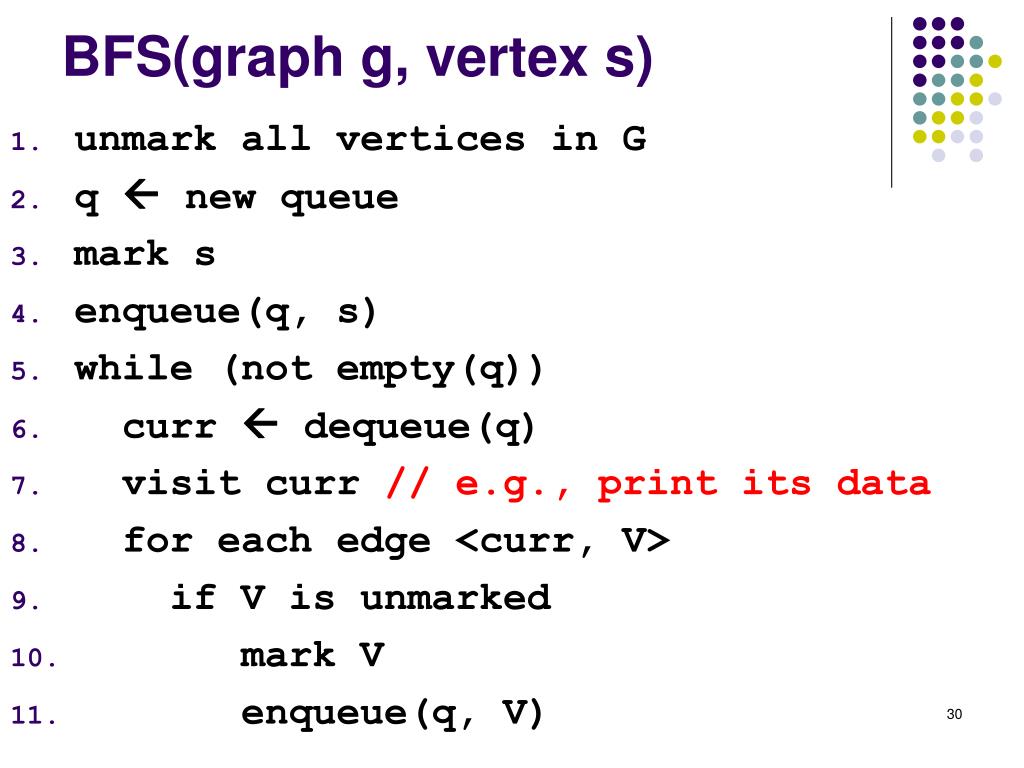

BFS(graph g, vertex s)

  • unmark all vertices in G

  • q  new queue

  • mark s

  • enqueue(q, s)

  • while (not empty(q))

  • curr  dequeue(q)

  • visit curr // e.g., print its data

  • for each edge <curr, V>

  • if V is unmarked

  • mark V

  • enqueue(q, V)


The general bfs algorithm

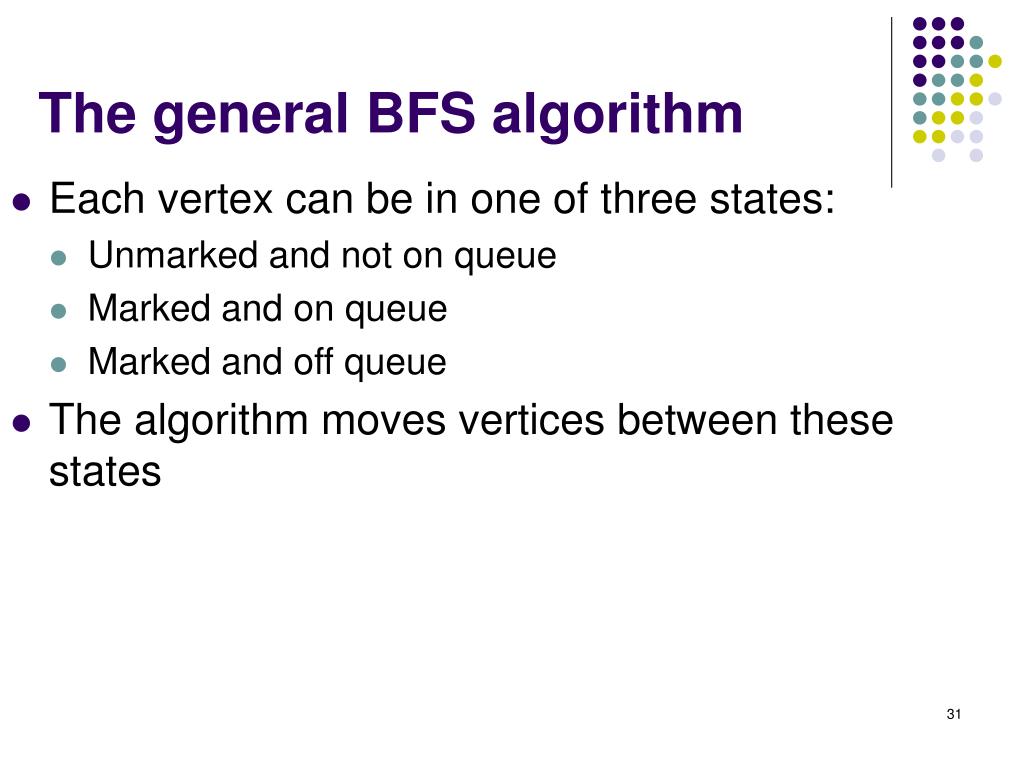

The general BFS algorithm

  • Each vertex can be in one of three states:

    • Unmarked and not on queue

    • Marked and on queue

    • Marked and off queue

  • The algorithm moves vertices between these states


Handling vertices

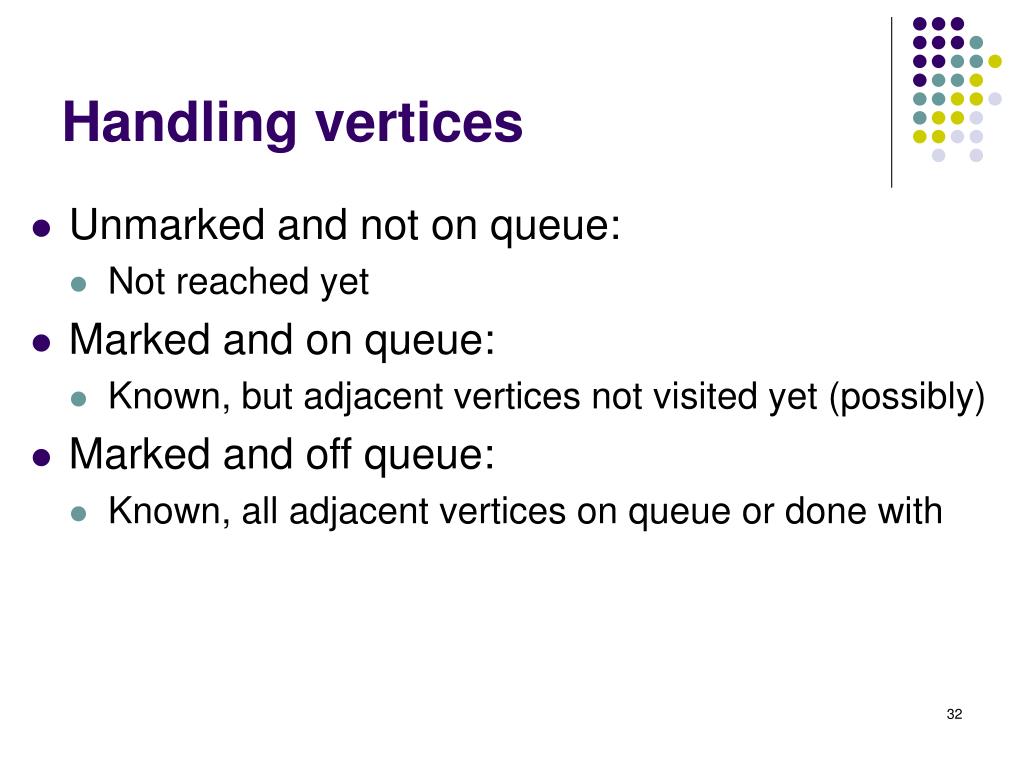

Handling vertices

  • Unmarked and not on queue:

    • Not reached yet

  • Marked and on queue:

    • Known, but adjacent vertices not visited yet (possibly)

  • Marked and off queue:

    • Known, all adjacent vertices on queue or done with


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A

Start with A. Mark it.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: A B E

Expand A’s adjacent vertices.

Mark them and put them in queue.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: AB E C G

Now take B off queue, and queue its neighbors.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: ABE C G D F

Do same with E.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: ABEC G D F

Visit C.

Its neighbor F is already marked, so not queued.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: ABECG D F

Visit G.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: ABECGD F

Visit D. F, E marked so not queued.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: ABECGDF

Visit F.

E, D, C marked, so not queued again.


Data structures and algorithms

A

B

G

C

E

D

F

Queue: ABECGDF

Done. We have explored the graph in order:

A B E C G D F.


Interesting features of bfs

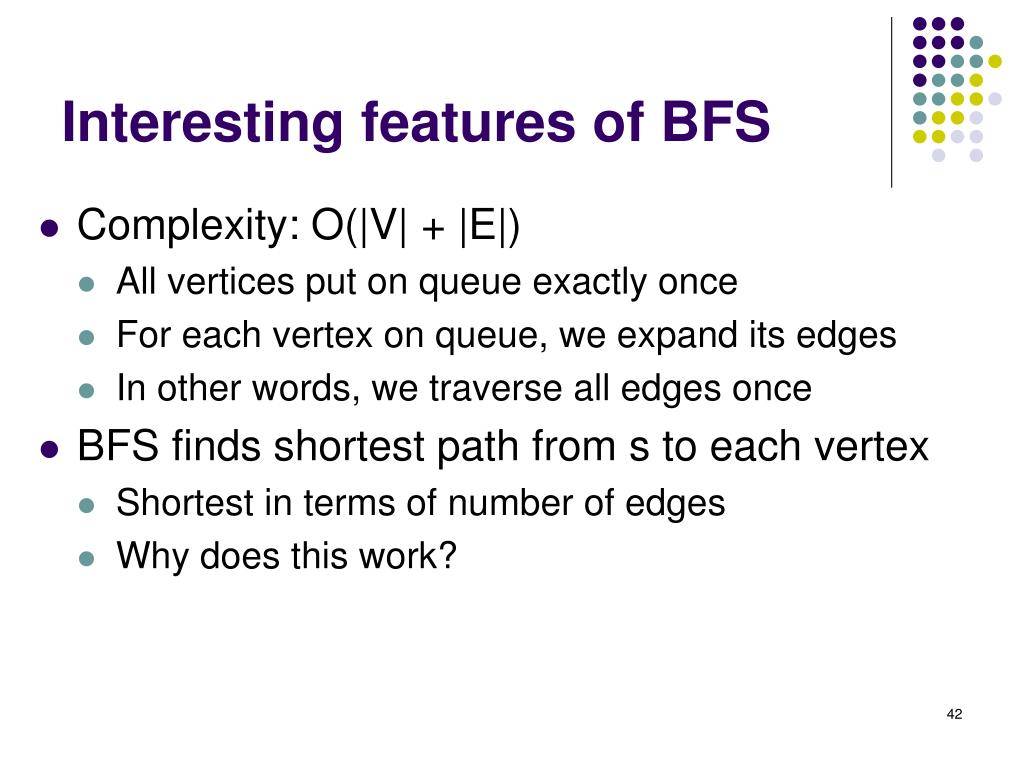

Interesting features of BFS

  • Complexity: O(|V| + |E|)

    • All vertices put on queue exactly once

    • For each vertex on queue, we expand its edges

    • In other words, we traverse all edges once

  • BFS finds shortest path from s to each vertex

    • Shortest in terms of number of edges

    • Why does this work?


Depth first search

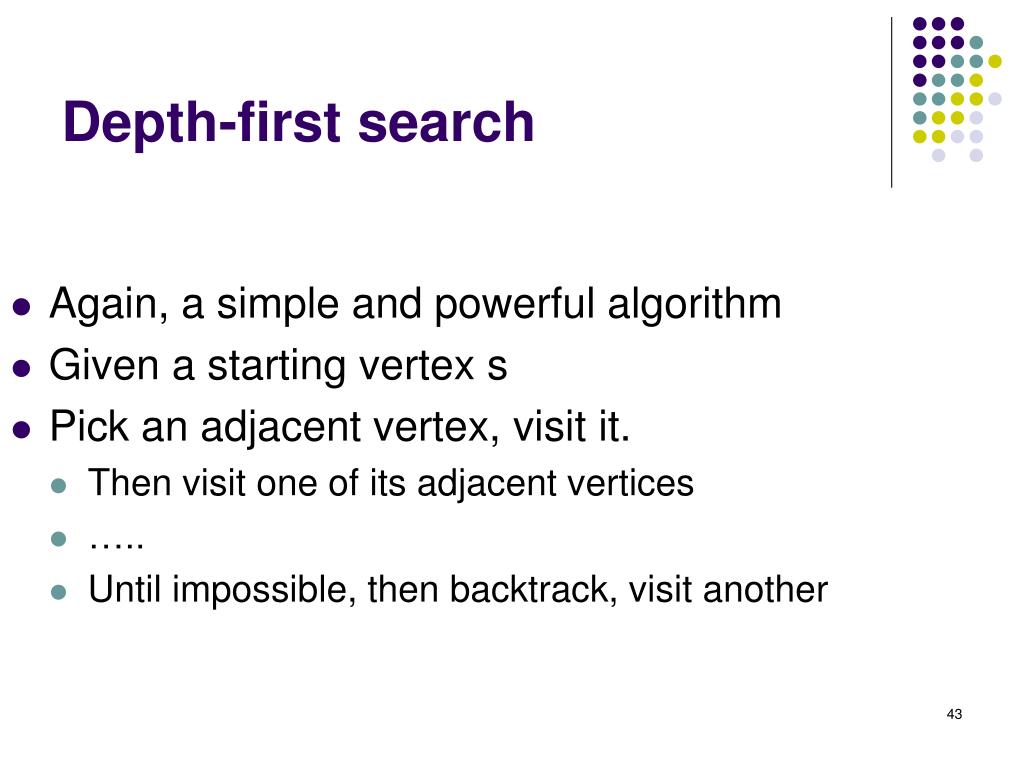

Depth-first search

  • Again, a simple and powerful algorithm

  • Given a starting vertex s

  • Pick an adjacent vertex, visit it.

    • Then visit one of its adjacent vertices

    • …..

    • Until impossible, then backtrack, visit another


Dfs graph g vertex s assume all vertices initially unmarked

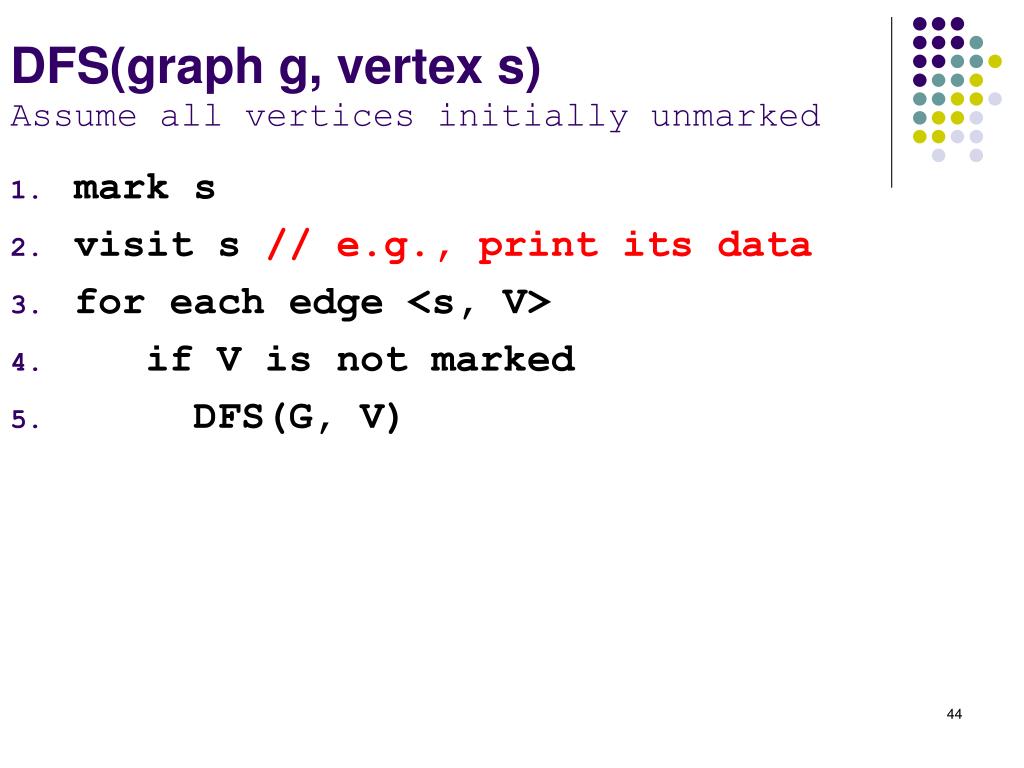

DFS(graph g, vertex s)Assume all vertices initially unmarked

  • mark s

  • visit s // e.g., print its data

  • for each edge <s, V>

  • if V is not marked

  • DFS(G, V)


Data structures and algorithms

A

B

G

C

E

D

F

Current vertex: A

Start with A. Mark it.


Data structures and algorithms

A

B

G

C

E

D

F

Current: B

Expand A’s adjacent vertices. Pick one (B).

Mark it and re-visit.


Data structures and algorithms

A

B

G

C

E

D

F

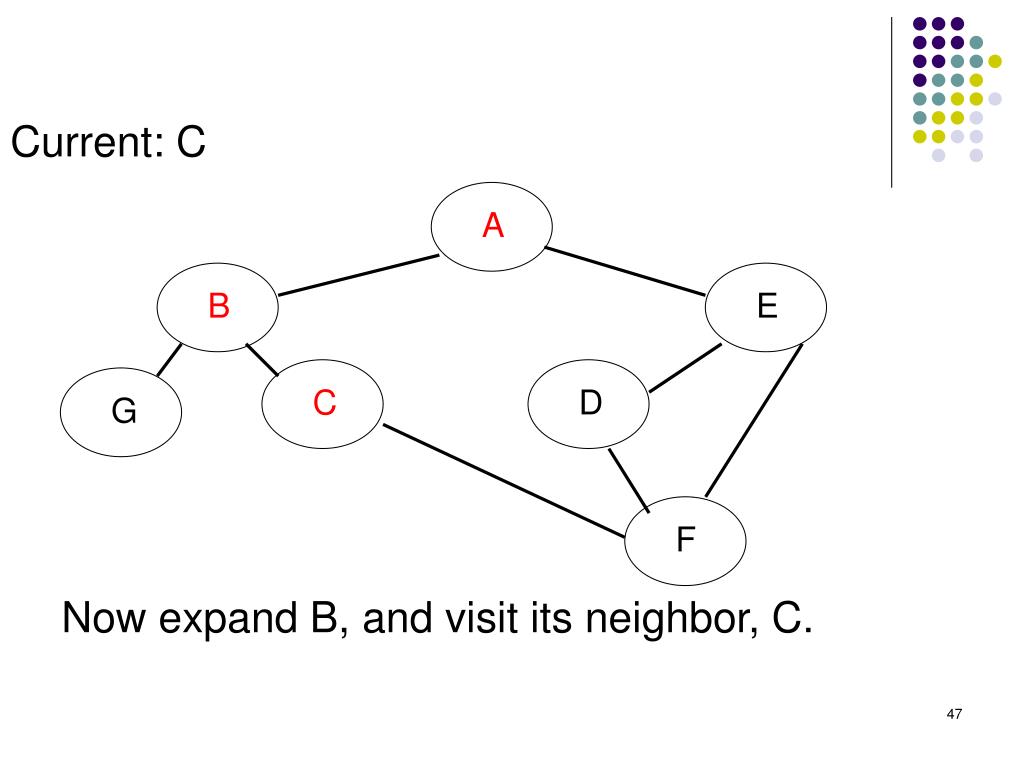

Current: C

Now expand B, and visit its neighbor, C.


Data structures and algorithms

A

B

G

C

E

D

F

Current: F

Visit F.

Pick one of its neighbors, E.


Data structures and algorithms

A

B

G

C

E

D

F

Current: E

E’s adjacent vertices are A, D and F.

A and F are marked, so pick D.


Data structures and algorithms

A

B

G

C

E

D

F

Current: D

Visit D. No new vertices available. Backtrack to

E. Backtrack to F. Backtrack to C. Backtrack to B


Data structures and algorithms

A

B

G

C

E

D

F

Current: G

Visit G. No new vertices from here. Backtrack to

B. Backtrack to A. E already marked so no new.


Data structures and algorithms

A

B

G

C

E

D

F

Current:

1

Done. We have explored the graph in order:

A B C F E D G

2

5

6

3

7

4


Interesting features of dfs

Interesting features of DFS

  • Complexity: O(|V| + |E|)

    • All vertices visited once, then marked

    • For each vertex on queue, we examine all edges

    • In other words, we traverse all edges once

  • DFS does not necessarily find shortest path

    • Why?


  • Login
