  1. 1609.2 William Whyte, 1609.2 editor Troy, MI June 2009

  2. Status • SoW agreed with USDoT, ARINC • Security standards work = Task 2 • 2.1: Prepare “quick fix” / 1609.2 v2 for sponsor ballot • Target completion date: January 2010 • 2.2: Manage standard through IEEE ballots • January 2010 – June+ 2010 • 2.3: Identify and Evaluate Incorporation of Additional Security Schemes • Output: Project plan for v3 • Target completion date: January 2010 • 2.4: Development of Strategy for Incorporating Anonymity • Targeted start date: January 2010

  3. Website! • http://v2x-security.wikidot.org • Contains project plan (http://v2x-security.wikidot.com/local--files/1609dot2revision/1609.2-Schedule-2009.doc) and sections for each of the tasks • Lets us consolidate comments from comments sheet, email discussion, and WG minutes, and tag comments to make them easier to categorize • Intended to become a repository of notes etc as time goes on • Currently only editable by WW but this can be changed

  4. Task 2.1: “Quick Fix” / 1609.2 v2 • Produce standard suitable for approval by WG, consistent with other 1609s and with changes made in PoC. • 2.1.1: Incorporate changes made in PoC to existing message types • 2.1.2: Synchronise .2 with other standards in the series • 2.1.3: Review Comments • 2.1.4: Specify SAPs • Calendar: • June: start process • August: finish resolving comments and ensure editor has guidance on open issues • October : first “full” revised v2 • January (?): ready for sponsor ballot

  5. 2.1.1 Changes made in PoC • Del-2.1.1.1: Prepare modifications for presentation to Working Group • Full details on http://v2x-security.wikidot.com/1609dot2:pocmods • Extend types of secure message to more fully support cert management • Improve privacy in encrypted messages • Use of PSID consistent with other 1609s (1609.2-2006 has ACID) • Cert requests can request encrypted response and include a fresh response-encryption key in every request • This was optional in PoC: suggest mandatory in this case • CertificateRequestError and CRLRequest • Anonymous certificate management • Provisional on choice of anonymous cert mechanism

  6. 2.1.1 Secured Messages • SecuredMessage • Used to be of type unsecured, signed or encrypted • Now: unsecured, signed, encrypted, crl_request, crl • = encrypted + all message types that can safely be sent in clear • ContentType expanded to support unsecured, signed, encrypted, certificate_request, certificate_response, anonymous_certificate_response, certificate_request_error, crl_request, crl • ApplicationID and FullySpecifiedAppID now use PSID instead of ACID • Default is to just use PSID, where previously it was to use ACID and ACM

  7. 2.1.1 Encrypted Messages • EncryptedMessage • Used to have an EncryptedContentType field in cleartext • Replaced with a ContentType field inside the encrypted envelope • Privacy reasons: an eavesdropper should not know that you’re making an unusually large number of cert requests • Requires defining a ToBeEncrypted type, consisting of the ContentType field followed by the content. • AESCCMCiphertext maximum length increased to 232-1, to make it consistent with length of unsecured data • Penalty: two additional rarely-used bytes to encode the length • Alternative: assume that all messages will be a maximum of 216-1 bytes and reduce length fields apprporiately

  8. 2.1.1 Certificate request and response • CertificateRequest • 1609.2 didn’t allow a request to include two keys, but did allow a cert to include two keys – fix that. • Request can specify that the response should be encrypted • Ensure that each such request contains a fresh response-encryption key • Otherwise attackers could link requests from a single device • WAVECertificateResponse: Add request hash to response to let a receiver distinguish between responses obtained when there are multiple outstanding requests • CertificateRequestError – lets the CA tell a unit why a request failed • Added at Telcordia’s suggestion • Always encrypted • CRLRequest – lets a unit request a CRL if it thinks it might not be up to date

  9. 2.1.1 Anonymous certificates • The document includes Anonymous certificate formats, but they are dependent on the specific anonymous certificate mechanism chosen • Proposal: do not incorporate this part of the doc into the standards yet.

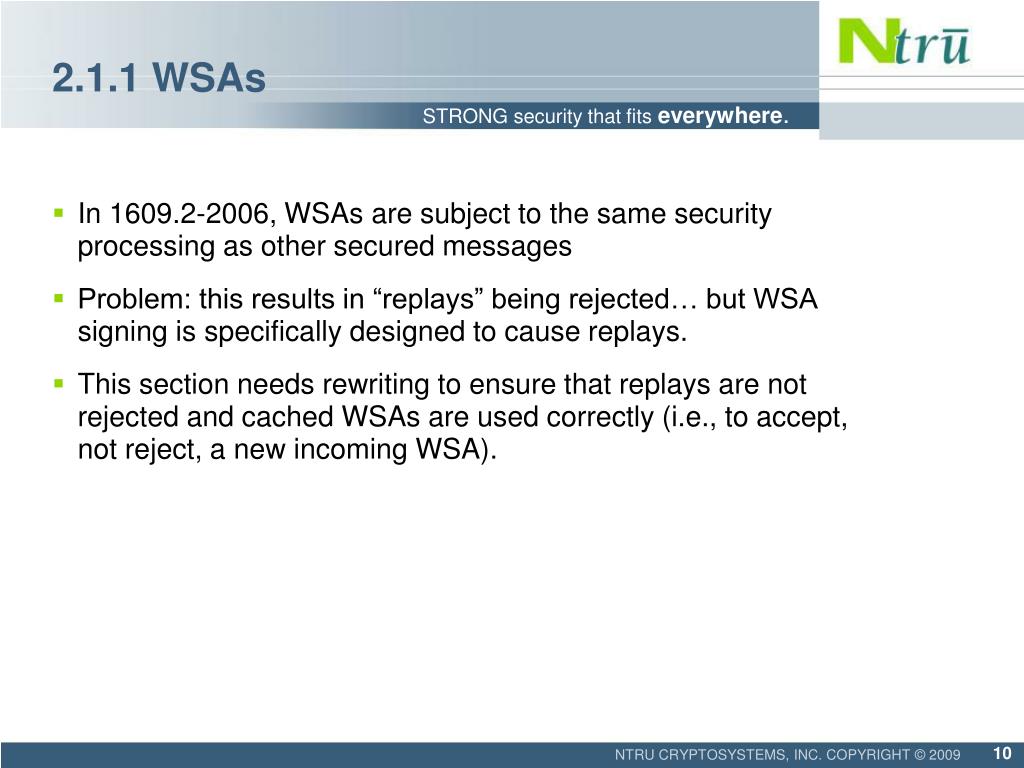

  10. 2.1.1 WSAs • In 1609.2-2006, WSAs are subject to the same security processing as other secured messages • Problem: this results in “replays” being rejected… but WSA signing is specifically designed to cause replays. • This section needs rewriting to ensure that replays are not rejected and cached WSAs are used correctly (i.e., to accept, not reject, a new incoming WSA).

  11. 2.1.1 Next steps • Take comments on this document until two weeks before August meeting • Resolve the comments at August meeting

  12. 2.1.2 Synch with other DSRC/WAVE standards • Del-2.1.2.1: List of areas to be addressed • http://v2x-security.wikidot.com/1609dot2:align • ACID and ACM become PSID; ACF (not used in 1609.2) becomes PSC (also not used in 1609.2). • Some comments on .3 that don't require changes to .2 • Security for timing advertisements requires further consideration. • Next deliverable: incorporate changes into 1609.2

  13. 2.1.3 Comments • Delivery Del-2.1.3.1: List of comments and proposed resolutions • http://v2x-security.wikidot.com/1609dot2comments • Total: 80 • Some submitted on form, some submitted in Word docs, some reverse-engineered from mailing list or email… • Proposed status: • Accepted: 41 • Deferred: 7 • Countered: 0 • Rejected: 4 • Superseded: 5 • Withdrawn: 0 • For further discussion: 23

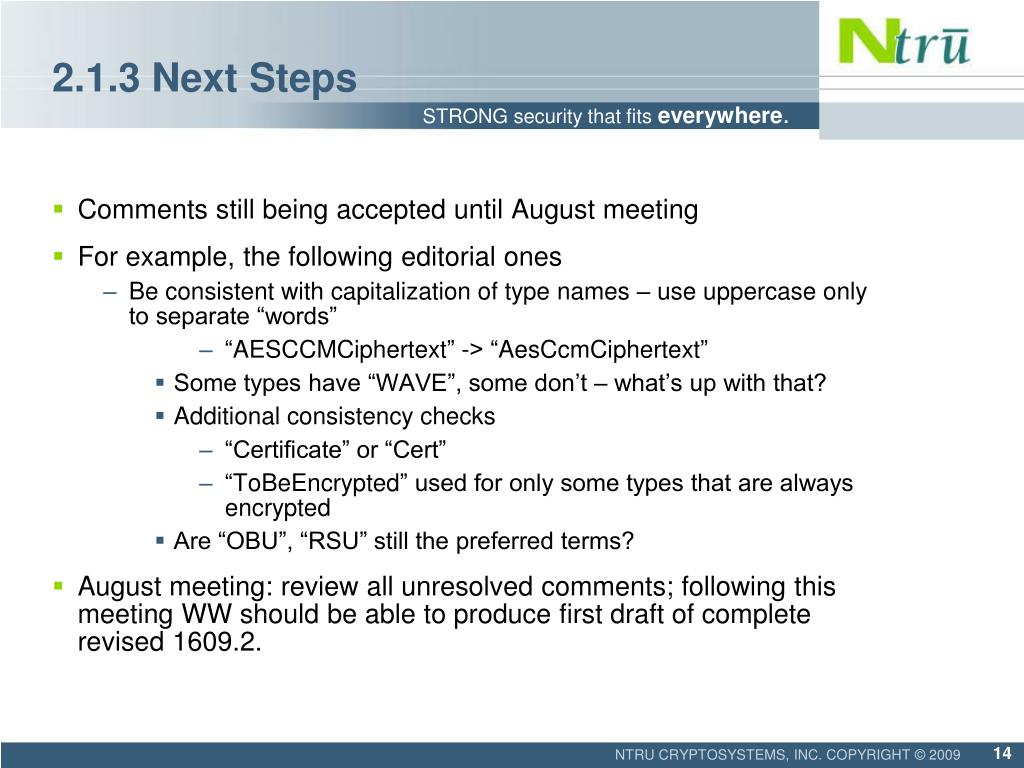

  14. 2.1.3 Next Steps • Comments still being accepted until August meeting • For example, the following editorial ones • Be consistent with capitalization of type names – use uppercase only to separate “words” • “AESCCMCiphertext” -> “AesCcmCiphertext” • Some types have “WAVE”, some don’t – what’s up with that? • Additional consistency checks • “Certificate” or “Cert” • “ToBeEncrypted” used for only some types that are always encrypted • Are “OBU”, “RSU” still the preferred terms? • August meeting: review all unresolved comments; following this meeting WW should be able to produce first draft of complete revised 1609.2.

  15. 2.1.4 SAPs • http://v2x-security.wikidot.com/1609dot2-saps.html • Security libraries in VII PoC provided APIs for • Sign message • Encrypt message • Process incoming secured message • Sign WSA • Verify WSA • Certificate management • Proposal: provide SAPs for all except certificate management • Del-2.1.4.1: List of mechanisms that require SAPs

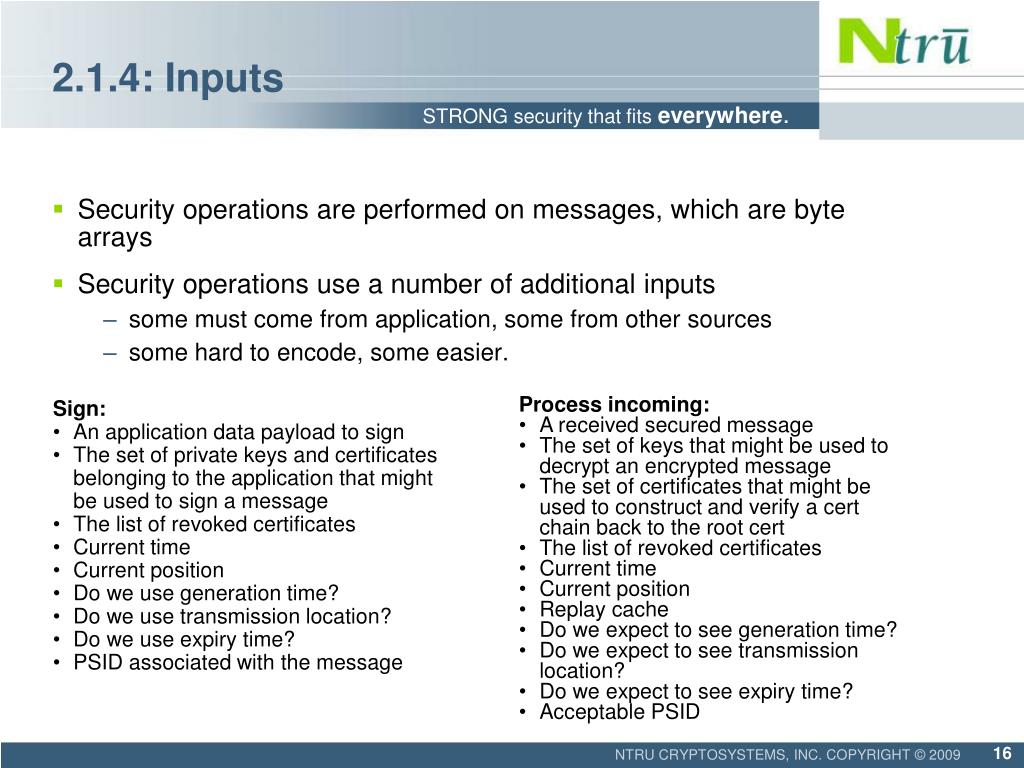

  16. 2.1.4: Inputs • Security operations are performed on messages, which are byte arrays • Security operations use a number of additional inputs • some must come from application, some from other sources • some hard to encode, some easier. • Process incoming: • A received secured message • The set of keys that might be used to decrypt an encrypted message • The set of certificates that might be used to construct and verify a cert chain back to the root cert • The list of revoked certificates • Current time • Current position • Replay cache • Do we expect to see generation time? • Do we expect to see transmission location? • Do we expect to see expiry time? • Acceptable PSID • Sign: • An application data payload to sign • The set of private keys and certificates belonging to the application that might be used to sign a message • The list of revoked certificates • Current time • Current position • Do we use generation time? • Do we use transmission location? • Do we use expiry time? • PSID associated with the message

  17. 2.1.4: Inputs: next steps • Be explicit about assumptions about what is available within security processing • Think about how to encode hard-to-encode data • Current document distinguishes between “inputs” and “parameters”; this is probably not sustainable.

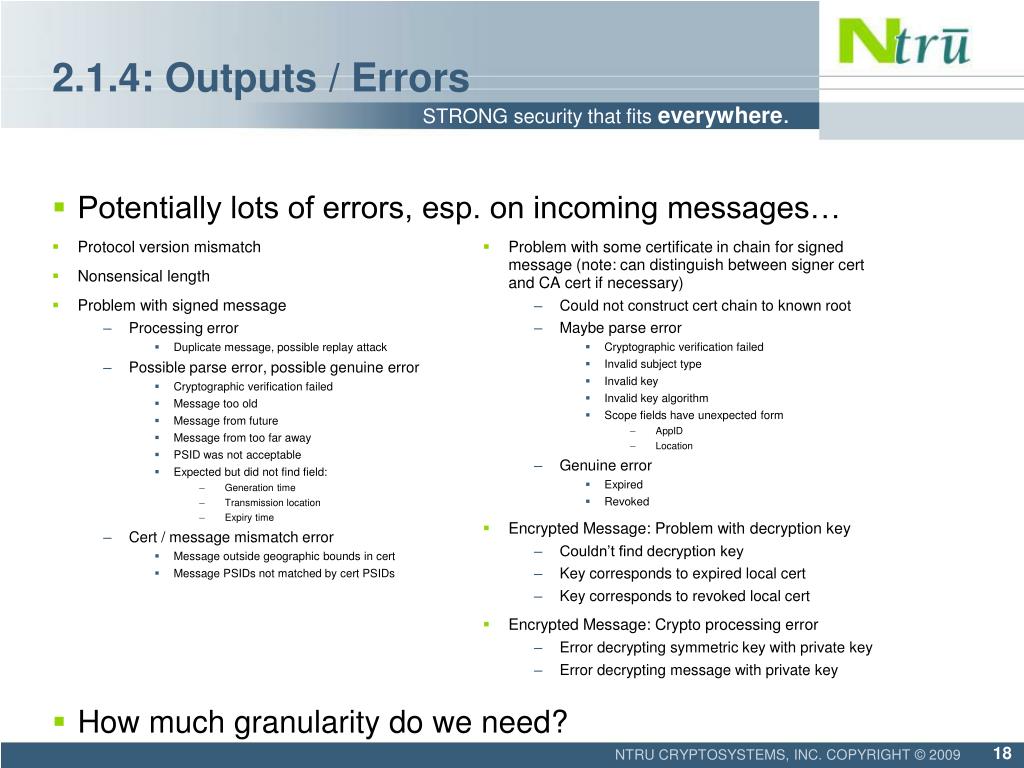

  18. 2.1.4: Outputs / Errors • Protocol version mismatch • Nonsensical length • Problem with signed message • Processing error • Duplicate message, possible replay attack • Possible parse error, possible genuine error • Cryptographic verification failed • Message too old • Message from future • Message from too far away • PSID was not acceptable • Expected but did not find field: • Generation time • Transmission location • Expiry time • Cert / message mismatch error • Message outside geographic bounds in cert • Message PSIDs not matched by cert PSIDs • Problem with some certificate in chain for signed message (note: can distinguish between signer cert and CA cert if necessary) • Could not construct cert chain to known root • Maybe parse error • Cryptographic verification failed • Invalid subject type • Invalid key • Invalid key algorithm • Scope fields have unexpected form • AppID • Location • Genuine error • Expired • Revoked • Encrypted Message: Problem with decryption key • Couldn’t find decryption key • Key corresponds to expired local cert • Key corresponds to revoked local cert • Encrypted Message: Crypto processing error • Error decrypting symmetric key with private key • Error decrypting message with private key • Potentially lots of errors, esp. on incoming messages… • How much granularity do we need?

  19. 2.1.4 Next Steps • Draft SAPs document for review at August meeting

  20. Other • Work with .1, .3, .4 to ensure security support is adequate • “Security considerations” section in each document?

  21. Subtask 2.3: Prepare plan for v3 • 2.3.1 Application Security • 2.3.2 Security Management • 2.3.3 Platform assurance • 2.3.4 Interop with other standards • Full plan in http://v2x-security.wikidot.com/local--files/1609dot2revision/1609.2-Schedule-2009.doc • Del-2.3.1.1, list of applications, is the only deliverable for the current meeting

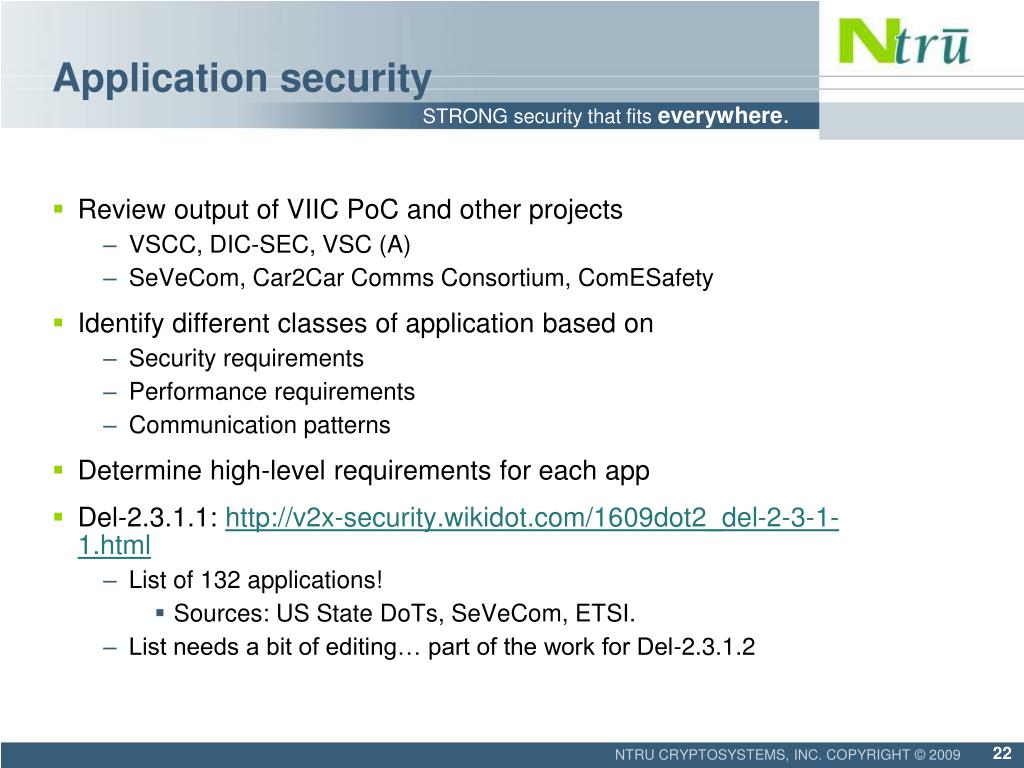

  22. Application security • Review output of VIIC PoC and other projects • VSCC, DIC-SEC, VSC (A) • SeVeCom, Car2Car Comms Consortium, ComESafety • Identify different classes of application based on • Security requirements • Performance requirements • Communication patterns • Determine high-level requirements for each app • Del-2.3.1.1: http://v2x-security.wikidot.com/1609dot2_del-2-3-1-1.html • List of 132 applications! • Sources: US State DoTs, SeVeCom, ETSI. • List needs a bit of editing… part of the work for Del-2.3.1.2
