Presentation Transcript
Slide1 l.jpg

Why Diluents ?

That’s Why !!!!!!


Why diluents l.jpg
Why Diluents ??

  • High processing viscosities of unmodified liquid epoxy resin systems

  • Impregnating and wetting properties are favourably influenced by reducing the viscosity

  • Larger filler amounts may be used

    • cheaper formulation

    • reduce the possible development of heat and shrinkage upon cure

  • Possible Disadvantages;

    • May sweat out of the binder system

      • Reduced flexibility

    • Influence the properties of the binder system

      • Hardness

      • Rate of cure

      • Adhesion, Intercoat adhesion

      • Chemical resistance


Non reactive diluents l.jpg

CH2-OH

OH

Non-Reactive Diluents

  • Alcohols

    • Benzylalcohol

    • Furfurylalcohol

    • Nonyl phenol

    • Acceleration effect

  • Phthalates

    • Dibutylphthalate

  • Hydrocarbon Resins

    • Necirez-products

    • Epodil-L

  • Pine-oil

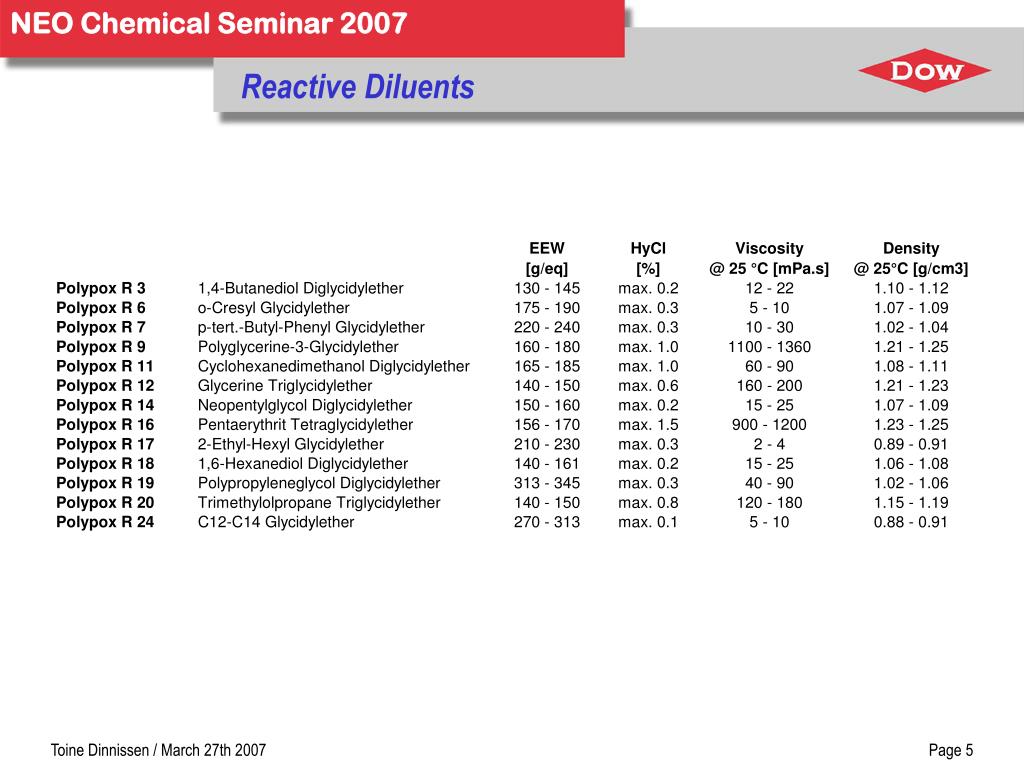

Reactive diluents l.jpg

O

O

O

=

O

O

C

Reactive Diluents

  • Polypropylene glycol diepoxides

    • D.E.R.™ 732P liquid epoxy resin

    • D.E.R. 736P liquid epoxy resin

  • Alcoholglycidylethers & esters [ mono- or multi-functional ]

    • EMS [ Grilonit ]

    • Prümmer [ Polypox ]

    • Resolution [ Heloxy, Cardura E-10]

    • Air Products [ Epodil ]

    • Etc…

™ Trademark of The Dow Chemical Company



Viscosity cutting powder l.jpg
Viscosity Cutting Powder

p-tert. BP GE = R 7

BDDGE, o-CGE, HDDGE = R 3, 6, 18

C12-C14 AGE = R 24

2-EH GE = R 17


General observations l.jpg
General Observations

  • The addition of reactive diluents might have the following effects:

    • reduced viscosity,

    • changed surface tension [ wetting, air-release etc. ],

    • changed reactivity, especially for the mono-functional reactive diluents,

    • changed solvent resistance,

    • changed physical strength,

    • changed linear coefficient of expansion,

    • changed flexibility / impact resistance,

    • changed abrasion resistance

    • ......


Reactive diluents used by dow l.jpg
Reactive Diluents used by Dow

o-Cresyl Glycidyl ether

C12 - C14 alkyl Glycidyl ether

Hexane diol di Glycidyl ether

Compromise between Environmental, Hygiene & Safety aspects and performance.

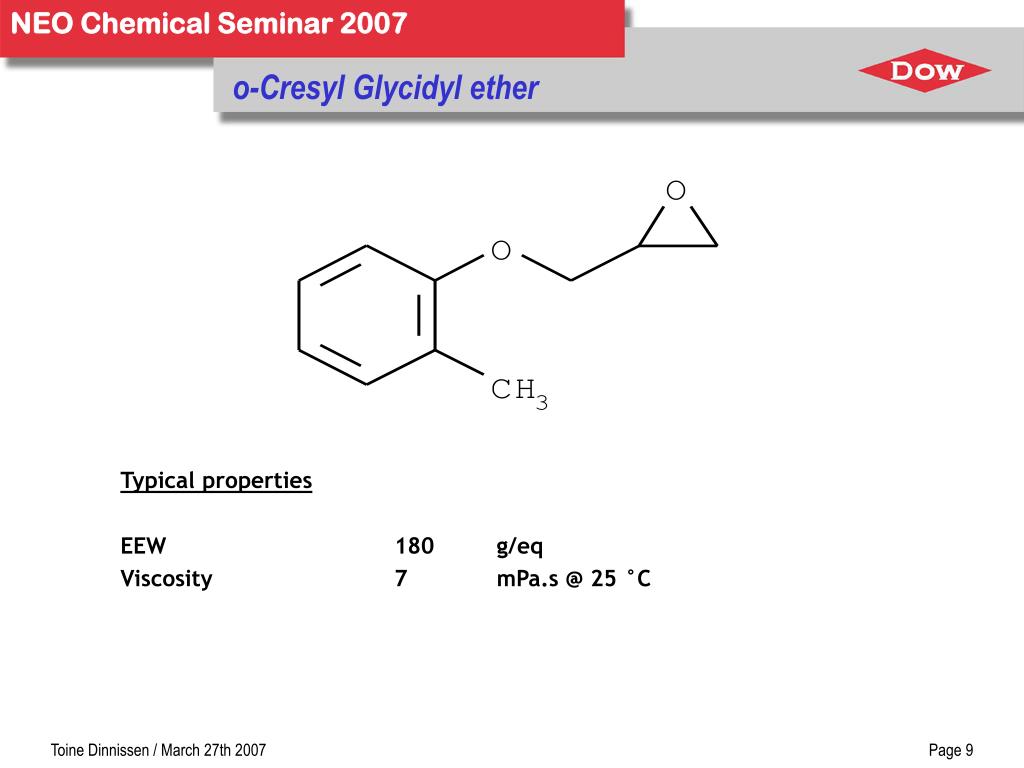

O cresyl glycidyl ether l.jpg
o-Cresyl Glycidyl ether

Typical properties

EEW 180 g/eq

Viscosity 7 mPa.s @ 25 °C


Hexane diol di glycidyl ether l.jpg
Hexane Diol Di Glycidyl ether

Typical properties

EEW 142 g/eq

Viscosity 14 mPa.s @ 25 °C

Total Chlorine ca 4 wt%


C12 c14 alkyl glycidyl ether l.jpg
C12 - C14 Alkyl Glycidyl Ether

Typical properties

EEW 280 g/eq

Viscosity 7 mPa.s @ 25 °C

Total Chlorine ca 3 wt%

Remark : FDA approved for food contact applications


Viscosity cutting power l.jpg
Viscosity Cutting Power

™ Trademark of The Dow Chemical Company



Chemical resistance l.jpg

Aromatic

IPD-adduct

DETA-adduct

Polyamide

D.E.R.™321

Dist. Water

+ 1.3

+ 2.1

+ 1.2

+ 2.5

10 wt% HCl

+ 1.1

+ 1.7

+ 1.1

+ 6.5

10 wt% NaOH

+ 1.1

+ 1.7

+ 1.0

+ 2.0

10 wt% HAc

+ 1.4

+ 5.4

+ 20

Destroyed

Xylene

+ 1.4

+ 9.8

+ 4.9

Destroyed

Gasoline

- 0.1

0

+ 0.2

+ 23

D.E.R.™330

Dist. Water

+ 1.4

+ 1.4

10 wt% HCl

+ 1.1

+ 1.3

10 wt% NaOH

+ 1.1

+ 1.0

10 wt% HAc

+ 1.3

+ 5.1

Xylene

+ 0.1

+ 0.1

Gasoline

+ 0.1

0

Chemical Resistance

™ Trademark of The Dow Chemical Company
