Irrigation systems Overview

Irrigation systems Overview. Water pressure Hydraulics Site information Irrigation Water requirements Application Type Location Design Components Pre-season startup and winterizing an irrigation system. Basic hydraulics Static and dynamic pressure. Basic hydraulics

walker
Download Presentation

Irrigation systems Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Irrigation systemsOverview • Water pressure • Hydraulics • Site information • Irrigation • Water requirements • Application • Type • Location • Design • Components • Pre-season startup and winterizing an irrigation system

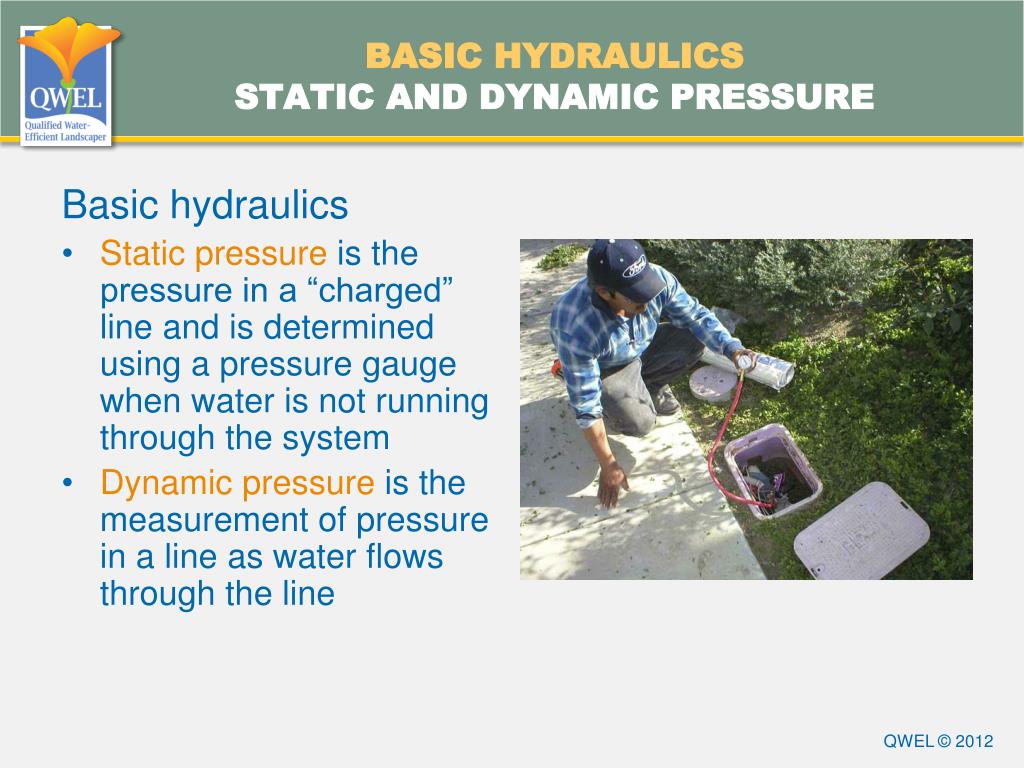

  2. Basic hydraulicsStatic and dynamic pressure Basic hydraulics • Static pressure is the pressure in a “charged” line and is determined using a pressure gauge when water is not running through the system • Dynamic pressure is the measurement of pressure in a line as water flows through the line

  3. Basic hydraulicsPressure and flow relationship • The larger the pipe the lower the pressure needed to deliver a given quantity (flow) of water • The smaller the pipe the greater the flow loss due to friction of the pipe and fittings

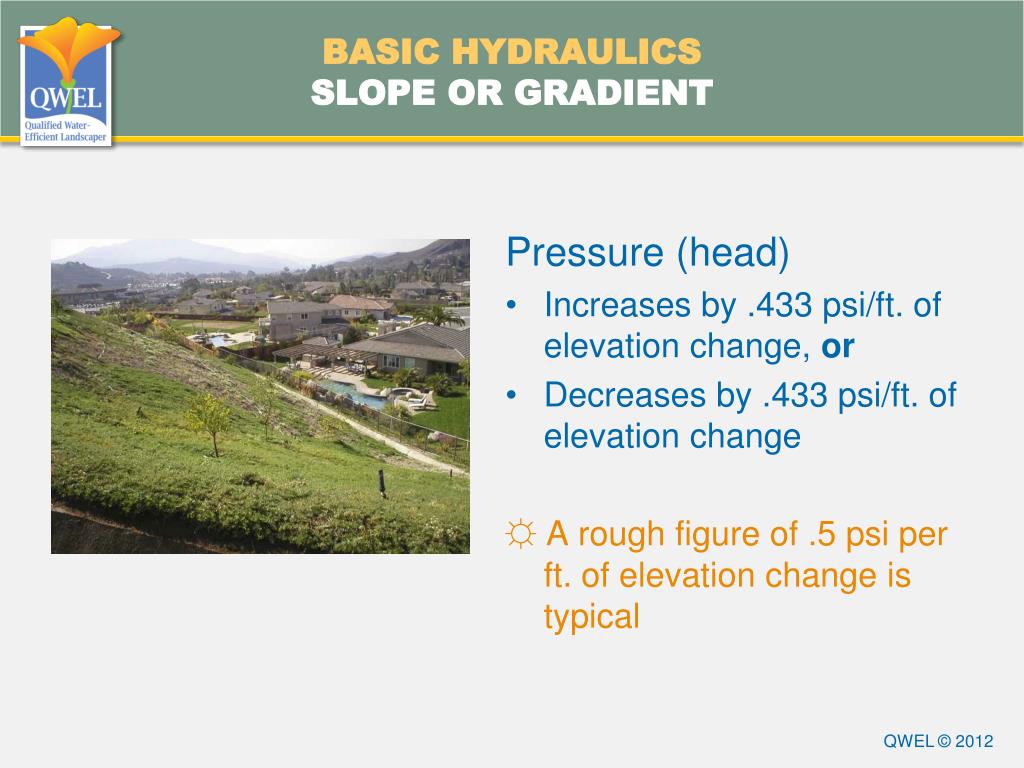

  4. Basic hydraulicsSlope or gradient Pressure (head) • Increases by .433 psi/ft. of elevation change, or • Decreases by .433 psi/ft. of elevation change ☼ A rough figure of .5 psi per ft. of elevation change is typical

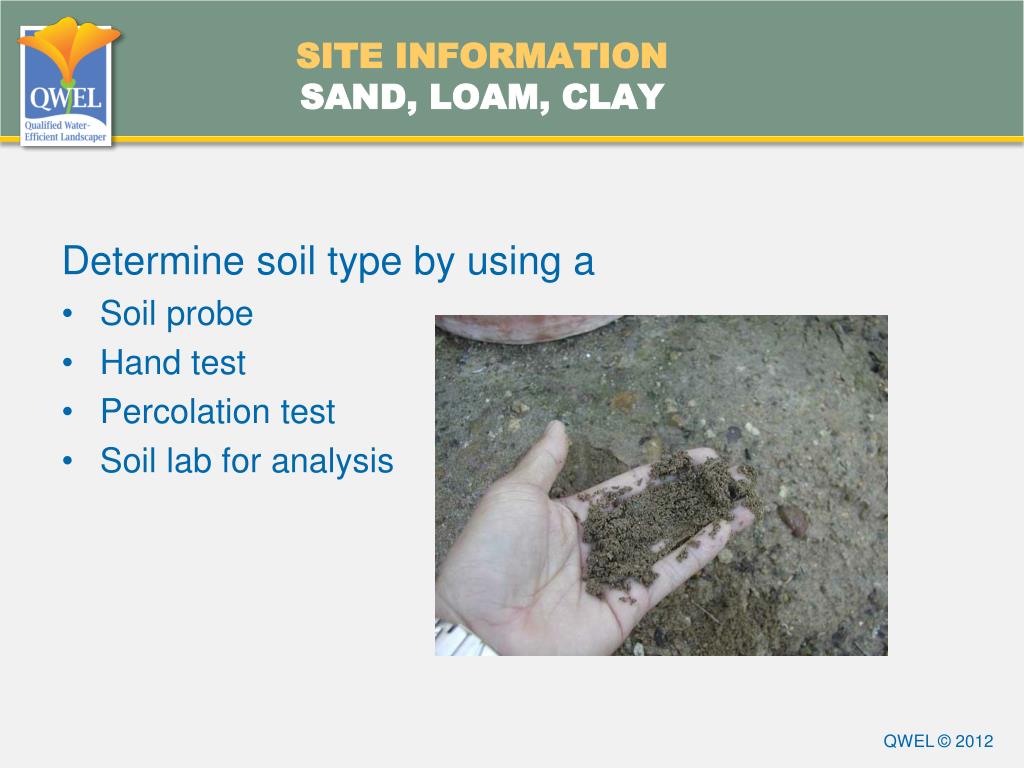

  5. Site informationSand, loam, clay Determine soil type by using a • Soil probe • Hand test • Percolation test • Soil lab for analysis

  6. Site informationHydrozones Planting groups with similar cultural and irrigation requirements Do NOT mix on the same valve: • Irrigation application methods • Sun and shade planting beds • North and south planting beds • Sloped and level areas • Drip irrigation with spray irrigation

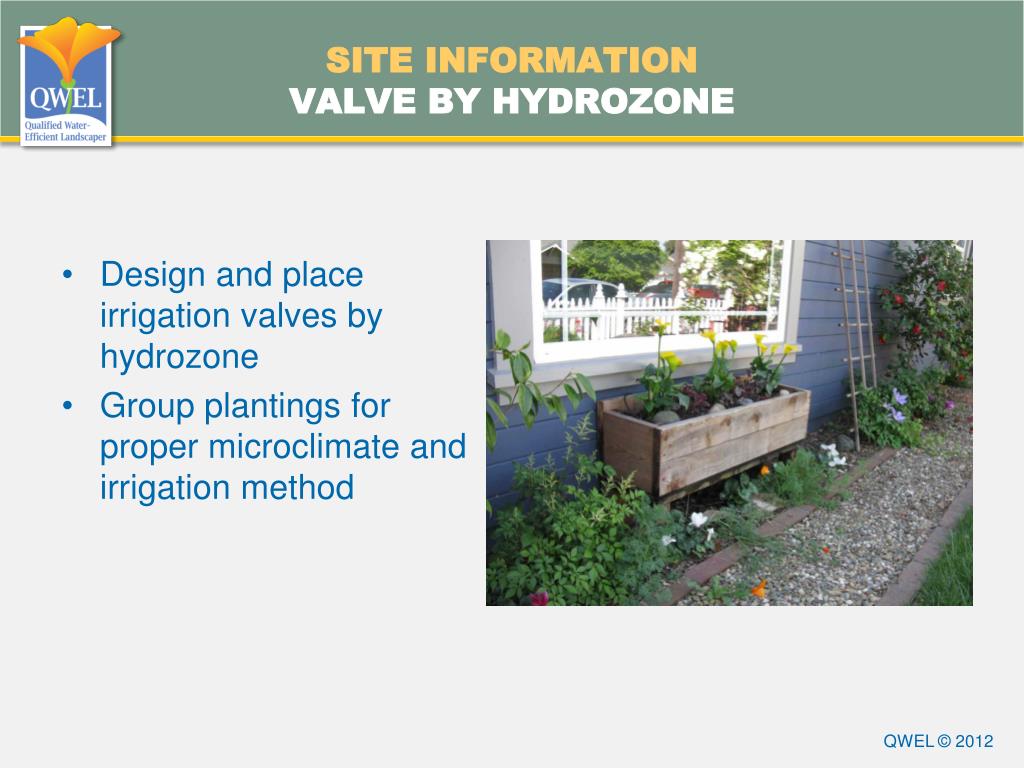

  7. Site informationValve by hydrozone • Design and place irrigation valves by hydrozone • Group plantings for proper microclimate and irrigation method

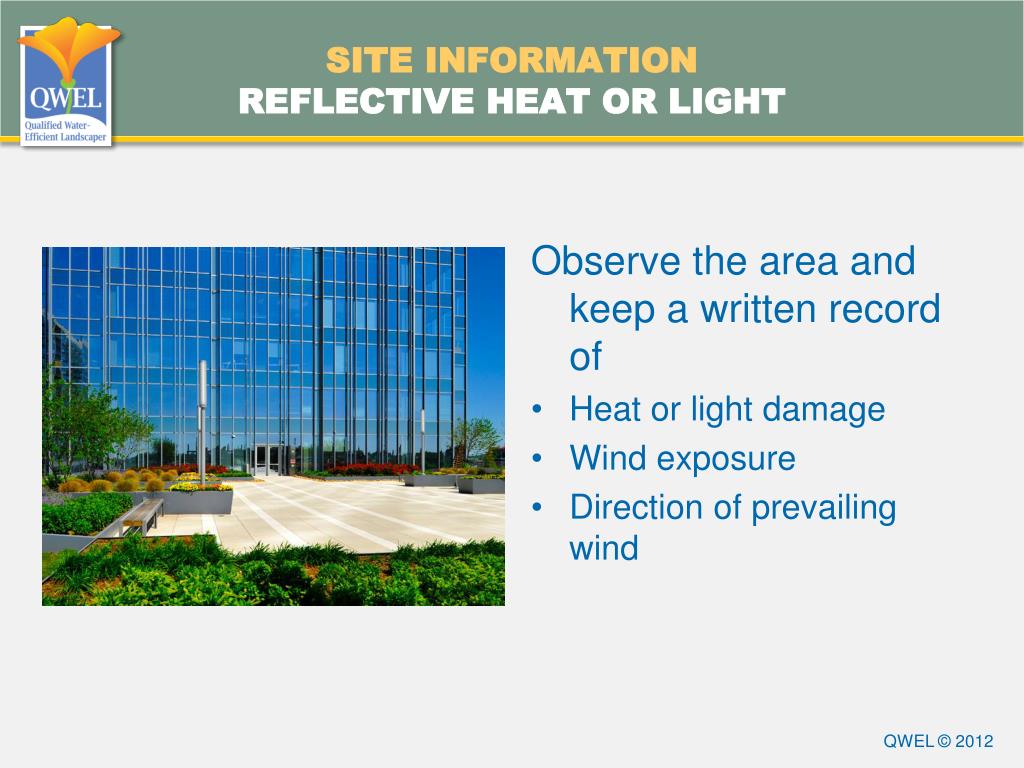

  8. Site informationReflective heat or light Observe the area and keep a written record of • Heat or light damage • Wind exposure • Direction of prevailing wind

  9. Irrigation water requirementLow-water use plants A well-designed and managed low-water use landscapeuses only5,000 – 10,000 gallons of water 1,000 sq. ft. annually

  10. Irrigation water requirementsMedium-water use plants A well-designed and managed medium-water use landscape uses10,000 – 15,000 gallons of water 1,000 sq. ft. annually

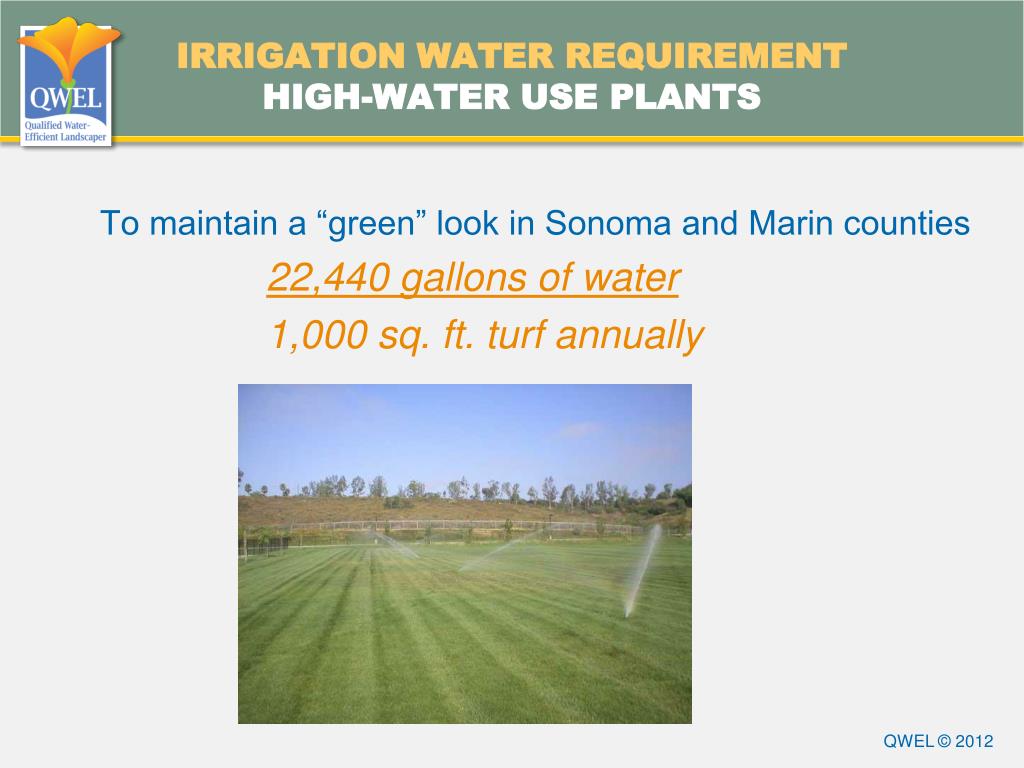

  11. Irrigation water requirementHigh-water use plants To maintain a “green” look in Sonoma and Marin counties 22,440 gallons of water 1,000 sq. ft. turf annually

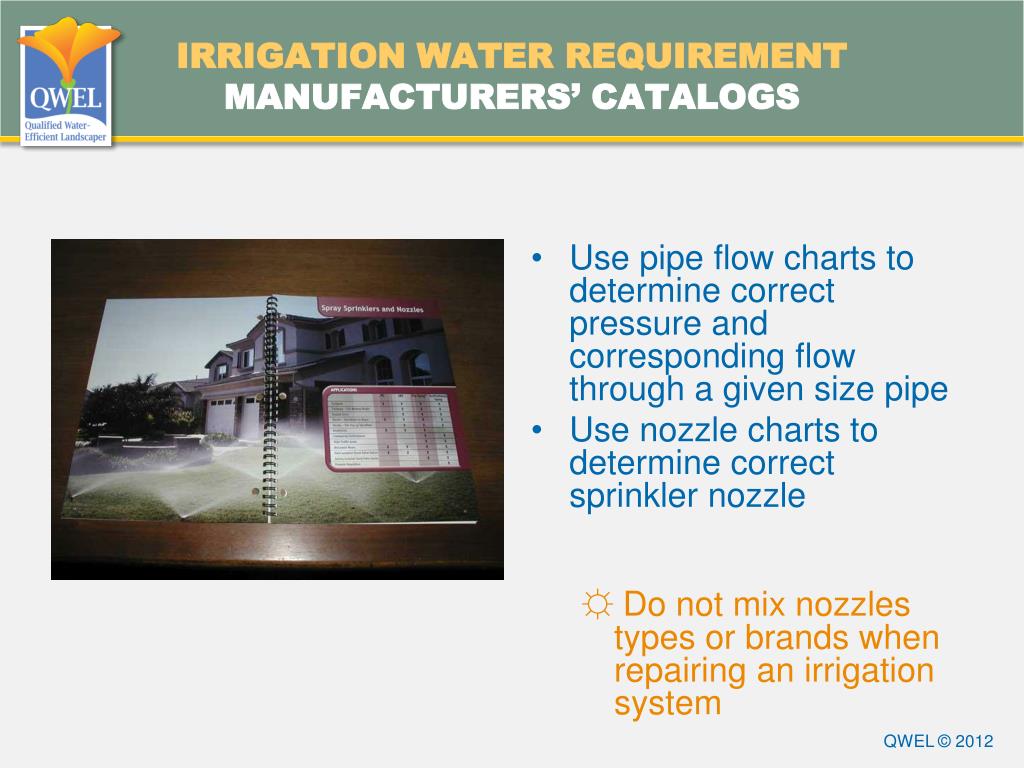

  12. Irrigation water requirementManufacturers’ catalogs • Use pipe flow charts to determine correct pressure and corresponding flow through a given size pipe • Use nozzle charts to determine correct sprinkler nozzle ☼ Do not mix nozzles types or brands when repairing an irrigation system

  13. Irrigation application methodOverhead Rotor Spray Multi-stream rotating nozzle

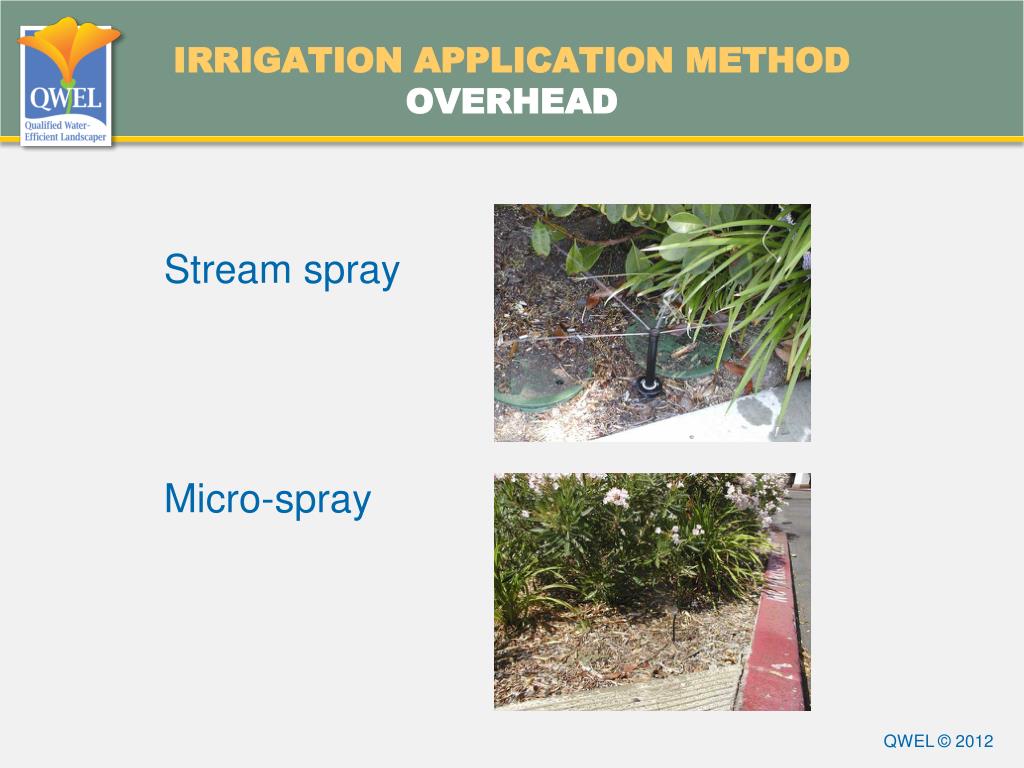

  14. Irrigation application methodOverhead Stream spray Micro-spray

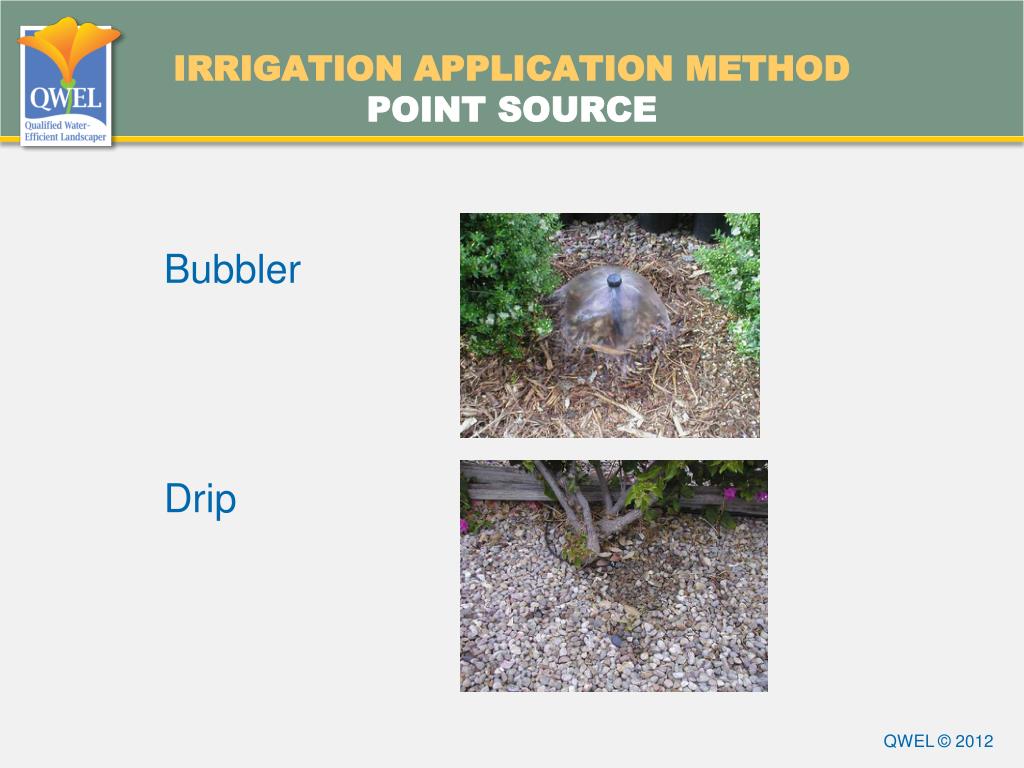

  15. Irrigation application methodPoint source Bubbler Drip

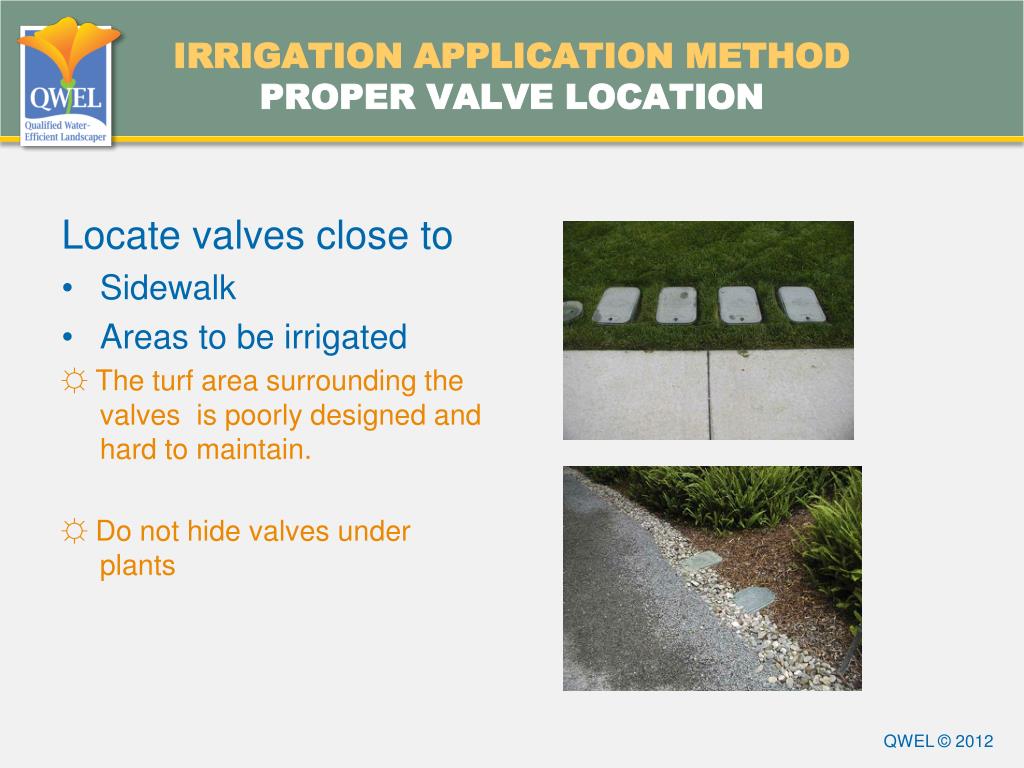

  16. Irrigation application methodProper valve location Locate valves close to • Sidewalk • Areas to be irrigated ☼The turf area surrounding the valves is poorly designed and hard to maintain. ☼Do not hide valves under plants

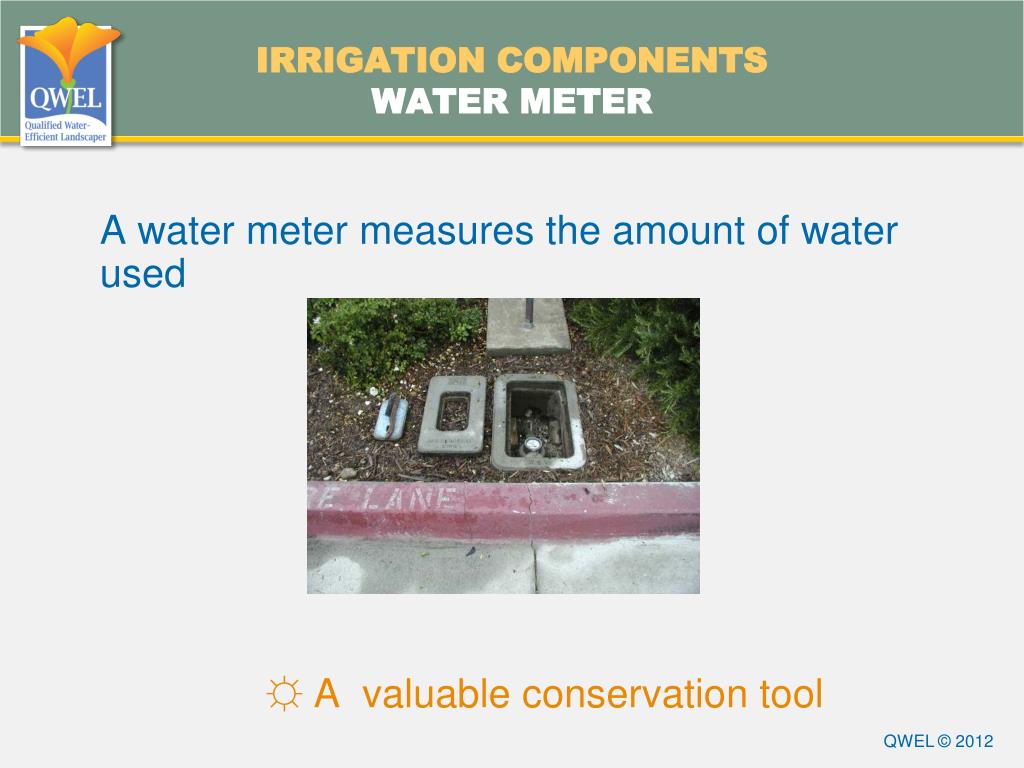

  17. Irrigation componentsWater meter A water meter measures the amount of water used ☼ A valuable conservation tool

  18. Irrigation componentsBackflow device Ensures water quality by preventing the contamination of potable (drinking) water supply ☼ Check with local building officials for regulations about backflow prevention devices

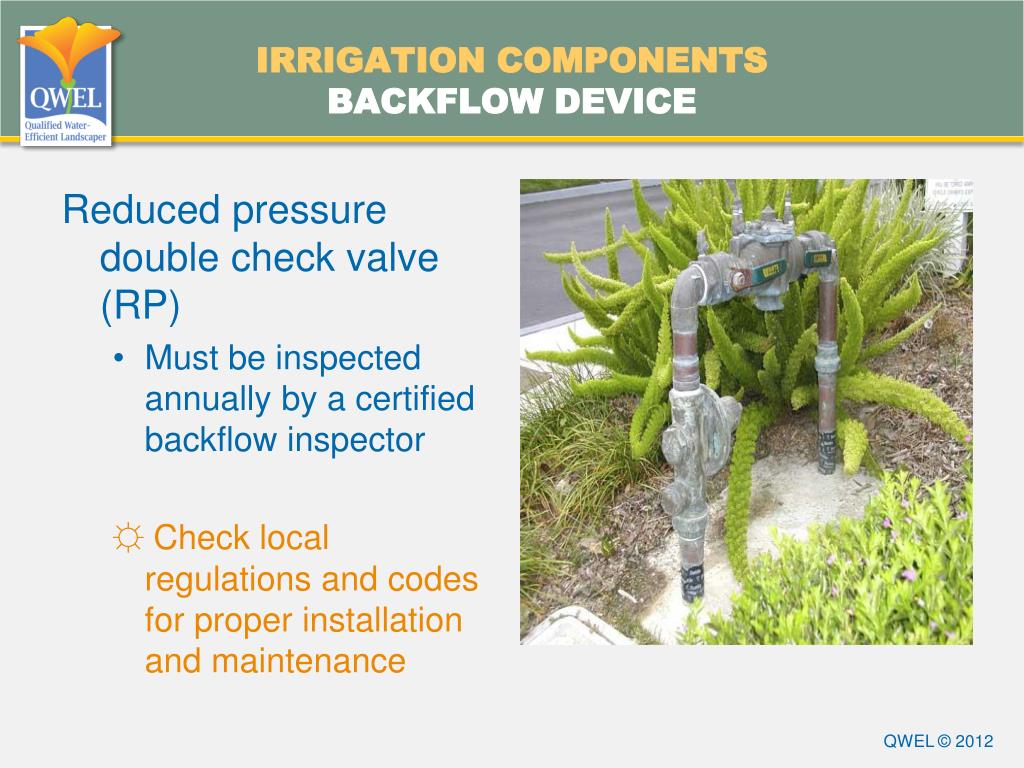

  19. Irrigation componentsBackflow device Reduced pressure double check valve (RP) • Must be inspected annually by a certified backflow inspector ☼ Check local regulations and codes for proper installation and maintenance

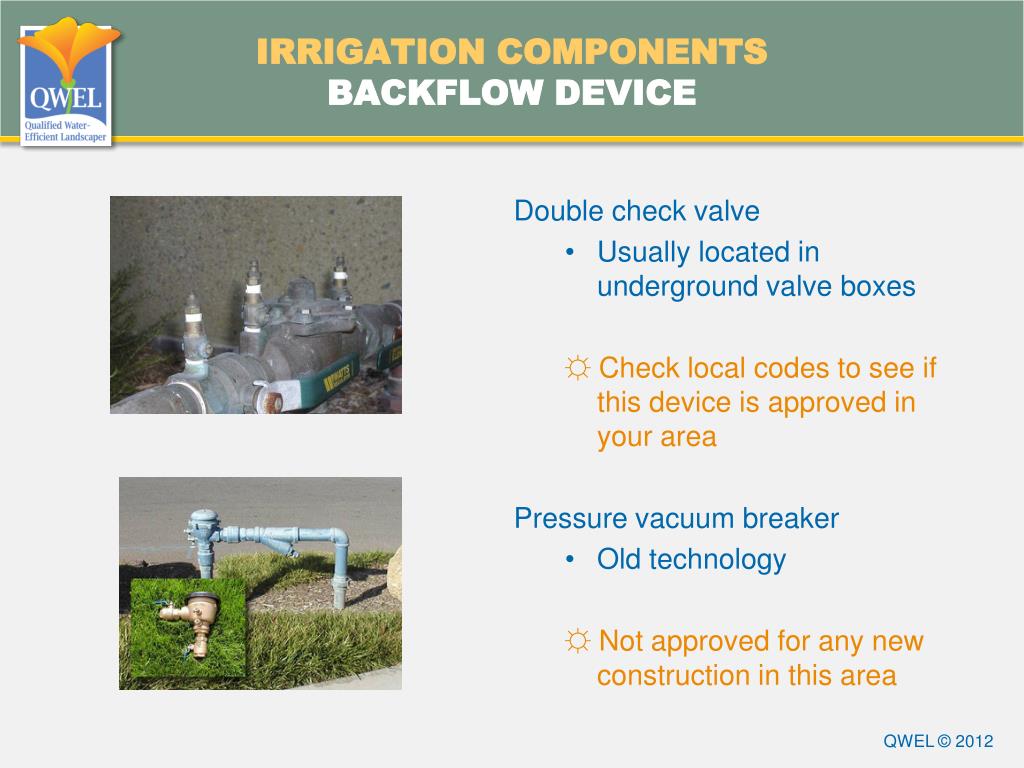

  20. Irrigation componentsBackflow device Double check valve • Usually located in underground valve boxes ☼ Check local codes to see if this device is approved in your area Pressure vacuum breaker • Old technology ☼ Not approved for any new construction in this area

  21. Irrigation components Backflow device Atmospheric breaker valve (ABV) • Also known as an anti-siphon valve • Often used in conjunction with a “master” valve • Subject to contamination by insects and debris ☼Must not be used on irrigation lines under constant pressure

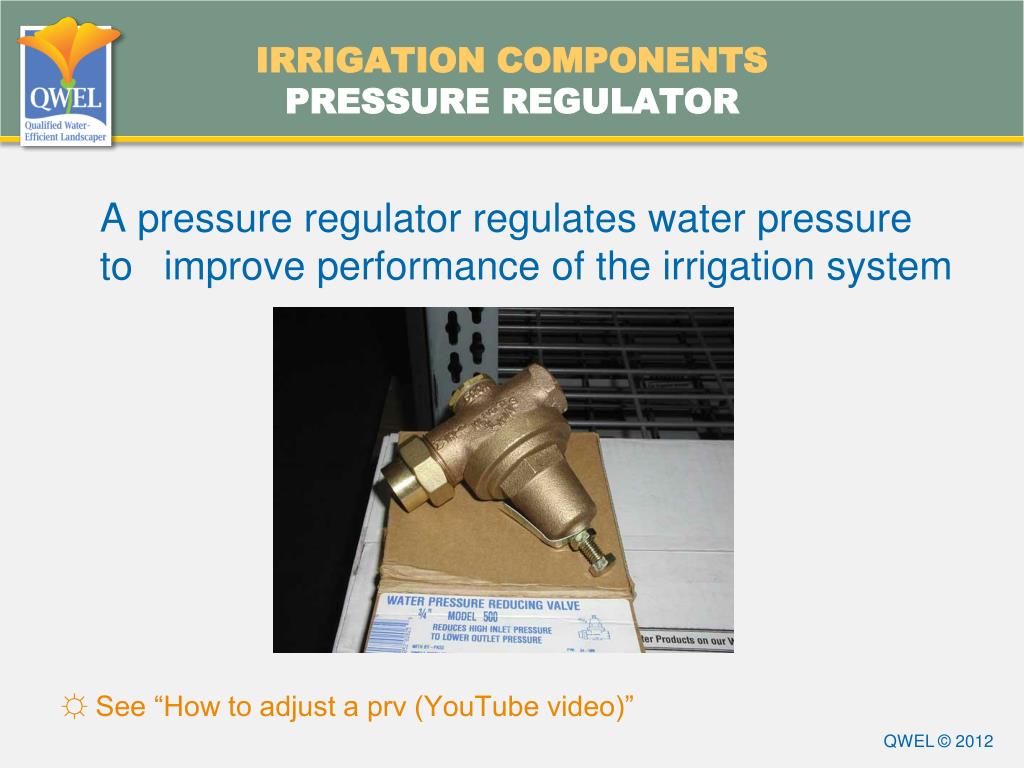

  22. Irrigation componentsPressure regulator A pressure regulator regulates water pressure to improve performance of the irrigation system ☼ See “How to adjust a prv (YouTube video)”

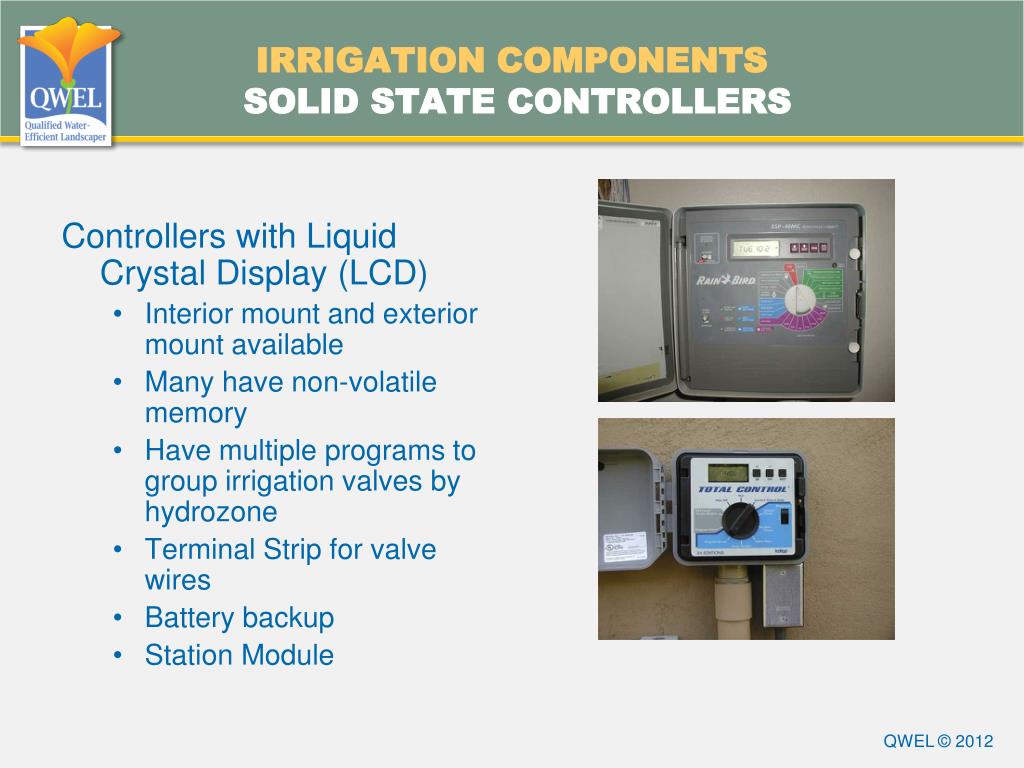

  23. Irrigation components Solid state controllers Controllers with Liquid Crystal Display (LCD) • Interior mount and exterior mount available • Many have non-volatile memory • Have multiple programs to group irrigation valves by hydrozone • Terminal Strip for valve wires • Battery backup • Station Module

  24. Irrigation componentsSensors for controllers Rain shut-off devices • Interrupts 24 volt electrical signal during periods of measurable precipitation (rain, dew)

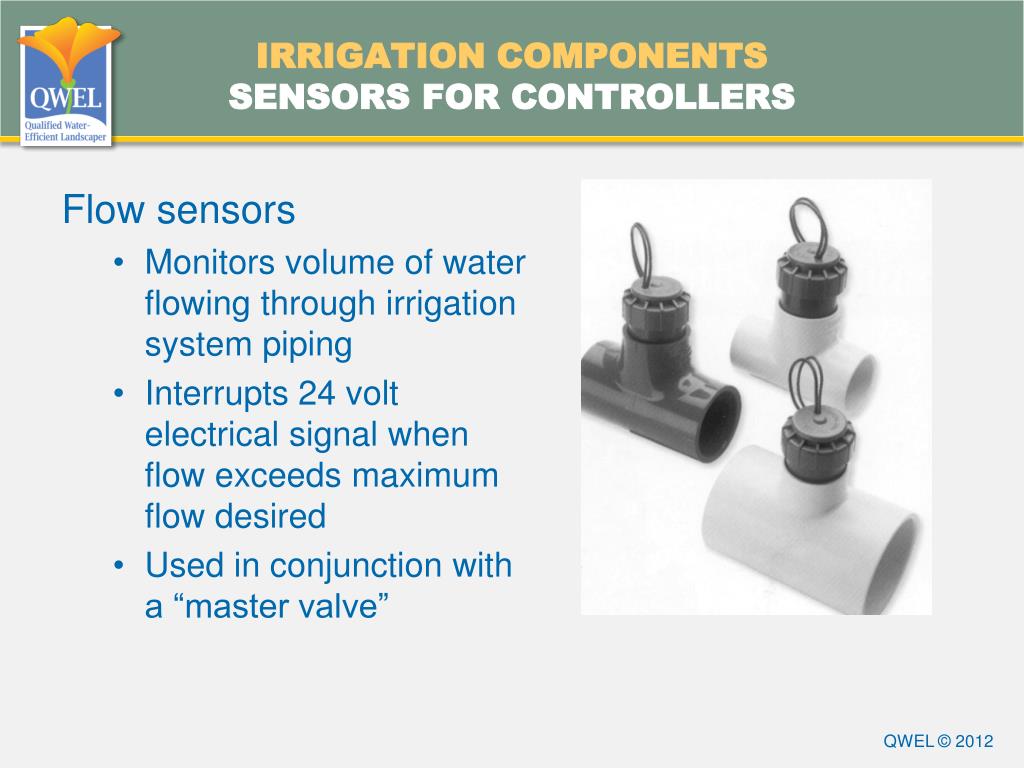

  25. Irrigation componentsSensors for Controllers Flow sensors • Monitors volume of water flowing through irrigation system piping • Interrupts 24 volt electrical signal when flow exceeds maximum flow desired • Used in conjunction with a “master valve”

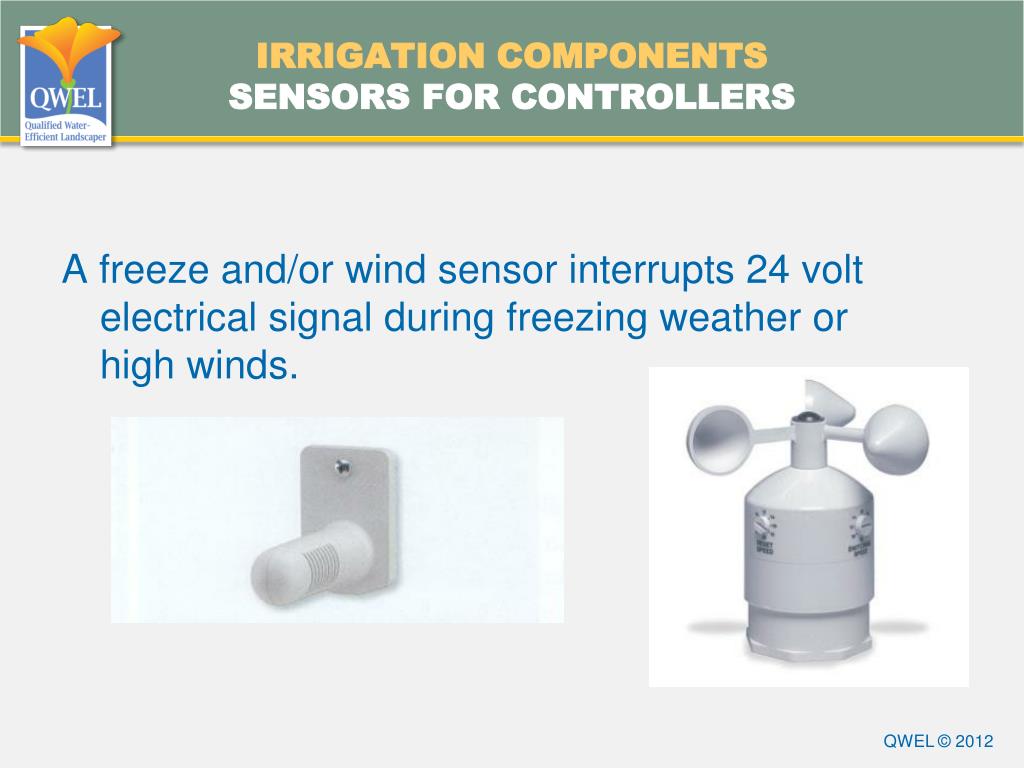

  26. Irrigation componentsSensors for controllers A freeze and/or wind sensor interrupts 24 volt electrical signal during freezing weather or high winds.

  27. Irrigation componentsWiring Irrigation wiring • Wiring compartment – Line (110 volt) and Low (24 volt) are in separate areas of controller • Transformer – reduces line voltage (110v) to low voltage (24v) • Group signal and common wires leading to valves with mainline • Controller and valves are termination points for low voltage irrigation wiring

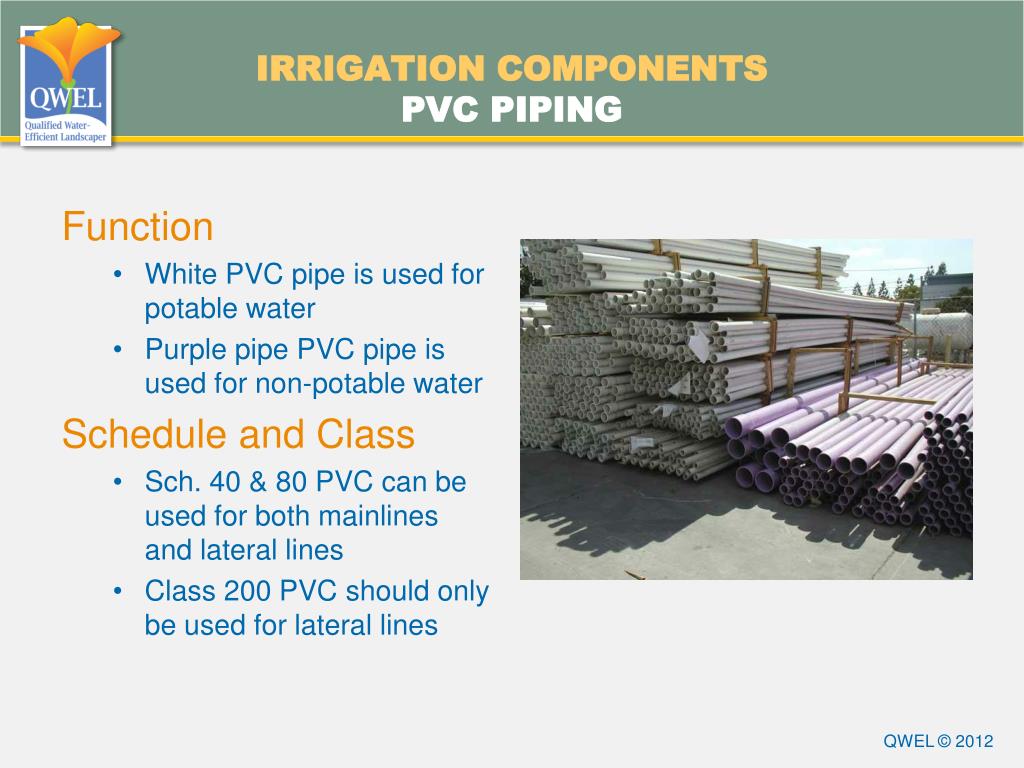

  28. Irrigation componentsPVC piping Function • White PVC pipe is used for potable water • Purple pipe PVC pipe is used for non-potable water Schedule and Class • Sch. 40 & 80 PVC can be used for both mainlines and lateral lines • Class 200 PVC should only be used for lateral lines

  29. Irrigation componentsManual valves Mainline isolation valves • Shut off portion of pressurized mainline

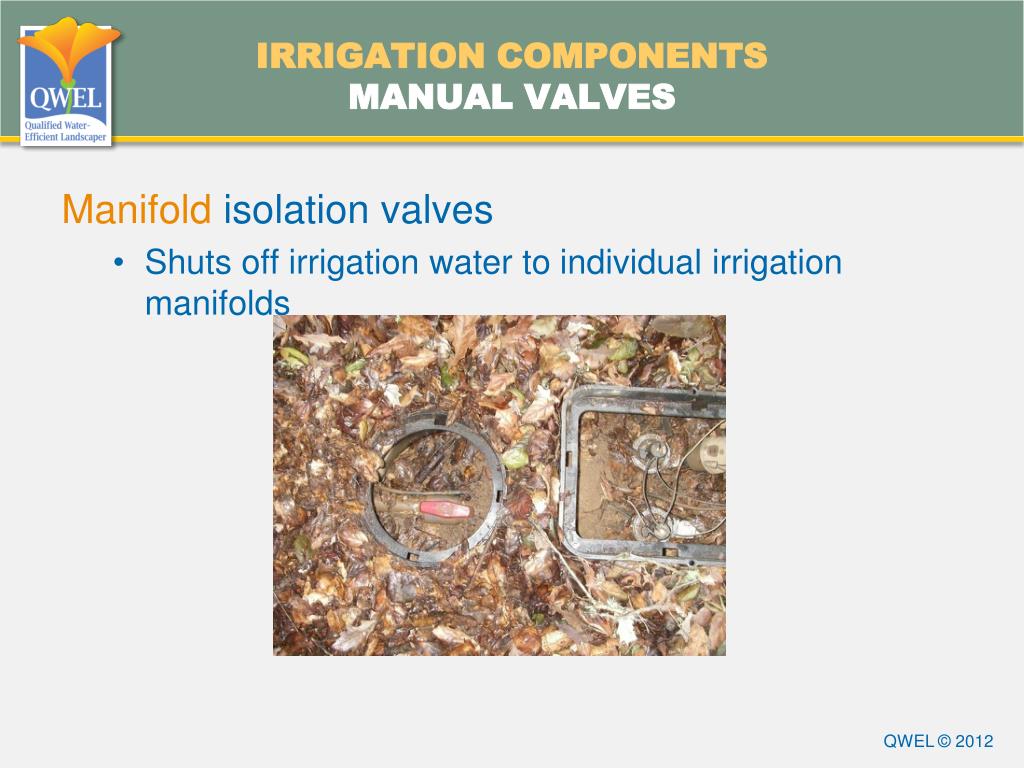

  30. Irrigation componentsManual valves Manifoldisolation valves • Shuts off irrigation water to individual irrigation manifolds

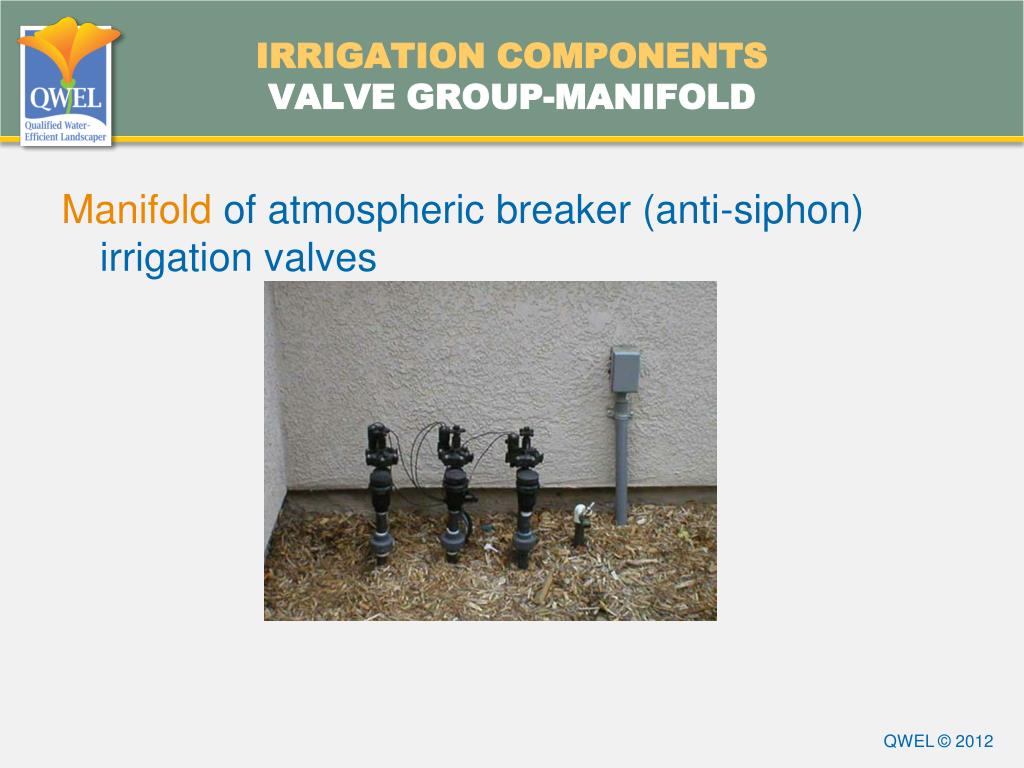

  31. Irrigation componentsValve group-manifold Manifold of atmospheric breaker (anti-siphon) irrigation valves

  32. Irrigation componentsElectric remote control valves Electric remote control

  33. Irrigation componentsDrip irrigation valve Drip irrigation valve • Install with drip filter and pressure regulator

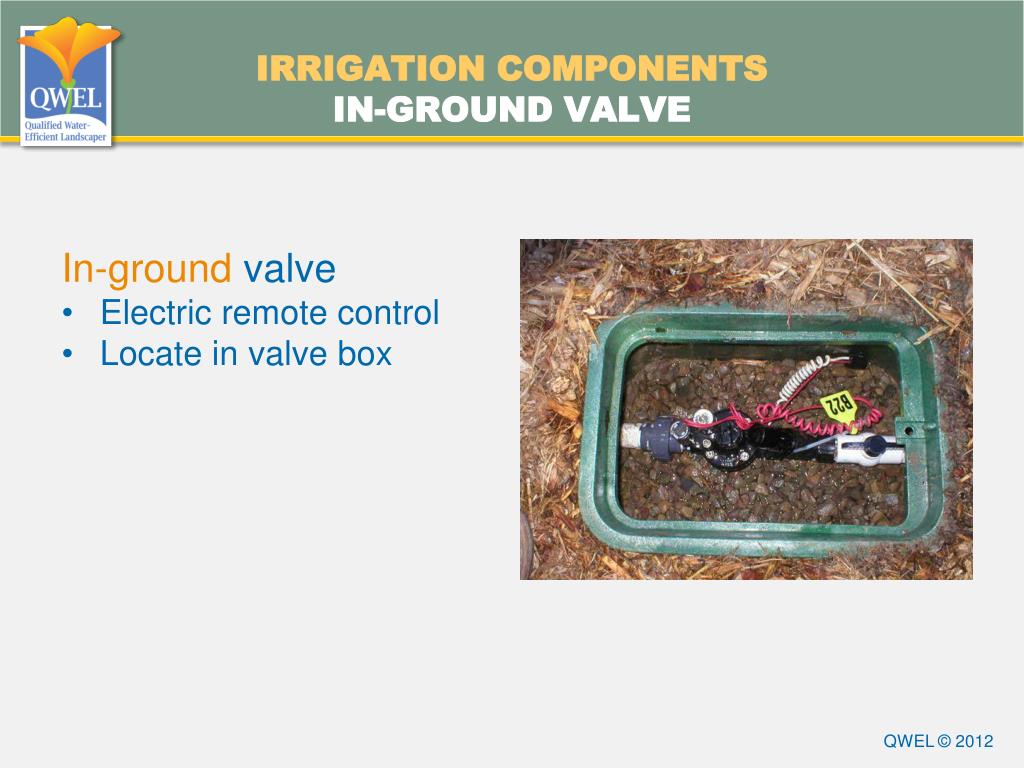

  34. Irrigation componentsIn-ground valve In-groundvalve • Electric remote control • Locate in valve box

  35. Irrigation components – Above groundAnti-siphon valve Drawing and text courtesy of: Jess Stryker's Landscape Irrigation Installation Tutorialwww.IrrigationTutorial.com

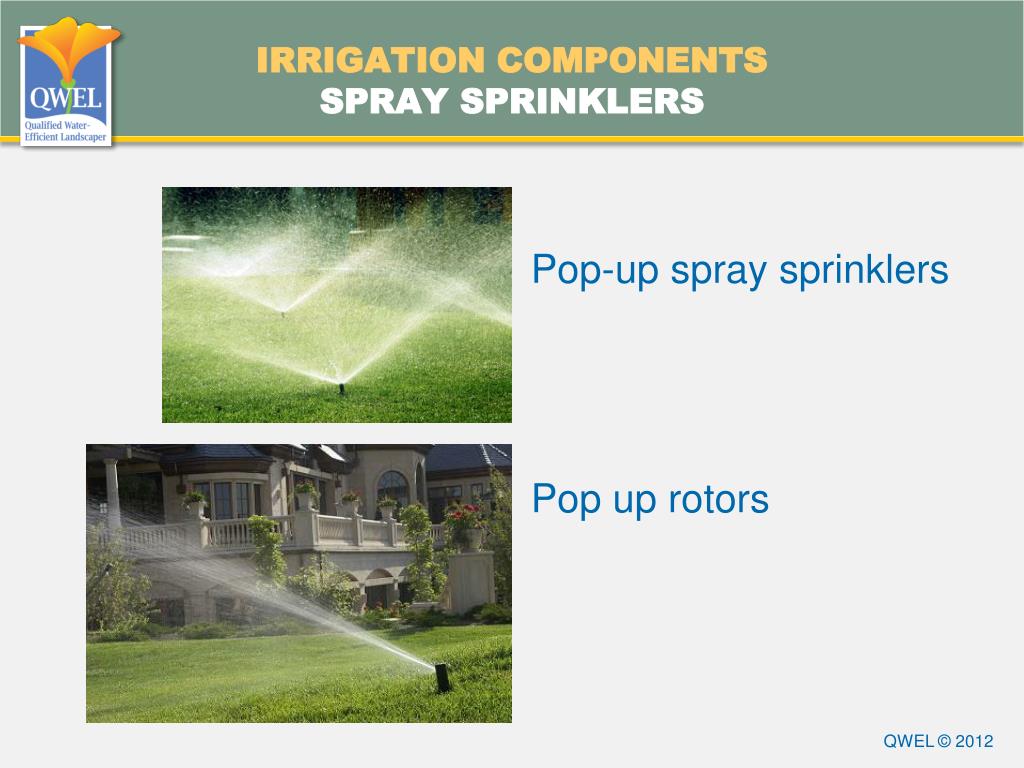

  36. Irrigation componentsSpray sprinklers Pop-up spray sprinklers Pop up rotors

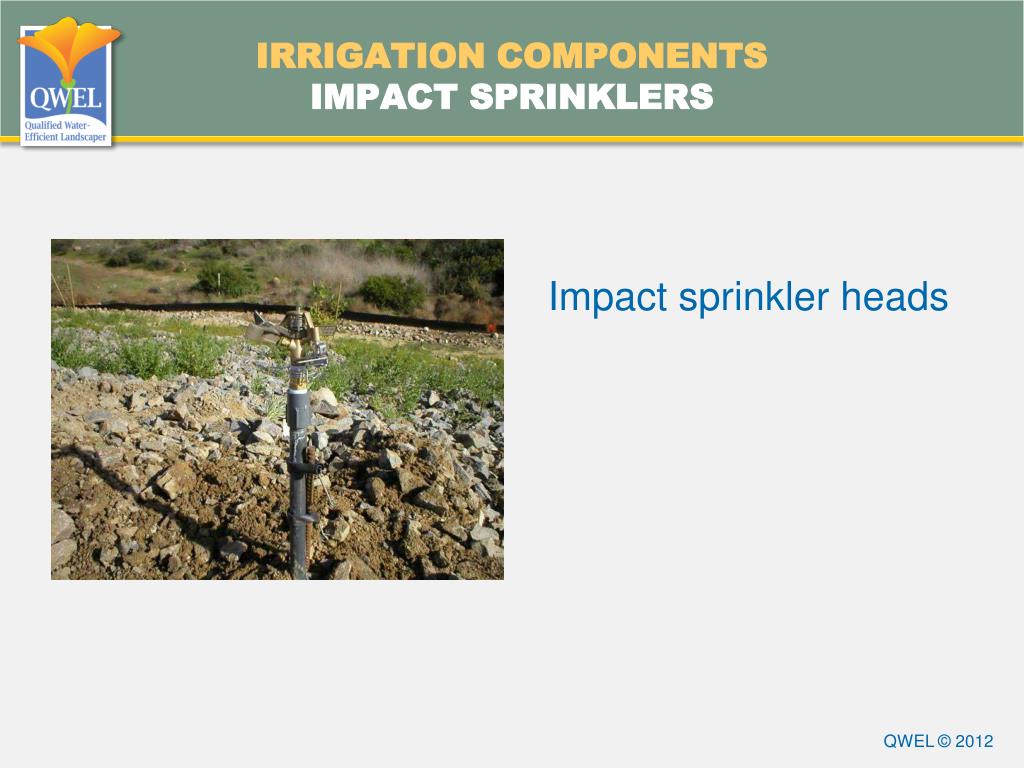

  37. Irrigation componentsImpact sprinklers Impact sprinkler heads

  38. Irrigation components Bubbler Point source application • Bubbler on fixed riser

  39. Irrigation componentsDrip emitters Point source application • Inline drip tubing installed on above ground

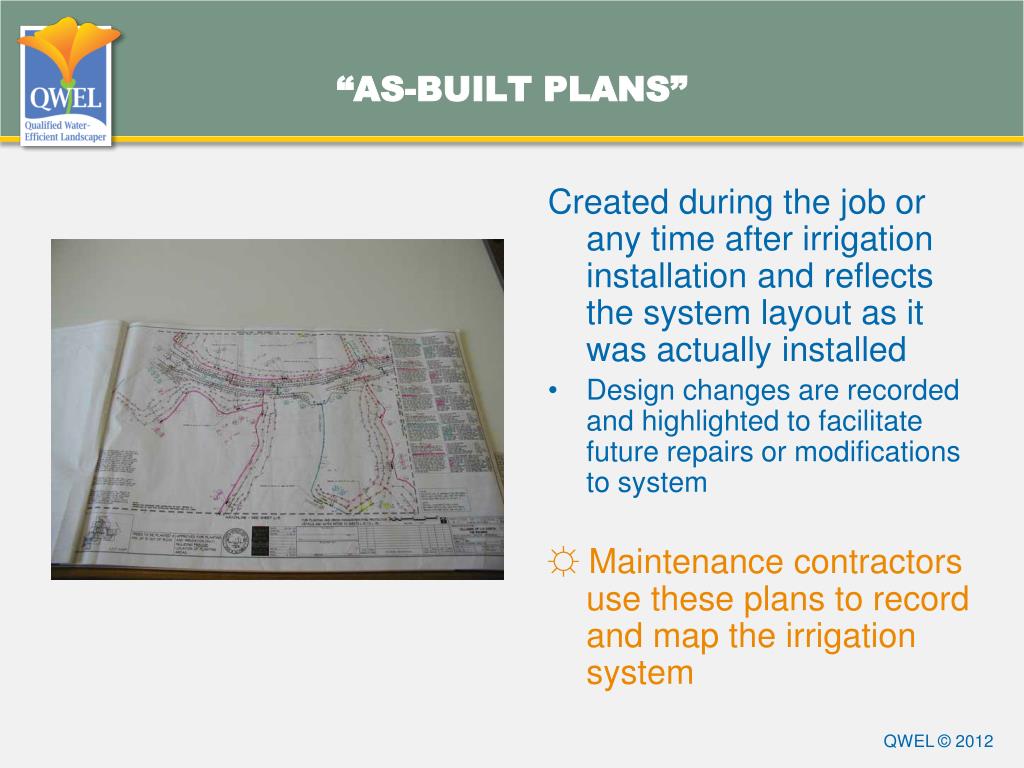

  40. “As-built plans” Created during the job or any time after irrigation installation and reflects the system layout as it was actually installed • Design changes are recorded and highlighted to facilitate future repairs or modifications to system ☼ Maintenance contractors use these plans to record and map the irrigation system

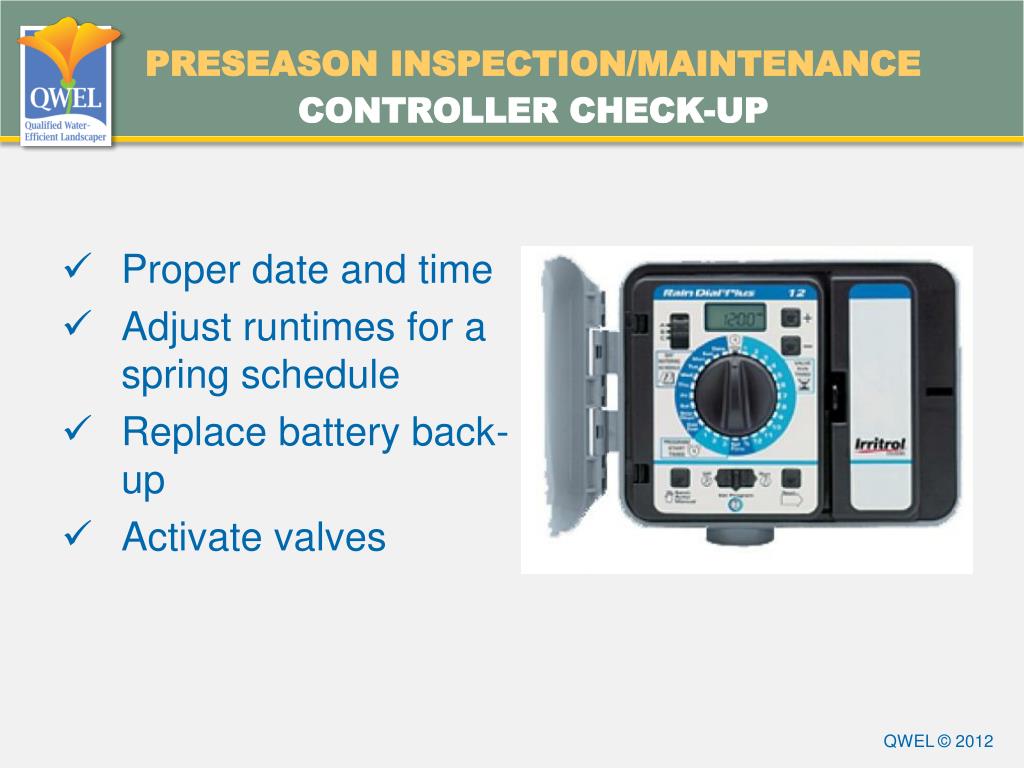

  41. Preseason inspection/maintenanceController check-up • Proper date and time • Adjust runtimes for a spring schedule • Replace battery back-up • Activate valves

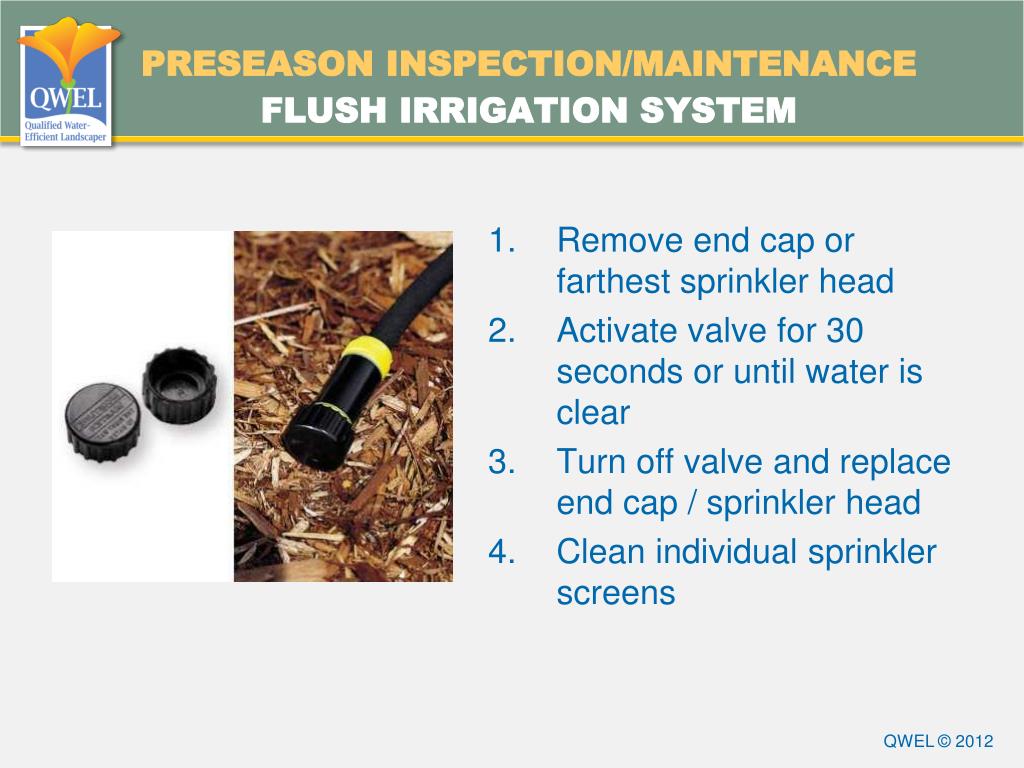

  42. Preseason inspection/maintenanceFlush irrigation system • Remove end cap or farthest sprinkler head • Activate valve for 30 seconds or until water is clear • Turn off valve and replace end cap / sprinkler head • Clean individual sprinkler screens

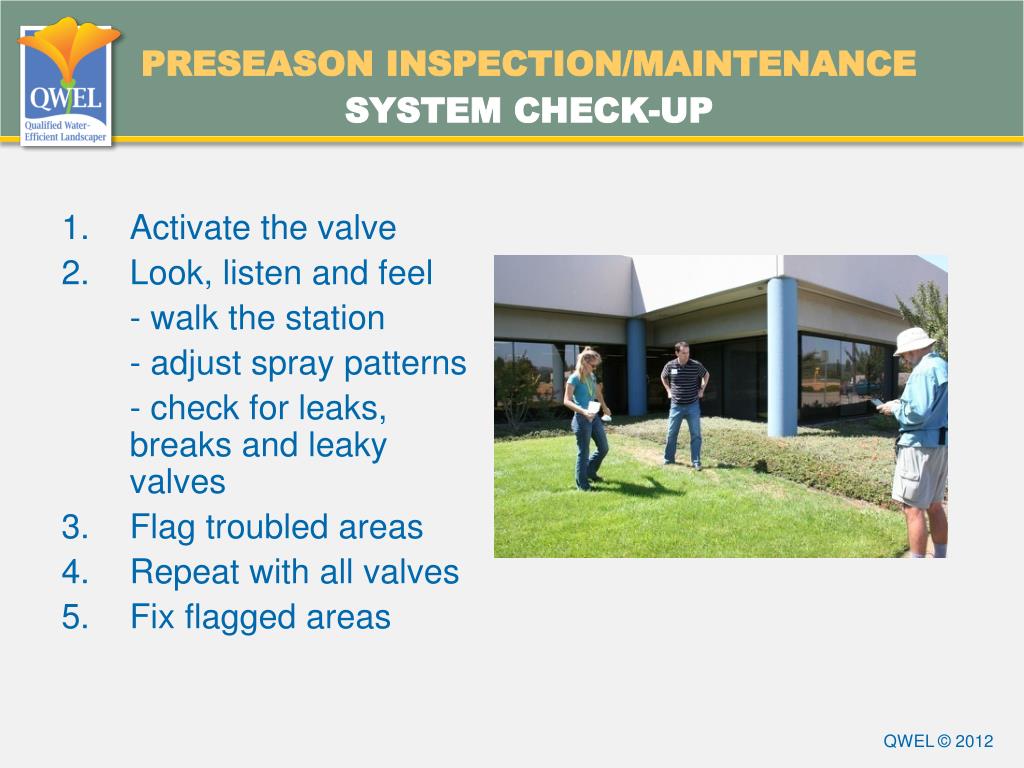

  43. Preseason inspection/maintenanceSystem check-up • Activate the valve • Look, listen and feel - walk the station - adjust spray patterns - check for leaks, breaks and leaky valves • Flag troubled areas • Repeat with all valves • Fix flagged areas

  44. Postseason inspection/maintenanceWinterize • Turn off water at main valve • Set auto controller to “rain” or “off” • Release pressure in pipes, then close • Drain water out of system and parts • Install freeze blanket on backflow device

  45. Irrigation SystemsSummary Know how to determine static and dynamic water pressure Understand the effects of elevation change on an irrigation system Be familiar with water requirements of plants Understand the relationship between application devices, sensors and application rates Be familiar with irrigation system components and function Know how to perform pre-season checkups and how to winterize an irrigation system

  46. Irrigation Systems Question & Answer What is wrong with this picture?
