Cover

COVER

Restoration of the

Queen’s Royal College

Maraval Road, Port of Spain


Parties involved

PARTIES INVOLVED1

CLIENT

PROJECT DESIGN/CONSTRUCTION SUPERVISION TEAM

Architect

Bernard Mackay Architect

Project Manager

Prime Project Managers LTD.

Conservation Consultants (architecture)

Donald Insall Associates LTD.

Civil and Structural Engineer

C.E.P. LTD.

Conservation Consultants (structural)

Gifford and Partners LTD.

Quantity Surveyor

Ellis and Associates LTD.

Services Engineer

ENCO (Engineers Consultants)

PARTIES INVOLVED

The Ministry of Works and Transport

for the Government of the Republic of Trinidad and Tobago

Lead Consultants (In Association)

Sub-Consultants


Parties involved 1

CONSTRUCTION TEAM

Kee- Chanona Ltd.

Conservation

Electrical

Plumbing

Air Conditioning

Evergreene Studios Inc and CRMS Ltd.

United Electrics Ltd

Haynes Plumbing Ltd

Clamens and Associates Ltd.

Roofing

Painting

Stencil

Cintec Anchors

Clock

Pest Control

Property Care Ltd, LifetimeRoofing Ltd

Larry Fulchan

Evergreene Studios Inc;

A&S Associates Ltd

Core Solutions Ltd

Smith of Derby

Rentokil, Trinidad Pest Control

PARTIESINVOLVED1

Main Contractor

Sub-Contractors


Introduction

INTRODUCTION2

INTRODUCTION

SIGNIFICANCE OF Q.R.C.

  • Main block – iconic status

  • Structural Design: Robust masonry, timber to floors and roof framing

  • Architectural Design: W. Wrightson – D.M.Hahn

  • King Edward Memorial Clock – 1913 eight day Westminister, full quarter chime – 5 bells


Introduction1

INTRODUCTION2

INTRODUCTION

OUR BRIEF

  • Make Main Block suitable for modern educational needs

  • Improved administrative facilities

  • Bring Assembly Hall back into use

  • Remove insensitive alterations over last 100 years

  • Improved working environment with modern services

  • Access for the physically challenged

  • Restore Q.R.C. as icon of Port of Spain and of elite educational establishment


Introduction2

INTRODUCTION2

INTRODUCTION

RESTORATION APPROACH - EXISTING STRUCTURES

  • Conserve existing original building elements

  • Restore, not replace

  • Matching materials


Introduction3

INTRODUCTION2

INTRODUCTION

RESTORATION APPROACH – ALTERATIONS AND IMPROVEMENTS

  • New facilities to enable Q.R.C. to remain as one of Trinidad and Tobago’s leading

    schools

  • Contemporary Intervention

  • Sympathetic materials and details


Measured survey dilapidation survey

MEASURED SURVEY 3

MEASURED SURVEY & DILAPIDATION SURVEY

EXTERIOR

  • No full survey of Q.R.C. in existence

  • Building Measured in full externally


Measured survey dilapidation survey1

MEASURED SURVEY 3

MEASURED SURVEY & DILAPIDATION SURVEY

INTERIOR DETAILS


Current status of the building

PRE - CONDITION OF THE BUILDING4

CURRENT STATUS OF THE BUILDING

OVERVIEW

Behind the walls of this prestigious institution was a sorry tale of neglect, decay and vandalism.


Measured survey dilapidation survey2

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Broken and loose slates

Lack of maintenance

Roof

Non matching Slates

Walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey3

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Roof

Walls

Building movement

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey4

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Roof

Structural walls

Termite infestation – Decayed wood

Floors

Water penetration - Screed breaking up

- Rotten timber floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey5

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Roof

Structural walls

Floors

Water penetration –

Separation of Render and Decorative finish

Termite infestation – Rotten Wood

– Rotten Wood

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey6

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Roof

Structural walls

Floors

Ceilings

External render

Water penetration leading to:

Peeling of paint and surface powdering

Ironmongery

Loss of whole sections

Delamination and decay of surfaces

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey7

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Original fine brassware

Cast Iron

Insensitively replaced

Bent

Broken

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey8

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

THE ISSUES

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

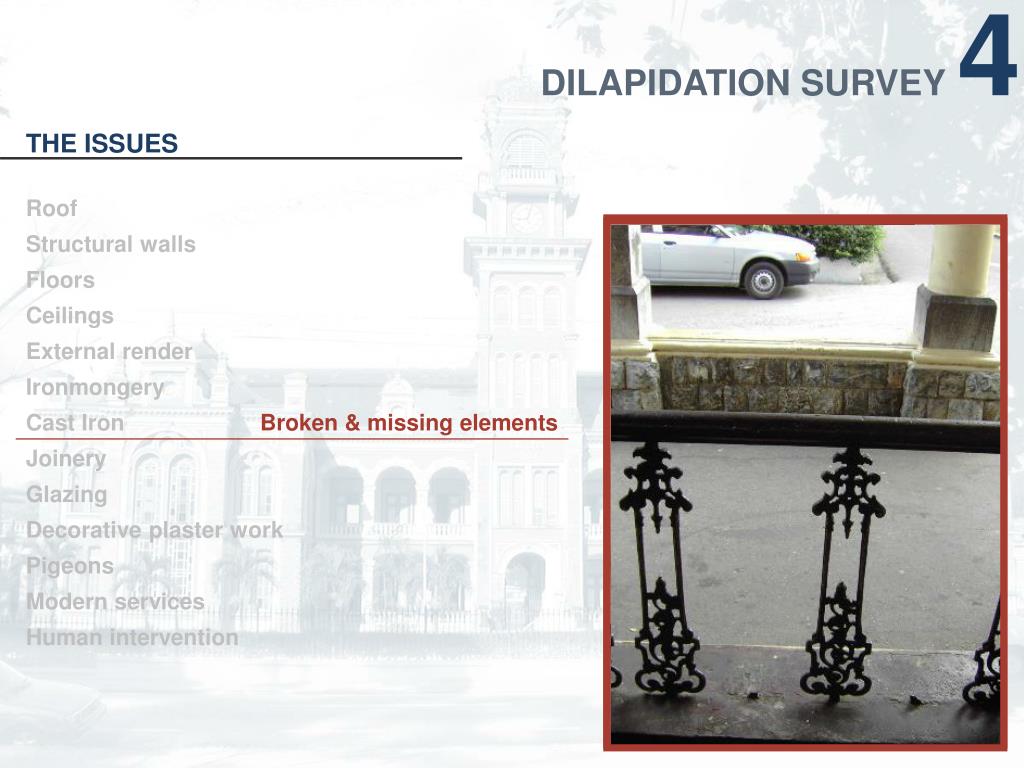

Broken & missing elements

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey9

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXISTING PROBLEMS

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Missing sections

Rotten wood

Glazing

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey10

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXISTING PROBLEMS

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Broken & missing panes

Non-matching replacement glass

Decorative plaster work

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey11

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXISTING PROBLEMS

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Missing sections

Water damaged

Loose Sections

Pigeons

Modern services

Human intervention


Measured survey dilapidation survey12

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXISTING PROBLEMS

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Attic

Hall

Modern services

Human intervention


Measured survey dilapidation survey13

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXISTING PROBLEMS

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern services

Electric cables

Air Conditioning

Electric boards

Human intervention


Measured survey dilapidation survey14

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXISTING PROBLEMS

Roof

Structural walls

Floors

Ceilings

External render

Ironmongery

Cast Iron

Joinery

Glazing

Decorative plaster work

Pigeons

Modern Service

Human intervention

Poor repairs

Vandalism


Measured survey dilapidation survey15

DILAPIDATION SURVEY4

MEASURED SURVEY & DILAPIDATION SURVEY

EXPONENTIAL DECAY

April 2005

February 2004


First aid works

FIRST AID WORKS5

FIRST AID WORKS

ROOF REPAIRS

  • Prevent further water penetration

  • Arrest decay of internal finishes


Measured survey dilapidation survey16

SPECIFYING REPAIRS6

MEASURED SURVEY & DILAPIDATION SURVEY

MATERIALS

  • Take samples

  • Analyse

  • Match existing materials

  • Specify repair works


Measured survey dilapidation survey17

SPECIFYING REPAIRS6

MEASURED SURVEY & DILAPIDATION SURVEY

DRAWINGS

  • Annotated drawings

  • Inventory of all the problems in the

    building


Cover

RESTORATION OF EXISTING STRUCTURE7

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

Structural modifications with limited visible alteration to the building


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

CEP TEAM & ACKNOWLEDGMENTS

  • Kerrin Burgess & Danny Chin Structural Engineers who worked on QRC but left CEP Ltd. before project completion

  • Richard Swift ( formerly Gifford, now Ramboll) and Francis Maude (Donald Insall Associates)


First aid works1

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

AREAS OF WORK

  • Dilapidation Survey/Condition Assessment identified structural defects.

  • Assessment of existing structural elements

    • Visual Assessment of structural elements

    • Testing: Non destructive tests and load tests

    • structural modelling & details of remedial works

  • Seismic Strengthening


First aid works2

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

AREAS OF WORK

  • Repair to damage caused by construction activity

  • Design of new structural elements to be constructed within building and carry out assessment of existing support conditions


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL SYSTEM

  • Structure is an unreinforced masonry bearing wall system (both stone masonry and stone/mortar mix) supported on shallow foundations.

  • There are arched unreinforced concrete floors along the corridors, verandas

  • Timber joists and floor boards in classrooms at first floor level. Timber trusses support ceiling joists, purlins, rafters, and slates at roof level


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL SYSTEM

Masonry Bearing Wall System

  • Lateral loads are transferred via the floor diaphragm to the walls, which in turn carry loads to the foundation.

  • Does not resist lateral loads by ductility, as does most modern buildings, highly dependent on the robustness of the system


First aid works3

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

STRUCTURAL SYSTEM

Timber floors

56.1 m

23.4 m


First aid works4

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

STRUCTURAL SYSTEM


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

ROOF FRAMING


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

TIMBER ELEMENTS

  • Timber Defects (decay, insect damage, splits). Extensive in wall plates, to a lesser extent in roof trusses

  • For timber elements, defects identified by visual inspection and use of Timber probe

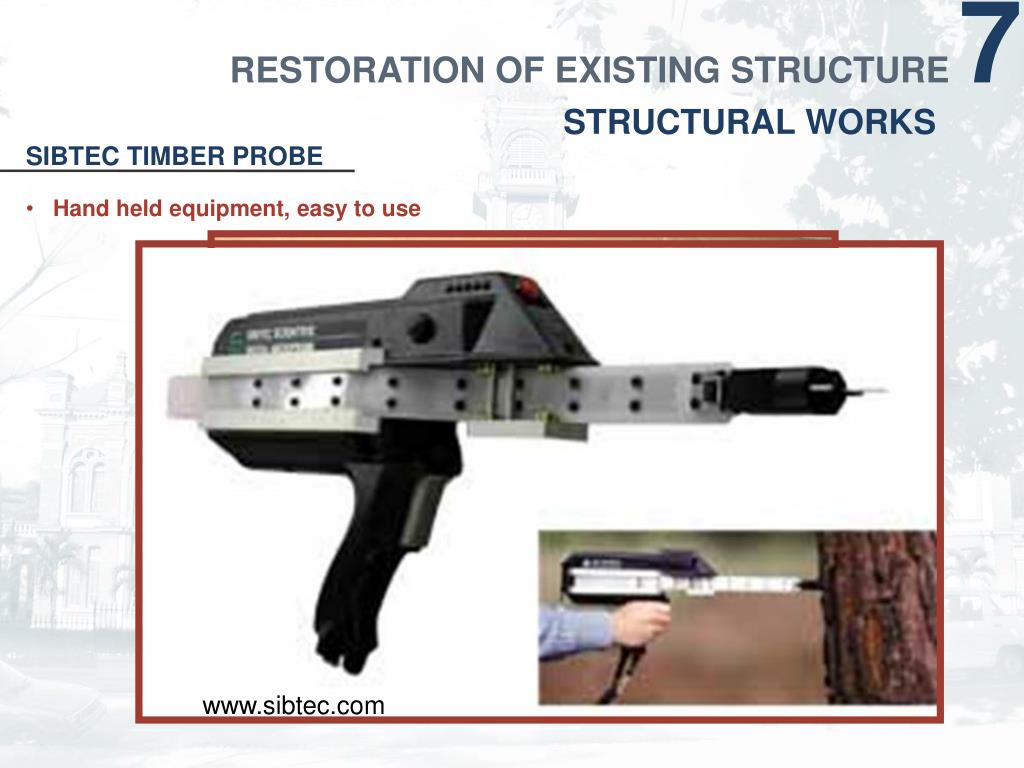

  • Use of Non-destructive Test (NDT) Timber Probe (SIBTEC Digital Micro probe).

    • Very small diameter probe drilled into timber sections.

    • Changes of resistance gives measure of decay.


First aid works5

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

SIBTEC TIMBER PROBE

  • Hand held equipment, easy to use

www.sibtec.com


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL ASSESSMENT OF TIMBER ELEMENTS

  • Based on site dimensions, the timber trusses were modelled in STAAD Pro. 2006 and checked to confirm adequacy for design loads.

  • Timber elements were modified by one of the following methods:

    • bolting additional timber sections to existing sections

    • bolting steel channels or steel plates to existing sections

    • replacement of entire sections ONLY where the loss of cross-sectional area was too extensive to allow for fixing (wall plates for example)


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

NEW WALL PLATES TO SUPPORT DRAINS


First aid works6

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

STRUCTURAL ASSESSMENT OF TIMBER ELEMENTS


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL RETROFIT OF TRUSSES


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL RETROFIT OF TRUSSES


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL RETROFIT OF TRUSSES


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

STRUCTURAL RETROFIT OF TRUSSES


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

MASONRY & CONCRETE ELEMENTS

  • Stonework was found to be in good condition.

  • Cracks in masonry extensive due to material deterioration, settlement and poor drainage

  • Unlike traditional construction, material compatibility was a critical factor in selection of repair methods

  • vegetation growth contributed to deterioration of concrete in external walls


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

MASONRY & CONCRETE ELEMENTS


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

ENCASEMENT & UNDERPINNING

  • Foundation conditions were examined, encasement and enlargement required in some areas


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

SEISMIC STRENGTHENING

  • Seismic Assessment by CEP Ltd

  • Expert Advice (Gifford) & engineering judgment

  • The following were considerations:

    • Past performance of building under earthquakes

    • Existing structural lateral system robust with relatively light weight roof and large areas of timber floors at first floor level

    • Discontinuous walls to be tied

    • “Stitching” of sections of wall with existing cracks


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

SEISMIC STRENGTHENING

CINTEC ANCHORS

  • Improve performance due to overall strengthening

  • Tie discontinuous walls/piers

  • Suitable for stitching sections of the structure with existing cracks

  • Strengthen corners


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

SEISMIC STRENGTHENING

CINTEC ANCHORS

  • Steel rod surrounded by a fabric sock.

  • Hole is drilled into walls at specific locations

  • The anchor is then located in an oversized drill hole joining the materials to be anchored together.

  • Fluid grout is then injected under pressure in fabric sock at one end, until it reaches the remote end.

  • The grout fills the fabric sock. The entire assembly inflates under the pressure.

  • The grout passes through the fabric sock, both fixing and providing a mechanical bond to the parent material.


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

SEISMIC STRENGTHENING


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

LOAD TESTING

  • Balcony supported by cantilever cast iron frame. Load tests were done to confirm the that the steel frames were adequate to support design loads

  • Load tests carried out by CARIRI

  • Tests confirmed that steel brackets and anchorage to walls were adequate


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

LOAD TESTING


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

LOAD TESTING


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

REPAIR TO DAMAGE DURING CONSTRUCTION


Cover

RESTORATION OF EXISTING STRUCTURE7

STRUCTURAL WORKS

NEW STRUCTURES

  • Service Building - this is new building, not part of the main QRC block

  • Elevator - new concrete foundations and block walls

  • Minor Structural Works

    • External Ramps

    • Stage in Auditorium

    • Plant room under Assembly Hall & trenches for mechanical and electrical services


First aid works7

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

RESTORATION: SOME CRITICAL FACTORS

The condition assessment should be as comprehensive as possible, requires curiosity, knowledge of old structural systems and attention to details. Experience is indispensable.

Design data unavailable therefore engineering judgment as well as testing necessary.

A multidisciplinary approach especially as it relates to new services requiring openings in existing structures


First aid works8

RESTORATION OF EXISTING STRUCTURE7

FIRST AID WORKS

STRUCTURAL WORKS

RESTORATION: SOME CRITICAL FACTORS

  • Some structural problems can elude detection and become obvious during construction.

    • Unanticipated field conditions likely to result in increased cost

  • The structural engineer required to be on site to monitor execution both for compliance with designs and to confirm field conditions


Restoration of old elements

RESTORATION OF EXISTING STRUCTURE7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

  • Identify original slate source

  • Strip and relay roof

  • Use matching materials to regain visual effect


Restoration of old elements1

RESTORATION OF EXISTING STRUCTURE7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

  • Repair damaged castings

  • Take moulds and cast new sections to match


Restoration of old elements2

RESTORATION OF EXISTING STRUCTURE7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

  • Replace existing damaged boarding

  • Make new cornice mouldings to match existing

    profile where missing


Restoration of old elements3

RESTORATION OF OLD ELEMENTS7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

  • Replace missing sections to match original

    profiles

  • Repair where possible, not replace


Restoration of old elements4

RESTORATION OF EXISTING STRUCTURE7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

  • Refix loose sections

  • Take mouldings and re-manufacture sections

    where existing pieces are missing


Restoration of old elements5

RESTORATION OF EXISTING STRUCTURE7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Redecoration

Clock

  • Identify original decorative scheme

  • Reinforce architectural design with

    colour


Restoration of old elements6

RESTORATION OF OLD ELEMENTS7

RESTORATION OF OLD ELEMENTS

REPAIRS

Structure

Roof

Cast iron elements

Timber ceilings

Joinery

Plaster Moulding – Assembly Hall

Internal redecoration

Clock

  • Retain and repair original mechanism

  • Repair bell mechanism

  • The Big Ben of Port of Spain regains its

    former role


Introduction4

ALTERATIONS AND IMPROVEMENTS8

INTRODUCTION

REVISED LAYOUT

Ground Floor

Assembly Hall(with air conditioning)

Classrooms

Refurbished administration offices (with air conditioning)

Toilets

Lift

Physically challenged access

Entrance

Queen’s Park Savannah


Introduction5

ALTERATIONS AND IMPROVEMENTS9

INTRODUCTION

Queen’s Park Savannah

REVISED LAYOUT

First Floor

Assembly Hall – Balcony level(with air conditioning)

Classrooms

Vice Principal’s Office (with air conditioning)

Lift

Study area

(with air conditioning)


New project elements

ALTERATIONS AND IMPROVEMENTS9

NEW PROJECT ELEMENTS

Roof

Gutter and dormer hatch

Porte Cochere

Lift

Reception & Principal’s Office

Lavatories

Assembly Hall

  • Wider gutter for improved water flow

  • Less prone to blocking

  • Easier to clean

  • Dormer hatches give easy access


New project elements1

ALTERATIONS AND IMPROVEMENTS9

NEW PROJECT ELEMENTS

Roof

Porte Cochere

Pedestrian Access

Lift

Reception & Principal’s Office

Lavatories

Assembly Hall

  • Allows access for the physically challenged

  • Contemporary design within existing structure


Cover

ALTERATIONS AND IMPROVEMENTS9


New project elements2

ALTERATIONS AND IMPROVEMENTS9

NEW PROJECT ELEMENTS

Roof

Porte Cochere

Lift

Reception & Principal’s Office

Lavatories

Assembly Hall

  • Integrated into the existing building

  • Allows access for physically challenged people

  • Updates Q.R.C. to modern standards


New project elements3

ALTERATIONS AND IMPROVEMENTS8

NEW PROJECT ELEMENTS

Roof

Porte Cochere

Lift

Reception & Principal’s Office

Lavatories

Assembly Hall

  • New tempered glass door allows clear

    visibility

  • Access for physically challenged

  • Integrated into the existing building

  • Sealed for Air Conditioning


New project elements4

ALTERATIONS AND IMPROVEMENTS8

NEW PROJECT ELEMENTS

Roof

Porte Cochere

Lift

Reception & Principal’s Office

Lavatories

Assembly Hall

  • New male and female staff WCs

  • WC for the physically challenged

  • Boys’ WCs renovated


New project elements5

ALTERATIONS AND IMPROVEMENTS8

NEW PROJECT ELEMENTS

Roof

Porte Cochere

Lift

Reception & Principal’s Office

Lavatories

Assembly Hall

Air Conditioning

  • Increases comfort levels

  • Enables Multiplicity of use

  • Seamlessly integrated into architectural

    design of room

  • Restored Balcony

  • Retain existing windows and louvres


Skills training construction 9

SKILLS TRAINING CONSTRUCTION9


Work in progress construction 9

WORK IN PROGRESS CONSTRUCTION 9


Stencils revealed construction 9

STENCILS REVEALED CONSTRUCTION9


Cintec anchors external repairs construction 9

CINTEC ANCHORS/ EXTERNAL REPAIRS CONSTRUCTION9


Clock roof workshop repairs construction 9

CLOCK/ ROOF/WORKSHOP REPAIRS CONSTRUCTION9


Cost time construction 9

COST & TIME CONSTRUCTION9

  • Final construction cost 38 m tt

  • Start Jan 2007

  • Complete april 2010

  • Level of timber decay

  • Restoration methodology

  • Lime mortar


Construction 9

CONSTRUCTION 9

LESSONS LEARNT

  • Regular maintenance is essential in sustaining our built heritage. Keep the water out.

  • Regularly inspect and termite treat our timber structures

  • Carry out first aid works as a pre-requisite to full restoration

  • Vacate building to be restored to facilitate more in depth dilapidation surveys of unexposed members.

  • Maintain a water tight envelope during construction process

  • A Methodology should be agreed and adhered to for every task undertaken at our current skills level.


Cover

EXTERIOR 2010 IMAGES10

Facades


Interiors 2010 images 10

INTERIORS 2010 IMAGES10


Contemporary integration 2010 images 10

CONTEMPORARY INTEGRATION2010 IMAGES 10


Stencils restored 2010 images 10

STENCILS RESTORED 2010 IMAGES10


Workshops

LOOKING FORWARD11

WORKSHOPS

MAINTENANCE MANUAL

TRAINING PROGRAMME

  • Improve trade skills for works on historic buildings

  • Develop understanding of cultural heritage

  • Establish new benchmark for conservation works

  • Identify ongoing maintenance requirements

  • Allow annual budget to be established

  • Enable forward programming


Workshops1

LOOKING FORWARD11

WORKSHOPS

ONGOING CHALLENGES

CURATOR OF HISTORIC BUILDINGS

  • Maintenance

  • Human intervention

  • Completion of defects

  • Responsible for maintaining government historic buildings

  • Budget available to facilitate training and maintenance programmes

  • Role should be expanded to include other historic buildings


Workshops2

WORKSHOPS

Port of Spain, April 2014

ISTRUCTE Caribbean Regional Group Conference

THANK YOU


  • Login
