High Energy Dilepton Experiments

1. High Energy Dilepton Experiments Experiments @ RHICFuture Outlook

2. RHIC • RHIC = Relativistic Heavy Ion Collider • located at Brookhaven National Laboratory

3. STAR RHIC and its experiments • what’s so special about RHIC? • it’s a collider • no thick targets! • detector systematics do not depend on ECM! • p+p: √s ≤ 500 GeV (polarized beams!) • A+A: √sNN ≤ 200 GeV (per NN pair) • experiments with specific focus • BRAHMS (until Run-6) • PHOBOS (until Run-5) • multi purpose experiments • PHENIX • STAR • all experiments are crucial!!

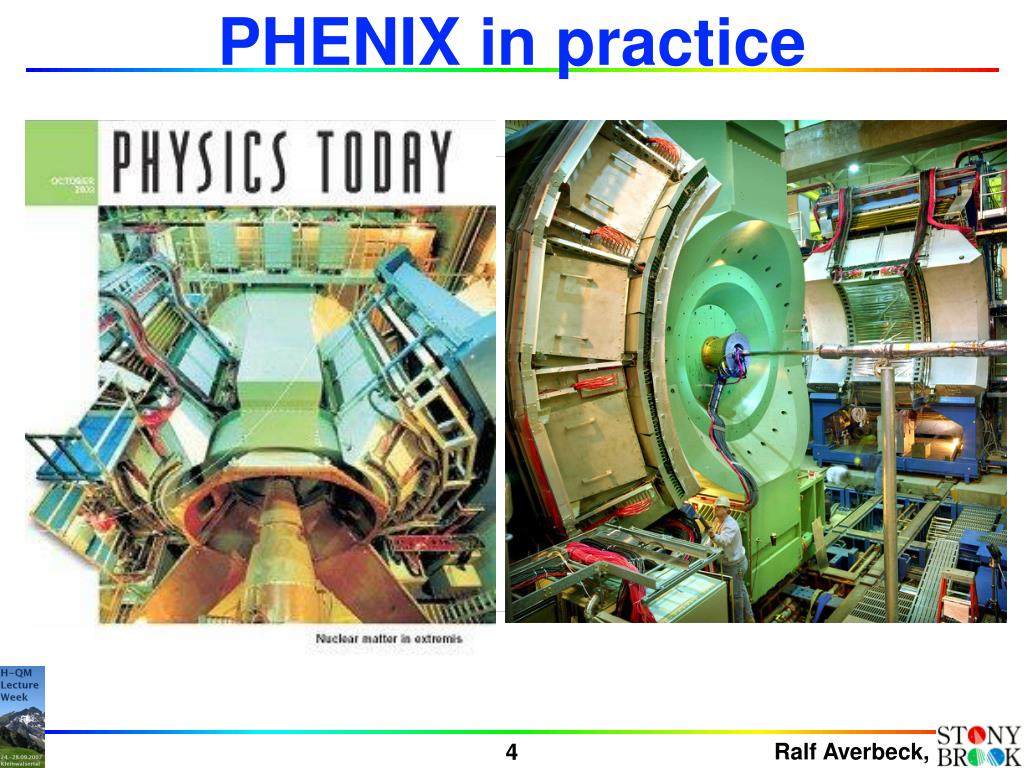

4. PHENIX in practice

5. central spectrometers • measurement in range:|h|  0.35 p  0.2 GeV/c • forward spectrometers • muon measurement in range: 1.2 < |h| < 2.4 p  2 GeV/c two central electron/photon/hadron spectrometers two forward muon spectrometers PHENIX in principle • 3 detectors for global event characterization

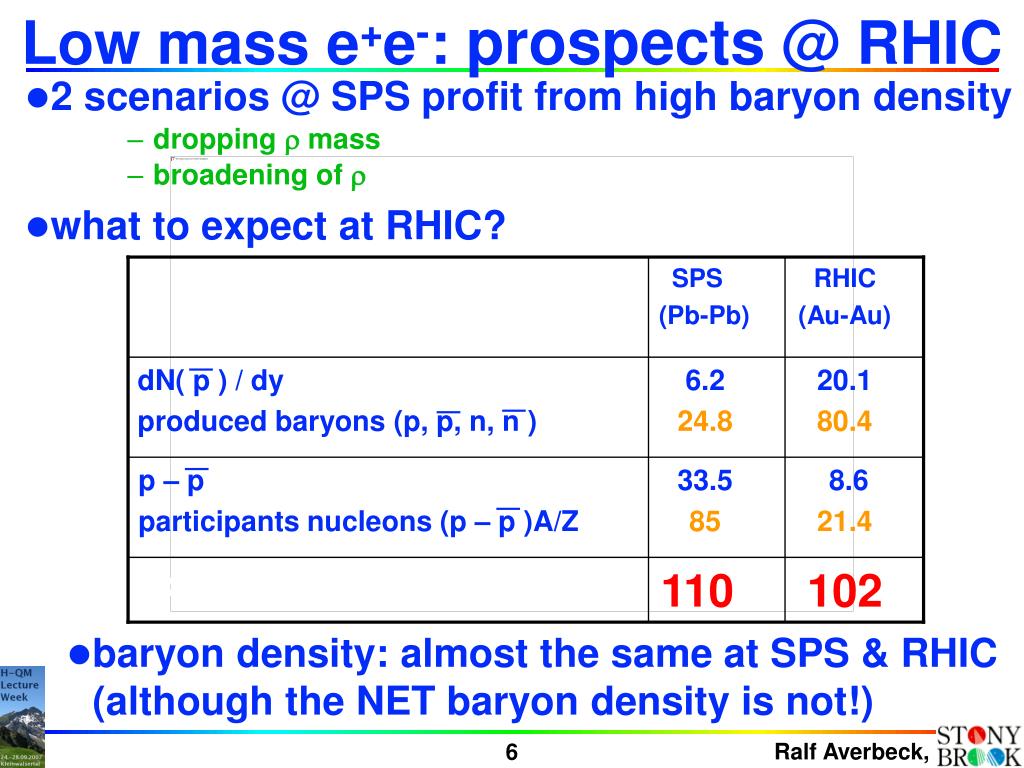

6. SPS (Pb-Pb) RHIC (Au-Au) dN( p ) / dy produced baryons (p, p, n, n ) 6.2 24.8 20.1 80.4 p – p participants nucleons (p – p )A/Z 33.5 85 8.6 21.4 Total baryon density 110 102 Low mass e+e-: prospects @ RHIC • 2 scenarios @ SPS profit from high baryon density • dropping r mass • broadening of r • what to expect at RHIC? • baryon density: almost the same at SPS & RHIC (although the NET baryon density is not!)

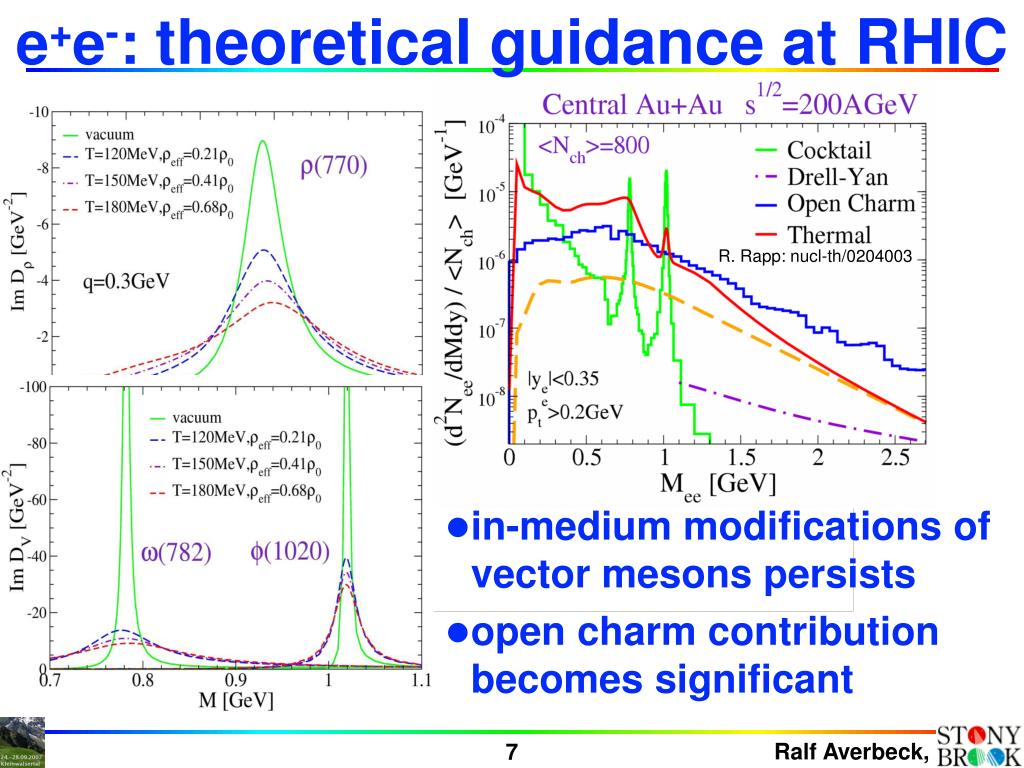

7. e+e-: theoretical guidance at RHIC R. Rapp: nucl-th/0204003 e- e+ • in-medium modifications of vector mesons persists • open charm contribution becomes significant

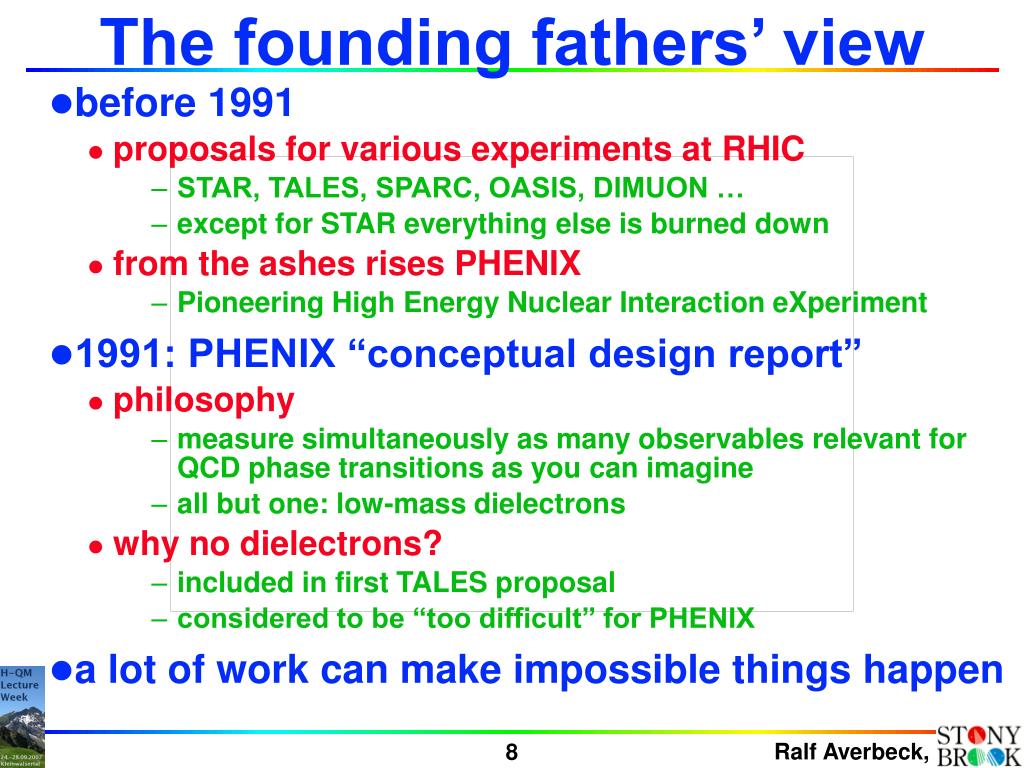

8. The founding fathers’ view • before 1991 • proposals for various experiments at RHIC • STAR, TALES, SPARC, OASIS, DIMUON … • except for STAR everything else is burned down • from the ashes rises PHENIX • Pioneering High Energy Nuclear Interaction eXperiment • 1991: PHENIX “conceptual design report” • philosophy • measure simultaneously as many observables relevant for QCD phase transitions as you can imagine • all but one: low-mass dielectrons • why no dielectrons? • included in first TALES proposal • considered to be “too difficult” for PHENIX • a lot of work can make impossible things happen

9. Au-Au collision as seen in PHENIX

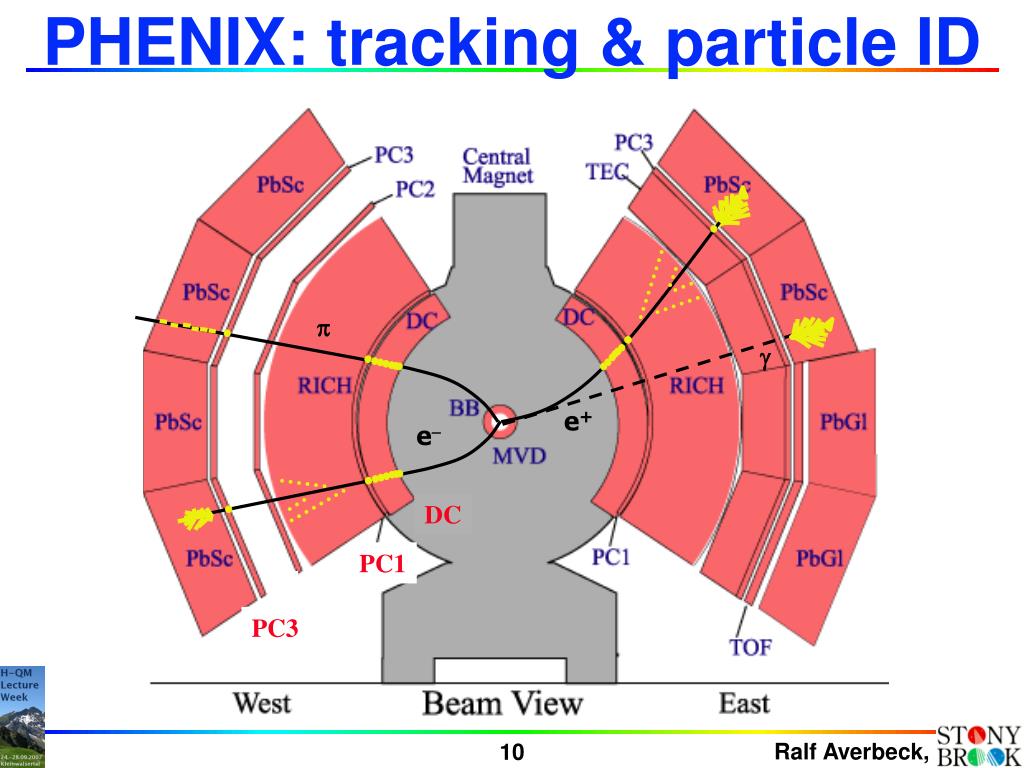

10. p g e+ e- DC PC1 PC3 PHENIX: tracking & particle ID

11. Real - Mixed Real and Mixed e+e- Distribution PHENIX measures dielectrons • first attempt from 2002 Au-Au Run • S/B ~ 1/500 (!) for minimum bias events • not enough statistics • Au-Au data taken in 2004 • ~ 100x statistics • photon conversions reduced by factor 2-3 • expect background reduction by ~ 2

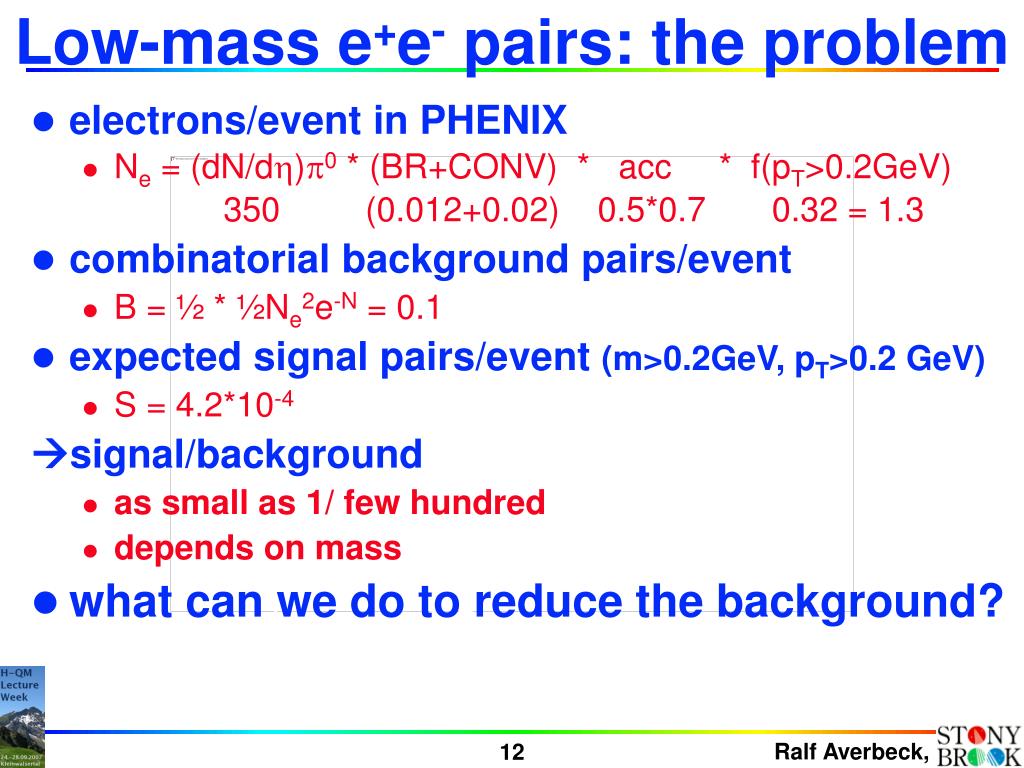

12. Low-mass e+e- pairs: the problem • electrons/event in PHENIX • Ne = (dN/dh)p0 * (BR+CONV) * acc * f(pT>0.2GeV) 350 (0.012+0.02) 0.5*0.7 0.32 = 1.3 • combinatorial background pairs/event • B = ½ * ½Ne2e-N = 0.1 • expected signal pairs/event (m>0.2GeV, pT>0.2 GeV) • S = 4.2*10-4 signal/background • as small as 1/ few hundred • depends on mass • what can we do to reduce the background?  Signal to Background: S/B = 1 / 250

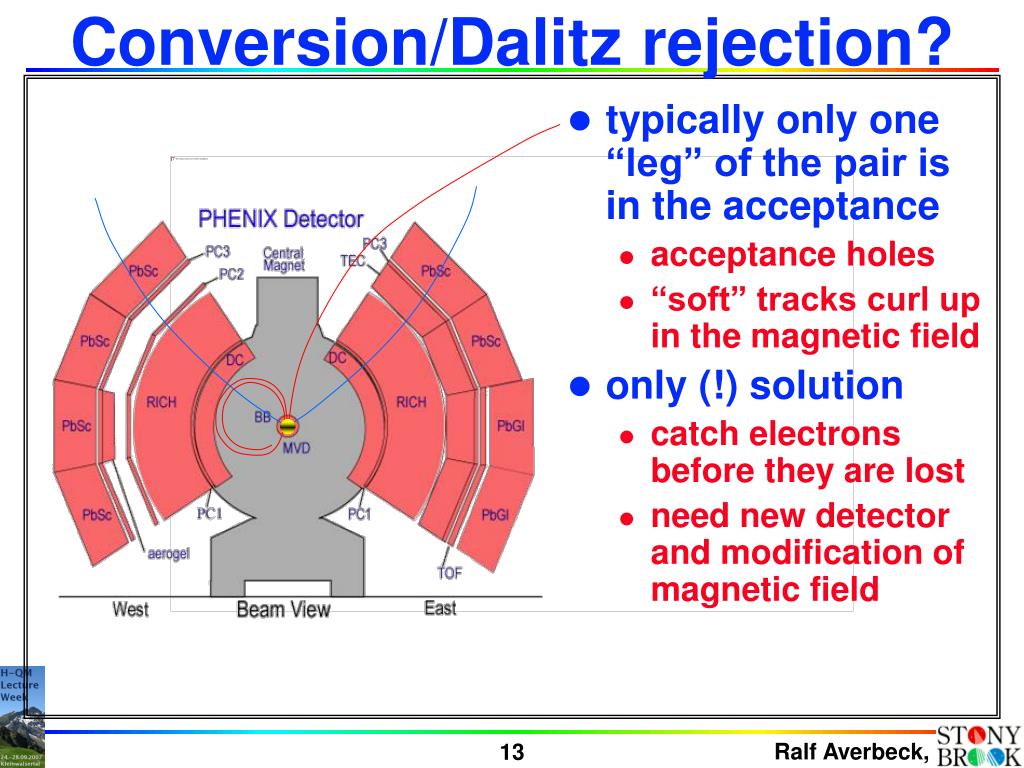

13. Conversion/Dalitz rejection? • typically only one “leg” of the pair is in the acceptance • acceptance holes • “soft” tracks curl up in the magnetic field • only (!) solution • catch electrons before they are lost • need new detector and modification of magnetic field

14. Consequences of poor S/B • how is the signal obtained? • unlike-sign pairs: F • combinatorial background: B (like-sign pairs or event mixing) •  S = F – B • statistical error of S • depends on magnitude of B, not S • DS ≈ √2B (for S<<B) • “background free equivalent” signal Seq • signal with same relative error in a situation with zero background • Seq = S * S/2B • example: S = 104 pairs with S/B = 1/250  Seq = 20 • systematic uncertainty of S • dominated by systematic uncertainty of B • example: event mixing with 0.25% precision (fantastic!)  ~60% systematic uncertainty of S (for S/B = 1/250)

15. Combinatorial background • ingredients for the battle plan • PHENIX: 2 arm spectrometer • dNlike ≠ dNunlike different shape  need event mixing • analyze pairs • unlike sign (N+-)and like sign (N++ and N--) • produce mixed events • unlike-sign pairs (B+-) and like-sign pairs (B++ and B--) • normalize mixed events properly (2√N++N--) • and be careful to: • do the pair analysis identically in real and mixed events • mix only events with the same topology (centrality, vertex) • remove detector artifacts • remove unphysical correlations • use like sign pairs as cross check for the normalization • two years later …..

16. Background shape: like sign RATIO --- Foreground: same evt N++ --- Background: mixed evt B++ • small signal in like sign pairs at low mass • from double conversion or Dalitz+conversion • normalize B++ and B– to N++ and N– for m > 0.7 GeV •  very good agreement in shape

17. Background normalization: 2√N++N- - TOTAL SYSTEMATIC ERROR = 0.25% --- Foreground: same evt --- Background: mixed evt • uncertainties • statistics of N++ and N--: 0.12 % • different pair cuts in like and unlike sign: 0.2 %

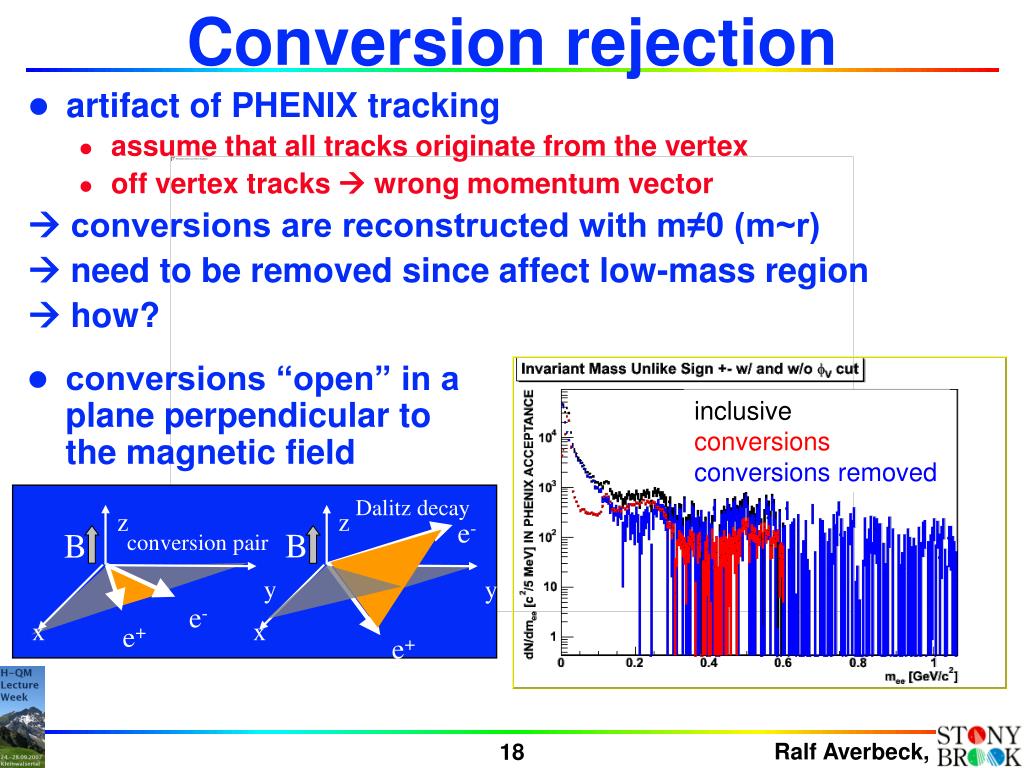

18. inclusive conversions conversions removed Dalitz decay z z e- B B conversion pair y y e- x x e+ e+ Conversion rejection • artifact of PHENIX tracking • assume that all tracks originate from the vertex • off vertex tracks  wrong momentum vector  conversions are reconstructed with m≠0 (m~r)  need to be removed since affect low-mass region  how? • conversions “open” in a plane perpendicular to the magnetic field

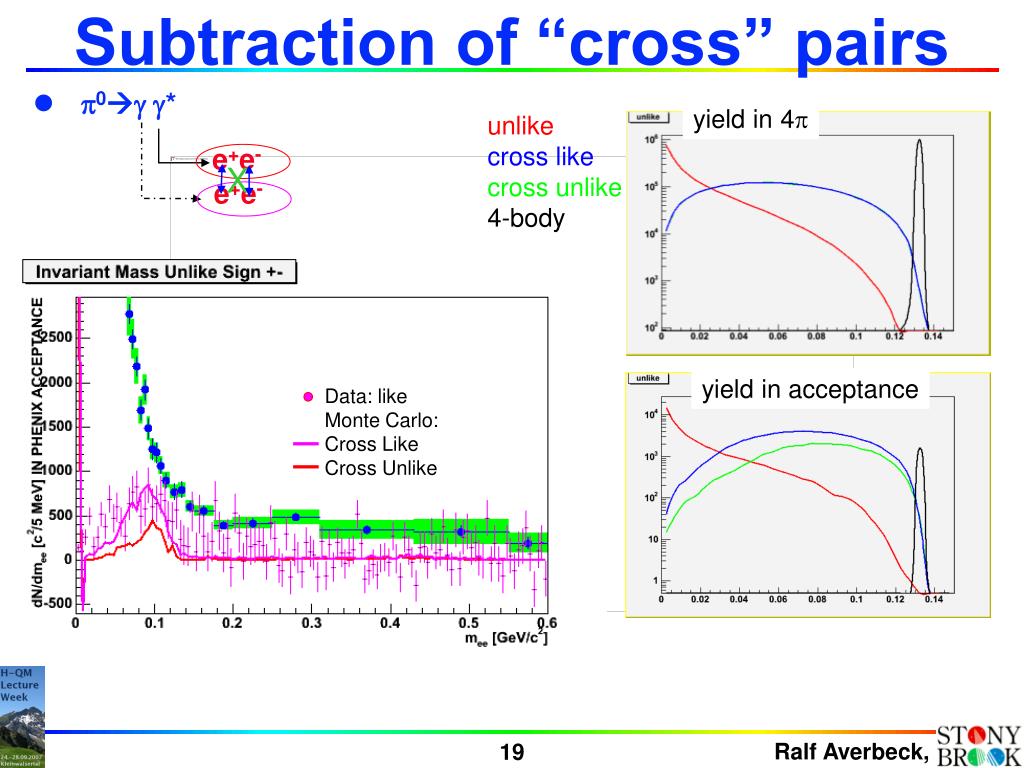

19. yield in4p yield in acceptance Subtraction of “cross” pairs • p0g g* e+e- e+e- unlike cross like cross unlike 4-body X Data: like Monte Carlo: Cross Like Cross Unlike

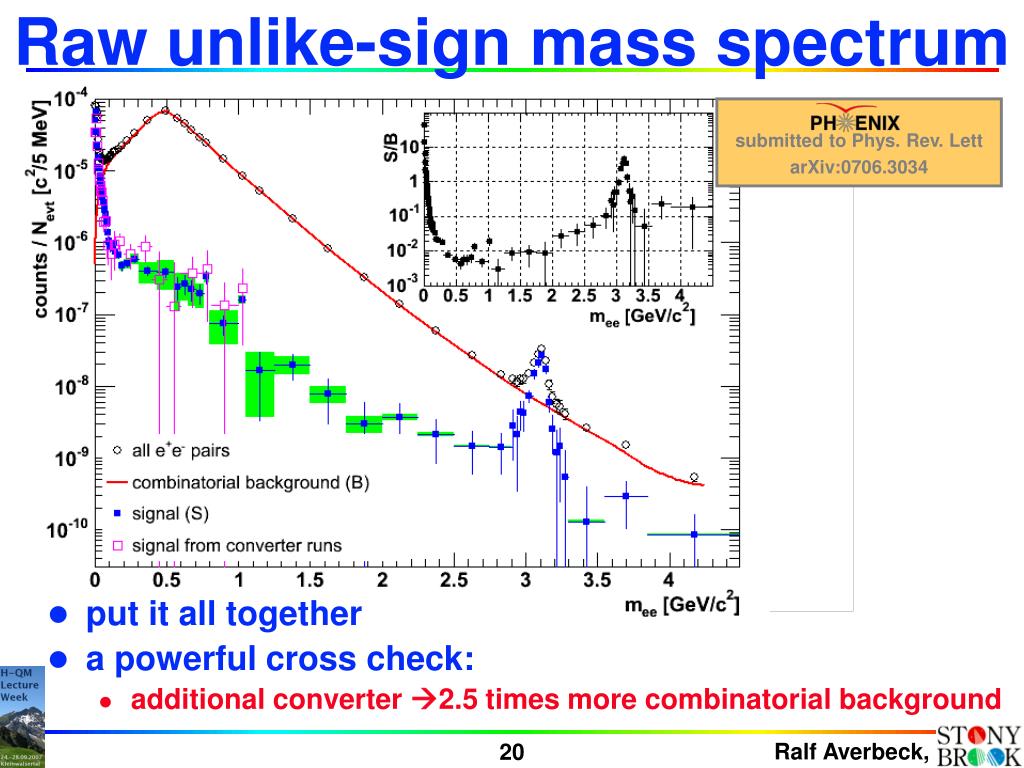

20. submitted to Phys. Rev. Lett arXiv:0706.3034 Raw unlike-sign mass spectrum • put it all together • a powerful cross check: • additional converter 2.5 times more combinatorial background

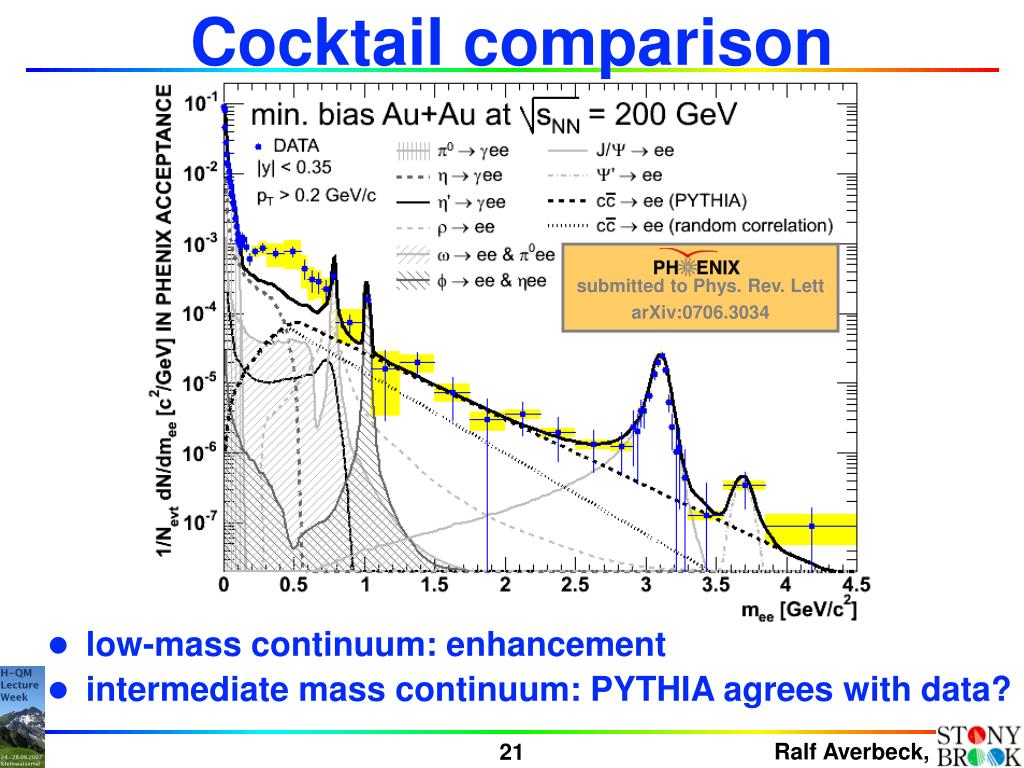

21. submitted to Phys. Rev. Lett arXiv:0706.3034 Cocktail comparison • low-mass continuum: enhancement • intermediate mass continuum: PYTHIA agrees with data?

22. submitted to Phys. Rev. Lett arXiv:0706.3034 Comparison with theory • calculations for minimum bias collisions • our “favorite” scenarios • thermal radiation from QGP is included in addition • clear enhancement above cocktail • large uncertainties  not conclusive regarding in-medium r modification R.Rapp, Phys.Lett. B 473 (2000) R.Rapp, Phys.Rev.C 63 (2001) R.Rapp, nucl/th/0204003

23. Reference: dielectrons in p-p • very good agreement of data and cocktail • PYTHIA does NOT describe the charm contribution (was seen for single electrons as well)

24. Comparison: p-p vs. Au-Au • binary scaling of p-p data to compare with Au-Au • suppressed: charmonia, charm, f, w, p0 • enhanced: low-mass continuum

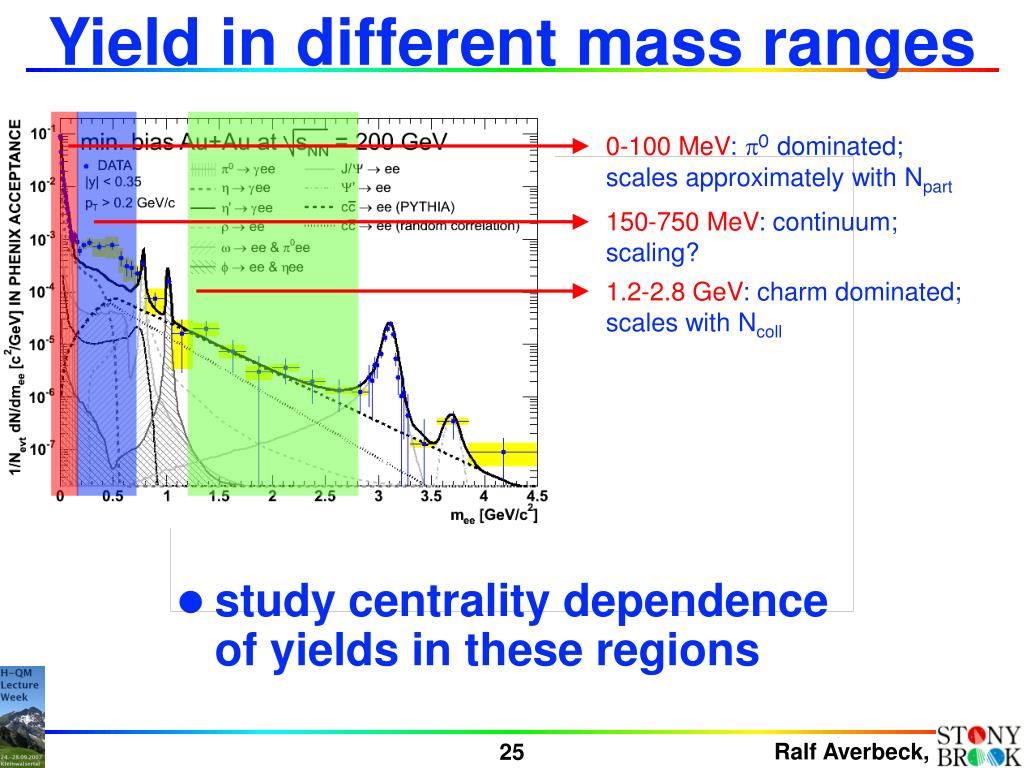

25. Yield in different mass ranges 0-100 MeV:p0dominated; scales approximately with Npart 150-750 MeV: continuum; scaling? 1.2-2.8 GeV: charm dominated; scales with Ncoll • study centrality dependence of yields in these regions

26. Centrality dependence • p0 production scales approximately with Npart • expectation for low-mass continuum • if in-medium enhancement is related to pp or qq annihilation  yield should scale faster than Npart (and it does) • charm is a hard probe • total yield follows binary scaling (known from single e±) • intermediate mass yield shows the same scaling

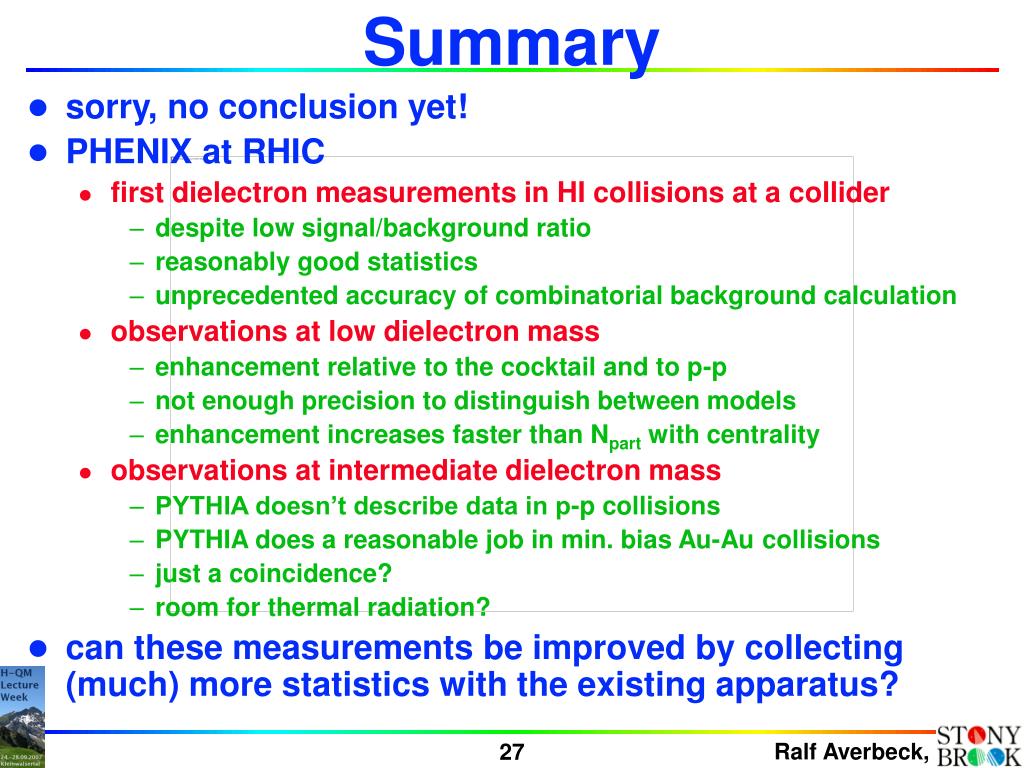

27. Summary • sorry, no conclusion yet! • PHENIX at RHIC • first dielectron measurements in HI collisions at a collider • despite low signal/background ratio • reasonably good statistics • unprecedented accuracy of combinatorial background calculation • observations at low dielectron mass • enhancement relative to the cocktail and to p-p • not enough precision to distinguish between models • enhancement increases faster than Npart with centrality • observations at intermediate dielectron mass • PYTHIA doesn’t describe data in p-p collisions • PYTHIA does a reasonable job in min. bias Au-Au collisions • just a coincidence? • room for thermal radiation? • can these measurements be improved by collecting (much) more statistics with the existing apparatus?

28. Top view of PHENIX magnet region Outer coil Magnet yoke Inner coil +/- field cancellation HBD (Near) future precision e+e- measurement • identification of dielectrons with small opening angle BEFORE one of the “legs” is lost • electron ID before the magnetic field • “full” acceptance electron detector new field configuration  HadronBlindDetector (HBD)

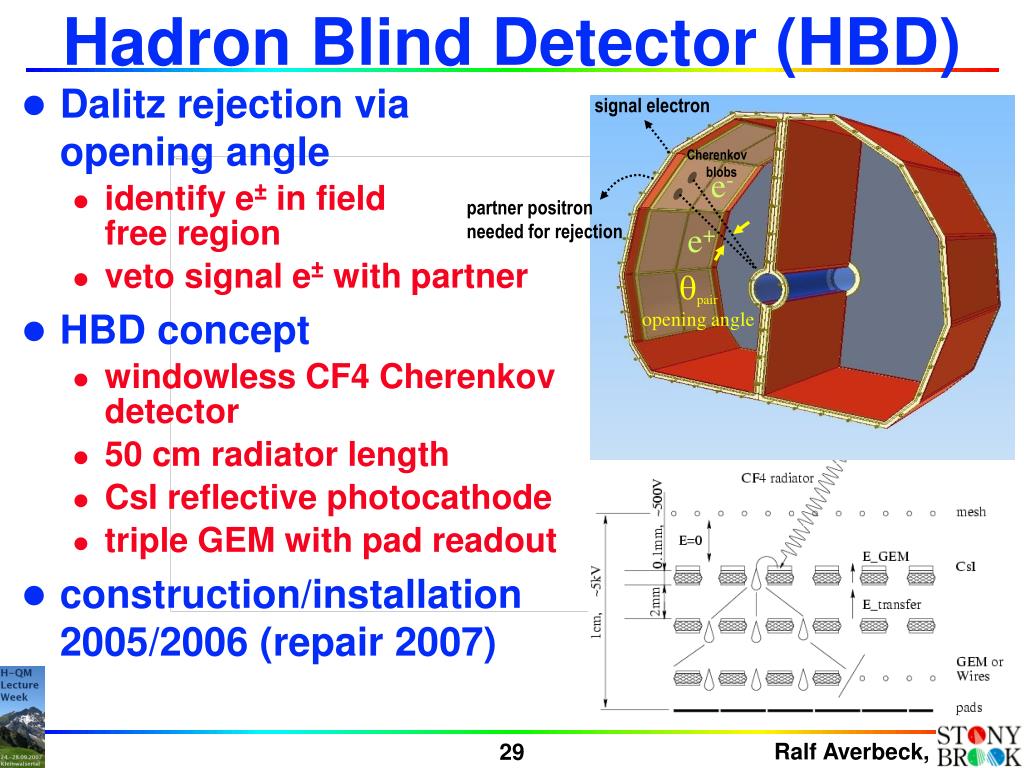

29. signal electron Cherenkov blobs e- partner positron needed for rejection e+ qpair opening angle Hadron Blind Detector (HBD) • Dalitz rejection via opening angle • identify e± in field free region • veto signal e± with partner • HBD concept • windowless CF4 Cherenkov detector • 50 cm radiator length • CsI reflective photocathode • triple GEM with pad readout • construction/installation 2005/2006 (repair 2007)

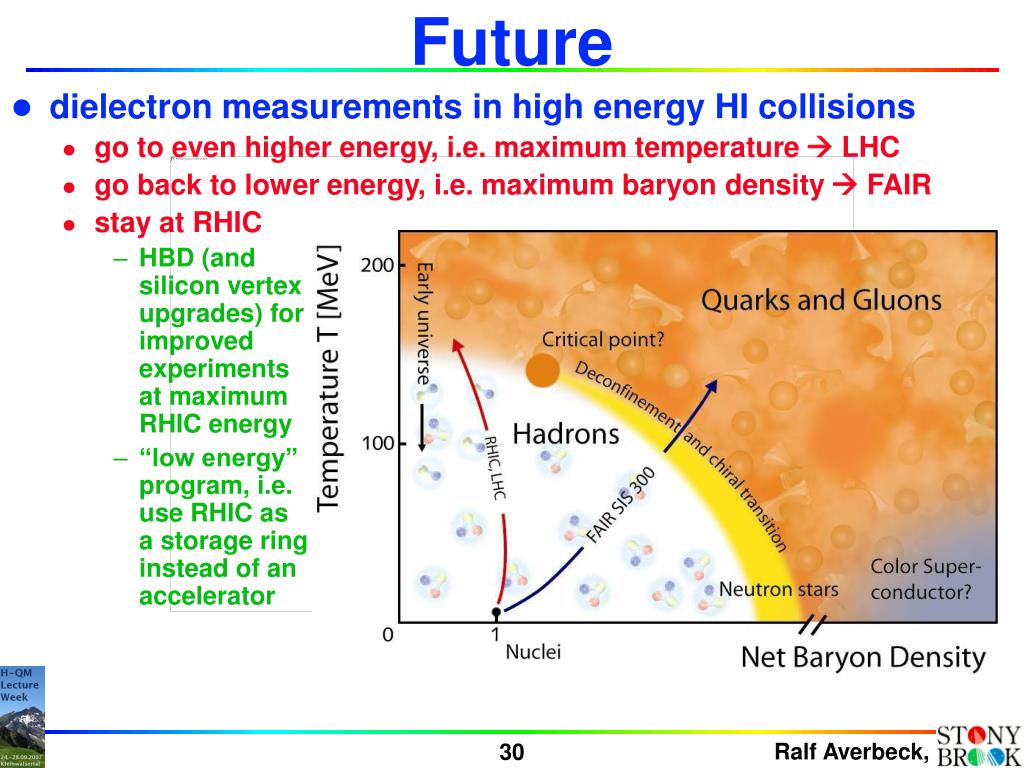

30. Future • dielectron measurements in high energy HI collisions • go to even higher energy, i.e. maximum temperature  LHC • go back to lower energy, i.e. maximum baryon density  FAIR • stay at RHIC • HBD (and silicon vertex upgrades) for improved experiments at maximum RHIC energy • “low energy” program, i.e. use RHIC as a storage ring instead of an accelerator

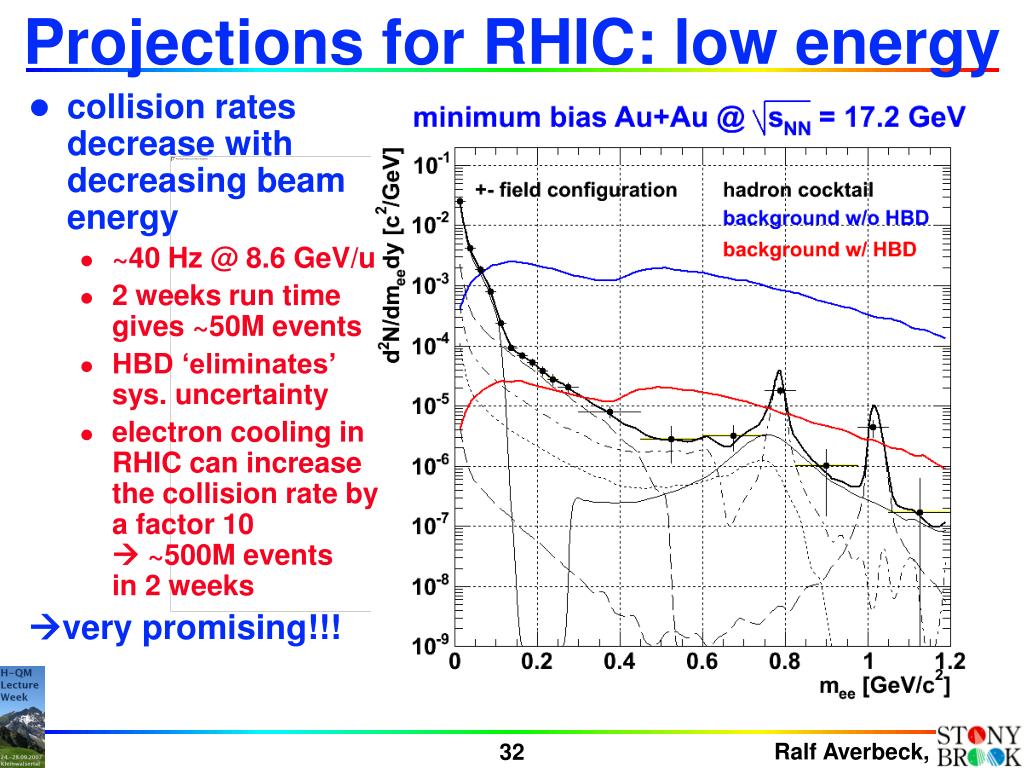

31. Projections for RHIC: high energy • impact of the HBD & modified B field at top energy • recorded collisions • 109 • 1010
