Understanding rna

Understanding RNA

Ribonucleic

Acid


Understanding rna

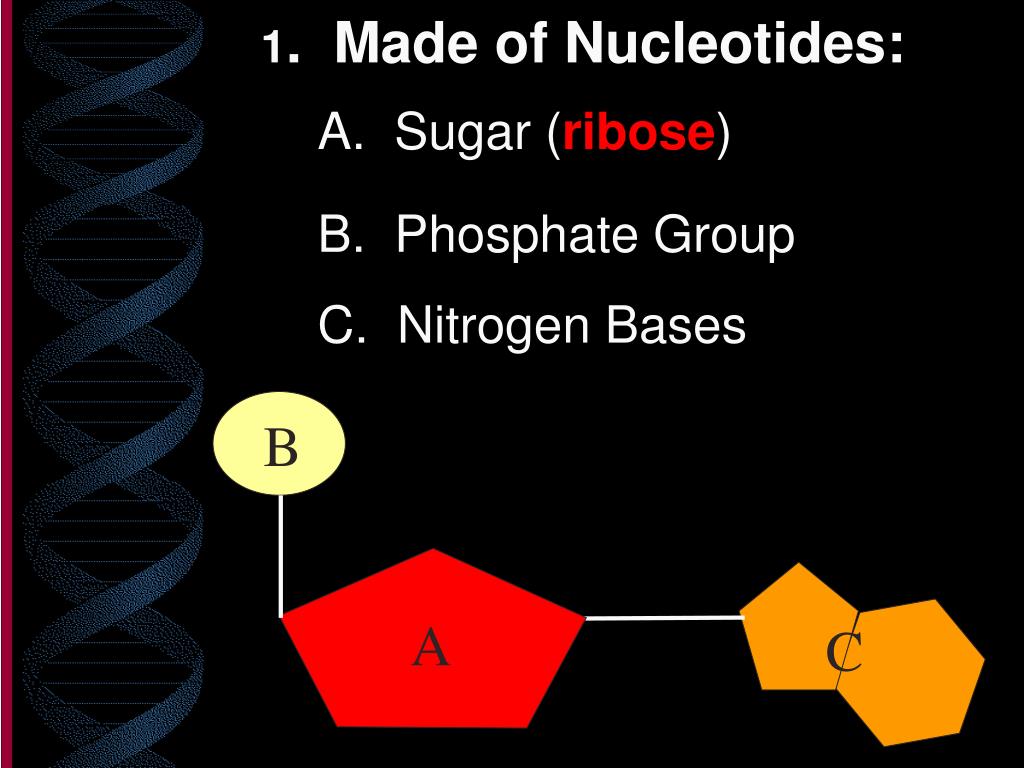

A. Sugar (ribose)

B. Phosphate Group

1. Made of Nucleotides:

C. Nitrogen Bases

B

A

C


2 rules for base pairing

A.     Cytosine Guanine

(C G)

B.     Adenine Uracil

(A U)

Notice that RNA has Uracil (not thymine)

2. Rules for Base Pairing:


Understanding rna

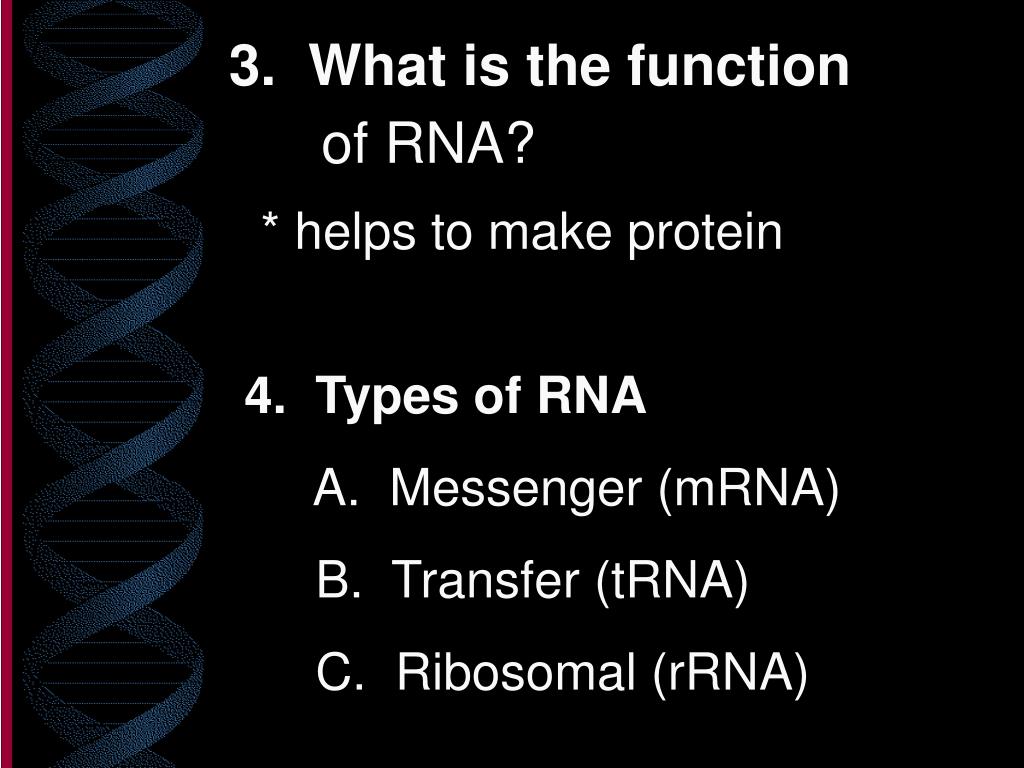

3. What is the function

of RNA?

* helps to make protein

4. Types of RNA

A. Messenger (mRNA)

B. Transfer (tRNA)

C. Ribosomal (rRNA)


Understanding rna

Nitrogen Base

Sugar

(ribose)

Phosphate Group

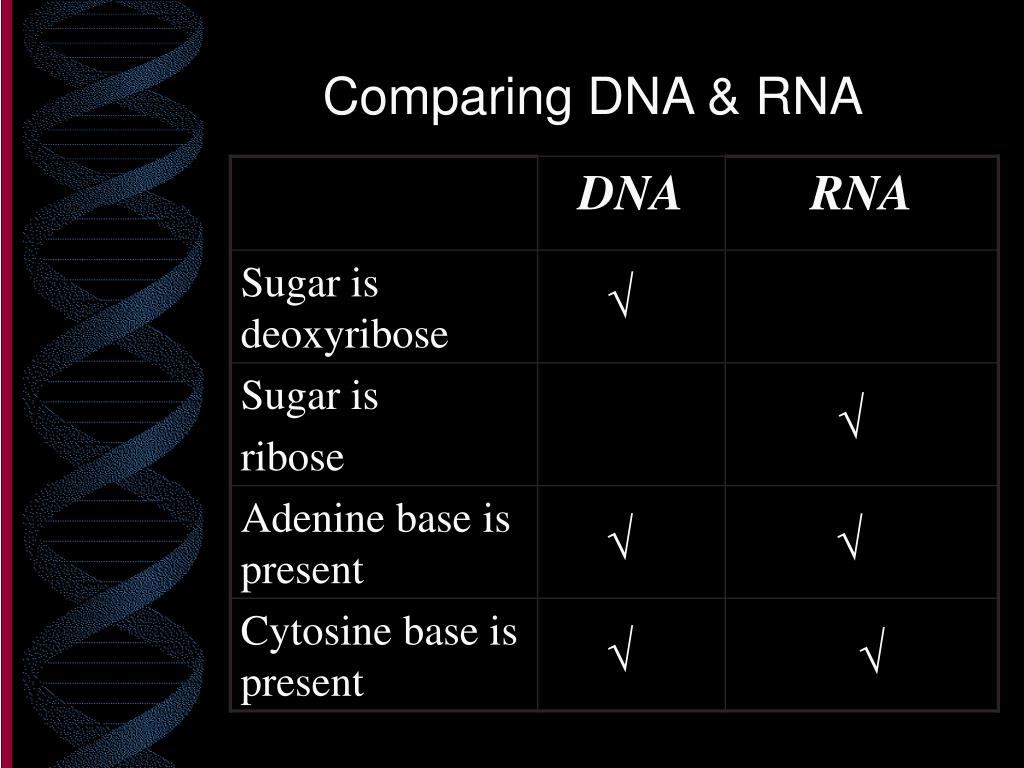

Comparing dna rna

Comparing DNA & RNA

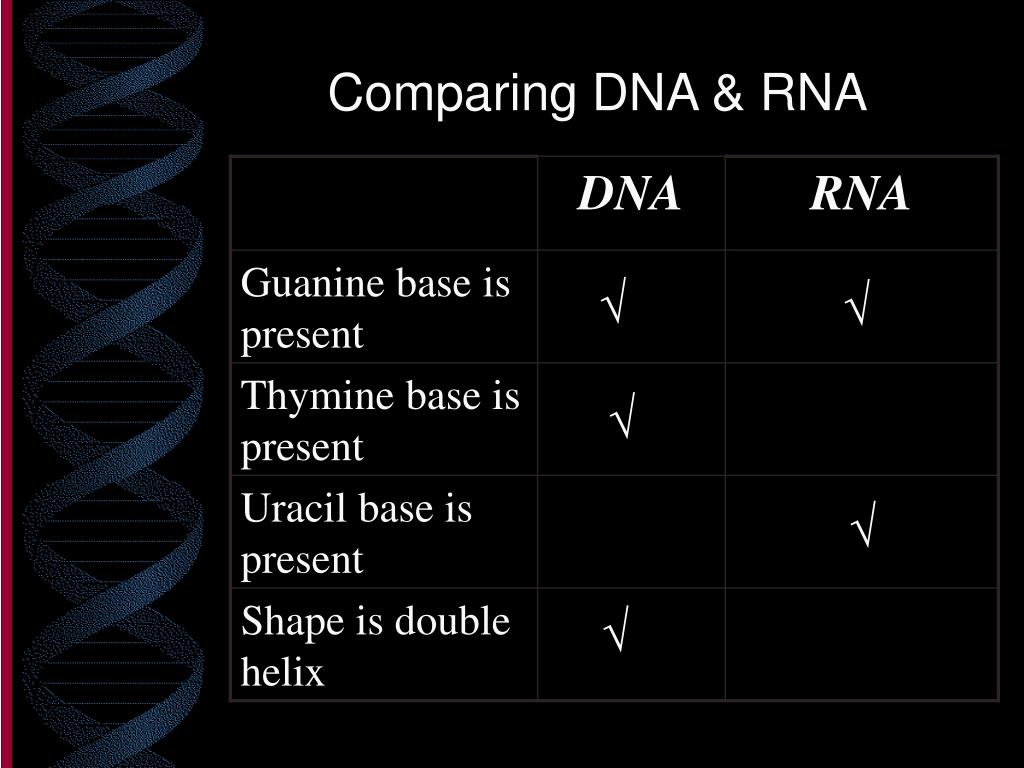

Comparing dna rna1

Comparing DNA & RNA

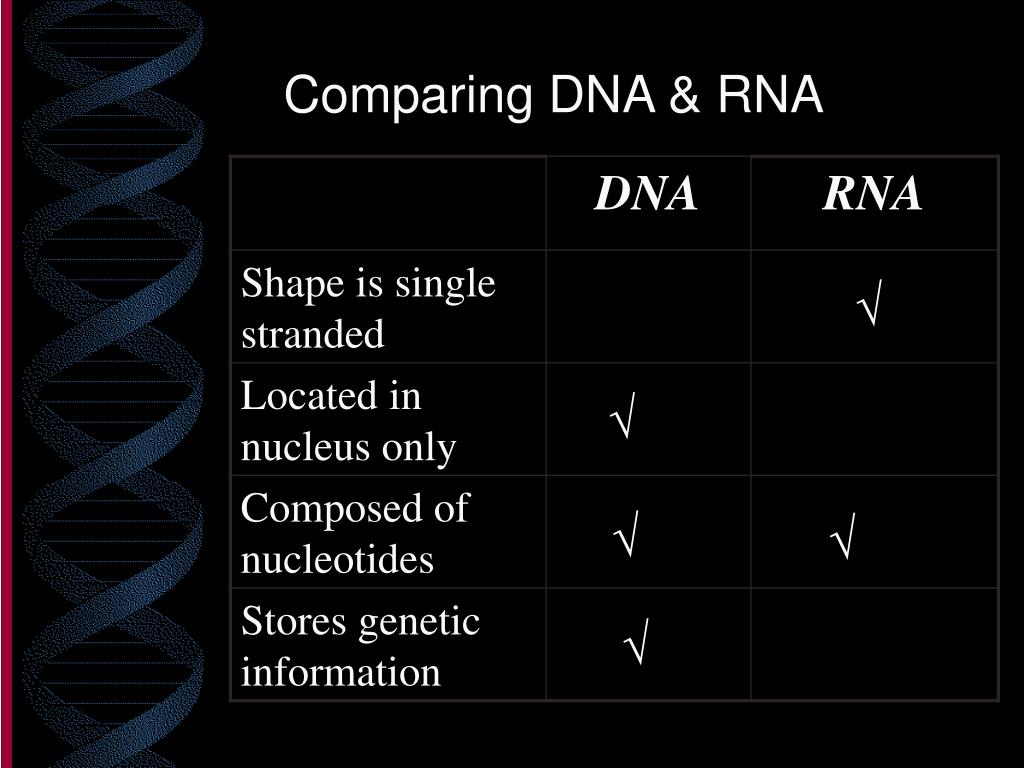

Comparing dna rna2

Comparing DNA & RNA

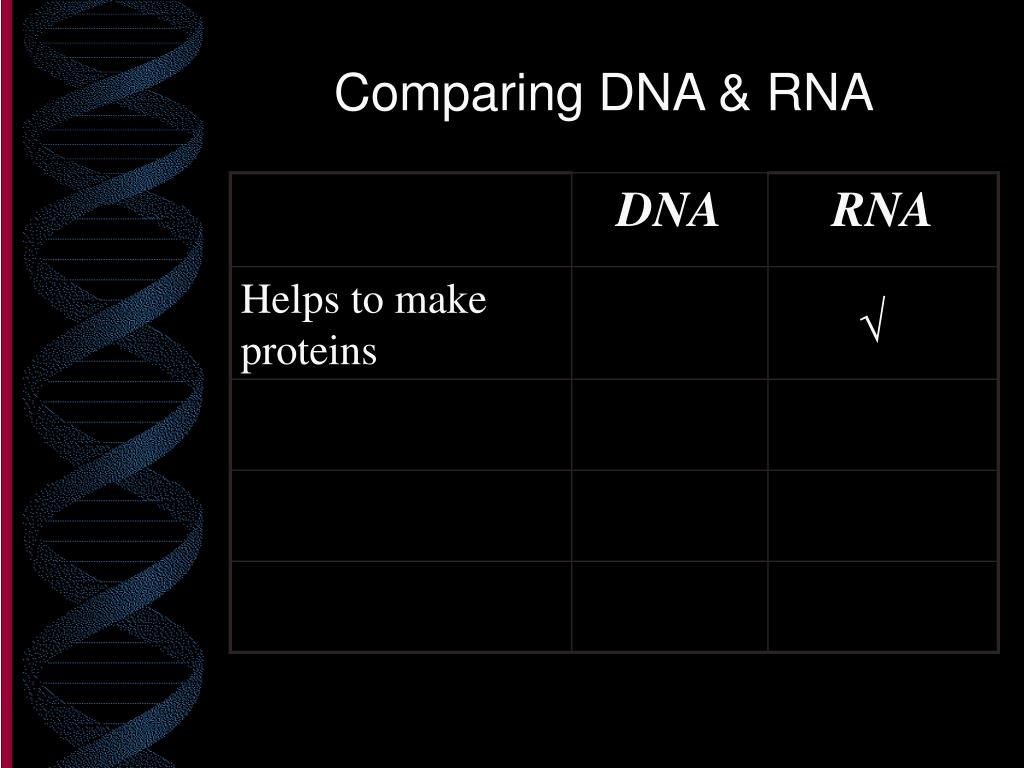

Comparing dna rna3

Comparing DNA & RNA


Understanding rna

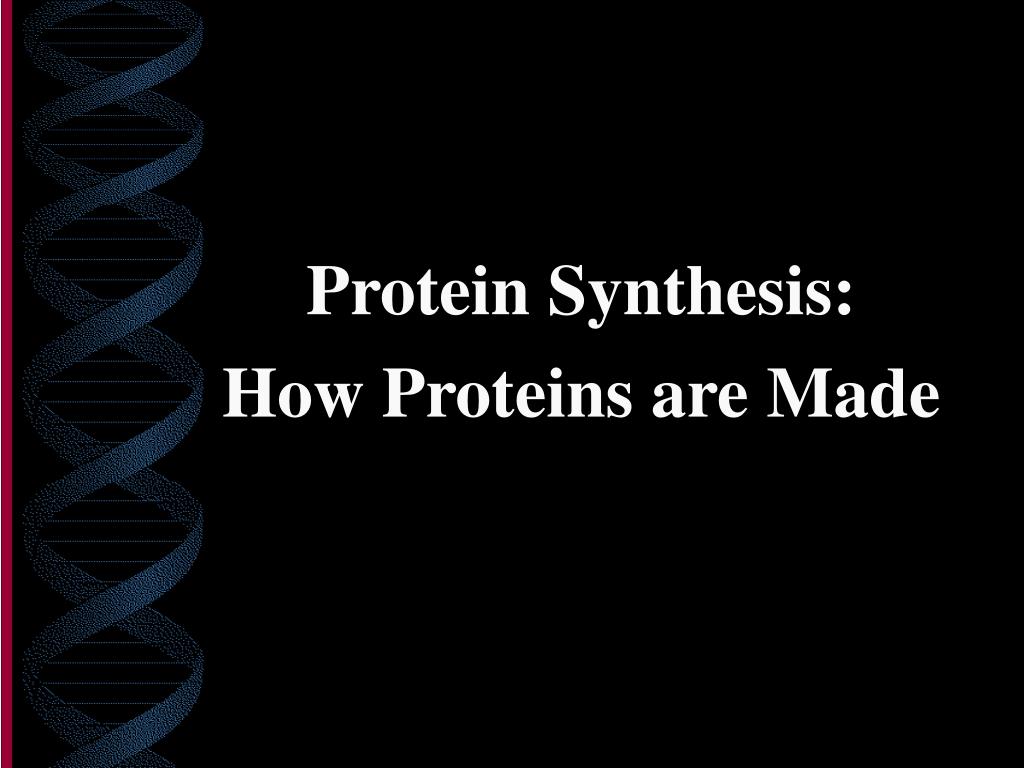

Protein Synthesis:

How Proteins are Made


Understanding rna

Making Proteins is a Two Step Process:


Understanding rna

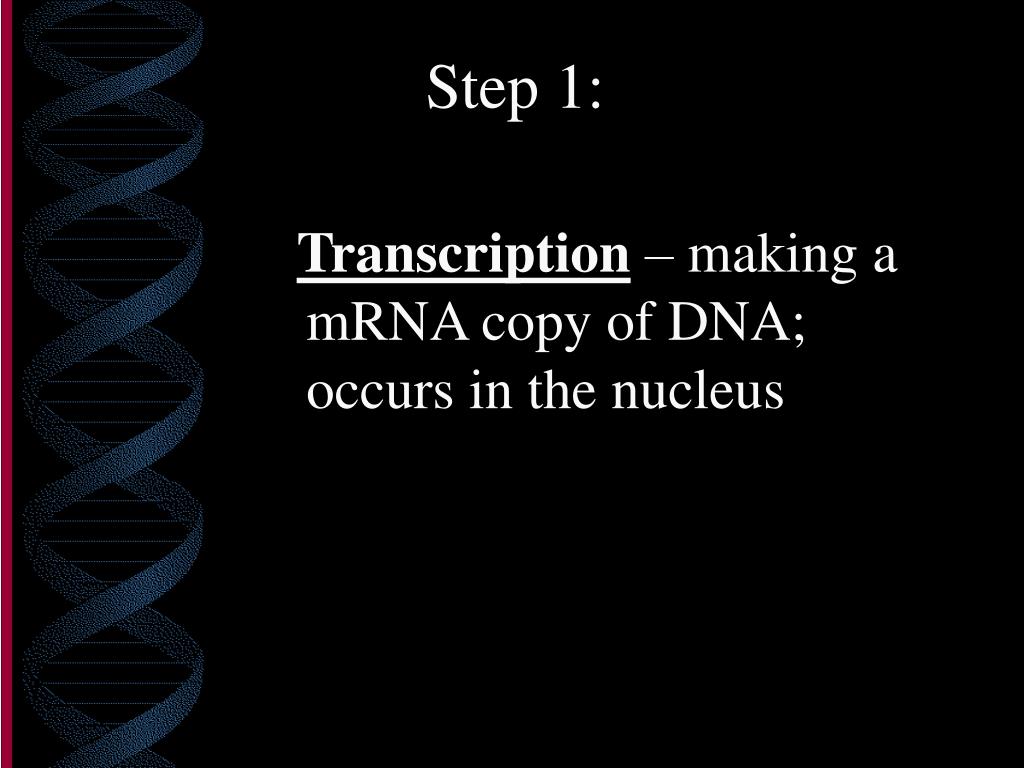

Step 1:

Transcription– making a mRNA copy of DNA; occurs in the nucleus

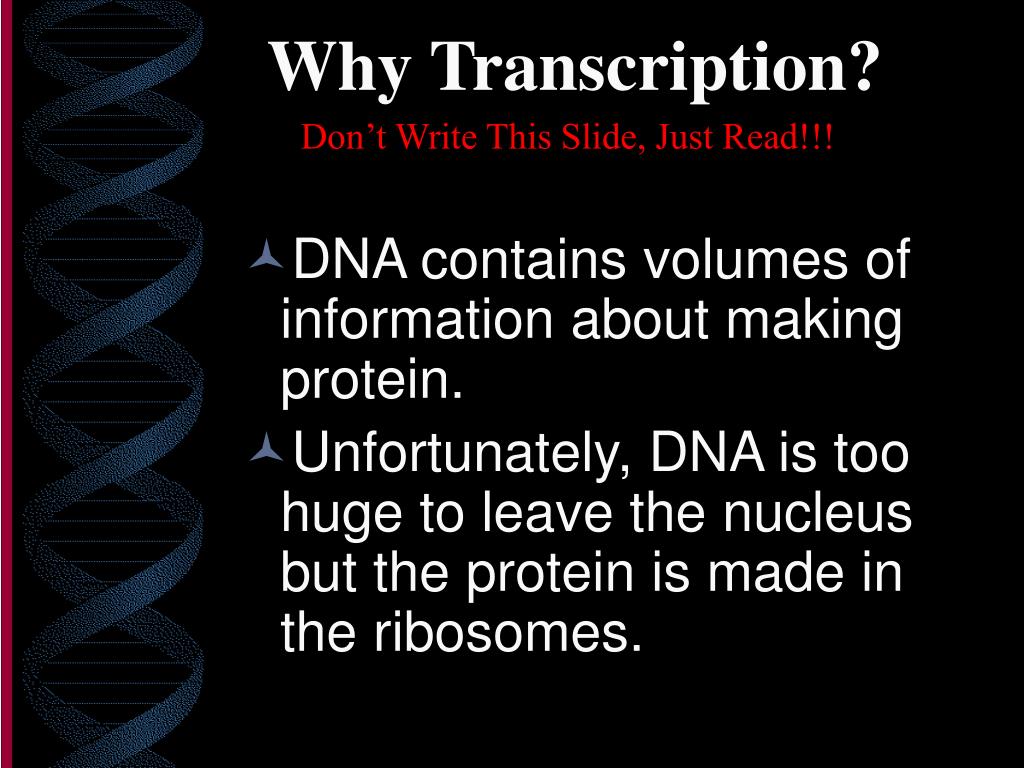

Why transcription

Why Transcription?

Don’t Write This Slide, Just Read!!!

  • DNA contains volumes of information about making protein.

  • Unfortunately, DNA is too huge to leave the nucleus but the protein is made in the ribosomes.


Summary of transcription

  • The DNA molecule unzips

at the nitrogen bases

  • mRNA nucleotides pair up

with DNA nucleotides

(one side)

Summary of Transcription


Summary of transcription1

Summary of Transcription

C. DNA “rezips” and mRNA

leaves the nucleus

Click Here for Transcription Animation


Understanding rna

Step 2:

Translation – amino acids are being assembled into proteins; occurs in the ribosomes


Summary of translation

B. 3 mRNA nucleotides

(codons) pair up with 3 tRNA

nucleotides (anticodons)

C. amino acids are added until

the “stop” message is reached

Summary of Translation

A. mRNA enters the ribosome


Understanding rna

Click Here for Translation Animation


Understanding rna

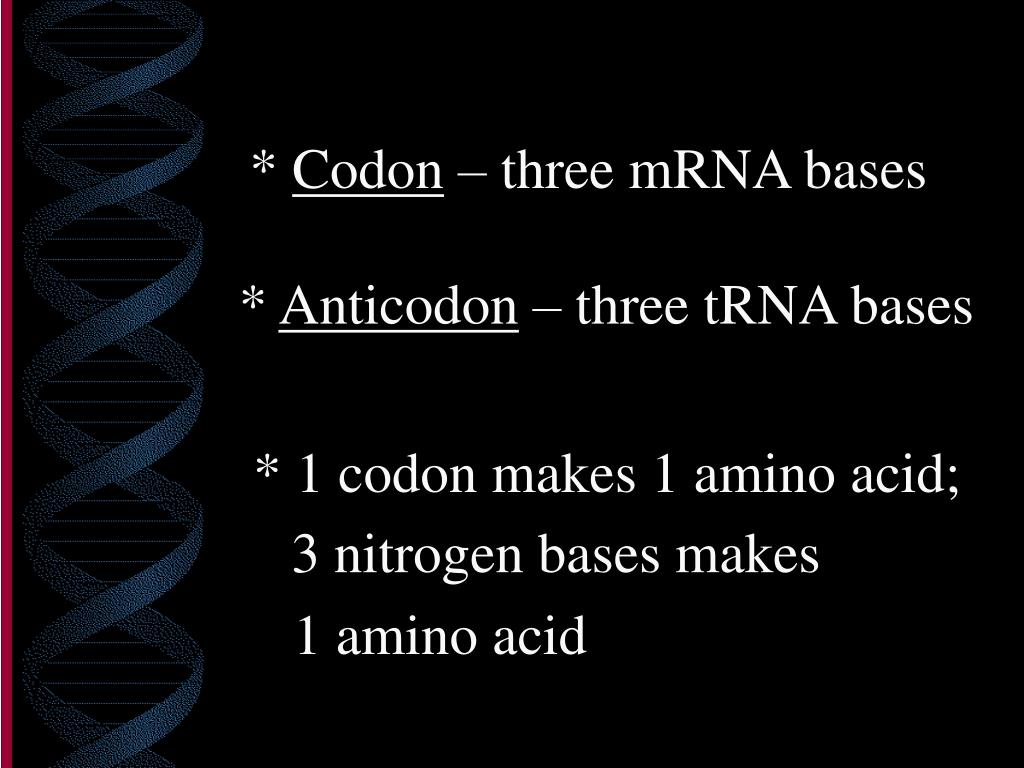

* 1 codon makes 1 amino acid;

3 nitrogen bases makes

1 amino acid

* Codon – three mRNA bases

* Anticodon – three tRNA bases

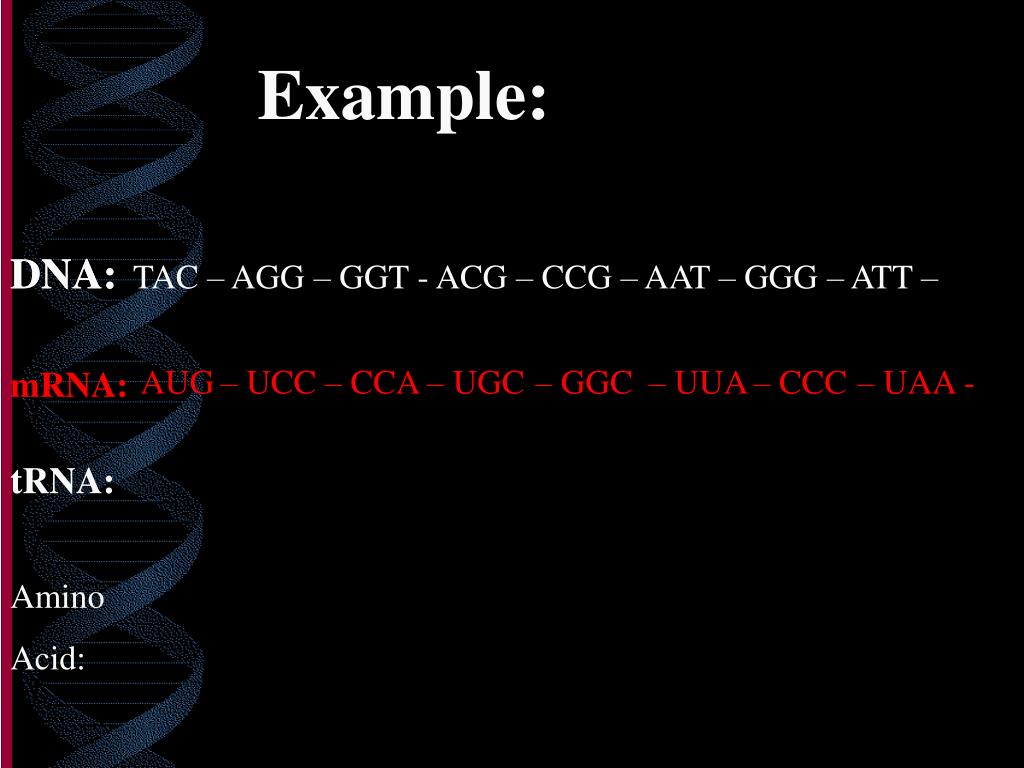

Example

Example:

DNA:

DNA: TAC – AGG – GGT - ACG – CCG – AAT – GGG – ATT –

AUG

– UCC

– CCA

– UGC

– GGC

– UUA

– CCC

– UAA -

mRNA:

tRNA:

Amino

Acid:

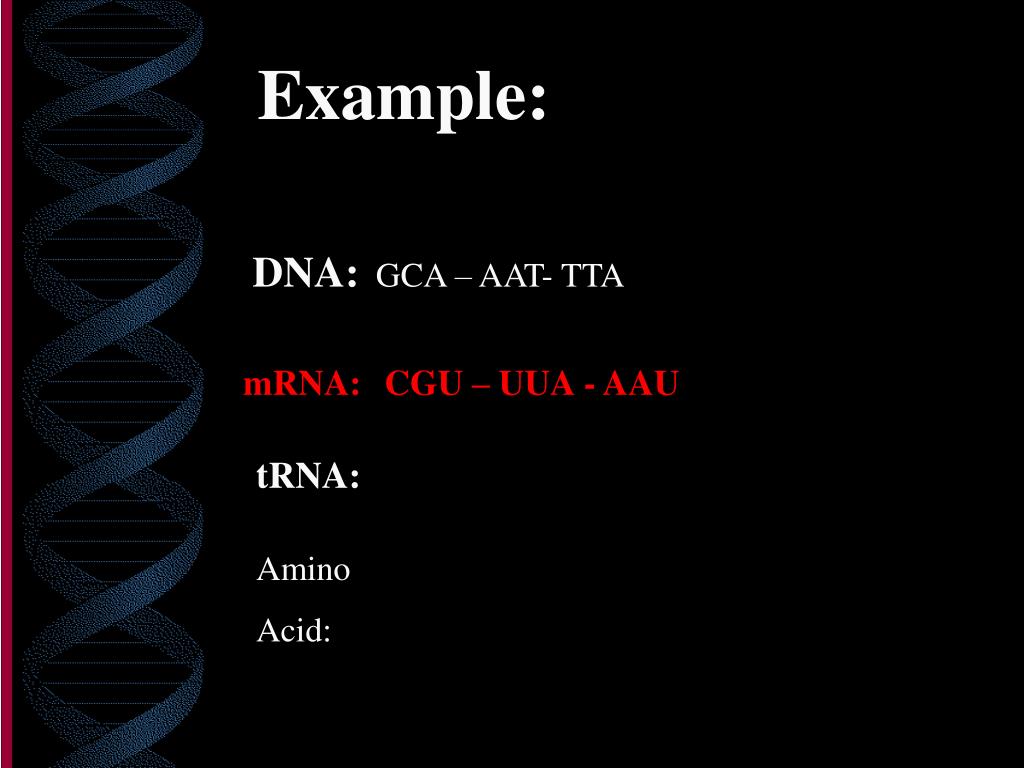

Example1

Example:

DNA: GCA – AAT- TTA

mRNA:

CGU

– UUA

- AAU

tRNA:

Amino

Acid:


Example2

Example:

DNA: TAC – AGG – GGT - ACG – CCG – AAT – GGG – ATT –

mRNA: AUG – UCC – CCA – UGC – GGC – UUA – CCC – UAA -

UAC

– AGG

– GGU

– ACG

– CCG

– AAU

– GGG

– AUU -

tRNA:

Amino

Acid:

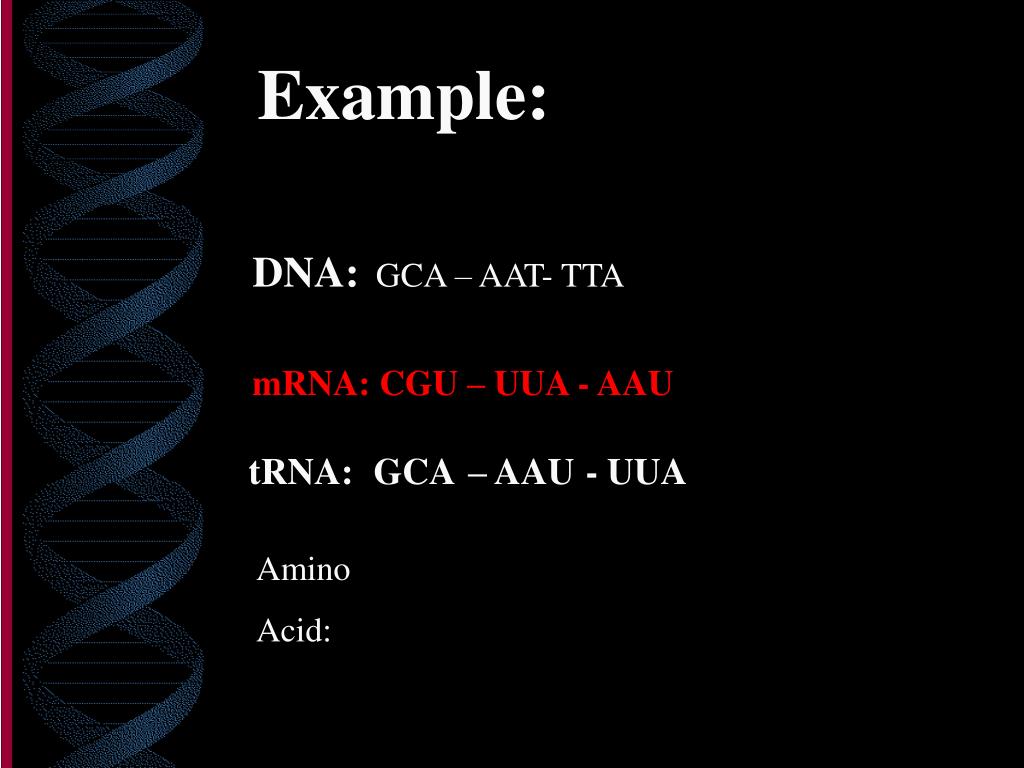

Example3

Example:

DNA: GCA – AAT- TTA

mRNA: CGU – UUA - AAU

tRNA:

GCA

– AAU

- UUA

Amino

Acid:


Understanding rna

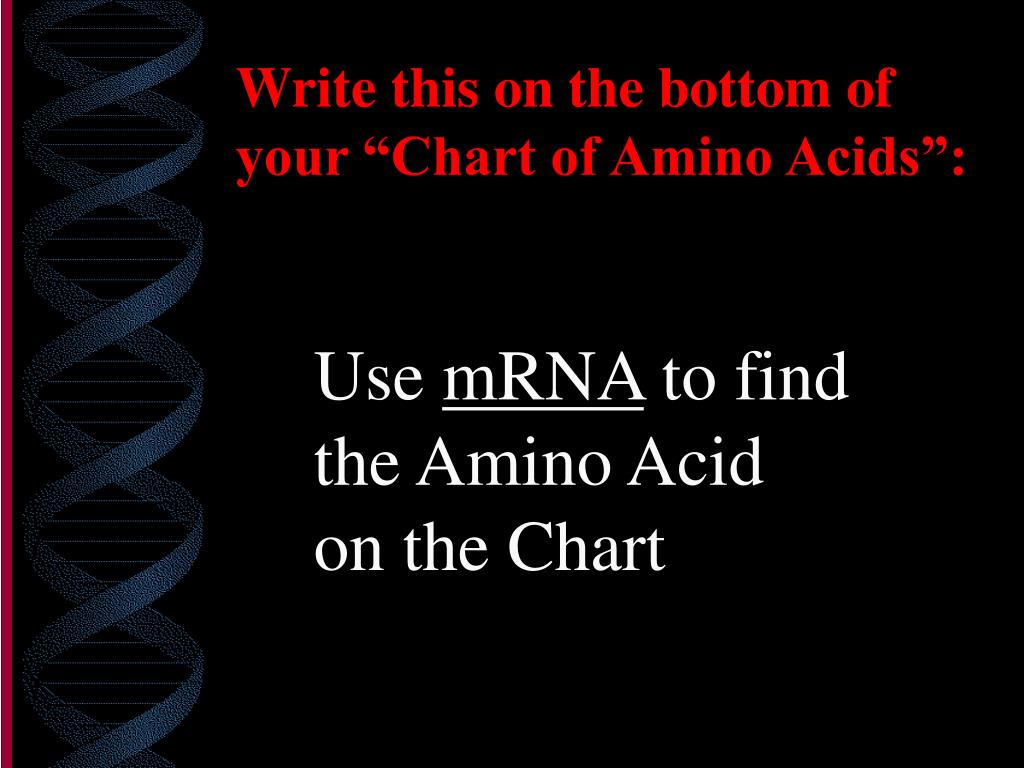

Write this on the bottom of your “Chart of Amino Acids”:

Use mRNA to find the Amino Acid on the Chart


Understanding rna

U

C

A

G

U

Phenylalanine

Phenylalanine

Leucine

Leucine

Serine

Serine

Serine

Serine

Tyrosine

Tyrosine

Stop

Stop

Cysteine

Cysteine

Stop

Tryptophan

U

C

A

G

Second mRNA Base

C

Leucine

Leucine

Leucine

Leucine

Proline

Proline

Proline

Proline

Histidine

Histidine

Glutamine

Glutamine

Arginine

Arginine

Arginine

Arginine

UCAG

First

mRNA

Base

Third

mRNA

Base

A

Isoleucine

Isoleucine

Isoleucine

Methionine

Threonine

Threonine

Threonine

Threonine

Asparagine

Asparagine

Lysine

Lysine

Serine

Serine

Arginine

Arginine

UCAG

G

Valine

Valine

Valine

Valine

Alanine

Alanine

Alanine

Alanine

Aspartic Acid

Aspartic Acid

Glutamic Acid

Glutamic Acid

Glycine

Glycine

Glycine

Glycine

UCAG

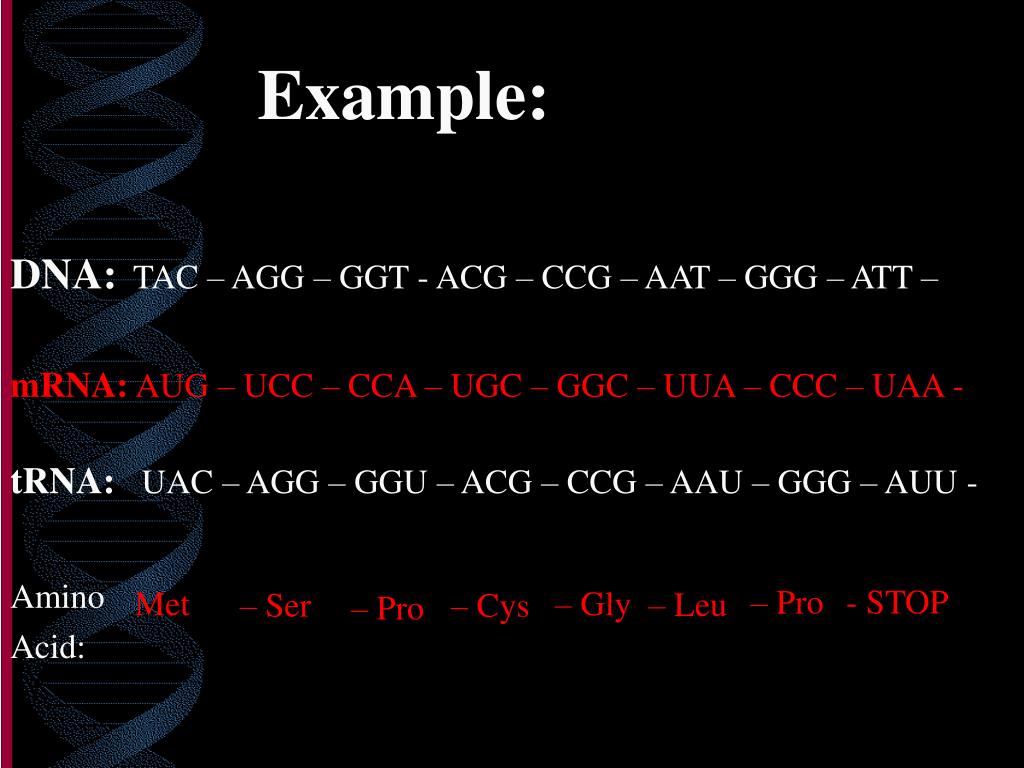

Example4

Amino

Acid:

Example:

DNA: TAC – AGG – GGT - ACG – CCG – AAT – GGG – ATT –

mRNA: AUG – UCC – CCA – UGC – GGC – UUA – CCC – UAA -

tRNA:UAC – AGG – GGU – ACG – CCG – AAU – GGG – AUU -

- STOP

– Pro

Met

– Gly

– Leu

– Ser

– Cys

– Pro


Understanding rna

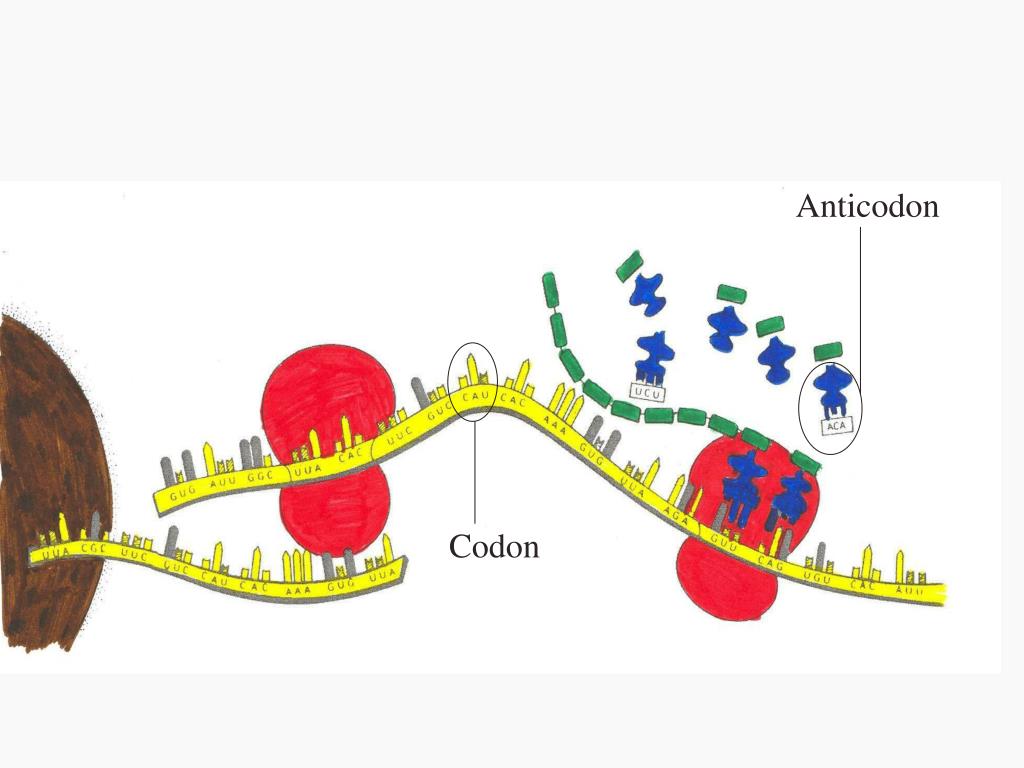

Anticodon

Codon
