Presentation Transcript

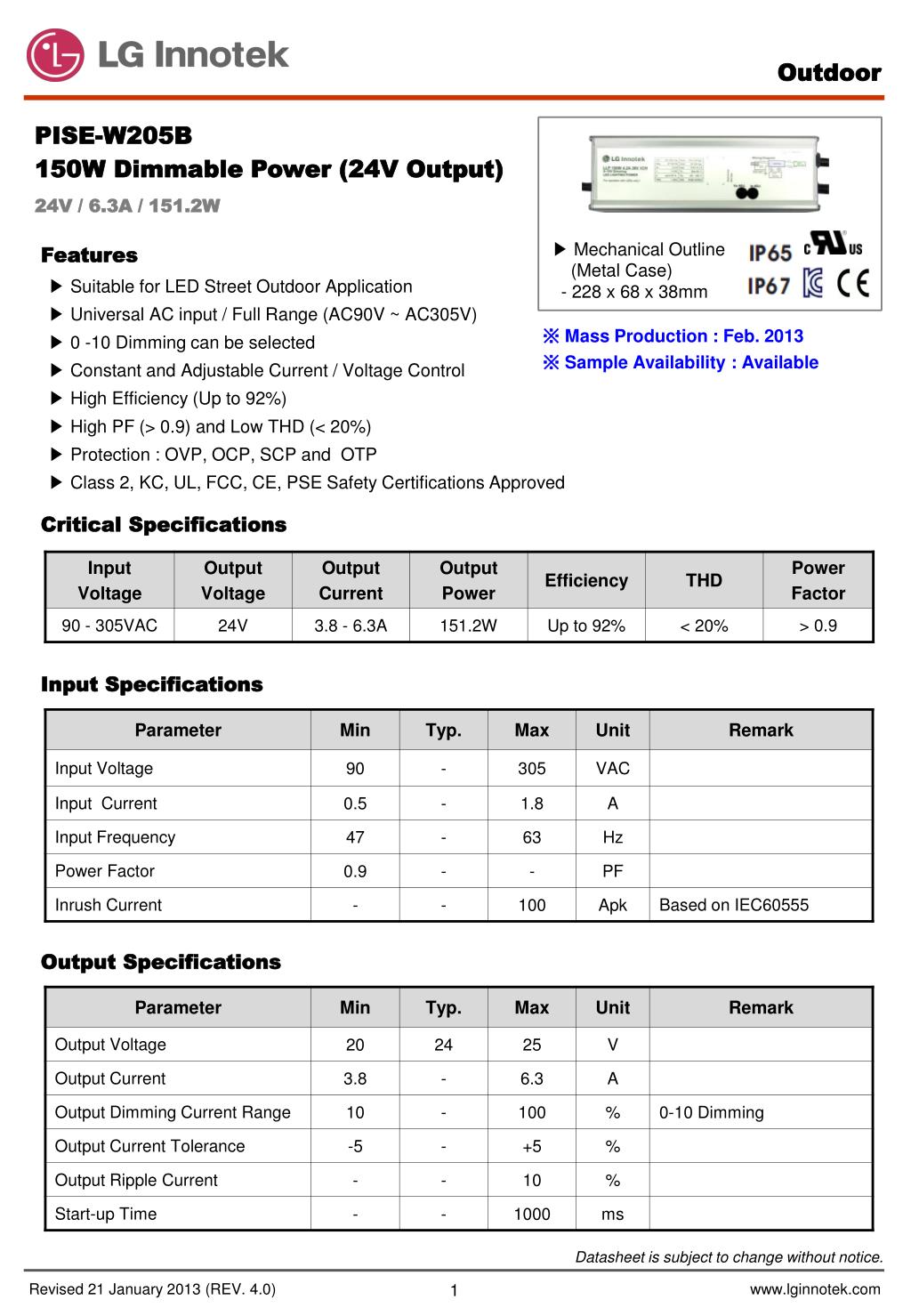

Pise w205b 150w dimmable power 24v output

PISE-W205B

150W Dimmable Power (24V Output)

24V / 6.3A / 151.2W

▶ Mechanical Outline (Metal Case) - 228 x 68 x 38mm

Features

▶ Suitable for LED Street Outdoor Application

▶ Universal AC input / Full Range (AC90V ~ AC305V)

▶ 0 -10 Dimming can be selected

▶ Constant and Adjustable Current / Voltage Control

▶ High Efficiency (Up to 92%)

▶ High PF (> 0.9) and Low THD (< 20%)

▶ Protection : OVP, OCP, SCP and OTP

▶ Class 2, KC, UL, FCC, CE, PSE Safety Certifications Approved

※ Mass Production : Feb. 2013

※ Sample Availability : Available

Critical Specifications

Input Specifications

Output Specifications

1

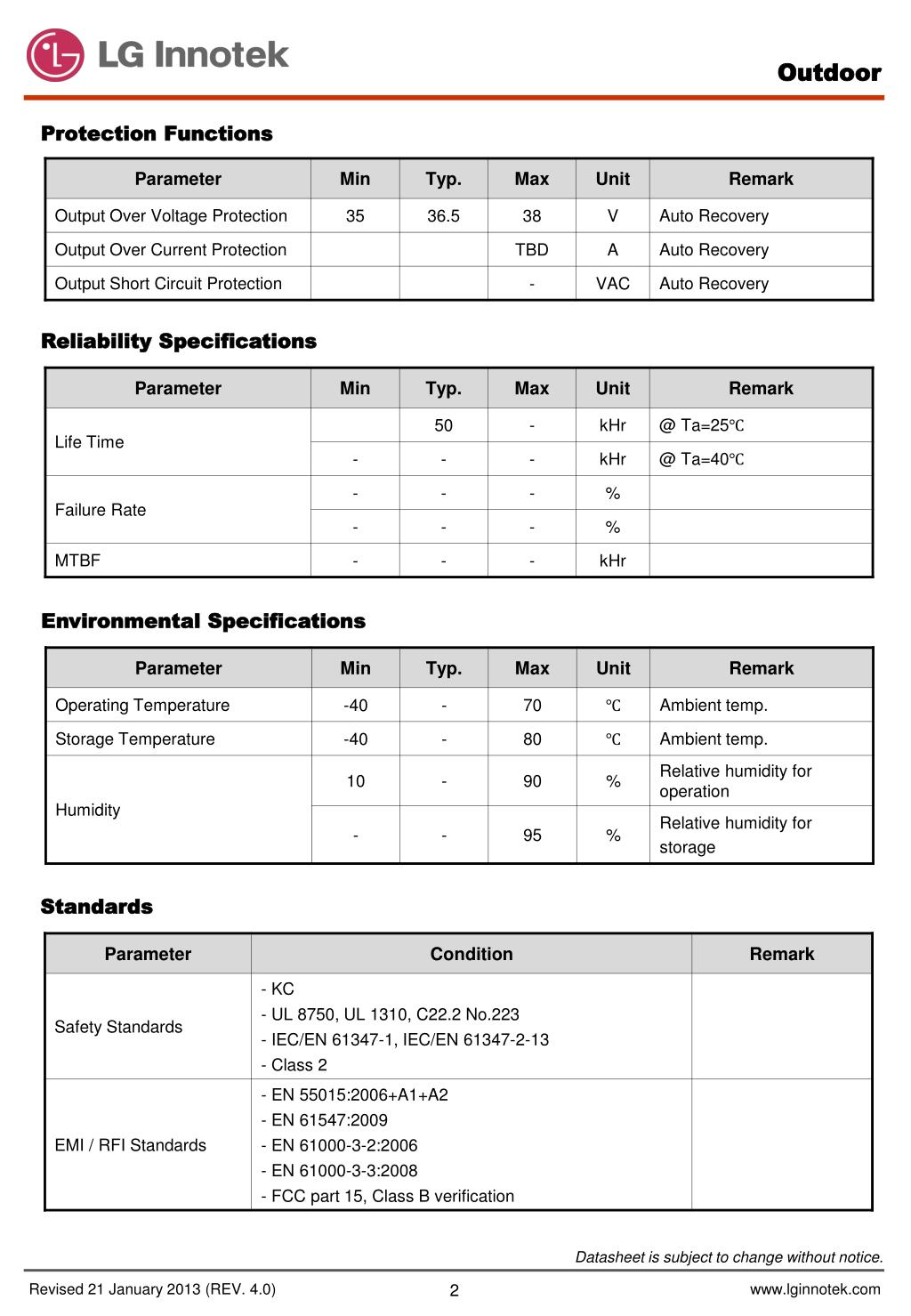

Pise w205b 150w dimmable power 24v output

Protection Functions

ReliabilitySpecifications

EnvironmentalSpecifications

Standards

2
