  1. Effective Integration Requires Expertise…. TECH 2教程單元

  2. Tech 2 教程 單元3: Structured Cabling System 綜合布線系統 Isaac Yeo RCDD

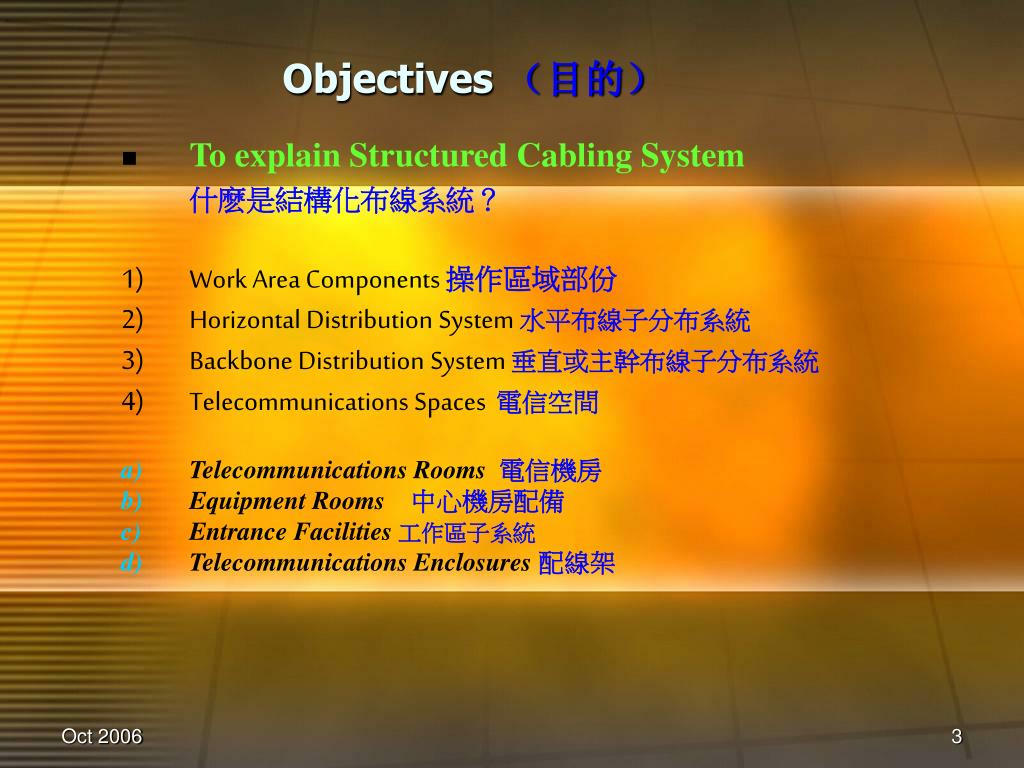

  3. Objectives(目的) • To explain Structured Cabling System什麽是結構化布線系統? • Work Area Components操作區域部份 • Horizontal Distribution System水平布線子分布系統 • Backbone Distribution System垂直或主幹布線子分布系統 • Telecommunications Spaces 電信空間 • Telecommunications Rooms 電信機房 • Equipment Rooms 中心機房配備 • Entrance Facilities 工作區子系統 • Telecommunications Enclosures配線架

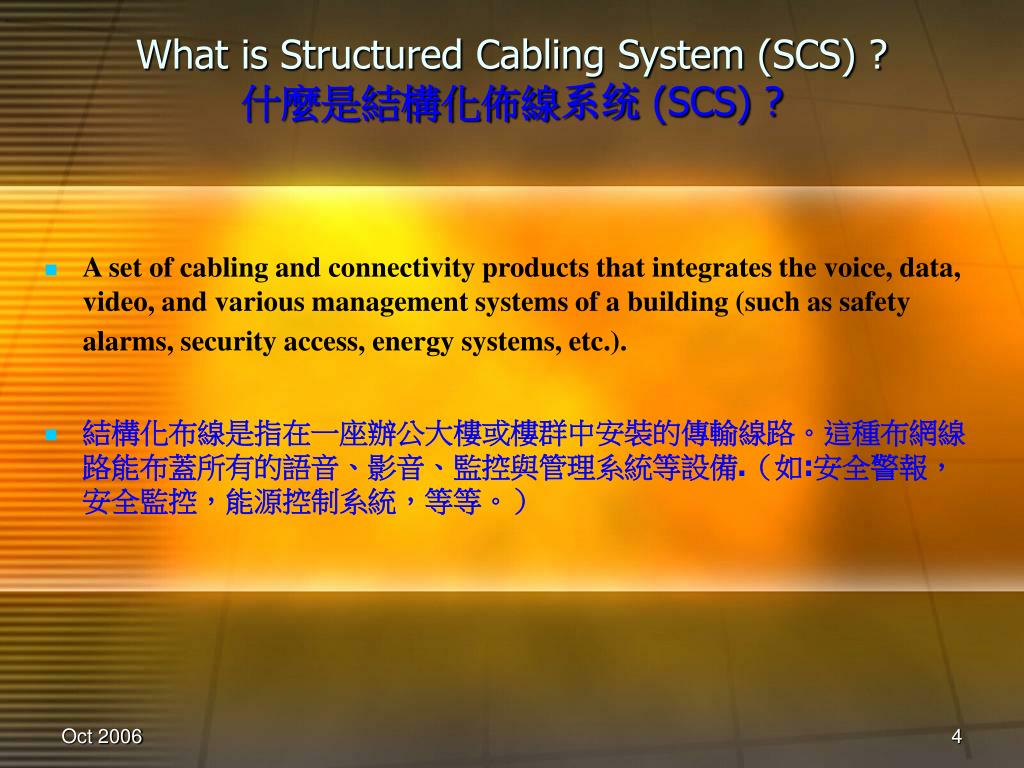

  4. What is Structured Cabling System (SCS) ?什麼是結構化佈線系统(SCS) ? • A set of cabling and connectivity products that integrates the voice, data, video, and various management systems of a building (such as safety alarms, security access, energy systems, etc.). • 結構化布線是指在一座辦公大樓或樓群中安裝的傳輸線路。這種布網線路能布蓋所有的語音、影音、監控與管理系統等設備.(如:安全警報,安全監控,能源控制系統,等等。)

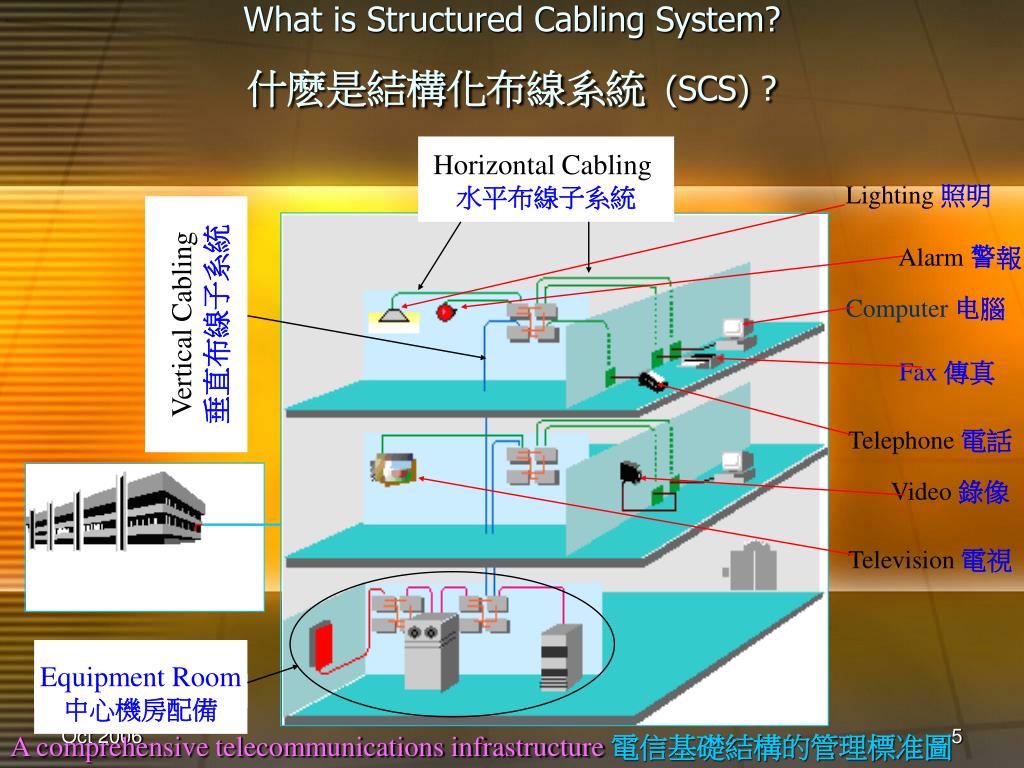

  5. What is Structured Cabling System?什麽是結構化布線系統(SCS) ? Horizontal Cabling 水平布線子系統 Lighting 照明 Alarm 警報 Vertical Cabling 垂直布線子系統 Computer电腦 Fax 傳真 Telephone 電話 Video 錄像 Television 電視 Equipment Room 中心機房配備 A comprehensive telecommunications infrastructure 電信基礎結構的管理標准圖

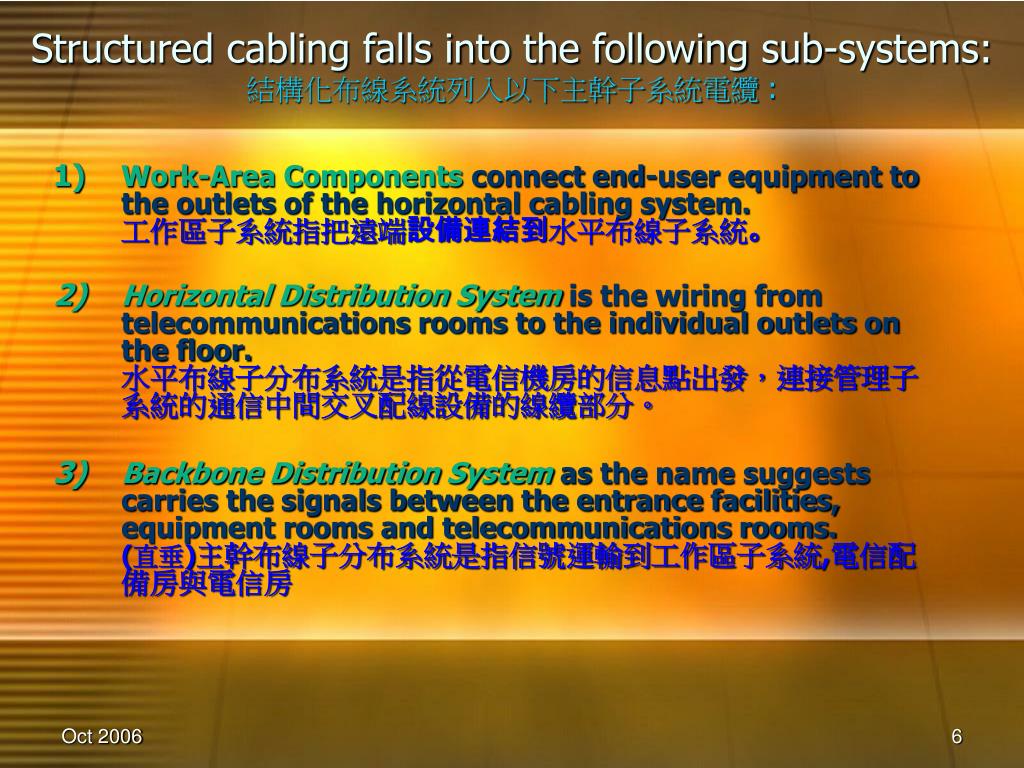

  6. Structured cabling falls into the following sub-systems:結構化布線系統列入以下主幹子系統電纜 : • Work-Area Componentsconnect end-user equipment to the outlets of the horizontal cabling system. 工作區子系統指把遠端設備連結到水平布線子系統。 • Horizontal Distribution Systemis the wiring from telecommunications rooms to the individual outlets on the floor.水平布線子分布系統是指從電信機房的信息點出發,連接管理子系統的通信中間交叉配線設備的線纜部分。 • Backbone Distribution Systemas the name suggests carries the signals between the entrance facilities, equipment rooms and telecommunications rooms.(直垂)主幹布線子分布系統是指信號運輸到工作區子系統,電信配備房與電信房

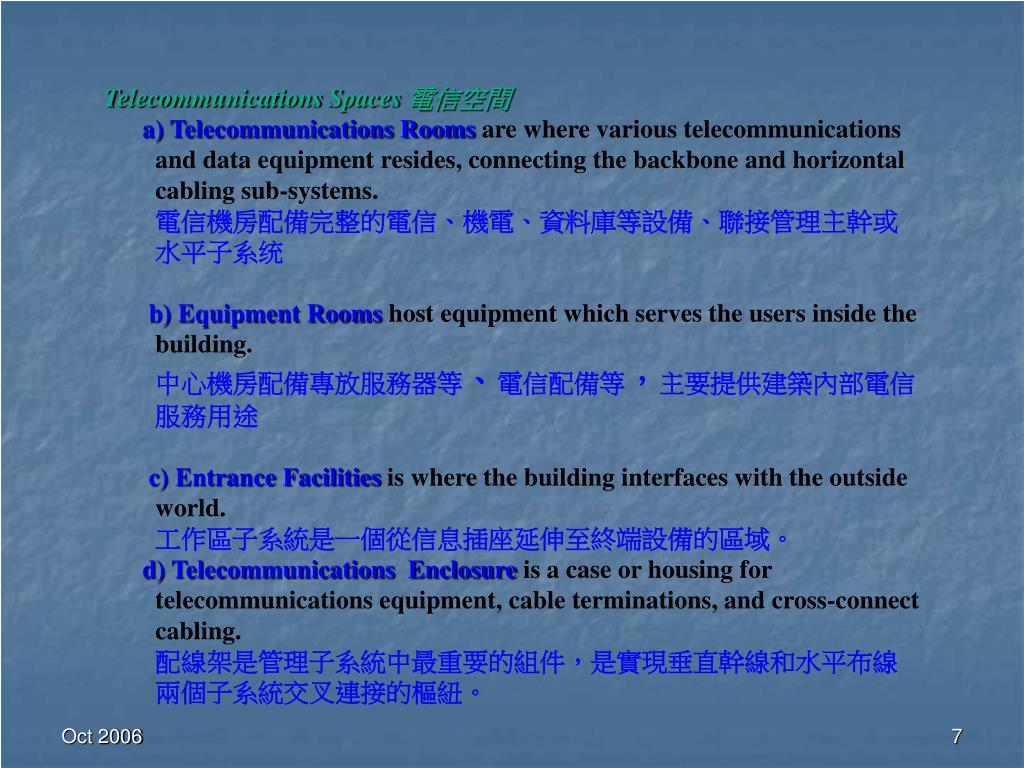

  7. Telecommunications Spaces 電信空間 a) Telecommunications Rooms are where various telecommunications and data equipment resides, connecting the backbone and horizontal cabling sub-systems. 電信機房配備完整的電信、機電、資料庫等設備、聯接管理主幹或水平子系统 b) Equipment Roomshost equipment which serves the users inside the building.中心機房配備專放服務器等、電信配備等,主要提供建築內部電信服務用途 c) Entrance Facilitiesis where the building interfaces with the outside world. 工作區子系統是一個從信息插座延伸至終端設備的區域。 d) Telecommunications Enclosureis a case or housing for telecommunications equipment, cable terminations, and cross-connect cabling. 配線架是管理子系統中最重要的組件,是實現垂直幹線和水平布線兩個子系統交叉連接的樞紐。

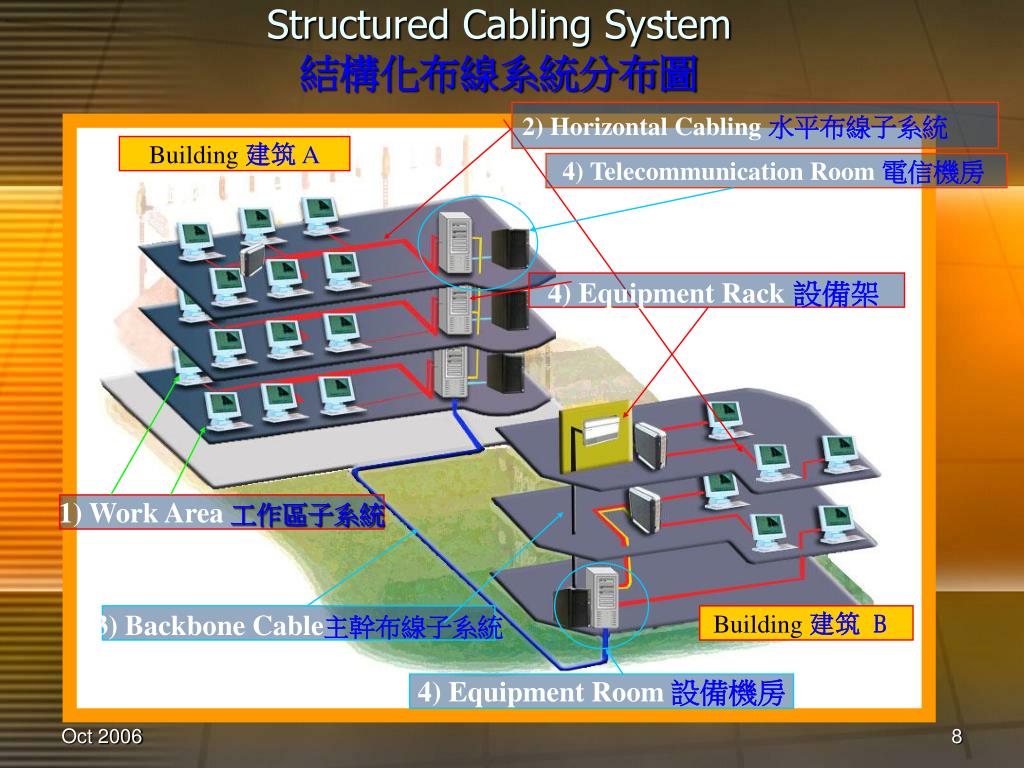

  8. Structured Cabling System結構化布線系統分布圖 2) Horizontal Cabling水平布線子系統 Building 建筑A 4) Telecommunication Room 電信機房 4) Equipment Rack設備架 1) Work Area工作區子系統 3) Backbone Cable主幹布線子系統 Building 建筑 B 4) Equipment Room設備機房

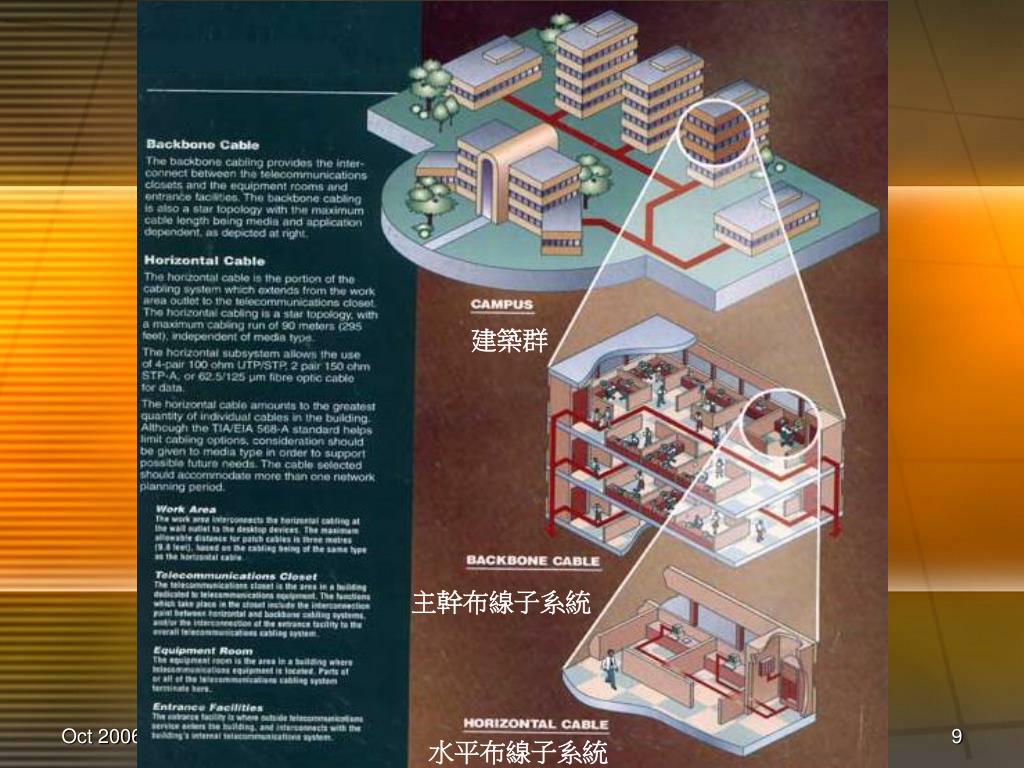

  9. 建築群 主幹布線子系統 水平布線子系統

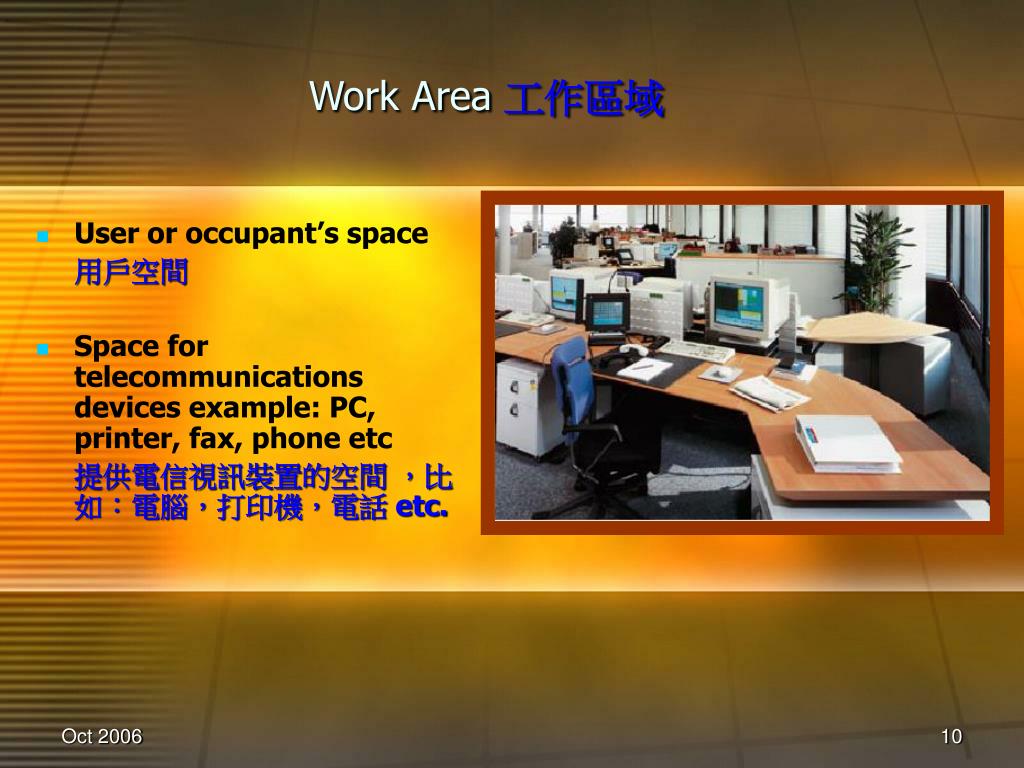

  10. Work Area 工作區域 • User or occupant’s space 用戶空間 • Space for telecommunications devices example: PC, printer, fax, phone etc 提供電信視訊裝置的空間 ,比如:電腦,打印機,電話 etc.

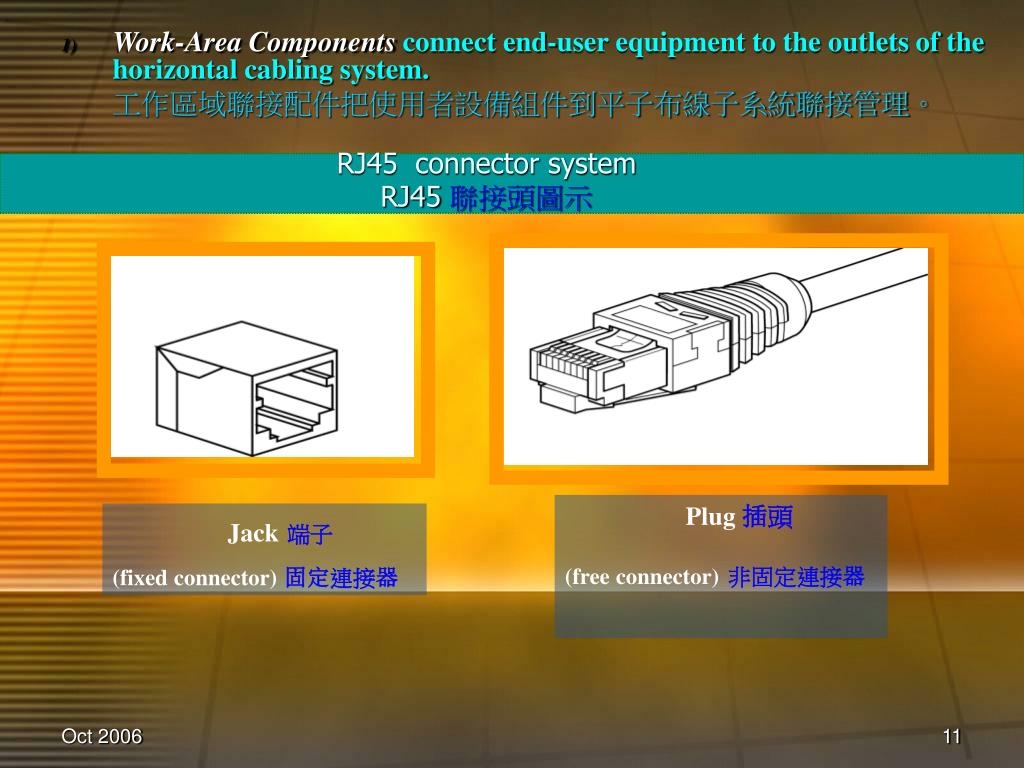

  11. Work-Area Componentsconnect end-user equipment to the outlets of the horizontal cabling system. 工作區域聯接配件把使用者設備組件到平子布線子系統聯接管理。 RJ45 connector system RJ45 聯接頭圖示 Plug 插頭 (free connector)非固定連接器 Jack端子 (fixed connector)固定連接器

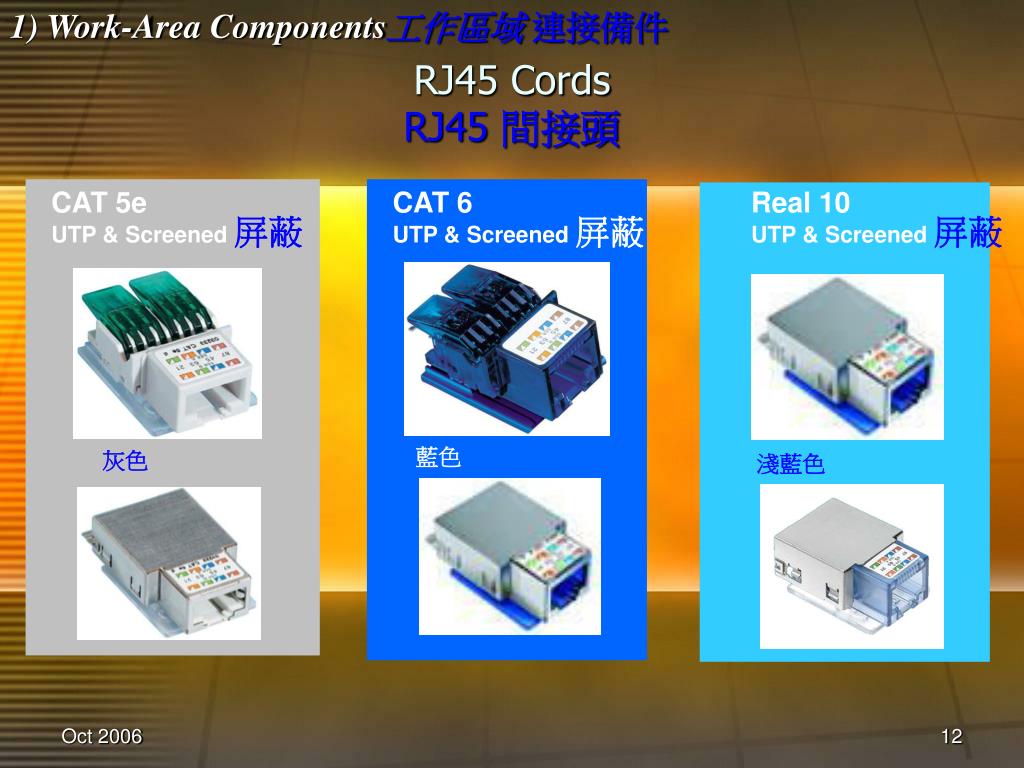

  12. RJ45 CordsRJ45 間接頭 1) Work-Area Components工作區域連接備件 CAT 5e UTP & Screened 屏蔽 CAT 6 UTP & Screened 屏蔽 Real 10 UTP & Screened 屏蔽 藍色 灰色 淺藍色

  13. Faceplate 面板 1) 1) Work-Area Components工作區域連接設備组件

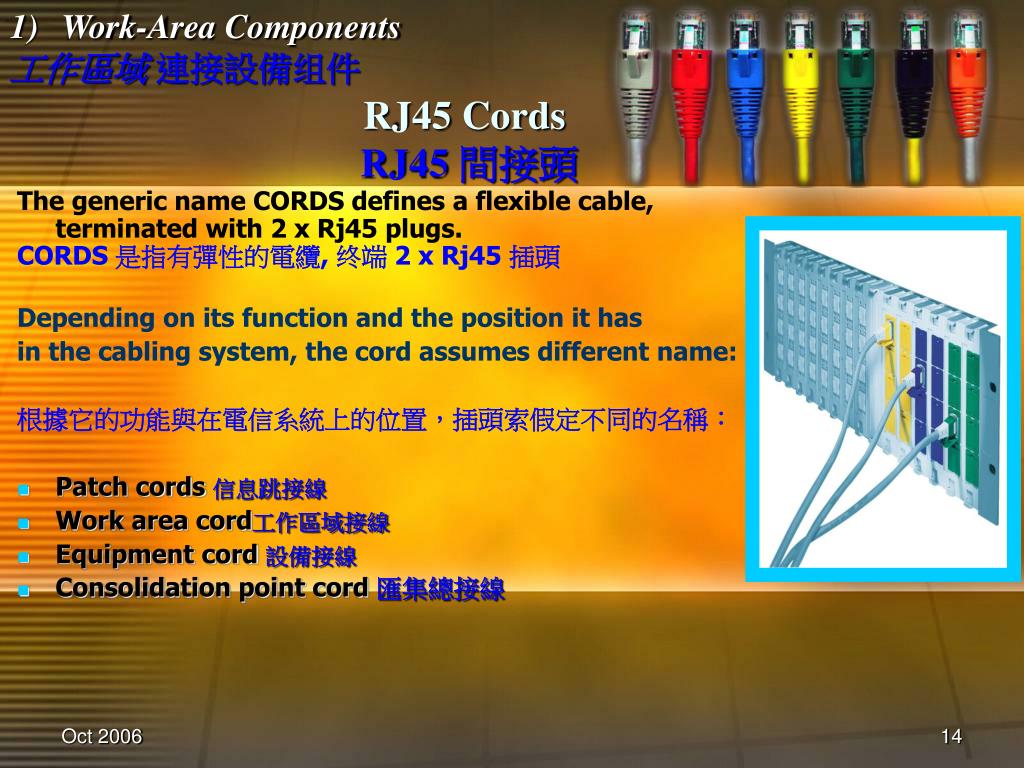

  14. Work-Area Components • 工作區域連接設備组件 RJ45 Cords RJ45 間接頭 The generic name CORDS defines a flexible cable, terminated with 2 x Rj45 plugs. CORDS 是指有彈性的電纜, 终端2 x Rj45 插頭 Depending on its function and the position it has in the cabling system, the cord assumes different name: 根據它的功能與在電信系統上的位置,插頭索假定不同的名稱: • Patch cords 信息跳接線 • Work area cord工作區域接線 • Equipment cord 設備接線 • Consolidation point cord 匯集總接線

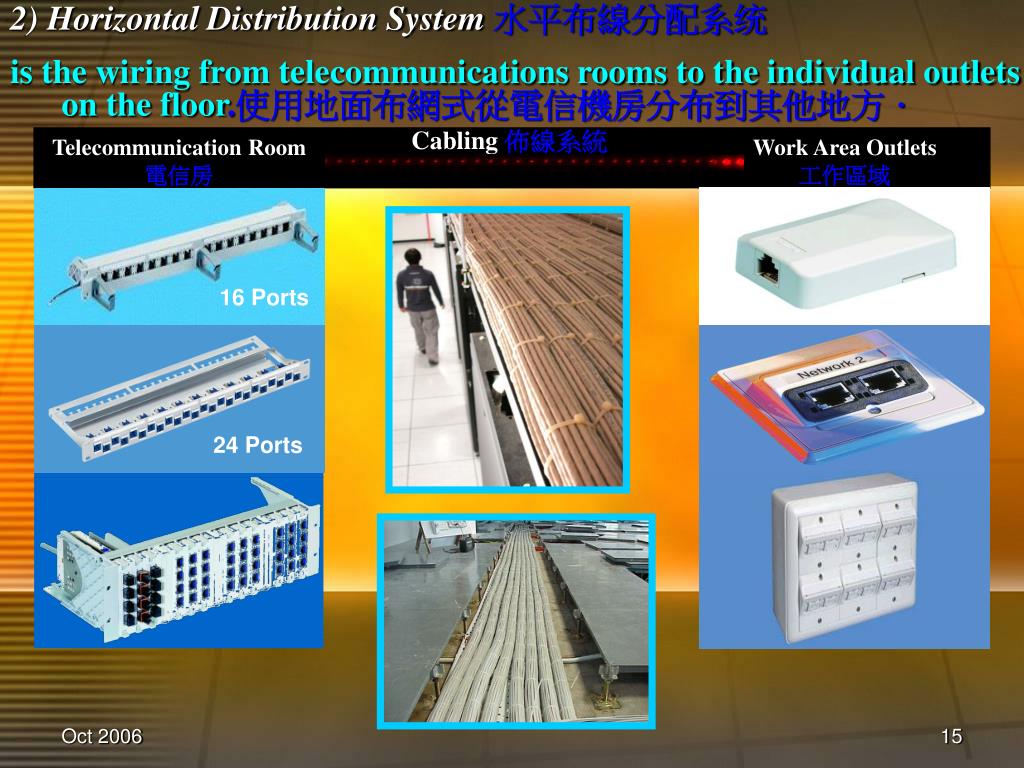

  15. 2) Horizontal Distribution System 水平布線分配系统 is the wiring from telecommunications rooms to the individual outlets on the floor.使用地面布網式從電信機房分布到其他地方. 16 Ports Cabling 佈線系統 Telecommunication Room 電信房 Work Area Outlets 工作區域 24 Ports

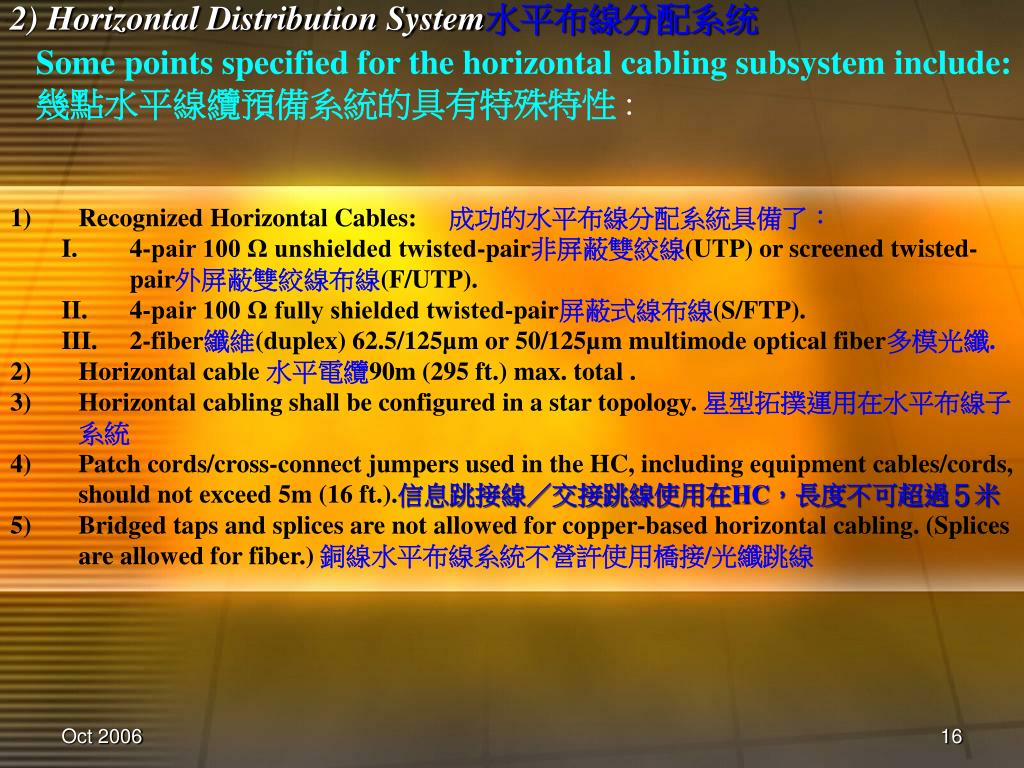

  16. 2) Horizontal Distribution System水平布線分配系统 Some points specified for the horizontal cabling subsystem include: 幾點水平線纜預備系統的具有特殊特性: • Recognized Horizontal Cables: 成功的水平布線分配系統具備了: • 4-pair 100 Ω unshielded twisted-pair非屏蔽雙絞線(UTP) or screened twisted-pair外屏蔽雙絞線布線(F/UTP). • 4-pair 100 Ω fully shielded twisted-pair屏蔽式線布線(S/FTP). • 2-fiber纖維(duplex) 62.5/125µm or 50/125µm multimode optical fiber多模光纖. • Horizontal cable 水平電纜90m (295 ft.) max. total . • Horizontal cabling shall be configured in a star topology. 星型拓撲運用在水平布線子系統 • Patch cords/cross-connect jumpers used in the HC, including equipment cables/cords, should not exceed 5m (16 ft.).信息跳接線/交接跳線使用在HC,長度不可超過5米 • Bridged taps and splices are not allowed for copper-based horizontal cabling. (Splices are allowed for fiber.)銅線水平布線系統不營許使用橋接/光纖跳線

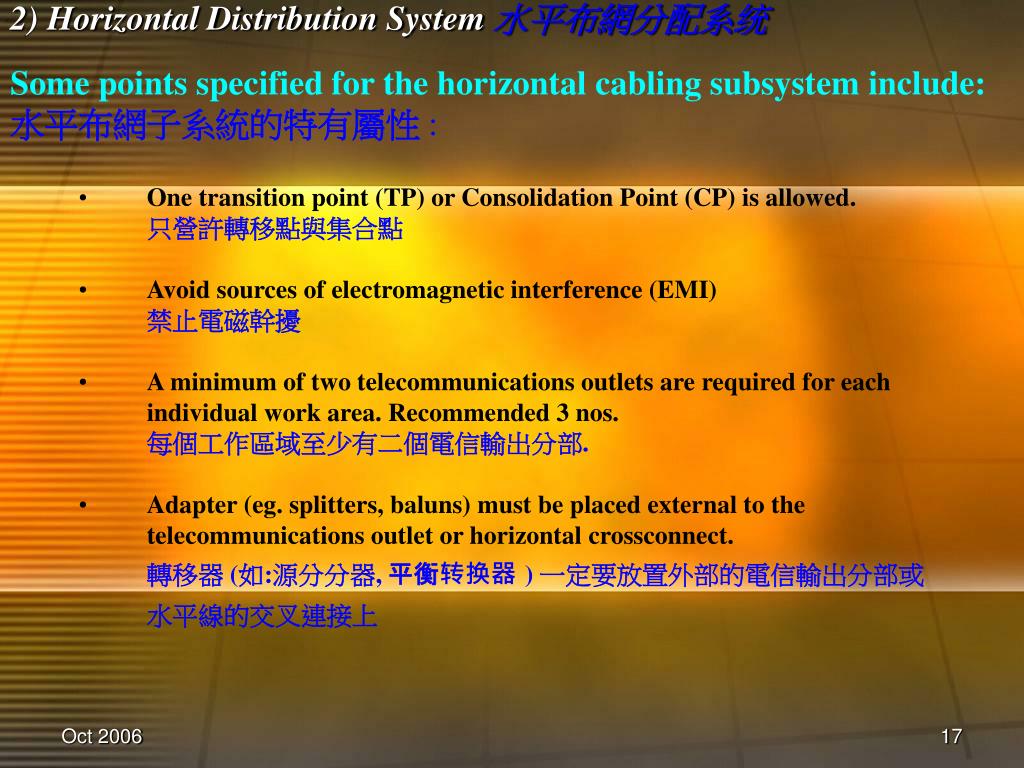

  17. 2) Horizontal Distribution System 水平布網分配系统 Some points specified for the horizontal cabling subsystem include: 水平布網子系統的特有屬性: • One transition point (TP) or Consolidation Point (CP) is allowed. • 只營許轉移點與集合點 • Avoid sources of electromagnetic interference (EMI) • 禁止電磁幹擾 • A minimum of two telecommunications outlets are required for each individual work area. Recommended 3 nos. • 每個工作區域至少有二個電信輸出分部. • Adapter (eg. splitters, baluns) must be placed external to the telecommunications outlet or horizontal crossconnect. • 轉移器 (如:源分分器, 平衡转换器) 一定要放置外部的電信輸出分部或水平線的交叉連接上

  18. 3) Backbone Distribution System主幹分配系统 provides connection between equipment rooms (ERs), telecommunications rooms (TRs), telecommunications enclosures (TEs), and telecommunications service entrance facilities (EFs). 提供設備機房(ERs)之間的連結, 電信視訊機房(TRs), 电信线箱(TEs)和電信視訊服務入口設備 (EFs). Telecommunications service entrance facilities 電信視訊服務入口設備 EF Equipment rooms 設備房 ER Telecommunications enclosures 配線架 TE Telecommunications rooms 電信視訊房 TR

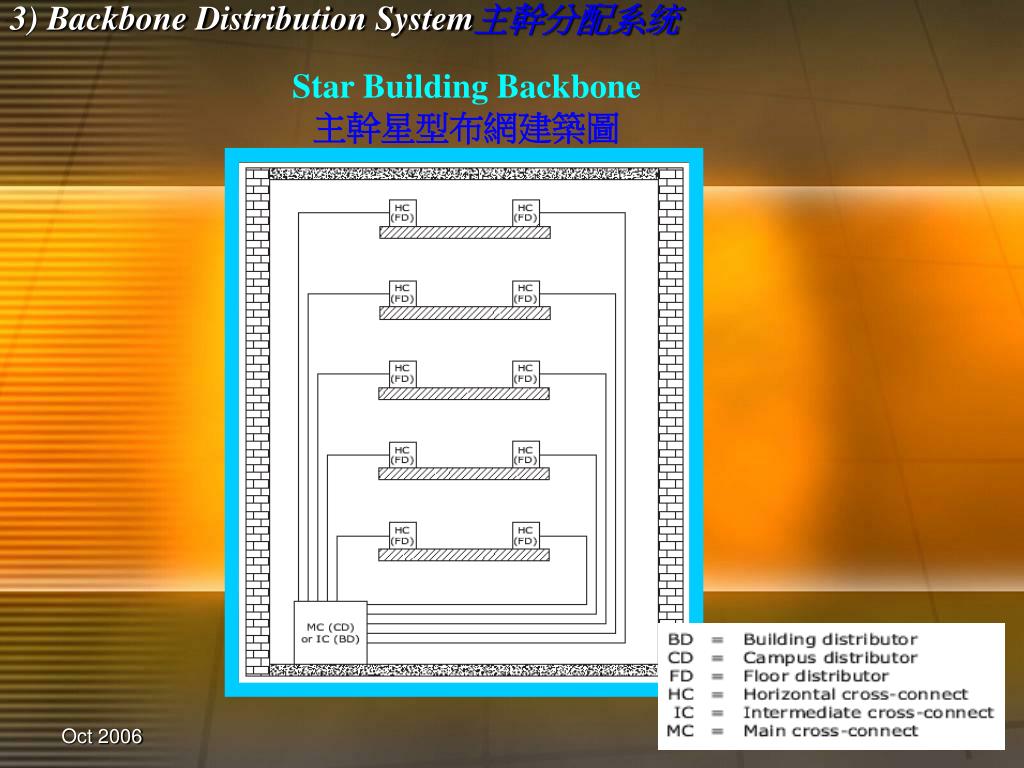

  19. 3) Backbone Distribution System主幹分配系统 Star Building Backbone 主幹星型布網建築圖

  20. 3) Backbone Distribution System主幹分配系统 Some points specified for the Backbone cabling subsystem include: • Cable Types電纜的種類:- • • Optical fiber.光纖 • • Balanced twisted-pair.雙絞線 • • Coaxial.同軸電纜 • Bridged taps & splitters are not permitted as part of the building backbone cabling. 不營許橋接與分離器作爲主幹線布線系統一部份

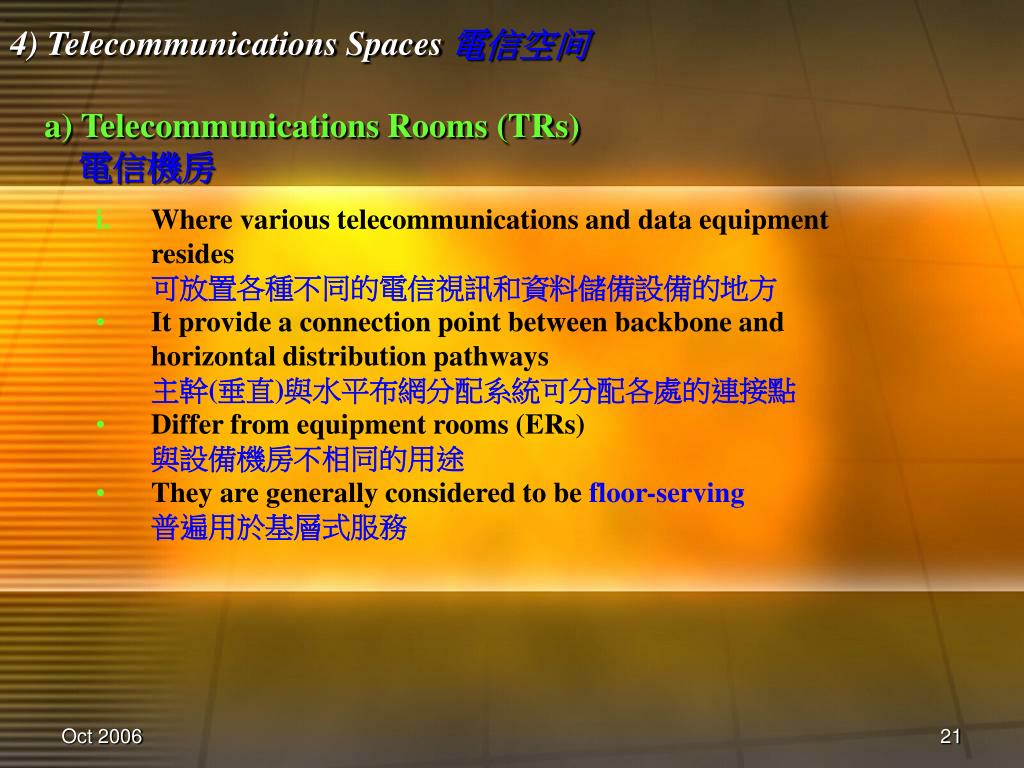

  21. 4) Telecommunications Spaces 電信空间 a) Telecommunications Rooms (TRs) 電信機房 • Where various telecommunications and data equipment resides可放置各種不同的電信視訊和資料儲備設備的地方 • It provide a connection point between backbone and horizontal distribution pathways 主幹(垂直)與水平布網分配系統可分配各處的連接點 • Differ from equipment rooms (ERs)與設備機房不相同的用途 • They are generally considered to be floor-serving普遍用於基層式服務

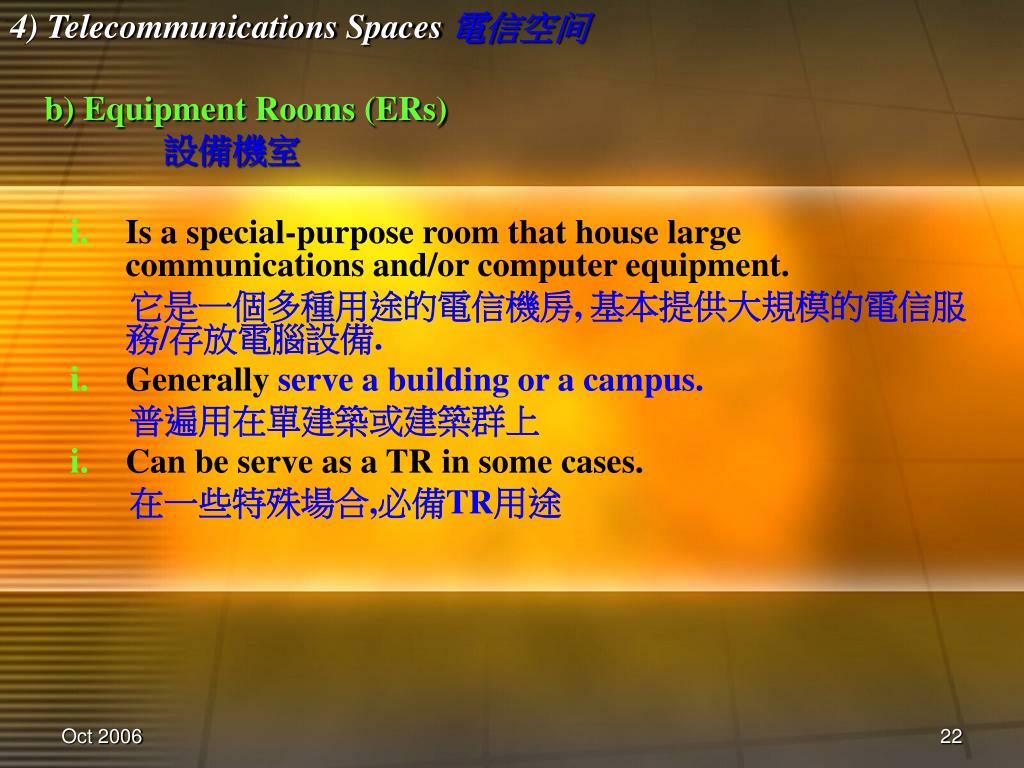

  22. 4) Telecommunications Spaces 電信空间 b) Equipment Rooms (ERs) 設備機室 Is a special-purpose room that house large communications and/or computer equipment. 它是一個多種用途的電信機房, 基本提供大規模的電信服務/存放電腦設備. Generally serve a building or a campus. 普遍用在單建築或建築群上 Can be serve as a TR in some cases. 在一些特殊場合,必備TR用途

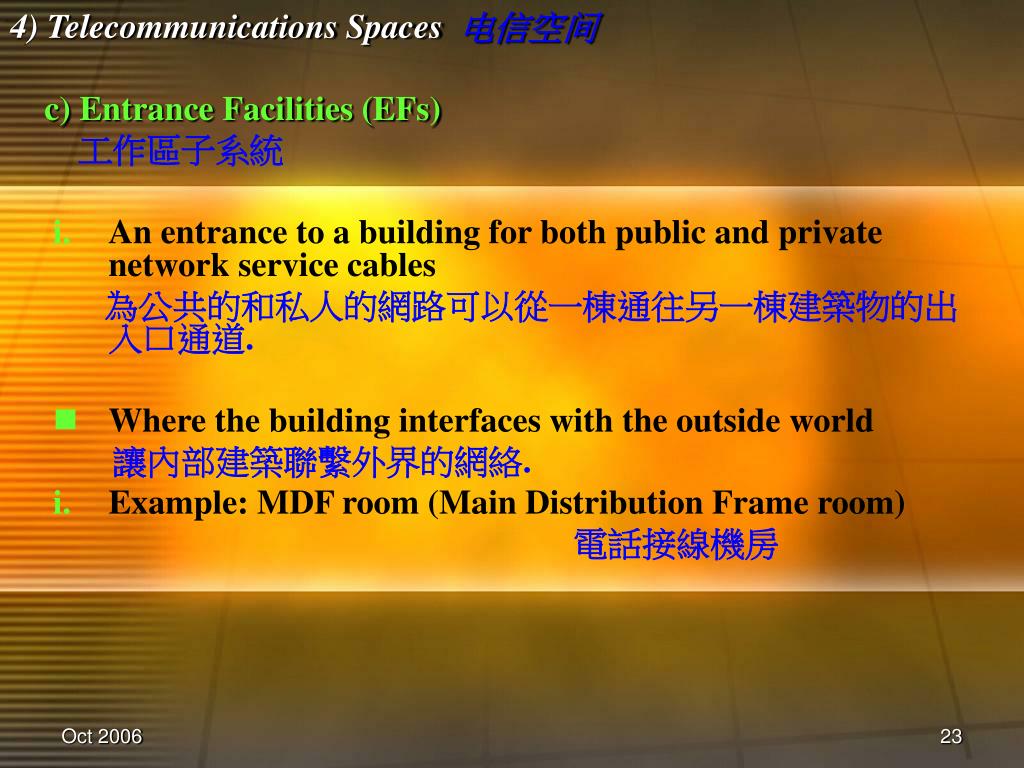

  23. 4) Telecommunications Spaces 电信空间 c) Entrance Facilities (EFs) 工作區子系統 • An entrance to a building for both public and private network service cables 為公共的和私人的網路可以從一棟通往另一棟建築物的出入口通道. • Where the building interfaces with the outside world 讓內部建築聯繫外界的網絡. • Example: MDF room (Main Distribution Frame room) 電話接線機房

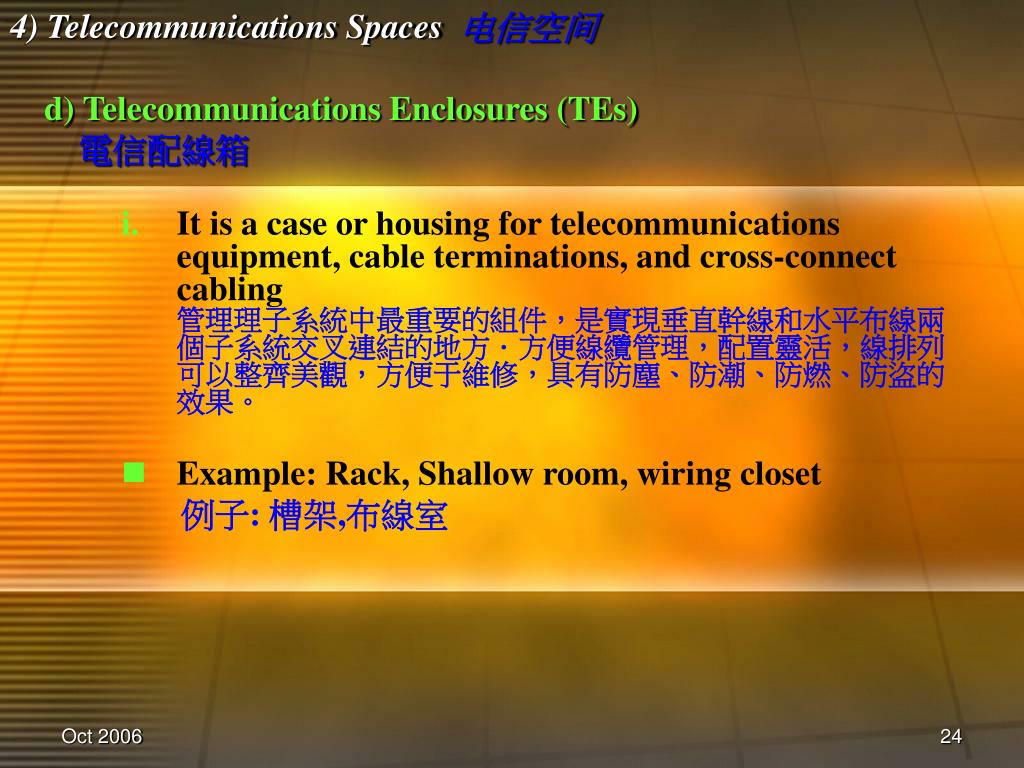

  24. 4) Telecommunications Spaces 电信空间 d) Telecommunications Enclosures (TEs) 電信配線箱 • It is a case or housing for telecommunications equipment, cable terminations, and cross-connect cabling 管理理子系統中最重要的組件,是實現垂直幹線和水平布線兩個子系統交叉連結的地方.方便線纜管理,配置靈活,線排列可以整齊美觀,方便于維修,具有防塵、防潮、防燃、防盜的效果。 • Example: Rack, Shallow room, wiring closet 例子: 槽架,布線室

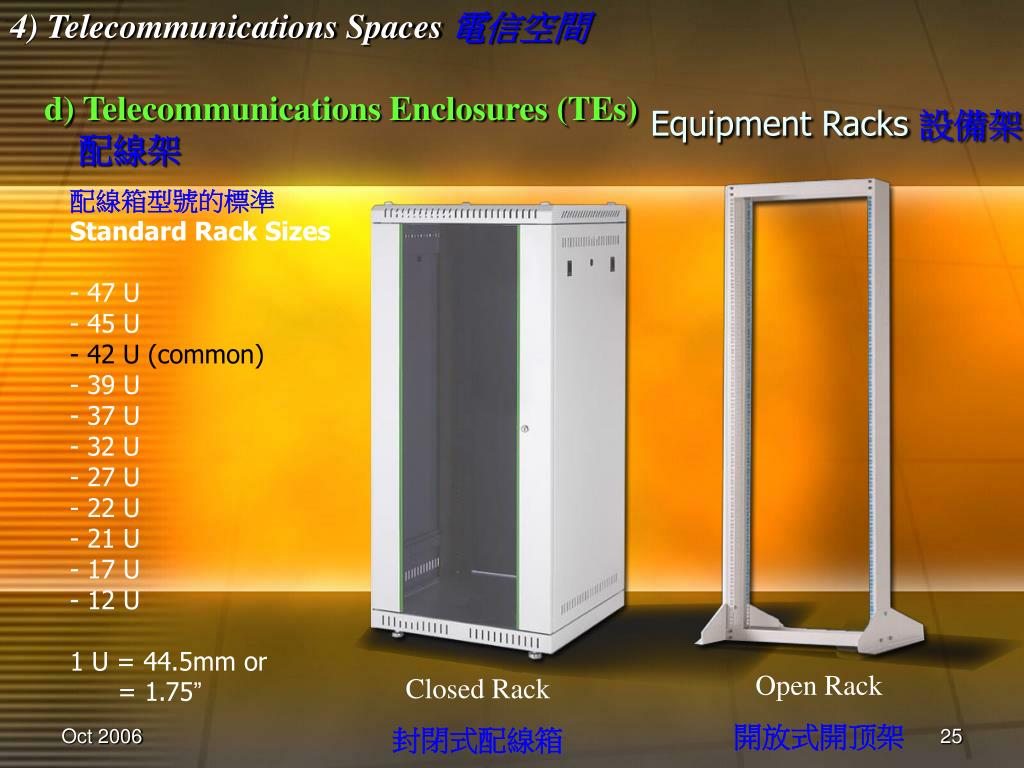

  25. 4) Telecommunications Spaces 電信空間 d) Telecommunications Enclosures (TEs)   配線架 Equipment Racks 設備架 • 配線箱型號的標準 • Standard Rack Sizes • - 47 U • 45 U • 42 U (common) • 39 U • 37 U • 32 U • 27 U • 22 U • 21 U • 17 U • 12 U • 1 U = 44.5mm or • = 1.75” Open Rack 開放式開顶架 Closed Rack 封閉式配線箱

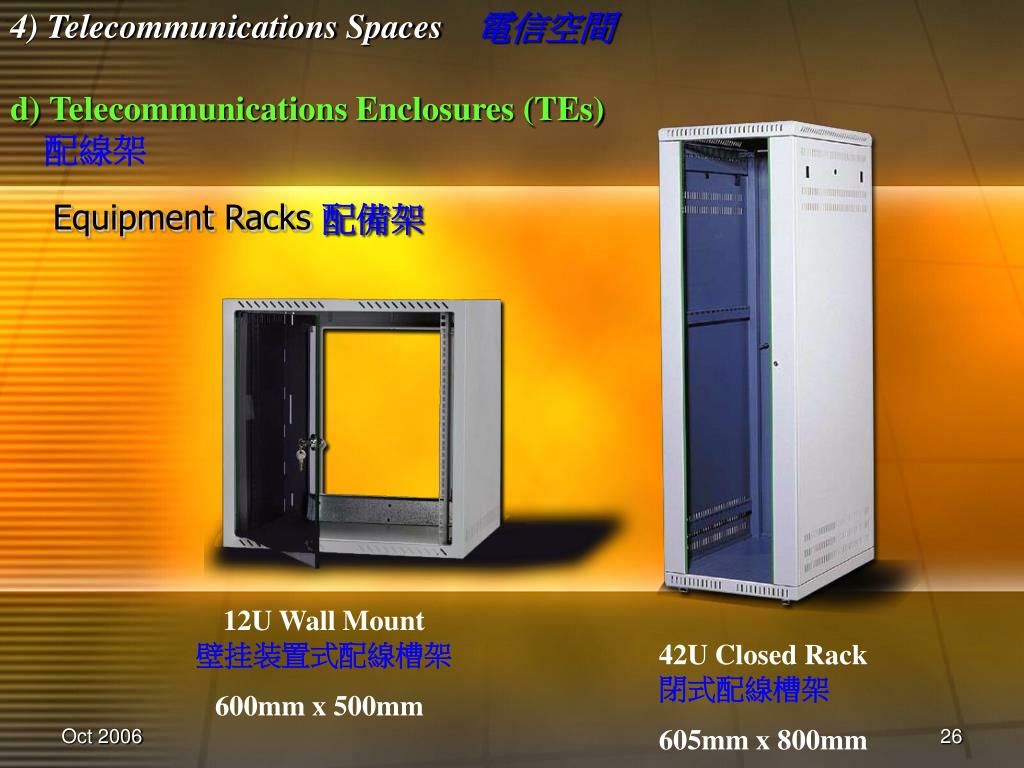

  26. 4) Telecommunications Spaces電信空間 d)Telecommunications Enclosures (TEs)  配線架 Equipment Racks 配備架 12U Wall Mount 壁挂装置式配線槽架 600mm x 500mm 42U Closed Rack閉式配線槽架 605mm x 800mm

  27. 問答時間…

  28. 結束 …..
