Denial of Service attacks on transit networks David Harmelin DANTE

1. Denial of Service attacks on transit networksDavid Harmelin DANTE

2. DANTE • advanced network services for the European research community: TEN-155, GÉANT • active in testing and evaluating emerging technologies http://www.dante.net/tf-ngn • DANCERT (dancert@dante.org.uk)http://www.dante.net/security

3. Connecting 30 NRENs • Backbone and access speeds up to 622 Mbps • Research interconnections to North America (USA & Canada) and Asia-Pacific • Multiple interconnections with the commercial Internet

4. Definition of a DoS attack DoS attack: an attack on a network or computer, the primary aim of which is to disrupt access to a given service. In this presentation, only DoS attacks involving flooding of networks are considered (networked flood-based DoS attacks).

5. Example of a networked DoS ( http://www.dante.net/pubs/dip/42/42.html )

6. Why care about DoS attacks? • DoS attacks add to the overall costs : • when unnoticed • one target, many outages • elements not targeted may still be victims • all users (using the starved resource) suffer . • No quick fix in sight!Need for better co-operation between ISPs.

7. Are you affected by DoS attacks? • Everybody running/using IP networks or services is. • DoS attacks are rarely reported in the media. • Most organisations do not notice when affected. • Management may not be notified.

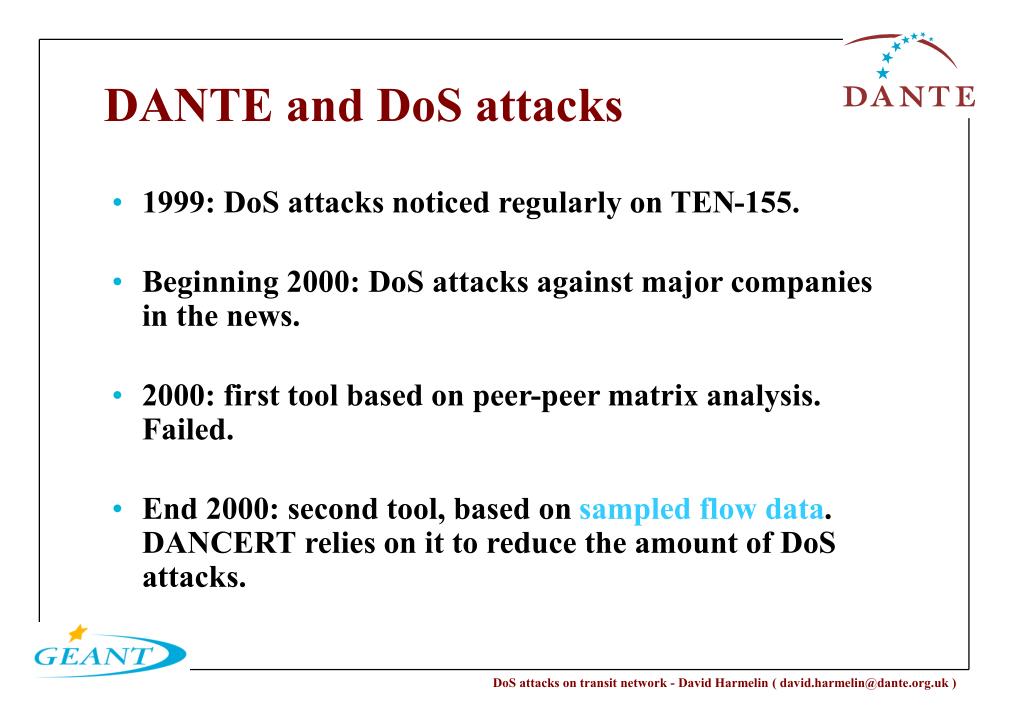

8. DANTE and DoS attacks • 1999: DoS attacks noticed regularly on TEN-155. • Beginning 2000: DoS attacks against major companies in the news. • 2000: first tool based on peer-peer matrix analysis. Failed. • End 2000: second tool, based on sampled flow data. DANCERT relies on it to reduce the amount of DoS attacks.

9. Detecting DoS attacks (1)

10. Detecting DoS attacks (2) • Central server: every X minutes, samples every PoP WS with rate 1/Y flows, during Z seconds. • For each router, if more than N flows are received with the same destination IP, raise an alarm. • Current values in use: • Routers with regular netflow:X=15, Y=100, Z=10, N=10 • most attacks > 100 pkts/s are detected • Routers with sampled netflow (rate: 1/200 packets):X=15, Y=10, Z=60, N=10 • most attacks > 330 pkts/s are detected

11. Results • Running the tool on 4 core routers since 12/2000. • Logging all attacks detected since 03/2001 • Trade-off between • accuracy (confirmed attacks/alarms raised=98%) • detection effectiveness (>100 pkt/s). • Average of 34 different attacks per day logged, up to 5-6 concurrent (96 polls per day). • 90% “C class” attacks - easily traceable. • 75% of attacks are 40 bytes TCP packets.

12. Spoofed source addresses within the /24 of the source.Coded by default in some DoS tools. Results - “C class” attacks Appears as if coming from:192.168.0.1, 192.168.0.2, …. 192.68.0.254

13. Results - Durations Most attacks last less than 15 minutes.Fast inter-domain tracing required to find the source.

14. Results - Traffic generated Highest: 32 Mbps Highest: 27000 pkts/s Approximate values only. Low accuracy due to sampling.

15. Known limitations of this method • Routers capabilities (netflow required) • Detecting networked flood-based DoS attacks only... • … but not ALL. • Detection helps, but further need for co-operation.

16. Other approaches exist • No detection • Human detection • Monitoring CPU load, and traffic counters. • IETF working on itrace • Passive monitoring • Other flow monitoring approaches

17. Who should help? How? • IP network operators: • automatic detection and logging of DoS attacks • co-operation between CERT teams • SLAs • End-sites: • prevention • trace when DoS traffic sources are reported • DANTE: • http://www.dante.net/security/dos/ • gives away the in-house software to transit providers.
