Bacillus anthracis

Bacillus anthracis

Hirotaka Ishibashi

Jennifer Jolivet

Sean Patrick Kelly


Bacillus anthracis1

Bacillus anthracis

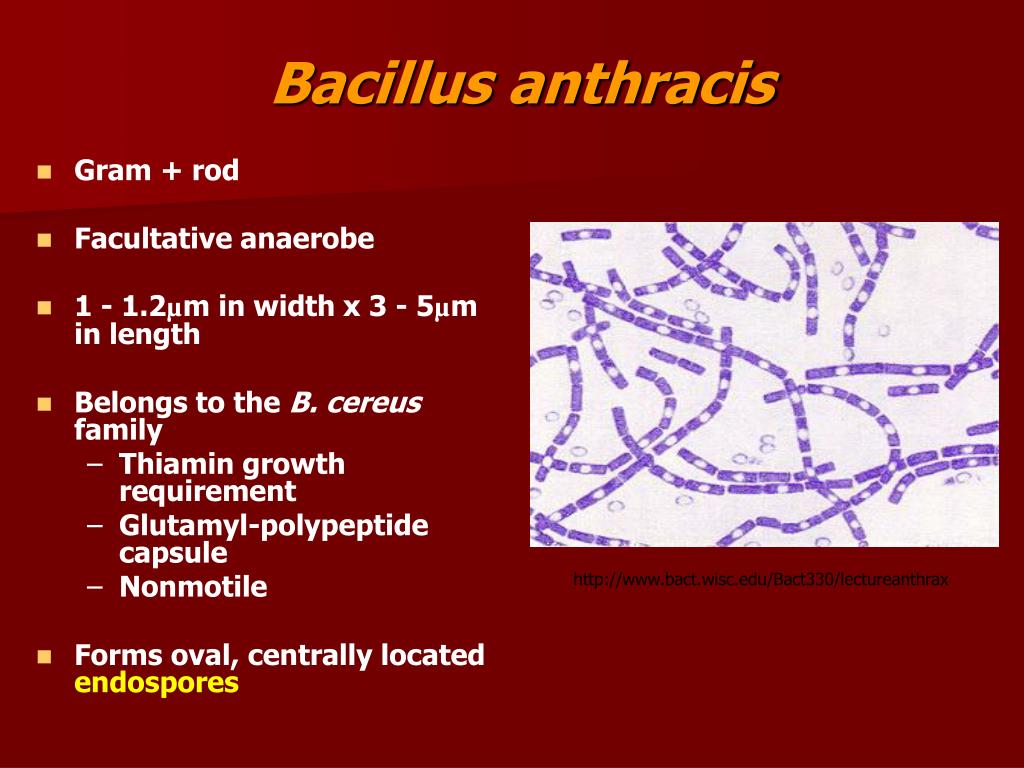

  • Gram + rod

  • Facultative anaerobe

  • 1 - 1.2µm in width x 3 - 5µm in length

  • Belongs to the B. cereus family

    • Thiamin growth requirement

    • Glutamyl-polypeptide capsule

    • Nonmotile

  • Forms oval, centrally located endospores

http://www.bact.wisc.edu/Bact330/lectureanthrax

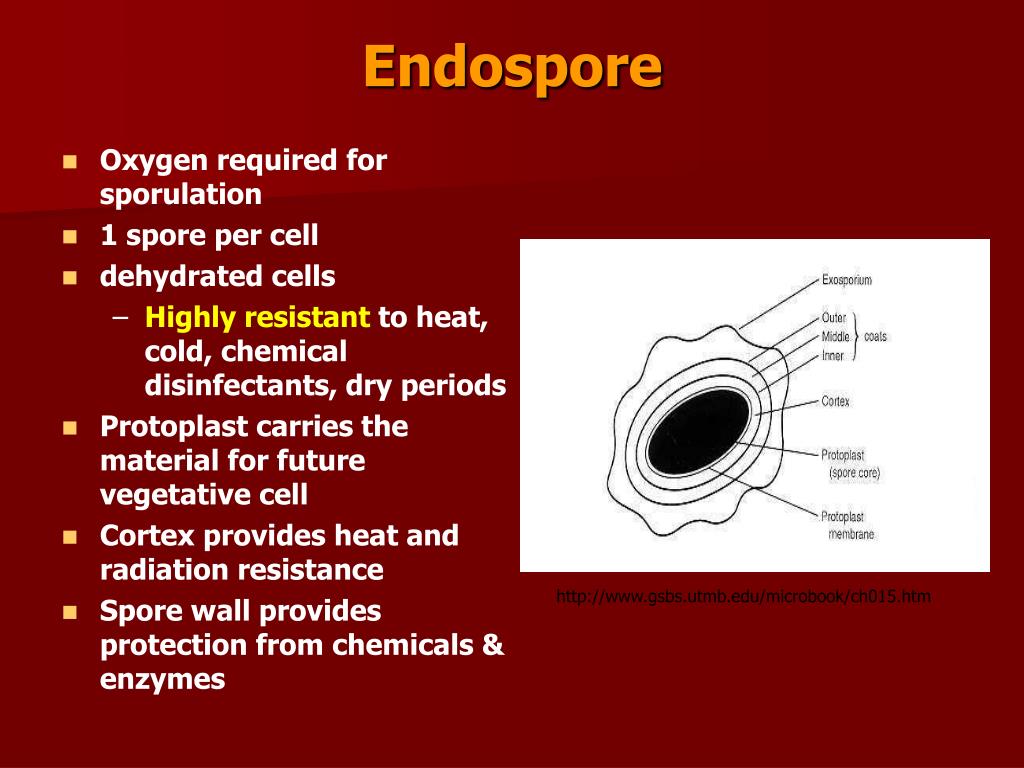

Endospore

Endospore

  • Oxygen required for sporulation

  • 1 spore per cell

  • dehydrated cells

    • Highly resistant to heat, cold, chemical disinfectants, dry periods

  • Protoplast carries the material for future vegetative cell

  • Cortex provides heat and radiation resistance

  • Spore wall provides protection from chemicals & enzymes

http://www.gsbs.utmb.edu/microbook/ch015.htm


Genetics

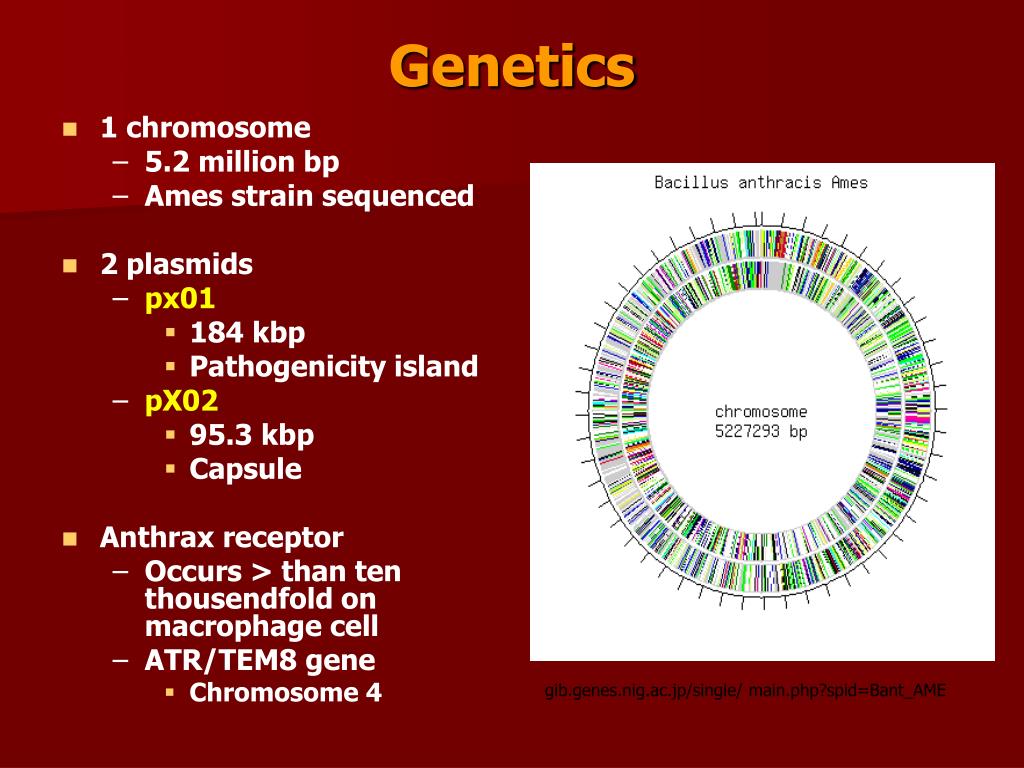

Genetics

  • 1 chromosome

    • 5.2 million bp

    • Ames strain sequenced

  • 2 plasmids

    • px01

      • 184 kbp

      • Pathogenicity island

    • pX02

      • 95.3 kbp

      • Capsule

  • Anthrax receptor

    • Occurs > than ten thousendfold on macrophage cell

    • ATR/TEM8 gene

      • Chromosome 4

gib.genes.nig.ac.jp/single/ main.php?spid=Bant_AME


Where is anthrax

Where is Anthrax?

http://www.vetmed.lsu.edu/whocc/mp_world.htm


Anthrax

Anthrax

  • From the Greek word anthrakos for coal

  • Caused by spores

  • Primarily a disease of domesticated & wild animals

    • Herbivores such as sheep, cows, horses, goats

  • Natural reservoir is soil

    • Does not depend on an animal reservoir making it hard to eradicate

    • Cannot be regularly cultivated from soils where there is an absence of endemic anthrax

    • Occurs sporadically throughout US

    • South Dakota, Arkansas, Texas, Louisiana, Mississippi, California recognized endemic areas

  • Anthrax zones

    • Soil rich in organic matter (pH < 6.0)

    • Dramatic changes in climate


Anthrax infection spread

Anthrax Infection & Spread

  • May be spread by streams, insects, wild animals, birds, contaminated wastes

  • Animals infected by soilborne spores in food & water or bites from certain insects

  • Humans can be infected when in contact with flesh, bones, hides, hair, & excrement

    • nonindustrial or industrial

    • cutaneous & inhalational most common

  • Risk of natural infection 1/100,000

    • Outbreaks occur in endemic areas after outbreaks in livestock


Three forms of anthrax

Three forms of Anthrax

  • Cutaneous anthrax

    • Skin

    • Most common

    • Spores enter to skin through small lesions

  • Inhalationanthrax

    • Spores are inhaled

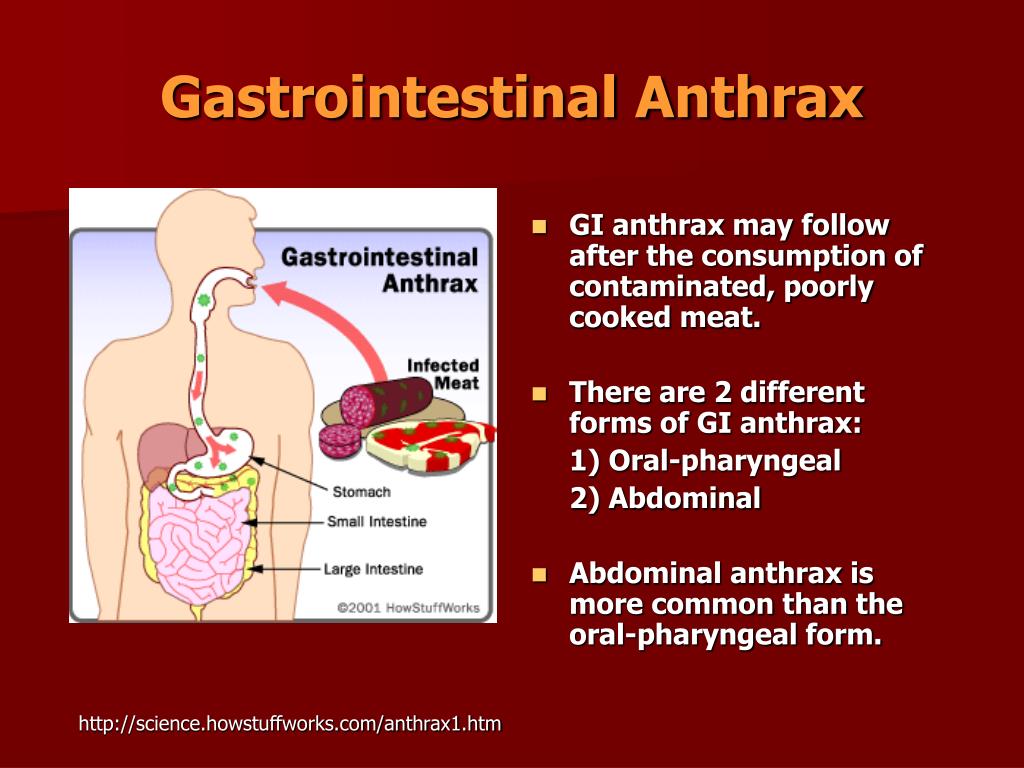

  • Gastrointestinal (GI)anthrax

    • Spores are ingested

    • Oral-pharyngeal and abdominal


Milestones in anthrax history

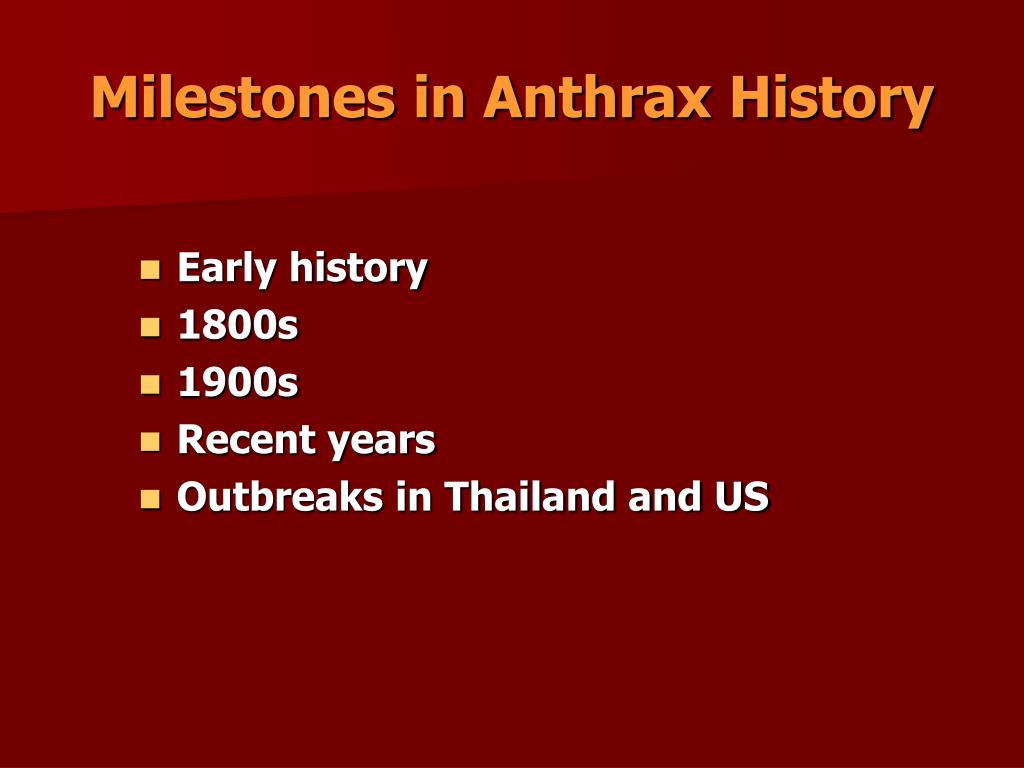

Milestones in Anthrax History

  • Early history

  • 1800s

  • 1900s

  • Recent years

  • Outbreaks in Thailand and US


History of anthrax early history

History of Anthrax (Early history)

  • Although anthrax dates back more than 3,000 years, it was not recognized as a disease until the 18th century.

  • 1500 B.C - A “plague of boils” in Egypt affected the Pharaoh’s cattle. ‘Boils’ are symptomatic of anthrax.

  • 1600s - The “Black Bane” thought to be anthrax, in Europe kills over 60,000 cattle.

  • 1700s - There are some accounts of human cases.


History 1800s

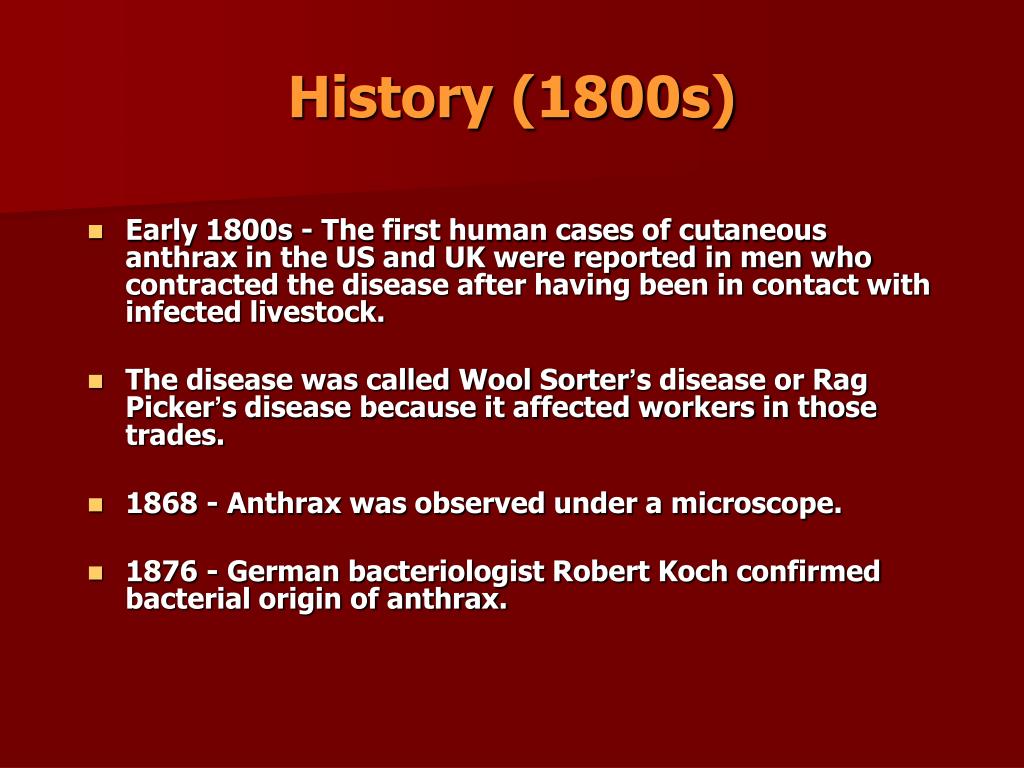

History (1800s)

  • Early 1800s - The first human cases of cutaneous anthrax in the US and UK were reported in men who contracted the disease after having been in contact with infected livestock.

  • The disease was called Wool Sorter’s disease or Rag Picker’s disease because it affected workers in those trades.

  • 1868 - Anthrax was observed under a microscope.

  • 1876 - German bacteriologist Robert Koch confirmed bacterial origin of anthrax.


History early 1900s

History (Early 1900s)

  • 1915 - German agents injected horses, mules, and cattle with anthrax during WWI. This was the first recorded use of anthrax as a biologicalweapon.

  • 1937 - Japan started a biological warfare program in Manchuria, including tests involving anthrax.

  • 1942 - UK demonstrated experiments using anthrax at Gruinard Island off the coast of Scotland.

  • 1943 - United States began developing anthrax weapons.

  • 1945 - In Iran an anthrax outbreak killed more than 1 million sheep.


History late 1900s

History (Late 1900s)

  • 1950s and 60s - U.S. biological warfare program continues after WWII at Fort Detrick, Maryland

  • 1969 - President Nixon ended United States' offensive biological weapons program, but defensive work still continues.

  • 1970 - Anthrax vaccine for humans was approved by U.S. FDA.

  • 1978-80 - The world's largest outbreak of human anthrax via insect vectors or contaminated meat struck Zimbabwe, Africa where more than 10,000 cases were recorded and over 180 people died.

  • 1979 - In Soviet Union, aerosolized anthrax spores were released accidentally at a military facility, affecting 94 and killing 64 people.


History recent years

History (Recent years)

  • 1991 - About 150,000 U.S. troops were vaccinated for anthrax in preparation for Gulf War.

  • 1990-93 - The cult group, Aum Shinrikyo, released anthrax spores in Tokyo, fortunately no one was injured. On February 27, 2004, the leader of this group was given a sentence of death at a district court in Tokyo.

  • 1995 - Iraq produced 8,500 liters of concentrated anthrax as part of the biological weapon program under Saddam Hussein’s administration.

  • 2001 - Letters containing anthrax spores were mailed to many places in the US such as NBC, New York Times, and Media in Miami. In Florida, a man died after inhaling anthrax at the office.


Outbreaks in thailand

Outbreaks in Thailand

  • This picture is 9 days after the onset of symptoms of oral-pharyngeal anthrax.

  • 1982 - In rural Northern Thailand, an outbreak of 52 cases of cutaneous anthrax and 24 cases of oral-pharyngeal anthrax occurred.

  • Oral-pharyngeal anthrax: an unusual manifestation of humaninfection with B. anthracis.

  • 1987 - 14 cases of both oral- pharyngeal and abdominal anthrax occurred.

  • Caused by the consumption of contaminated water and buffalo meat.

Thira Sirisanthana, Arthuer Brown, Anthrax of the Gastrointestinal Tract, Emerging Infectious Diseases, Vol. 8, 7, July 2002


Outbreaks in the us

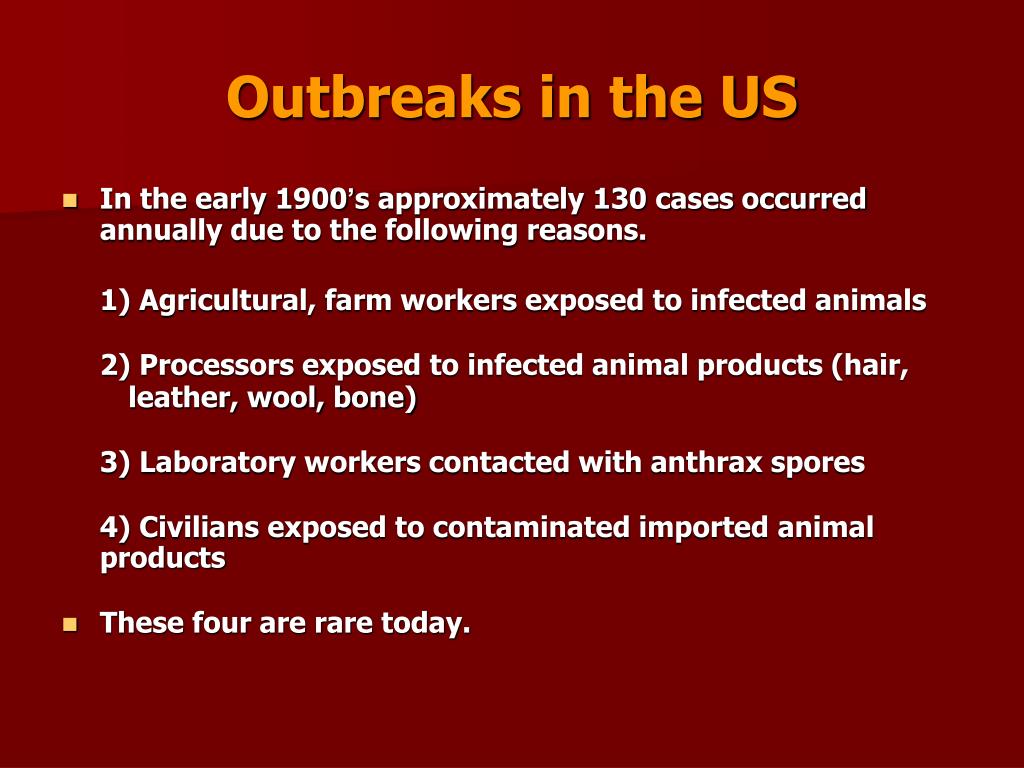

Outbreaks in the US

  • In the early 1900’s approximately 130 cases occurred annually due to the following reasons.

    1) Agricultural, farm workers exposed to infected animals

    2) Processors exposed to infected animal products (hair,

    leather, wool, bone)

    3) Laboratory workers contacted with anthrax spores

    4) Civilians exposed to contaminated imported animal products

  • These four are rare today.


Bacillus anthracis

in 1957 animal vaccination started

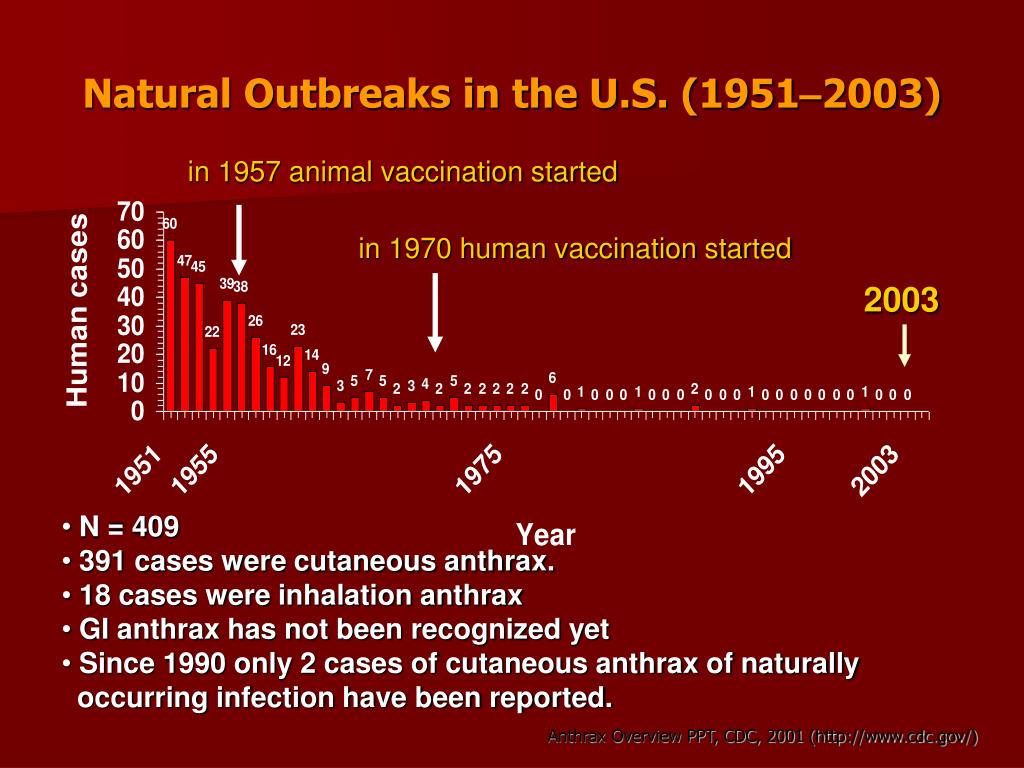

Natural Outbreaks in the U.S. (1951–2003)

in 1970 human vaccination started

2003

  • N = 409

  • 391 cases were cutaneous anthrax.

  • 18 cases were inhalation anthrax

  • GI anthrax has not been recognized yet

  • Since 1990 only 2 cases of cutaneous anthrax of naturally

  • occurring infection have been reported.

Anthrax Overview PPT, CDC, 2001 (http://www.cdc.gov/)


Natural outbreaks in north dakota

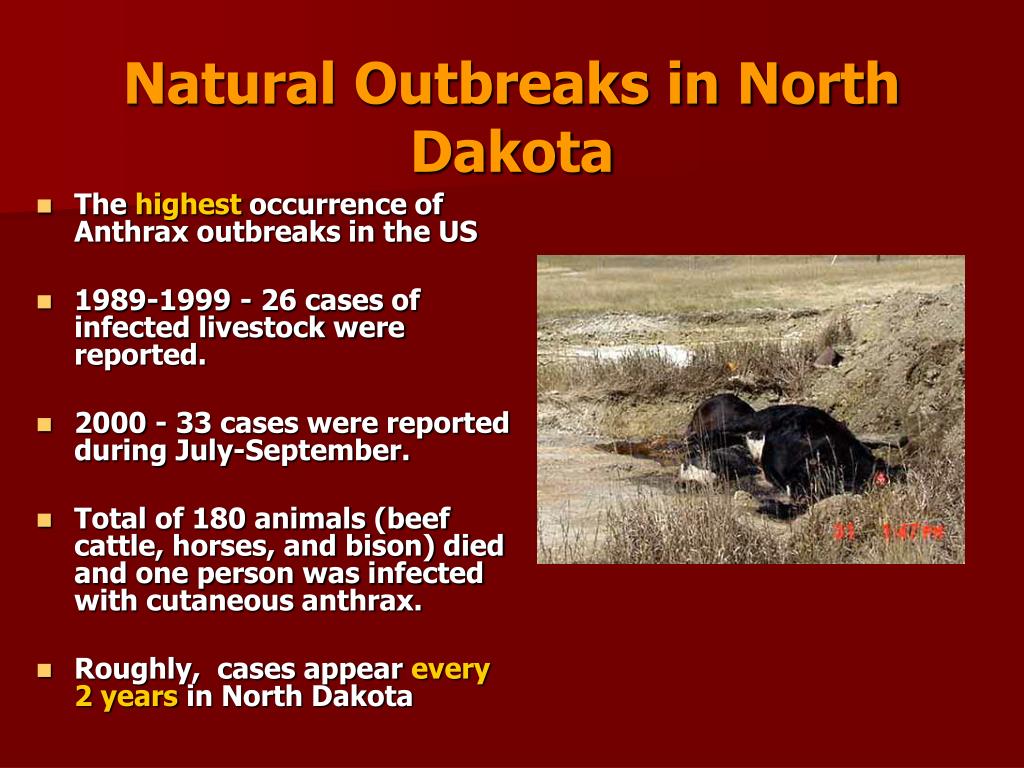

Natural Outbreaks in North Dakota

  • The highest occurrence of Anthrax outbreaks in the US

  • 1989-1999 - 26 cases of infected livestock were reported.

  • 2000 - 33 cases were reported during July-September.

  • Total of 180 animals (beef cattle, horses, and bison) died and one person was infected with cutaneous anthrax.

  • Roughly, cases appear every 2 years in North Dakota


Pathogenesis

Pathogenesis

  • The infectious dose of B. anthracis in humans by any route is not precisely known.

    • Rely on primate data

    • Minimum infection dose of ~ 1,000-8,000 spores

    • LD50 of 8,000-10,000 spores for inhalation

  • Virulence depends on 2 factors

    • Capsule

    • 3 toxins

http://www.kvarkadabra.net/index.html?/biologija/teksti/biolosko_orozje.htm

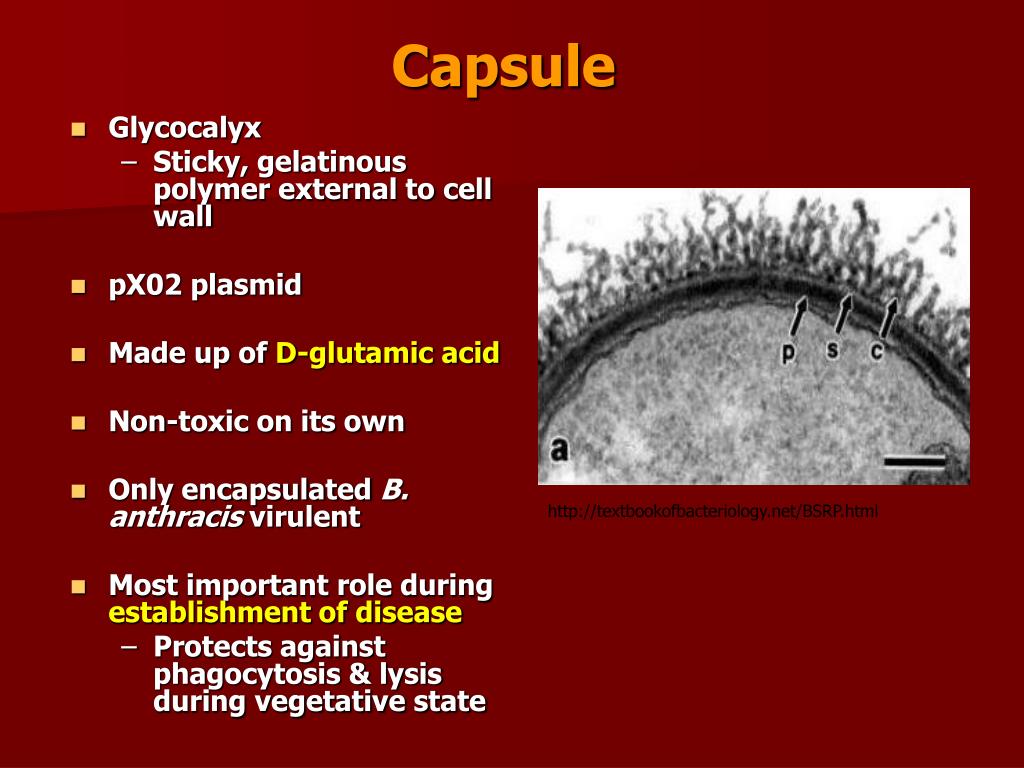

Capsule

Capsule

  • Glycocalyx

    • Sticky, gelatinous polymer external to cell wall

  • pX02 plasmid

  • Made up of D-glutamic acid

  • Non-toxic on its own

  • Only encapsulated B. anthracis virulent

  • Most important role during establishment of disease

    • Protects against phagocytosis & lysis during vegetative state

http://textbookofbacteriology.net/BSRP.html


Toxins

Toxins

  • pX01 plasmid

  • AB model

    • Binding

    • Activating

  • Protective antigen (PA), edema factor (EF) & lethal factor (LF)

    • Make up 50% of proteins in the organism

  • Individually non-toxic

    • PA+LF  lethal activity

    • EF+PA  edema

    • EF+LF  inactive

    • PA+LF+EF  edema & necrosis; lethal

http://www.rcsb.org/pdb/molecules/pdb28_1.html


Toxins 2

Toxins (2)

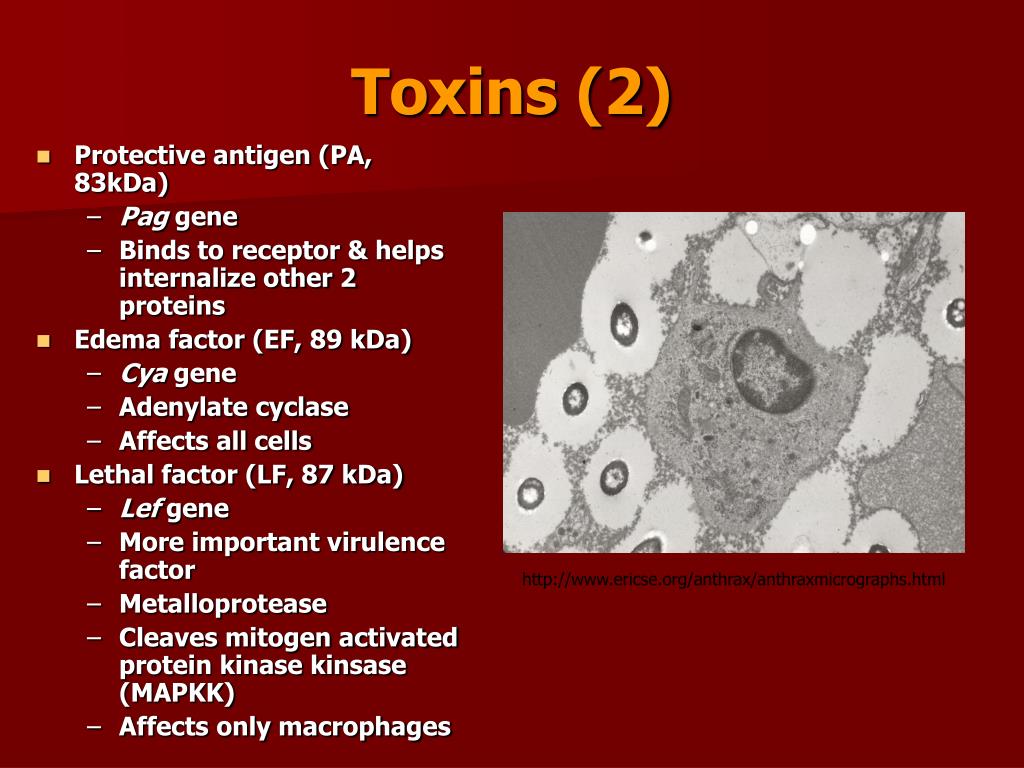

  • Protective antigen (PA, 83kDa)

    • Pag gene

    • Binds to receptor & helps internalize other 2 proteins

  • Edema factor (EF, 89 kDa)

    • Cya gene

    • Adenylate cyclase

    • Affects all cells

  • Lethal factor (LF, 87 kDa)

    • Lef gene

    • More important virulence factor

    • Metalloprotease

    • Cleaves mitogen activated protein kinase kinsase (MAPKK)

    • Affects only macrophages

http://www.ericse.org/anthrax/anthraxmicrographs.html


Mechanism of infection

Mechanism of Infection

  • Anthrax spores enter body

  • Germinate & multiple in lymph nodes

  • PA, EF, LF excreted from bacteria

  • PA binds to TEM8.

  • PA nicked by protease furin

    • 20-kDa segment off leaving 63-kDa peptide

    • Heptamer forms

  • EF and/or LF binds

  • Complex internalized by endocytosis

  • Acidification of endosome

  • LF or EF crosses into cytosol via PA mediated ion-conductive channels

  • LF cleaves MAPKK 1 & 2

  • EF stimulates cAMP

http://kugi.kribb.re.kr/KUGI/Pathways/BioCarta/anthraxPathway/


Outcome

Outcome

  • Do not understand exactly how symptoms occur

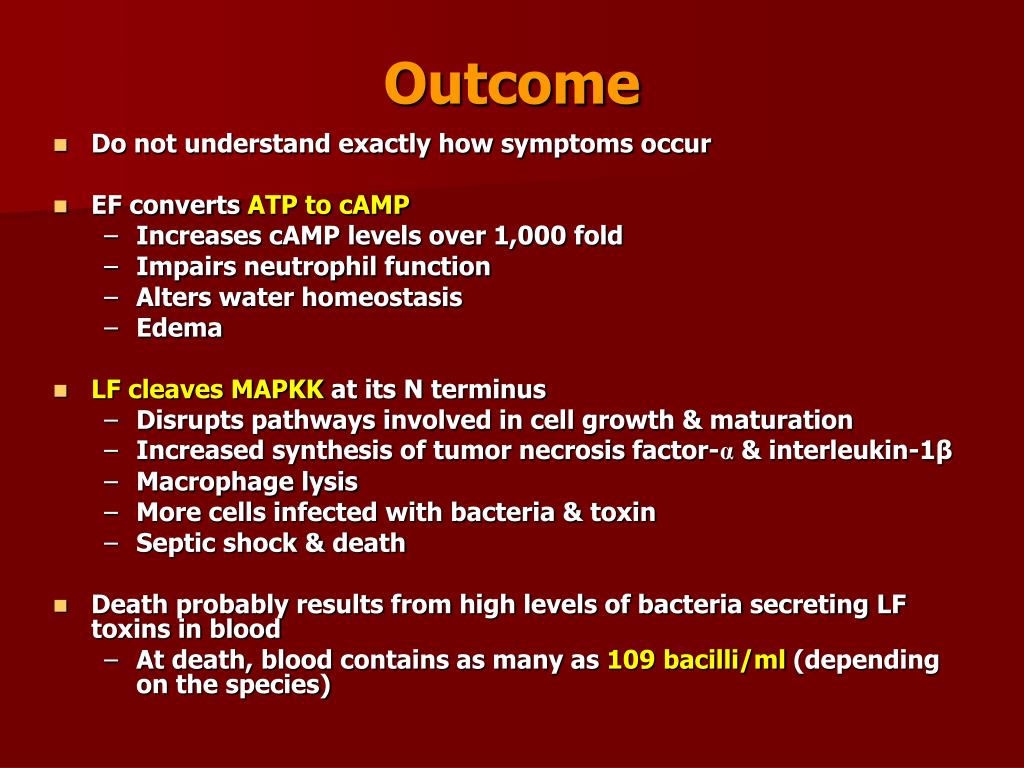

  • EF converts ATP to cAMP

    • Increases cAMP levels over 1,000 fold

    • Impairs neutrophil function

    • Alters water homeostasis

    • Edema

  • LF cleaves MAPKK at its N terminus

    • Disrupts pathways involved in cell growth & maturation

    • Increased synthesis of tumor necrosis factor-α & interleukin-1β

    • Macrophage lysis

    • More cells infected with bacteria & toxin

    • Septic shock & death

  • Death probably results from high levels of bacteria secreting LF toxins in blood

    • At death, blood contains as many as 109 bacilli/ml (depending on the species)


Regulators

Regulators

  • Bicarbonate or CO2 stimulates capsule and PA formation

  • LF requires zinc ions

  • EF requires calmodulin, a major intracellular calcium receptor

  • Transcriptional regulator AcpA on pX02 controls expression of capsule

  • atxA on pX01 is a positive regulator necessary for transcription of all 3 toxin genes


Clinical information

Clinical Information

  • Infection

  • Symptoms (1st and 2nd phase)

  • Three forms of Anthrax infection and their Pathology

  • Diagnosis


Infection of anthrax

Infection of Anthrax

  • The estimated number of naturally occurring human cases of anthrax in the world is 20,000 to 100,000 per year.

  • Humans are infected through contact with infected animals and their products because of human intervention.

  • Anthrax spores contaminate the ground when an affected animal dies and can live in the soil for many years.

  • Anthrax can also be spread by eating undercooked meat from infected animals.

  • Anthrax is NOT transmitted from person to person.

  • Humans can be exposed but not be infected.


What are the symptoms for anthrax

What are the symptoms for anthrax?

  • There are two phases of symptom.

  • 1) Early phase - Many symptoms can occur within 7 days of

    infection

  • 2) 2nd phase - Will hit hard, and usually occurs within 2 or 3

    days after the early phase.


Early phase symptoms

- Early Phase Symptoms -

  • Fever (temperature > 100 degrees F)

  • Chills or night sweats

  • Headache, cough, chest discomfort, sore throat

  • Joint stiffness, joint pain, muscle aches

  • Shortness of breath

  • Enlarged lymph nodes, nausea, loss of appetite, abdominal distress, vomiting, diarrhea

  • Meningitis


2nd phase symptoms

- 2nd Phase Symptoms -

  • Breathing problems, pneumonia

  • Shock

  • Swollen lymph glands

  • Profuse sweating

  • Cyanosis (skin turns blue)

  • Death


Three clinical forms of anthrax

Three clinical forms of Anthrax

  • 3 types of anthrax infection occur in humans:

    1) Cutaneous

    2) Inhalation

    3) GI


Cutaneous anthrax

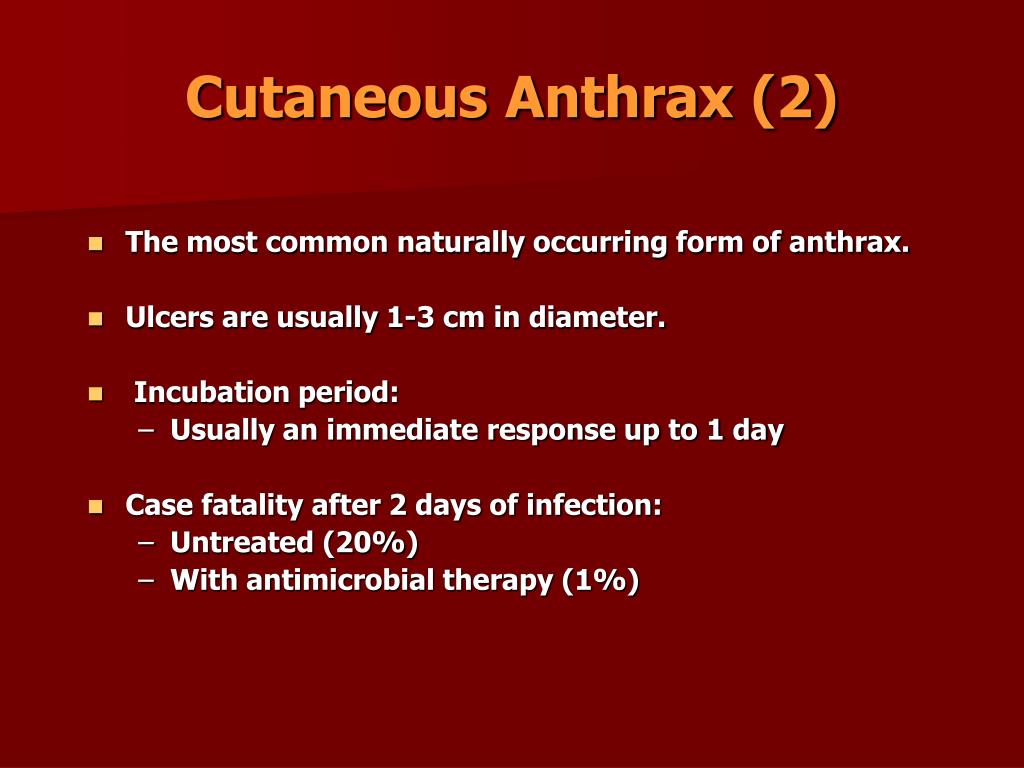

Cutaneous Anthrax

  • 95% of anthrax infections occur when the bacterium enters a cut or scratch on the skin due to handling of contaminated animal products or infected animals.

  • May also be spread by biting insects that have fed on infected hosts.

  • After the spore germinates in skin tissues, toxin production initially results in itchy bump that develops into a vesicle and then painless black ulcer.

http://science.howstuffworks.com/anthrax1.htm


Cutaneous anthrax 2

Cutaneous Anthrax (2)

  • The most common naturally occurring form of anthrax.

  • Ulcers are usually 1-3 cm in diameter.

  • Incubation period:

    • Usually an immediate response up to 1 day

  • Case fatality after 2 days of infection:

    • Untreated (20%)

    • With antimicrobial therapy (1%)


Cutaneous anthrax 3

Cutaneous Anthrax (3)

CDC, Cutaneous Anthrax—Vesicle Development


Inhalation anthrax

Inhalation Anthrax

  • The infection begins with the inhalation of the anthrax spore.

  • Spores need to be less than 5 microns (millionths of a meter) to reach the alveolus.

  • Macrophages lyse and destroy some of the spores.

  • Survived spores are transported to lymph nodes.

  • At least 2,500 spores have to be inhaled to cause an infection.

Inhalation Anthrax, Introduction, DRP, Armed Forces Institute of Pathology


Inhalation anthrax 2

Inhalation Anthrax (2)

  • Disease immediately follows germination.

  • Spores replicate in the lymph nodes.

  • The two lungs are separated by a structure called the mediastinum, which contains the heart, trachea, esophagus, and blood vessels.

  • Bacterial toxins released during replication result in mediastinal widening and pleural effusions (accumulation of fluid in the pleural space).

Inhalation Anthrax, Introduction, DRP, Armed Forces Institute of Pathology

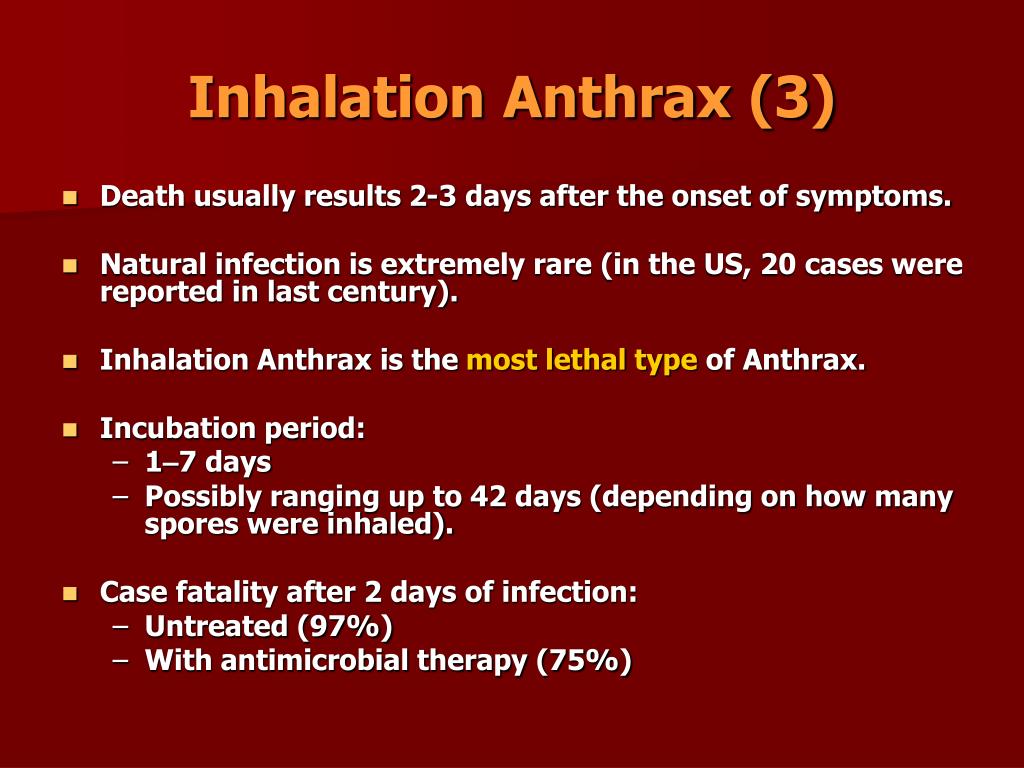

Inhalation anthrax 3

Inhalation Anthrax (3)

  • Death usually results 2-3 days after the onset of symptoms.

  • Natural infection is extremely rare (in the US, 20 cases were reported in last century).

  • Inhalation Anthrax is the most lethal type of Anthrax.

  • Incubation period:

    • 1–7 days

    • Possibly ranging up to 42 days (depending on how many spores were inhaled).

  • Case fatality after 2 days of infection:

    • Untreated (97%)

    • With antimicrobial therapy (75%)


Gastrointestinal anthrax

Gastrointestinal Anthrax

  • GI anthrax may follow after the consumption of contaminated, poorly cooked meat.

  • There are 2 different forms of GI anthrax:

    1) Oral-pharyngeal

    2) Abdominal

  • Abdominal anthrax is more common than the oral-pharyngeal form.

http://science.howstuffworks.com/anthrax1.htm

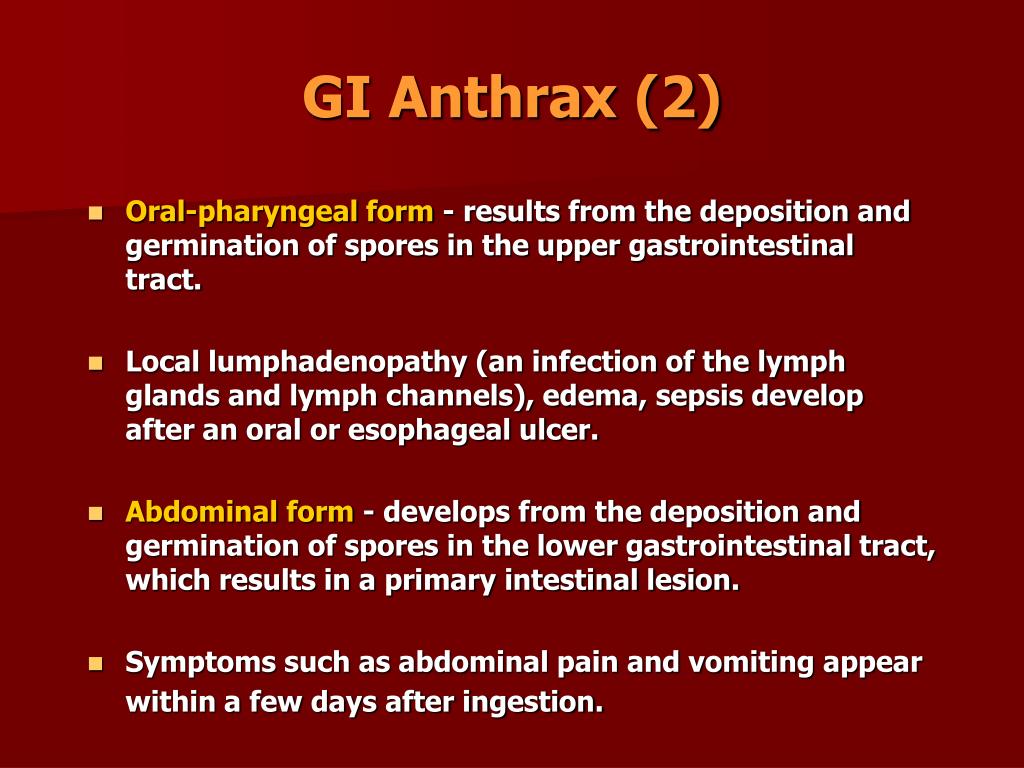

Gi anthrax 2

GI Anthrax (2)

  • Oral-pharyngeal form - results from the deposition and germination of spores in the upper gastrointestinal tract.

  • Local lumphadenopathy (an infection of the lymph glands and lymph channels), edema, sepsis develop after an oral or esophageal ulcer.

  • Abdominal form - develops from the deposition and germination of spores in the lower gastrointestinal tract, which results in a primary intestinal lesion.

  • Symptoms such as abdominal pain and vomiting appear within a few days after ingestion.

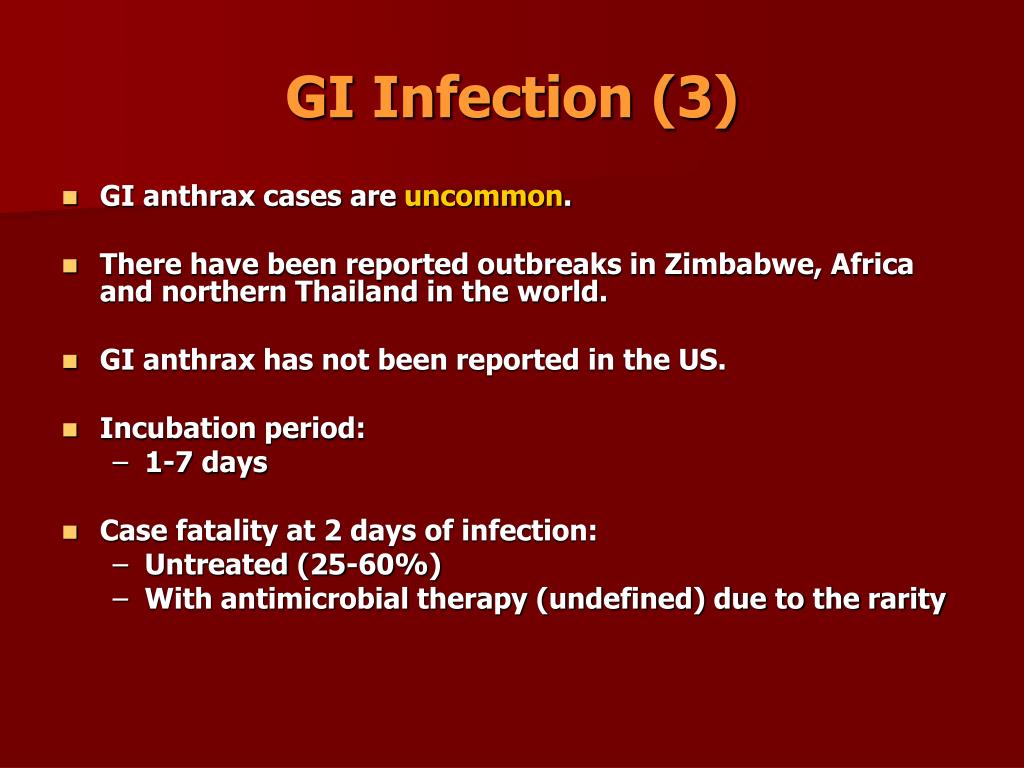

Gi infection 3

GI Infection (3)

  • GI anthrax cases are uncommon.

  • There have been reported outbreaks in Zimbabwe, Africa and northern Thailand in the world.

  • GI anthrax has not been reported in the US.

  • Incubation period:

    • 1-7 days

  • Case fatality at 2 days of infection:

    • Untreated (25-60%)

    • With antimicrobial therapy (undefined) due to the rarity


How is anthrax diagnosed

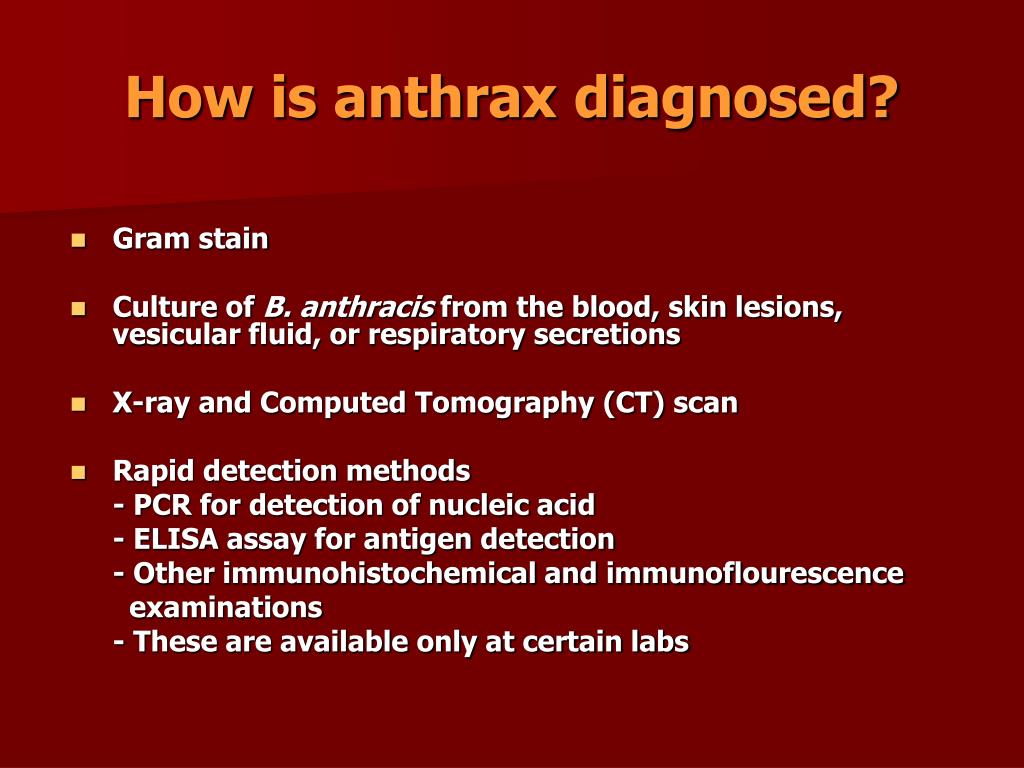

How is anthrax diagnosed?

  • Gram stain

  • Culture of B. anthracis from the blood, skin lesions, vesicular fluid, or respiratory secretions

  • X-ray and Computed Tomography (CT) scan

  • Rapid detection methods

    - PCR for detection of nucleic acid

    - ELISA assay for antigen detection

    - Other immunohistochemical and immunoflourescence

    examinations

    - These are available only at certain labs


Gram stain analysis

Gram Stain Analysis

  • Useful for cutaneous and inhalation anthrax.

  • A blood sample or skin lesion is taken from the patient and cultured for 6 to 24 hours.

  • Gram stain takes about 10 to 15 minutes.

  • Identify whether the bacteria come from the anthrax category.

Bacillus anthracis in Gram stain

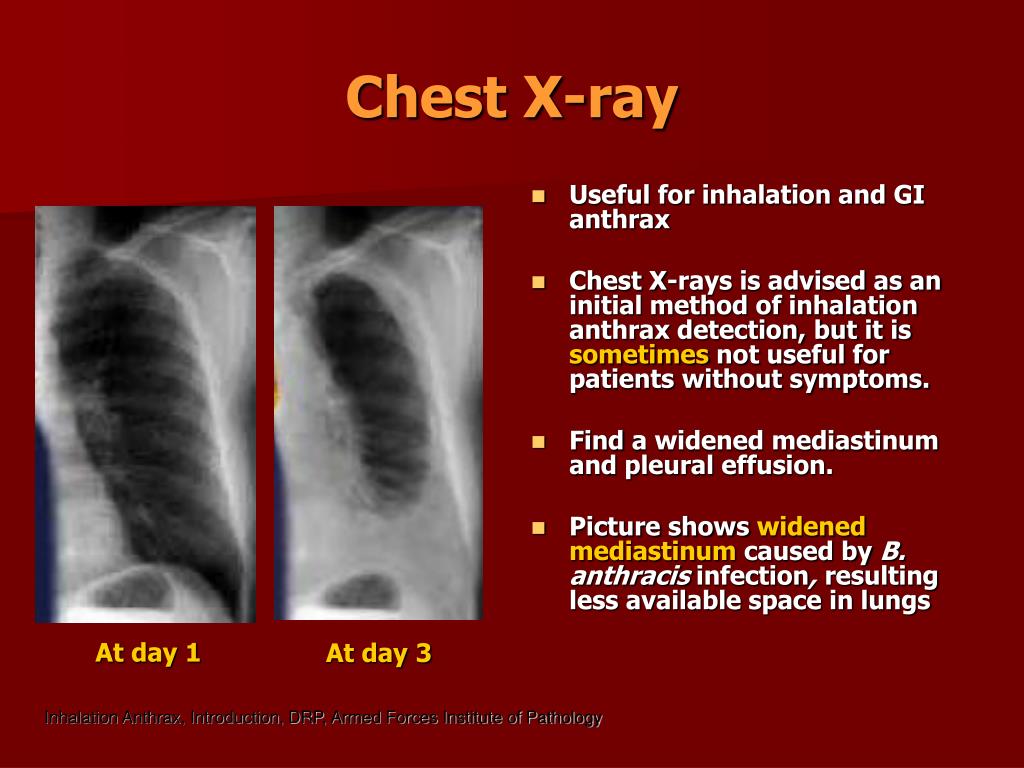

Chest x ray

Chest X-ray

  • Useful for inhalation and GI anthrax

  • Chest X-rays is advised as an initial method of inhalation anthrax detection, but it is sometimes not useful for patients without symptoms.

  • Find a widened mediastinum and pleural effusion.

  • Picture shows widened mediastinum caused by B. anthracis infection, resulting less available space in lungs

At day 1

At day 3

Inhalation Anthrax, Introduction, DRP, Armed Forces Institute of Pathology


Ct scan

CT scan

  • Useful for inhalation and GI anthrax

  • Even when X-rays are negative, CT scans may provide more precise information.

  • Chest CT (Right) shows the increase in the size of the pleural effusions (accumulation of fluid in the pleural space).

Inhalation Anthrax, Introduction, DRP, Armed Forces Institute of Pathology


Pcr assay

PCR Assay

  • PCR is a target amplification method of nucleic acid based B. anthracis detection.

  • Used for the detection of anthrax toxin genes.

    ex) rpoB gene - used as a specific chromosomal marker for

    RT-PCR detection.

  • The rpoB gene was sequenced from 36 Bacillus strains

  • The assay was specific for 144 Bacillus anthracis strains from different geographical locations.

  • Provided 100% sensitivity and specificity


Pcr assay 2

PCR Assay (2)

  • Detection time:

    - PCR only takes several hours

    ex) Rapid-cycle RT-PCR can be finished within 1-2 hours

  • Can start early treatment of Anthrax

  • There are many different types of PCR assays for the detection of Anthrax such as multiplex PCR, enterobacterial repetitive intergenic consensus-PCR (ERIC-PCR), and long-range repetitive element polymorphism-PCR.

  • Rapid diagnostic methods provide answers in minutes or hours instead of days.

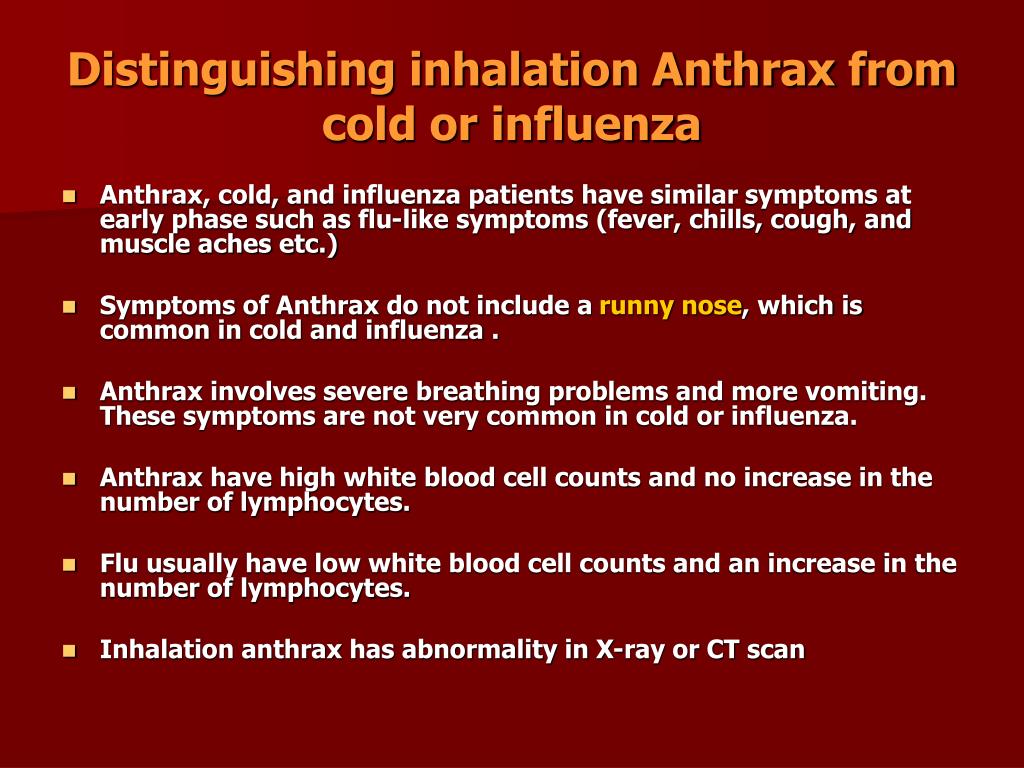

Distinguishing inhalation anthrax from cold or influenza

Distinguishing inhalation Anthrax from cold or influenza

  • Anthrax, cold, and influenza patients have similar symptoms at early phase such as flu-like symptoms (fever, chills, cough, and muscle aches etc.)

  • Symptoms of Anthrax do not include a runny nose, which is common in cold and influenza .

  • Anthrax involves severe breathing problems and more vomiting. These symptoms are not very common in cold or influenza.

  • Anthrax have high white blood cell counts and no increase in the number of lymphocytes.

  • Flu usually have low white blood cell counts and an increase in the number of lymphocytes.

  • Inhalation anthrax has abnormality in X-ray or CT scan


Treatment

Treatment

  • Before 2001, 1st line of treatment was penicillin G

    • Stopped for fear of genetically engineered resistant strains

  • 60 day course of antibiotics

  • Ciprofloxacin

    • fluoroquinolone

    • 500 mg tablet every 12h or 400 mg IV every 12h

    • Inhibits DNA synthesis

  • Doxycycline

    • 6-deoxy-tetracycline

    • 100 mg tablet every 12h or 100 mg IV every 12h

    • Inhibits protein synthesis

  • For inhalational, need another antimicrobial agent

    • clindamycin

    • rifampin

    • chloramphenico

http://nmhm.washingtondc.museum/news/anthrax.html


Vaccine

Vaccine

  • BioThrax/Anthrax vaccine absorbed

    • Made by Bioport

    • Route of exposure not important

  • Administered subcutaneously

    • .5mL at 0, 2, and 4 weeks, and at 6, 12, & 18 months, & booster doses at 1 yr intervals

  • PA from attenuated, nonencapsulated Sterne strain absorbed onto aluminum hydroxide

    • Contains no dead or live bacteria in the preparation

    • Antibodies to PA prevent binding to the target cell & confer protection from anthrax.

  • 95% of vaccinated Rhesus monkeys survived lethal doses of inhaled anthrax

  • A December 22, 2003 ruling temporarily halted the Department of Defense’s anthrax vaccination program

    • Lifting of that injunction on January 7, 2004

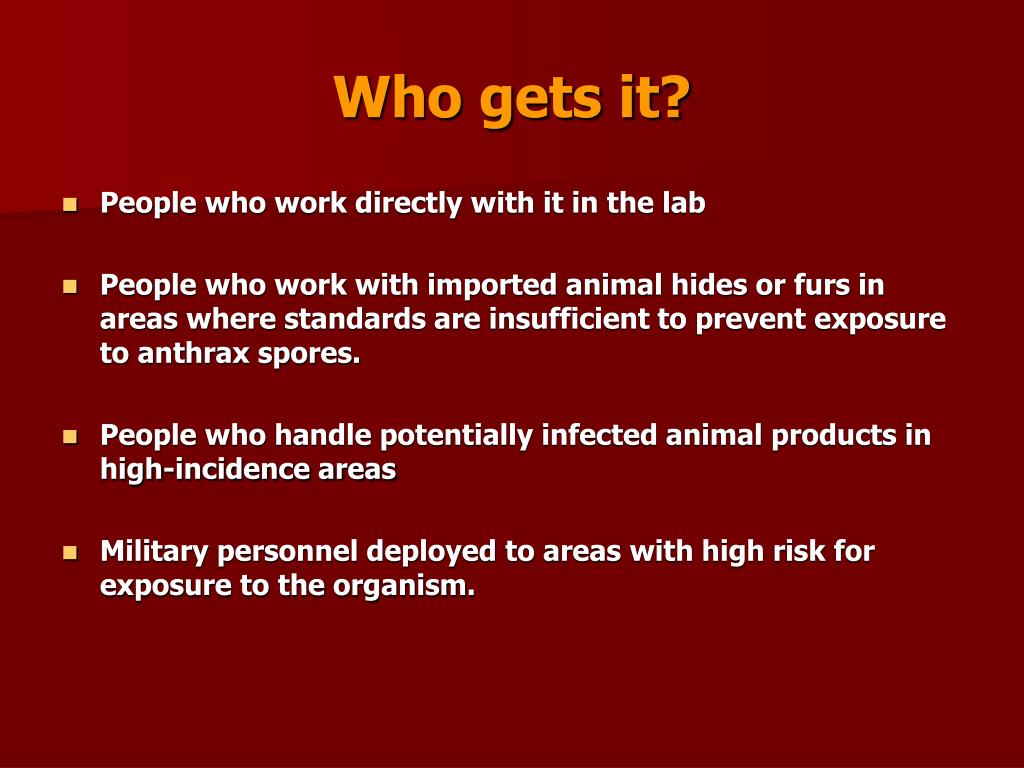

Who gets it

Who gets it?

  • People who work directly with it in the lab

  • People who work with imported animal hides or furs in areas where standards are insufficient to prevent exposure to anthrax spores.

  • People who handle potentially infected animal products in high-incidence areas

  • Military personnel deployed to areas with high risk for exposure to the organism.


Continuing research

Continuing research

  • Anthrax Immunity Gene in Mice

    • Kif1C

    • Four varieties (two resistant & two susceptible)

  • Hepatitis drug

    • Hepsera

    • Blocks the toxic edema factor

  • Monoclonal antibodies

    • ABthrax from Human Genome Science

    • Phase 1 clinical trials

    • Neutralizes protective antigen

  • Identify other strains for improved, faster diagnosis


Bacillus anthracis

Weaponization & Bacillus Anthracis:

Why is this Agent Considered to be the Department of Defense’s Number-One/Two Biological Threat?

A sample of anthrax bacteria at the National School of Biological Sciences, Mexico City


Why are biological agents attractive weapons

Why are Biological Agents Attractive Weapons?

  • GenerallyLess Expensive than Other WMD

    • The “Poor Man’s Nuke”

    • Equivalent lethal effect from nuclear weapon would cost approximately 800 times as much ($800 invested in NW for every $1 put toward BW)

  • Dual Use- Is the Biological Material a Vaccine or Weapon?

    • Same equipment often used to produce both legal vaccines/ pharmaceuticals and BW

    • Perpetrator can deny agents were intended for use as BW

    • Helps to lower cost of BW facility if also involved in legal activity

    • Staff of trained professionals likely always available


Why are biological agents attractive weapons 2

Why are Biological Agents Attractive Weapons? (2)

  • Silent, Unnoticeable Attacks

    • Bombs & bullets are loud and there effects often dramatic and widely evident - not the case with BW

    • BW can be tasteless, odorless, colorless and unnoticeable

    • Allows for more facile attacks on large populations

    • People could be inflicted and not immediately realize it - time lag


Why are biological agents attractive weapons 3

Why are Biological Agents Attractive Weapons? (3)

  • Plausible Deniability

    • State or terrorist group can easily deny deliverance

    • Proof difficult to come by - 2001 anthrax terrorists still not found & likely never will be (very little evidence)

    • DNA sequencing of biological agent and matching it with an agent in the assumed perpetrator’s possession likely the only way to locate attacker - even sequencing is speculative

VS.


Why are biological agents attractive weapons 4

Why are Biological Agents Attractive Weapons? (4)

  • Lengthy IncubationPeriod

    • Most weapons act immediately, not usually the case with BW

    • Various BW agents have incubation periods of 1-60 days on average

    • Can surprise opposition/victims and put them in “survival” mode rather than defense mode ==> greater vulnerability

    • No way of knowing where to heighten security, often impossible to trace BW origin


Specific benefits of using anthrax as a biological weapon

Specific Benefits of Using Anthrax as a Biological Weapon

  • Highly Lethal (Inhalational Anthrax)

    • Virtually 100% of exposed personnel will die from one breath of air with a high anthrax concentration (LD50 determined to be about 8,000-10,000 spores or .08-.5 micrograms)

    • Inhalation of about 1,000 spores (.01g) can cause pulmonary anthrax

    • 100,000 times deadlier than the deadliest chemical warfare agent

    • If treatment begins 48 hrs after symptoms, mortality still ~95%


Specific benefits of using anthrax as a biological weapon 2

Specific Benefits of Using Anthrax as a Biological Weapon (2)

  • Non-contagious

    • Eliminates concern of spread from one person to another (sheep different)

    • Allows for anthrax to be targeted at specific populations w/o worry

    • In contrast, Smallpox and pneumonic plague are communicable

  • Easy to Protect with Advance Preparation

    • Enemy could vaccinate troops prior to an attack and/or antibiotics could be provided in order to mitigate disease’s effects

    • Physical and psychological advantage for attacker - no harm in entering contaminated zone


Specific benefits of using anthrax as a biological weapon 3

Specific Benefits of Using Anthrax as a Biological Weapon (3)

  • Long Shelf Life

    • Anthrax spores decay at a rate of less than one tenth of a percent per minute (very slow for an organism)

    • During WW II, Britain detonated experimental anthrax bombs on Gruinard Island - anthrax spores remained viable in top 15-20cm of soil for ~40 yrs until fully decontaminated in 1986

  • Anthrax is Stable in Many Various Types of Weapons Systems

    • Withstands the turbulence experienced from being sprayed/detonated

    • Can be loaded in munitions (freeze-dried condition) , disseminated as an aerosol with crude sprayers or even packaged in milled or un-milled powder form (ex. envelopes through mail)


Specific benefits of using anthrax as a biological weapon 4

Specific Benefits of Using Anthrax as a Biological Weapon (4)

  • Short Incubation Period (Relative to Most Other BW)

    • Lag-time between attack and the first symptoms is only 1-6 days

    • Prediction of intended effect is much more facile to estimate

    • In contrast, bacterial agent brucellosis has an incubation of 5-60 days

  • UV Resistant

    • One of only two bacterial agents that is considered resistant to sunlight (the other being Coxiella)


Specific benefits of using anthrax as a biological weapon 5

Specific Benefits of Using Anthrax as a Biological Weapon (5)

  • Widely Available

    • Animal disease - soil samples from all over the world contain anthrax

    • Approx. 1500 microbiologic repositories across the globe sell cultures to laboratories, vaccine companies and other entities (diagnostic/treatment)

  • Facile to Produce in Basic Form

    • Knowledge/technology available in open market with few controls

    • Cost is low (approximately $50 per kilogram in basic from)

    • One test tube of feed stock (samples of anthrax) in a fermenter can produce a kg of anthrax in about 96 hours

    • Any country with basic healthcare/pharmaceutical industry can produce


Specific benefits of using anthrax as a biological weapon 6

Specific Benefits of Using Anthrax as a Biological Weapon (6)

  • Spores Naturally Occurring at 1-5 m

    • Optimal size for BW agent b/c it is right diameter to get to the bottom of the alveoli in the lungs - if too big, spores will stick to top of lung and will likely get blown back out

  • Anthrax Dangerous as Both a Powder and Liquid

    • Enhances perpetrator’s delivery options

  • Only Need a Small Amount for a Mass Effect

    • 1,763 lbs of nerve gas sarin, .2 lbs of Type A botulinum toxin or only .02 lbs of anthrax spores produce the same lethal effect


Locating the threat of anthrax who has weapons

Locating the Threat of Anthrax: Who Has Weapons?

  • Exact # of Countries & Terrorist Groups Unknown

    • Intuitively, it would seem that any country/terrorist group that has an offensive BW program also has anthrax

    • Any country/terrorist group with biotech/pharmaceutical corporations and/or facilities could easily make anthrax

    • United States and Russia are only countries confirmed to currently be in possession of weaponized anthrax

    • Many other nations and terrorist groups believed to have anthrax


Locating the threat of anthrax who has weapons 2

Locating the Threat of Anthrax: Who Has Weapons? (2)

  • Determining the Most Significant Threats

    • US Department of Defense: “More than seven countries including Iraq, Iran, Syria & Russia have or are suspected of developing (anthrax) biological warfare capability”1

    • US, Britain, Iraq, Germany, the USSR, Japan, South Africa & Aum Shinrikyo (Japanese terrorist group) have used/tested anthrax as a weapon in the past - what state/group was responsible for 2001 attacks?

    • US Department of State has identified seven states as sponsors of international terrorism: Iran, Iraq, Syria, Libya, Cuba, Sudan & North Korea

1 - “DoD Response to the Staff Report of the House Government Reform’s Subcommittee on National Security,” 1, 2; and “Information about the Anthrax Vaccine,” 2.


Locating the threat of anthrax who has weapons 3

Locating the Threat of Anthrax: Who Has Weapons? (3)

  • Determining the Most Significant Threats (continued)

    • Secretary of the Air Force F. Whitten Peters to Senate Armed Services Committee on 07/21/99: “[Anthrax] has been weapon-ized and we know it is deployed in about 10 countries around the world.”1

    • During the 1980s, some of the Soviet Union’s intercontinental ballistic missiles (ICBM) reportedly were loaded with “cocktails” of BW agents (including anthrax) and targeted at major US cities (One ICBM could carry enough anthrax to wipe out the population of NYC). 2

1 - Peter Grier, “Up in the Air about Anthrax,”Air Force Magazine 82, no. 10 (October 1999): 68–71.

2 - Atlas, 160; and Raymond A. Zilinskas, “Verifying Compliance to the Biological and Toxin Weapons Convention,”Critical Issues in Microbiology 24, no. 3 (1998): 195–218.


Locating the threat of anthrax who has weapons 4

Locating the Threat of Anthrax: Who Has Weapons? (4)

  • Determining the Most Significant Threats (continued)

    • 1991/92 UN Special Commission (UNSCOM) inspection: Iraq definitely has BW, including anthrax

    • In 1995, Lt General Hussein Kamal (Saddam's Son-in-law & former head of Iraqi BW program) told UN that:

      • Iraq indeed had large stores of weaponizable anthrax and many weapons loaded with anthrax (bombs, Scuds, Al Hussayn warheads, 122 mm rockets, artillery shells, spray tanks for fighters and remotely piloted aircraft) 1

    • Iraq was able to hide much of its BW program in spite of the intense UNSCOM inspections - could other countries as well?

1 - Zilinskas, “Verifying Compliance,” 195–218; and Rolf Ekéus, “UN biological Inspections in Iraq,” in The New Terror: Facing the Threat of Biological and Chemical Weapons, 246–47.


Bacillus anthracis

Locating the Threat of Anthrax: Who Has Weapons? (5)

BW Programs by Country & Sources of Information

Country ACDA DOD FIS DOD Open Sources

( 1995-97) (1996-98) (1993) (1988-90) (Pre-1993)

Bulgaria    X

ChinaXX XX

Cuba X  X

EgyptX X X

India  X

IranXXXXX

IraqXXXXX

Israel  X X

Laos    X

LibyaXXXXX

North Korea XXXX

Russia/Soviet UnionXX XX

South Africa    X

SyriaXX XX

TaiwanX  XX

Vietnam    X

ACDA = Arms Control & Disarmament Agency DOD = Department of Defense FIS = Foreign Intelligence Service of the Russian Federation Source: W. Seth Carus, “Biological Warfare Threats in Perspective,” Critical Issues in Microbiology 24, no. 3 (1998): 154.


Weaponizing anthrax how is it made

Weaponizing Anthrax: How is it made?

  • What Type of Anthrax to Use?

    • Inhalational (lungs)

      • Incredibly Lethal (untreated death rate >90%)

      • Facile attack methods (silent, flu-like, spray dispersible, etc.)

    • Cutaneous (skin)

      • Not near as lethal (untreated death rate ~20%)

      • More difficult to administer (need cut or abrasion)

    • Gastrointestinal (intestines)

      • Somewhat lethal (untreated death rate ~25-60%)

      • More difficult to administer (one has to consume anthrax)

  • Best Type of Anthrax for Use as Weapon: INHALATIONAL


Weaponizing anthrax how is it made 2

Weaponizing Anthrax: How is it made? (2)

  • Simplistic Approach:

    • Grow bacteria culture (germination => vegetation, in vitro @37º C)

    • Allow bacteria to sporulate, separate by filtration or centrifugation

    • Weaponize - what type of dispersal?

      • Wet dispersal

        • Spray liquid solution (droplets) over enemy

      • Dry dispersal

        • Dry with drying agent (ex. Magnesium Sulfate) = powder

        • Aerosolize and spray over targeted population

        • Disperse in mail or by some other means

  • But is it this easy? Answer: NO


Weaponizing anthrax how is it made 3

Weaponizing Anthrax: How is it made? (3)

  • Wet Dispersal

    • Very difficult to formulate for effective use

      • When solution is sprayed, droplets tend to be large (ex. Windex forms droplets ~100m in size)

      • Droplets do not stay in air for long

      • Would need jet aircraft flying at 600mph or special high pressure sprayers that cost ~$100,000 and would have to be mounted on a truck

      • Not practical

  • Solution: Use Dry Powder


Weaponizing anthrax how is it made 4

Weaponizing Anthrax: How is it made? (4)

  • Dry Dispersal

    • More facile, but not necessarily a walk in the park…

      • After spore formation & filtration/centrifugation, spores & remaining cells will form sticky paste (consistency of peanut butter)

      • Paste dried down ==> forms brick (or freeze dried)

      • Brick needs to be ground into fine (1 m) powder ==> spores will have surface charge ==> clumping

      • Need to neutralize “static cling” (similar to putting a sheet of Bounce in dryer)


Weaponizing anthrax how is it made 5

Weaponizing Anthrax: How is it made? (5)

  • Neutralizing “Static Cling” of Spores

    • Exact formulations and recipes are classified

      • Basic approach is to coat spores with a fine silica or alumina clay (Iraqi’s use the chemical Bentonite)

      • Spores no longer clump, actually want to stay apart, repel each other ==> do not stick to surfaces

      • Without surface charges, spores can easily re-aerosolize after coming in contact with objects/ground

      • Treated area can be infectious for a long time after dispersal (Increases danger and lethality of BW)


Weaponizing anthrax how is it made 6

Weaponizing Anthrax: How is it made? (6)

  • How to Aerosolize?

    • Once anthrax is weapons-grade (appropriate size and w/o surface charges), can simply be dispersed by basic spray methods (such as a crop-duster plane)


The true danger possible effects anthrax attack

The True Danger: Possible Effects Anthrax Attack

  • World Health Organization (WHO)

    • Estimates that 250,000 people would develop disease and 100,000 would die if 50kg of aerosolized anthrax was released from an aircraft over a developed urban population of five million (w/o treatment).1

  • US Congressional Office of Technology Assessment

    • Estimates that between 130,000 and 3 million deaths could follow the aerosolized release of 100 kg of anthrax spores upwind of the Washington, DC, area—lethality matching or exceeding that of a hydrogen bomb.2

1 - World Health Organization. Health Aspects of Chemical and Biological Weapons. Geneva, Switzerland: World Health Organization; 1970:98-99.

2 - Office of Technology Assessment, US Congress. Proliferation of Weapons of Mass Destruction. Washington, DC: US Government Printing Office; 1993:53-55. Publication OTA-ISC-559.


The true danger possible effects anthrax attack 2

The True Danger: Possible Effects Anthrax Attack (2)

  • Centers for Disease Control and Prevention (CDC)

    • Produced an economic model that suggested a cost of $26.2 billion per 100,000 persons exposed to inhalational anthrax 1

  • Decontamination of Gruinard Island in the UK

    • Decontamination took place from 1979 to 1987

    • Total cost is unpublished (assumed to be ~500,000 British pounds), but materials required included 280 tons of formaldehyde & 2000 tons of seawater 2

    • Decontamination of buildings/other areas equally as costly/difficult

1 - Kaufmann AF, Meltzer MI, Schmid GP. The economic impact of a bioterrorist attack. Emerg Infect Dis. 1997;3:83-94.

2 - Titball RW, Turnbull PC, Hutson RA. The monitoring and detection of Bacillus anthracis in the environment. J Appl Bacteriol. 1991;70(suppl):9S-18S.


Bacillus anthracis

The True Danger: Possible Effects Anthrax Attack (3)

  • Sverdlovsk Accident (Russia BW Plant)

    - New cases of inhalational anthrax developed as late as 43 days after the presumed date of release (lengthy period of lethality)

    Guillermin J. Anthrax: The Investigation of a Lethal Outbreak. Berkeley: University of California Press. In press.


Bacillus anthracis

The True Danger: Possible Effects Anthrax Attack (4)

Peters, C.J., D.M. Hartley. Anthrax Inhalation and Lethal Human Infection. Lancet. 359 (9307): 710-711.


Analysis of the 2001 us anthrax attacks

Analysis of the 2001 US Anthrax Attacks

  • Period From 10/02/01 - 11/20/01

    • 22 cases of anthrax infection, 11 inhalational (all confirmed) and 11 cutaneous (4 suspected & 7 confirmed)

    • 7 states : CT(1), FL(2), MD(3), NJ(5), NYC(8), PA(1) & VA(2)

    • 5 of 11 inhalational infections resulted in death (~45% mortality rate)

    • All persons received immediate treatment upon onset of symptoms

    • Mean duration between exposure and onset of symptoms: 4.5 days (estimate)


Bacillus anthracis

Analysis of the 2001 US Anthrax Attacks (2)

  • Above anthrax-containing envelopes postmarked September 18th, 2001

  • Above anthrax-containing envelopes postmarked October 9, 2001

*Also believed to be three or more other envelopes that were never found


Bacillus anthracis

Analysis of the 2001 US Anthrax Attacks (3)

http://www.anthraxinvestigation.com/


Analysis of the 2001 us anthrax attacks 4

Analysis of the 2001 US Anthrax Attacks (4)

  • Anthrax in Envelopes

    • Concentration of about 1 trillion spores per gram

    • 2 grams anthrax per envelope

    • Each letter contained ~200 million times average LD50

    • All anthrax was unmilled, contained a certain type of silica to reduce electrostatic charges and was of the Ames strain

    • all characteristic of US weapons-grade anthrax


Analysis of the 2001 us anthrax attacks 5

Analysis of the 2001 US Anthrax Attacks (5)

  • Anthrax Found at American Media Inc. Building (Florida)

    • No letters found, but anthrax isolated in 90 different locations in the building

    • Estimated cost of cleanup: $7 million

  • Anthrax Found at Hart Senate Office (Washington D.C.)

    • 628 persons tested for bacillus anthracis, 28 found positive

    • Cleanup took three months and cost an estimated $23 million (with chlorine dioxide liquid)

  • 4 Envelopes Processed at Two Facilities - NYC & Trenton

    • Both facilities tested positive for bacillus anthracis as well as at least 5 other facilities associated with Trenton facility


Analysis of the 2001 us anthrax attacks 6

Analysis of the 2001 US Anthrax Attacks (6)

  • What Did These Attacks Exemplify?

    • Lethality of anthrax: 5 of 11 inhalatory victims died (though provided with best possible treatment), less than 2 grams of anthrax per envelope

    • Facile spread of weaponized anthrax: 7 states affected and only 4 letters found, rapid spread in buildings

    • Long shelf-life of anthrax: some people in NYC were affected weeks after others (varying incubation periods?)

    • Incredibly high cost of clean-up/decontamination: millions of $

    • Difficulty of finding perpetrator: still not found, likely never will be


Analysis of the 2001 us anthrax attacks 7

Analysis of the 2001 US Anthrax Attacks (7)

  • Concerns Resulting from 2001 Attacks

    • What would have happened if more people were affected? Would the mortality rate have been higher?

    • Who created this weapons-grade anthrax? Terrorist group thought to be unlikely, but then what state sponsor? Did US lab employee(s) or government official(s) lend a hand to perpetrators?

    • How can the US prevent other similar attacks?

    • What would have happened if anthrax would have been aerosolized?


Defense protection against anthrax

Defense: Protection Against Anthrax

  • Vaccination

    • Very Effective: 2 dose efficacy against up to 1,000 LD50 in monkeys (human response believed to be very similar)

  • Early Detection

    • Extremely important: How can the US learn about an anthrax attack before the appearance of symptoms? (would eliminate much of danger)

    • Time lag between exposure and symptoms is primary reason for the high mortality rate experienced with anthrax infections

    • A device similar to a smoke alarm or carbon monoxide detector?

    • Currently nothing on the market that could serve such a purpose, little research in this particular area


Defense protection against anthrax 2

Defense: Protection Against Anthrax (2)

  • Air Cleansers/Filters

    • Simply a reduction of risk, by no means an elimination

    • Appropriate for mailrooms, wool-sorting facilities, etc.

  • Irradiation of Susceptible Materials

    • Virtually eliminates threat of anthrax in mail

    • But is it worth it? Do the disadvantages outweigh the benefits?

    • Important Question: To what point are we willing to protect ourselves from anthrax threat? What are we willing to sacrifice?


Defense protection against anthrax 3

Defense: Protection Against Anthrax (3)

  • Pre/Post Exposure Antibiotic Treatment

    • Isolates from the 2001 US attacks were sensitive to fluoroquinolones

    • Quite effective in mitigating effects of anthrax if caught at early stage

  • Decontamination of Exposed Areas

    • Often costly & timely, but can be done rather successfully (using liquid chlorine dioxide or some other disinfectant)

  • Use of Protective Clothing & Equipment

    • US military M17 & M40 gas masks provide good protection against 1-5 m particles (cost ~$325)

    • Protective suits can be worn to easily eliminate cutaneous threat


Defense protection against anthrax 4

Defense: Protection Against Anthrax (4)

  • Only Reactionary, Post-Exposure Protection Methods Exist!

    • Besides vaccination/antibiotic treatment, there is no other preventative methods of protecting against anthrax

    • Most methods of protection are reactionary, this doesn’t help to solve the main problem: anthrax infections need to be determined earlier, before onset of symptoms

    • How can we currently protect ourselves from a massive bioterrorist attack? How can we make it more facile to distinguish btw. common maladies and anthrax?

  • PRIMARY OBJECTIVE: NEED DEVICE/METHOD THAT WILL HELP TO PROTECT LARGE POPULATION FROM LARGE-SCALE ANTHRAX ATTACK


Anthrax why it may not be as big of a threat as people think

Anthrax: Why it May Not be as Big of a Threat as People Think

  • LD50 for Anthrax is Quite High

    • Smallpox: 10-100 organisms, Q Fever: 1-10organisms, etc.

  • Very Difficult to Weaponize (Need State/Gov’t Support)

    • Aum Shinrikyo has failed to aerosolize anthrax on several occasions

    • Need sufficient nanotechnology engineering to be able to keep spores from clumping and sticking to surfaces (Army scientists could not weaponize anthrax when given the equipment a BW terrorist would likely have in his/her home)

  • Even if have Technology, Weapons-Grade Anthrax Very Costly

    • Only US & Russia known to definitely have weaponized anthrax, large-scale production requires multi-million dollar investment


Anthrax why it may not be as big of a threat as people think 2

Anthrax: Why it May Not be as Big of a Threat as People Think (2)

  • Anthrax Strains are Highly Specific

    • Only certain strains are effective against humans, some are harmless

  • Lengthy Incubation

    • While this is also an advantage, it can serve as a disadvantage

    • Don’t immediately know if weapon has “struck target”

  • Difficult to Use Anthrax Against Precise Targets

    • 2001 US attacks: directed against high-status people, never reached targets

    • Aerosolization is most deadly, but also the most difficult to direct as a result of environmental conditions


Bacillus anthracis

Anthrax vs. Other BW Agents: Brief Overview

www.nbc-med.org/SiteContent/HomePage/ WhatsNew/MedManual/Feb01/AppxC.doc -


Bacillus anthracis

  • http://www.sumanasinc.com/webcontent/anisamples/ani_anthrax.html

  • http://www.bt.cdc.gov/training/historyofbt/index.asp


  • Login
