GeoRSS. Mikel Maron mikel_maron@yahoo.com Where 2.0 2006. not a complicated tech ¡an agreement! we want to share place. GeoRSS?. RSS?. “the unix pipe of the internet”. In the Wilds. georss.org. Attributes. elev floor radius featuretypetag relationshiptag. GML and Simple.

virginia-guerrero
Download Presentation

GeoRSS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GeoRSS, Mikel Maron, Where 2.0 GeoRSS Mikel Maron mikel_maron@yahoo.com Where 2.0 2006

  2. not a complicated tech ¡an agreement! we want to share place GeoRSS? GeoRSS, Mikel Maron, Where 2.0

  3. GeoRSS, Mikel Maron, Where 2.0 RSS? “the unix pipe of the internet”

  4. GeoRSS, Mikel Maron, Where 2.0 In the Wilds

  5. GeoRSS, Mikel Maron, Where 2.0 georss.org

  6. GeoRSS, Mikel Maron, Where 2.0

  7. GeoRSS, Mikel Maron, Where 2.0 Attributes elev floor radius featuretypetag relationshiptag

  8. GeoRSS, Mikel Maron, Where 2.0 GML and Simple <georss:where> <gml:Point> <gml:pos>45.256 -71.92</gml:pos> </gml:Point> </georss:where> <georss:point>45.256 -71.92</georss:point>

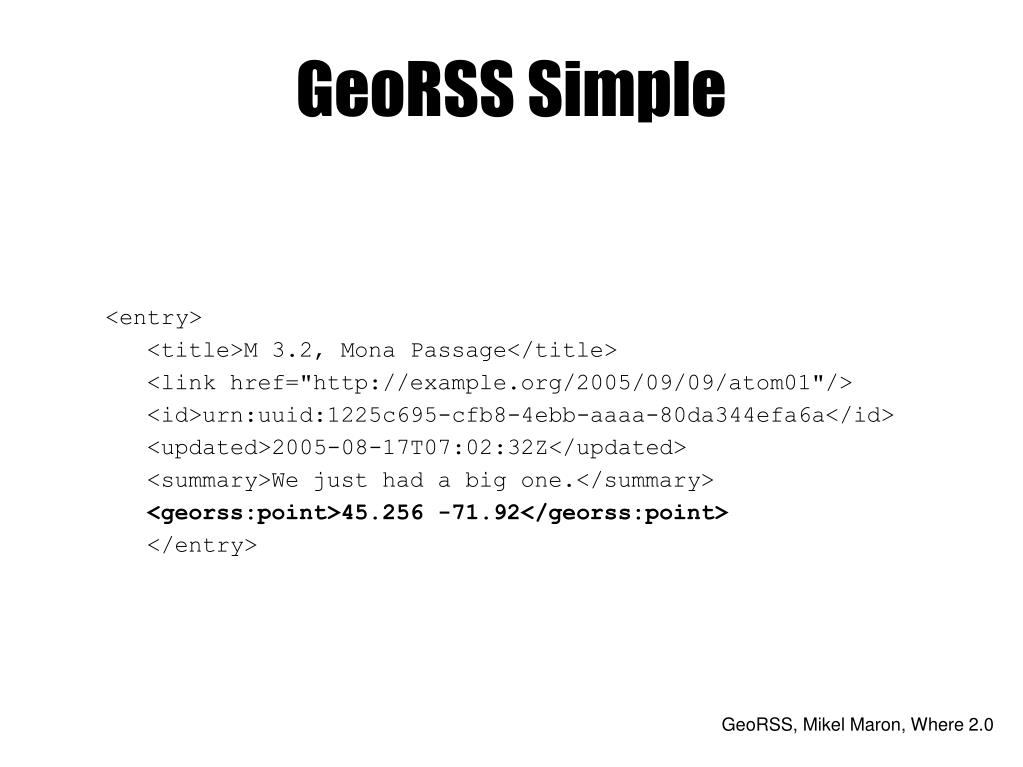

  9. GeoRSS, Mikel Maron, Where 2.0 GeoRSS Simple <entry> <title>M 3.2, Mona Passage</title> <link href="http://example.org/2005/09/09/atom01"/> <id>urn:uuid:1225c695-cfb8-4ebb-aaaa-80da344efa6a</id> <updated>2005-08-17T07:02:32Z</updated> <summary>We just had a big one.</summary> <georss:point>45.256 -71.92</georss:point> </entry>

  10. GeoRSS, Mikel Maron, Where 2.0 Simple Line, Polygon, Box <georss:line> 45.256 -110.45 46.46 -109.48 43.84 -109.86 </georss:line> <georss:polygon> 45.256 -110.45 46.46 -109.48 43.84 -109.86 45.256 -110.45 </georss:polygon> <georss:box>42.943 -71.032 43.039 -69.856</georss:box>

  11. GeoRSS, Mikel Maron, Where 2.0 GeoRSS GML Point <entry> <title>M 3.2, Mona Passage</title> <link href="http://example.org/2005/09/09/atom01"/> <id>urn:uuid:1225c695-cfb8-4ebb-aaaa-80da344efa6a</id> <updated>2005-08-17T07:02:32Z</updated> <summary>We just had a big one.</summary> <georss:where> <gml:Point> <gml:pos>45.256 -71.92</gml:pos> </gml:Point> </georss:where> </entry>

  12. GeoRSS, Mikel Maron, Where 2.0 GML Line, Polygon, Box <georss:where> <gml:LineString> <gml:posList> 45.256 -110.45 46.46 -109.48 43.84 -109.86 </gml:posList> </gml:LineString> </georss:where> <georss:where> <gml:Polygon> <gml:exterior> <gml:LinearRing> <gml:posList> 45.256 -110.45 46.46 -109.48 43.84 -109.86 45.256 -110.45 </gml:posList> </gml:LinearRing> </gml:exterior> </gml:Polygon> </georss:where> <georss:where> <gml:Envelope> <gml:lowerCorner>42.943 -71.032</gml:lowerCorner> <gml:upperCorner>43.039 -69.856</gml:upperCorner> </gml:Envelope> </georss:where>

  13. GeoRSS, Mikel Maron, Where 2.0 Feed Format Neutral RSS1.0 / RDF / RSS 2.0 / Atom / Microformat Simple / GML / W3C

  14. GeoRSS, Mikel Maron, Where 2.0 What can you do with it?

  15. GeoRSS, Mikel Maron, Where 2.0 USGS Earthquake GeoRSS feed

  16. GeoRSS, Mikel Maron, Where 2.0 EC JRC Tsunami Simulator

  17. GeoRSS, Mikel Maron, Where 2.0 GDACS

  18. <item> <title>Sample Image</title> <media:content src="http://sample.com/map.jpg" type="image/jpg" /> <georss:box relationshiptag="image-extent"> 30 110 45 115 </georss:box> </item> GeoRSS, Mikel Maron, Where 2.0 MapAction Map Catalogues

  19. GeoRSS, Mikel Maron, Where 2.0 Scattershot of Potentials • Monitoring Geographic Wikis • Mobile • Sensors • GIS Time Navigation • Tear down the walls

  20. GeoRSS, Mikel Maron, Where 2.0 Support ... as of 11:30 am

  21. GeoRSS, Mikel Maron, Where 2.0 Yahoo! Maps API -- Upcoming -- Weather -- Traffic ...

  22. GeoRSS, Mikel Maron, Where 2.0 Microsoft Version 3 of the Virtual Earth Map Control

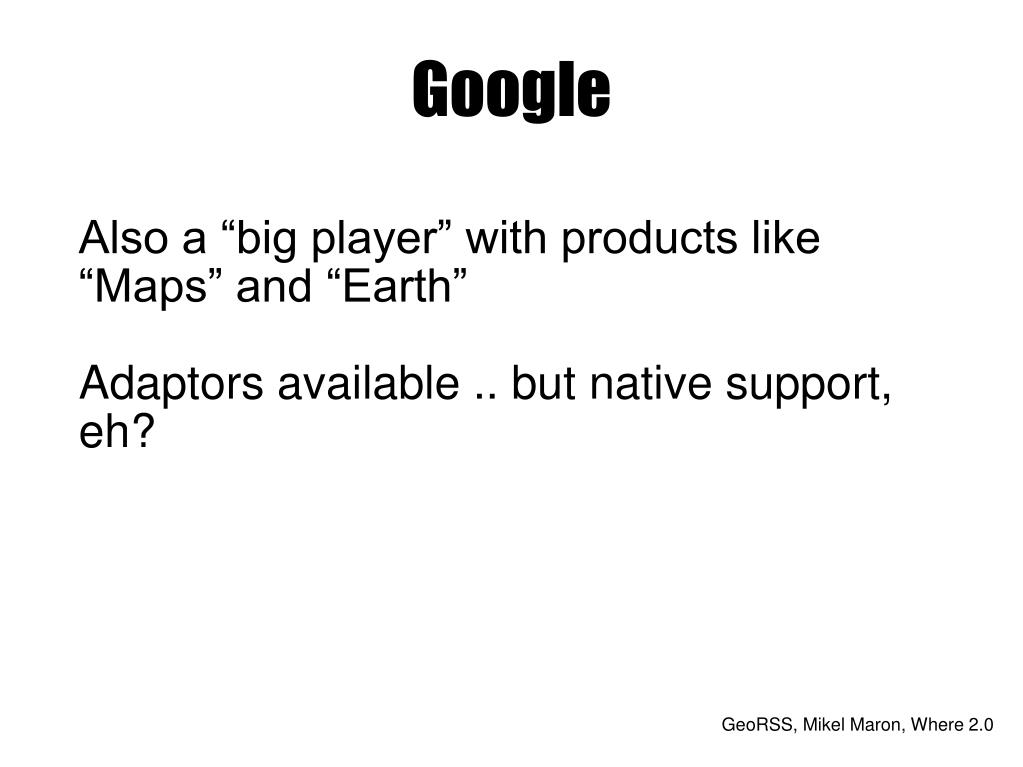

  23. GeoRSS, Mikel Maron, Where 2.0 Google Also a “big player” with products like “Maps” and “Earth” Adaptors available .. but native support, eh?

  24. GeoRSS, Mikel Maron, Where 2.0 Consistent, full support of GeoRSS across all major mapping APIs

  25. GeoRSS, Mikel Maron, Where 2.0 Commercial Support • Ning • CadCorp • Platial • Tagzania

  26. GeoRSS, Mikel Maron, Where 2.0 Open Source Support • clients: MapBuilder, OpenLayers, worldKit • libraries/code: Mapstraction, SPARQL geo extensions, Java Rome • WorldWind (in discussion) • GeoServer • FoFRedux

  27. GeoRSS, Mikel Maron, Where 2.0 Aggregation! placedb.org/ fofredux.sourcefourge.net/ exploreourpla.net/ mylocalguru.com/ blockrocker.com/ jeffpalm.com/geo/ mapufacture.com/

  28. GeoRSS, Mikel Maron, Where 2.0 mapufacture

  29. GeoRSS, Mikel Maron, Where 2.0 little weather map

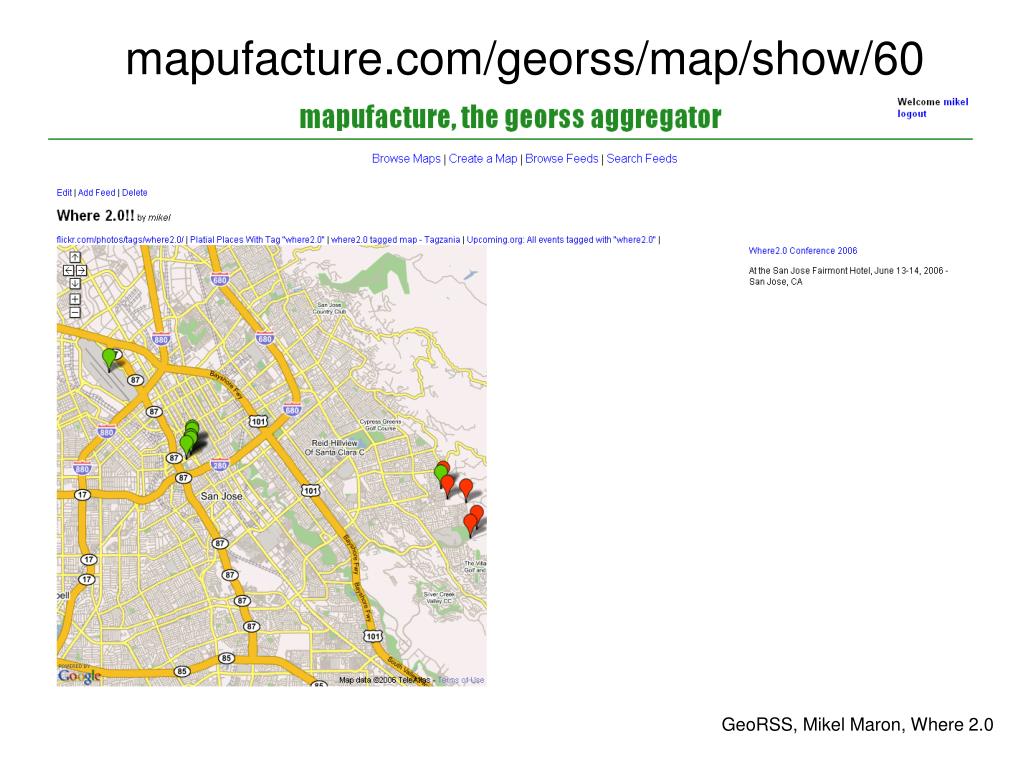

  30. GeoRSS, Mikel Maron, Where 2.0 mapufacture.com/georss/map/show/60

  31. GeoRSS, Mikel Maron, Where 2.0 geographic feed search

  32. GeoRSS, Mikel Maron, Where 2.0 GeoRSS export

  33. GeoRSS, Mikel Maron, Where 2.0 Thanks! brainoff.com/media/georss-where.ppt brainoff.com/weblog/
