  1. MICRO-BIT TECHNOLOGY, INC. MP200 Presentation

  2. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Delay Micro-Bit MP200 PresentationOverview

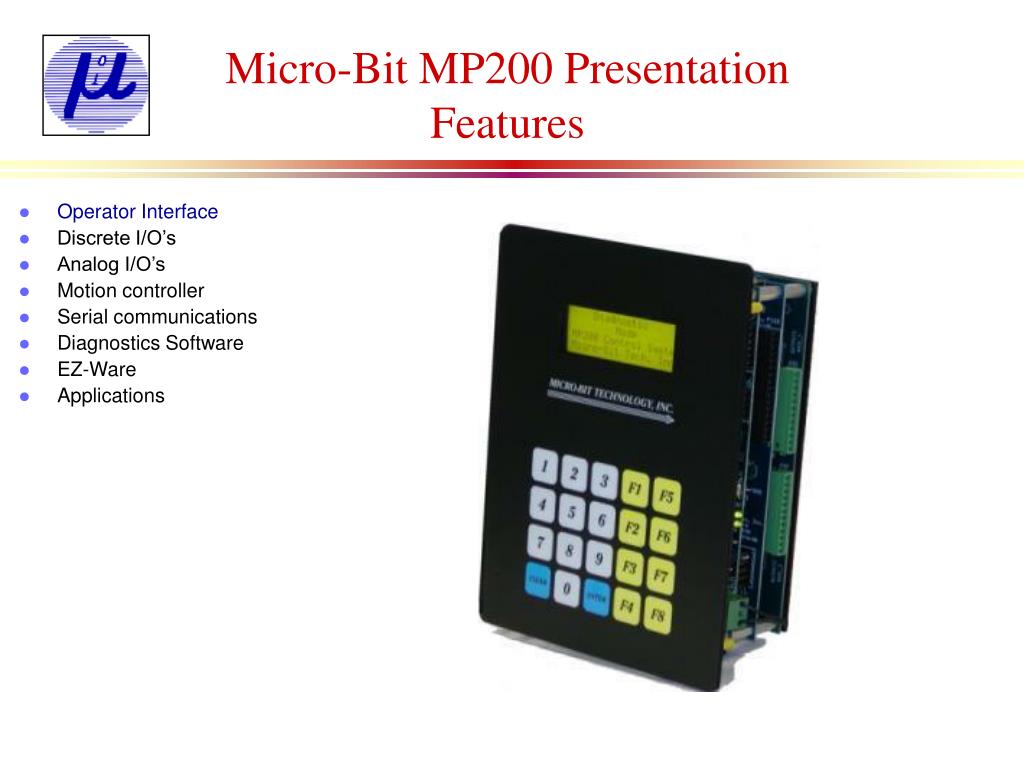

  3. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationFeatures

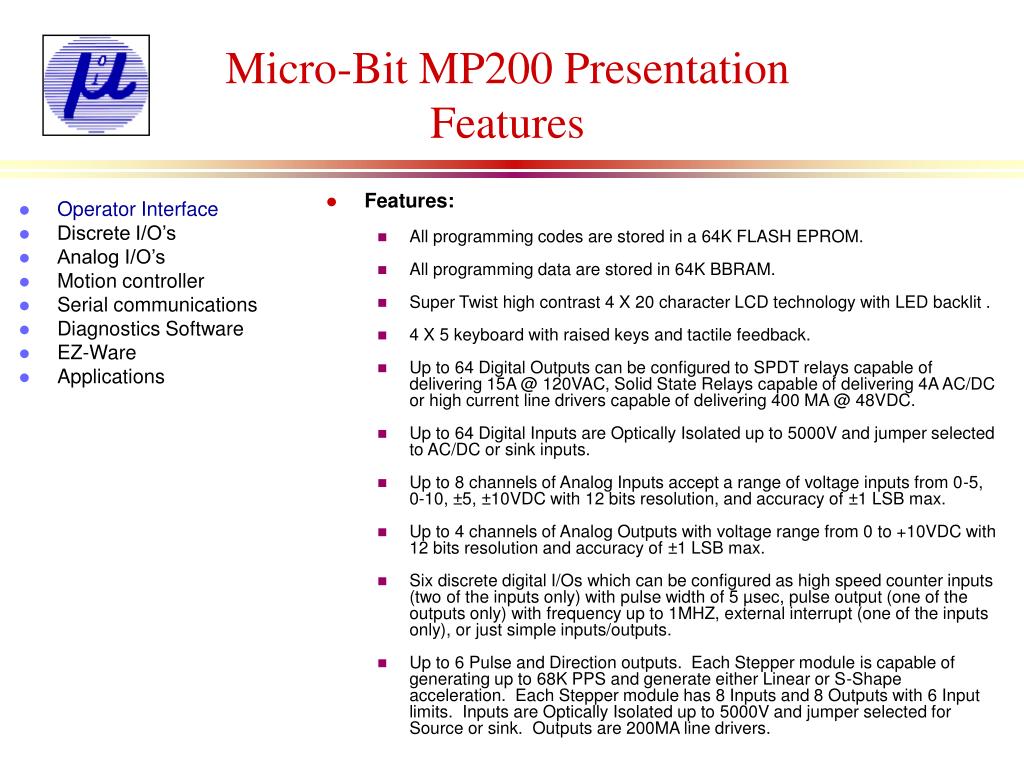

  4. Features: All programming codes are stored in a 64K FLASH EPROM. All programming data are stored in 64K BBRAM. Super Twist high contrast 4 X 20 character LCD technology with LED backlit . 4 X 5 keyboard with raised keys and tactile feedback. Up to 64 Digital Outputs can be configured to SPDT relays capable of delivering 15A @ 120VAC, Solid State Relays capable of delivering 4A AC/DC or high current line drivers capable of delivering 400 MA @ 48VDC. Up to 64 Digital Inputs are Optically Isolated up to 5000V and jumper selected to AC/DC or sink inputs. Up to 8 channels of Analog Inputs accept a range of voltage inputs from 0-5, 0-10, ±5, ±10VDC with 12 bits resolution, and accuracy of ±1 LSB max. Up to 4 channels of Analog Outputs with voltage range from 0 to +10VDC with 12 bits resolution and accuracy of ±1 LSB max. Six discrete digital I/Os which can be configured as high speed counter inputs (two of the inputs only) with pulse width of 5 µsec, pulse output (one of the outputs only) with frequency up to 1MHZ, external interrupt (one of the inputs only), or just simple inputs/outputs. Up to 6 Pulse and Direction outputs. Each Stepper module is capable of generating up to 68K PPS and generate either Linear or S-Shape acceleration. Each Stepper module has 8 Inputs and 8 Outputs with 6 Input limits. Inputs are Optically Isolated up to 5000V and jumper selected for Source or sink. Outputs are 200MA line drivers. Delay Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationFeatures

  5. Digital Inputs Optically Isolated inputs Can be used as DC or AC Can be used as NPN or PNP type Jumper settings allow the customer to set an input independent of others LED indicators 8 per board Digital Outputs Mechanical or solid state relay type outputs 15 Amp rating Line driver outputs LED indicators 8 per board Delay Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationDigital I/O’s

  6. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationDigital Input Examples Delay

  7. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationHigh Speed Input Example Delay

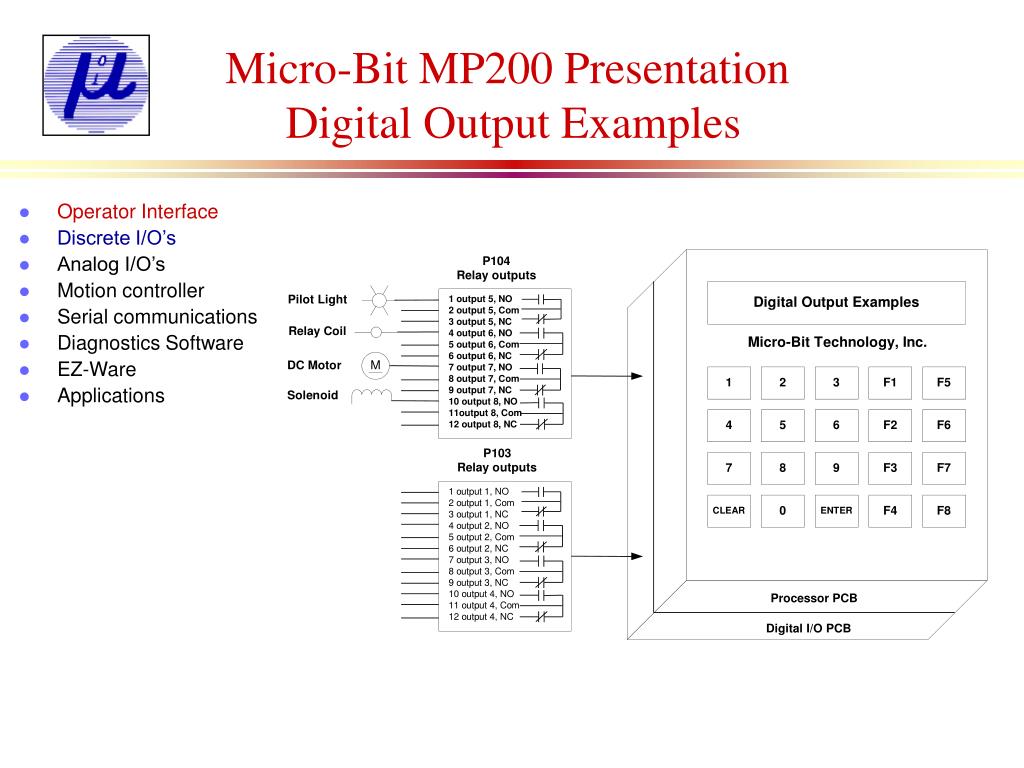

  8. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 Presentation Digital Output Examples Delay

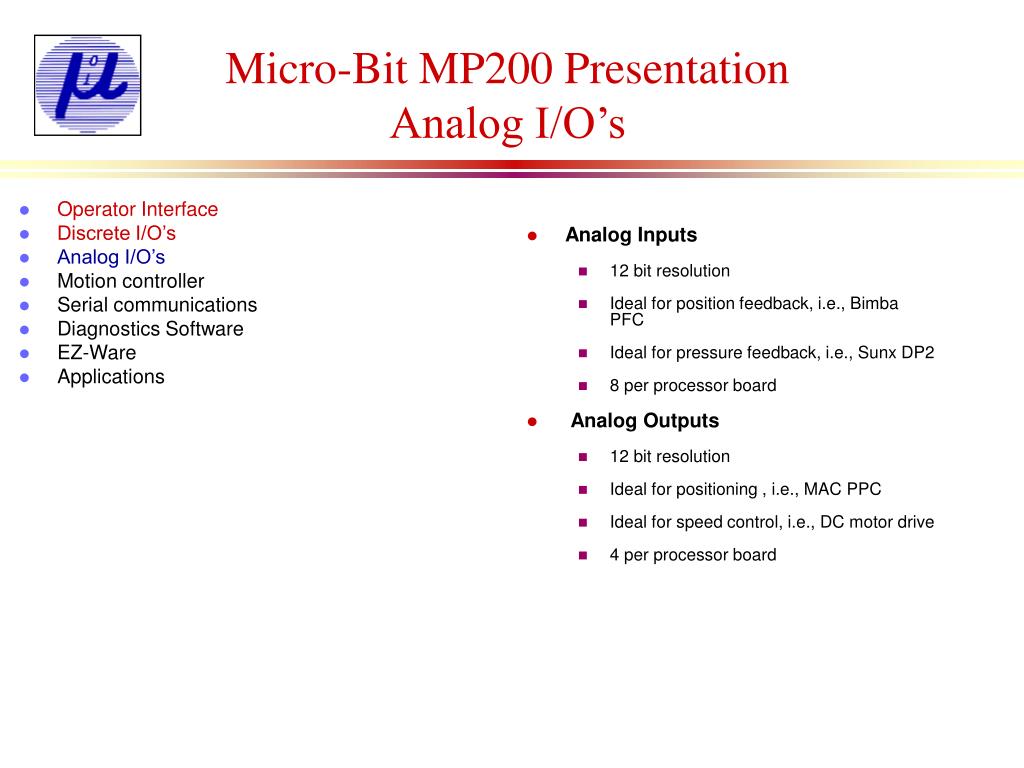

  9. Analog Inputs 12 bit resolution Ideal for position feedback, i.e., Bimba PFC Ideal for pressure feedback, i.e., Sunx DP2 8 per processor board Analog Outputs 12 bit resolution Ideal for positioning , i.e., MAC PPC Ideal for speed control, i.e., DC motor drive 4 per processor board Delay Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationAnalog I/O’s

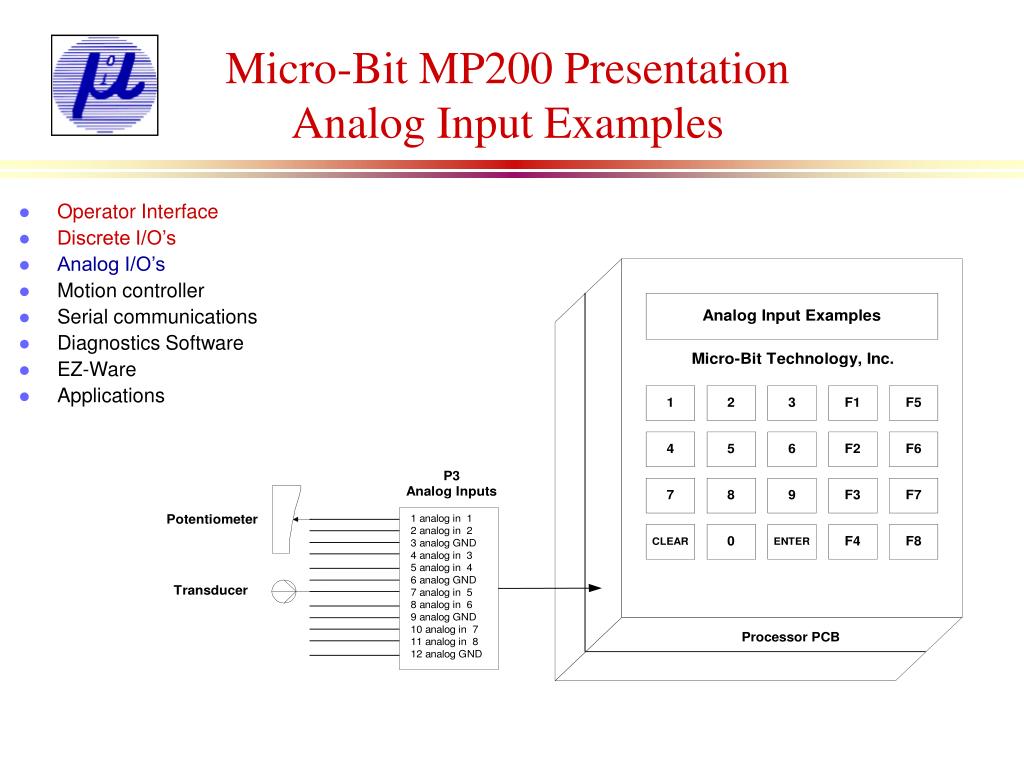

  10. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationAnalog Input Examples Delay

  11. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationAnalog Output Examples Delay

  12. Features: Single axis and dual axis stepper controller card 16 digital I/O’s per axis 67Khz output pulse rate Interface with stepper and servo drives Can be interfaced with the digital I/O board Additional dual axis boards can be added to controller up to 6 axes Delay Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationMotion Control Card

  13. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 PresentationMotion Control Card Inputs Delay

  14. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 Presentation Motion Control Card Outputs Delay

  15. Operator Interface Discrete I/O’s Analog I/O’s Motion controller Serial communications Diagnostics Software EZ-Ware Applications Micro-Bit MP200 Presentation Serial Communications Serial Communications Example RS232/RS485 Micro-Bit Technology, Inc. 1 2 3 F1 F5 4 5 6 F2 F6 7 8 9 F3 F7 Delay 0 F4 F8 CLEAR ENTER RS232 Processor PCB

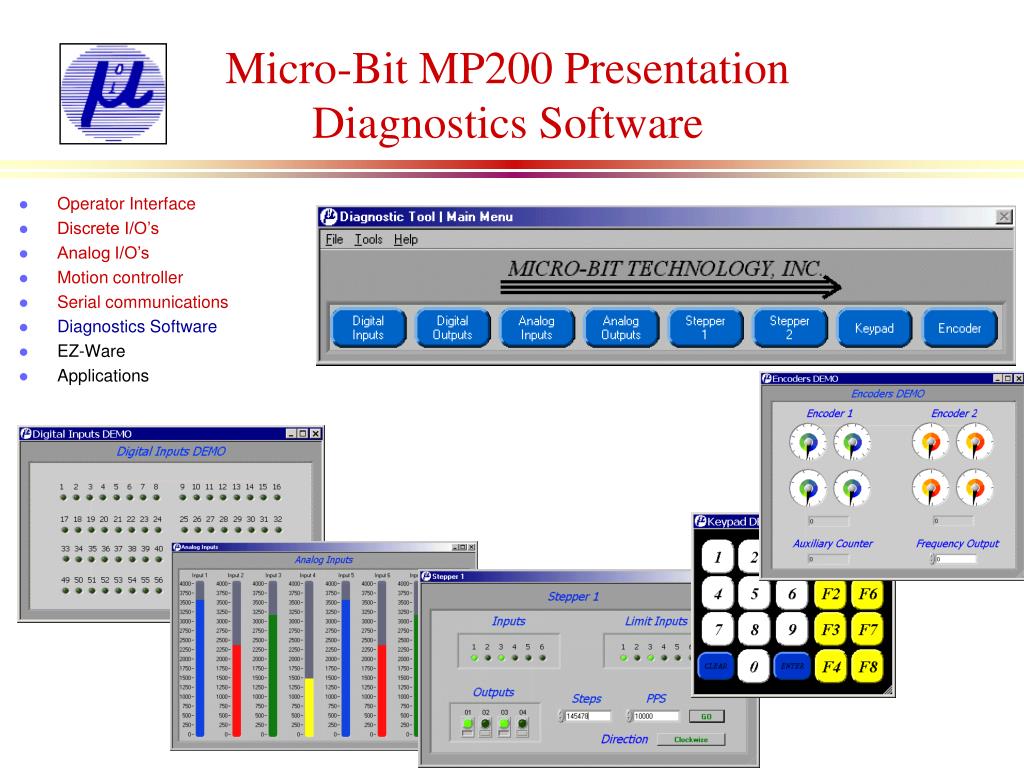

  16. Micro-Bit MP200 PresentationDiagnostics Software • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  17. Micro-Bit MP200 PresentationEz-Ware Software • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  18. Micro-Bit MP200 PresentationDigital Input Name Assignment • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  19. Micro-Bit MP200 Presentation Digital Output Name Assignment • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  20. Micro-Bit MP200 PresentationDefining Screens • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  21. Micro-Bit MP200 PresentationWriting Programs • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  22. Micro-Bit MP200 PresentationWriting Programs • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  23. Micro-Bit MP200 PresentationCompiling a Program • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  24. Micro-Bit MP200 PresentationDownloading a Program • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications Delay

  25. Micro-Bit MP200 PresentationApplications • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications • Automation • Machine Control • Machine Monitoring • Process Controls • Water Pump Systems • Water Booster Systems

  26. Micro-Bit MP200 Presentation Applications • Operator Interface • Discrete I/O’s • Analog I/O’s • Motion controller • Serial communications • Diagnostics Software • EZ-Ware • Applications • Factory Control Systems • Feed to Length • Packaging • Motion Controls • Dispensing Pump • Custom Controller

  27. Micro-Bit MP200 PresentationHow Powerful Is It? Delay

  28. MICRO-BIT TECHNOLOGY, INC. Specializing in Automation Solutions 7-02
