  1. R Consulting IPTV Solution Overview R Consulting IPTV Solution

  2. R Consulting IPTV Solution

  3. RC IPTV Solution R Consulting presents a new technological solution for delivering of SD andHD IPTV service. The advanced technologies and knowledge used by the experienced R Consulting staff place the basis of IPTV technology from new generation. R Consulting IPTV Solution

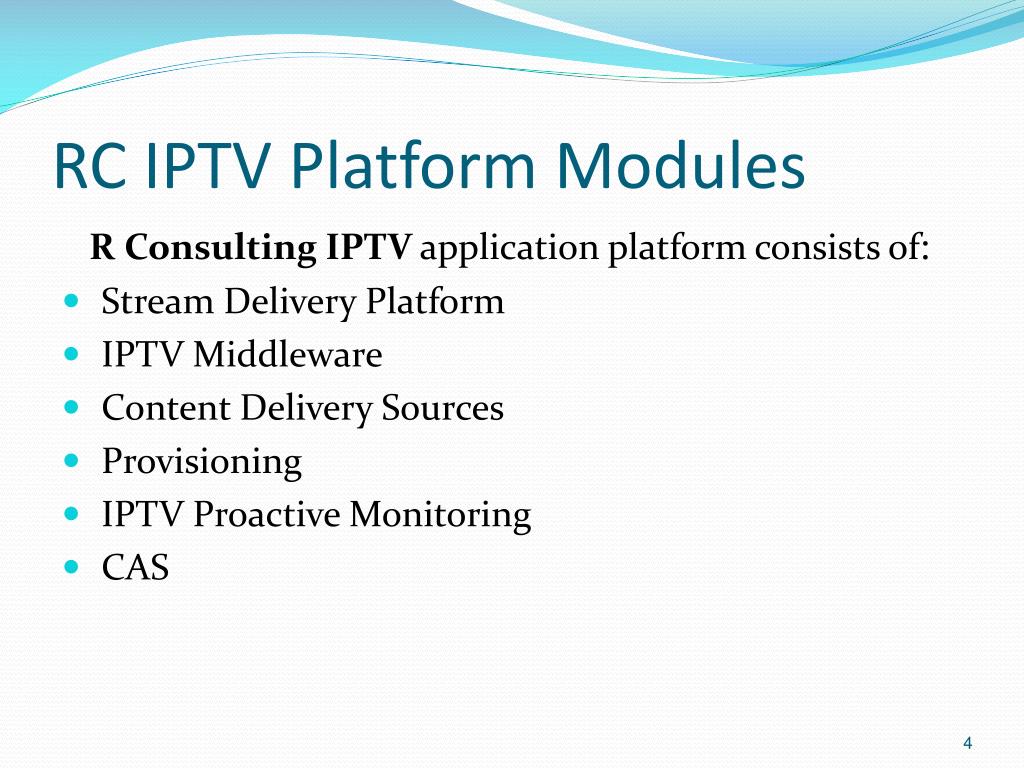

  4. RC IPTV Platform Modules R Consulting IPTV application platform consists of: • Stream Delivery Platform • IPTV Middleware • Content Delivery Sources • Provisioning • IPTV Proactive Monitoring • CAS

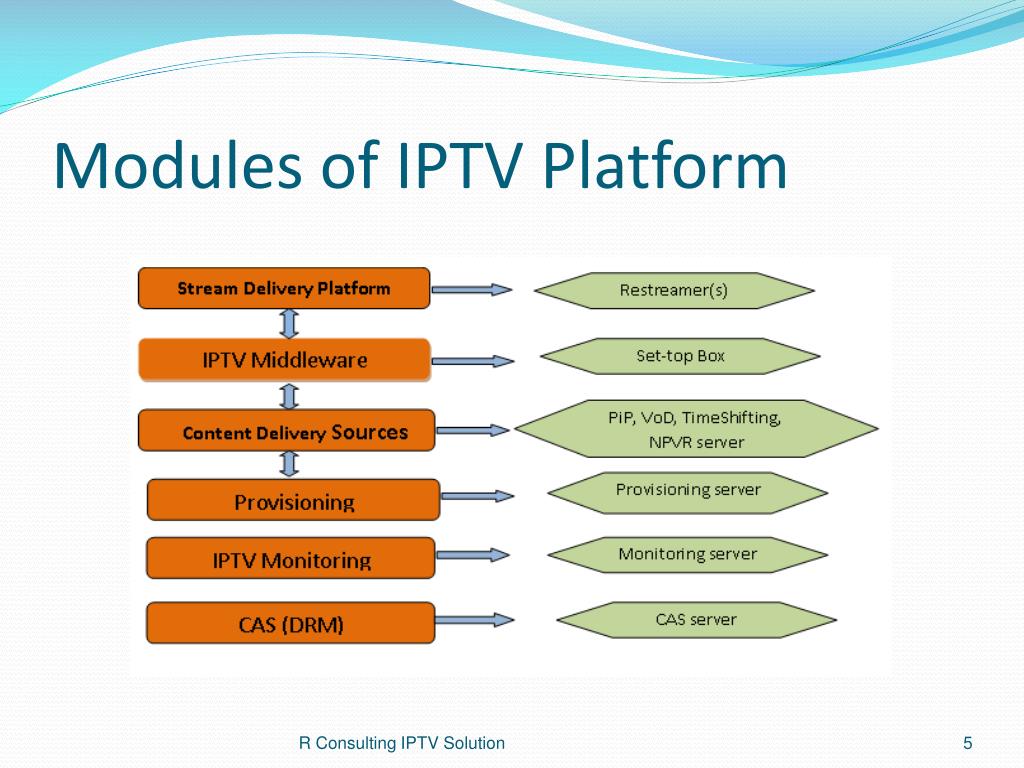

  5. Modules of IPTV Platform R Consulting IPTV Solution

  6. Modules of IPTV Platform The Stream Delivery Platformincludes the following components: • Unicast • Multicast • TCP/HTTP • Access control • DHCP support • SNMP support • Support of more than 4000 VLAN • Fast channel zapping optimization • Channel distribution • Playback of SD and HD, MPEG-2 or h.264 encoded video content • Playback of MPEG - Audio and Dolby Digital Audio (with Dolby Digital audio bit-streaming via HDMI or S/PDIF) • Support of multipleaudio tracks andmultiple subtitle streams (DVBSUB)

  7. Modules of IPTV Platform IPTV Middleware characteristics: • Low cost hardware • SD and HD Broadcasting • MPEG2, MPEG4 AVC/h264 • SecureMediaDRM integration • Messaging from Operator to subscribers Function • Lua Scripting Support – integration of multiple different information services with the platform (weather forecast, lottery, horoscope, calendar, etc.) • Multi-language support

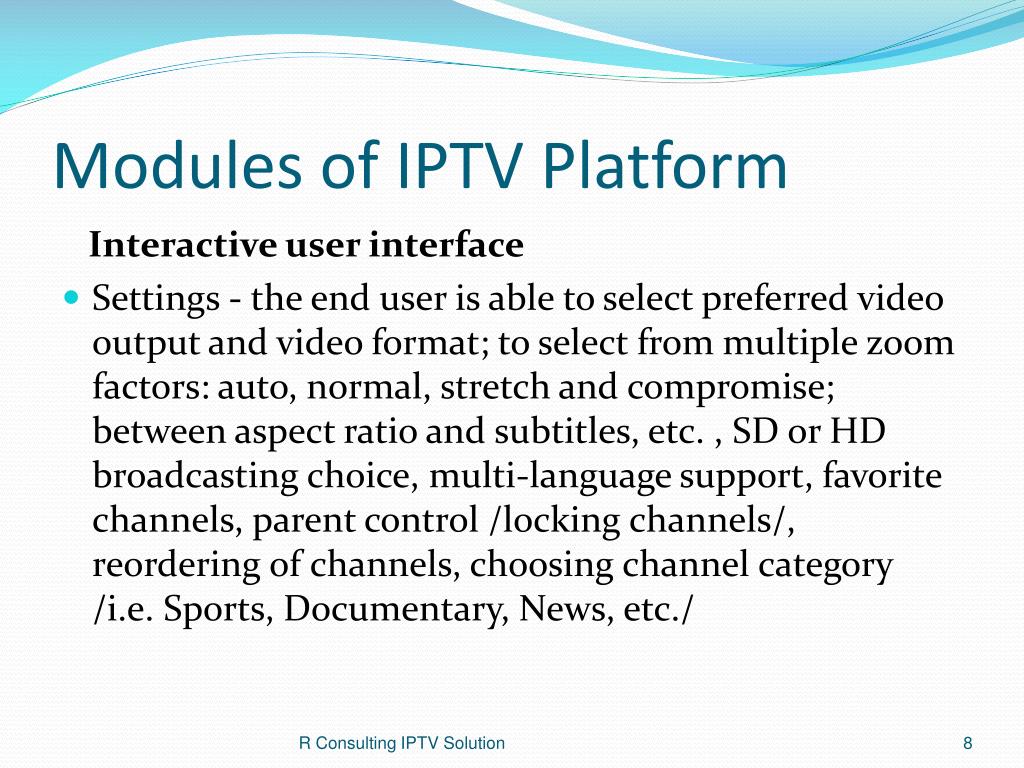

  8. Modules of IPTV Platform Interactive user interface • Settings - the end user is able to select preferred video output and video format; to select from multiple zoom factors: auto, normal, stretch and compromise; between aspect ratio and subtitles, etc. , SD or HD broadcasting choice, multi-language support, favorite channels, parent control /locking channels/, reordering of channels, choosing channel category /i.e. Sports, Documentary, News, etc./ R Consulting IPTV Solution

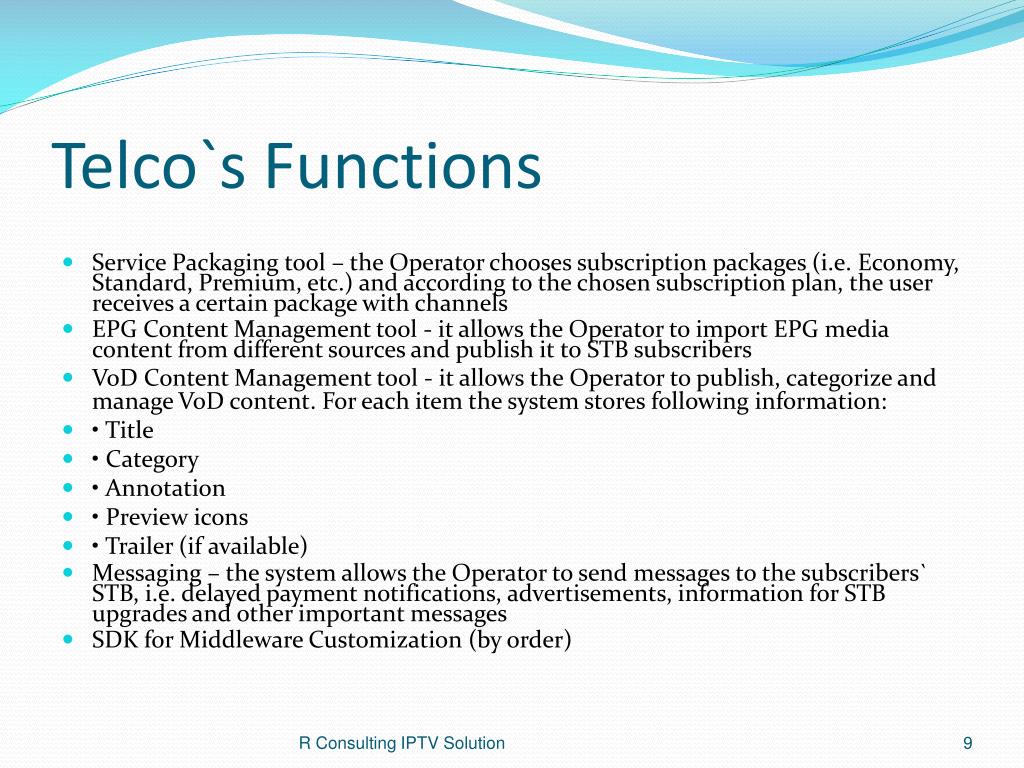

  9. Telco`s Functions • Service Packaging tool – the Operator chooses subscription packages (i.e. Economy, Standard, Premium, etc.) and according to the chosen subscription plan, the user receives a certain package with channels • EPGContent Management tool - it allows the Operator to import EPG media content from different sources and publish it to STB subscribers • VoD Content Management tool - it allows the Operator to publish, categorize and manage VoD content. For each item the system stores following information: • • Title • • Category • • Annotation • • Preview icons • • Trailer (if available) • Messaging – the system allows the Operator to send messages to the subscribers` STB, i.e. delayed payment notifications, advertisements, information for STB upgrades and other important messages • SDK forMiddleware Customization (by order) R Consulting IPTV Solution

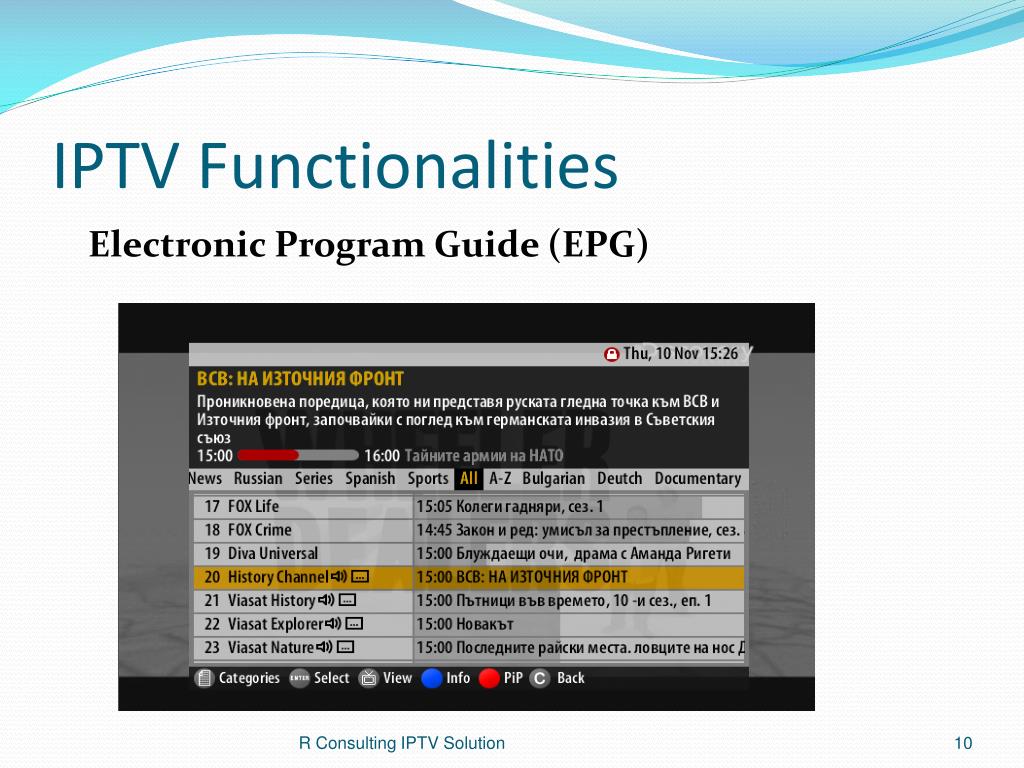

  10. IPTV Functionalities Electronic Program Guide (EPG) R Consulting IPTV Solution

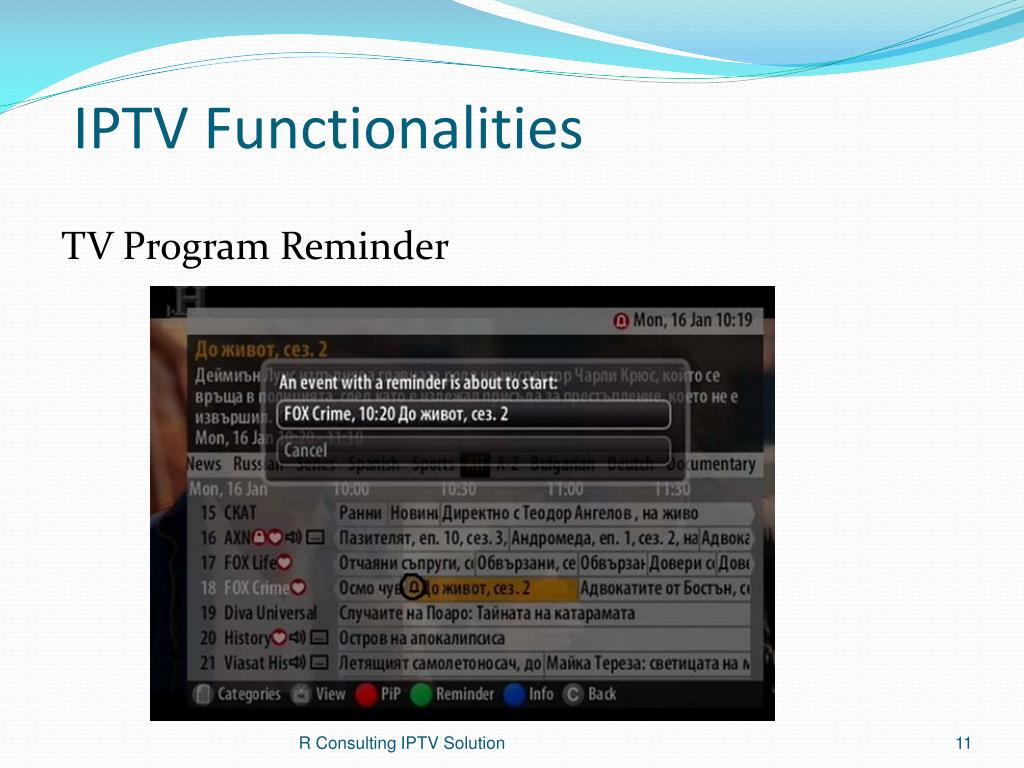

  11. IPTV Functionalities TV Program Reminder R Consulting IPTV Solution

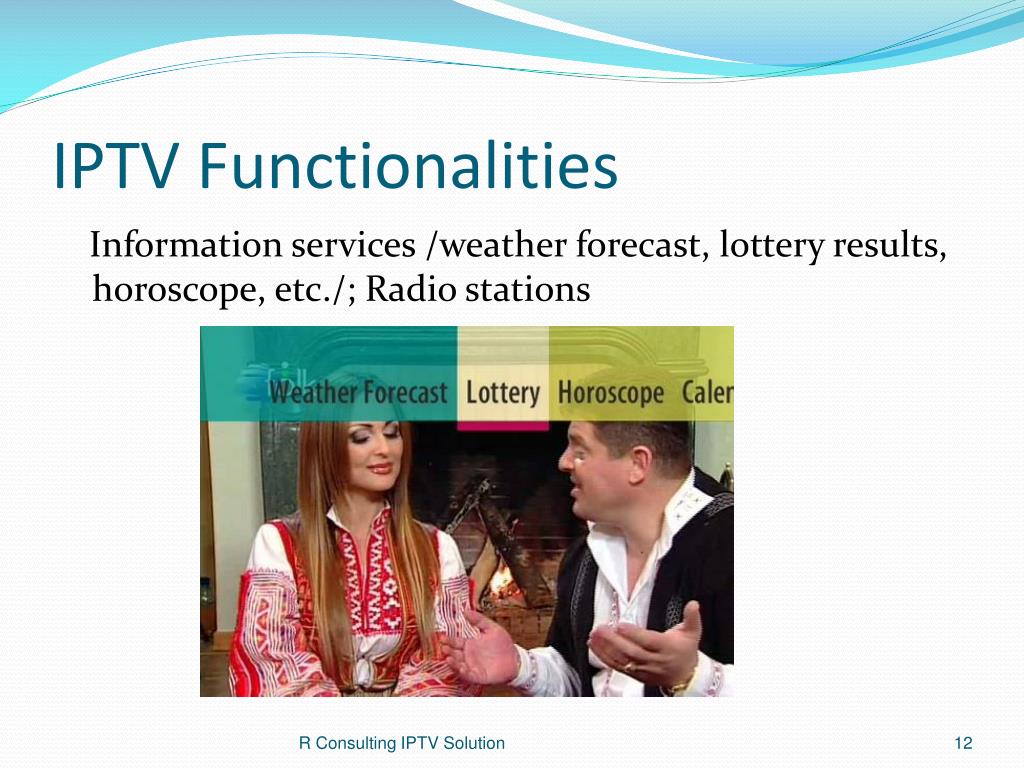

  12. IPTV Functionalities Information services /weather forecast, lottery results, horoscope, etc./; Radio stations R Consulting IPTV Solution

  13. Content Delivery Sources Picture-in-Picture (PiP) R Consulting IPTV Solution

  14. Content Delivery Sources Video-on-Demand (VoD) R Consulting IPTV Solution

  15. Content Delivery Sources Time Shifted TV R Consulting IPTV Solution

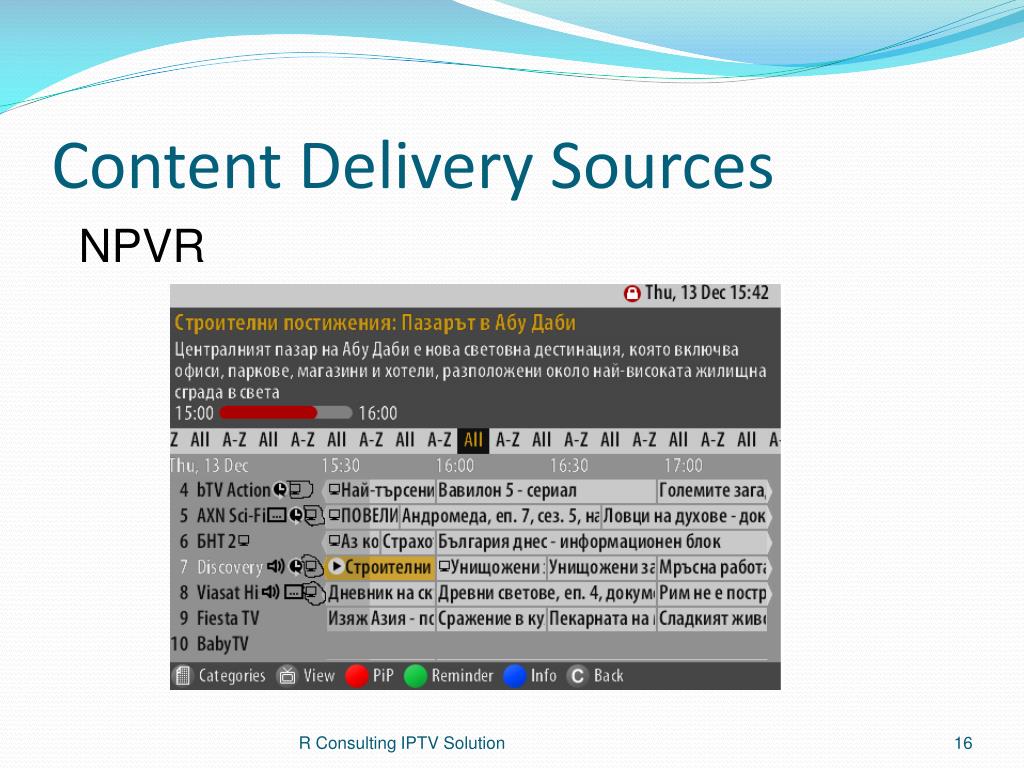

  16. Content Delivery Sources NPVR R Consulting IPTV Solution

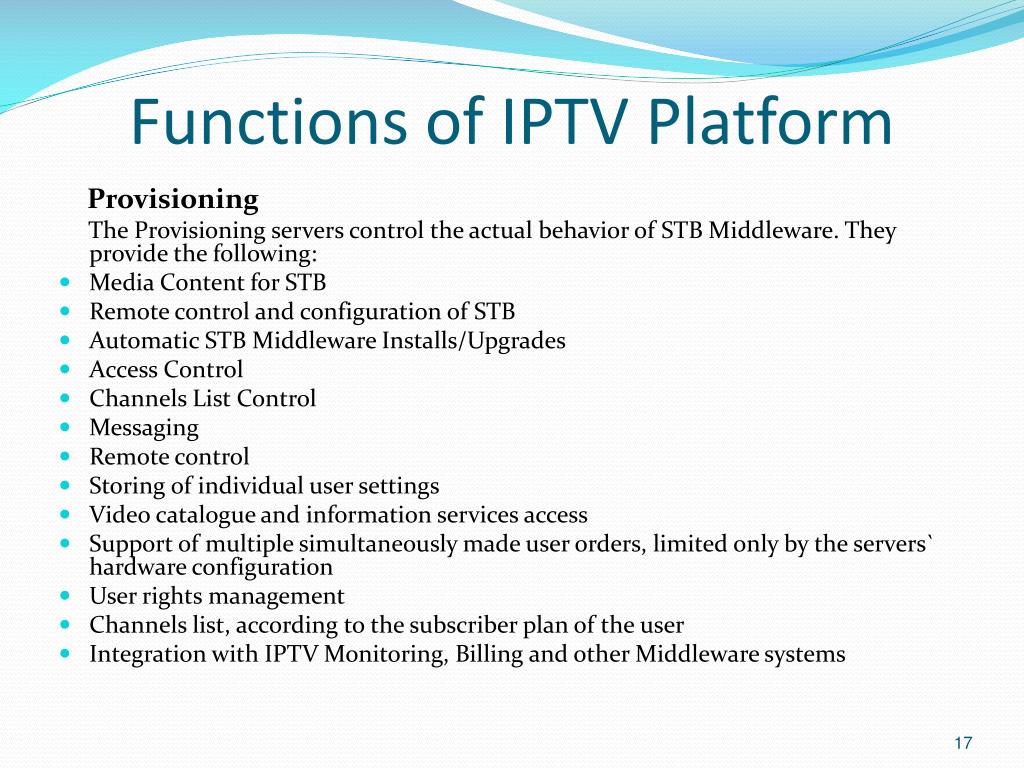

  17. Functions of IPTV Platform Provisioning The Provisioning servers control the actual behavior of STB Middleware. They provide the following: • Media Content for STB • Remote control and configuration of STB • Automatic STB Middleware Installs/Upgrades • Access Control • Channels List Control • Messaging • Remote control • Storing of individual user settings • Video catalogue and information services access • Support of multiple simultaneously made user orders, limited only by the servers` hardware configuration • User rights management • Channels list, according to the subscriber plan of the user • Integration with IPTV Monitoring, Billing and other Middleware systems

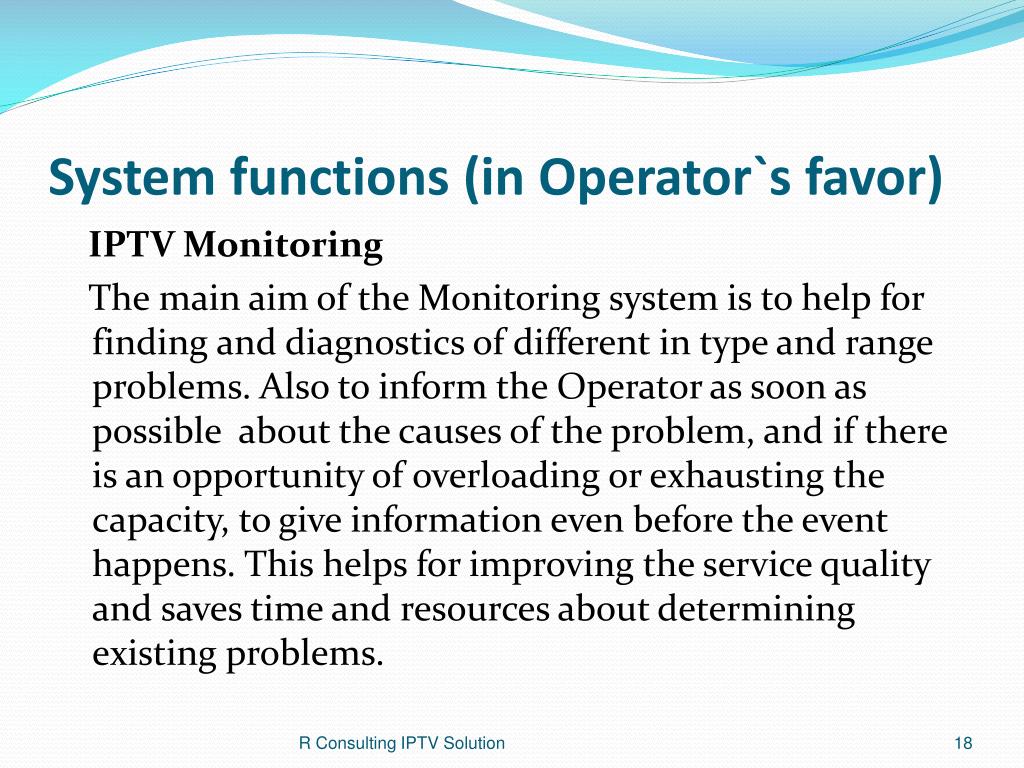

  18. System functions (in Operator`s favor) IPTV Monitoring The main aim of the Monitoring system is to help for finding and diagnostics of different in type and range problems. Also to inform the Operator as soon as possible about the causes of the problem, and if there is an opportunity of overloading or exhausting the capacity, to give information even before the event happens. This helps for improving the service quality and saves time and resources about determining existing problems. R Consulting IPTV Solution

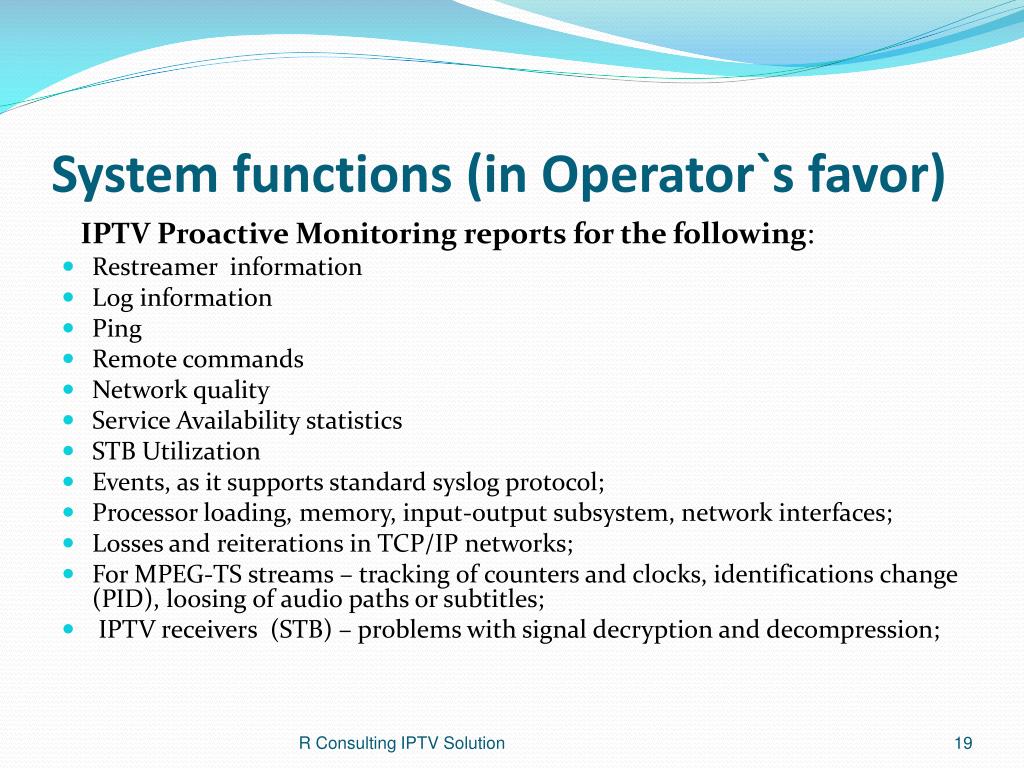

  19. System functions (in Operator`s favor) IPTV Proactive Monitoring reports for the following: • Restreamer information • Log information • Ping • Remote commands • Network quality • Service Availability statistics • STB Utilization • Events, as it supports standard syslog protocol; • Processor loading, memory, input-output subsystem, network interfaces; • Losses and reiterations in TCP/IP networks; • For MPEG-TS streams – tracking of counters and clocks, identifications change (PID), loosing of audio paths or subtitles; • IPTV receivers (STB) – problems with signal decryption and decompression; R Consulting IPTV Solution

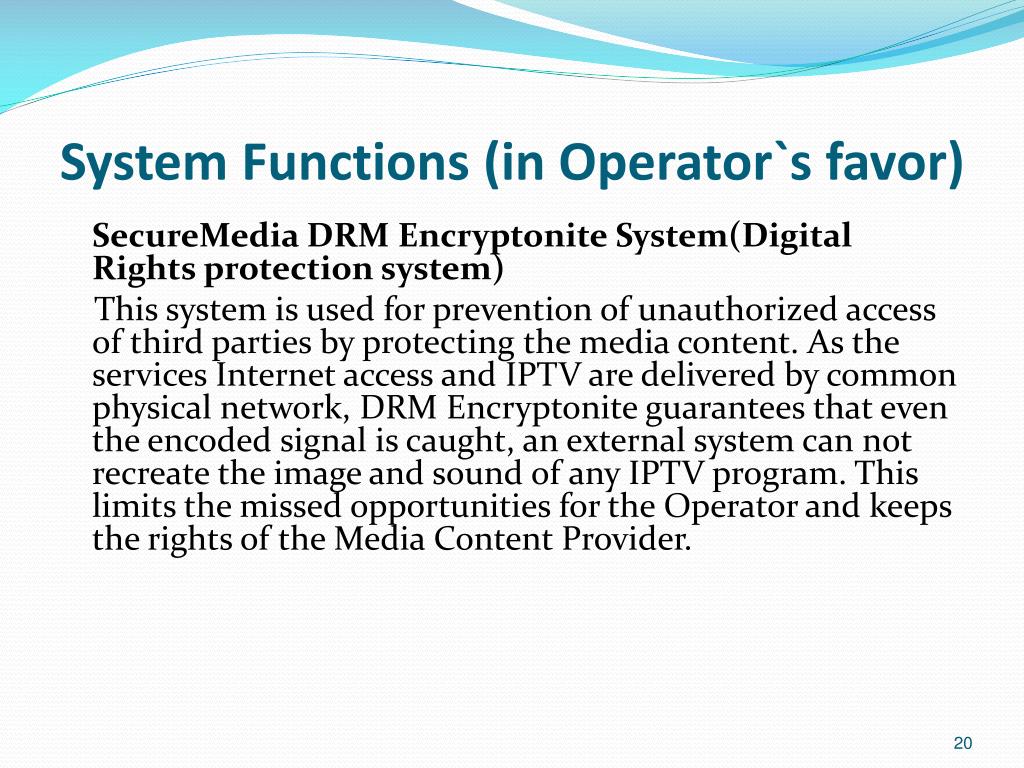

  20. System Functions (in Operator`s favor) SecureMedia DRM Encryptonite System(Digital Rights protection system) This system is used for prevention of unauthorized access of third parties by protecting the media content. As the services Internet access and IPTV are delivered by common physical network, DRM Encryptonite guarantees that even the encoded signal is caught, an external system can not recreate the image and sound of any IPTV program. This limits the missed opportunities for the Operator and keeps the rights of the Media Content Provider.

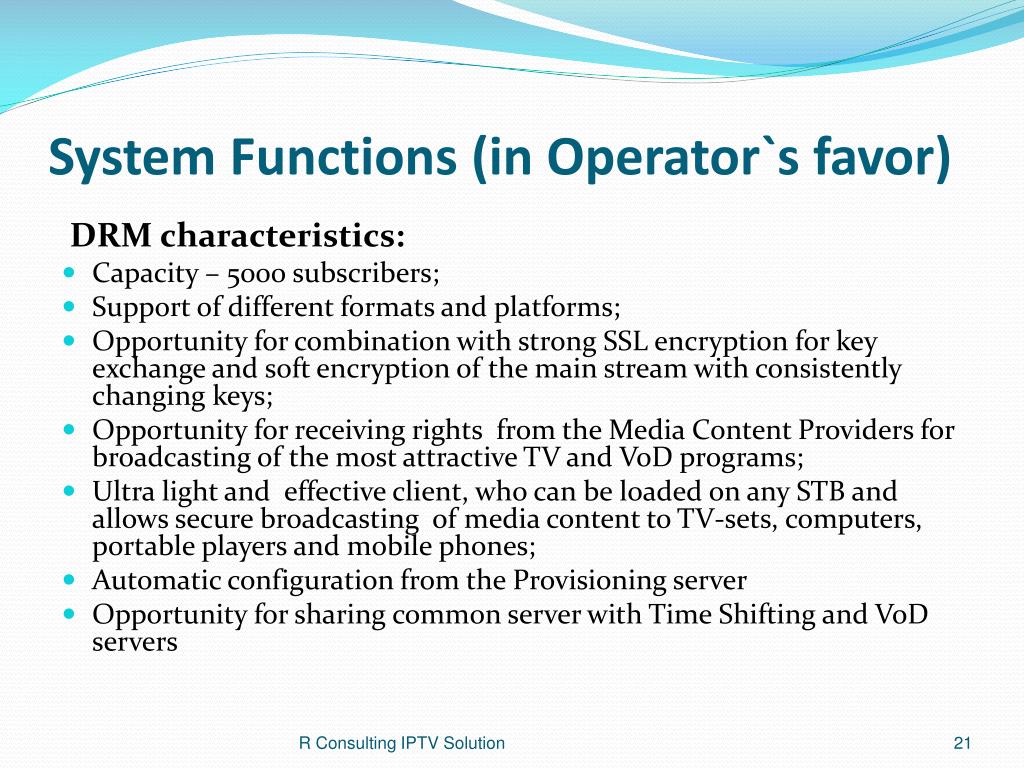

  21. System Functions (in Operator`s favor) DRM characteristics: • Capacity – 5000 subscribers; • Support of different formats and platforms; • Opportunity for combination with strong SSL encryption for key exchange and soft encryption of the main stream with consistently changing keys; • Opportunity for receiving rights from the Media Content Providers for broadcasting of the most attractive TV and VoD programs; • Ultra light and effective client, who can be loaded on any STB and allows secure broadcasting of media content to TV-sets, computers, portable players and mobile phones; • Automatic configuration from the Provisioning server • Opportunity for sharing common server with Time Shifting and VoD servers R Consulting IPTV Solution

  22. The benefits for the Users • Big variety of services with added value and opportunities for choice from the user (TimeShifting, VoD,PiP, NPVR) • Time Shifting TV applicable only byIPTV • The end user device can be standard TV-set or monitor • The users are benefited by big number of alternatives for watching TV • High quality of the service • Interactivity • The service and the devices (installation fees, monthly fees, STB) are on reasonable price for the users. This presumes low costs for acquiring the equipment and service. R Consulting IPTV Solution

  23. The benefits for the Operator • Offering of high-technology service with high quality • Increasing the market shares • Increasing the profits • Increasing the competitiveness • Offering a variety of services with added value • Reasonable costs investment • Fast and easy integration with already developed network infrastructure R Consulting IPTV Solution

  24. IPTV SCHEME R Consulting IPTV Solution

  25. More information For more information, please visit: • our web site R Consulting BG • our LinkedIn profile R Consulting LinkedIn • Please check our you tube movie RC IPTV Platform R Consulting IPTV Solution
