  1. Migrating Existing ASP Applications to ASP.NET An in-depth look at the paradigm shiftsand upgrade strategies when moving from ASP to ASP.NET architectures. By Carl Prothman Microsoft “Most Valuable Professional” (MVP) “Certified Computer Professional” (CCP)

  2. Introductions • Carl Prothman • Microsoft “Most Valuable Professional” (MVP) • Visual Basic MVP 1998/2002 • ASP.NET MVP 2002/2003 • Certified Computer Professional(CCP) • Microsoft Certified Professional (MCP) • Over 22 years of experience in Software Industry • Bachelor of Science inAeronautics and Astronautics(BSAA) from University of Washington • Email:carlpr@spamcop.net • Able Consulting, Inc. • Owner http://www.able-consulting.com

  3. Agenda • .NET Overview 1 min • What is it? • Paradigm Shifts 35 mins • Top 10 (make that 11) • Migration Strategies 15 mins • Side-by-Side Conversion • Tier-by-Tier • Summary 9 mins • Q&A Total: 60 mins

  4. Overview • What is Microsoft’s .NET? • Set of Microsoft software technologies connecting your world of information, people, systems, and devices • Enables an unprecedented level of software integration through the use of XML Web services: • Small, discrete, building-block applications • Connected to each other via the Internet • What is ASP.NET? • The development platform for building server-based Web applications • Web Forms and XML Web Services • HTTP Runtime Architecture with IIS

  5. ASP.NET– Overall View

  6. Agenda • .NET Overview • Paradigm Shifts 25 mins • Migration Strategies • Summary

  7. ASP.NET Paradigm Shifts • What is a Paradigm Shift? • A set of concepts, values, practices and assumptions that constitutes a way of viewing reality for the community that shares them. • When one paradigm looses influence and another paradigm takes over, then there is a paradigm shift! • Knowing in advance how a Paradigm Shift might occur gives you an advantage over others!

  8. ASP.NET - Paradigm Shift0) Remote Application Communication • In ASP, you used the RDS DataSpace to communicate to a remote COM+ Component over DCOM or HTTP(S) • RDS is a major security hole! • RDS DataFactory MS99-025 • RDS Data Stub MS02-065 • In ASP.NET, you now use an XML Web Services to communication to remote applications • Standard protocol (SOAP) for distributed environments • Over HTTP with XML SOAP Envelop / Payload

  9. ASP.NET - Paradigm Shift1) Server-Side Web Controls • In ASP, you used Response.Write or <%= % to send HTML / script to the Web browser • In ASP.NET, you can now program against server-side Web Controls which generate the HTML • HTML Server Controls • HTML Tag with and ID= and RunAt=Server attributes • Web Server Controls • ASP.NET control with ID= and RunAt=Server attributes • Form Validation Controls • Client-side and Server-side Validation • User Control Page (.ASCX) • Replaces the HTML Include command • Custom Control Assembly (.DLL)

  10. ASP.NET - Paradigm Shift2) Automatic HTML Code Generation • In ASP, you created custom pages for each browser type • Use browscap.ini file with the BrowserType object • In ASP.NET, you use server-side Web Controls and Web Forms to generate the HTML • ASP.NET figure out the browser type • Automatically renders the correct, browser-compliant HTML for features such as Styles, Layout, and so on. • In Visual Studio .NET, set TargetSchema Property on the Page • Internet Explorer 3.02 / Navigator 3.0 • Internet Explorer 5.0 • Navigator 4.0

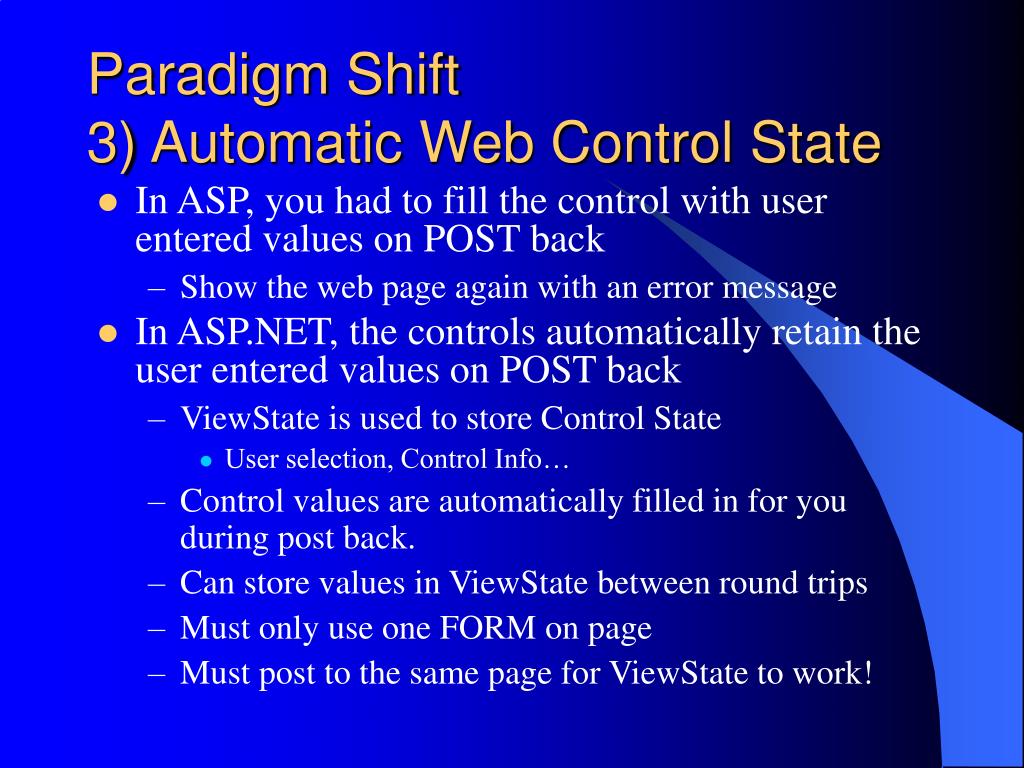

  11. Paradigm Shift3) Automatic Web Control State • In ASP, you had to fill the control with user entered values on POST back • Show the web page again with an error message • In ASP.NET, the controls automatically retain the user entered values on POST back • ViewState is used to store Control State • User selection, Control Info… • Control values are automatically filled in for you during post back. • Can store values in ViewState between round trips • Must only use one FORM on page • Must post to the same page for ViewState to work!

  12. Paradigm Shift4) HTML Separate from Code • In ASP, you could mix HTML with client-side and server-side script • Hard to read and maintain • Some used “.vbs” or “.js” files to separate out the script • In ASP.NET, you can either • Put the code in-line with SCRIPT tags • Or put code in a “code-behind” page • Visual Studio .NET creates code-behind pages by default • ASP.NET Web Matrix creates in-line SCRIPT tags by default

  13. Paradigm Shift5) Compiled ASP.NET Code • In ASP, you used server-side VBScript (or JavaScript) which was interpreted, hence slower! • So most folks just pulled the server-side script out and put it into a VB 6.0 / C++ COM+ Components (N-Tier) • Presentation Tier Classes • Business Tier Classes • Data Tier Classes • In ASP.NET, everything is compiled, which is faster! • In-line SCRIPT tags with RunAt=Server • Code Behind page (must compile) • Debug –vs- Release mode

  14. Paradigm Shift6) Registering Client-Side Script • In ASP, you could directly add client-side event handlers to HTML controls • In ASP.NET, you add client-side event handlers to Web Controls via Attribute.Add • Button1.Attributes.Add(“onclick”, “alert(‘Hello’)”) • You can also register a client script block • RegisterClientScriptBlock • Client-side JavaScript / JScript • VBScript

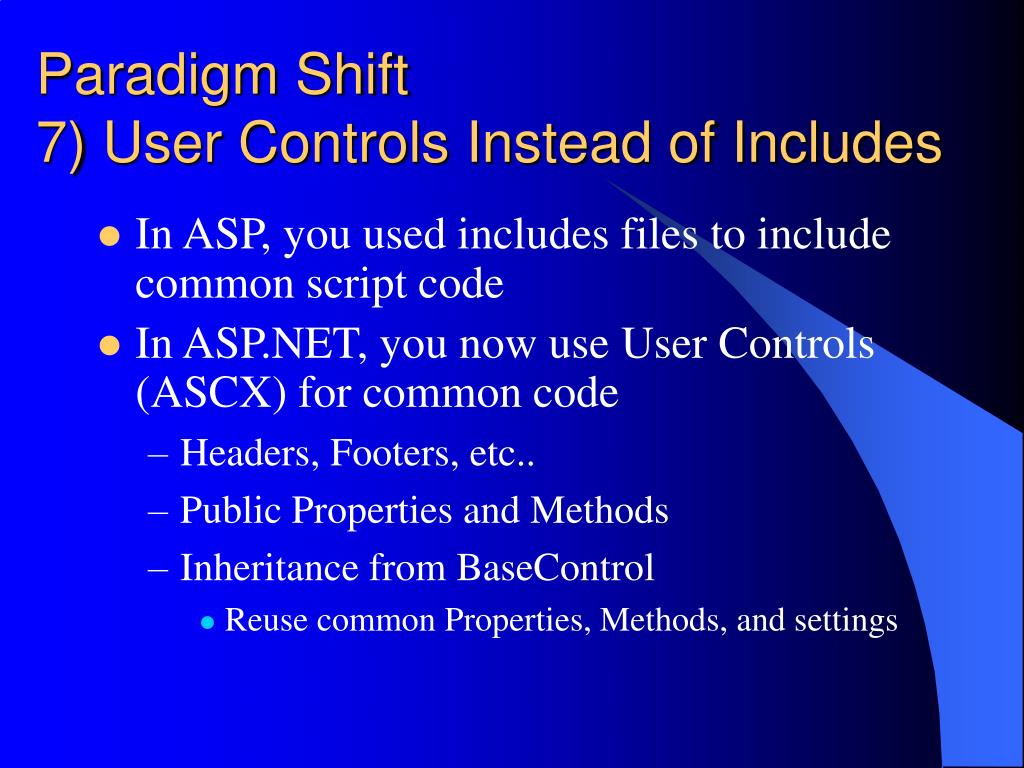

  15. Paradigm Shift7) User Controls Instead of Includes • In ASP, you used includes files to include common script code • In ASP.NET, you now use User Controls (ASCX) for common code • Headers, Footers, etc.. • Public Properties and Methods • Inheritance from BaseControl • Reuse common Properties, Methods, and settings

  16. Paradigm Shift8) XML Configuration Files • In ASP, you used System Registry (or IIS Metadata db) to store Application settings • In ASP.NET, you use XML files to store Application settings • Machine.config (for all projects on the machine) C:\WINNT\Microsoft.NET\Framework\v1.0.3705\CONFIG\machine.config • Web.config (for each project) • Read in configuration settings using System.Resources.ConfigurationSettings.AppSettings[“myKeyName"]

  17. Paradigm Shift9) ASP.NET Worker Process • In ASP, IIS used the ASP.DLL to handle each web request • In ASP.NET, IIS calls an ASPNET worker process (aspnet_wp.exe) • Identity of ASP.NET Worker process controlled by • machine.config, processModel element, userName attribute C:\WINNT\Microsoft.NET\Framework\v1.0.3705\CONFIG\machine.config • "MACHINE": runs as low privilege user account named "ASPNET". • "SYSTEM": runs as localsystem (high privilege admin) account. • Running IISRESET stops the Worker process

  18. Paradigm Shift10) Windows Impersonation • In ASP, impersonation was enabled by default • Using Anon Access, ASP would impersonate IUSR_XXXX • Using NTLM / Basic, ASP would impersonate calling User • In ASP.NET, impersonation is disabled by default • You must explicitly enable impersonation in web.config or machine .config file <authentication mode="Windows" /> <identity impersonate="true" /> System.Security.Principal.WindowsIdentity.GetCurrent().Name • CARLP7\ASPNET (ASP.NET User account) • CARLP7\IUSR_CARLP7 (IIS Anon User account) • CARLP7\Administrator (User account that I’m logged as)

  19. Agenda • .NET Overview • Paradigm Shifts • Migration Strategies 20 mins • Summary

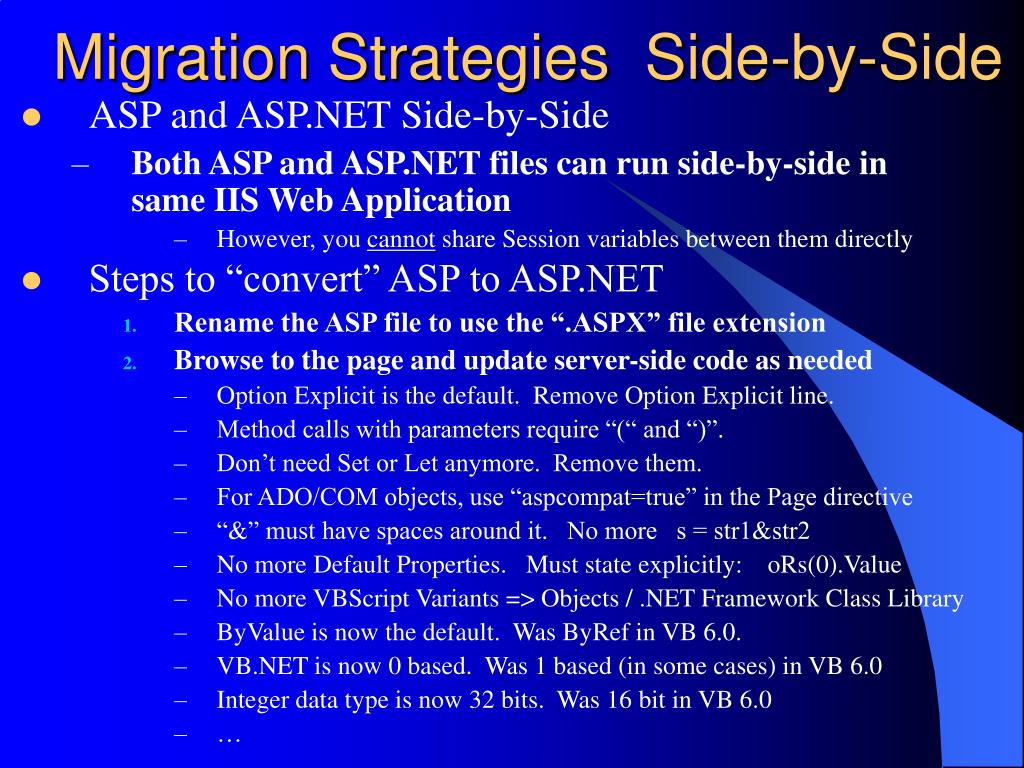

  20. Migration Strategies Side-by-Side • ASP and ASP.NET Side-by-Side • Both ASP and ASP.NET files can run side-by-side in same IIS Web Application • However, you cannot share Session variables between them directly • Steps to “convert” ASP to ASP.NET • Rename the ASP file to use the “.ASPX” file extension • Browse to the page and update server-side code as needed • Option Explicit is the default. Remove Option Explicit line. • Method calls with parameters require “(“ and “)”. • Don’t need Set or Let anymore. Remove them. • For ADO/COM objects, use “aspcompat=true” in the Page directive • “&” must have spaces around it. No more s = str1&str2 • No more Default Properties. Must state explicitly: oRs(0).Value • No more VBScript Variants => Objects / .NET Framework Class Library • ByValue is now the default. Was ByRef in VB 6.0. • VB.NET is now 0 based. Was 1 based (in some cases) in VB 6.0 • Integer data type is now 32 bits. Was 16 bit in VB 6.0 • …

  21. Migration Strategies- Tier by Tier • First Convert the UI Tier • Create new WebForms / User Controls • Call existing COM Components • Next Convert the Business Tier • Create Class Modules for each Business class • If Internet clients need to reuse these new classes, create XML Web Services wrappers • Finally Convert Any Desktop Database • Upgrade your old Access MDB to MSDE or SQL Server

  22. Agenda • .NET Overview • Paradigm Shifts • Migration Strategies • Summary 5 mins

  23. Summary • Reviewed ASP.NET Paradigm Shifts • Top 10 (make that 11) • But there are a lot more… • Reviewed Migration Strategies • Side by Side Conversion • Tier by Tier Conversion • Better understanding of ASP to ASP.NET Migration Issues

  24. Questions? • Q & A • More Information • ASP.NET Web Site http://www.asp.net • GotDotNet Web Site http://www.gotdotnet.com • These slides / sample code are at: • http://www.able-consulting.com/
