Cmsc 202

CMSC 202

Lesson 25

Miscellaneous Topics


Warmup

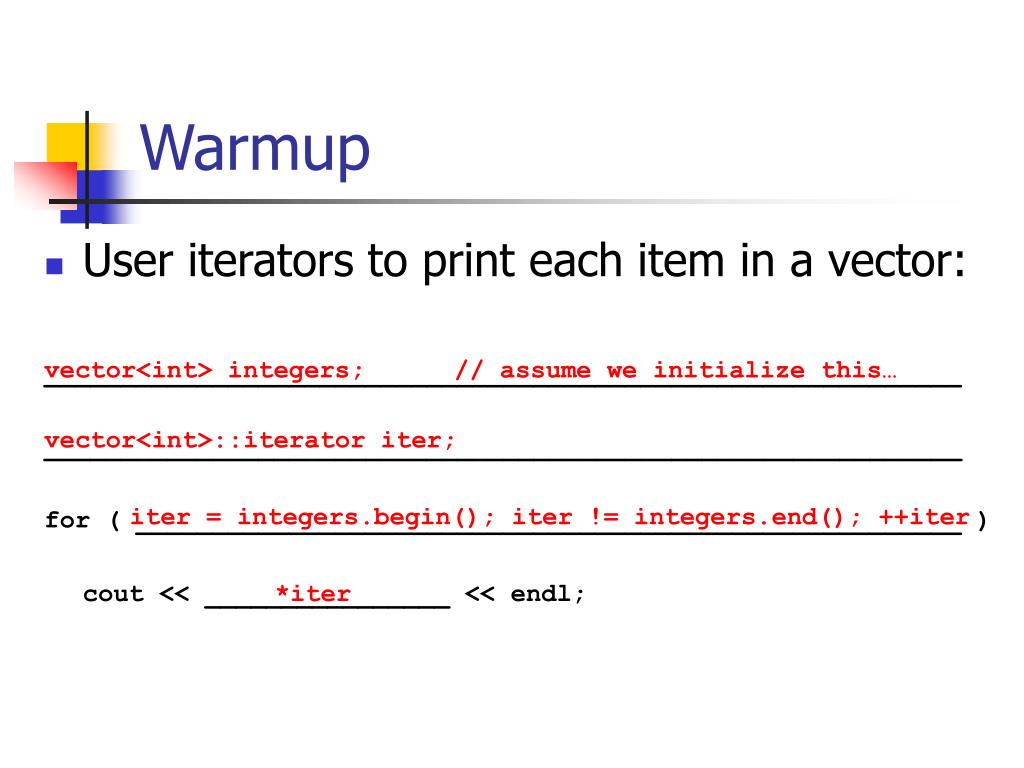

Warmup

  • User iterators to print each item in a vector:

    ____________________________________________________________

    ____________________________________________________________

    for ( ______________________________________________________ )

    cout << ________________ << endl;

vector<int> integers;// assume we initialize this…

vector<int>::iterator iter;

iter = integers.begin(); iter != integers.end(); ++iter

*iter


Announcments

Announcments

  • 2 more days of class (after today)

    • Thursday

      • Overload the dereferencing operator

      • Bit-wise operators (important for 341)

    • Tuesday

      • Review for final (cumulative, focus on 2nd half)

      • Homework:

        • Go over review questions

        • Go over last semester’s final

        • Bring a question that you want answered


Inline functions

Inline Functions

  • Problem

    • Calling a 1-line function is inefficient

  • Solution

    • Inline functions

      • Compiler replaces function call with function body

  • Drawbacks?

    • Mix definition and implementation

    • Make executables bigger (ack!)

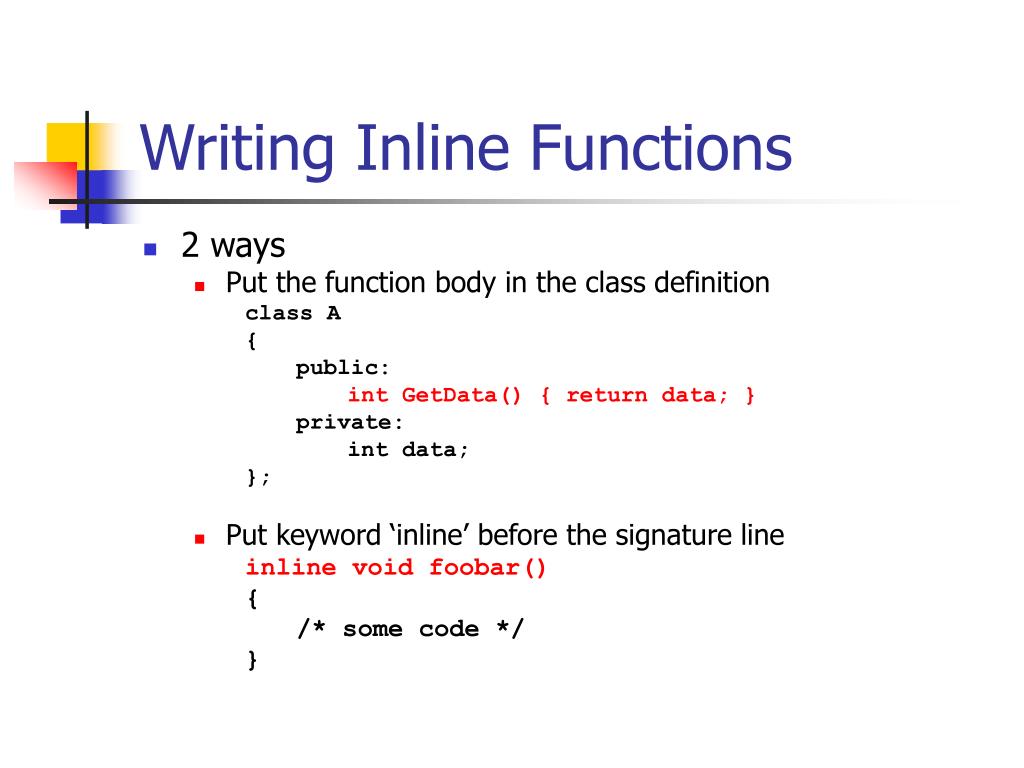

Writing inline functions

Writing Inline Functions

  • 2 ways

    • Put the function body in the class definition

      class A

      {

      public:

      int GetData() { return data; }

      private:

      int data;

      };

    • Put keyword ‘inline’ before the signature line

      inline void foobar()

      {

      /* some code */

      }


Friend classes

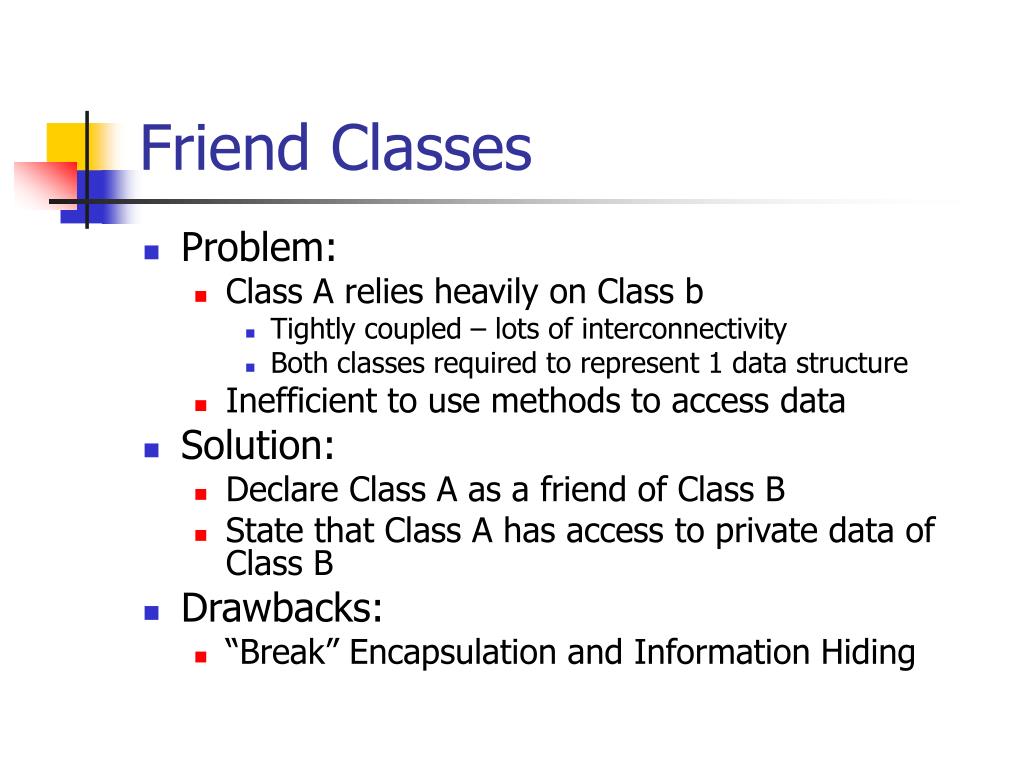

Friend Classes

  • Problem:

    • Class A relies heavily on Class b

      • Tightly coupled – lots of interconnectivity

      • Both classes required to represent 1 data structure

    • Inefficient to use methods to access data

  • Solution:

    • Declare Class A as a friend of Class B

    • State that Class A has access to private data of Class B

  • Drawbacks:

    • “Break” Encapsulation and Information Hiding


Friend classes1

template < class T >

class List<T>; // a "forward declaration"

template< class T >

class Node

{

private:

Node( );

Node* m_next;

int m_data;

friend class List<T>;

};

template < class T >

class List

{

public:

List( );

// other public stuff

private:

Node<T> *m_header;

};

Friend Classes


Nested classes

Nested Classes

  • Same Problem – tightly coupled classes

  • Solution:

    • Nested Classes

      • Class defined INSIDE of another class

      • If private?

        • Entirely hidden from everyone else

      • If public?

        • Accessible THROUGH the outer-class


Nested classes1

Nested Classes

template< class T >

class List

{

public:

List( ) { m_header = NULL; }

// other public stuff

private:

template < class T1 >

class Node

{

private:

Node( );

Node<T1>* m_next;

int m_data;

};

Node<T> *m_header;

};

Node is “nested” inside of List class

If it were public, the Node’s classname (and type!) would be:

List<T>::Node<T>

The node is scoped INSIDE the List class…


Namespaces

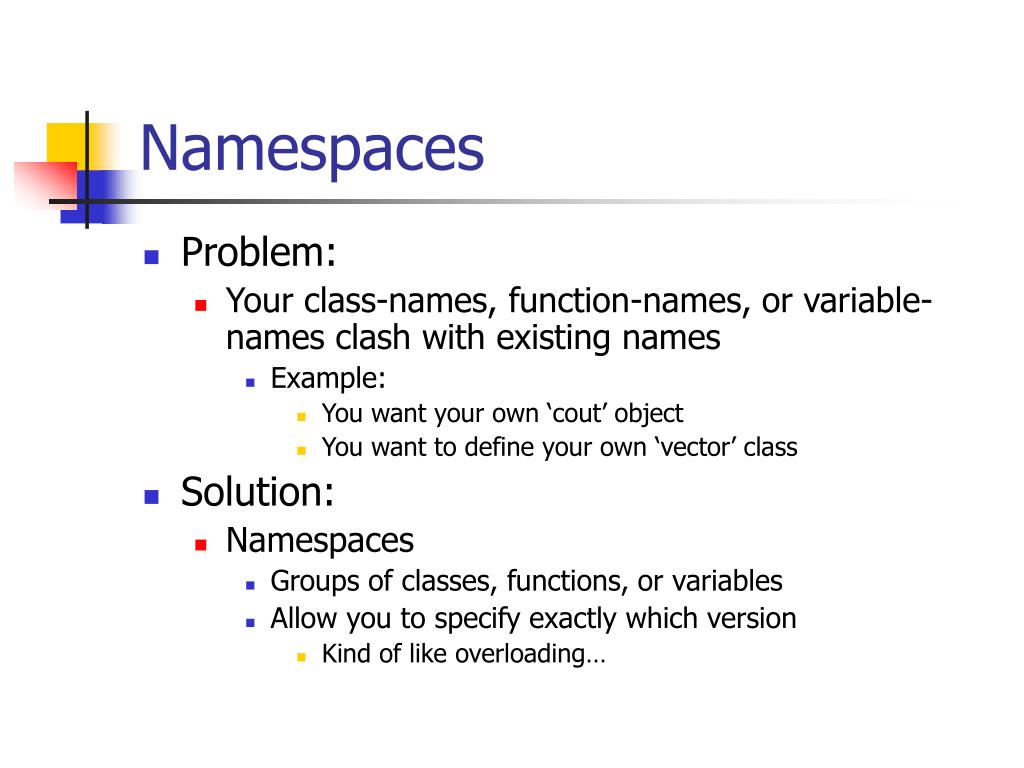

Namespaces

  • Problem:

    • Your class-names, function-names, or variable-names clash with existing names

      • Example:

        • You want your own ‘cout’ object

        • You want to define your own ‘vector’ class

  • Solution:

    • Namespaces

      • Groups of classes, functions, or variables

      • Allow you to specify exactly which version

        • Kind of like overloading…

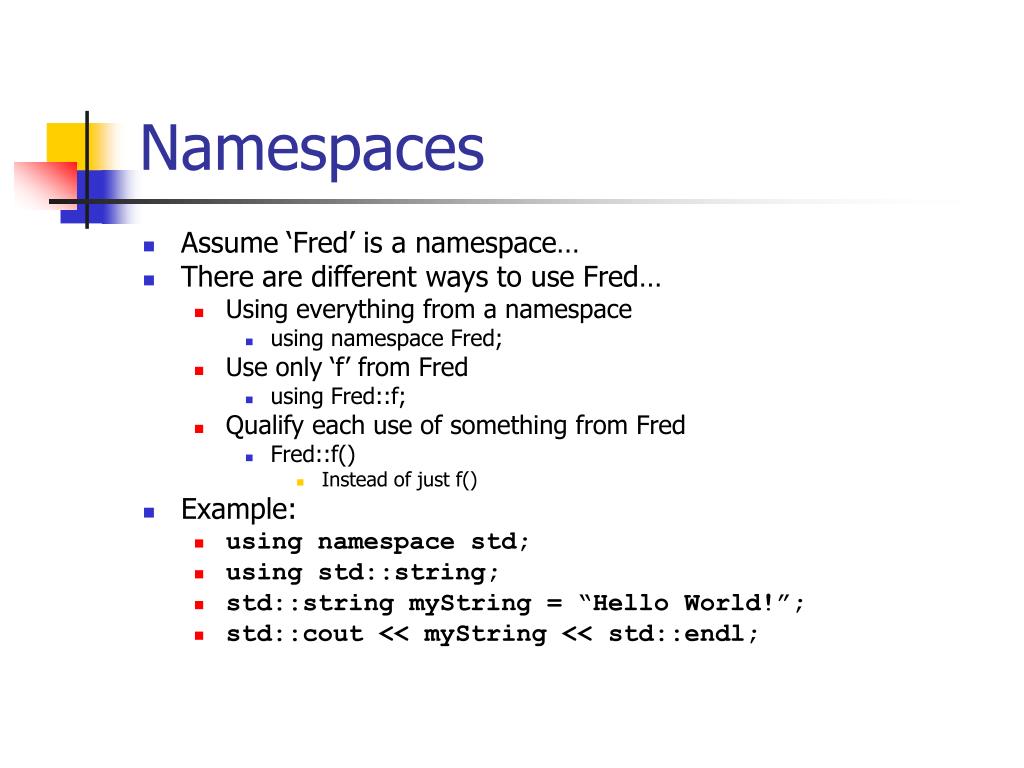

Namespaces1

Namespaces

  • Assume ‘Fred’ is a namespace…

  • There are different ways to use Fred…

    • Using everything from a namespace

      • using namespace Fred;

    • Use only ‘f’ from Fred

      • using Fred::f;

    • Qualify each use of something from Fred

      • Fred::f()

        • Instead of just f()

  • Example:

    • using namespace std;

    • using std::string;

    • std::string myString = “Hello World!”;

    • std::cout << myString << std::endl;


Creating a namespace

Creating a Namespace

  • Really simple…

    namespace <name>

    {

    /* functions, classes, or variables */

    }

  • Example:

    namespace CMSC202

    {

    /* functions, classes, or variables */

    }


Constants and pointers

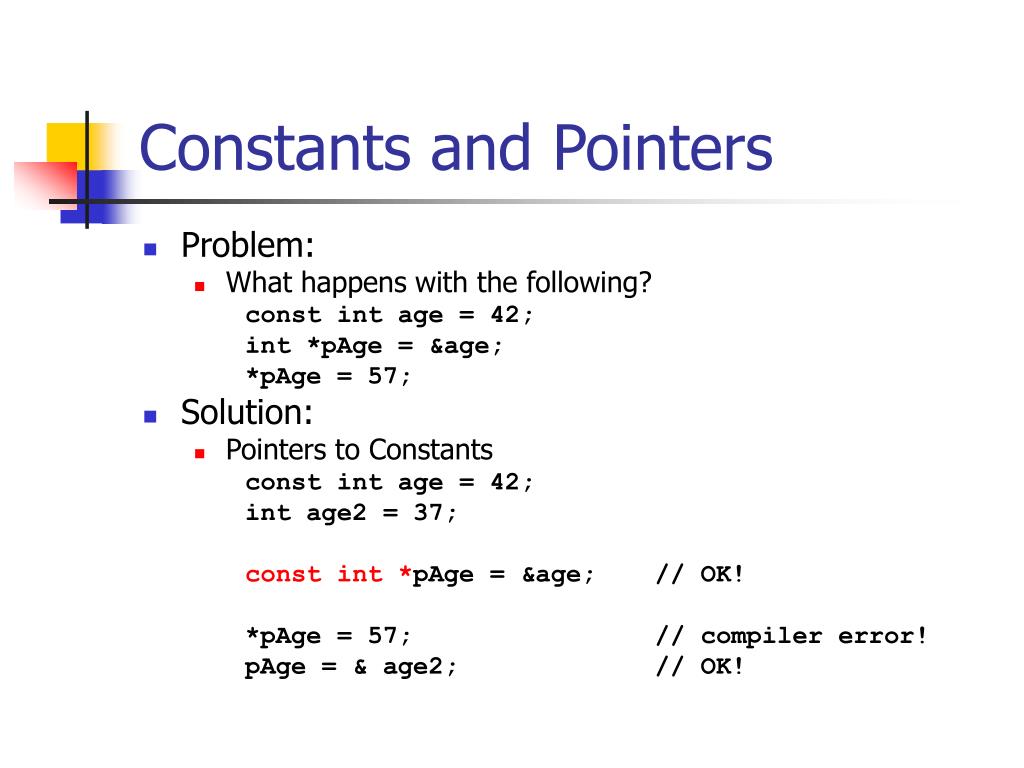

Constants and Pointers

  • Problem:

    • What happens with the following?

      const int age = 42;

      int *pAge = &age;

      *pAge = 57;

  • Solution:

    • Pointers to Constants

      const int age = 42;

      int age2 = 37;

      const int *pAge = &age;// OK!

      *pAge = 57;// compiler error!

      pAge = & age2;// OK!


Const pointers

Const Pointers

  • Problem:

    • Want to define a pointer that cannot be changed

      • i.e. it cannot point to a different object!

  • Solution

    • Const Pointers

      int width = 56;

      int length = 42;

      int *const pLength = & length;

      // initialized, unchangeable

      *pLength = 86; // ok - length is not const

      pLength = &height;

      // error - pLength is const


Const pointer const object

Const Pointer, Const Object

  • Problem:

    • Can we make an unmovable pointer that points to an unchangeable object?

  • Solution:

    • Const Pointer to a Const Object…(ack!)

      int size = 43; // non-const int

      const int weight = 89; // const int

      const int *const pWeight = &weight;

      // const pointer to a const int

      *pWeight = 88; // compiler error

      pWeight = &size; // compiler error

      cout << *pWeight << endl; // ok - just //dereferencing


Consts and pointers

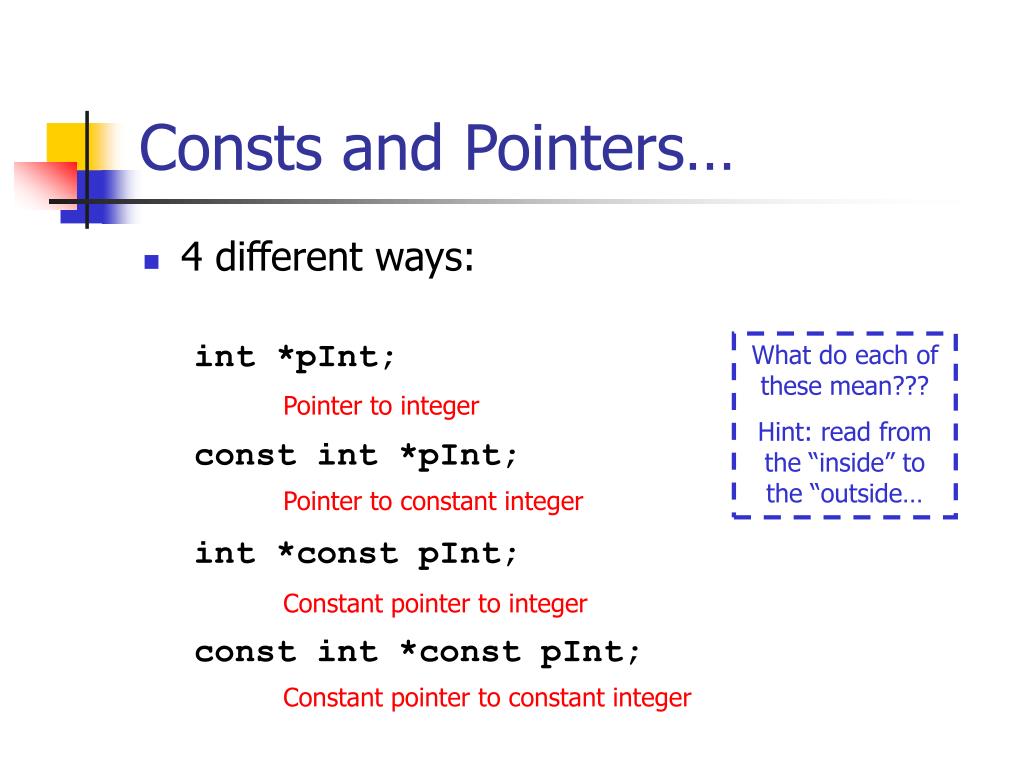

Consts and Pointers…

  • 4 different ways:

    int *pInt;

    const int *pInt;

    int *const pInt;

    const int *const pInt;

What do each of these mean???

Hint: read from the “inside” to the “outside…

Pointer to integer

Pointer to constant integer

Constant pointer to integer

Constant pointer to constant integer


Stl algorithms

STL Algorithms

  • STL provides many algorithms for use with container classes

    • #include <algorithm>

  • Some are:

    • for_each() – performs a function on each item

      • Pass by reference if you want to change the item

    • transform() – performs for_each, but stores result in another container

    • fill() – fills every item with a supplied value

    • replace() – replaces a subset of the items with value

    • sort() – uses Quicksort to sort items based on some comparison function


Examples

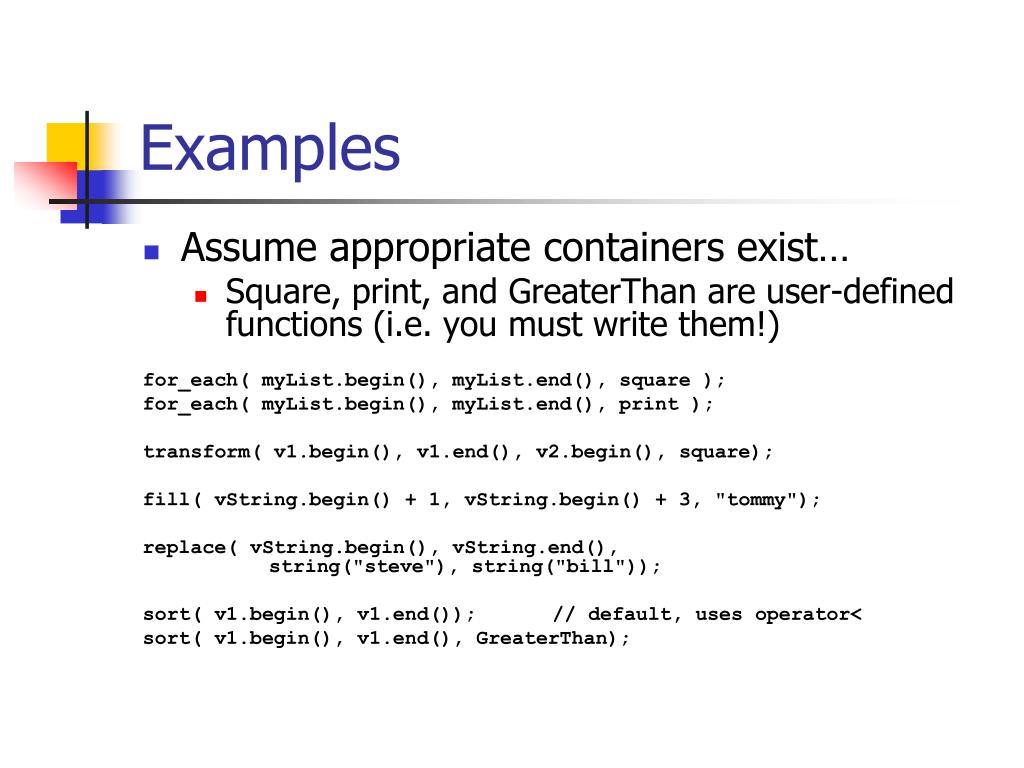

Examples

  • Assume appropriate containers exist…

    • Square, print, and GreaterThan are user-defined functions (i.e. you must write them!)

      for_each( myList.begin(), myList.end(), square );

      for_each( myList.begin(), myList.end(), print );

      transform( v1.begin(), v1.end(), v2.begin(), square);

      fill( vString.begin() + 1, vString.begin() + 3, "tommy");

      replace( vString.begin(), vString.end(), string("steve"), string("bill"));

      sort( v1.begin(), v1.end());// default, uses operator<

      sort( v1.begin(), v1.end(), GreaterThan);


Function objects

Function Objects

  • Problem:

    • Can we dynamically build functions at runtime?

  • Solution:

    • Function Objects

      • Classes (objects) that behave like functions

      • Overloading the operator( )

        • I told you it was possible!


Function objects1

Function Objects

  • Why?

    • Functions that have more properties than just the operator()

    • Can store a state

    • Separate copies, each with own state

    • Can be initialized in constructor


Function objects2

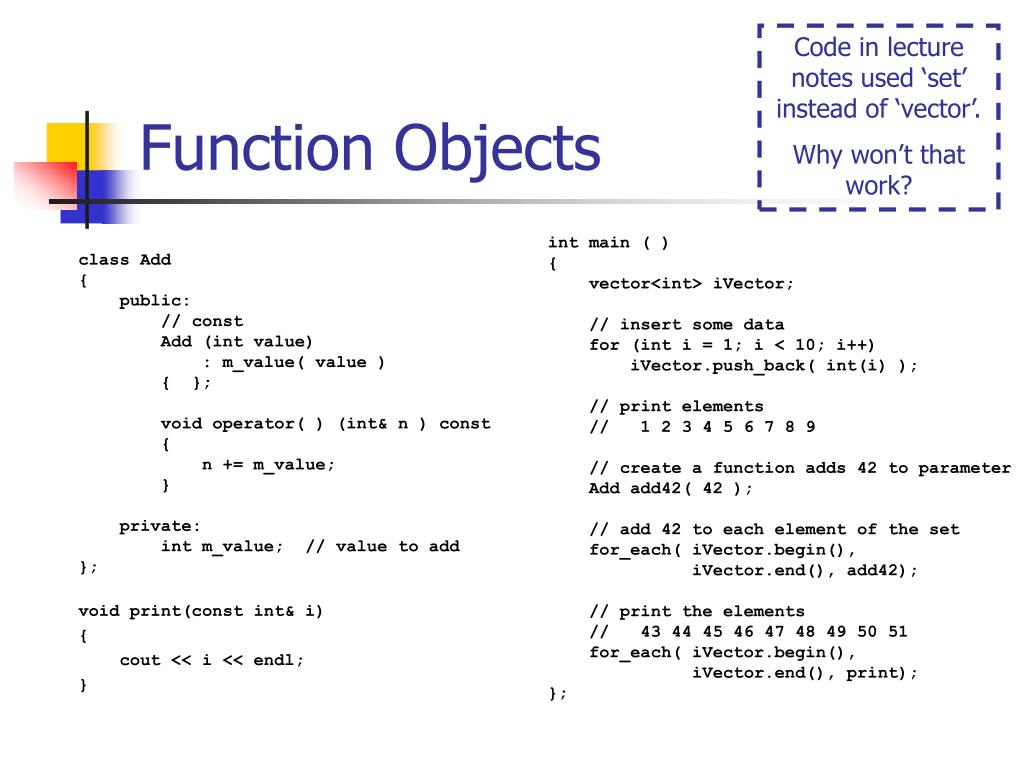

class Add

{

public:

// const

Add (int value)

: m_value( value )

{ };

void operator( ) (int& n ) const

{

n += m_value;

}

private:

int m_value; // value to add

};

void print(const int& i)

{

cout << i << endl;

}

int main ( )

{

vector<int> iVector;

// insert some data

for (int i = 1; i < 10; i++)

iVector.push_back( int(i) );

// print elements

// 1 2 3 4 5 6 7 8 9

// create a function adds 42 to parameter

Add add42( 42 );

// add 42 to each element of the set

for_each( iVector.begin(),

iVector.end(), add42);

// print the elements

// 43 44 45 46 47 48 49 50 51

for_each( iVector.begin(),

iVector.end(), print);

};

Function Objects

Code in lecture notes used ‘set’ instead of ‘vector’.

Why won’t that work?


Function objects3

class RNG // Random Number Generator

{

public:

RNG (unsigned int seed = 1)

: m_lastValue( seed ), m_seed( seed )

{ srand(seed); }

unsigned int operator( ) ()

{

// modify last Value for new value

m_lastValue += rand() % m_seed;

return m_lastValue;

}

private:

unsigned int m_lastValue;

unsigned int m_seed;

};

int main ( )

{

RNG rng ( 42 );

for (int i = 0; i < 10; i++)

cout << rng() << endl;

}

Function Objects

Key understanding:

Create functions on the fly!

Often used in Artifical Intelligence applications!


Practice

Practice

  • Which of the following is legal?

    • Assume that illegal statements are skipped…

      BeachBall a(7.0);

      BeachBall b(6.0);

      const BeachBall c(5.0);

      const BeachBall* p = &a;

      BeachBall* const q = &b;

      p->SetRadius(1.0);// 1

      q->SetRadius(2.0);// 2

      p = &c;// 3

      q = &c;// 4

      p->SetRadius(1.0);// 5

      q->SetRadius(2.0);// 6


Challenge

Challenge

  • Use a Function Object to create a function that computes the polynomial of its parameter

    • n2, n3, n4, …

      • Exponent is parameter in constructor

  • Use for_each to compute the square and cube of each float in a vector
