Java server pages creating dynamic web pages using java


James Faeldon

CS 119 Enterprise Systems Programming



  • Introduction to JSP

    • Understanding the need for JSP

    • Evaluating the benefits of JSP

    • Installing JSP Files

  • JSP Scripting Elements

    • JSP Expressions

    • JSP Scriplets

    • JSP Declarations

  • JSP Page Directive

    • Understanding the purpose of the page directive

    • Designating which classes are imported

    • Specifying the MIME type of the page

Introduction to jsp

Introduction to JSP

  • Java Server Pages (JSP) technology enables you to mix regular, static HTML with dynamically generated content.


Introduction to jsp1

Introduction to JSP

  • Dynamic Pages can change in response to different context or conditions.

HTTP request parameters used as dynamic content

Servlets vs jsp

Servlets vs. JSP

  • Servletsare good for data processing while JSP is good for presentation.

  • Benefits of JSP

    • It is easier to write and maintain the HTML

    • You can use standard Web-site development tools

    • You can divide up your development team

Reading 3 parameters example

Reading 3 Parameters (Example)


HTML code in JAVA


JAVA code in HTML


Reading 3 parameters example1

Reading 3 Parameters (Example)

Servlets vs jsp1

Servlets vs. JSP

  • JSP doesn’t provide any capabilities that couldn’t be accomplished with Servlets.

  • JSP documents are automatically translated into servlets behind the scenes.

  • The issue is not the power of the technology, it is the convenience, productivity, and maintainability of one or the other.

  • Choose the right tool for the job.

Installation of jsp files

Installation of JSP files

JSP Directories for Tomcat

  • Main Location:


  • Corresponding URL:


  • More Specific Location (Arbitrary Subdirectory):


  • Corresponding URL:


Types of jsp scripting elements

Types of JSP Scripting Elements

  • Expressions of the form <%= Java Expression %>, which are evaluated and inserted into the servlet’s output.

  • Scriptletsof the form <% Java Code %>, which are inserted into the servlet’s _jspService method (called by service).

  • Declarations of the form <%! Field/Method Declaration %>, which are inserted into the body of the servlet class, outside any existing methods.

Using jsp expressions

Using JSP Expressions

A JSP expression is used to insert values directly into the output. It has the following form:

<%= Java Expression %>


Current time: <%= new java.util.Date() %>

Predefined variables

Predefined Variables

  • request, the HttpServletRequest.

  • response, the HttpServletResponse.

  • session, the HttpSession associated with the request (unless disabled with the session attribute of the page directive

  • out, the Writer (a buffered version of type JspWriter) used to send output to the client.

  • application, the ServletContext. This is a data structure shared by all servlets and JSP pages in the Web application and is good for storing shared data.


    Your hostname: <%= request.getRemoteHost() %>

Example jsp expressions

Example: JSP Expressions


Example jsp expressions1

Example: JSP Expressions

Writing jsp scriplets

Writing JSP Scriplets

If you want to do something more complex than output the value of a simple expression, JSP scriptlets let you insert arbitrary code. It has the following form:

<% Java Code %>



String queryData = request.getQueryString();

out.println("Attached GET data: " + queryData);


Example jsp scriplets

Example: JSP Scriplets


Example jsp scriplets1

Example: JSP Scriplets

Another example jsp scriplets

Another Example: JSP Scriplets


Another example jsp scriplets1

Another Example: JSP Scriplets

Using jsp declarations

Using JSP Declarations

A JSP declaration lets you define methods or fields that get inserted into the main body of the servlet class. It has the following form:

<%! Field or Method Definition %>


<H1>Some Heading</H1>


private String randomHeading() {

return("<H2>" + Math.random() + "</H2>");



<%= randomHeading() %>

Example jsp declarations

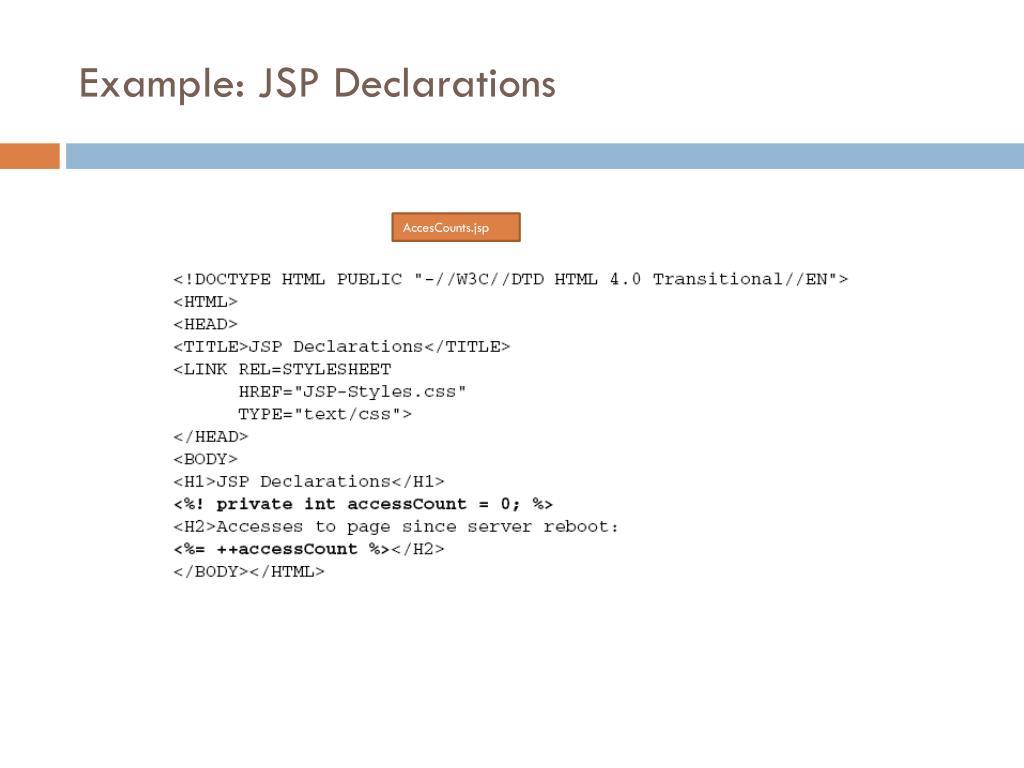

Example: JSP Declarations


Example jsp declarations1

Example: JSP Declarations

Jsp directive

JSP Directive

  • A JSP Directive affects the overall structure of the JSP page. It has the form:

    <%@ directive attribute="value" %>

    <%@ directive attribute1="value1"



    attributeN="valueN" %>

  • There are three main types of directives: page, include andtaglib.

The import attribute

The import Attribute

The import attribute of the page directive lets you specify the packages that should be imported into the JSP page.

<%@ page import="package.class" %>

<%@ page import="package.class1,...,package.classN" %>


<%@ page import="java.util.*" %>

Date today: <%= new Date() %>

The contenttype attribute

The contentType Attribute

  • The contentType attribute sets the Content-Type response header, indicating the MIME type of the document being sent to the client.

  • Use of the contentType attribute takes one of the following two forms.

    <%@ page contentType="MIME-Type" %>

    <%@ page contentType="MIME-Type; charset=Character-Set" %>


    FirstLastEmail Address

    [email protected]

    Larry Brown [email protected]

    [email protected]

    [email protected]

    <%@ page contentType="application/" %>

    <%-- There are tabs, not spaces, between columns. --%>

Example conditionally generating excel spreadsheets

Example: Conditionally Generating Excel Spreadsheets


Example conditionally generating excel spreadsheets1

Example: Conditionally Generating Excel Spreadsheets

Strategies for invoking dynamic code in jsp

Strategies for invoking dynamic code in JSP

  • Call Java code directly.Place all Java code in JSP page. Appropriate only for very small amounts of code.

  • Call Java code indirectly.Develop separate utility classes. Insert into JSP page only the Java code needed to invoke the utility classes.

  • Use beans. Develop separate utility classes structured as beans. Use jsp:useBean, jsp:getProperty, and jsp:setProperty to invoke the code.

  • Use the MVC architecture. Have a servlet respond tooriginal request, look up data, and store results in beans.Forward to a JSP page to present results. JSP page uses beans.

  • Use the JSP expression language. Use shorthand syntax to access and output object properties. Usually used in conjunction with beans and MVC.

  • Use custom tags. Develop tag handler classes. Invoke the taghandlers with XML-like custom tags.

Java server pages creating dynamic web pages using java


  • Limit the amount of Java code that is in JSP pages. At the very least, use helper classes that are invoked from the JSP pages.

  • Put all your classes in packages.

  • Define most methods with separate Java classes, not JSP declarations.



Create a web page that will display the contents of the PERSON table in the owners database.

You should be able to display the records in an HTML table or in an Excel spreadsheet.

Note: If your browser does not support displaying Excel spreadsheet a prompt will show just choose to open the file.
