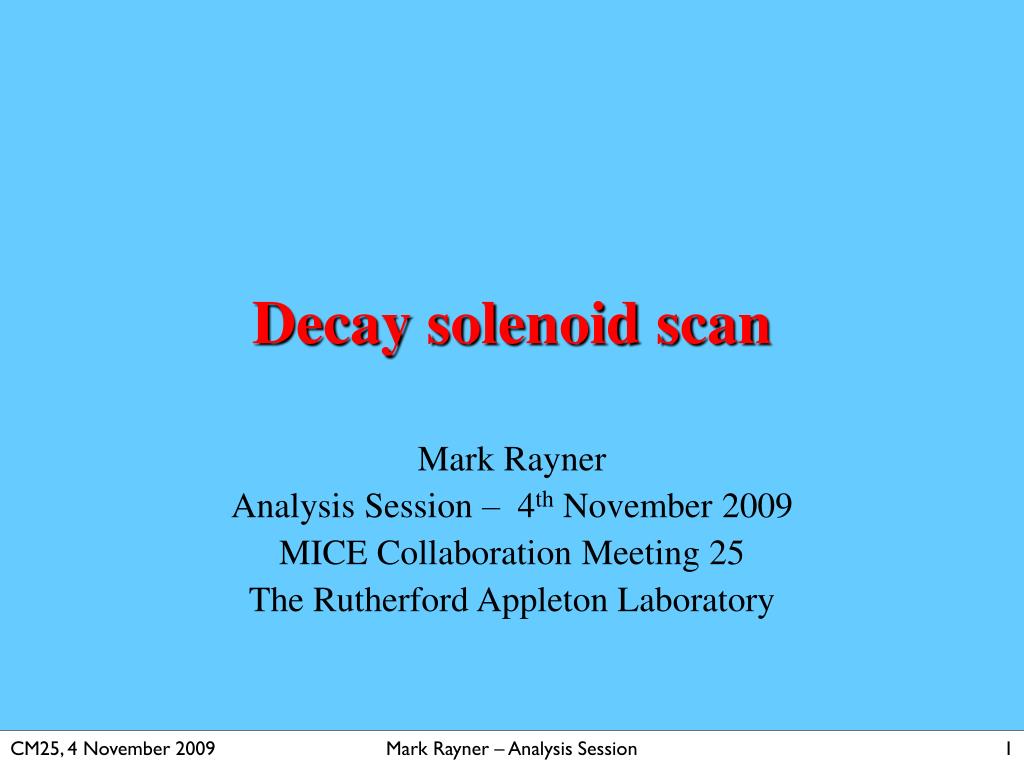

  1. Decay solenoid scan Mark Rayner Analysis Session – 4th November 2009 MICE Collaboration Meeting 25 The Rutherford Appleton Laboratory Mark Rayner – Analysis Session

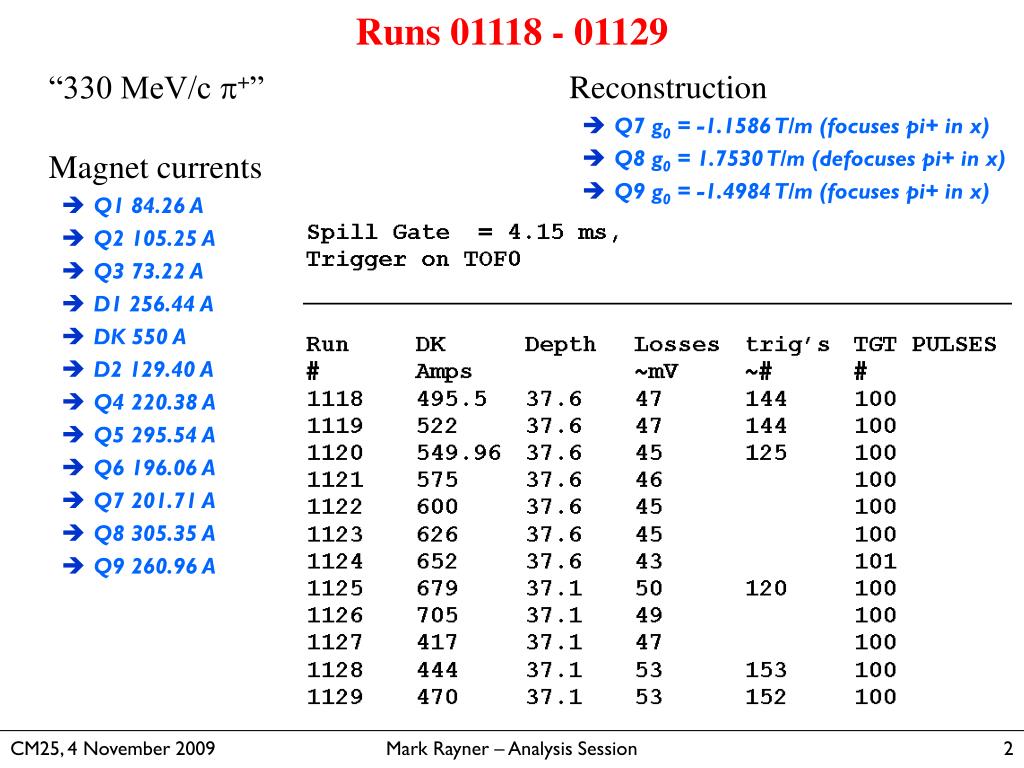

  2. Runs 01118 - 01129 “330 MeV/c p+” Magnet currents Q1 84.26 A Q2 105.25 A Q3 73.22 A D1 256.44 A DK 550 A D2 129.40 A Q4 220.38 A Q5 295.54 A Q6 196.06 A Q7 201.71 A Q8 305.35 A Q9 260.96 A Reconstruction Q7 g0 = -1.1586 T/m (focuses pi+ in x) Q8 g0 = 1.7530 T/m (defocuses pi+ in x) Q9 g0 = -1.4984 T/m (focuses pi+ in x) Mark Rayner – Analysis Session

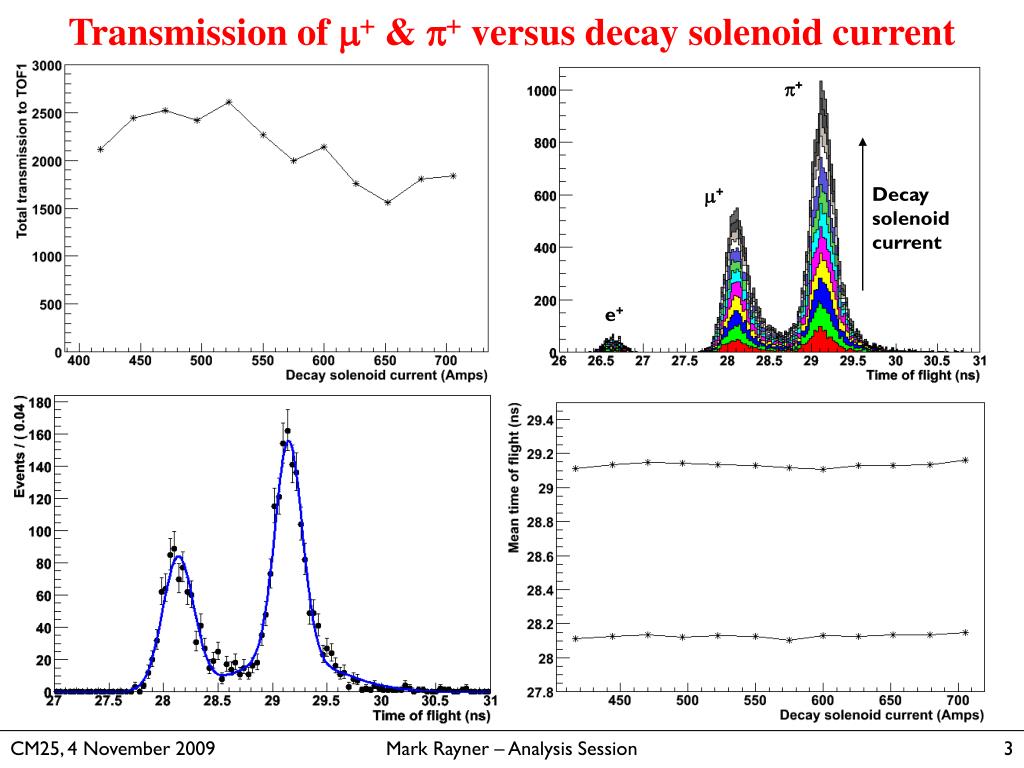

  3. Transmission of m+ & p+ versus decay solenoid current p+ Decay solenoid current m+ e+ Mark Rayner – Analysis Session

  4. Results x-x’ space y-y’ space Mark Rayner – Analysis Session

  5. Beam line characterization Mark Rayner Analysis Session – 4th November 2009 MICE Collaboration Meeting 25 The Rutherford Appleton Laboratory Mark Rayner – Analysis Session

  6. Beam line characterization • Data sets • Runs 1174 – 1177 • Runs 1178 – 1179 Mark Rayner – Analysis Session
