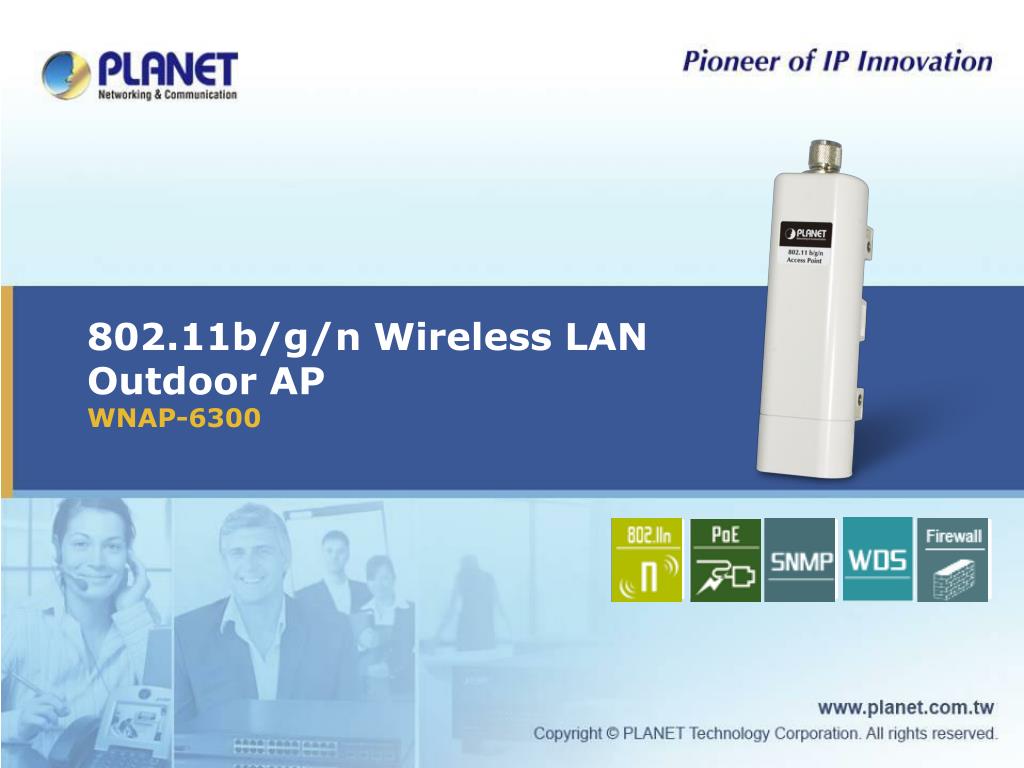

  1. 802.11b/g/n Wireless LAN Outdoor AP WNAP-6300 • Icon1 • Icon2 • Icon3 • Icon4 • Icon5

  2. Presentation Outline • Product Position • Product Overview • Product Features • Applications • Management – Web UI • Comparison – Internal • Comparison – External • Appendix

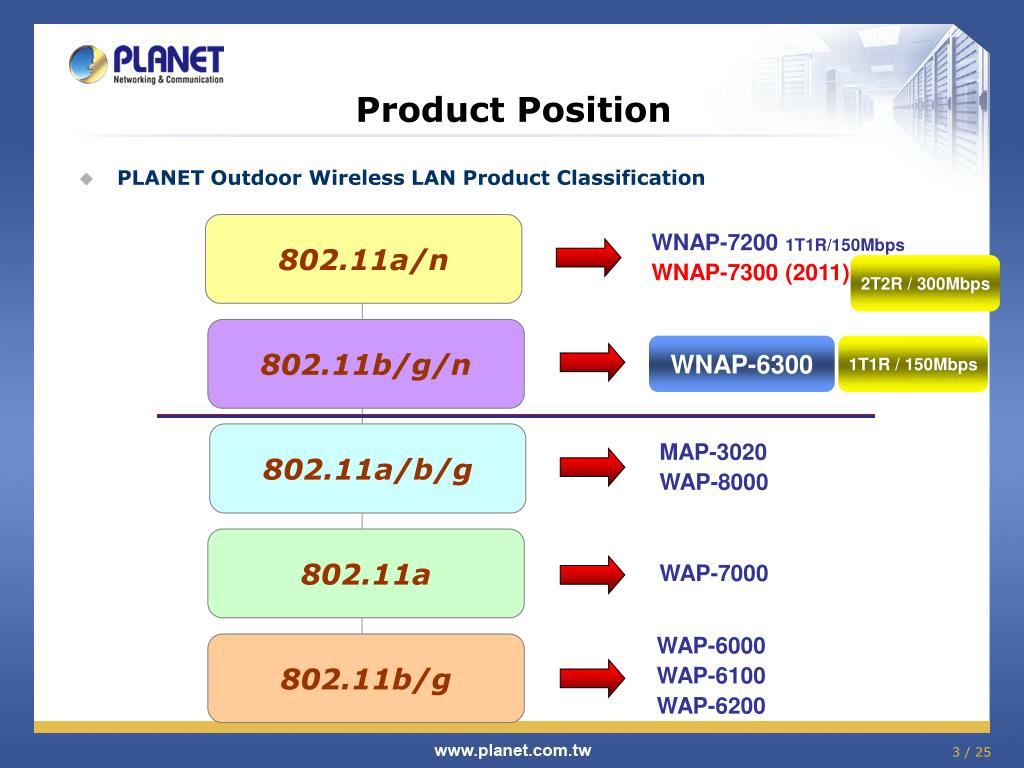

  3. 802.11a/n 802.11b/g/n 802.11a/b/g 802.11a 802.11b/g Product Position • PLANET Outdoor Wireless LAN Product Classification WNAP-7200 1T1R/150Mbps WNAP-7300 (2011) 2T2R / 300Mbps WNAP-6300 1T1R / 150Mbps MAP-3020 WAP-8000 WAP-7000 WAP-6000 WAP-6100 WAP-6200

  4. N-type (Male) V:39 degree Black rubber cover H:113 degree IP55 Housing Product Overview • Housing Design • IP-55case for water-proof and dedicated outdoor usage • Built-in 2.4GHz 8 dBi patch antenna Horizontal: 113 degree Vertical : 39 degree • Reserve N-type Connector *Switchable by web UI

  5. Product Overview • Internal Construction • Reset Button • Connection Cable • Mounting Kit • WNAP-6300 fixing to the pole Connection Cable Reset Button Mounting Kit

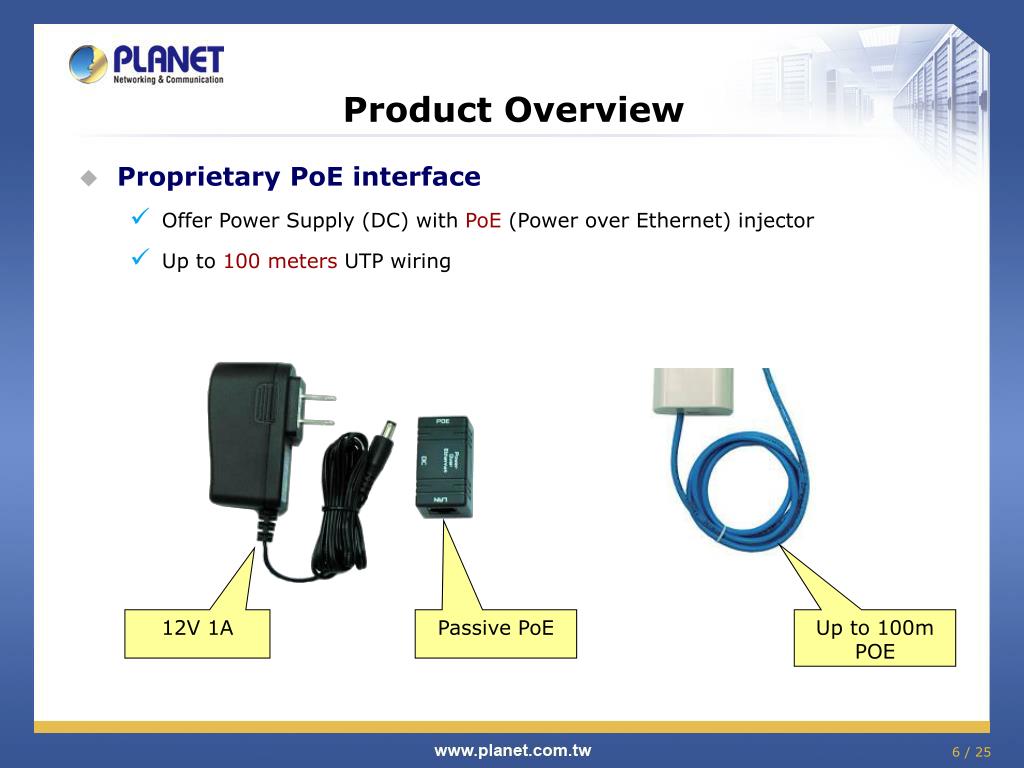

  6. Product Overview • ProprietaryPoE interface • Offer Power Supply (DC) with PoE (Power over Ethernet) injector • Up to 100 meters UTP wiring 12V 1A Passive PoE Up to 100m POE

  7. Product Overview • Installation • STEP 1:Grab the cover by pressing the push bolt and pull it out hardly. Push Bolt

  8. Product Overview • Installation • STEP 2:Plug a standard Ethernet cable into the RJ45 port, and then slide the cover back.

  9. Complete Set Product Overview • Installation Diagram • Strongly suggest usingSTPcable (part no. CB-STP-25) • Consider to installELA-100 avoiding thunder strike • Avoiding RJ45 connector from water • Fix WNAP-6300 in optimum location

  10. Product Features • Wireless bridge Max connection distance up to10Km in the clear Line of Sight

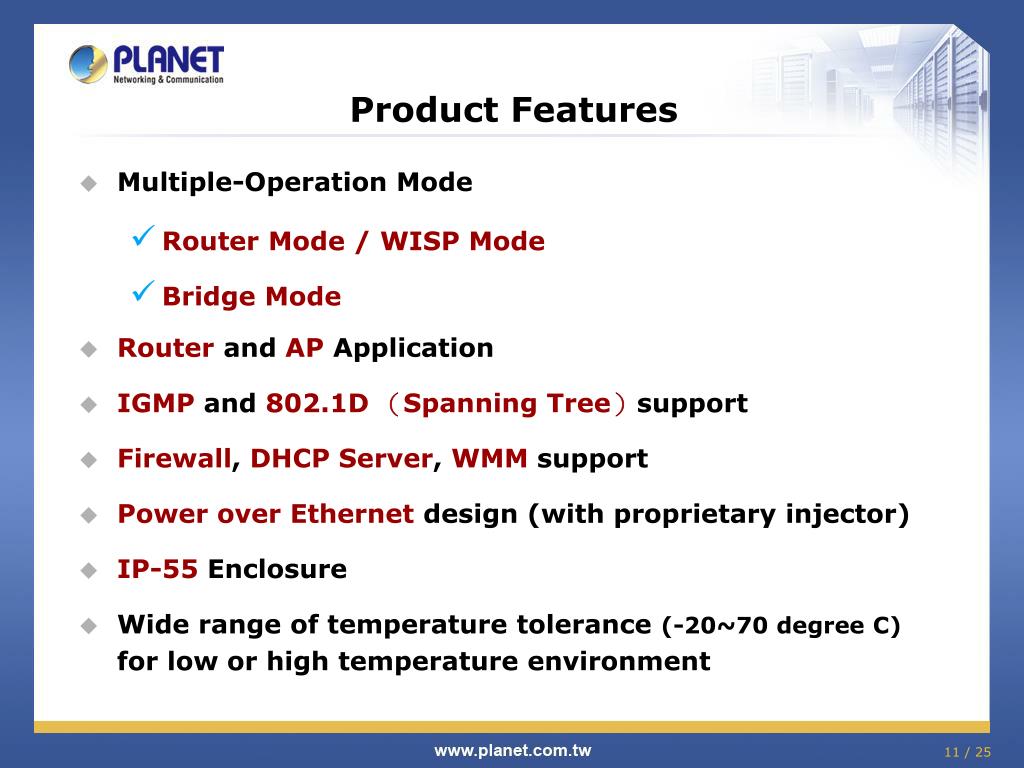

  11. Product Features • Multiple-Operation Mode • Router Mode / WISP Mode • Bridge Mode • Router and AP Application • IGMP and 802.1D (Spanning Tree)support • Firewall, DHCP Server, WMM support • Power over Ethernet design (with proprietary injector) • IP-55 Enclosure • Wide range of temperature tolerance (-20~70 degree C) for low or high temperature environment

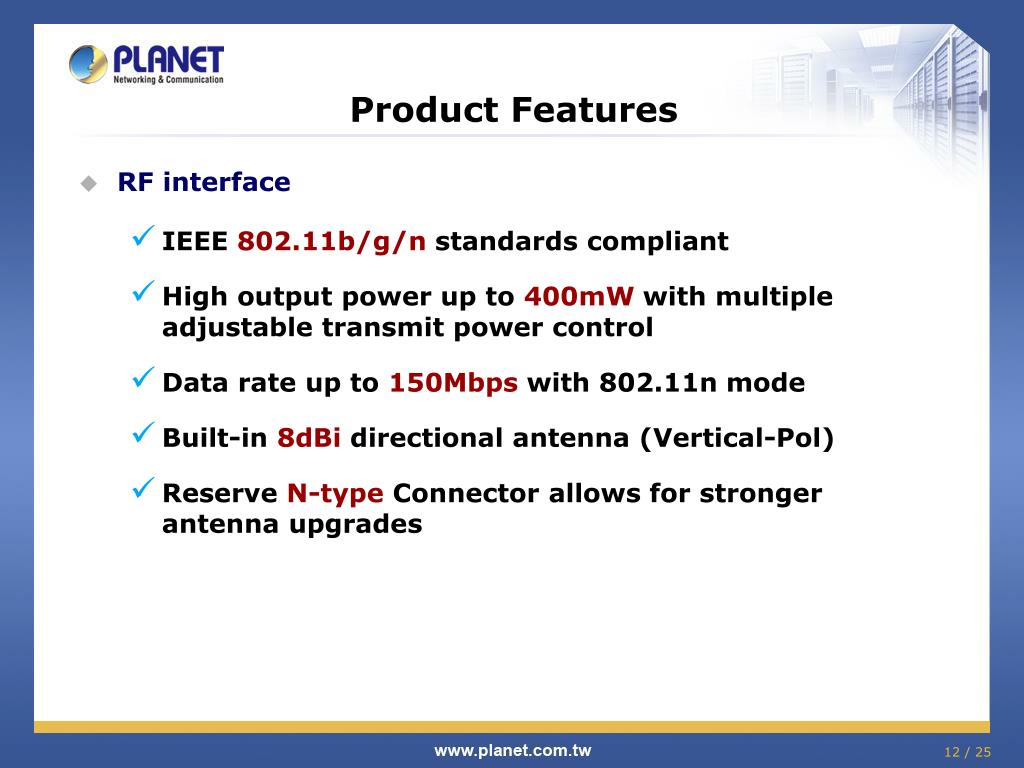

  12. Product Features • RF interface • IEEE 802.11b/g/n standards compliant • High output power up to 400mW with multiple adjustable transmit power control • Data rate up to 150Mbps with 802.11n mode • Built-in 8dBi directional antenna (Vertical-Pol) • Reserve N-type Connectorallows for stronger antenna upgrades

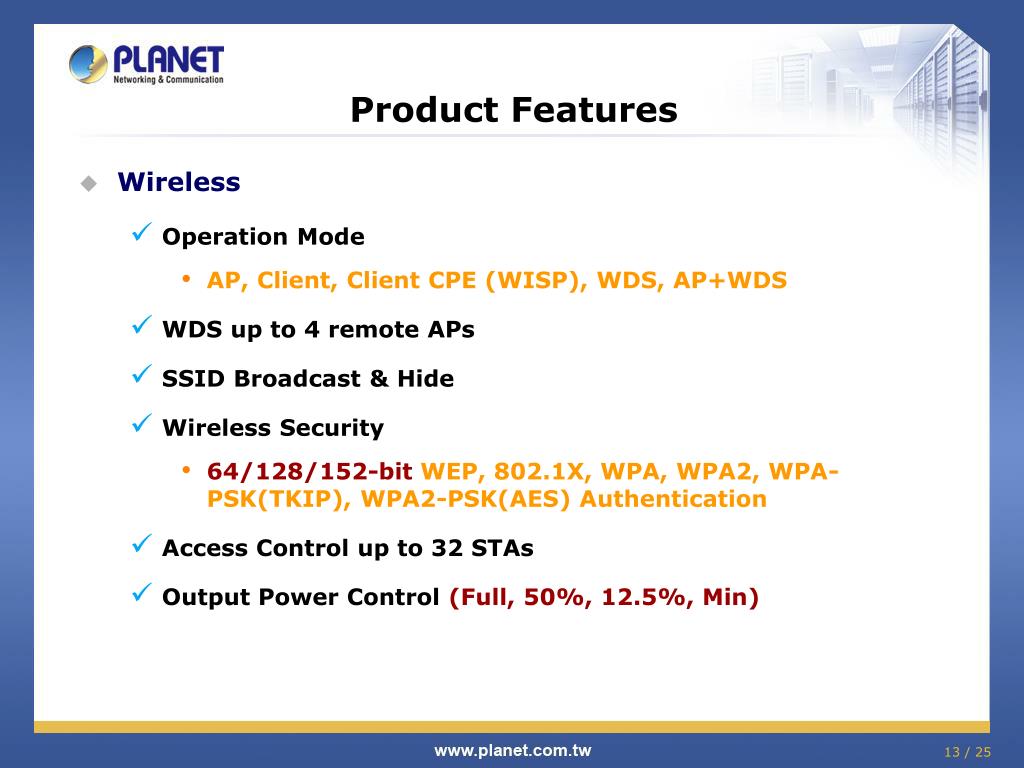

  13. Product Features • Wireless • Operation Mode • AP, Client, Client CPE (WISP), WDS, AP+WDS • WDS up to 4 remote APs • SSID Broadcast & Hide • Wireless Security • 64/128/152-bit WEP, 802.1X, WPA, WPA2, WPA-PSK(TKIP), WPA2-PSK(AES) Authentication • Access Control up to 32 STAs • Output Power Control (Full, 50%, 12.5%, Min)

  14. Product Features • Router/Firewall/Management • Firewall supports IP/Port Filtering • Support DMZ • Up to 2048 NAT Sessions • Remote Management • Web, SNMPv2/ v3, Telnet, FTP • Firmware Upgrade • Web, FTP • Backup/Restore Configuration • Reset to Factory Default • System Logs & Ping Watchdog

  15. Applications • Typical Application

  16. WNAP-6300 WISP mode Up to 10km No cable implement Wireless connection for Internet access WISP Provider Applications • Typical WISP Application System: Router mode Wireless RF: AP-client mode

  17. Management – Web UI Clear & Concise System Status Web Login

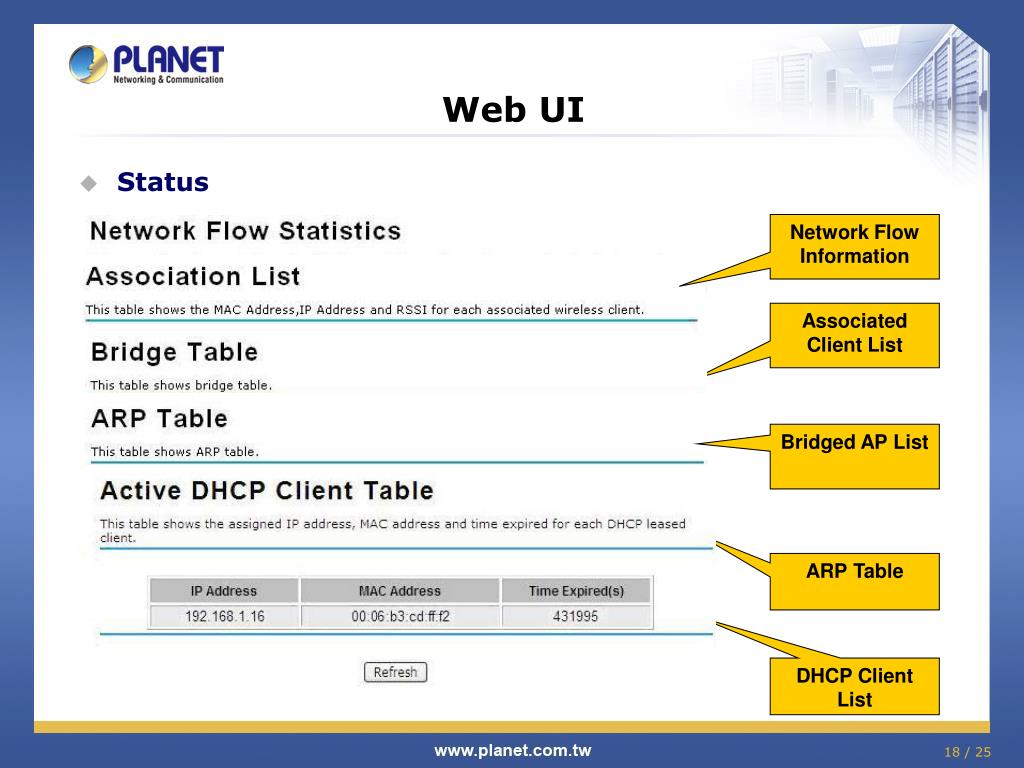

  18. Web UI • Status Network Flow Information Associated Client List Bridged AP List ARP Table DHCP Client List

  19. Multiple Network Mode Support RADIUS server’s Settings Multiple-WAN type support Time & NTP settings DMZ Support Firewall Supports:Source Destination IP/Port Filtering Gateway Support in Bridge mode STP Support Web UI • Setup

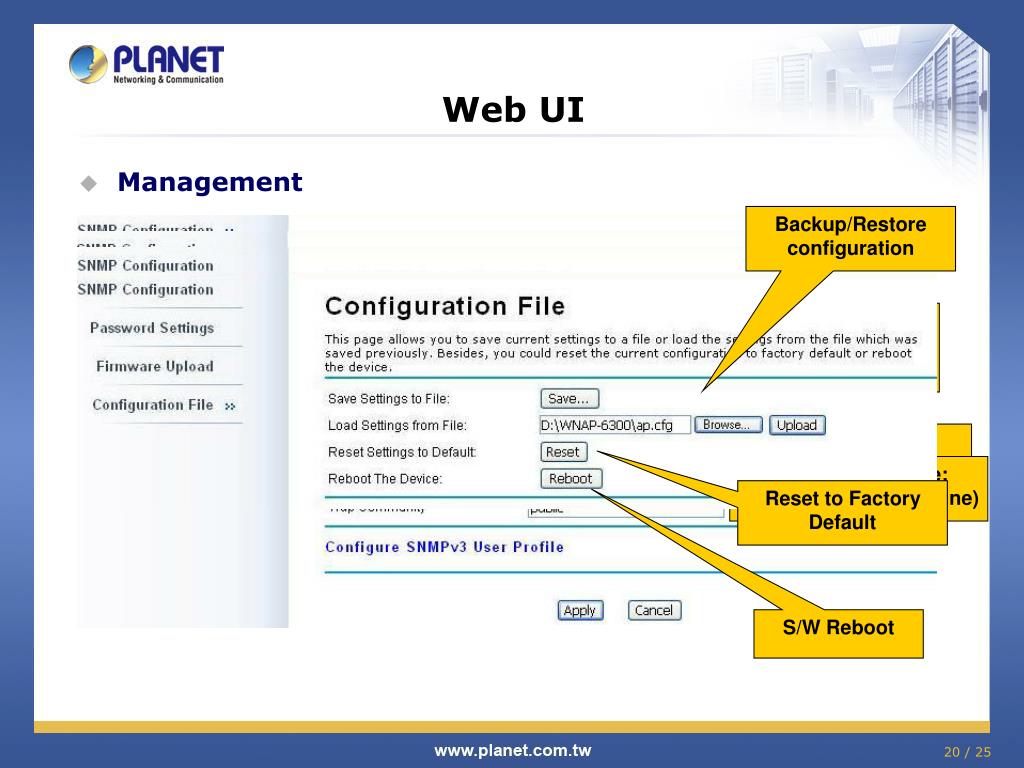

  20. Backup/Restore configuration SNMP v2, v3 Local / Remote mgt. Password Settings Firmware Upgrade: Web, FTP(Command line) Reset to Factory Default S/W Reboot Web UI • Management

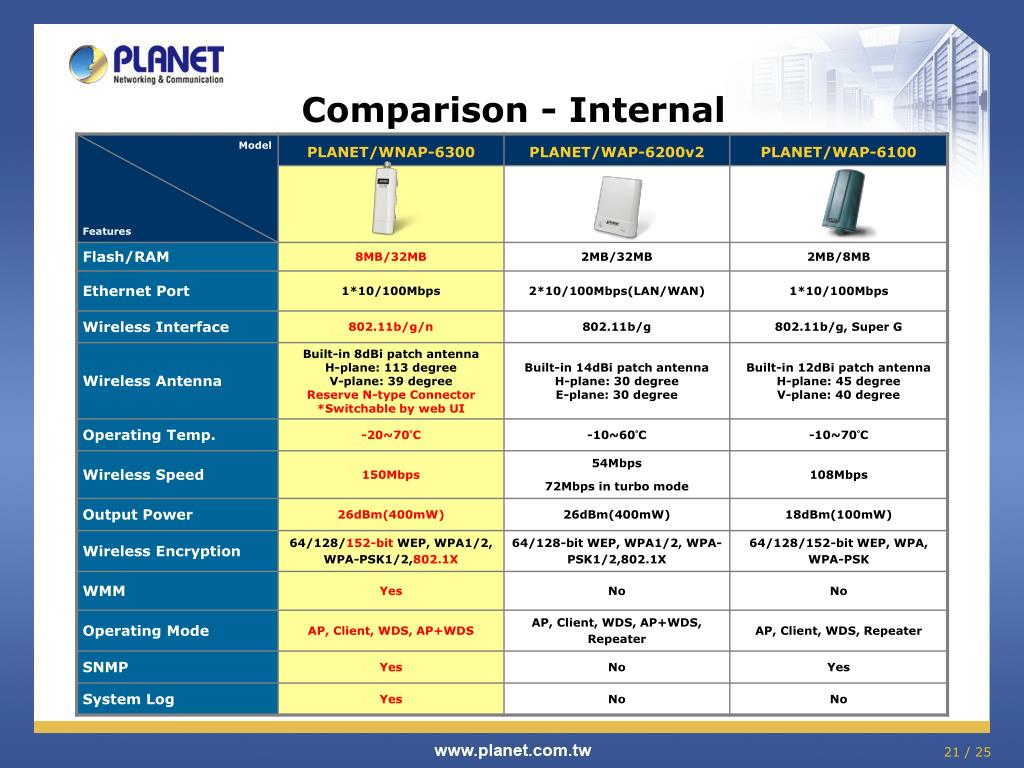

  21. Comparison - Internal

  22. Comparison - External $678

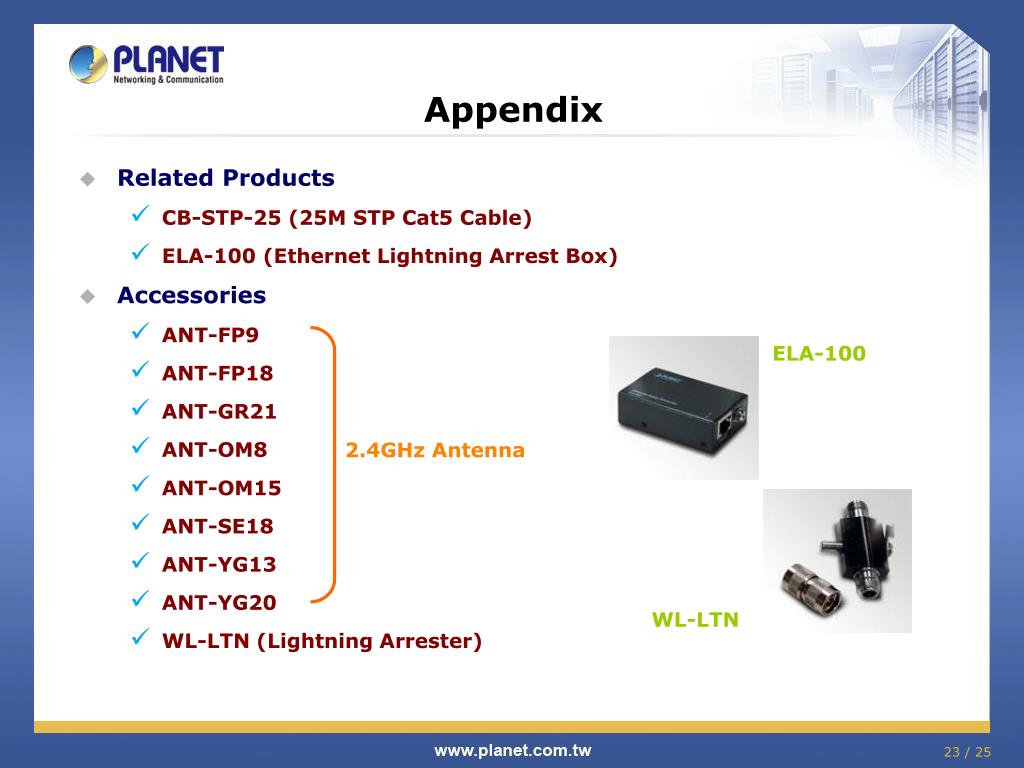

  23. ELA-100 WL-LTN Appendix • Related Products • CB-STP-25 (25M STP Cat5 Cable) • ELA-100 (Ethernet Lightning Arrest Box) • Accessories • ANT-FP9 • ANT-FP18 • ANT-GR21 • ANT-OM8 • ANT-OM15 • ANT-SE18 • ANT-YG13 • ANT-YG20 • WL-LTN (Lightning Arrester) 2.4GHz Antenna

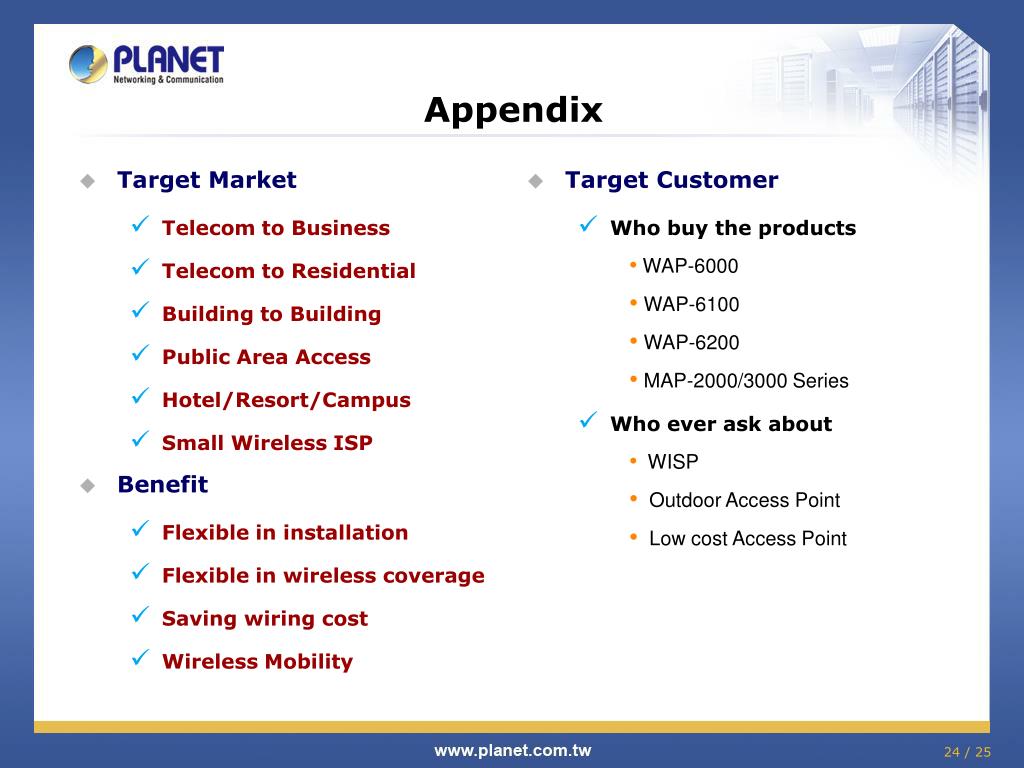

  24. Target Market Telecom to Business Telecom to Residential Building to Building Public Area Access Hotel/Resort/Campus Small Wireless ISP Benefit Flexible in installation Flexible in wireless coverage Saving wiring cost Wireless Mobility Target Customer Who buy the products WAP-6000 WAP-6100 WAP-6200 MAP-2000/3000 Series Who ever ask about WISP Outdoor Access Point Low cost Access Point Appendix

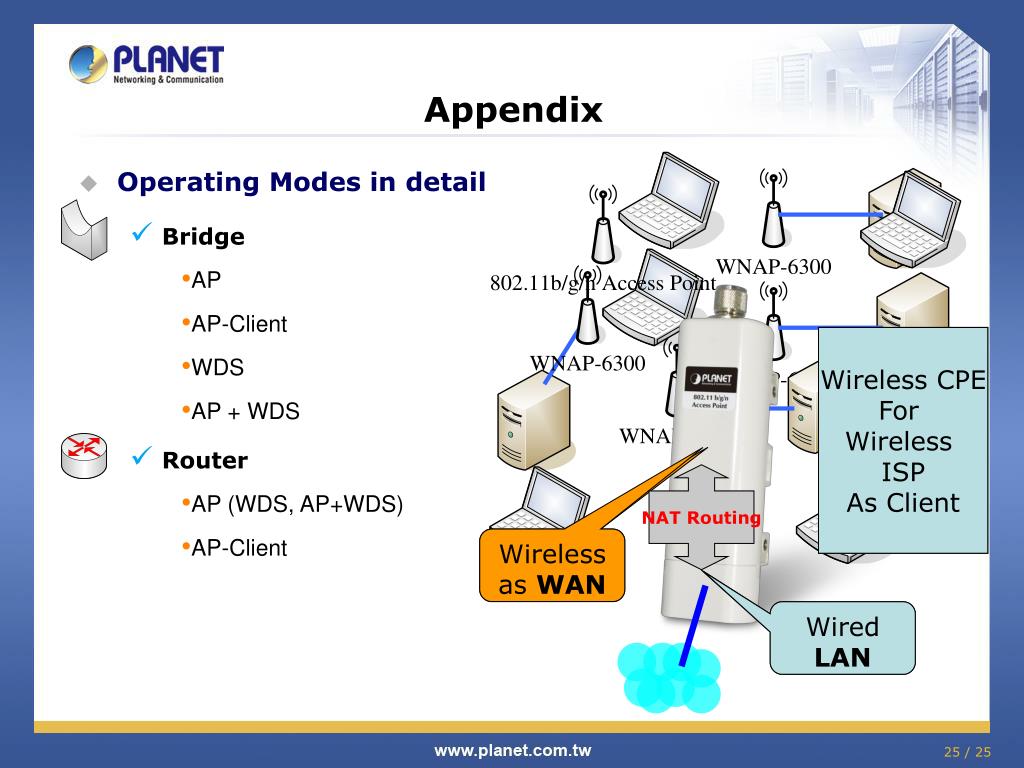

  25. Appendix • Operating Modes in detail • Bridge • AP • AP-Client • WDS • AP + WDS • Router • AP (WDS, AP+WDS) • AP-Client Wireless CO For Wireless ISP Wireless CPE For Wireless ISP As Client NAT Routing Wireless as LAN Wireless as WAN Wired WAN Wired LAN
