Wireless networking l.jpg

Wireless Networking

EE290T Spring 2002

Puneet Mehra

[email protected]


Topics l.jpg
Topics

  • Supporting IP QoS in GPRS

  • QoS Differentiation in 802.11

  • 802.11 and Bluetooth Coexistence

  • Bluetooth


Supporting ip qos in the general packet radio service l.jpg

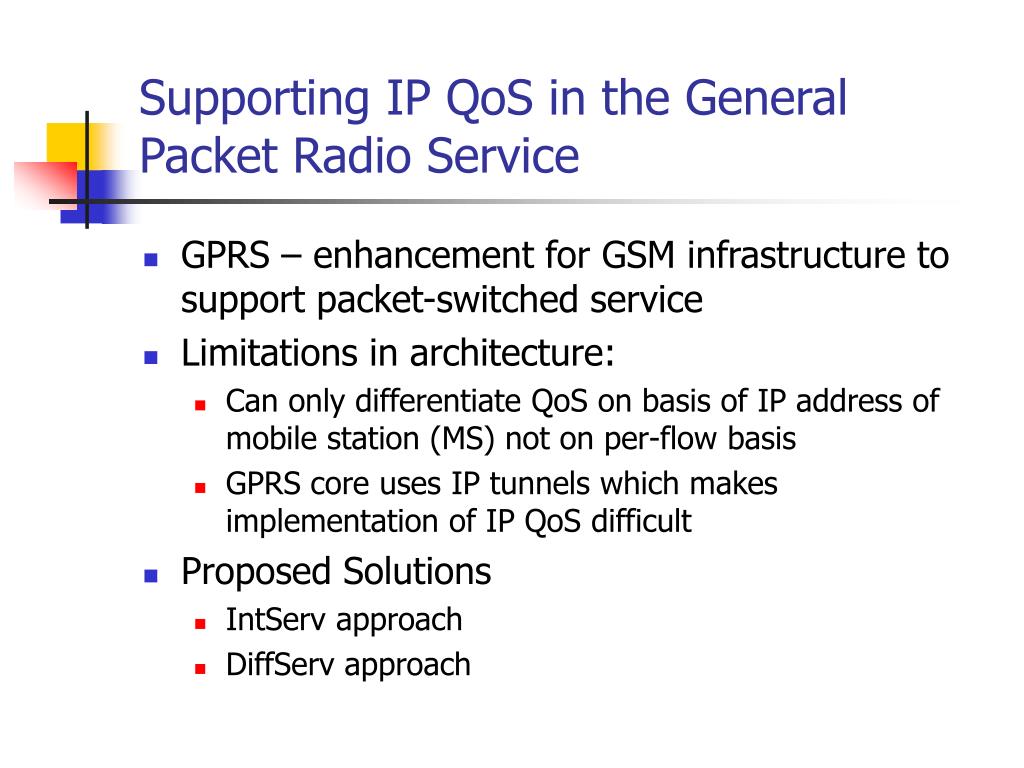

Supporting IP QoS in the General Packet Radio Service

  • GPRS – enhancement for GSM infrastructure to support packet-switched service

  • Limitations in architecture:

    • Can only differentiate QoS on basis of IP address of mobile station (MS) not on per-flow basis

    • GPRS core uses IP tunnels which makes implementation of IP QoS difficult

  • Proposed Solutions

    • IntServ approach

    • DiffServ approach


Gprs architecture l.jpg
GPRS architecture

  • GSNs – have GPRS-compliant protocol stack.

    • Supporting GSNs attach to MS, Gateways attach to Net

  • QoS profile assigned to every MS, but…

    • No QoS in the network core -> possible congestion

  • IP tunnels used between GGSN and SGSN

    • So RSVP/Diffserv TOS bit unavailable to intermediate nodes


Intserv approach to qos l.jpg
IntServ Approach to QoS

  • Establishing QoS across Core

    • Uses RSVP tunneling. Original messages pass through, but then additional state set up as needed.

    • GGSN coordinates all reservations since it sees non-encapsulated packets.

  • Mapping RSVP QoS to GPRS QoS

    • Use either UpdatePDPContextRequest & ChangePDPContextRequest messages, as well as ModifyPDPContextRequest messages.

  • Requires significant changes to GGSN, but other nodes just need RSVP functionality


Diffserv approach to qos l.jpg

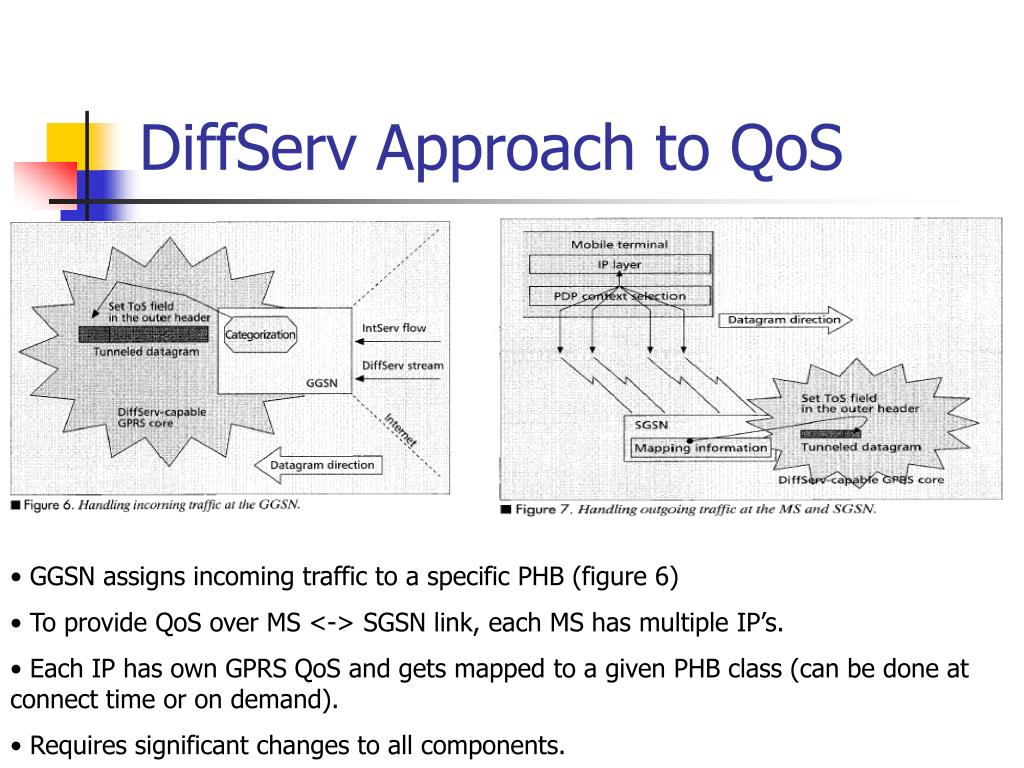

DiffServ Approach to QoS

  • GGSN assigns incoming traffic to a specific PHB (figure 6)

  • To provide QoS over MS <-> SGSN link, each MS has multiple IP’s.

  • Each IP has own GPRS QoS and gets mapped to a given PHB class (can be done at connect time or on demand).

  • Requires significant changes to all components.


Simulation environment l.jpg
Simulation Environment

  • Random handoffs w/ A1 getting most traffic

  • Fast-moving and Slow-moving MS users modeled

  • Traffic reflected occasional “rush hour” frequency

  • 300,400 & 500 MSs simulated for 4 hour periods


Results l.jpg
Results

  • Low Percentage of failed reservations

    • With 500 MSes, only 3.6% failed reservations

  • Low signaling overhead due to addition of RSVP signaling

    • RSVP signaling was <2.5% of total traffic

  • Overall Good scalability due to RSVP aggregation

    • Get even better performance if modify the RSVP refresh interval


Evaluation of quality of service schemes for ieee 802 11 wireless lans l.jpg
Evaluation of Quality of Service Schemes for IEEE 802.11 Wireless LANS

  • 802.11 has 2 different MAC schemes

    • Distributed Coordinator Function (DCF)

    • Point Coordinator Function (PCF)

  • 4 Schemes Tested for Differentiation

    • PCF mode

    • Distributed Fair Scheduling

    • Blackburst

    • Enhanced DCF


802 11 distributed mac scheme l.jpg
802.11 Distributed MAC scheme Wireless LANS

  • Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) algorithm.

  • The Steps:

    • First Sense the Medium.

    • If Idle for DIFS time period, send frame.

    • Else - do exponential random backoff involving multiple of minimum contention window (CW)

    • Each time medium is idle for DIFS, window—

    • If(window == 0) transmit frame


Differentiation methods l.jpg
Differentiation Methods Wireless LANS

  • 802.11e – Enhanced DCF

    • Different minimum contention window

      • Higher priority has smaller window

    • Different interframe spaces

      • Use Arbitration IFS – some multiple of DIFS time period

    • Packet Bursting – station can send multiple frames, for certain time limit, after gaining control of medium

  • PCF

    • Centralized, polling-based mechanism involving the base station.

    • Time consists of Contention Free Periods, when only polled station access medium.


Differentiation methods cont l.jpg
Differentiation Methods Cont. Wireless LANS

  • Distributed Fair Scheduling (DFS)

    • Backoff interval dependent on weight of sending station.

  • Blackburst

    • High priority stations try to access medium at constant intervals.

    • Enter a blackburst contention period, where a station jams the channel for time proportional to how long it has been waiting.

    • Synchronization between high-priority flows leads to little wasted bandwidth due to contention


Simulation results l.jpg
Simulation Results Wireless LANS

  • Simulations carried out in ns-2 with background cross traffic

  • EDCF and blackburst provided best service to high-priority flows, especially with high loads, but starved best-effort

  • Blackburst had best medium utilization

  • PCF performed worst, and EDCF is, distributed, and offers better performance

  • DFS offered better service differentiation while avoiding starving low-priority flows when network load is high


Differentiation mechanisms for ieee 802 11 l.jpg
Differentiation mechanisms for IEEE 802.11 Wireless LANS

  • DCF Details

    • Hidden Node Problem

      • Solution – optional RTS/CTS scheme w/ fragmentation_threshold

      • Network Allocation Vector (NAV) used to do virtual carrier sensing – get transmission duration from RTS/CTS frame info

    • Different Inter Frame Spacing (IFS)

      • MAC ACK packets use Short IFS (SIFS) instead of DIFS


Qos differentiation in dcf l.jpg
QoS Differentiation in DCF Wireless LANS

  • Backoff increase function

    • Each priority level has a different backoff increment function

  • Different DIFS

    • Each priority has a different DIFS

  • Maximum frame length

    • Each priority has a different maximum frame that can be transmitted at once


Backoff increase function l.jpg
Backoff Increase Function Wireless LANS

  • Original: backoff_time = Floor[22+i x rand()] x slot_time

  • Modification: backoff_time = PJ2+i where PJ is the priority factor. Larger value leads to longer delay/lower throughput

  • Results

    • Provides differentiation for UDP, but large ratios lead to instability

    • No effect for TCP. Assume that AP is responsible for sending TCP-ACKs -> since senders ended up waiting for ACK from AP and there was no contention for RTS messages


Difs differentiation l.jpg
DIFS differentiation Wireless LANS

  • Stations with higher priority have smaller DIFS interval

  • Results

    • Works well for UDP flows

    • AP priority determines effect on TCP differentiation (since it sends ACKs)

    • Can give UDP priority over TCP. How? By changing priority of AP.


Maximum frame length mfl l.jpg
Maximum Frame Length (MFL) Wireless LANS

  • Priority due to size of maximum transmittable data unit

  • Results

    • Throughput proportional to MFL

    • Ratios don’t affect system stability

    • Can prioritize TCP or UDP traffic


Results of channel errors l.jpg
Results of Channel Errors Wireless LANS

  • All Approachs

    • Channel errors lower data rate

  • Backoff Time Approach

    • Prioritization dependent on channel (Bad!)

  • Maximum Frame Length

    • During channel errors, large packets more likely to be corrupted -> smaller differentiation


Wi fi 802 11b and bluetooth enabling coexistance l.jpg
Wi-Fi (802.11b) and Bluetooth: Enabling Coexistance Wireless LANS

  • Bluetooth & WiFi Basics

    • Bluetooth - short range cable replacement tech. 1 Mb/s data rate

    • WiFi - wireless LAN tech operating at 11Mb/s (actually up to 22Mb/s now)

  • Both Operate in 2.4 GHz Range

    • Bluetooth (uses FHSS) – transmit high energy in narrow band for short time

    • WiFi (Uses DSSS) – wider bandwidth with less energy

    • Sharing spectrum -> interference


Interference overview l.jpg

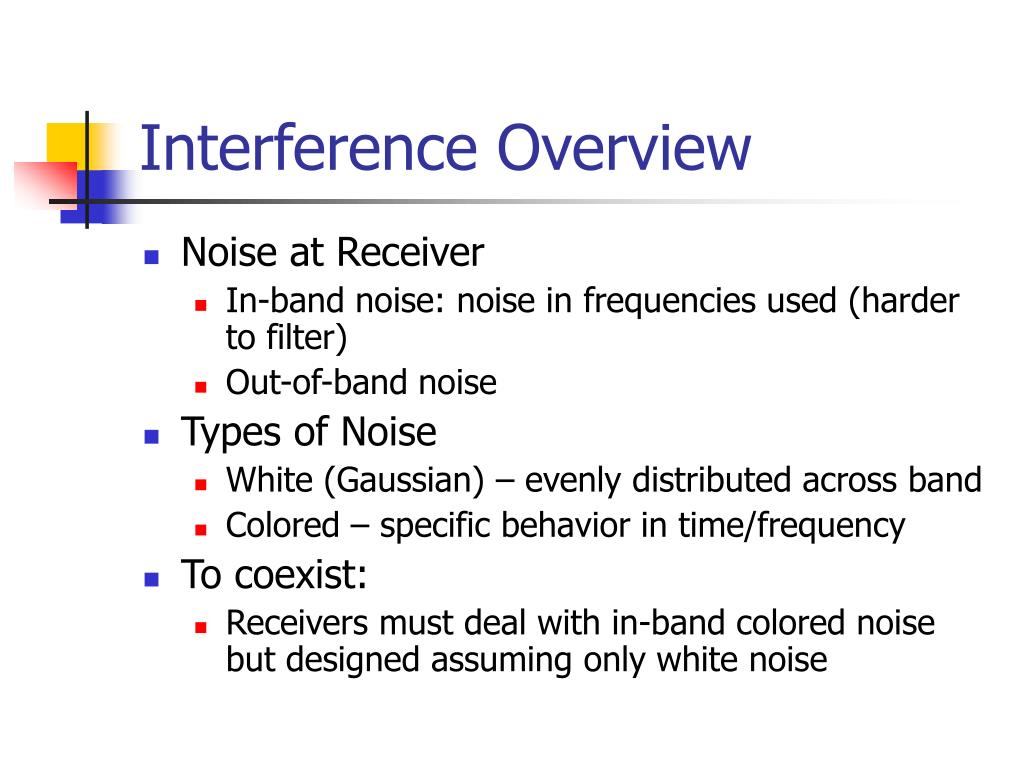

Interference Overview Wireless LANS

  • Noise at Receiver

    • In-band noise: noise in frequencies used (harder to filter)

    • Out-of-band noise

  • Types of Noise

    • White (Gaussian) – evenly distributed across band

    • Colored – specific behavior in time/frequency

  • To coexist:

    • Receivers must deal with in-band colored noise but designed assuming only white noise


Interference experiments l.jpg
Interference Experiments Wireless LANS

  • Experimental Setup

    • Used laptop w/ Wi-Fi and bluetooth cards

  • Results

    • Wi-Fi stations less than 5-7m from AP suffered more than 25% degradation in presence of cubicle environment


More results l.jpg
More Results Wireless LANS

Bluetooth Throughput reduction due to Wi-Fi interference


Interference reduction techniques l.jpg
Interference-Reduction Techniques Wireless LANS

  • Regulatory and standards

    • Eg: Allow bluetooth to only hop over certain range

  • Usage and Practice

    • Limit simultaneous usage to avoid interference

  • Technical Approaches

    • Limit bluetooth power for short-range devices

    • Use other frequencies (5 GHz – HiperLan and 802.11a)

      • Much more RF power required

      • Shorter Range

  • Appears to be an open research area


Bluetooth an enabler for personal area networking l.jpg
Bluetooth: An Enabler for Personal Area Networking Wireless LANS

  • Personal Area Network (PAN)

    • Electronic devices seamlessly interconnected to share info (perhaps even constantly online)

    • Characteristics

      • Distributed Operation

      • Dynamic network topology (assume mobile nodes)

      • Fluctuating Link Capacity

      • Low Power Devices


Bluetooth s role in pan l.jpg
Bluetooth’s role in PAN Wireless LANS

  • Piconets

    • Adhoc networks formed by nodes

    • Master/Slave semantics with polling of data

  • Scatternet

    • Interconnection of piconets.

    • Nodes may be in several piconets at once, serving as gateways


Routing issues l.jpg
Routing Issues Wireless LANS

  • Packet Forwarding in Bluetooth

    • Bluetooth Network Encapsulation Protocol (BNEP) – ethernet-like interface for IP

    • Scatternet forwarding – use BNEP broadcast messages and ad-hoc routing techniques


Scheduling issues l.jpg
Scheduling Issues Wireless LANS

  • Intrapiconet Scheduling (IRPS)

    • Schedule for polling slaves in piconet

  • Interpiconet scheduling (IPS)

    • Scheduling a node’s time between multiple piconets.

    • Main challenge: make sure that node is available in piconet when master wants to communicate


Ips framework l.jpg
IPS Framework Wireless LANS

  • Rendez-vous Point Algorithms Proposed for IPS

    • nodes communicate when slave/master will meet (in time) to exchange data

  • Main Issues:

    • How to decide on the RP, and how strict is the commitment

    • How much data to exchange during RP

  • RP timing

    • can be periodic or pseudo random

  • Window exchange

    • Static or dynamic


References l.jpg
References Wireless LANS

  • “Supporting IP QoS in the General Packet Radio Service”. G. Priggouris et Al. IEEE Network 2000.

  • “Evaluation of Quality of Service Schemes for IEEE 802.11 Wireless LANs”. Anders Lindgren et Al. IEEE LCN 2001.

  • “Differentiation mechanisms for IEEE 802.11”. Imad Aad and Claude Castelluccia. IEEE Infocom 2001.

  • “Wi-Fi (802.11b) and Bluetooth: Enabling Coexistence”. Jim Lansford et Al. IEEE Network 2001.

  • “Bluetooth: An Enabler for Personal Area Networking”. Per Johansson et Al. IEEE Network 2001.
