The value of urban design – avoiding infrastructure mistakes

ANZSEE Conference 2005

12-13 December 2005

© Ralph Chapman

Victoria University of Wellington

Not to be reproduced without the author’s permission

Outline l.jpg


  • Context

    • Sustainable development

    • Urban design – in NZ and overseas

    • Transport infrastructure decisions in NZ

  • Framework

    • Why design matters for infrastructure costs and benefits

  • Empirical evidence

    • Compactness

    • Mixed use and connectivity

    • Other elements: safety, local character, the public realm

  • Areas for further investigation

  • Conclusions

  • 1 context first we shape our cities and then they shape us winston churchill l.jpg

    1: Context“First we shape our cities and then they shape us” – Winston Churchill

    Slide4 l.jpg

    A ‘sustainable development’ view

    • Holistic / integrative

      • well-being, not just economic development

      • complementarities as well as trade-offs

      • should fully ‘internalise’ environmental and social externalities

    • Long-term / intergenerational

      • concern about irreversibilities

      • should adequately address patterns of disadvantage – e.g. the long-term determinants of health

    • Redesign, rather than just ‘protect’

    Slide5 l.jpg

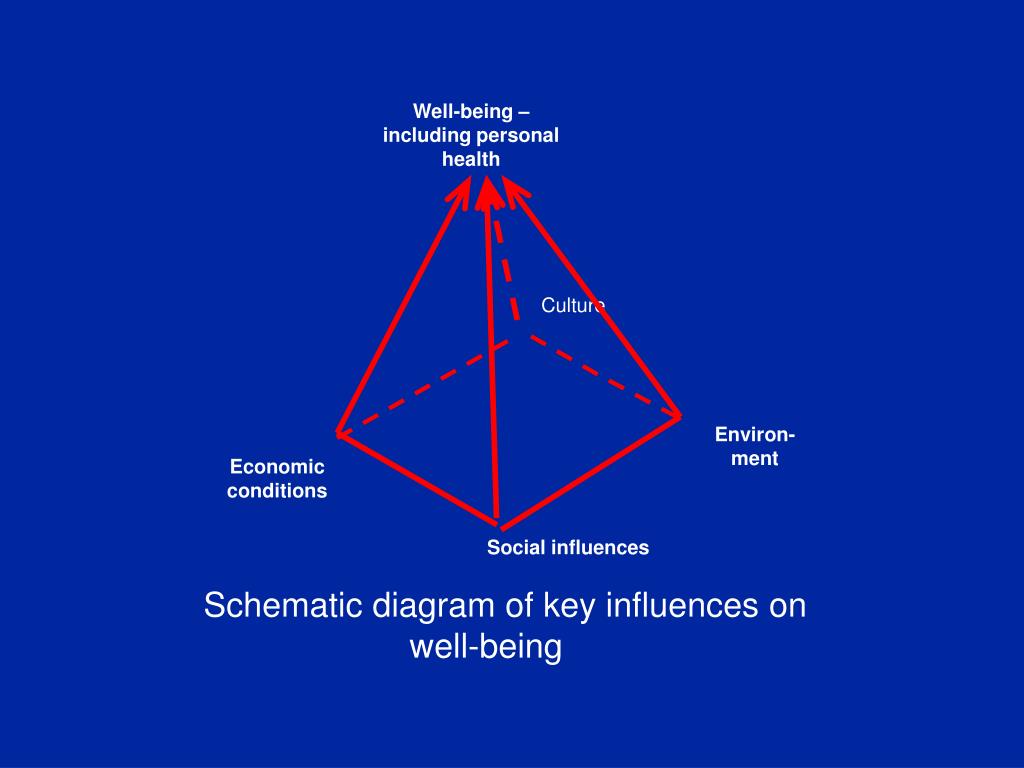

    Well-being – including personal health





    Social influences

    Schematic diagram of key influences on


    Urban design transport l.jpg

    Urban design & transport

    • NZ Transport Strategy clearly SD oriented

    • Released (02) before burst of work on UD

    • Issues and aims (NZTS):

      • Economic development

      • Safety

      • Access and mobility

      • Public health

      • Environmental sustainability

    • E.g. “Walking and cycling for short trips will be promoted and reduced dependence on private vehicles for mobility is encouraged”

    Urban design internationally l.jpg

    Urban design internationally

    • In US

      • Smart growth

      • New Urbanism

    • In UK and Europe

      • CABE

      • PoW Trust – Found’n for Built Environment

      • Office of Deputy Prime Minister

      • Urban renaissance studies (e.g. OECD, ’03)

    Slide8 l.jpg

    • US picture

    • Time spent in traffic up over 200% since 1980

    • Miles driven up 10% in last decade

    • Source: Smart Growth America

    Slide9 l.jpg

    Sprawl Vs. Smart Growth

    Slide10 l.jpg

    2: Framework

    Infrastructure influenced by urban design l.jpg

    Infrastructure influenced by urban design

    • Facilities: e.g. shopping, educational

    • Housing

    • Water and sewerage

    • Energy

    • Transport

    A simple model linking urban design transport and well being l.jpg

    A simple model linking urban design, transport and well-being

    Urban design



    Slide13 l.jpg

    A more complex model: illustrating one of the important links between urban design elements and impacts on well-being


    Health benefits


    Increased physical activity (e.g. walking and cycling)

    Local character

    Other social and economic benefits

    Mixed use

    Public realm

    Environmental benefits


    Framework principles 1 l.jpg

    Framework principles (1)

    • Transport infrastructure decisions should maximise overall well-being (not individual mobility / GDP / etc.)

    • The transport ‘market’ is highly distorted

      • individual motorist decisions and preferences are highly distorted

      • E.g. provision & price of carparking affects car use

      • Thinking “It’s what people want” is misguided

    • Urban form / land use & associated infrastructure decisions may constitute the biggest distortion

      • Once decisions are made, urban development is heavily path-dependent

    Framework 2 l.jpg

    Framework (2)

    • Central and local government are, and must be, involved in transport funding (infrastructure) plus regulation, pricing & education

    • Market signals can still be used – but are not enough

    • Policy (e.g. infra) decisions should be long-term and holistic

    • In evaluating transport infrastrucutre options, critical to consider the whole range of costs and benefits

    • Include external costs and benefits of transport use

      • E.g. climate change impacts; health impacts

      • Focus here is on impacts on well-being in urban places

    3 some empirical evidence l.jpg

    3: Some empirical evidence

    • External costs of transport: overlooked costs

    • Compactness of cities and well-being

    • Mixed use, connectivity, and well-being

    • Other elements: safety, local character, the public realm…

    Slide17 l.jpg


    Graeme McIndoe

    Ralph Chapman

    Chris McDonald

    Gordon Holden

    Philippa Howden-Chapman

    Anna Bray Sharpin

    Peer review and assistance

    Jenny Dixon

    Chris Dempsey

    Clive Anstey

    Margot Schwass

    Client group

    Frances Lane Brooker

    Erica Sefton

    Brenna Waghorn

    Ernst Zollner

    Slide18 l.jpg

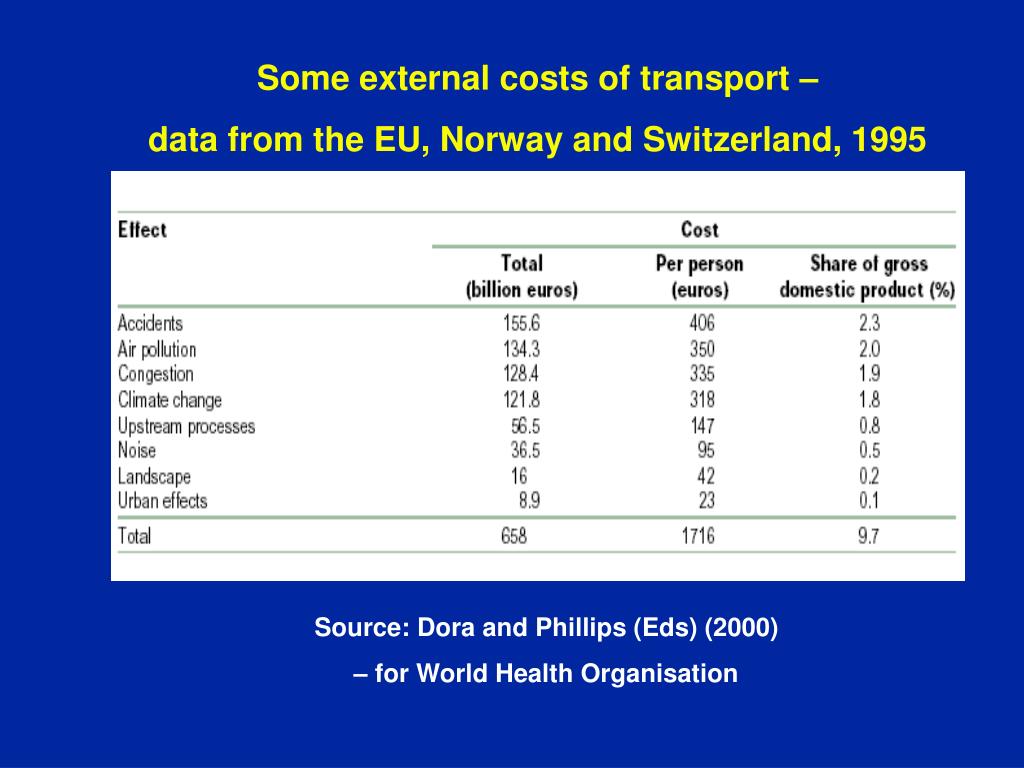

    Some external costs of transport –

    data from the EU, Norway and Switzerland, 1995

    Source: Dora and Phillips (Eds) (2000)

    – for World Health Organisation

    Slide19 l.jpg

    Transport market distortions: an estimate of the size of external costs size (per vehicle-mile; the US; 1990s data)

    Source: Litman (1999) Transportation market distortions: a survey

    Other evidence on externalities l.jpg

    Other evidence on externalities…


    • In large European cities, up to 60.000 deaths/year caused by long-term exposure to air pollution

    • In US, vehicles account for ~ 30% of NOx and 44% of PM10 emissions

    • EPA (US): >120 m live in areas with unhealthy air

    • Fisher (NZ): 70 - 90 % of NZ air pollution is from vehicles

      Water pollution

    • Vehicles main source of urban run-off to water: 21% of lakes, 12% of rivers & 46% of estuaries impaired due to urban run-off

    Evidence on externalities and flow ons l.jpg

    Evidence on externalities – and flow-ons


    For ~10m in Europe, environmental noise results in hearing loss

    Total health burden

    15-20% of burden of poor health in developed nations due to environmentalfactors, including transport impacts (EU Commission, 2004)

    Slide22 l.jpg

    Birmingham: “Are we there yet?”

    Compactness and well being divergent views l.jpg

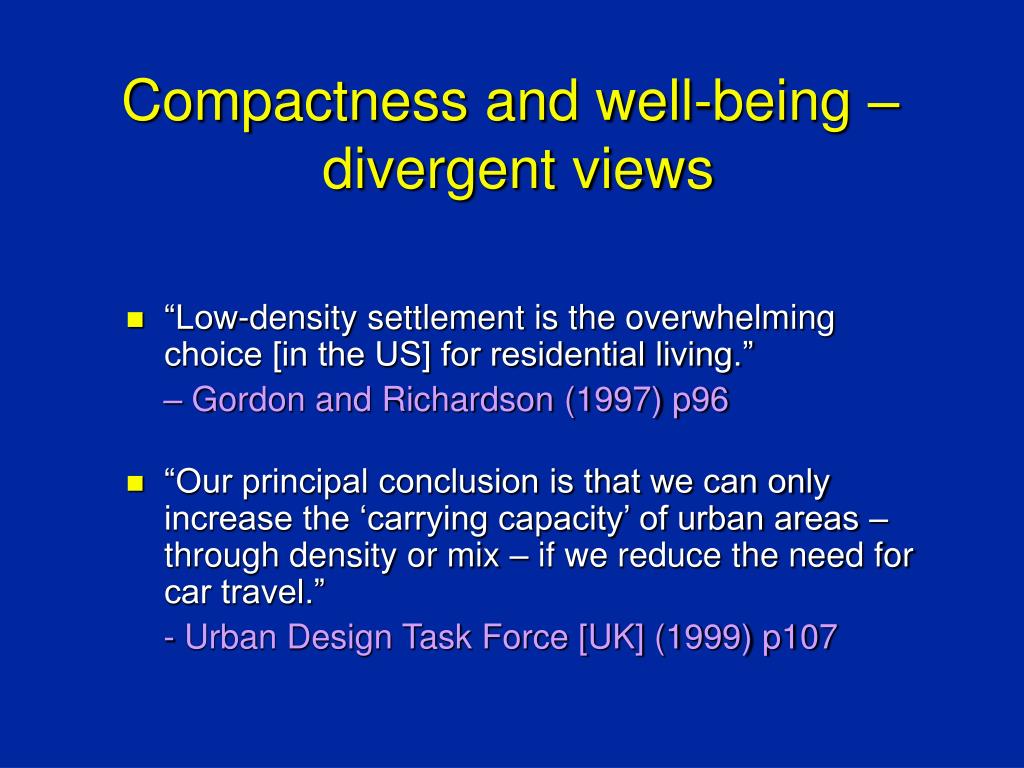

    Compactness and well-being – divergent views

    • “Low-density settlement is the overwhelming choice [in the US] for residential living.”

      – Gordon and Richardson (1997) p96

    • “Our principal conclusion is that we can only increase the ‘carrying capacity’ of urban areas – through density or mix – if we reduce the need for car travel.”

      - Urban Design Task Force [UK] (1999) p107

    Compactness and well being l.jpg

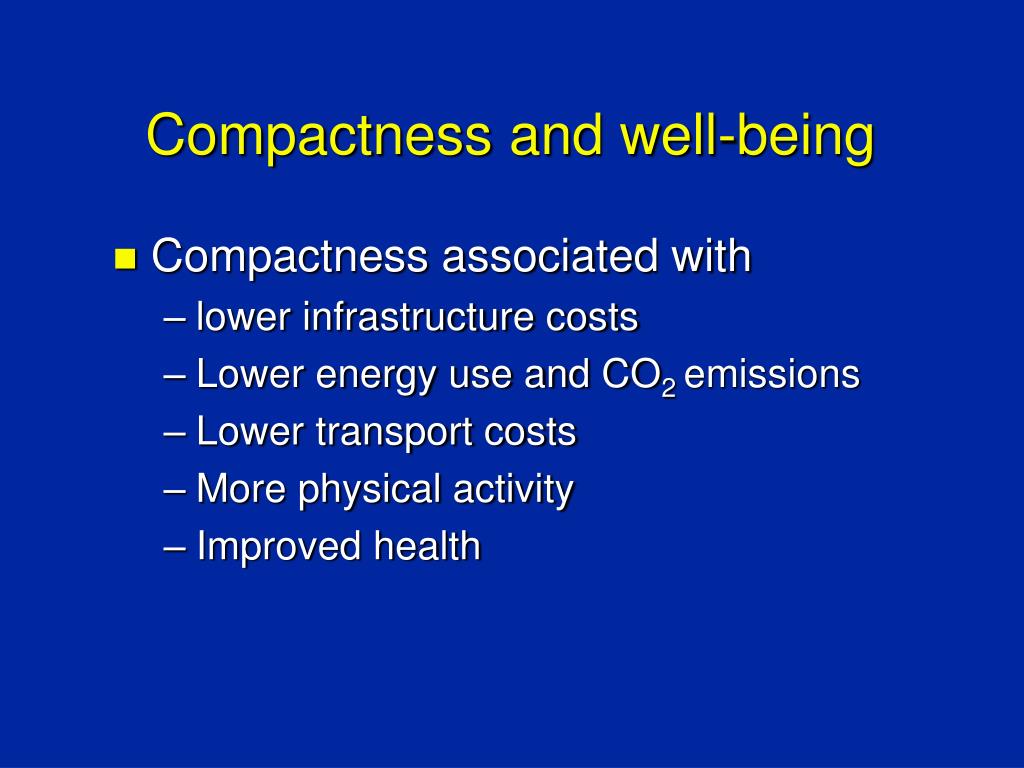

    Compactness and well-being

    • Compactness associated with

      • lower infrastructure costs

      • Lower energy use and CO2 emissions

      • Lower transport costs

      • More physical activity

      • Improved health

    Compactness and infrastructure costs l.jpg

    Compactness and infrastructure costs

    • Archer (1973) - US: leapfrog development higher costs (both private and public)

    • Ewing (1997) – US: higher costs due to loss of economies of scale

    • US EPA (2001) - clustering can reduce costs for developers – by requiring fewer miles of roads, water and sewer lines

    • Muro and Puentes (2004) – US survey: smart growth saves on infrastructure relative to low-density sprawl

    Compactness and energy use l.jpg

    Compactness and energy use

    • Newman and Kenworthy (2000) – 38 cities globally: link betw. energy use & density

    • Kenworthy (2003) – 84 cities: in the high income cities, “82% of the variance in car passenger kms per capita and 78% of the variance in per capita private passenger transport energy use is explained by urban density”

    • Buxton (2000) – Melbourne: higher densities associated with transport energy reductions

    Slide27 l.jpg

    Newman and Kenworthy (1990); Kenworthy (2003)

    Compactness and transport use l.jpg

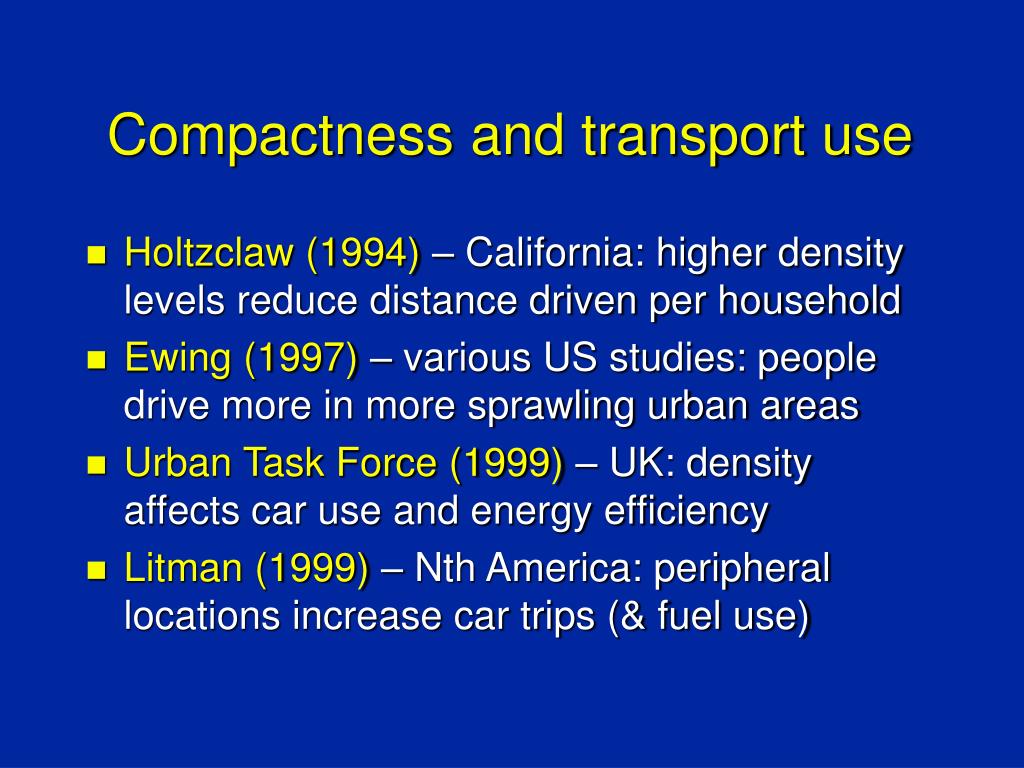

    Compactness and transport use

    • Holtzclaw (1994) – California: higher density levels reduce distance driven per household

    • Ewing (1997) – various US studies: people drive more in more sprawling urban areas

    • Urban Task Force (1999) – UK: density affects car use and energy efficiency

    • Litman (1999) – Nth America: peripheral locations increase car trips (& fuel use)

    Slide29 l.jpg

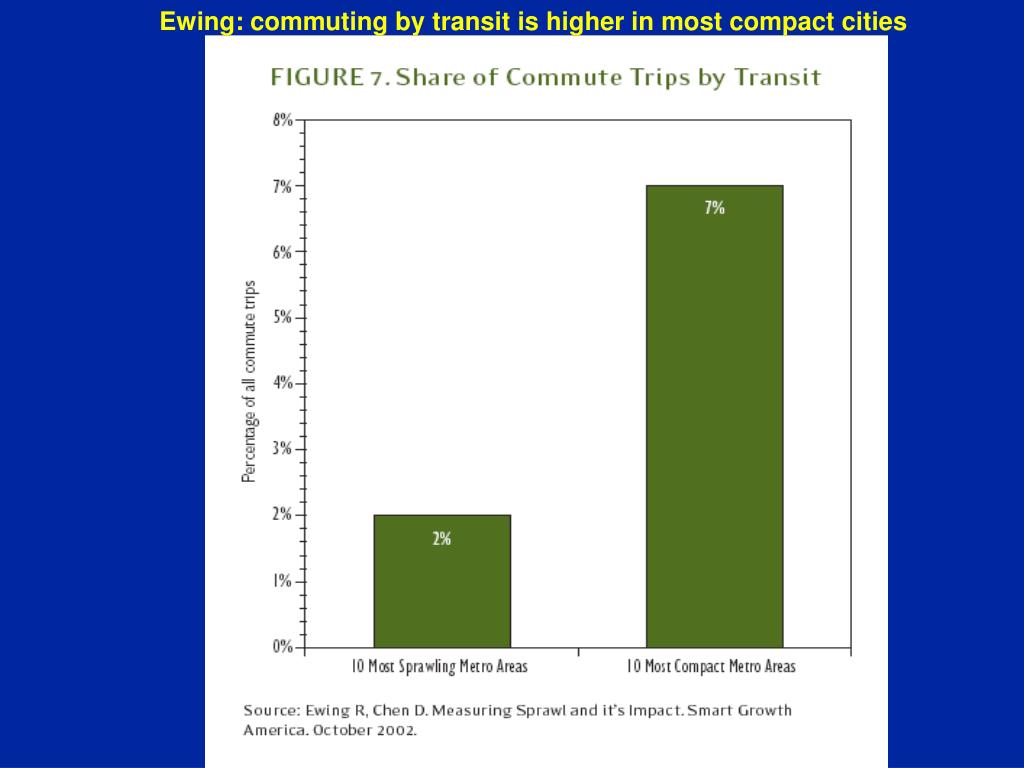

    Ewing: commuting by transit is higher in most compact cities

    Compactness and physical activity l.jpg

    Compactness and physical activity

    • McCann & Ewing (2003) - (US) sprawl & walking

    • Ewing (2005) - (US)sprawl and active travel

    • Dieleman et al (2002) - (Neths) Density acts with other factors e.g. quality of public transport, in influencing transport choices

    • Frank et al (2003) – (US) effect of density may be non-linear: critical threshold before walking & cycling feasible

    Compactness and health l.jpg

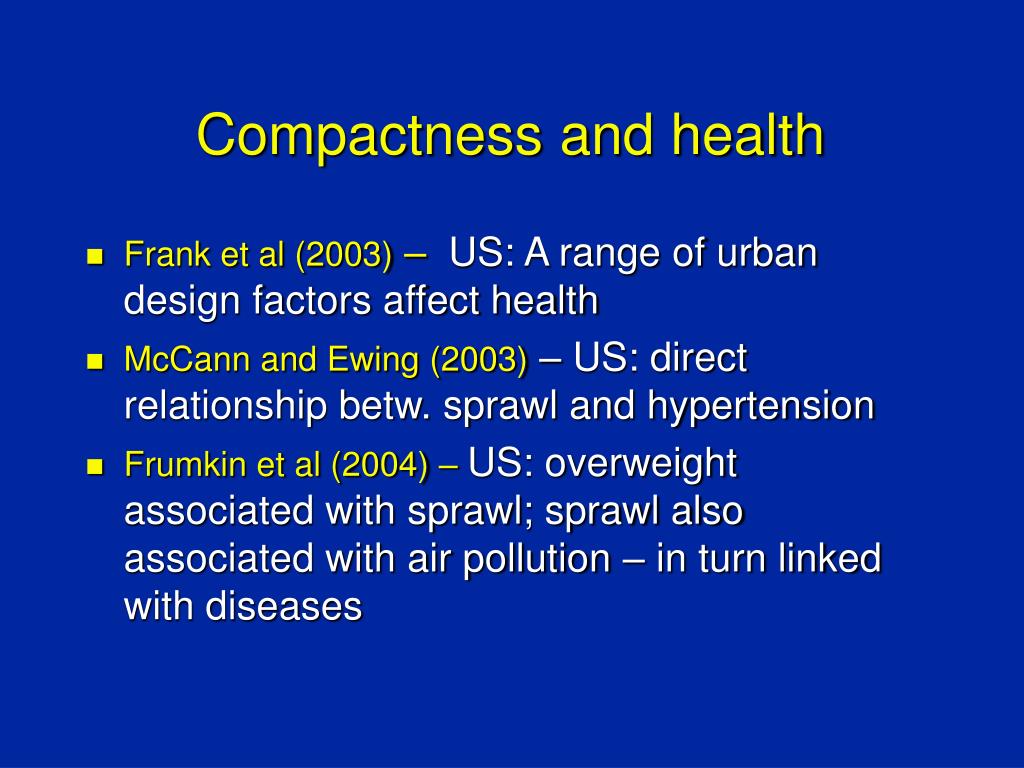

    Compactness and health

    • Frank et al (2003) – US: A range of urban design factors affect health

    • McCann and Ewing (2003) – US: direct relationship betw. sprawl and hypertension

    • Frumkin et al (2004) – US: overweight associated with sprawl; sprawl also associated with air pollution – in turn linked with diseases

    Slide32 l.jpg

    McCann and Ewing: Urban sprawl is associated with driver body weight (448 US counties)

    Mixed use connectivity and well being l.jpg

    Mixed use, connectivity and well-being

    • Mixed use (US) - Frank and Pivo (1995): more mixed use is linked to fewer single-occupancy car trips

    • Mixed use and car use (Wales) – Van & Senior (2000) : mixed use encourages w&c; discourages cars for light shopping

    • Mixed use, connectivity, density (US- Atlanta) – Frank et al (2004): more mixed use associated with less obesity

    • Interactive effect - US (San Diego) - Saelens et al (2003): mixed use is one of the factors influencing neighbourhood walkability

    • Mixed use works synergistically - Frumkin et al (2004)

    Other urban design elements safety local character l.jpg

    Other urban design elements: Safety, local character…

    • Interaction and traffic - Donald Appleyard (1981) & Bruce Appleyard (2005)

    • Traffic and injury - Roberts et al (1995)

    • Meta study: accessibility, aesthetic attributes & activity - Humpel et al (2002)

    • Neighbourhood characteristics (US) - Boslaugh et al (2004)

    Final comment peter hall l.jpg

    Final comment – Peter Hall

    • “The key must be to use pricing as a mechanism, but to combine it with physical and other restrictions on car use in congested or polluting conditions, so as to bring about a significant reduction and a transfer both to public transport, and to zero-energy, zero-emissions walking and cycling. At least for the immediate future, the objective is to slow the growth of car use, rather than to halt it. We know this is realistic because a few cities that have been visionary and bold have achieved something…”

      - Hall (1998) p968

    Slide37 l.jpg

    4: Areas for further investigation

    Areas for research l.jpg

    Areas for research

    • What urban redesign has most effect on well-being dimensions?

    • What matters most in New Zealand?

    • Use natural experiments or policy initiatives already underway

    • Study changes in behaviour when conditions change

    Conclusions l.jpg


    • Think very seriously before investing in any major roading infrastructure: we now have the basis for avoiding costly infrastructure mistakes

    • Consider the external costs of transport

    • Consider the range of benefits of good urban design

    • Increasingly good empirical evidence available

    • Cities that are better designed demonstrate better performance in terms of a range of well-being dimensions, e.g. physical activity / health

    • Urban redesign for sustainability will be a long process – let’s pursue it.
