Presentation Transcript
Slide1 l.jpg

Taxonomy of Cognitive Educational Objectives. The taxonomy is hierarchical:

1. Knowledge – ability to recall previously learned material.

2. Comprehension - ability to grasp the meaning of the material; ability to explain,

summarize, predict consequences.

3. Application – ability to use material in new situations.

4. Analysis – ability to break down material into component parts, recognize

organizing principles.

5. Synthesis – ability to put parts together to form a new whole.

6. Evaluation – ability to judge the value of material based on definite criteria.

Knowledge is the lowest level of learning; Evaluation is the highest


Slide2 l.jpg

1. Method is hierarchical:

2. Hypothesis

3. Testable predictions

4. Skepticism

5. Progressive enterprise: Verification/Falsifiability

6. Destination/Journey


Slide3 l.jpg

Science moves forward as much by critiquing the conclusions of others,

as by making novel discoveries

Stephen J. Gould



Stimulus response l.jpg
Stimulus - Response of others,

  • Environmental stimuli

  • Signal receiver

  • Signal sensor (Kinase)

  • Phospho-relay

  • Response regulator (RR)

  • Response


Slide6 l.jpg

Sensor (Kinase) of others,

Response Regulator (RR)

Two-component Signaling


Slide7 l.jpg

Pfeffer assay of others,


Chemotatic response of salmonella l.jpg
Chemotatic response of of others, Salmonella

10 mM L-serine

10 mM phenol

Rubik et al, PNAS 75:2820-4, 1978

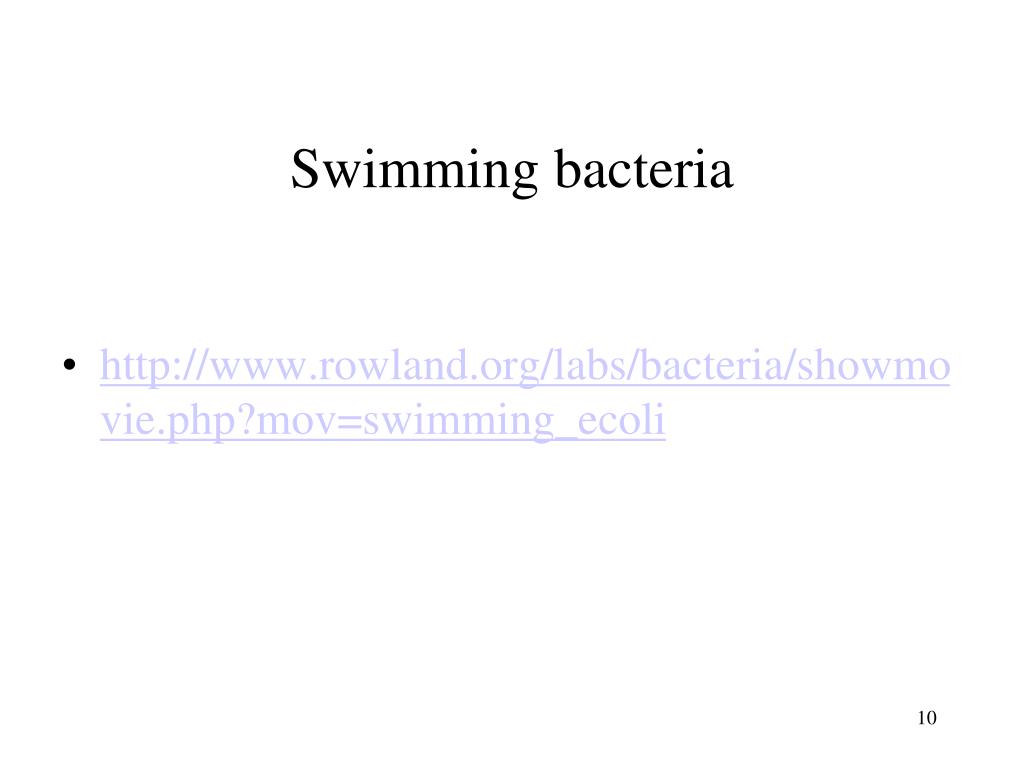

Swimming bacteria l.jpg
Swimming bacteria of others,

  • http://www.rowland.org/labs/bacteria/showmovie.php?mov=swimming_ecoli


Slide13 l.jpg

Darkfield movie of motile of others, E. coli

http://www.fbs.osaka-u.ac.jp/labs/namba/npn/index.html


Slide14 l.jpg

Tumbling of others,

Running


Swimming bacteria15 l.jpg
Swimming bacteria of others,

  • http://www.rowland.org/labs/bacteria/showmovie.php?mov=fluo_fil_leave


Slide16 l.jpg

Namba movies of others,

1, 5

Building a flagellum without from within

Driving the motor with PMF



Slide18 l.jpg

EnvZ kinase clusters

OmpR~P

Glucose

Osmolarity

Heat Shock




Stimulus response21 l.jpg
Stimulus - Response clusters

  • Environmental stimuli

  • Signal receiver

  • Signal sensor (Kinase)

  • Phospho-relay

  • Response regulator (RR)

  • Response

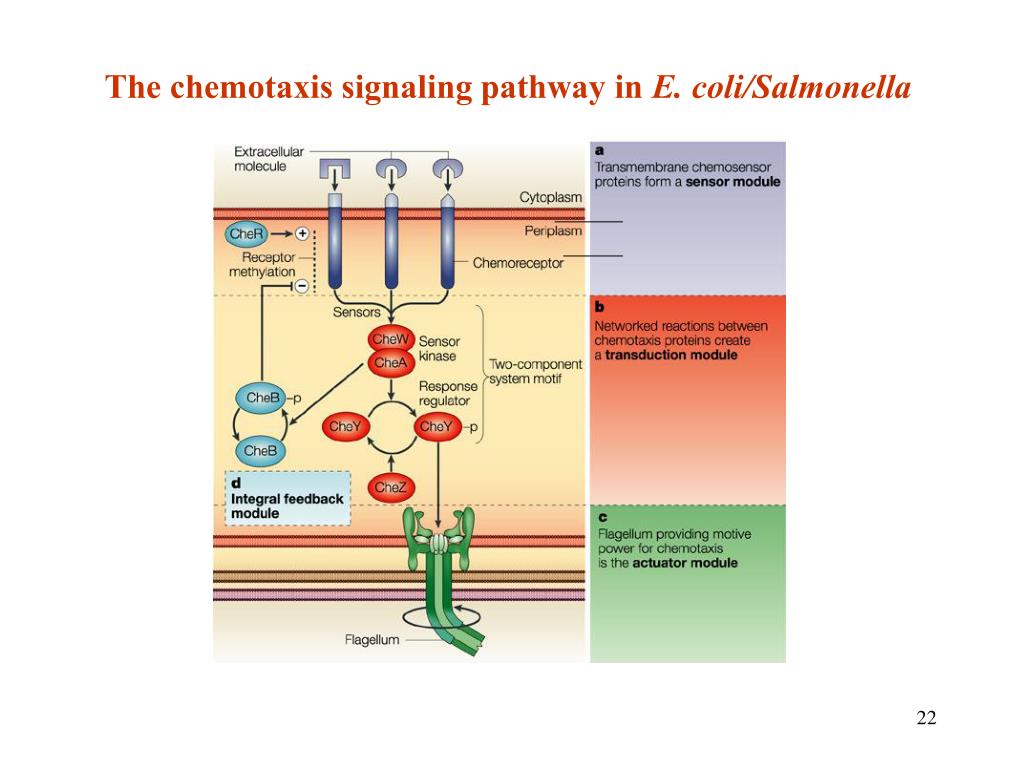

Slide22 l.jpg

The chemotaxis signaling pathway in clustersE. coli/Salmonella


Slide23 l.jpg

Different types of chemotaxis receptors: clustersthey are clustered at one or the other pole


Cryo tomography l.jpg
Cryo-tomography clusters



Slide26 l.jpg

Chemotactic clusters two-component system

Excitation

Tumbling

OM

CM

CM

OM

Kinase activation

CW

ATP

ADP

M

CheY

Repellents

CheA

CheW

P

MCP

P

Smooth

Swimming

OM

CM

CM

OM

CCW

Kinase inhbition

M

CheY

CheA

Attractants

CheW

MCP

Macnab R. M. Annu. Rev. Microbiol. 2003


Slide27 l.jpg

Adaptation clusters

OM

CheR

CM

OM

CM

ATP

ADP

+CH3

M

CheY

CheA

CheW

-CH3

P

P

CheZ

P

CheB

P



Slide29 l.jpg

Hazelbauer et al 2008 chemoreceptor


Slide30 l.jpg

Phenotypes of chemoreceptorche mutants

OM

CheR

CM

OM

CM

ATP

ADP

Repellents

+CH3

M

CheY

CheA

CheW

-CH3

P

P

Attractants

CheZ

P

CheB

P



Slide32 l.jpg

Phenotypes of chemoreceptorche mutants∆cheA, ∆cheY

OM

CheR

CM

OM

CM

CCW

ATP

ADP

Repellents

+CH3

M

CheW

-CH3

Attractants

CheZ

CheB

Smooth

Swimming


Slide33 l.jpg

Phenotypes of chemoreceptorche mutants∆cheR

OM

CM

OM

CM

CCW

ATP

ADP

Repellents

+CH3

M

CheY

CheA

CheW

-CH3

Attractants

CheZ

CheB

Smooth

Swimming


Slide34 l.jpg

Phenotypes of chemoreceptorche mutants∆cheB, ∆cheZ

OM

CheR

CM

OM

CM

CW

ATP

ADP

Repellents

+CH3

M

CheY

CheA

CheW

-CH3

P

P

Attractants

Tumbling


Slide35 l.jpg

Summary chemoreceptor

  • Bacteria move by rotating flagella

    • CW: tumbling; CCW: running

  • Chemotaxis pathway

    • MCPs: receive the chemical signals

    • CheA: sensor, kinase;

    • CheR: methylation; CheB: demethylation

    • CheY: RR, interacts with flagella motor

      • CheY+P: CW; CheY-P: CCW

    • CheZ: dephosphorylation

  • Phenotypes of ∆che mutants

    • ∆cheA,Y,R: smooth swimming; ∆cheB,Z: tumbling
