Slide1 l.jpg

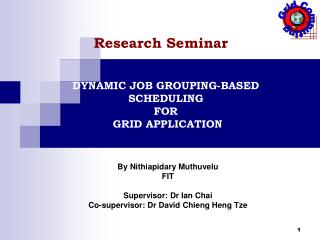

Grid Computing

Research Seminar

DYNAMIC JOB GROUPING-BASED

SCHEDULING

FOR

GRID APPLICATION

By Nithiapidary Muthuvelu

FIT

Supervisor: Dr Ian Chai

Co-supervisor: Dr David Chieng Heng Tze


Contents l.jpg

Grid Computing

Contents

  • Grid Computing

  • Resource Broker

  • Motivation

  • Objectives

  • Literature Review (Summary)

  • Problem Formulation

  • Research Methodology

  • Gantt Chart

  • Conclusions

  • References


Grid computing l.jpg

Grid Computing

Grid Computing

  • Grid computing (Foster and Kesselman, 1999) is a growing technology that facilitates the executions of large-scale resource intensive applications on geographically distributed computing resources.

  • Heterogeneous computing resources across political and administrative domains act as a single powerful computer to speed up the execution of computation intensive applications.


Grid computing cont l.jpg

Grid Computing

Grid Information Service

Grid Information Service system collects the details of the available Grid resources and passes the information to the resource broker.

Details of Grid resources

Computational jobs

Grid application

Processed jobs

Computation result

User

Resource Broker

A User sends computation or data intensive application to Global Grids in order to speed up the execution of the application.

AResourceBroker distribute the jobs in an application to the Grid resources based on user’s QoS requirements and details of available Grid resources for further executions.

Grid Resources

Grid Resources (Cluster, PC, Supercomputer, database, instruments, etc.) in the Global Grid execute the user jobs.

Figure 1: A typical view of Grid environment

Grid Computing (Cont.)


Grid computing grid layered architecture l.jpg

Grid Computing

APPLICATIONS

Applications and Portals

Prob. Solving Env.

Collaboration

Engineering

Web enabled Apps

Scientific

USER LEVEL MIDDLEWARE

Development Environments and Tools

Languages/Compilers

Libraries

Debuggers

Monitors

Web tools

Resource Management, Selection, and Aggregation (BROKERS)

CORE MIDDLEWARE

Distributed Resources Coupling Services

Security

Information

Data

Process

Trading

QoS

SECURITY LAYER

Local Resource Managers

FABRIC

Internet Protocols

Libraries & App Kernels

Queuing Systems

Operating Systems

Networked Resources across Organizations

Computers

Networks

Storage Systems

Data Sources

Scientific Instruments

Grid Computing – Grid Layered Architecture

Figure 2:

Grid layered architecture

Adapted from (Foster and Kesselman, 1999)


Resource broker l.jpg

Grid Computing

Job1

Grid Application

Job2

Job3

Job n

Resource Broker

Resource Broker

  • Job

    An atomic unit of computation.

  • Grid application

    A highly computation intensive task consists of several jobs.

  • Resource brokerorscheduler

    Selects the most suitable computing resources over the Grid and distribute the jobs among those available computing resources for further job executions.

    Goal: To ensure the jobs are processed with high system throughput.

Figure 3:

Grid Resource Broker


Resource broker cont l.jpg

Grid Computing

Resource Broker (Cont.)

  • Process flow(Berman, Fox and Hey 2002) :

    1. Receives application jobs

    2. Analyses user’s Quality of Service (QoS) requirements such as

    budget and deadline (Abramson, Buyya, Giddy 2002)

    3. Discovers available and suitable computing resources in the Grid

    from Grid Information Service

    4. Maps the jobs to resources (scheduling)

    5. Stages the application and data for processing (deployment)

    6. Starts job execution

    7. Gathers the results

    A resource broker is also responsible for monitoring and tracking job execution progress along with adapting to the changes in Grid runtime environment conditions and resource failures.


Resource broker cont8 l.jpg

Grid Computing

Resource Broker (Cont.)

  • Nimrod-G broker (Abramson, Buyya and Giddy , 2002)

    An economic paradigm for resource management and scheduling parameter sweep applications on distributed resources. Economic and On Demand ‘Brain Activity Analysis and Molecular Modeling for Drug Design

  • Condor-G broker (Frey, Tannenbaum, et. al., 2001).

    A broker to develop, deploy and evaluate mechanisms and policies that support high-throughput computing on large collections of distributed resources. GridGaussianproject - NUG30 Optimization Problem, a quadratic assignment problem

  • Gridbus (Srikumar, Buyya and Winton, 2004)

    A broker that supports a declarative and dynamic parametric programming model for creating Grid applications. Belle Analysis Software Framework, a physics analysis application


Resource brokers types l.jpg

Grid Computing

Resource Brokers –Types


Resource brokers gridbus broker l.jpg

Grid Computing

Resource Brokers –Gridbus Broker

Figure 4:

Gribus Broker


Motivation l.jpg

Grid Computing

Motivation

Grid job transmission method

Drawbacks


Motivation job transmission l.jpg

Grid Computing

Time t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

Job 1

Job 4

Job 2

Grid application

Job 5

Computation result

Job 3

Job 6

Motivation –Job Transmission

A user sends an application to the resource broker. A Grid application is composed of a large number of computational jobs.

A resource broker sends one job to a Grid resource at a time. Once the job is executed by the Grid resource, it will be forwarded back to the resource broker.

Figure 5: The current process of sending and receiving of

user jobs to and from Grid resources


Motivation drawbacks l.jpg

Grid Computing

Motivation –Drawbacks

  • In the case of application which involves large volume of data, sending and receiving a small job at a time increases the overalloverhead time and cost in terms of job transmission to and from Grid resources and job processing at the Grid resources (Muthuvelu, Liu, et. Al., 2005).

  • Job transmission time =

    job initiation time at the source + job transmission time to a resource + job storing time at the resource + job (processes job) transmission time to the source.

  • Job processing or computation time =

    job initiation time at the resources + job execution time.

  • Job processing cost =

    job transmission cost + (total CPU time for job execution * cost per second associated with Grid resource)


Objectives l.jpg

Grid Computing

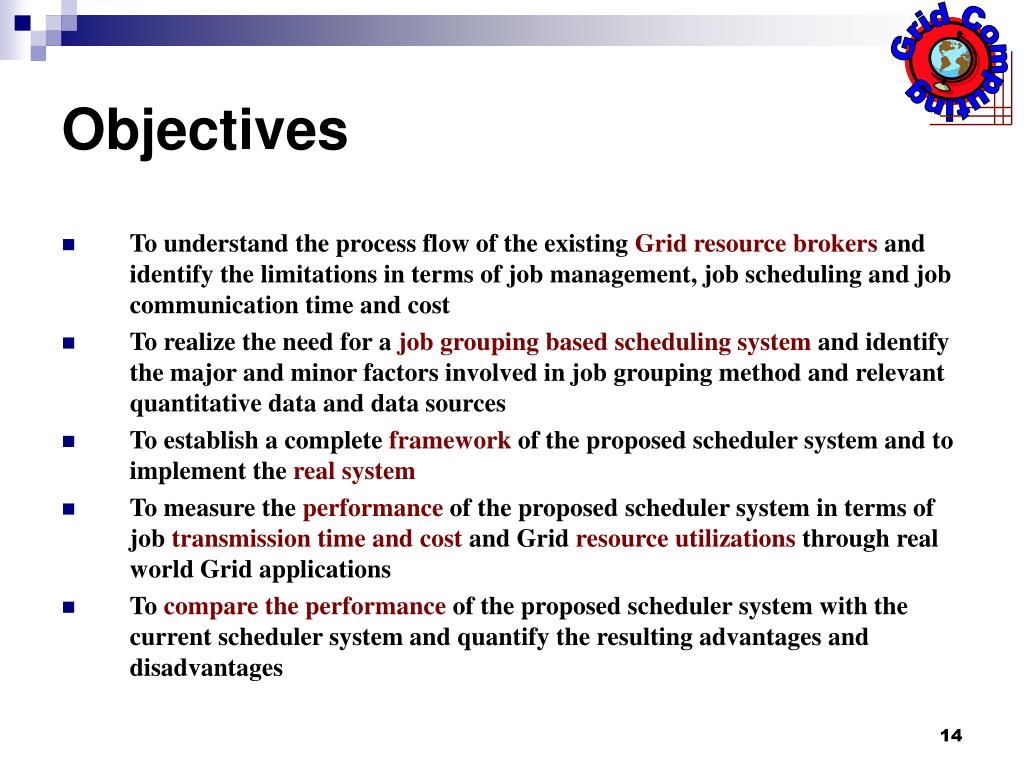

Objectives

  • To understand the process flow of the existing Grid resource brokers and identify the limitations in terms of job management, job scheduling and job communication time and cost

  • To realize the need for a job grouping based scheduling system and identify the major and minor factors involved in job grouping method and relevant quantitative data and data sources

  • To establish a complete framework of the proposed scheduler system and to implement the real system

  • To measure the performance of the proposed scheduler system in terms of job transmission time and cost and Grid resourceutilizations through real world Grid applications

  • To compare the performance of the proposed scheduler system with the current scheduler system and quantify the resulting advantages and disadvantages


Literature review l.jpg

Grid Computing

Literature Review

  • Resource Broker

  • Grid Application

    • A Grid application consists of large number of jobs.

    • Individual job processing method.

  • Related Work

    • (Buyya, Date, et. Al., 2005) - distributed analysis of brain activity data. Magnetoencephalography (MEG) helmet produces large amount of data for analyzing brain activities. The main issue is the expenses caused from overhead communication time and cost.

    • (James, Hawick and Coddington, 1999) - A study of scheduling heuristics for independent jobs. Nodes are made to synchronize after each round of execution - synchronization overhead.


Literature review cont l.jpg

Grid Computing

Data Generation

Results

  • [deadline, budget, optimization preference]

Literature Review (Cont.)

64 sensors MEG

Analysis All pairs (64x64) of MEG data by shifting the temporal region of MEG data over time: 0 to 29750: 64x64x29750 jobs

2

3

1

Data Analysis

5

Nimrod-G

4

Life-electronics laboratory,

AIST

World-Wide Grid

  • Provision of expertise in

    the analysis of brain function

  • Provision of MEG analysis

Figure 6: Distributed analysis of brain activity data

Adapted from (Buyya, Date, et. Al., 2005)


Problem formulation l.jpg

Grid Computing

Problem Formulation

  • Dynamic job grouping-based scheduling system (an overview)

  • Simulation results

  • Job grouping method

  • Scope

  • Predicted benefits


Problem formulation job grouping overview l.jpg

Grid Computing

Grid Resources

Resource 1

Supercomputer

Grid Job Scheduler

Grid Information Service

User Jobs

Available Grid resources

Processing requirement or load of each job

Processing load of each Grid resources

Overhead processing time and cost of each job

Resource 2

Cluster

Processing speed and cost of each Grid resources

QoS requirements of the Grid application

n Resources

Grid resource 1

Grid resource 2

Job group 1

Job group 2

Problem Formulation -Job Grouping Overview

  • A dynamic job grouping-based scheduling technique is needed to group the atomic jobs dynamically according to user’s QoS requirements and available Grid resources. The resource broker then sends the grouped jobs to appropriate computing resources (Muthuvelu, Liu, et. Al., 2005).

Figure 7: Dynamic job-grouping based scheduler


Problem formulation simulation l.jpg

Grid Computing

Problem Formulation -Simulation

  • GridSim Toolkit – Grid Simulation (Buyya and Murshed, 2002)

    A toolkit for modeling and simulation of distributed resource management and scheduling for conventional Grid environment.

Figure 8: Processing time (a) and cost (b) for executing

150 Gridlets of 200 average MI within the granularity size of 30 seconds


Problem formulation job grouping l.jpg

Grid Computing

Problem Formulation -Job Grouping

User Job ID/MI

Job Group ID/MI

Grid Resource ID/MIPS

Job 0/100

Job 1/99

Job Group 1/371

Job 2/102

Job 3/70

Job 4/100

Job 5/110

Job Group 2/290

Job 6/80

Resource 1/400

Job 7/50

Figure 9: Job grouping strategy

Job Group 3/300

Resource 2/340

……

Job Group 4/350

Job 30/120

Resource 3/350

Job 31/99

Job Group 5/274

Job 32/105

Resource 4/350

Job 33/70

Resource 5/290

……

Job Group 6/400

Job 54/100

Job 55/110

Job Group 7/330

Job 56/70

Job 57/50

……

Job Group 8/300


Problem formulation job grouping21 l.jpg

Grid Computing

User Job ID / MI

Job Group ID / MI

Resource ID/MIPS

Granularity Size: 3 sec

Job 0/20

Job 1/21

Job Group 0/85

Job 2/21

Job 3/23

Job 4/22

Job 5/19

Resource 11/33

Job 6/18

Job Group 1/103

Total_RMI: 99

Job 7/19

Resource 15/35

Job 8/25

Total_RMI: 105

Job 9/28

Job Group 2/200

……….

Resource 13/70

Job 50/29

Total_RMI: 210

Job 51/30

Job Group 3/88

Job 52/29

……….

Job Group 4/100

Job 96/21

Job 97/22

Job Group 5/97

Job 98/30

Job 99/24

Problem Formulation -Job Grouping

Figure 10: Job grouping

with granularity size


Problem formulation job grouping22 l.jpg

USER JOBS

Job Scheduler

Jobs

Job MI

Total number of jobs

Average MI of job

Granularity Size

Total MIPS

GRID RES. ID

Grid Computing

MI deviation percentage

Resource MIPS

Grid resource 0

Overhead processing time

Grid resource 1

Grid resource 0

Grid resource 1

Grid resource 2

Granularity size

Grid resource N

Job group 0

Job group 1

Job group 2

(1)

(4)

Grid resources’ characteristics

(6)

(5)

(2)

(3)

(7))

(8)

Job groups

Resource IDs

Problem Formulation -Job Grouping

Figure 11: Simulation strategy for dynamic job grouping-based scheduler


Problem formulation job grouping23 l.jpg

Grid Computing

Problem Formulation -Job Grouping

Factors to be Considered in Job Grouping Strategy

  • User’s QoS requirements

    • Cost optimization

    • Time optimization

    • Cost-Time optimization

  • Total number of jobs in a Grid application

  • MI of each job

  • Number of available Grid resources

  • MIPS (speed) of each resource

  • Cost of each resource (cost per second)

  • Current processing load of each resource (predict job waiting time)

  • Network bandwidth

  • Local scheduler’s queuing capacity

Method / Technique to be used for Grouping Grid Jobs

  • Genetic algorithm

  • Fitness function

    • User’s Qos requirements

    • Network bandwidth

Fault Tolerance Situation

  • Resource failure – failed job regrouping

  • Application withdrawal – statistics

Output

  • Grid application processing cost and time

  • Processed jobs (results)

  • Statistics


Problem formulation scope l.jpg

Grid Computing

Problem Formulation -Scope

  • Computational jobs

  • Independent jobs

  • Web service (job grouping method can be called by various brokers)


Problem formulation predicted benefits l.jpg

Grid Computing

Problem Formulation -Predicted Benefits

  • Speeds up the execution of a particular Grid application.

    This will encourage more Grid participants to deploy their computation intensive or data intensive applications on Global Grids. Great participations in Global Grids will increase the utilization of Grid technology.

  • Trims down the cost of changing hardware at the Grid resources.

    The decreasing hardware performance can be compensated with job grouping method since this method reduces total overhead time involved in the execution of Grid application.

  • Optimum utilization of Grid resources and network bandwidth.

    Jobs are grouped based on available processing capability of a particular Grid resource. In other words, maximum MI supported by the a Grid resource at a particular time is grouped for processing. Condition factor would be the network bandwidth.


Research methodology l.jpg

Grid Computing

Research Methodology

  • Review on Grid job management and scheduling systems.

  • Research method: Applied research, Scientific approach and Descriptive, comparative and response experiments.

  • Grid lab set-up on MYREN.

  • Input and output of the proposed system.

  • System framework.

  • Simulations of the proposed system.

  • Implementation of the real scheduler system and system integration.

  • Evaluation and analysis of the scheduler system.

  • Product deliverable to the Grid users.

  • Future work determination, recommendations, documentation.


Research methodology cont l.jpg

Grid Computing

Research Methodology (Cont.)

  • Project Requirements

    • System software: Globus Toolkit 4.0, Gridbus Broker, Nimrod-G Broker, Linux.

    • Database and analysis tools: phpdev423 (Apache server, mySQL) or Ms Excel

    • Network: MYREN

    • Hardware/equipment: Grid computing resource (MMUGrid), external Grid resources, a commodity machine (PUTTY)


Research methodology data retrieval 1 details on grid resources l.jpg

Grid Computing

Research Methodology –Data retrieval (1) – Details on Grid Resources

  • Grid monitoring tools (of various standards)

    • 1MDS4

    • 2Ganglia

  • Type of data

    • Number of available Grid resources

    • MIPS (speed) of each resource

    • Cost of each resource (cost per second)

    • Current processing load of each resource (predict job waiting time)

    • Network bandwidth

    • Local scheduler type and relevant protocols

    • Local scheduler’s queuing capacity

1http://www.globus.org/toolkit/docs/4.0/info/key-index.html

2http://ganglia.sourceforge.net/


Research methodology data retrieval 1 details on grid resources29 l.jpg

Grid Computing

Resource 3

Resource 1

Resource 2

Resource 4

  • Alchemi

    - LSF queue

  • Globus (GT2) Suprco.

    - Fork / WS GRAM

  • Globus (GT4) Cluster

    - SGE queue

  • Globus (GT4) Cluster

    - PBS queue

MDS4

Ganglia

MDS4

Ganglia

1. Queue Information

- Queue type and version

- Default GRAM version, port, host

- Total CPUs

- Status (up/down)

- Total jobs in the queue

- Running jobs

- Waiting jobs

- Free CPUs

- MaxCPUTime

- MaxWallClockTime

- MaxTotalJobs

- MaxRunningJobs

2. Cluster Information

- Unique ID

- Benchmark/clock speed

- Storage capacity

- Cost per second

- Number of nodes

- Status (up/down)

Research Methodology –Data retrieval (1) – Details on Grid Resources

Figure 12:

Data retrieval

from Grid resources


Research methodology data retrieval 2 details on grid application l.jpg

Grid Computing

Research Methodology –Data retrieval (2) – Details on Grid Application

  • User applications (of various requirements)

    • Independent computational jobs

  • Type of data

    • User’s QoS requirements

      • Cost optimization

      • Time optimization

      • Cost-Time optimization

    • Total number of jobs in a Grid application

    • MI of each job


Research methodology data retrieval 3 details on network l.jpg

Grid Computing

Research Methodology –Data retrieval (3) – Details on Network

  • Network bandwidth

    • Network information service

  • Type of data

    • Network bandwidth


Research methodology data processing l.jpg

Grid Computing

Research Methodology –Data Processing

  • Data standardization

    • Data from various resources – in various standards

    • Standardize the queue and cluster information

  • Genetic Algorithm

    • Fitness function – network bandwidth & QoS requirements

    • Granularity size / time

  • Output data

    • Application processing time

    • Application processing cost


Research methodology data processing33 l.jpg

Grid Computing

Research Methodology –Data Processing

Fitness function:

Network bandwidth,

QoS requirements

Genetic Algorithm

User application details

Grid resources’ details

Network bandwidth

Common granularity size

Resource-dependent granularity size

Figure 13: Data Processing


Research methodology web services l.jpg

Grid Computing

Fitness function:

Network bandwidth,

QoS requirements

Genetic Algorithm

User application details

Grid resources’ details

Network bandwidth

Common granularity size

Resource-dependent granularity size

Job1

Job2

Job3

Job n

Research Methodology –Web Services

  • Data collection/retrieval

  • Data processing

Network Information Service

Figure 14:

Overall view of

system

implementation

Grid Application

Resource Broker


Gantt chart l.jpg

Grid Computing

Gantt Chart


Gantt chart cont l.jpg

Grid Computing

Gantt Chart (Cont.)


Conclusion l.jpg

Grid Computing

Conclusion

  • A dynamic job grouping-based scheduling system results in timely and less expensive implementation of data intensive Grid applications.

  • Job grouping method allows total processing capabilities of each available resource to be fully utilized during the job executions.

  • Simulations and experiments have been conducted to prove that developing a real Grid application that exploits job grouping method is really a worthy contribution for Global Grids.

  • This project involves research in the following areas:

    • Grid monitoring tools (MDS4, Ganglia)

    • Resource queuing system (SGE, PBS, WS GRAM, LSF, etc)

    • Grid job scheduler (Grid Broker – Gridbus, Nimrod-G, Condor-G, Gridway)

    • Network information service

    • Grid application jobs

    • User’s QoS requirements

    • Genetic algorithm


References l.jpg

Grid Computing

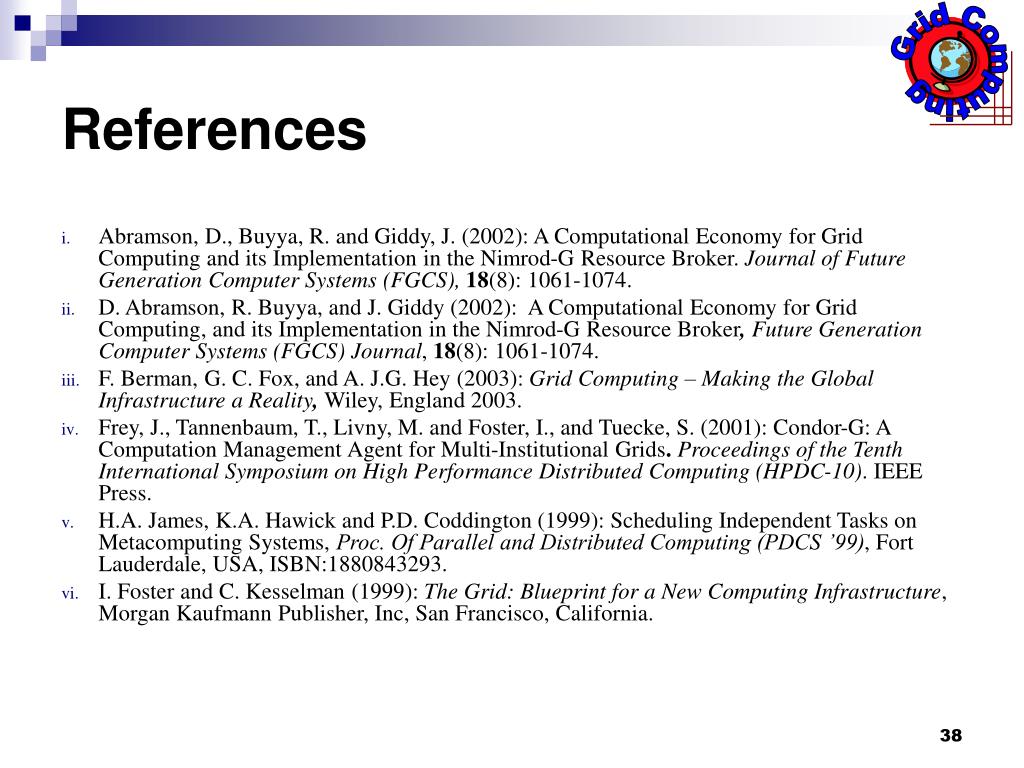

References

  • Abramson, D., Buyya, R. and Giddy, J. (2002): A Computational Economy for Grid Computing and its Implementation in the Nimrod-G Resource Broker. Journal of Future Generation Computer Systems (FGCS), 18(8): 1061-1074.

  • D. Abramson, R. Buyya, and J. Giddy (2002): A Computational Economy for Grid Computing, and its Implementation in the Nimrod-G Resource Broker,Future Generation Computer Systems (FGCS) Journal, 18(8): 1061-1074.

  • F. Berman, G. C. Fox, and A. J.G. Hey (2003): GridComputing – Making the Global Infrastructure a Reality, Wiley, England 2003.

  • Frey, J., Tannenbaum, T., Livny, M. and Foster, I., and Tuecke, S. (2001): Condor-G: A Computation Management Agent for Multi-Institutional Grids.Proceedings of the Tenth International Symposium on High Performance Distributed Computing (HPDC-10). IEEE Press.

  • H.A. James, K.A. Hawick and P.D. Coddington (1999): Scheduling Independent Tasks on Metacomputing Systems, Proc. Of Parallel and Distributed Computing (PDCS ’99), Fort Lauderdale, USA, ISBN:1880843293.

  • I. Foster and C. Kesselman (1999): The Grid: Blueprint for a New Computing Infrastructure,Morgan Kaufmann Publisher, Inc, San Francisco, California.


References39 l.jpg

Grid Computing

References

  • Muthuvelu, N., Liu, J., Lin Soe, N., Venugopal, S., Sulistio, A. and Buyya, R. (February 2005): A Dynamic Job Grouping-Based Scheduling for Deploying Applications with Fine-Grained Tasks on Global Grids. Proceedings of Australasian Workshop on Grid Computing and e-Research (AusGrid2005), Newcastle, Australia, pp. 41-48.

  • R. Buyya, and M. Murshed (2002): GridSim: A Toolkit for the Modeling, and Simulation of Distributed Resource Management, and Scheduling for Grid Computing,The Journal of Concurrency, and Computation: Practice, and Experience (CCPE), 14(13-15):1175-1220, Wiley Press, USA.

  • R. Buyya, S. Date, Y. Mizuno-Matsumoto, S. Venugopal, and D. Abramson (2004): Neuroscience Instrumentation and Distributed Analysis of Brain Activity Data: A Case for eScience on Global Grids, Journal of Concurrency and Computation: Practice and Experience, Wiley Press, USA (accepted in Jan. 2004 and in print).

  • Sherwani, J., Ali, N., Lotia, N., Hayat, Z. and Buyya, R. (2004): Libra: A Computational Economy-Based Job Scheduling System for Clusters. Journal of Software: Practice and Experience (SP&E), 34: 573-590.

  • Srikumar, V., Buyya, R. and Winton, L. (2004): A Grid Service Broker for Scheduling Distributed Data-Oriented Applications on Global Grids. Technical Report, GRIDS-TR-2004-1. Grid Computing and Distributed Systems Laboratory, The University of Melbourne, Australia.


ad
