Content Distribution in Vehicular Ad Hoc Network

Computer Science Dept, UCLA

http://www.cs.ucla.edu/NRL

Dec. 14, 2006

IBM ITA @ UCLA

content distribution in vanet
Content Distribution in VANET
  • Multimedia-based proximity marketing:
    • Virtual tours of hotel rooms
    • Movie trailers in nearby theaters
  • Vehicular ad hoc networks (VANET):
    • Error-prone channel
    • Dense, but intermittent connectivity
    • High, but restricted mobility patterns
    • No guaranteed cooperativeness (only, users of the same interests will cooperate)
  • How do we efficiently distribute content in VANET?
    • Traditional approach: BitTorrent-like file swarming
bittorrnet like file swarming
BitTorrnet-like File Swarming
  • A file is divided into equal sized blocks
  • Cooperative (parallel) downloading among peers

From Wikipedia

swarming limitation missing coupon

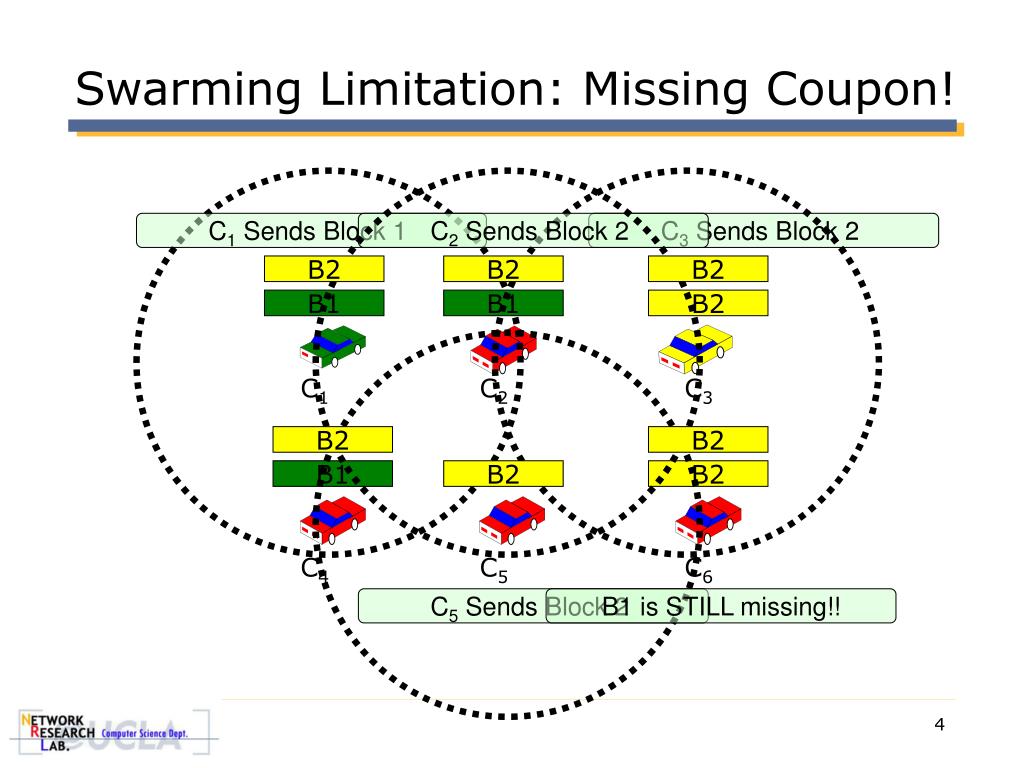

Swarming Limitation: Missing Coupon!

C1 Sends Block 1

C2 Sends Block 2

C3 Sends Block 2

B2

B2

B2

B1

B1

B2

C1

C2

C3

B2

B2

B1

B2

B2

C4

C5

C6

C5 Sends Block 2

B1 is STILL missing!!

network coding

a1,1=1

E1

10

Coded Block

a2,1=1

E2

11

Coded Block

a1,2=0

Matrix Inversion

a2,2=1

10

B1

01

B2

Network Coding
  • Let a file has k blocks: [B1 B2 … Bk]
  • Encoded block Ei is generated by
    • Ei = ai,1*B1 + ai,2*B2 + … + ai,k*Bk
    • ai,x : randomly chosen over the finite field
  • Any “k” linearly independent coded blocks can recover [B1 B2 … Bk] by matrix inversion
  • Network coding maximizes throughput and minimizes delay

B1

B2

Network coding over the finite field GF(2)={0,1}

network coding helps coupon collection
Network Coding Helps Coupon Collection

C1 Sends Block 1

C2 Sends a Coded Block: B1+B2

C3 Sends Block 2

B1+B2

B1+B2

B2

B2

B1

B1+B2

B1

B1

B2

C1

C2

C3

B1+B2

B2

B1+B2

B1

B1

B1+B2

B2

C4

C5

C6

C4 and C6 successfully recovered both blocks

C5 Sends a Coded Block: B1+B2

outline

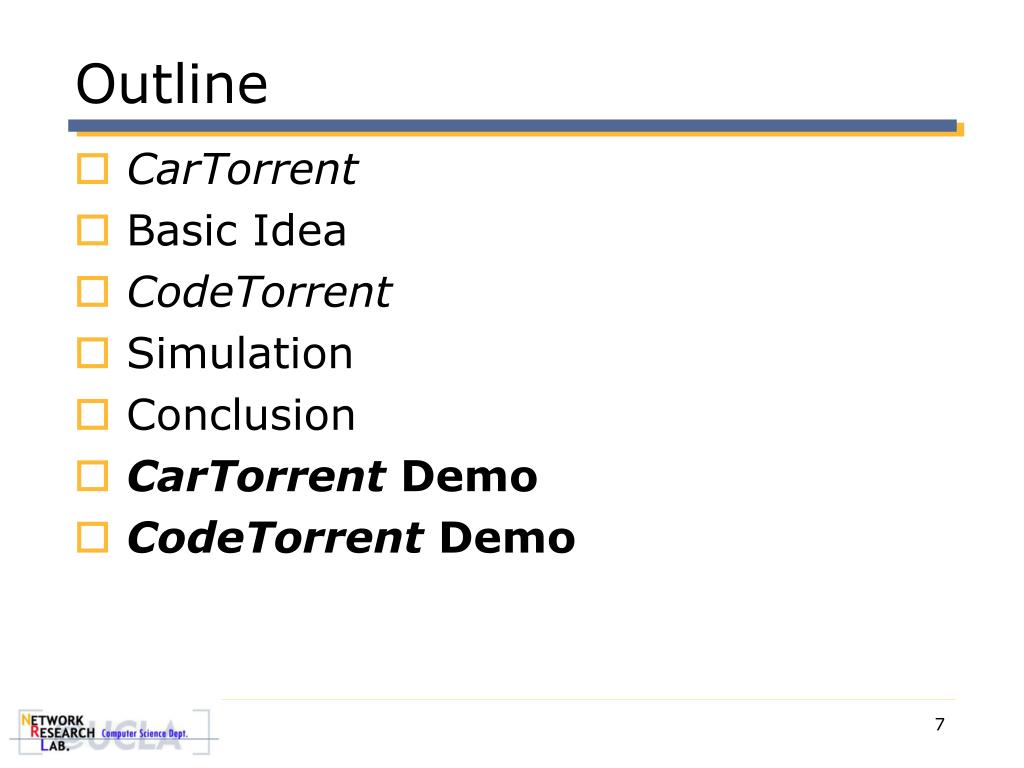

Outline
  • CarTorrent
  • Basic Idea
  • CodeTorrent
  • Simulation
  • Conclusion
  • CarTorrent Demo
  • CodeTorrent Demo
previous work cooperative downloading with cartorrent
Multi-hop pulling w/ proximity-based piece selection

Y

R

R

R

R

Y

Y

Y

Y2

G

Previous Work: Cooperative Downloading with CarTorrent

Internet

Gossiping Availability of Blocks

Exchange Blocks via multi-hop pulling

Downloading Blocks from AP

codetorrent basic idea
Single-hop pulling (instead of CarTorrent multihop)

Buffer

Buffer

Buffer

B1

*a1

B2

*a2

*a3

File: k blocks

B3

+

“coded” block

*ak

Bk

Random Linear Combination

CodeTorrent: Basic Idea

Internet

Re-Encoding: Random Linear Comb.of Encoded Blocks in the Buffer

Outside Range of AP

Exchange Re-Encoded Blocks

Downloading Coded Blocks from AP

Meeting Other Vehicles with Coded Blocks

design rationale
Design Rationale
  • Single-hop better than multihop
    • Multi-hop data pulling does not perform well in VANET (routing O/H is high)
    • Users in multi-hop may not forward packets not useful to them (lack of incentive)!
  • Network coding
    • Mitigate a rare piece problem
    • Maximize the benefits of overhearing
  • Exploits mobility
    • Carry-and-forward coded blocks
codetorrent beaconing

+

+

+

CodeTorrent - Beaconing
  • Periodic broadcasting of peer ID and its code vector
  • Used for searching helpful nodes: those who have at least one linearly independent code block

Red is Helpful!

codetorrent single hop pulling

Random Linear combination

CodeTorrent - Single-hop pulling
  • A peer pulls coded blocks from the helpful peers

1. G pulls a coded block from R

2. G checks helpfulness and repeats

R

GetBlock

Y

G

G sends a GetBlock message to R

R prepares a re-encoded block

R broadcasts the re-encoded block

Check helpfulness: If helpful, store it!

simulations setup
Simulations - Setup
  • Qualnet 3.9
  • IEEE 802.11b / 2Mbps
  • Real-track mobility model (Westwood map)
    • 2.4x2.4 km2
  • Distributing 1MB file
    • 4KB/block * 250 blocks
    • 1KB per packet
  • # of APs: 3
    • Randomly located on the road sides
  • Comparing CarTorrent (w/ AODV) with CodeTorrent
    • AODV w/ net-diameter 3 hops
    • CodeTorrent with GF(256)

Near UCLA Campus

simulation results
Simulation Results

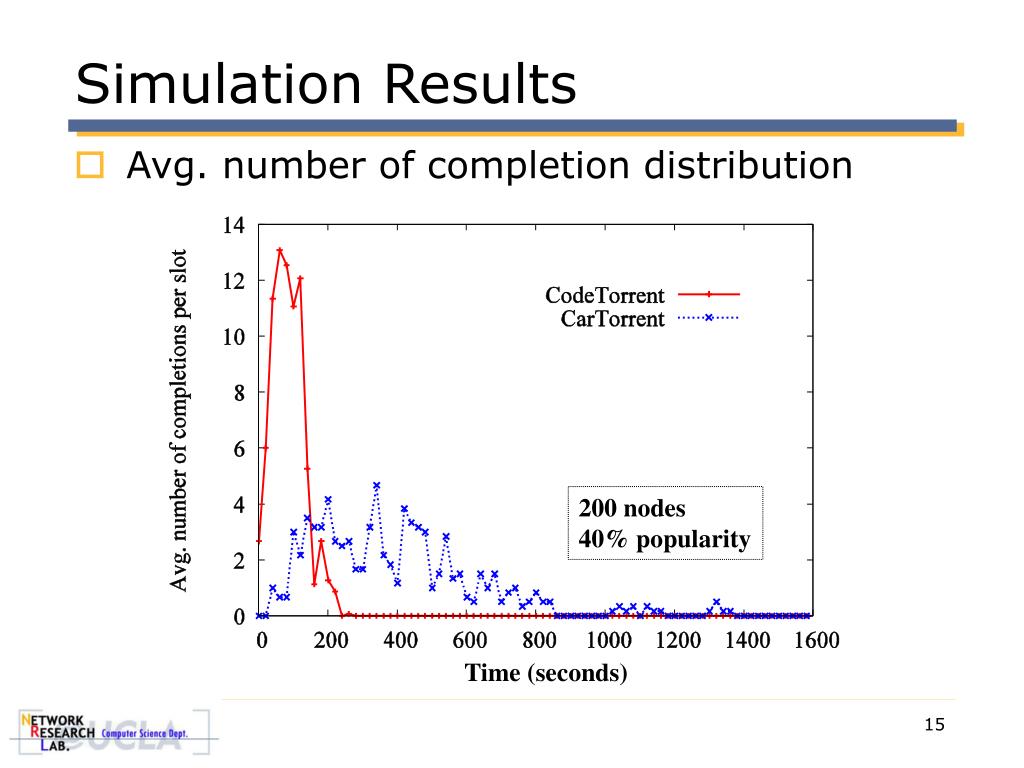

  • Avg. number of completion distribution

200 nodes40% popularity

Time (seconds)

simulation results15
Simulation Results
  • Multi-hop pulling in CarTorrent
    • As content spreads, CarT shows locality

CarTorrent

Avg. hop count exceeding 1 hop

200 nodes40% popularity

Time (seconds)

simulation results16
Simulation Results
  • Impact of mobility
    • Speed helps disseminate from AP’s and C2C
    • Speed hurts multihop routing (CarT)
    • Car density+multihop promotes congestion (CarT)

Avg. Download Time (s)

40% popularity

conclusion
Conclusion
  • Multihop-based CarTorrent:
    • Not scalable due to routing overhead
    • Cooperation may be a problem
    • Coupon problem
  • CodeTorrent:
    • Scales to mobility; favors cooperation; eliminates a coupon problem
cartorrent demo cars get to have fun too

CarTorrent Demo:Cars get to have fun too

Kevin C. Lee and Ian S. Yap

overview

CarTorrent Application

AODV Routing Layer

Overview
  • Main Idea: CarTorrent uses proximity-based piece selection
    • Instead of traditional “rarest”-first strategy, use rarest-closest-first or closest-rarest-first strategy
  • CarTorrent implementation details
    • CarTorrent layer: browse/share/download files
      • Core and GUI written in Java
    • AODV layer: route maintenance tasks and discovery of neighbors
      • Linux version from Uppsala University
architecture

Client

FileSplitter

SendGossipThread

ReceiveGossipThread

ListenThread

CarTorrent File Manager

RecvPacketThread

RecvPacketThread

RecvPacketThread

Architecture
components
Components
  • Client:
    • A tabbed frame that encapsulates information for subcomponents
    • 3 tabs; share, download, and search
  • FileSplitter:
    • Splits a shared file into parts
    • Combines downloaded parts into a file
  • CarTorrent File Manager:
    • Keeps track of pieces of files from gossips
    • Includes the algorithms to find rarest pieces, closest pieces, and rarest closest pieces
components cont
Components (cont.)
  • SendGossipThread:
    • A thread that sends gossip msgs periodically
    • Two types of gossips:
      • Gossips originated from itself
      • Gossips received from nearby neighbors
    • Gossips received from nearby neighbors are sent based on probabilities assigned to interesting and not interesting gossips
      • Gossips are interesting if client wants the file
      • Gossips are not interesting if the client does not
  • ReceiveGossipThread:
    • A thread that unblocks when receiving a gossip
    • Discards the gossip if from itself else queues the gossip
    • Gossips are sent to CarTorrent File Manager for managing
components cont23
Components (cont.)
  • ListenThread:
    • Listens for incoming download request
    • Spawns a RecvPacketThread to process incoming packets
  • RecvPacketThread:
    • Processes the incoming packets based on packet type
    • If packet type == DATA_REQ, send parts that are requested
    • If packet type == DATA, write the data to the local file-system and combine it if all parts have been received
slide24
Demo
  • Series of pictures demonstrating the sharing of a picture file from one source to two clients
  • Three laptops( two running Linux, one with Windows)
  • If you are interested in seeing the live demo, do drop by BH4681
demo setup
Demo Setup

A: 10.0.0.4

B: 10.0.0.5

slide26
Demo

A: 10.0.0.4

sharing a file
Sharing a File

A: 10.0.0.4

viewing a downloaded file
Viewing a Downloaded File

Rate(Mbps)

10.0.0.5

future work
Future Work
  • Variable piece length to adapt to client’s bandwidth
  • Test in environments with larger distances between nodes (true multi-hop)
  • Cross-layer optimization:
    • Gossip exploits AODV’s RREQ flooding
  • Add a mechanism to detect the absence of a file in the network by either:
    • expiring file pieces (after no gossips)
    • sending out explicit leaving gossip messages
  • Being able to identify failed transfers and get same file piece(s) from other nodes
codetorrent demo

CodeTorrent Demo

Seunghoon Lee and Sung Chul (Brian) Choi

overview32
Overview
  • CodeTorrent
    • Single-hop pulling using network coding
      • To mitigate a rare piece problem and maximize the benefits of overhearing
    • Exploits mobility; carry-and-forward coded blocks
  • Implementation challenge: How to share LARGE files?
    • Coding/decoding latency: Large file → more blocks → bigger coefficient matrix to invert
      • Inversion takes O(n3)
      • Plus, disk I/O becomes a big issue!
    • Solution: Split the file into “generations”
      • (Chou, et al. “Practical Network Coding”)
multi generation network coding

1

4

Multi-Generation Network Coding

Gen 1

Gen 2

Gen 3

Gen 4

Gen 5

architecture34

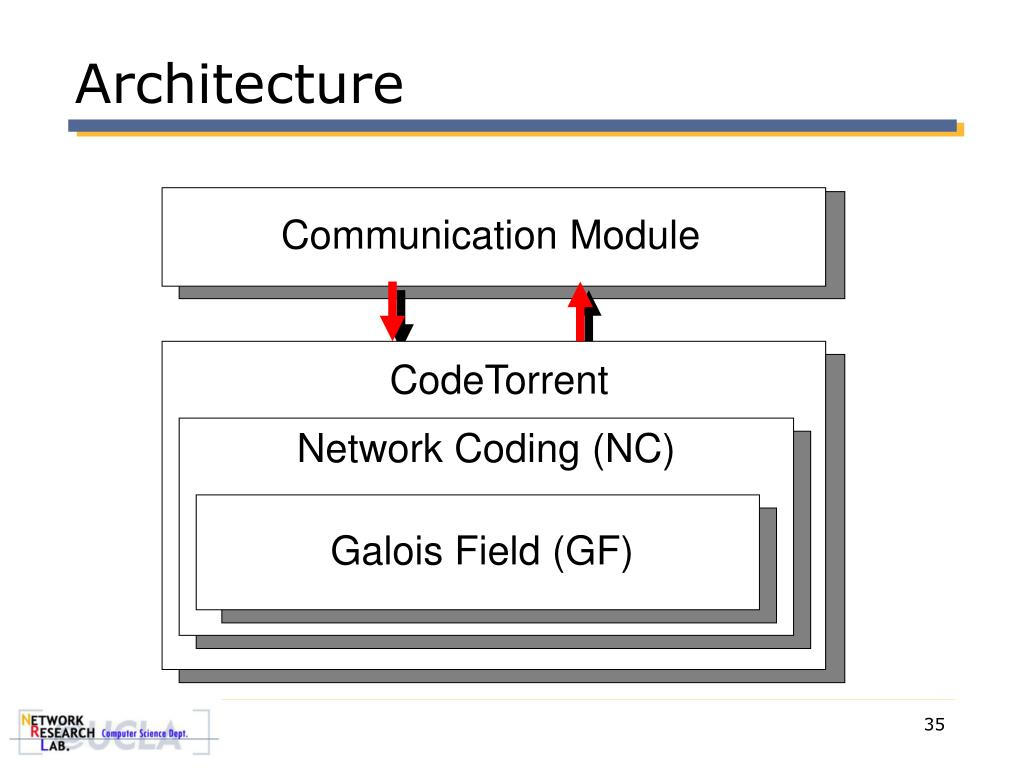

Architecture

Communication Module

CodeTorrent

Network Coding (NC)

Galois Field (GF)

demo setup35

2

4

1

5

Node 1

Node 2

Node 3

Demo Setup
slide36

Node 1

Node 2

Node 3

Demo
future work37
Future Work
  • Multi-hop pulling
    • Content can be pulled from remote peers (just as CarTorrent)
    • Interference aware data pulling (parallel downloading)
  • Network coded P2P caching?
    • Intermediate nodes on the multi-hop path can snoop TCP stream and “cache” for future use
  • Disk I/O scheduling for “mobile” wireless networks
    • Reading 100MB takes 10s!  Short wireless link duration!
    • Efficient scheduling of data blocks for encoding is a must!
      • If a number of requests come in burst, we must schedule them “efficiently” to optimize disk access
