Presentation Transcript
The mole
The Mole

6.02 X 1023


The mole1

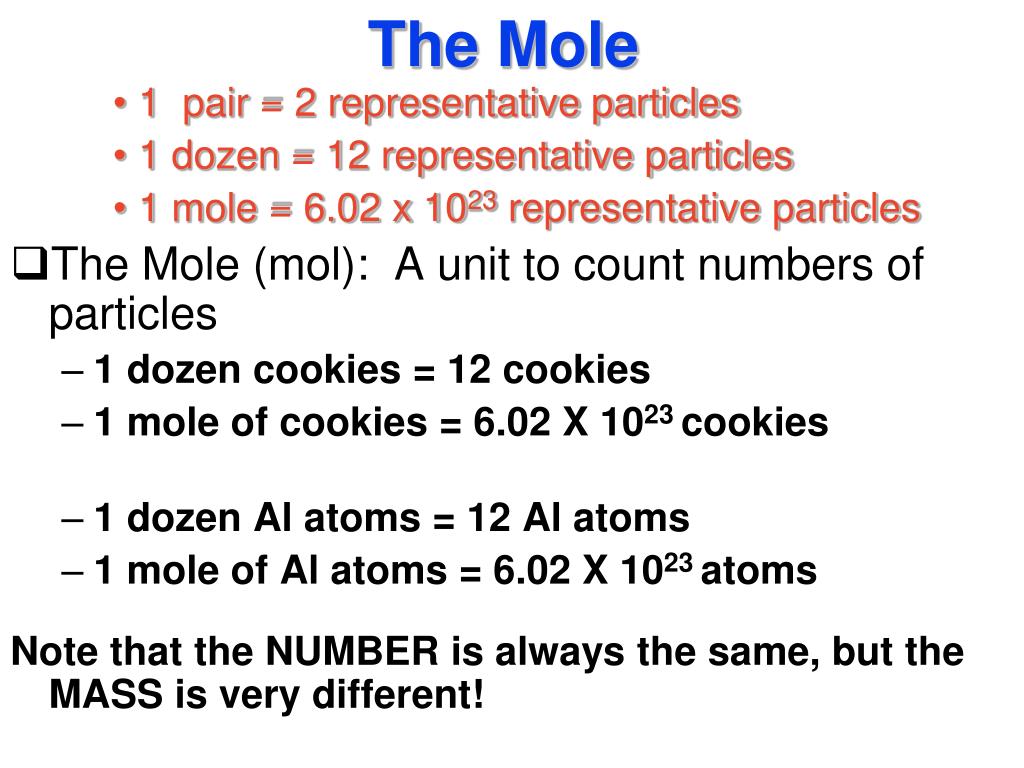

The Mole

  • 1 pair = 2 representative particles

  • 1 dozen = 12 representative particles

  • 1 mole = 6.02 x 1023 representative particles

  • The Mole (mol): A unit to count numbers of particles

    • 1 dozen cookies = 12 cookies

    • 1 mole of cookies = 6.02 X 1023 cookies

    • 1 dozen Al atoms = 12 Al atoms

    • 1 mole of Al atoms = 6.02 X 1023 atoms

      Note that the NUMBER is always the same, but the MASS is very different!


  • A mole of particles contains 6 02 x 10 23 particles
    A Mole of ParticlesContains 6.02 x 1023 particles

    Representative Particle:

    Refers to the species present.

    Usually atoms, molecules, or formula units.

    Example:

    Atomic Nitrogen = N

    Nitrogen gas = N2

    Water = H2O

    Calcium ion = Ca2+

    Glucose = C6H12O6

    1 mole of all of these =

    6.02 x 1023 rep. particles


    Avogadro s number as conversion factor
    Avogadro’s Number as Conversion Factor

    6.02 x 1023 particles

    1 mole

    or

    1 mole

    6.02 x 1023 particles

    Note that a particle could be an atom OR a molecule!


    Learning check

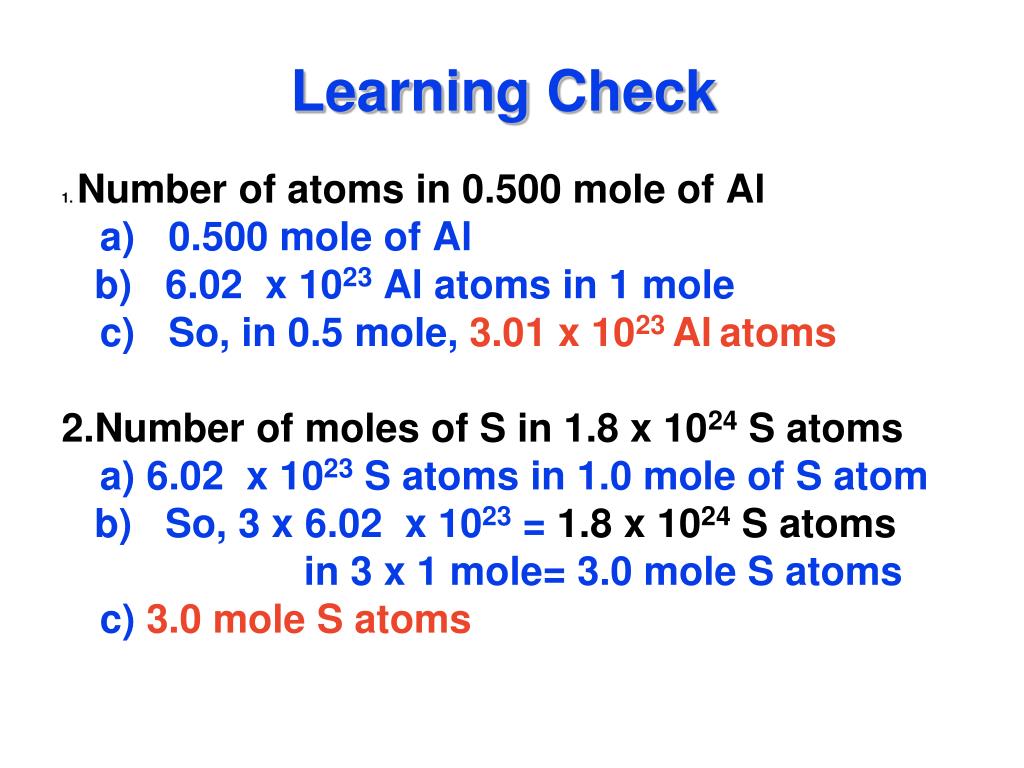

    Learning Check

    1. Number of atoms in 0.500 mole of Al

    a) 0.500 mole of Al

    b) 6.02 x 1023 Al atoms in 1 mole

    c) So, in 0.5 mole, 3.01 x 1023 Alatoms

    2.Number of moles of S in 1.8 x 1024 S atoms

    a) 6.02 x 1023 S atoms in 1.0 mole of S atom

    b) So, 3 x 6.02 x 1023 = 1.8 x 1024 S atoms

    in 3 x 1 mole= 3.0 mole S atoms

    c) 3.0 mole S atoms


    Gram atomic mass

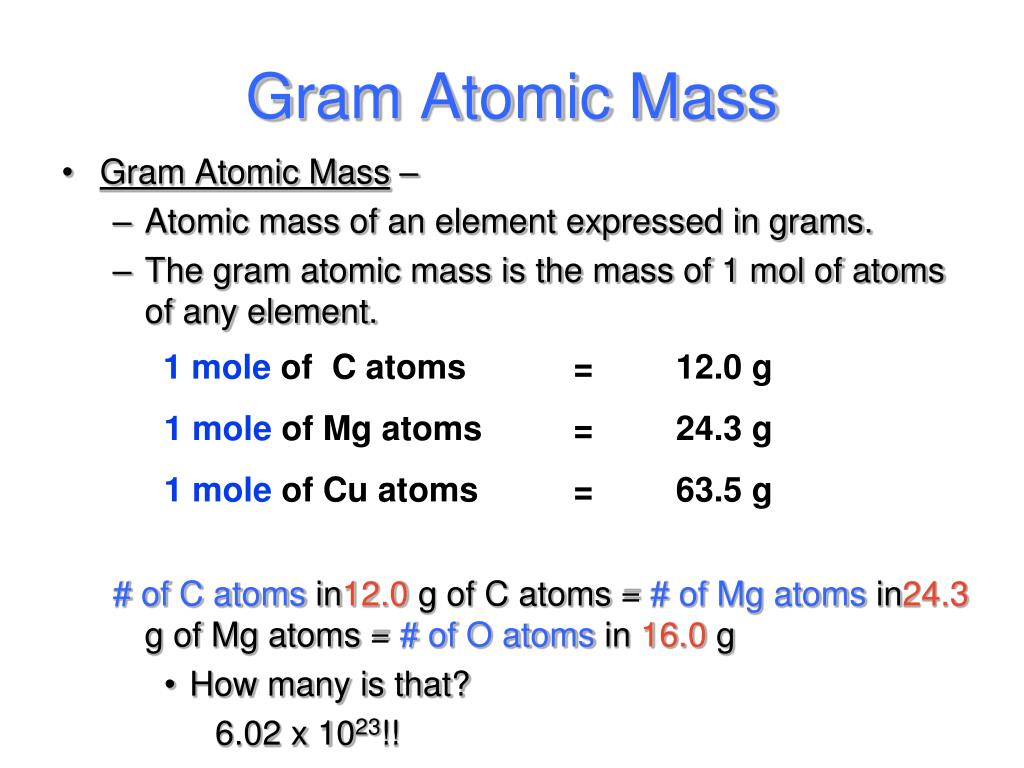

    Gram Atomic Mass

    Gram Atomic Mass –

    Atomic mass of an element expressed in grams.

    The gram atomic mass is the mass of 1 mol of atoms of any element.

    1 mole of C atoms = 12.0 g

    1 mole of Mg atoms = 24.3 g

    1 mole of Cu atoms = 63.5 g

    # of C atoms in12.0 g of C atoms = # of Mg atoms in24.3 g of Mg atoms = # of O atoms in 16.0 g

    How many is that?

    6.02 x 1023!!


    Other names
    Other Names

    Gram Molecular Mass/Molecular Weight

    Gram Formula Mass/Formula Weight

    What is the gram atomic mass (GAM) of 1 mol of the following compounds?

    Gram Molecular Mass of SO3 and H2O = ?

    SO3 = 80.1g H2O = 18 g

    Gram Formula Mass of NaCl and CaI2 = ?

    NaCl = 58.5 g CaI2 = 293.9 g


    Molar mass atoms molecules and compounds

    = 79.9 g/mole

    • 1 mole of Br atoms

    • 1 mole of Sn atoms

    = 118.7 g/mole

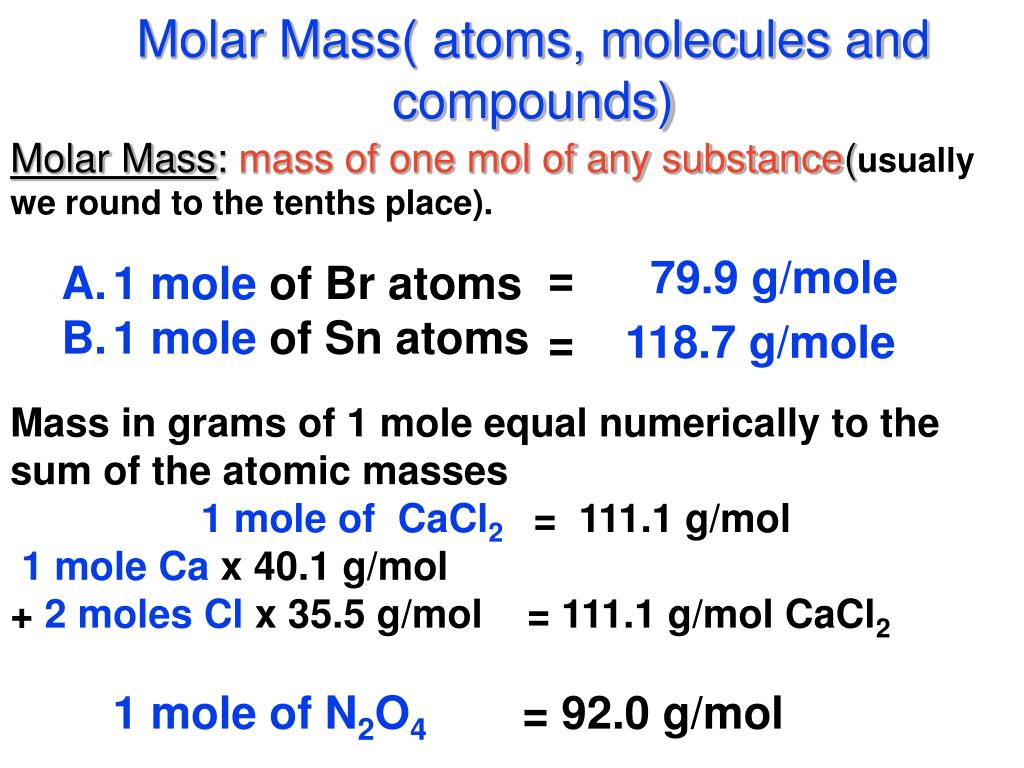

    Molar Mass( atoms, molecules and compounds)

    Molar Mass: mass of one mol of any substance(usually we round to the tenths place).

    Mass in grams of 1 mole equal numerically to the sum of the atomic masses

    1 mole of CaCl2 = 111.1 g/mol

    1 mole Ca x 40.1 g/mol

    + 2 moles Cl x 35.5 g/mol = 111.1 g/mol CaCl2

    1 mole of N2O4 = 92.0 g/mol


    Learning check1
    Learning Check!

    • Molar Mass of K2O = ? Grams/mole

      B.MolarMass of antacid Al(OH)3 = ? Grams/mole

      Example:

    • How many grams are in 9.45 mol dinitrogen trioxide? 718.20 g N2O3

      2. How many moles are in 92.2 g iron (III) oxide?

      • 0.58 mol Fe2O3


    3 x 40.08

    3 Ca

    2 P

    2 x 30.97

    8 O

    + 8 x 16.00

    What is the formula mass of Ca3(PO4)2 ?

    1 formula unit of Ca3(PO4)2

    310.18 amu


    Volume of a mol

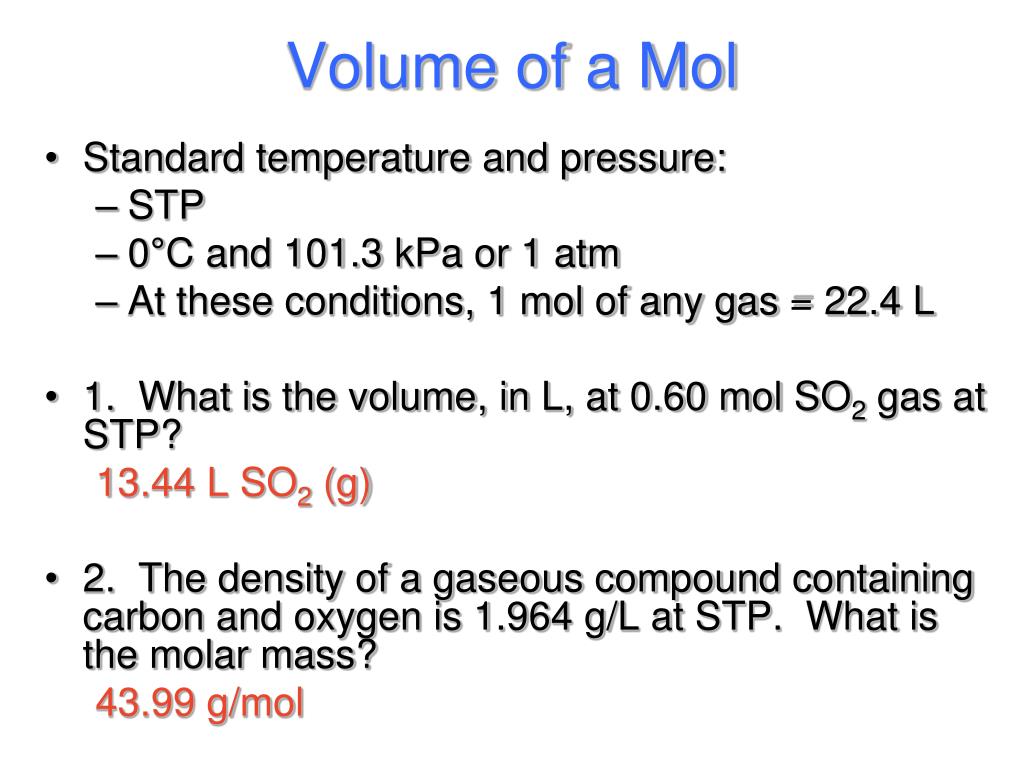

    Volume of a Mol

    Standard temperature and pressure:

    STP

    0°C and 101.3 kPa or 1 atm

    At these conditions, 1 mol of any gas = 22.4 L

    1. What is the volume, in L, at 0.60 mol SO2 gas at STP?

    13.44 L SO2 (g)

    2. The density of a gaseous compound containing carbon and oxygen is 1.964 g/L at STP. What is the molar mass?

    43.99 g/mol


    Problems cont
    Problems, cont.

    3. A gaseous compound composed of sulfur and oxygen is linked in the formation of acid rain and has a density of 3.58 g/L at STP. What is the molar mass?

    80.19 g/mol

    4. What is the density of Kr gas at STP?

    3.74 g/L


    Big helper
    Big Helper

    NA=6.02 x 1023

    Molar Mass

    Representative

    particles

    Grams

    moles

    Gram atomic mass/

    Gram molecular mass/

    formula mass

    (Molecules,

    Atoms,

    Ions,

    Formula units)

    Molar

    volume

    22.4 liters

    (STP)

    Liters


    Converting moles and grams
    Converting Moles and Grams

    Aluminum is often used for the structure of light-weight bicycle frames. How many grams of Al are in 3.00 moles of Al?

    3.00 moles Al ? g Al


    1.Molar mass of Al 1 mole Al = 27.0 g Al

    2. Conversion factors for Al

    27.0g Al or 1 mol Al

    1 mol Al 27.0 g Al

    3. Setup3.00 moles Al x 27.0 g Al

    1 mole Al

    Answer = 81.0 g Al


    Atoms molecules and grams
    Atoms/Molecules and Grams

    • Since 6.02 X 1023 particles = 1 mole AND1 mole = molar mass (grams)

    • You can convert atoms/molecules to moles and then moles to grams! (Two step process)

    • You can’t go directly from atoms to grams!!!! You MUST go thru MOLES.


    Calculations
    Calculations

    molar mass Avogadro’s numberGrams Moles particles

    Everything must go through Moles!!!


    Atoms molecules and grams1
    Atoms/Molecules and Grams

    How many atoms of Cu are present in 35.4 g of Cu?

    35.4 g Cu 1 mol Cu 6.02 X 1023 atoms Cu 63.5 g Cu 1 mol Cu

    = 3.4 X 1023 atoms Cu


    Learning check2

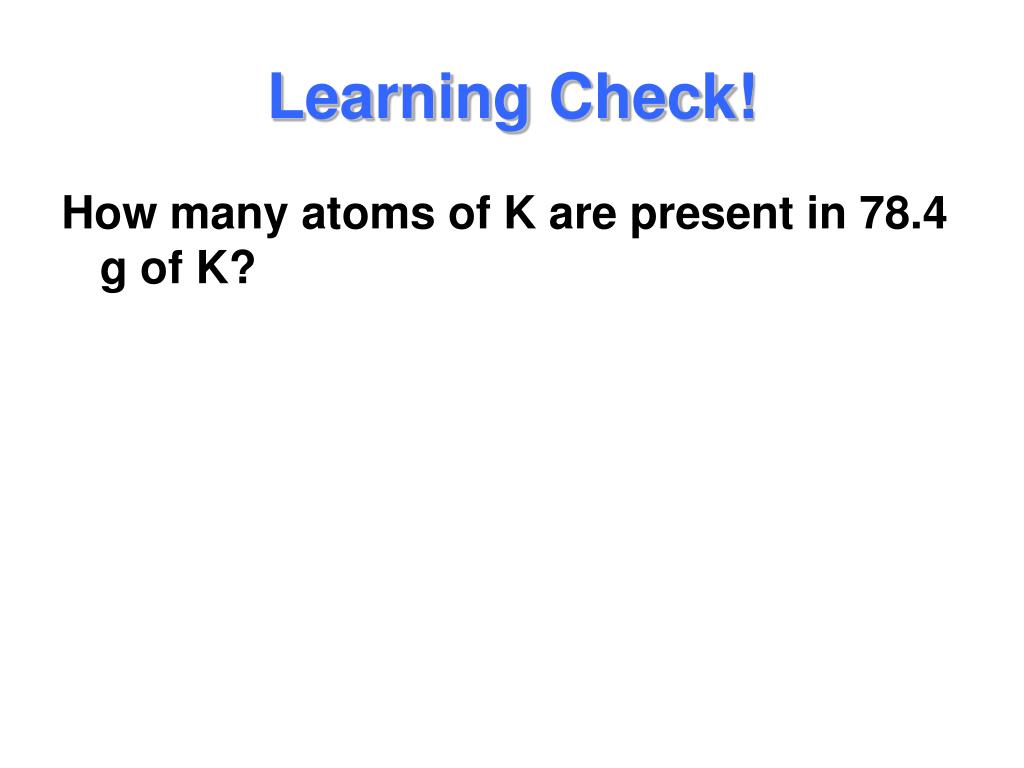

    Learning Check!

    How many atoms of K are present in 78.4 g of K?


    Learning check3

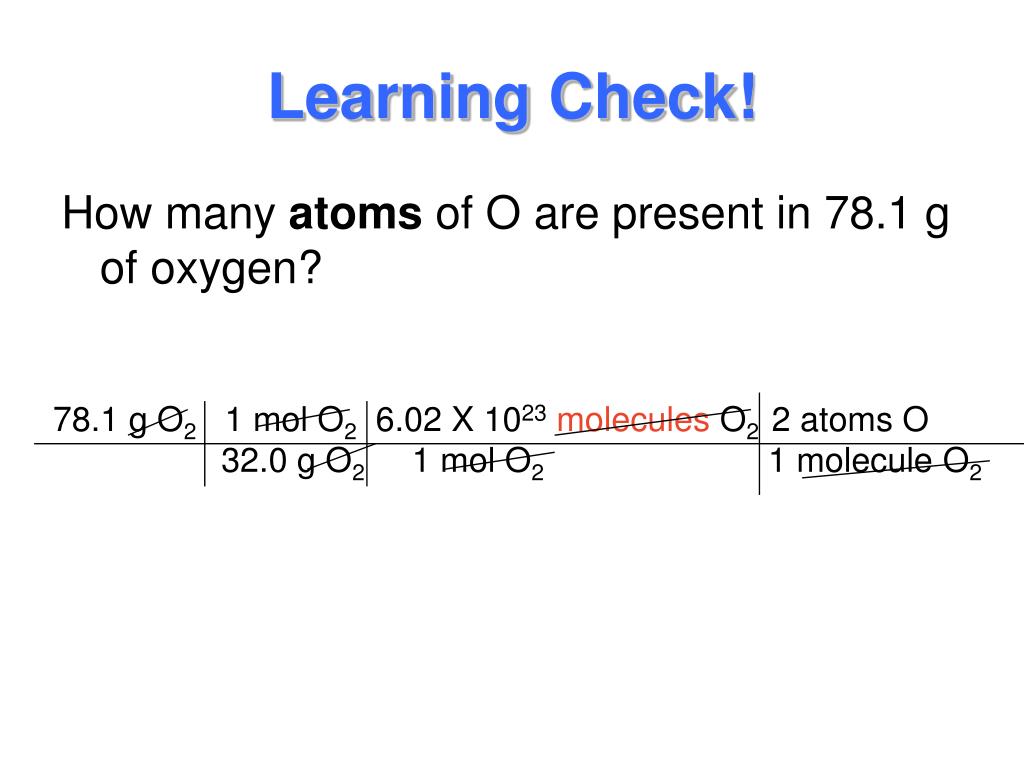

    Learning Check!

    How many atoms of O are present in 78.1 g of oxygen?

    78.1 g O2 1 mol O2 6.02 X 1023moleculesO2 2 atoms O 32.0 g O2 1 mol O2 1 molecule O2


    Percent composition

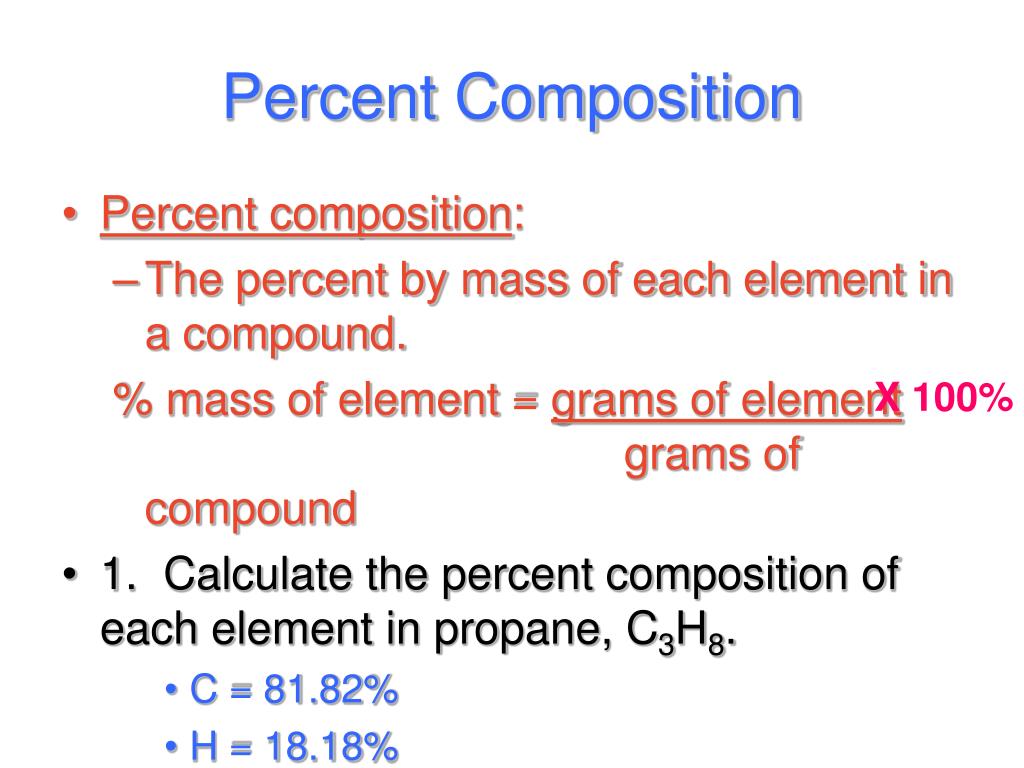

    Percent Composition

    Percent composition:

    The percent by mass of each element in a compound.

    % mass of element = grams of element grams of compound

    1. Calculate the percent composition of each element in propane, C3H8.

    C = 81.82%

    H = 18.18%

    X 100%


    Types of formulas
    Types of Formulas

    • Empirical Formula

      The formula of a compound that expresses the smallest whole number ratio of the atoms present.

      Ionic formula are always empirical formula

    • Molecular Formula

      The formula that states the actual number of each kind of atom found in one molecule of the compound.


    Empirical formula

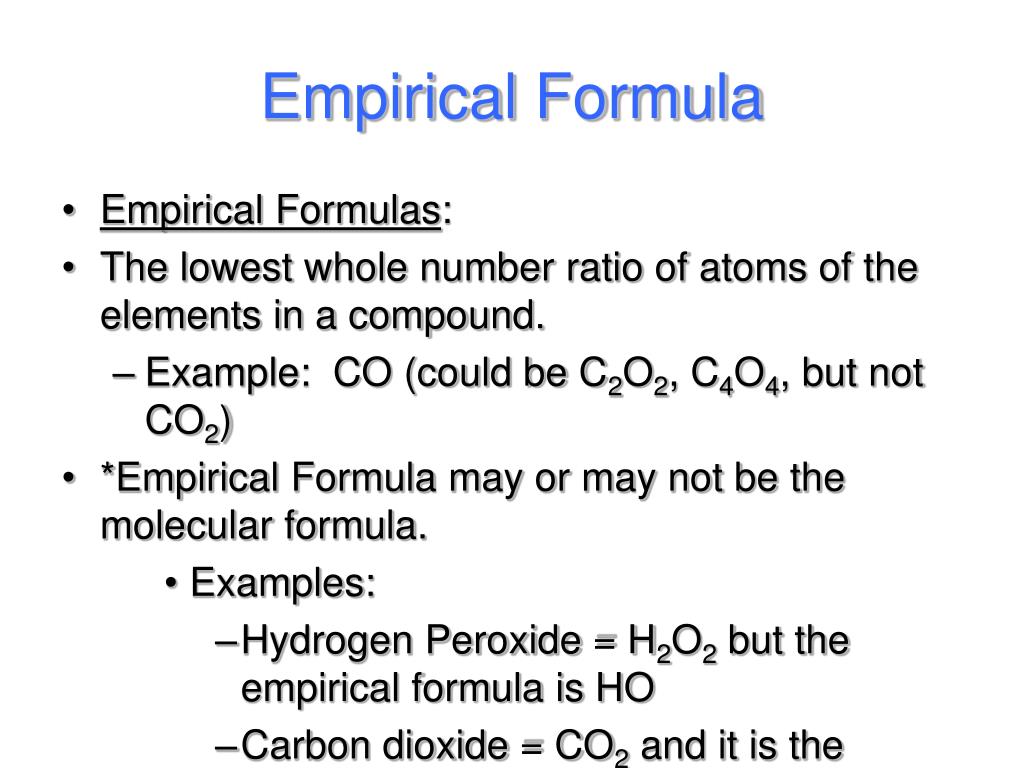

    Empirical Formula

    Empirical Formulas:

    The lowest whole number ratio of atoms of the elements in a compound.

    Example: CO (could be C2O2, C4O4, but not CO2)

    *Empirical Formula may or may not be the molecular formula.

    Examples:

    Hydrogen Peroxide = H2O2 but the empirical formula is HO

    Carbon dioxide = CO2 and it is the empirical formula


    To obtain an empirical formula
    To obtain an Empirical Formula

    1. Determine the mass in grams of each element present, if necessary.

    2. Calculate the number of moles of each element.

    3. Divide each by the smallest number of moles to obtain the simplest whole number ratio.

    • If whole numbers are not obtained* in step 3), multiply through by the smallest number that will give all whole numbers

      *Be careful! Do not round off numbers prematurely


    Empirical problems
    Empirical Problems

    1. What is the empirical formula of a compound that is 25.9% nitrogen and 74.1% oxygen?

    Looks hard, but follow the three steps…


    Problem cont
    Problem, cont.

    Step 1:

    Convert % to moles.

    1.85 mol N

    4.63 mol O

    Step 2:

    Divide both answers by the lowest one.

    1.85 mol N is lowest.

    1 mol N

    2.5 mol O


    Problem cont1

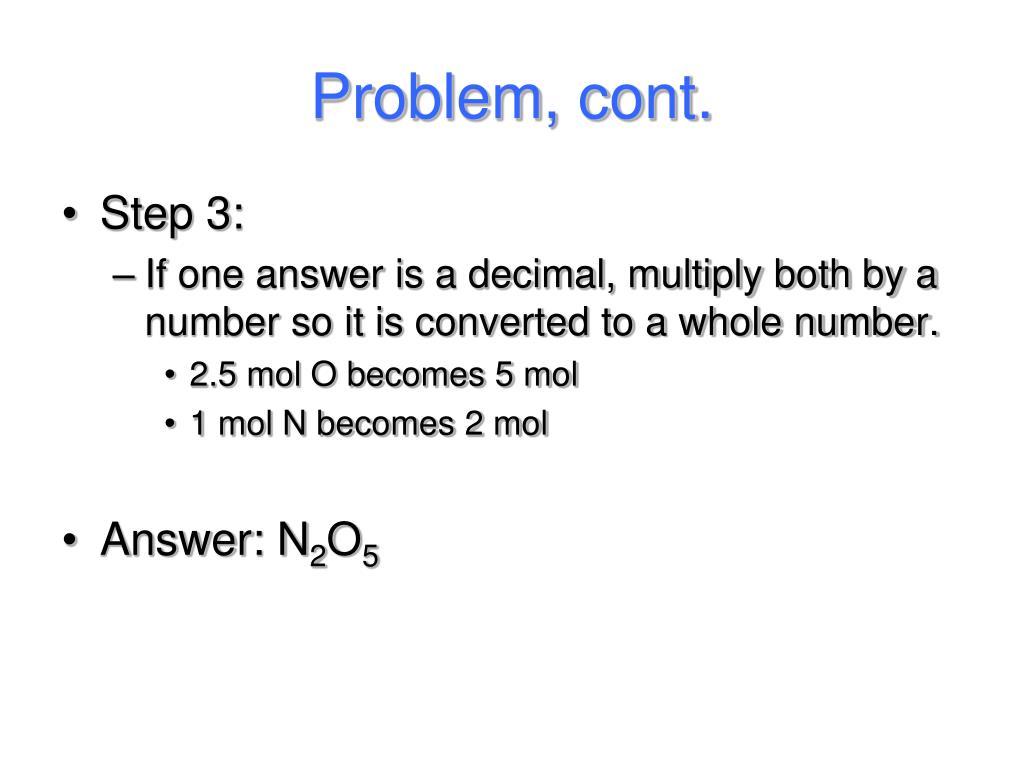

    Problem, cont.

    Step 3:

    If one answer is a decimal, multiply both by a number so it is converted to a whole number.

    2.5 mol O becomes 5 mol

    1 mol N becomes 2 mol

    Answer: N2O5


    Chemical formulas of compounds
    Chemical Formulas of Compounds

    • Formulas give the relative numbers of atoms or moles of each element in a formula unit - always a whole number ratio (the law of definite proportions).

      NO2 2 atoms of O for every 1 atom of N

      1 mole of NO2 : 2 moles of O atoms to every 1 mole of N atoms

    • If we know or can determine the relative number of moles of each element in a compound, we can determine a formula for the compound.


    A sample of a brown gas, a major air pollutant, is found to contain 2.34 g N and 5.34g O. Determine a formula for this substance.

    require mole ratios so convert grams to moles

    moles of N = 2.34g of N = 0.167 moles of N

    14.01 g/mole

    moles of O = 5.34 g = 0.334 moles of O

    16.00 g/mole

    Formula:


    Determine empirical formula

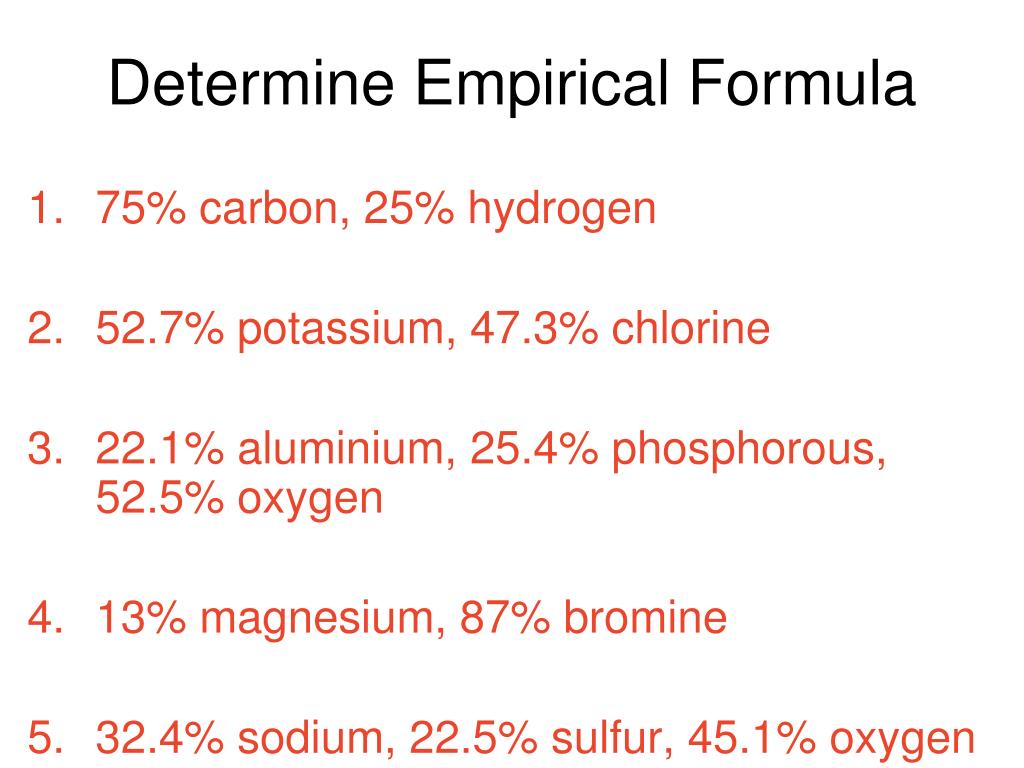

    Determine Empirical Formula contain 2.34 g N and 5.34g O. Determine a formula for this substance.

    • 75% carbon, 25% hydrogen

    • 52.7% potassium, 47.3% chlorine

    • 22.1% aluminium, 25.4% phosphorous, 52.5% oxygen

    • 13% magnesium, 87% bromine

    • 32.4% sodium, 22.5% sulfur, 45.1% oxygen


    Molecular formulas
    Molecular Formulas contain 2.34 g N and 5.34g O. Determine a formula for this substance.

    Molecular Formulas:

    Either the same as the empirical formula or a simple whole number multiple of it.

    Known molar mass of molecule =

    Molar mass of empirical form.

    the number of

    empirical formula

    units needed (EFU).

    Multiply empirical formula with EFU to get the molecular formula


    Calculation of the molecular formula

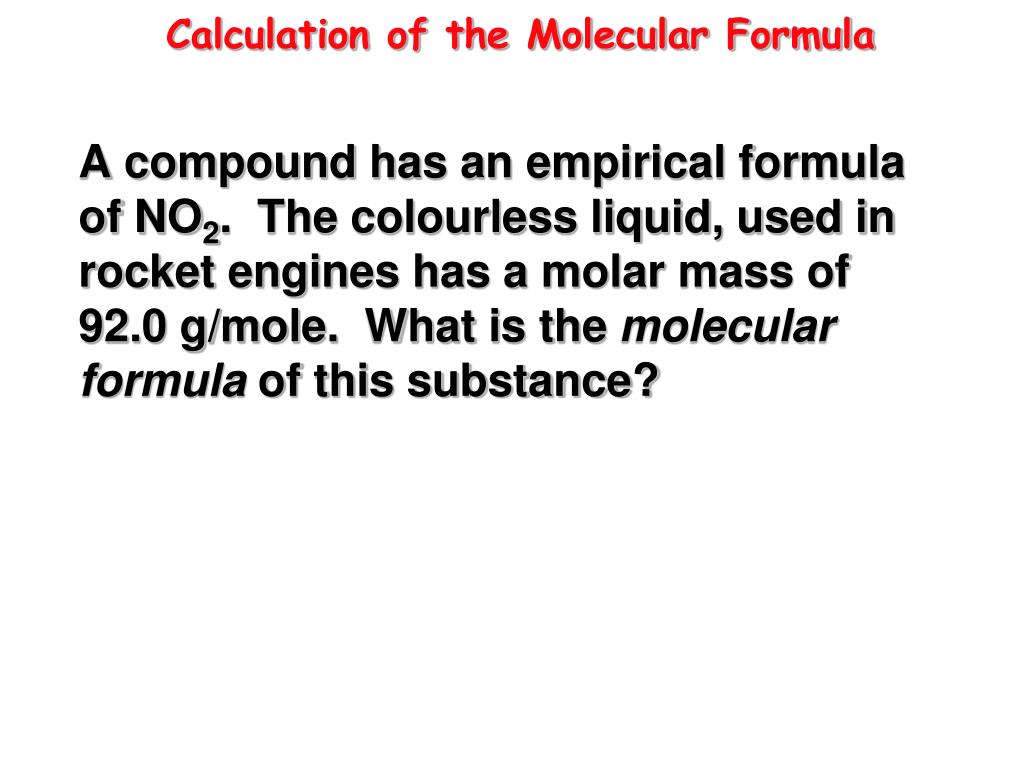

    Calculation of the Molecular Formula contain 2.34 g N and 5.34g O. Determine a formula for this substance.

    A compound has an empirical formula of NO2. The colourless liquid, used in rocket engines has a molar mass of 92.0 g/mole. What is the molecular formula of this substance?
