Umlx a graphical transformation language for mda

UMLX : A Graphical Transformation Language for MDA

E.D.Willink, [email protected]

GMT Consortium, www.eclipse.org/gmt

(Thales Research and Technology (UK) Limited, Reading, England)

2nd Generative Techniques in the Context of the Model Driven Architecture Workshop

OOPSLA’2003, Anaheim

26 October 2003


Overview

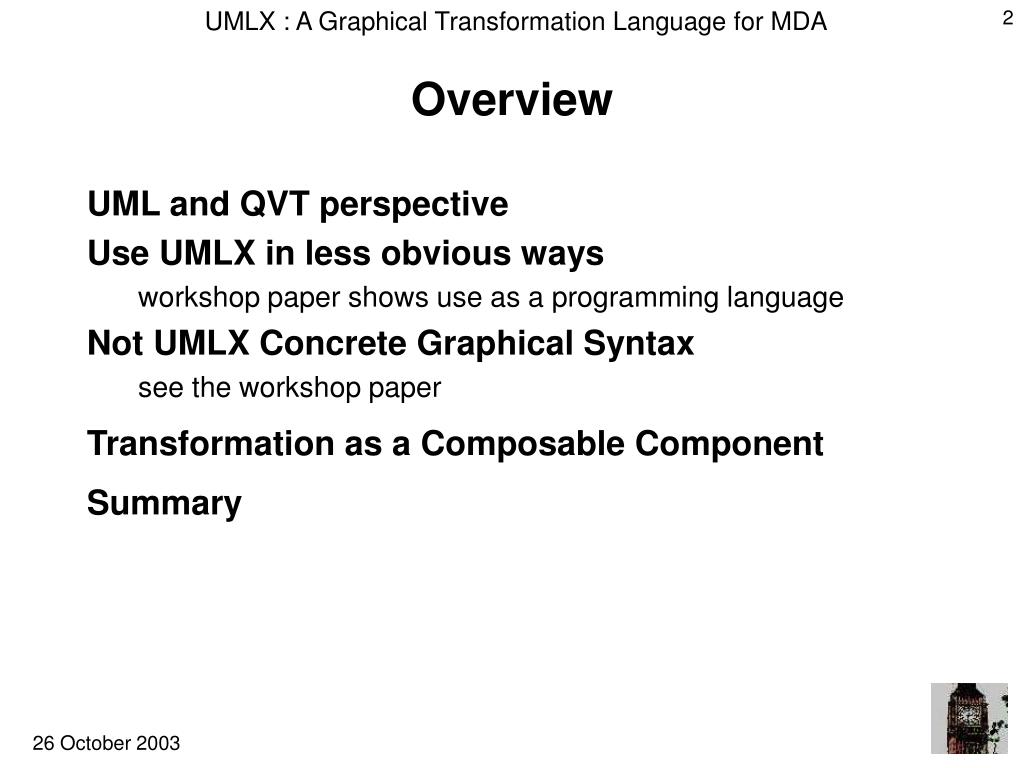

Overview

  • UML and QVT perspective

  • Use UMLX in less obvious ways

    • workshop paper shows use as a programming language

  • Not UMLX Concrete Graphical Syntax

    • see the workshop paper

  • Transformation as a Composable Component

  • Summary


Transformation in program context

Transformation in Program Context

  • Start state comprises the input model(s)

  • End state comprises the output model(s)

  • For QVT:

    • Transformation hierarchy is the full program

  • More generally:

    • Transformation is a more powerful form of state transition


Transformation syntaxes

Transformation Syntaxes

  • 1 Abstract Transformation Syntax (QVT)

  • 1+ Concrete Textual Syntax

  • 1+ Concrete Graphical Syntax

  • Transformations

    • to QVT (extract information content)

    • between formats via XMI or XMID


Mda models

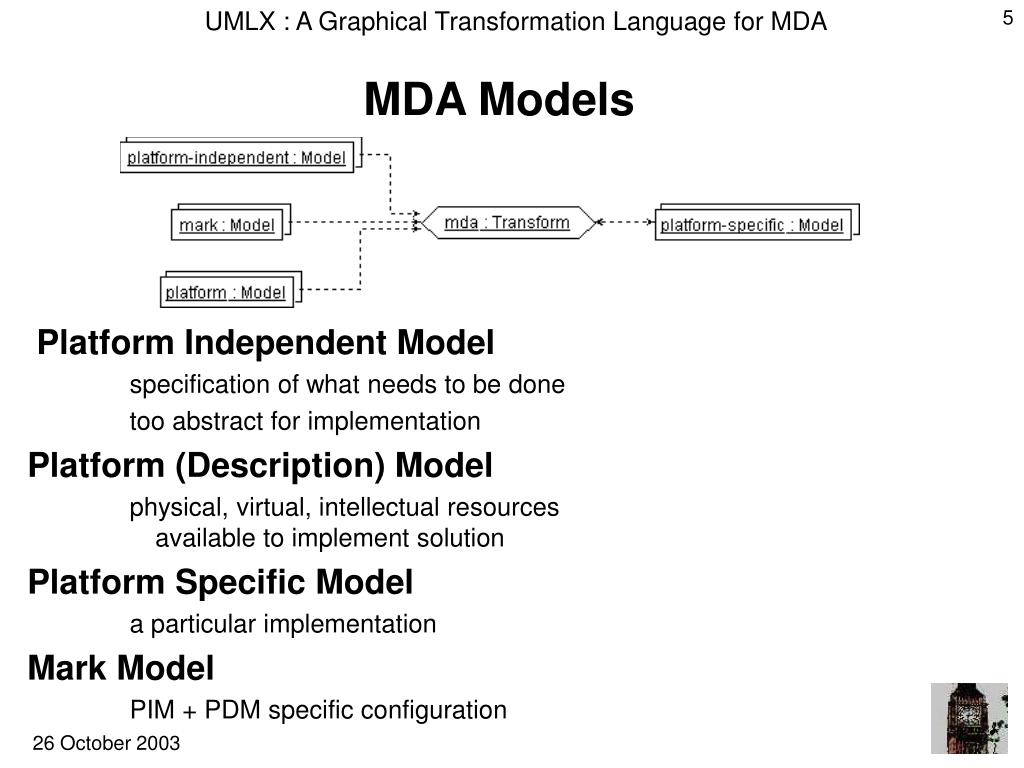

MDA Models

  • Platform Independent Model

    • specification of what needs to be done

    • too abstract for implementation

  • Platform (Description) Model

    • physical, virtual, intellectual resourcesavailable to implement solution

  • Platform Specific Model

    • a particular implementation

  • Mark Model

    • PIM + PDM specific configuration


  • Mda meta models

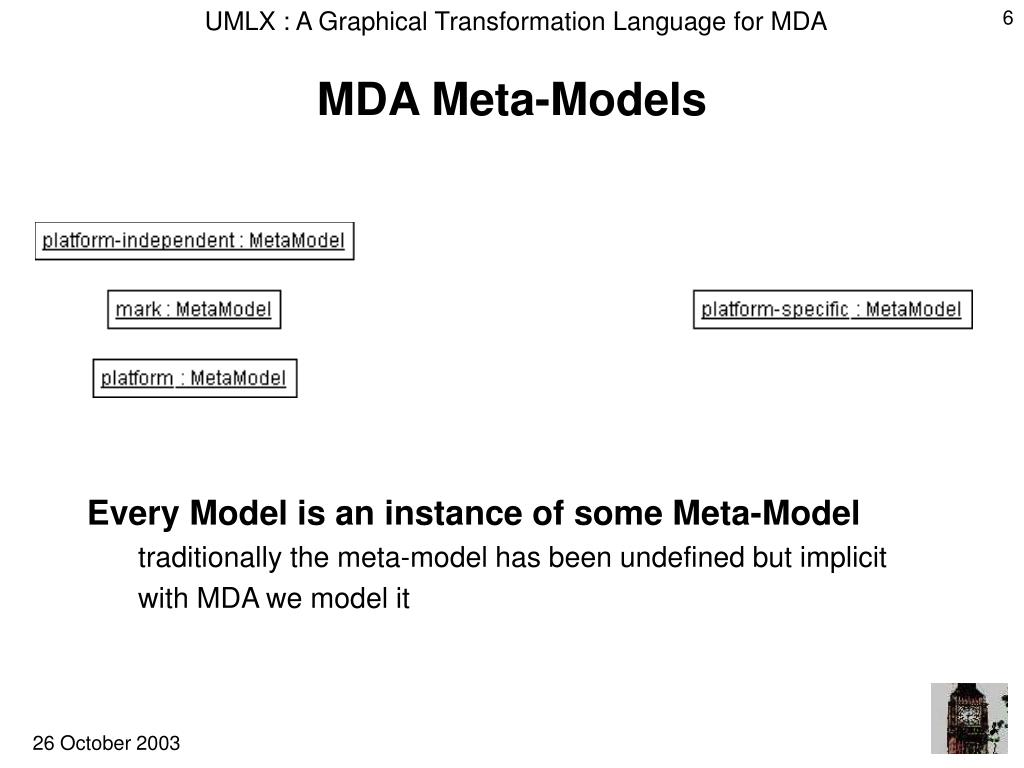

    MDA Meta-Models

    • Every Model is an instance of some Meta-Model

      • traditionally the meta-model has been undefined but implicit

      • with MDA we model it


    Transform as a model

    Transform as a Model

    • Transform may also be a model

      • traditionally just Java code

      • but even Java code is an instance of the Java meta-model

    • Closed perspective - frozen executable

    • Open perspective - generic engine, re-usable model


    Transform between meta models

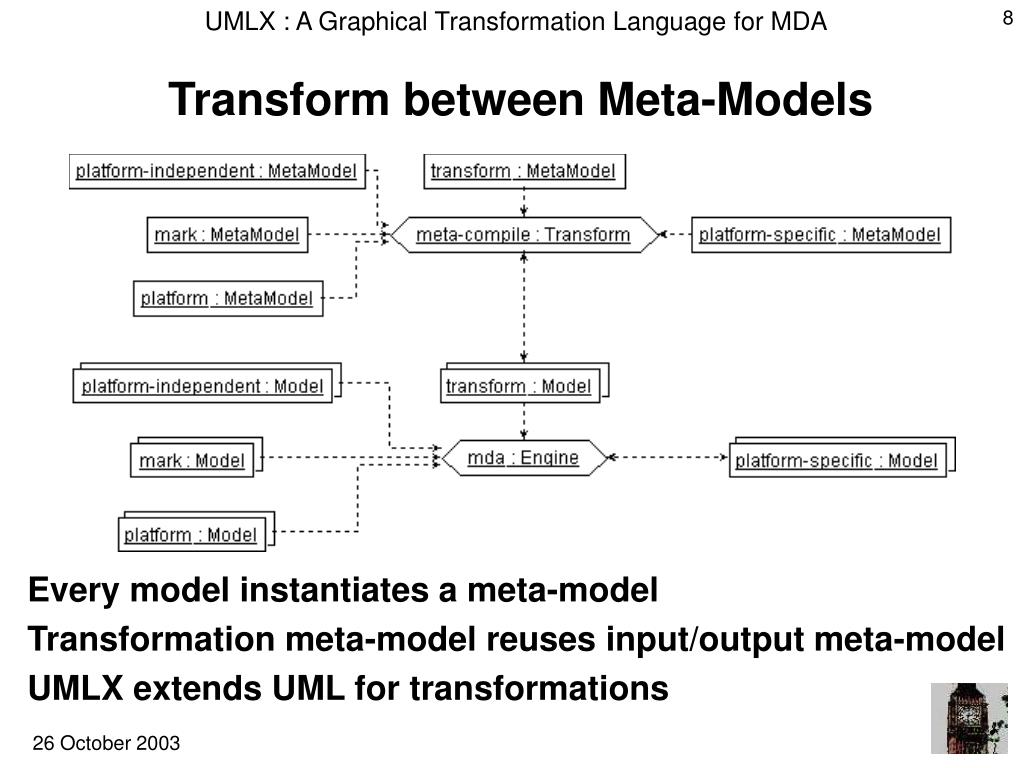

    Transform between Meta-Models

    • Every model instantiates a meta-model

    • Transformation meta-model reuses input/output meta-model

    • UMLX extends UML for transformations


    Transformation

    Transformation

    • From LHS

      • read-only

      • shared

    • To RHS

      • write-only

      • shared

      • non-conflicting

    • In-place if LHS and RHS are same model instance

    • Define LHS meta-model

    • Define RHS meta-model

    • Define transformations between meta-model instances

      • (and pivot models if complex)


    Match order

    Match order

    • Select search order - {a1,a2}, {b1,b2,b3}, {c1,c2}, d, [e*, [f*, [g]]] 'loop hoisting'


    Schema driven matching

    Schema driven matching

    • Branch and bound search

    • Advance one node/free variable per level

      • pick narrowest relationship to advance to next node

        • composition > association

        • forward > backward

        • unity multiplicity > multiple

      • validate advance

        • type

        • back relationships

        • constraints

        • nested transformations

    • Smarter heuristics can lookahead


    Composition

    Composition

    • Re-usable black boxes

      • Encapsulation

        • internal data

        • internal behaviour

      • Defined Interface

        • external data

        • external behaviour

      • Meta-Models define what the external data comprises

      • Ports define where the external data flows


    Scheduling synchronisation

    Scheduling/Synchronisation

    • ‘Data’ flow defines when transformation occurs

      • when the input models exist, then output gets created

    • Evolution identities (and {ordered} sets) define how

      • multiple concurrent match results are combined

      • multiple concurrent transform results are combined

    • Shared, read-only LHS

    • Shared, non-conflicting write-only RHS

    • Declarative, with causal constraints


    Re usability

    Re-usability

    • The UML to RDBMS example

      • http://dev.eclipse.org/viewcvs/indextech.cgi/gmt-home/doc/umlx/M4M03.pdf?rev=HEAD

      • 11 transforms in UMLX

      • multiple transforms/steps/rules/helpers in other approaches

    • UMLX transform unifies concepts

    • Rule/Step is a transform with inputs/outputs bound

      • steps may be factored out as (sub-)transformations

    • Helper is a transform with inputs bound

      • predicates may be factored out as (sub-)transformations

    • Graphics scalability problems soluble

      • factoring out sub-transformations with good clear names

      • use of embedded OCL


    Umlx support

    UMLX Support

    • UMLX editor configured within GME

      • by defining a UMLX editing meta-model

    • UMLX compiler designed in UMLX

      • over 200 diagrams so far

    • UMLX execution engine designed in UMLX

      • over 100 diagrams so far

    • Bootstrap by manual transliteration to NiceXSL

      • human-friendly form of XSLT

    • Prototype generates XSLT code

      • currently for concurrent and sequential transforms on classes

    • ==> Fast, configurable, custom compiler-compiler


    Summary

    Summary

    • UMLX is a natural extension of UML

      • opportunities for more elaborate/useful syntaxes

    • UMLX exhibits good composition properties

      • declarative transform sequencing

        • can degenerate to imperative

      • declarative transform concurrency

        • can be {ordered}

      • arbitrary OCL at innermost level

      • influence the QVT abstract syntax

    • UMLX tools progressing
