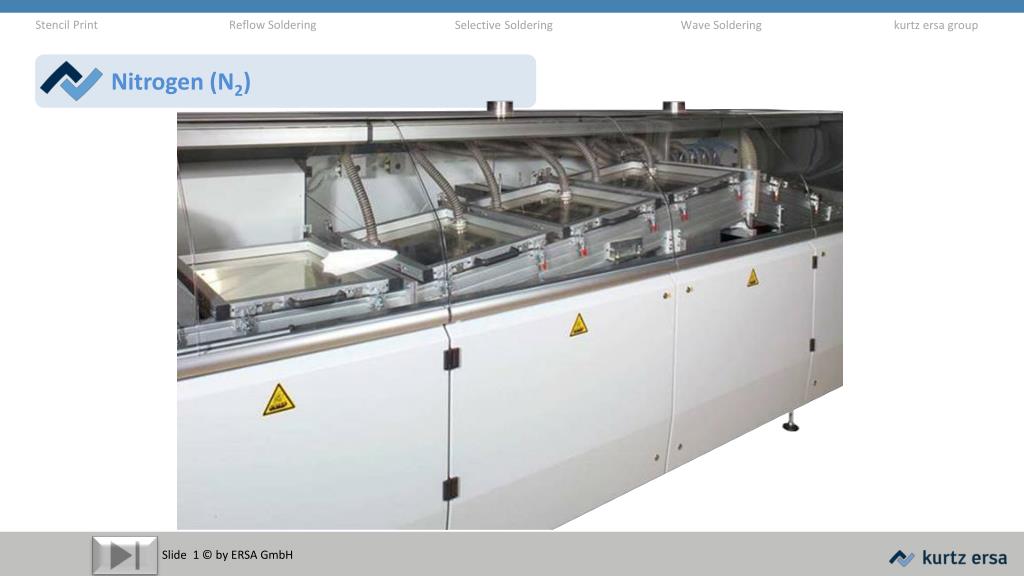

  1. Nitrogen (N2)

  2. NitrogenAdvantages • Resultsunder normal atmosphere • Resultsundernitrogenatmosphere Source: FhG ISIT

  3. = Filter F Cooling and filter untis for Process Atmosphere Cleaning ProcessAtmosphereCleaning Tunnel TemperatureCompensation 0.40 cbm/h 0.40 cbm/h F F F F A A F F . N2 N2 Air/N2 Air/N2 N2 F Löt- modul F B,C A,B,C A,B,C A,B,C Preheating: A = Convection B = Medium wave IR C = Short wave IR 0,40 – 3.00 cbm/h HeatingControl • Nitrogen tunnel with atmosphere cleaning and temperature compensation of the preheating length • Contaminations are successfully removed from the process atmosphere and centrally isolated

  4. N2 = Filter F N2 = Filter F = Filter F = Filter F = Filter F ProcessAtmosphereCleaning • Cooling and filter units for Process Atmosphere Cleaning • Independent Process Gas Cleaning in each functionalprocesszone • Coldairinlet & filtering after solderingmodule

  5. Nitrogen • Hermetical sealed process zone • N2- tunnel improves thermal efficiency • Oxygen monitoring and control • Throughput independent N2-level

  6. 100% 80% 60% 40% 20% 0% 25 75 200 1200 20000 120000 210000 O [ppm] 2 Dross Generation • Drossiswastedmoney

  7. CostCalculator Click heretocalculateyourexample
