Basic principles and techniques of internal fixation of fractures

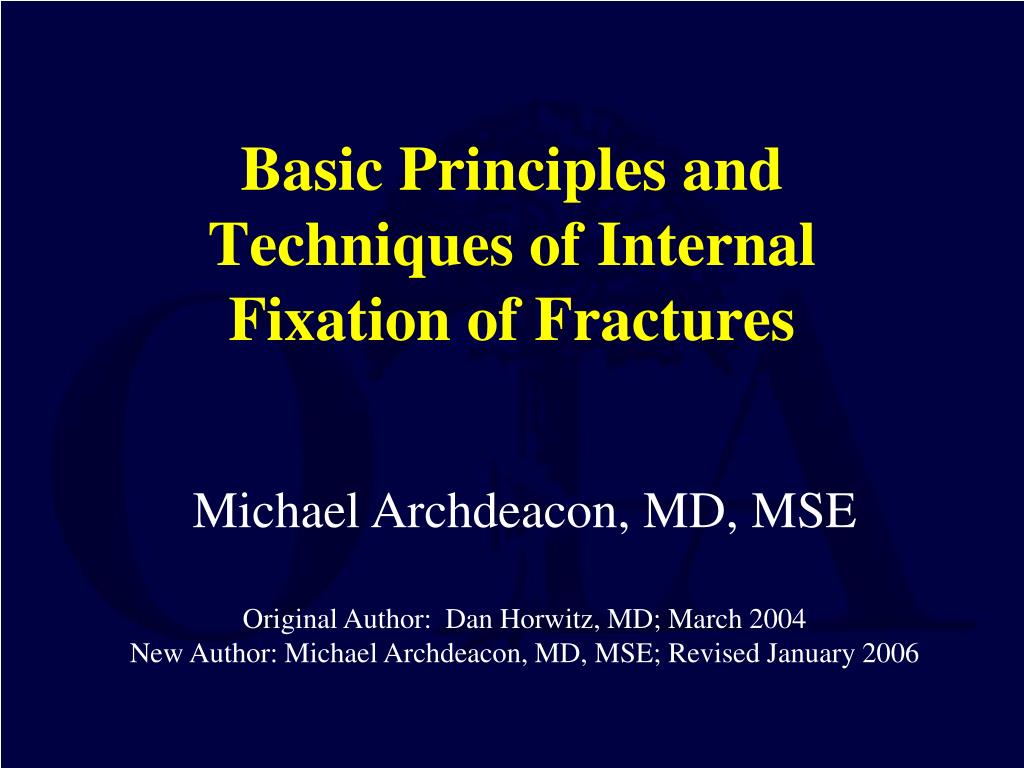

Basic Principles and Techniques of Internal Fixation of Fractures

Michael Archdeacon, MD, MSE

Original Author: Dan Horwitz, MD; March 2004

New Author: Michael Archdeacon, MD, MSE; Revised January 2006

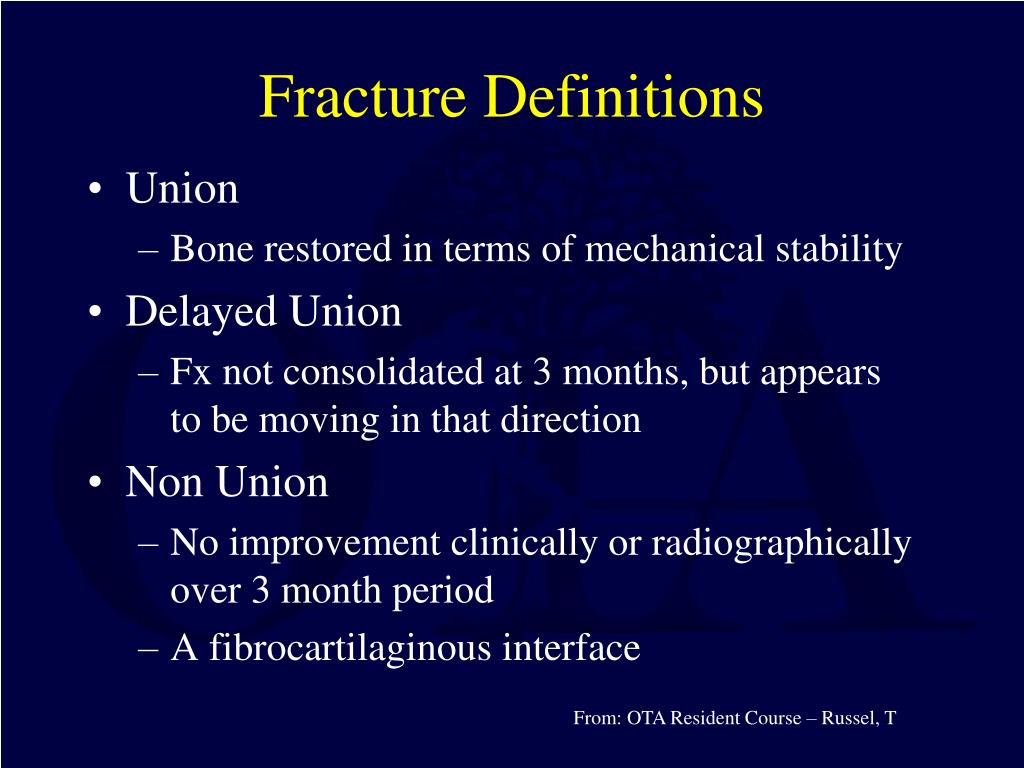

Fracture definitions
Fracture Definitions

  • Union

    • Bone restored in terms of mechanical stability

  • Delayed Union

    • Fx not consolidated at 3 months, but appears to be moving in that direction

  • Non Union

    • No improvement clinically or radiographically over 3 month period

    • A fibrocartilaginous interface

From: OTA Resident Course – Russel, T


High energy vs low energy
High Energy vs Low Energy

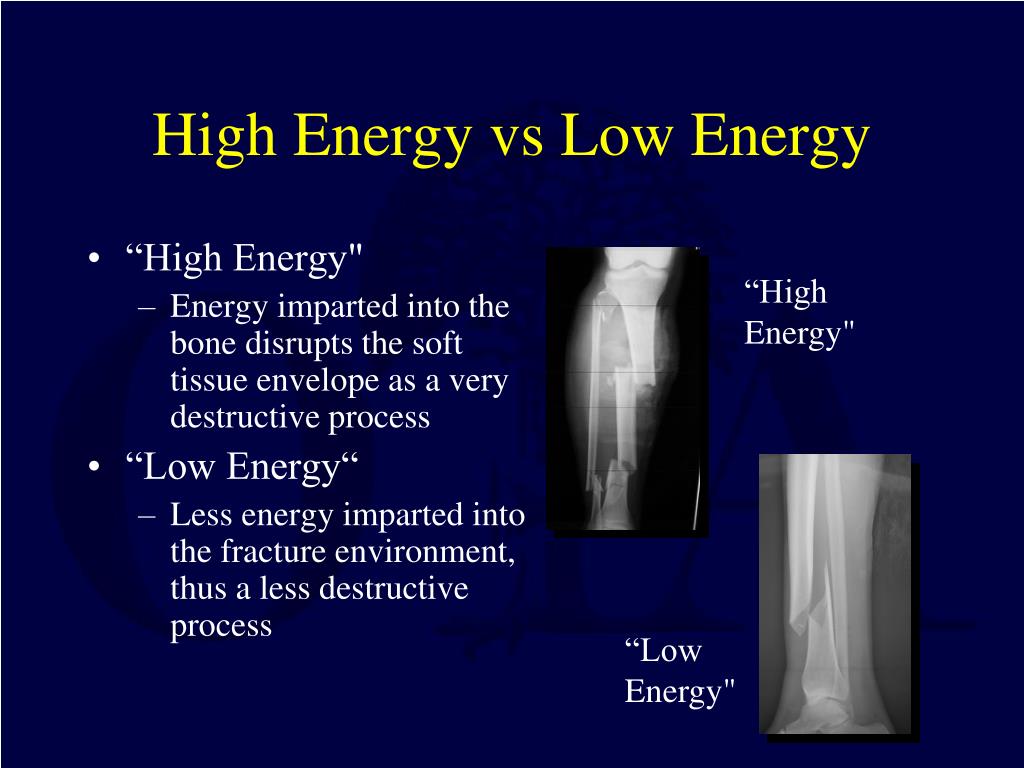

  • “High Energy"

    • Energy imparted into the bone disrupts the soft tissue envelope as a very destructive process

  • “Low Energy“

    • Less energy imparted into the fracture environment, thus a less destructive process

“High Energy"

“Low Energy"

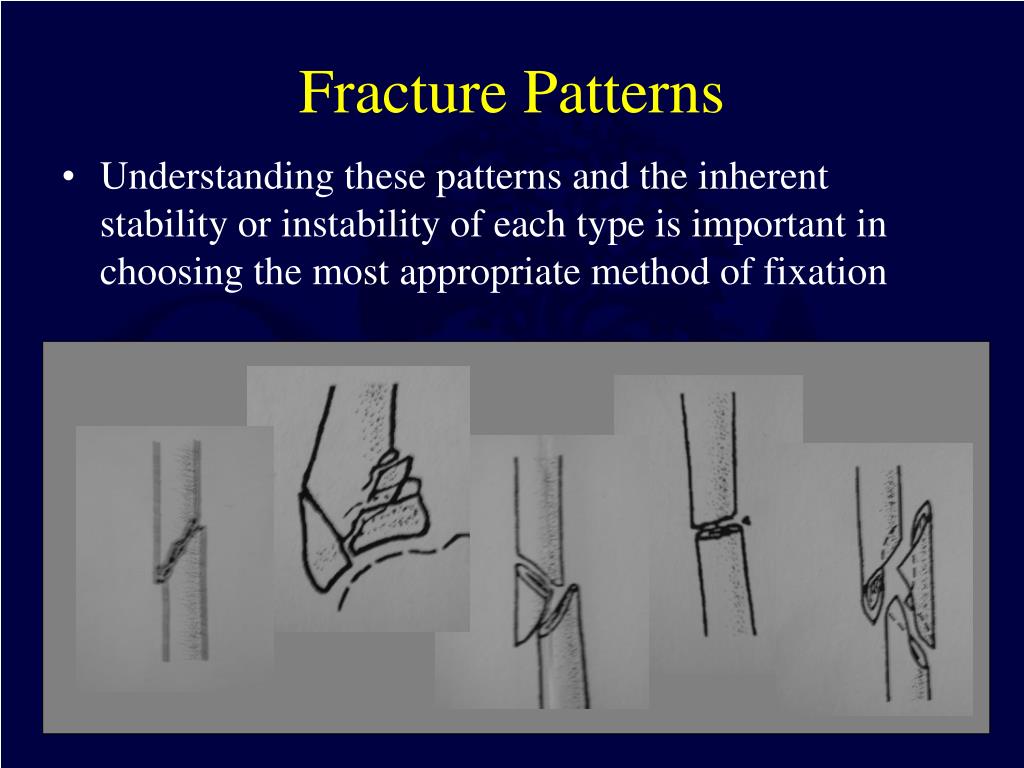

Fracture patterns
Fracture Patterns

  • Fracture patterns occur based on mode of application, magnitude and rate of force applied to bone

    • Bending Load = transverse fx or wedge segment

      • 3-point Bend = Wedge fragment

      • 4-point Bend = Segmental fragment

    • Torsional Load = oblique or spiral fx

    • Shear Load = Axial impaction (Plateau, Pilon, ect)


Fracture patterns1
Fracture Patterns

  • Understanding these patterns and the inherent stability or instability of each type is important in choosing the most appropriate method of fixation

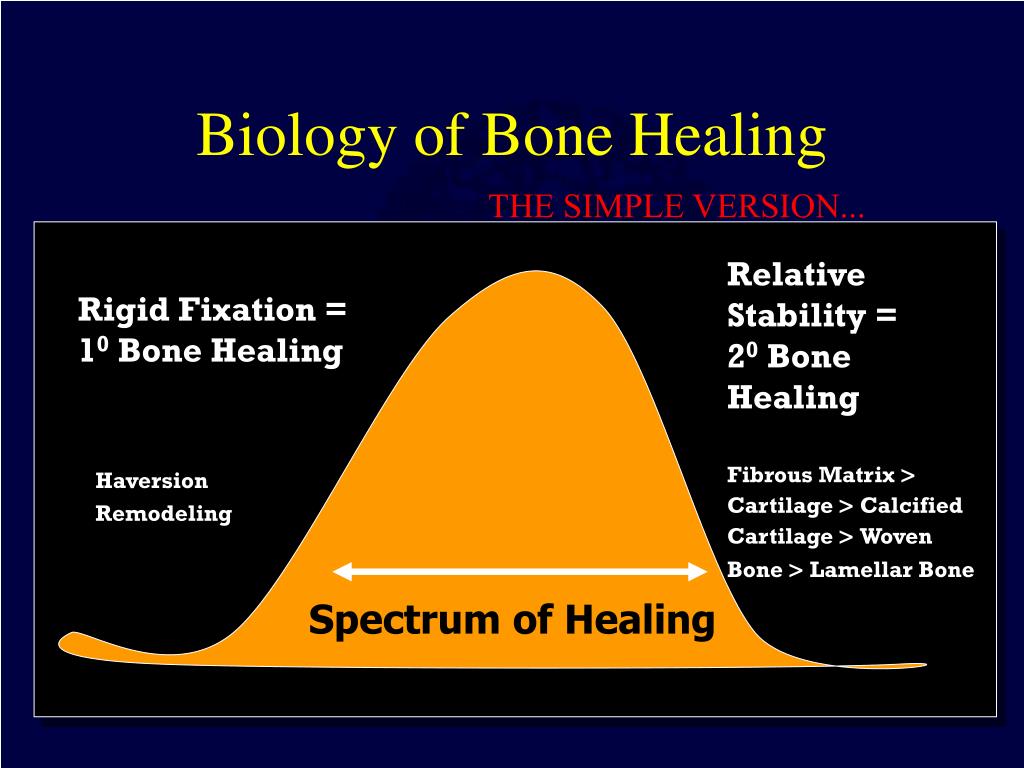

Biology of bone healing
Biology of Bone Healing

THE SIMPLE VERSION...

High Rate of Healing

Relative Stability =20 Bone Healing

Rigid Fixation =10 Bone Healing

Fibrous Matrix > Cartilage > Calcified Cartilage > Woven Bone > Lamellar Bone

Haversion Remodeling

Spectrum of Healing

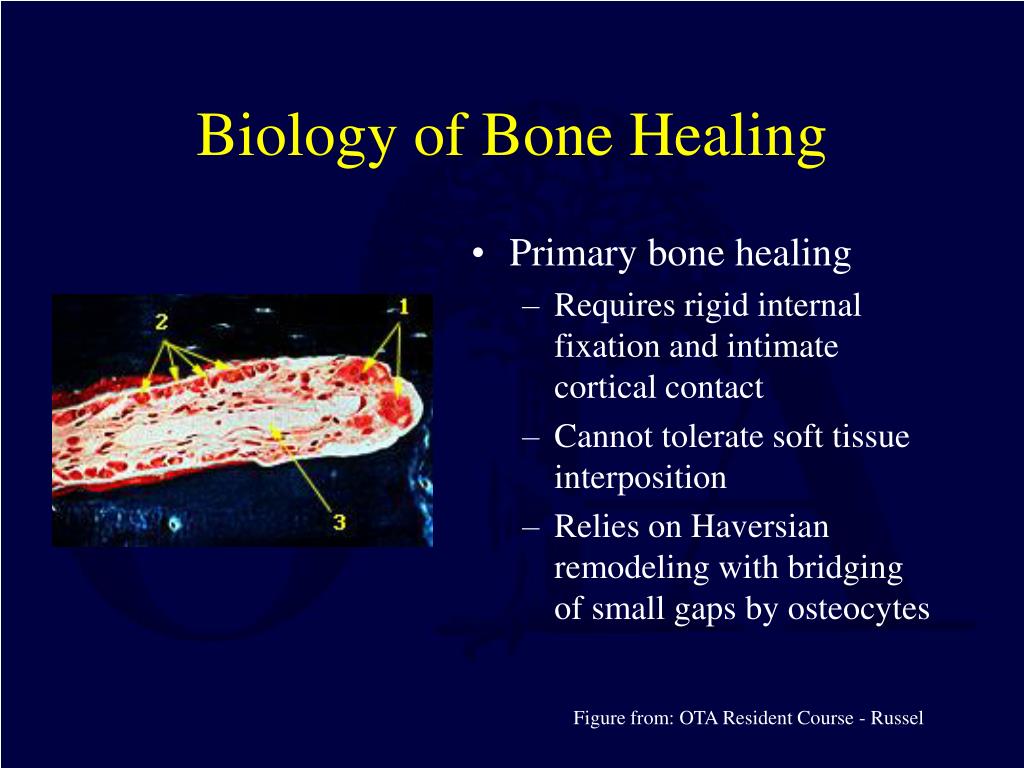

Biology of bone healing1
Biology of Bone Healing

  • Primary bone healing

    • Requires rigid internal fixation and intimate cortical contact

    • Cannot tolerate soft tissue interposition

    • Relies on Haversian remodeling with bridging of small gaps by osteocytes

Figure from: OTA Resident Course - Russel

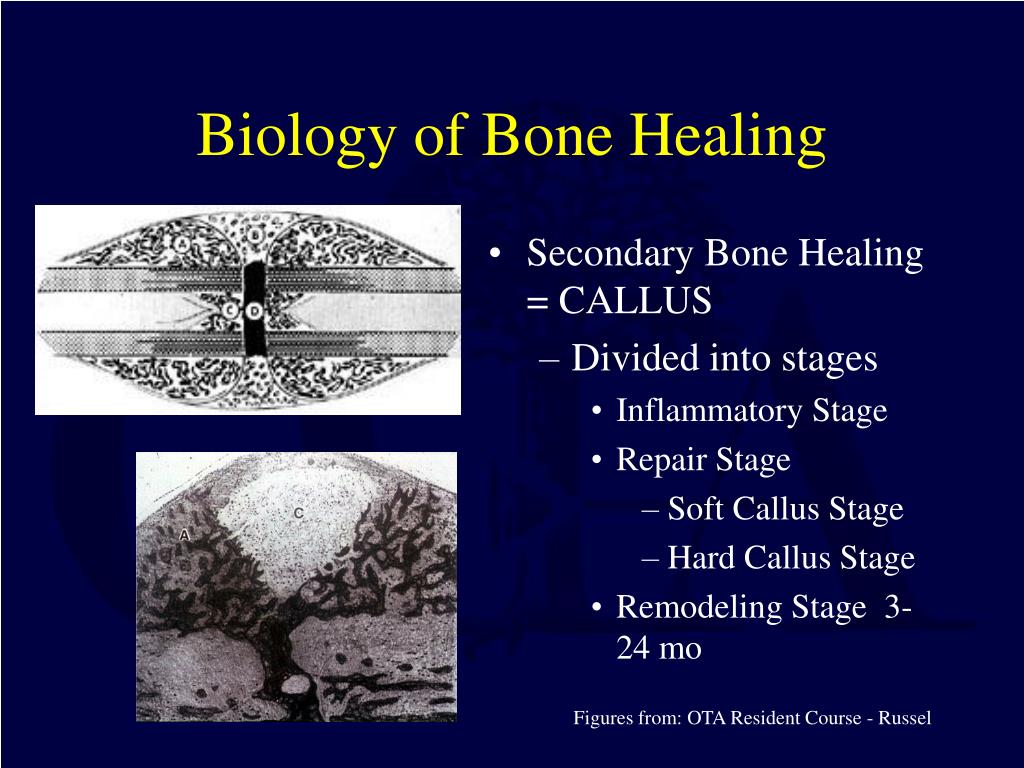

Biology of bone healing2
Biology of Bone Healing

  • Secondary Bone Healing = CALLUS

    • Divided into stages

      • Inflammatory Stage

      • Repair Stage

        • Soft Callus Stage

        • Hard Callus Stage

      • Remodeling Stage 3-24 mo

Figures from: OTA Resident Course - Russel


Practically speaking
Practically speaking...

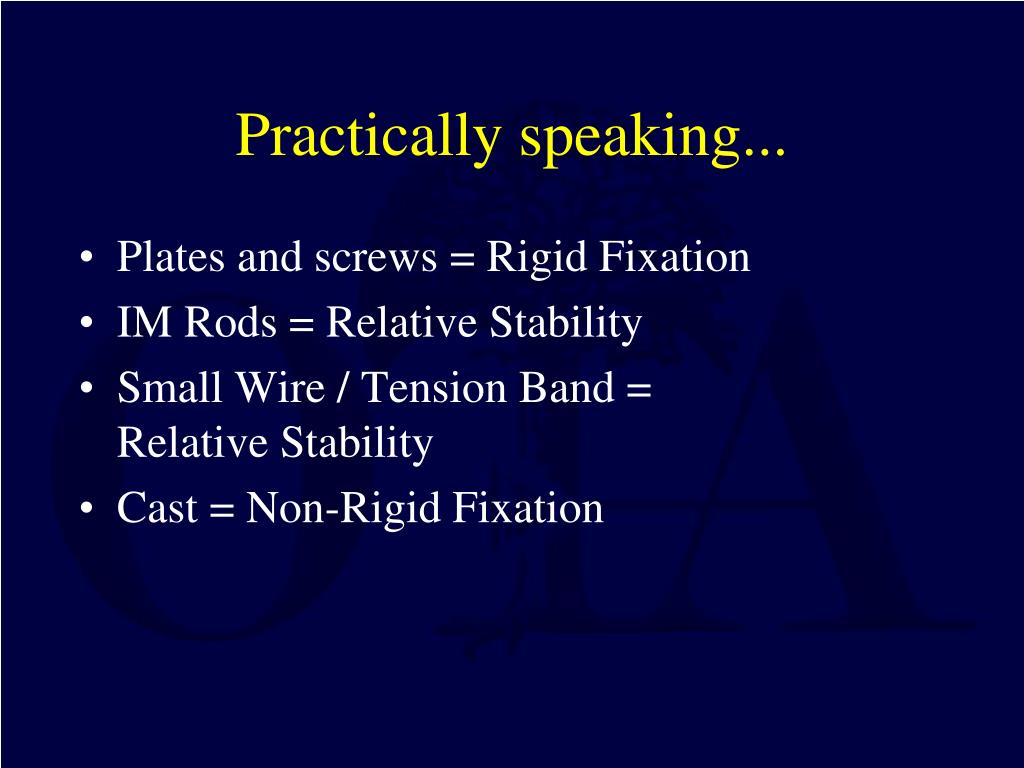

  • Plates and screws = Rigid Fixation

  • IM Rods = Relative Stability

  • Small Wire / Tension Band = Relative Stability

  • Cast = Non-Rigid Fixation

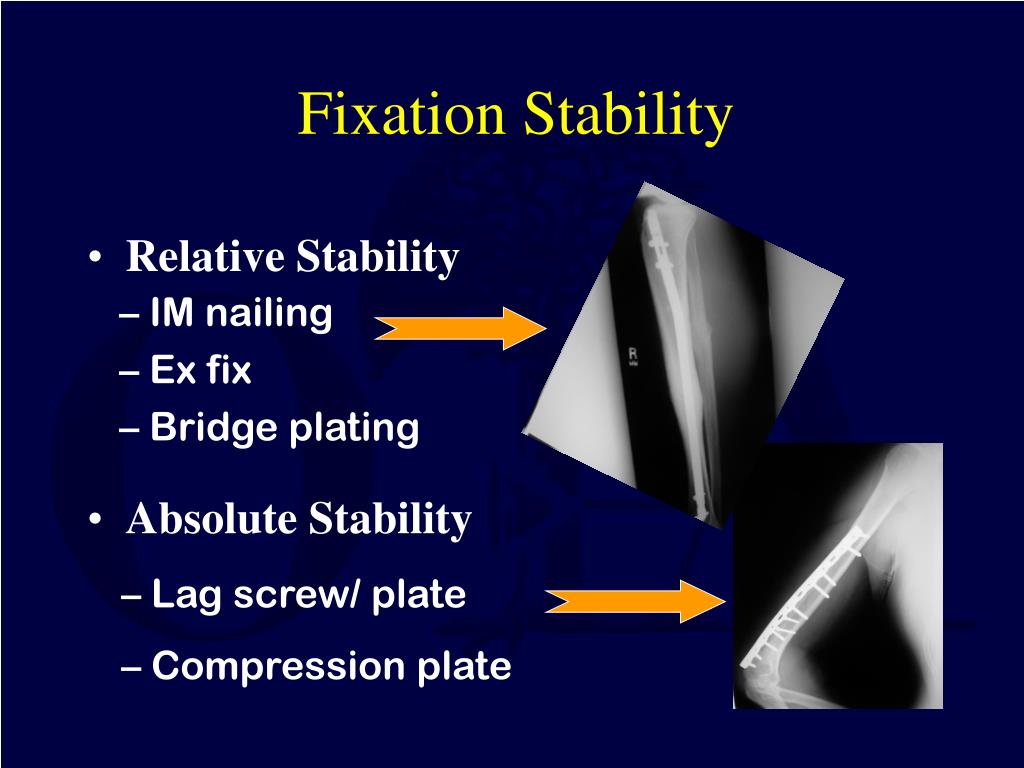

Fixation Stability

  • Relative Stability

  • Absolute Stability

  • IM nailing

  • Ex fix

  • Bridge plating

  • Lag screw/ plate

  • Compression plate

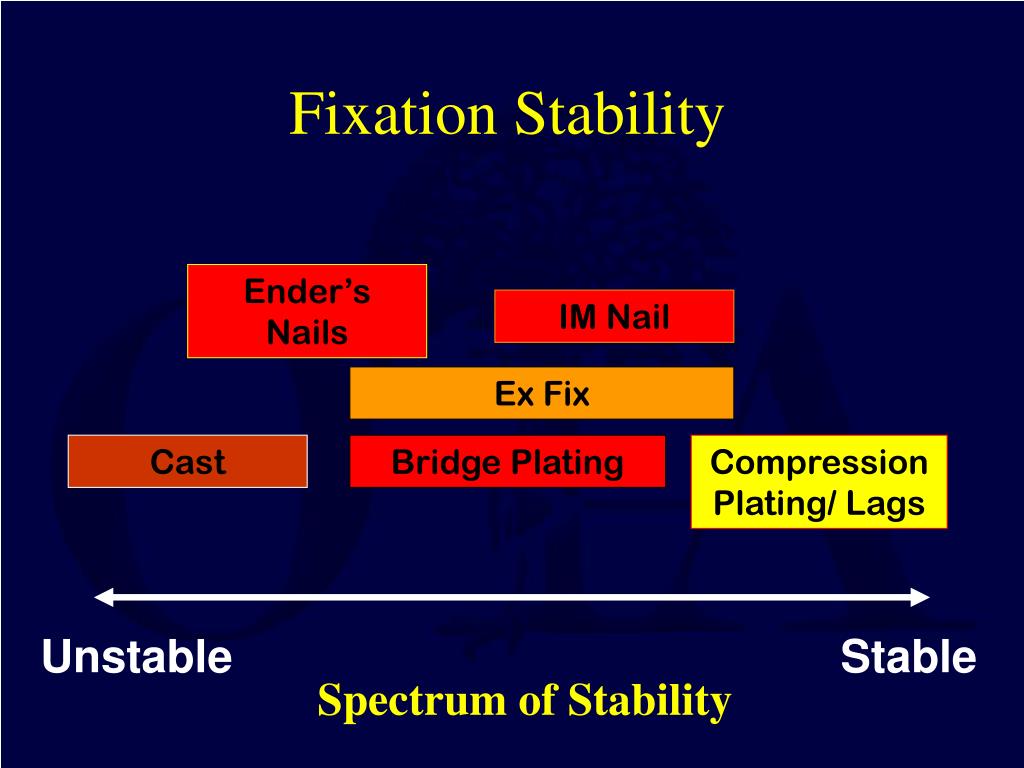

Fixation Stability

Ender’s Nails

IM Nail

Ex Fix

Cast

Bridge Plating

Compression Plating/ Lags

Unstable

Stable

Spectrum of Stability


Practically speaking1
Practically speaking….

  • Most fixation probably involves components of both types of healing. Even in situations of excellent rigid internal fixation one often sees a small degree of callus formation...


Fixation Stability

Reality

Callus

No callus

Unstable

Stable


Functions of internal fixation

Intrafragmentary Compression

Lag Screw

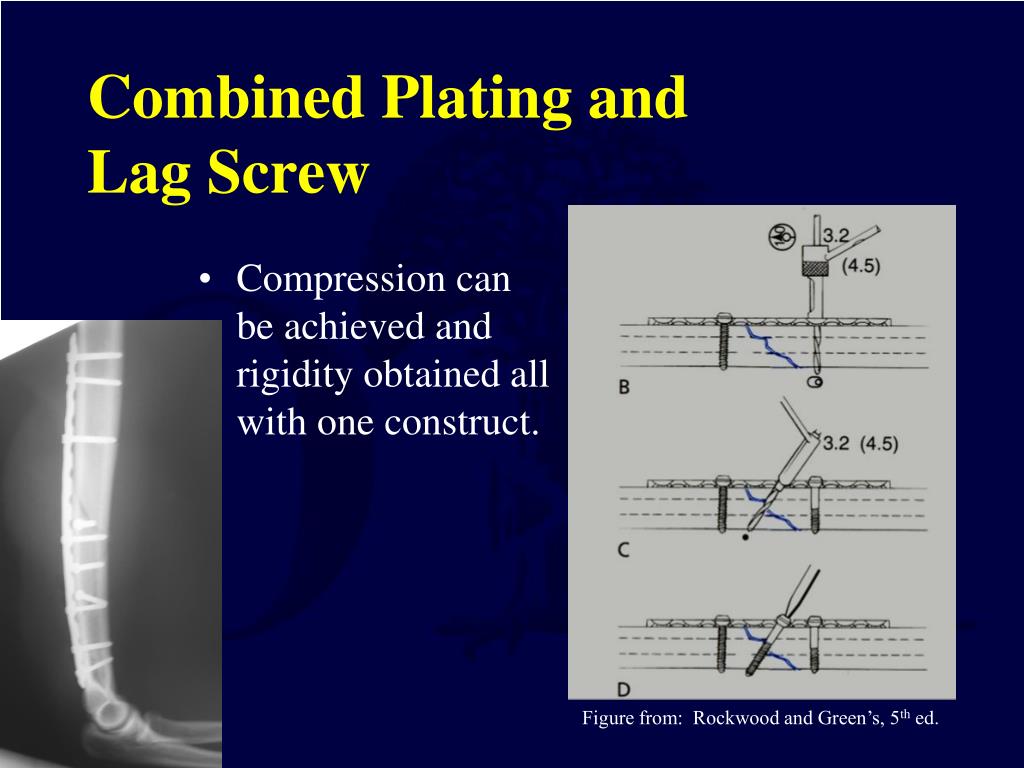

Intrafragmentary Compression & Plates

Dynamic Compression Plating

Plate Functions

Neutralization

Buttressing

Bridging

Tension Band

Compression

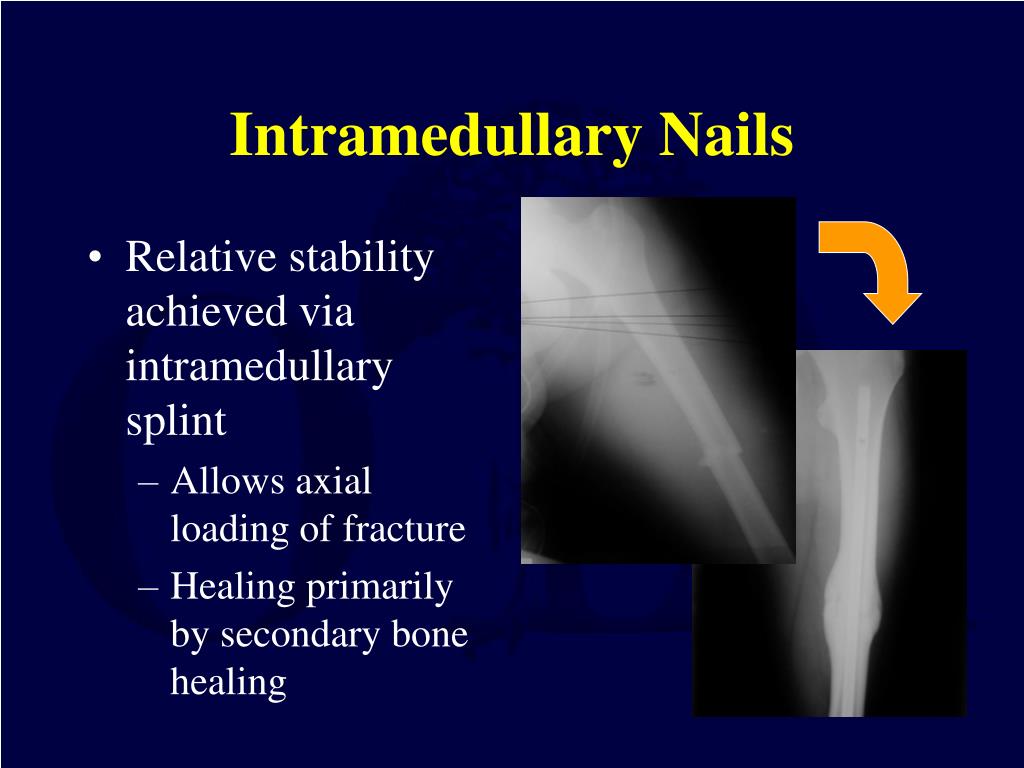

Intramedullary Nails

Functions of Internal Fixation


Indications and benefits of internal fixation

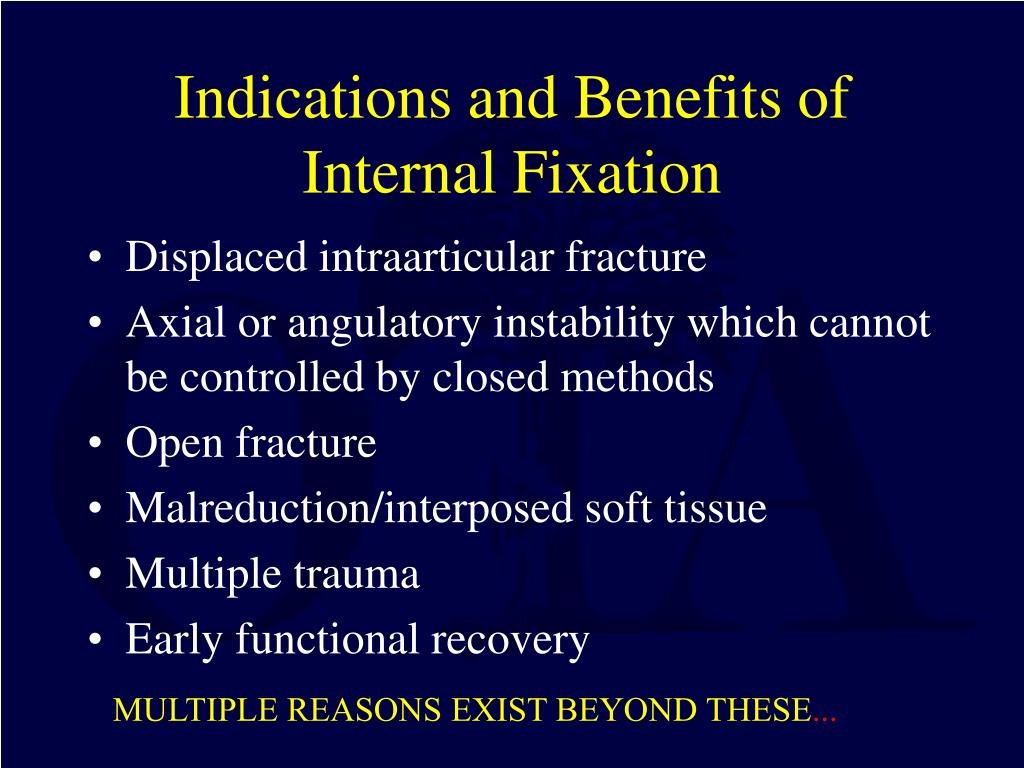

Indications and Benefits of Internal Fixation

  • Displaced intraarticular fracture

  • Axial or angulatory instability which cannot be controlled by closed methods

  • Open fracture

  • Malreduction/interposed soft tissue

  • Multiple trauma

  • Early functional recovery

MULTIPLE REASONS EXIST BEYOND THESE...


Screws

  • Cortical screws:

    • greater surface area of exposed thread for any given length

    • better hold in cortical bone

  • Cancellous screws:

    • core diameter is less

    • the threads are spaced farther apart

    • lag effect option with partially threaded screws

    • theoretically allows better

  • fixation in soft cancellous bone.

Figure from: Rockwood and Green’s, 5th ed.


Lag screw fixation
Lag Screw Fixation

  • Screw tensioned across fx = compression of fx

    • Terminal threads and smooth shank

      OR

    • Overdrill near cortex & engage only far cortex


Compression Lag Screws

  • Stability by compression between bony fragments

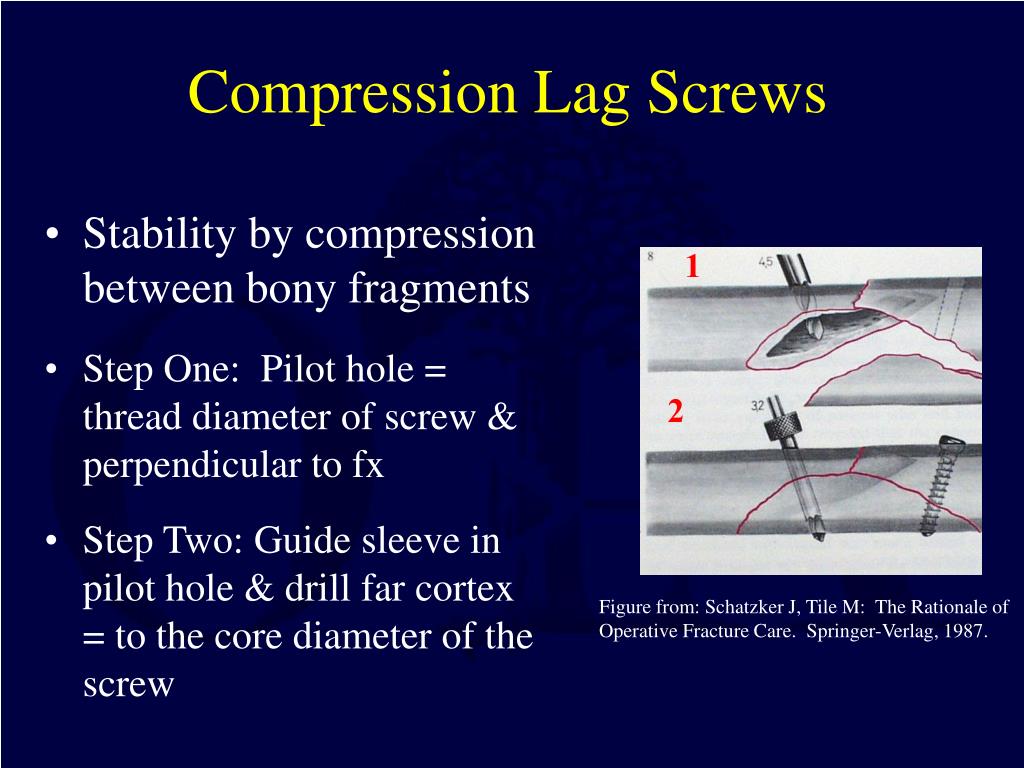

  • Step One: Pilot hole = thread diameter of screw & perpendicular to fx

  • Step Two: Guide sleeve in pilot hole & drill far cortex = to the core diameter of the screw

1

2

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


Compression lag screws
COMPRESSION - LAG SCREWS

  • Step Three: Screw glides through the near cortex & only engages the far cortex

  • Step Four: When screw engages far cortex it compresses it against the near cortex

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


Compression lag screws1

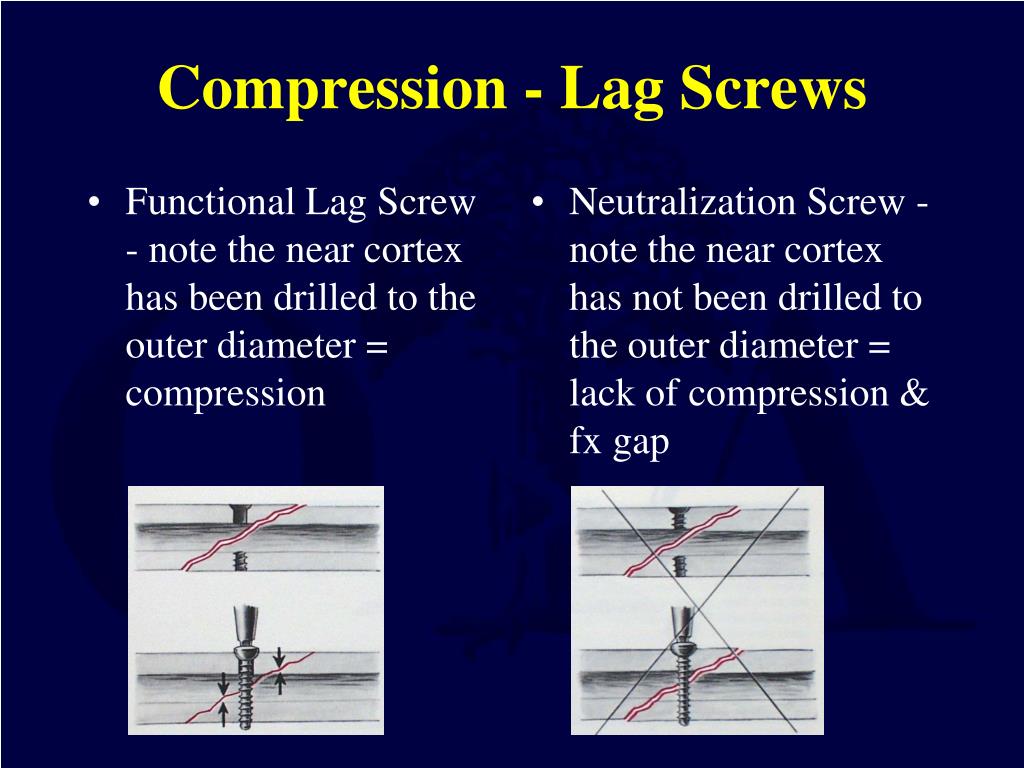

Functional Lag Screw - note the near cortex has been drilled to the outer diameter = compression

Neutralization Screw - note the near cortex has not been drilled to the outer diameter = lack of compression & fx gap

Compression - Lag Screws


Compression Lag Screws to the outer diameter = compression

  • Malposition can lead to a loss of reduction

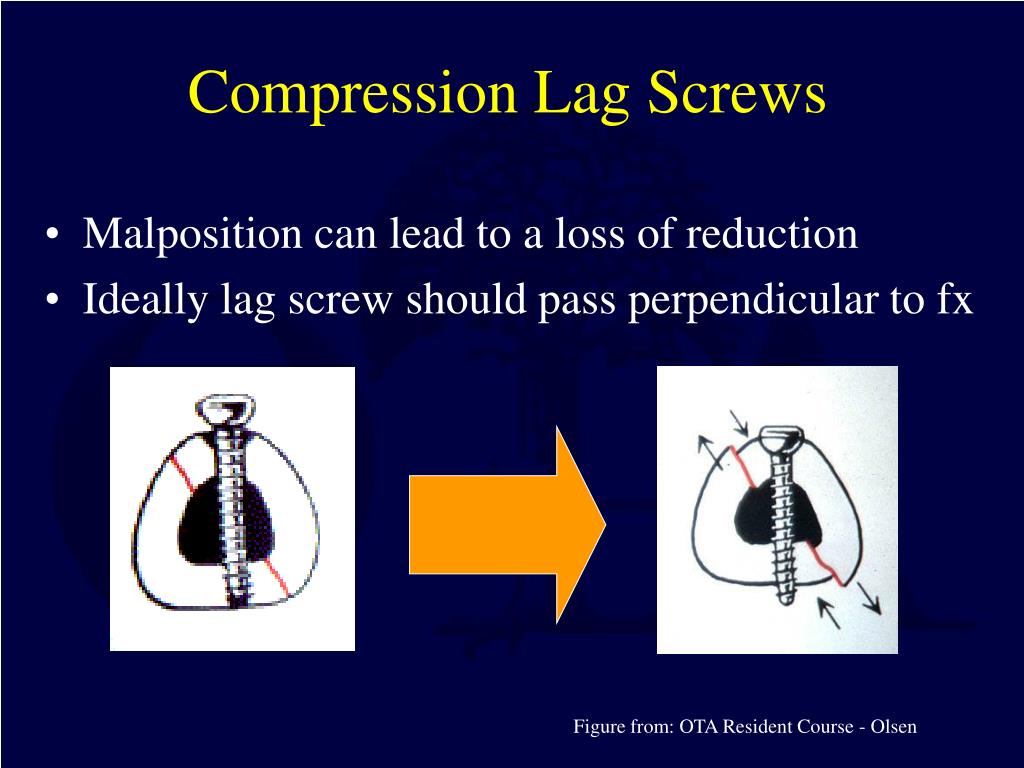

  • Ideally lag screw should pass perpendicular to fx

Figure from: OTA Resident Course - Olsen


Neutralization plates
Neutralization Plates to the outer diameter = compression

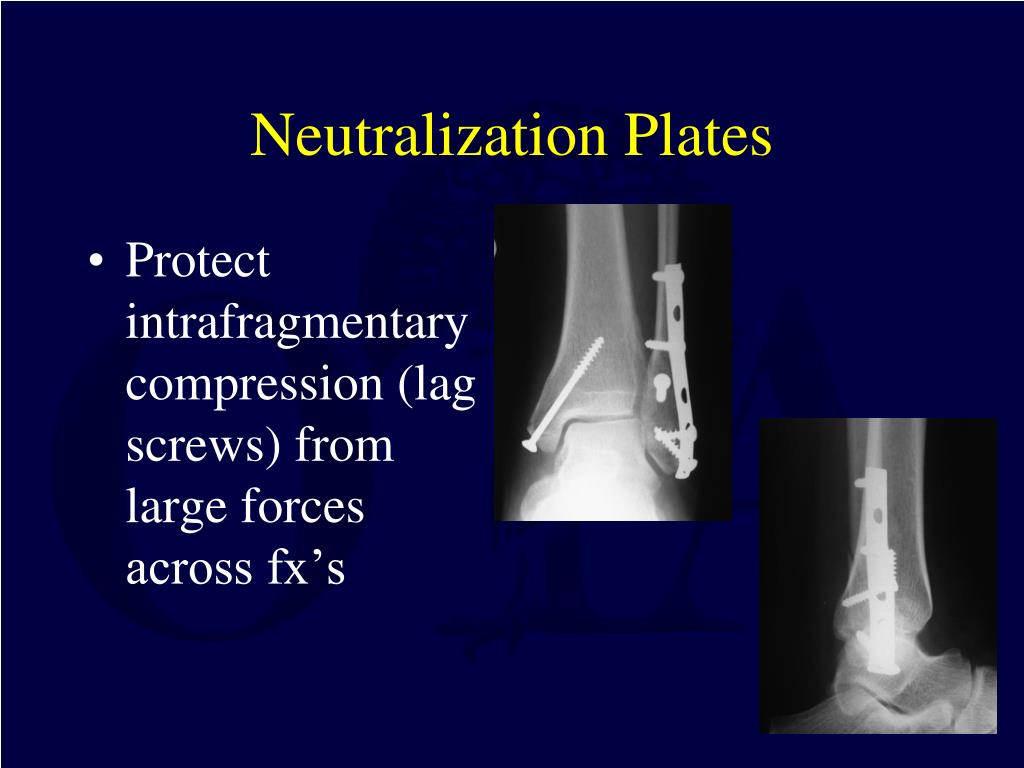

  • Protect intrafragmentary compression (lag screws) from large forces across fx’s


The neutralization plate
The Neutralization Plate to the outer diameter = compression

  • Lag screws provide compression & initial stability

  • Neutralization plate bridges the fracture & protects the screws from bending and torsional loads

  • “Protection Plate"

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


Buttress antiglide plates
Buttress / Antiglide Plates to the outer diameter = compression

  • Resist shear forces or bending forces during axial loading of fx

    • Stabilize intra-articular fragments

    • Plate must be “contoured” to fit the bone

    • Screws placed to minimize movement of plate with tightening


Buttress Concepts to the outer diameter = compression

  • The bottom 3 cortical screws

  • provide the basis for the buttress

  • effect.

  • The top 3 screws are in effect

  • interfragmentary screws and the 2

  • top screws are lag screws because

  • they are only partially threaded.

  • Underbending the plate can be

  • advantageous in that it can increase

  • the force with which the plate

  • pushes against the proximal fragment.

  • NOTE: screws are placed from distal to proximal maximizing the buttress action and aiding in reduction.

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


  • Antiglide Concepts to the outer diameter = compression

  • In this model the white plate is secured by three black

  • screws distal to the red fracture line.

  • The fracture is oriented such that displacement from

  • axial loading requires the proximal portion to move

  • to the left.

  • The plate acts as a buttress against the

  • proximal portion, prevents it from “sliding”

  • and in effect prevents displacement from

  • an axial load.

  • If this concept is applied to an intraarticular

  • fracture component it is usually referred to as a

  • buttress plate, and when applied to a diaphyseal

  • fracture it is usually referred to as an antiglide

  • plate.


Buttress and antiglide plates
Buttress and Antiglide Plates to the outer diameter = compression

  • The plates on the right are thin, pliable and often used as buttress plates in the distal radius

  • Those on the are left also fairly thin and are designed for subcutaneous antiglide applications in the distal tibia & fibula

Figure from: Rockwood and Green’s, 5th ed.


Buttress reconstruction plates
Buttress Reconstruction Plates to the outer diameter = compression

  • Both small frag (3.5mm) and large frag (4.5mm) sizes

  • Often used to buttress acetabular wall fractures

Figure from: Rockwood and Green’s, 5th ed.


Bridging plates
Bridging Plates to the outer diameter = compression

  • “Bridge” comminution with proximal & distal fixation, but minimal fixation in zone of injury

    • Maintains length & axial alignment

    • Avoids soft tissue disrutpion @ fracture


Tension band plates
Tension Band Plates to the outer diameter = compression

  • Plate counteracts natural bending moment seen w/ physiologic loading of bone

    • Applied to tension side to prevent “gapping”

    • Examples: Proximal Femur & Olecranon


JOINT SURFACE to the outer diameter = compression

Tension band

  • Tension Band Theory

  • The concept here is that a “band” of fixation at a distance from the articular surface can provide reduction and compressive forces at the joint.

  • The fracture has bending forces applied by the musculature or load bearing and these forces have a component which is perpendicular to the joint/cortical surface.


JOINT SURFACE to the outer diameter = compression

Tension band

  • Since the tension band prevents distraction at the cortex the force is converted to compression at the joint.

  • The tension band itself essentially functions

    like a door hinge, converting displacing forces into beneficial compressive forces at the joint.

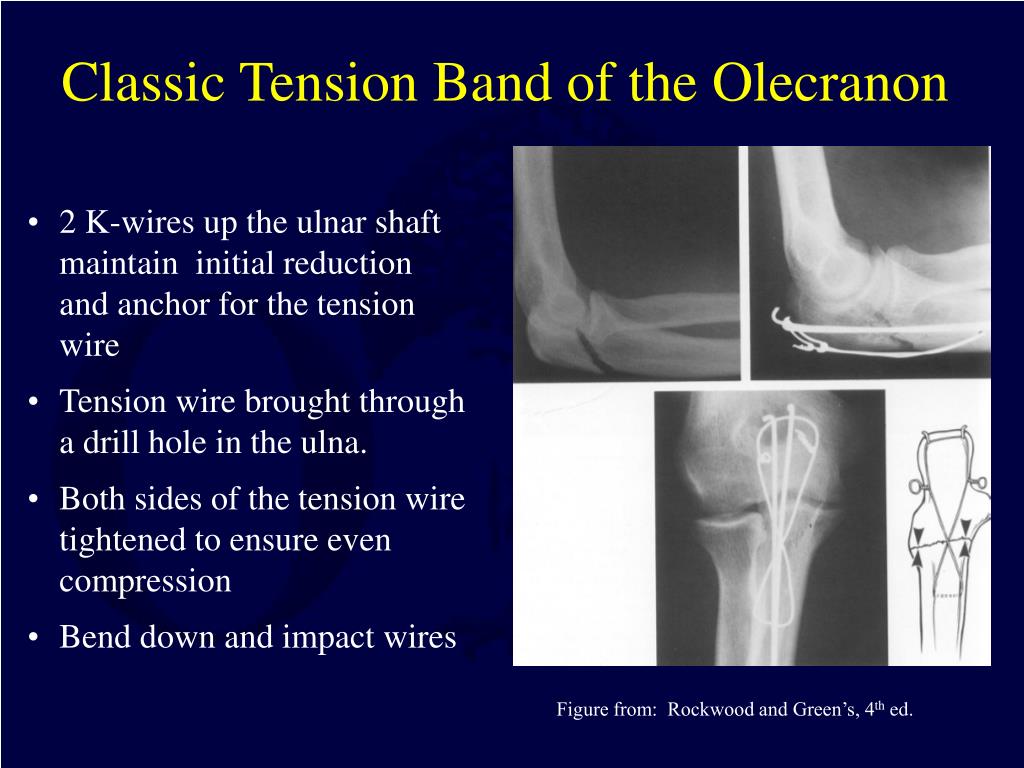

Classic Tension Band of the Olecranon to the outer diameter = compression

  • 2 K-wires up the ulnar shaft maintain initial reduction and anchor for the tension wire

  • Tension wire brought through a drill hole in the ulna.

  • Both sides of the tension wire tightened to ensure even compression

  • Bend down and impact wires

Figure from: Rockwood and Green’s, 4th ed.


Compression plating
Compression Plating to the outer diameter = compression

  • Reduce & Compress transverse or oblique fx’s

    • Exert compression across fracture

      • Pre-bending

      • External compression devices (tensioner)

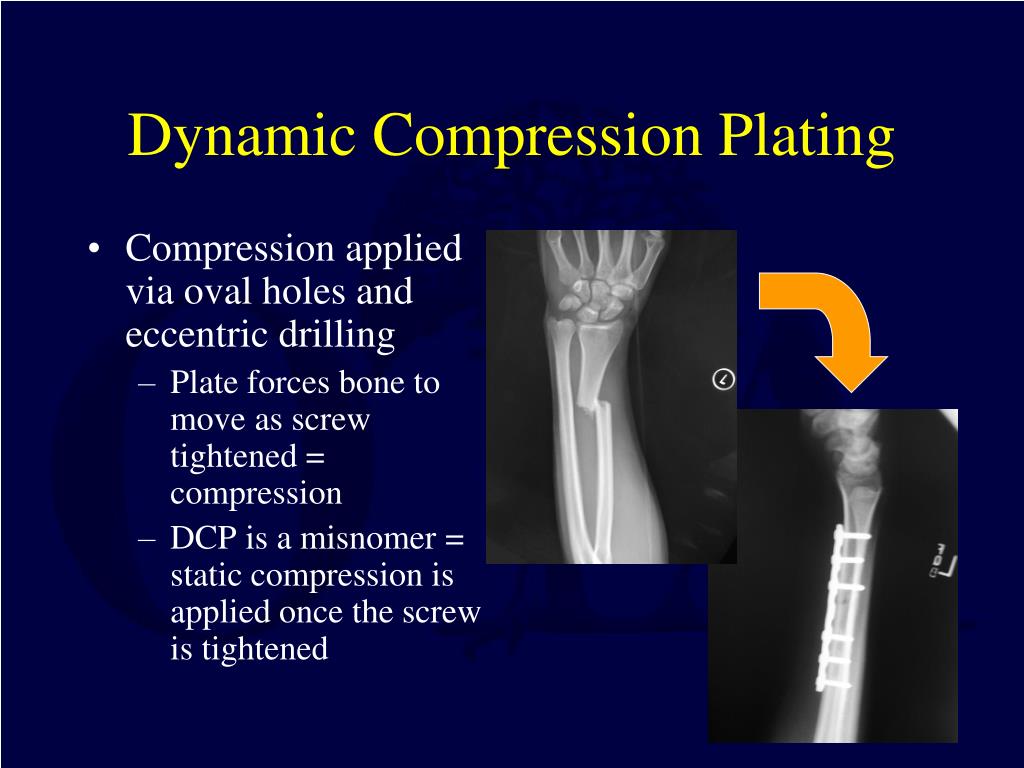

      • Dynamic compression w/ oval holes & eccentric screw placement in plate


Examples 3 5 mm plates
Examples- 3.5 mm Plates to the outer diameter = compression

  • LC-Dynamic Compression Plate:

    • stronger

    • more difficult to contour.

    • usually used in the treatment radius and ulna fractures

  • Semitubular plates:

    • very pliable

    • limited strength

    • most often used in the treatment of fibula fractures

Figure from: Rockwood and Green’s, 5th ed.

Figure from: Rockwood and Green’s, 5th ed.


Compression
Compression to the outer diameter = compression

  • Fundamental concept critical for primary bone healing

  • Compressing bone fragments decreases the gap the bone must bridge creating stability by preventing fracture components from moving in relation to each other.

  • Achieved through lag screw or plating techniques.


Plate pre bending compression
Plate Pre-Bending Compression to the outer diameter = compression

  • Prebent plate

    • As plate is compressed, prebend forces opposite cortex into compression

    • Near cortex is compressed via standard methods


Plate pre bending compression1
Plate Pre-Bending Compression to the outer diameter = compression


Screw driven compression device
Screw Driven Compression Device to the outer diameter = compression

  • Requires a separate drill/screw hole beyond the plate

  • Replaced by the use of DCP plates.

  • Concept of anatomic reduction with added to stability by compression to promote primary bone healing has not changed

  • Currently used with indirect fracture reduction techniques

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


Dynamic Compression Plates to the outer diameter = compression

  • Note the screw holes in the

  • plate have a slope built into

  • one side.

  • The drill hole can be purposely placed eccentrically so that when the head of the screw engages the plate the screw and the bone beneath are driven or compressed towards the fracture site one millimeter.

This maneuver can be performed twice before compression is maximized.

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


Dynamic compression plating
Dynamic Compression Plating to the outer diameter = compression

  • Compression applied via oval holes and eccentric drilling

    • Plate forces bone to move as screw tightened = compression

    • DCP is a misnomer = static compression is applied once the screw is tightened


Combined plating and lag screw
Combined Plating and to the outer diameter = compressionLag Screw

  • Compression can be achieved and rigidity obtained all with one construct.

Figure from: Rockwood and Green’s, 5th ed.


Intramedullary nails
Intramedullary Nails to the outer diameter = compression

  • Relative stability achieved via intramedullary splint

    • Allows axial loading of fracture

    • Healing primarily by secondary bone healing

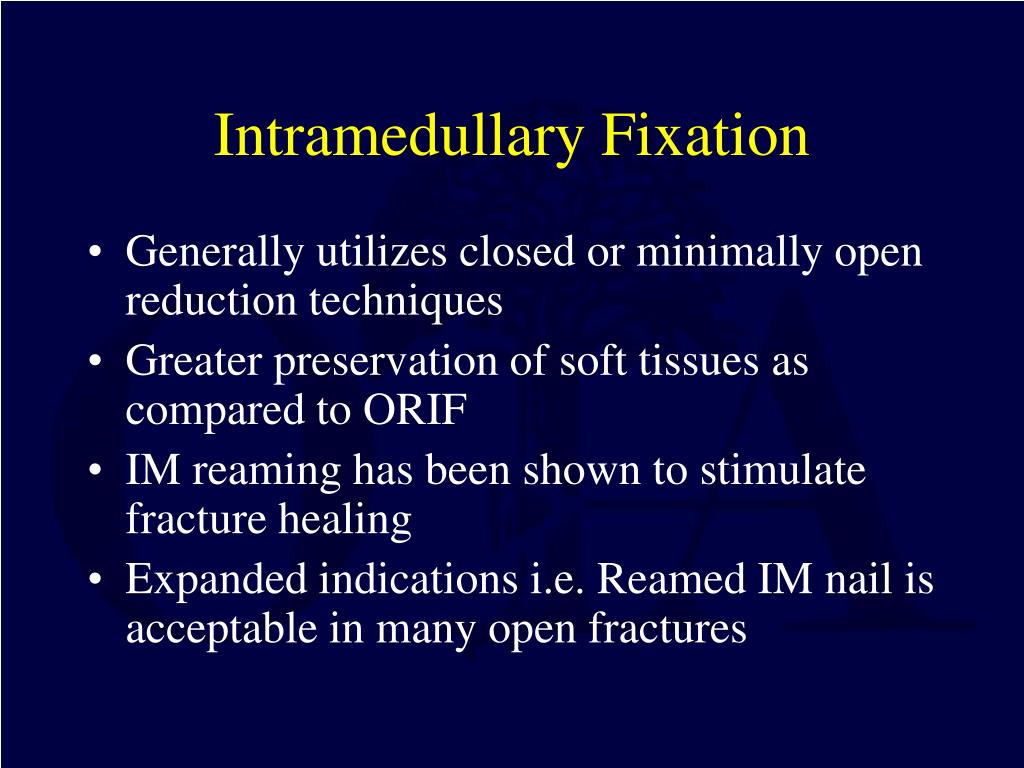

Intramedullary fixation
Intramedullary Fixation to the outer diameter = compression

  • Generally utilizes closed or minimally open reduction techniques

  • Greater preservation of soft tissues as compared to ORIF

  • IM reaming has been shown to stimulate fracture healing

  • Expanded indications i.e. Reamed IM nail is acceptable in many open fractures


Intramedullary fixation1
Intramedullary Fixation to the outer diameter = compression

  • Rotational and axial stability provided by interlocking screws

  • Reduction can be technically difficult in segmental, comminuted fractures

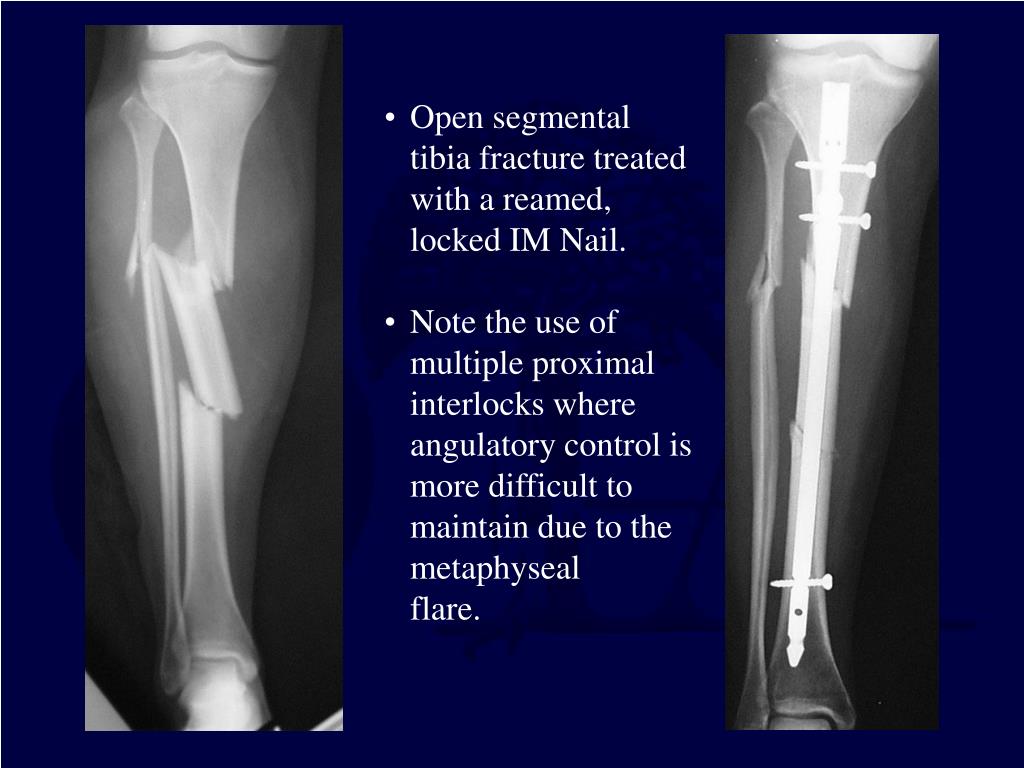

  • Fractures in close proximity to metaphyseal flare may be difficult to control



Valgus is restored...


Reduction techniques some of the options
Reduction Techniques…some of the options IM Nail.

  • Traction

  • Direct external force i.e. push on it

  • Percutaneous clamps - INDIRECT METHOD

  • Percutaneous K wires - INDIRECT METHOD

  • Minimal incision, debridement of hematoma

  • Incision and direct fracture exposure and reduction- DIRECT METHOD


Reduction techniques
Reduction Techniques IM Nail.

  • Over the last 25 years the biggest change regarding ORIF of fractures has probably been the increased respect for soft tissues.

  • Whatever reduction or fixation technique is chosen, the surgeon should attempt to minimize periosteal stripping and soft tissue damage.

    • EXAMPLE: supraperiosteal plating techniques


Reduction Technique IM Nail.

  • The use of a pointed reduction clamps to reduce a complex

  • distal femur fracture pattern.

    • Excellent access to the fracture to place lag screws with the clamp in place

    • Can be done open or percutaneously, as long as the

  • neurovascular structures are respected.


Reduction Technique - Clamp and Plate IM Nail.

  • Place clamp over bone and the plate

  • Maintain fracture reduction

  • Ensure appropriate plate position proximally and distally with

  • respect to the bone, adjacent joints, and neurovascular structures

  • Ensure that the clamp does not scratch the plate, otherwise the

  • created stress riser will weaken the plate

Figure from: Rockwood and Green’s, 5th ed.


Percutaneous plating
Percutaneous Plating IM Nail.

  • ORIF Through Modified Incisions

    • Nondisplaced Or Minimally Displaced Fx’s

    • Indirect Reductions

    • Limited Hardware

    • Lag Screws


Failure to Apply Concepts IM Nail.

  • Classic example of inadequate fixation & stability

  • Narrow, weak plate

  • Insufficient cortices engaged

  • Gaps left at the fx site

  • Unavoidable result = Nonunion

Figure from: Schatzker J, Tile M: The Rationale of Operative Fracture Care. Springer-Verlag, 1987.


Summary
Summary IM Nail.

Respect soft tissues

Choose appropriate fixation method

Achieve stability, length, and rotational control to permit motion as soon as possible

Understand the limitations and requirements of methods of internal fixation

If you would like to volunteer as an author for the Resident Slide Project or recommend updates to any of the following slides, please send an e-mail to [email protected]

E-mail OTA

about

Questions/Comments

Return to

General/Principles

Index


ad
