  1. CS1022Computer Programming & Principles Lecture 8.2 Digraphs (2)

  2. Plan of lecture • Paths in digraphs • Reachability matrix • Warshall’s algorithm • Shortest path • Weight matrix • Dijkstra’s algorithm CS1022

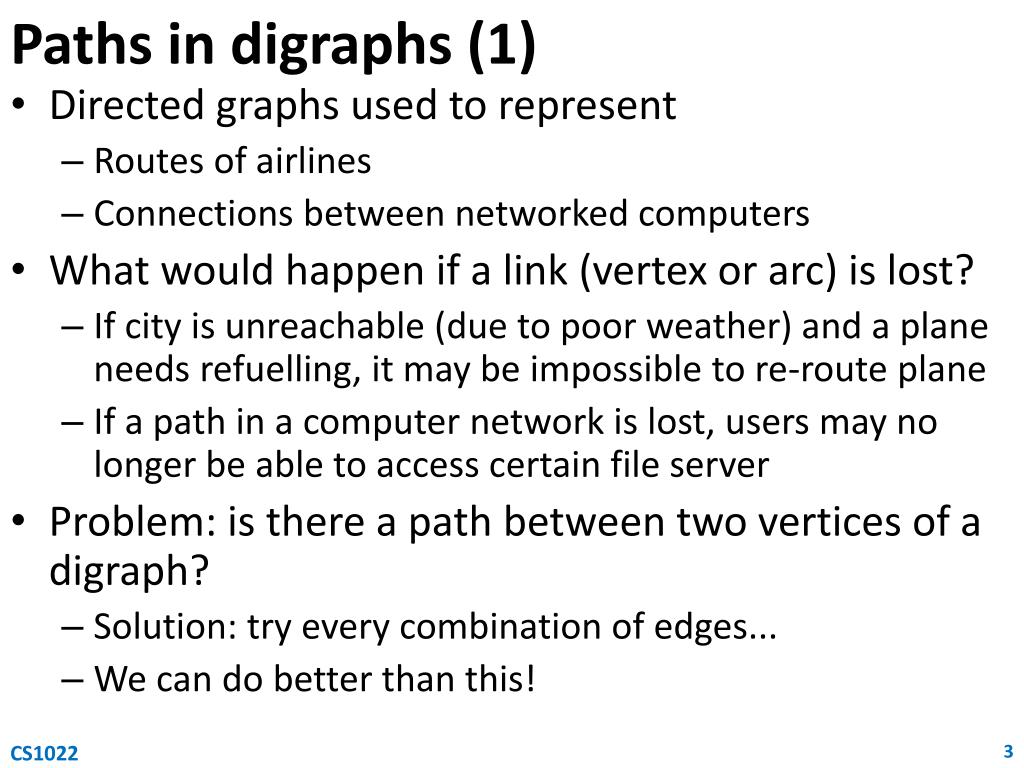

  3. Paths in digraphs (1) • Directed graphs used to represent • Routes of airlines • Connections between networked computers • What would happen if a link (vertex or arc) is lost? • If city is unreachable (due to poor weather) and a plane needs refuelling, it may be impossible to re-route plane • If a path in a computer network is lost, users may no longer be able to access certain file server • Problem: is there a path between two vertices of a digraph? • Solution: try every combination of edges... • We can do better than this! CS1022

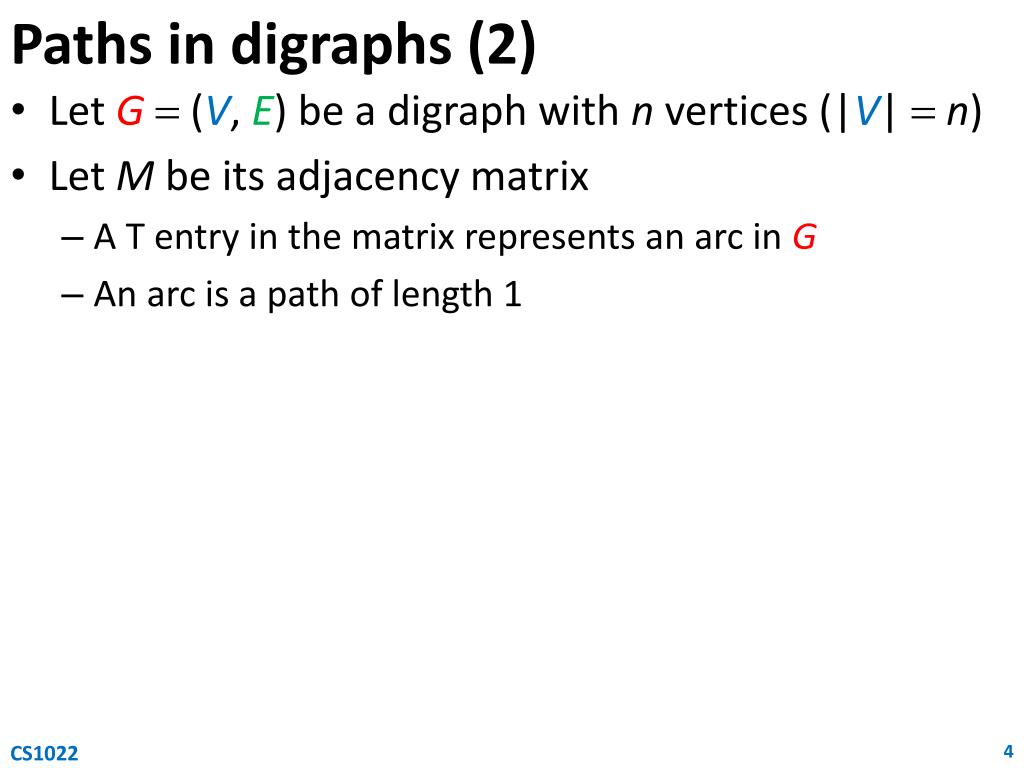

  4. Paths in digraphs (2) • Let G (V, E) be a digraph with n vertices (|V|  n) • Let M be its adjacency matrix • A T entry in the matrix represents an arc in G • An arc is a path of length 1 CS1022

  5. Reachability matrix (1) • The logical Boolean product of M with itself is M2 • A T entry indicates a path of length 2 • M3M.M.M records all paths of length 3 • Mk records all paths of length k • Finally, the reachability matrix: M* M or M2 or ... orMn • Records the existence of paths of some length between vertices CS1022

  6. Reachability matrix (2) • Logical or of two matrices is the result of forming the logical or of corresponding entries • This requires that both matrices have the same number of rows and same number of columns • Reachability matrix of G (V, E) is in fact adjacency matrix of the transitive closure E*on E CS1022

  7. Reachability matrix (3) • Calculate the reachability matrix of digraph b a d c CS1022

  8. Reachability matrix (4) • So we have • The 3 T entries in M2 indeed correspond to paths of length 2 in G, namely • abc • abd • b d c CS1022

  9. Reachability matrix (5) • Further calculation gives • Therefore, • For example, T in top-right corner of M* arises from M2 and corresponds to path a b d CS1022

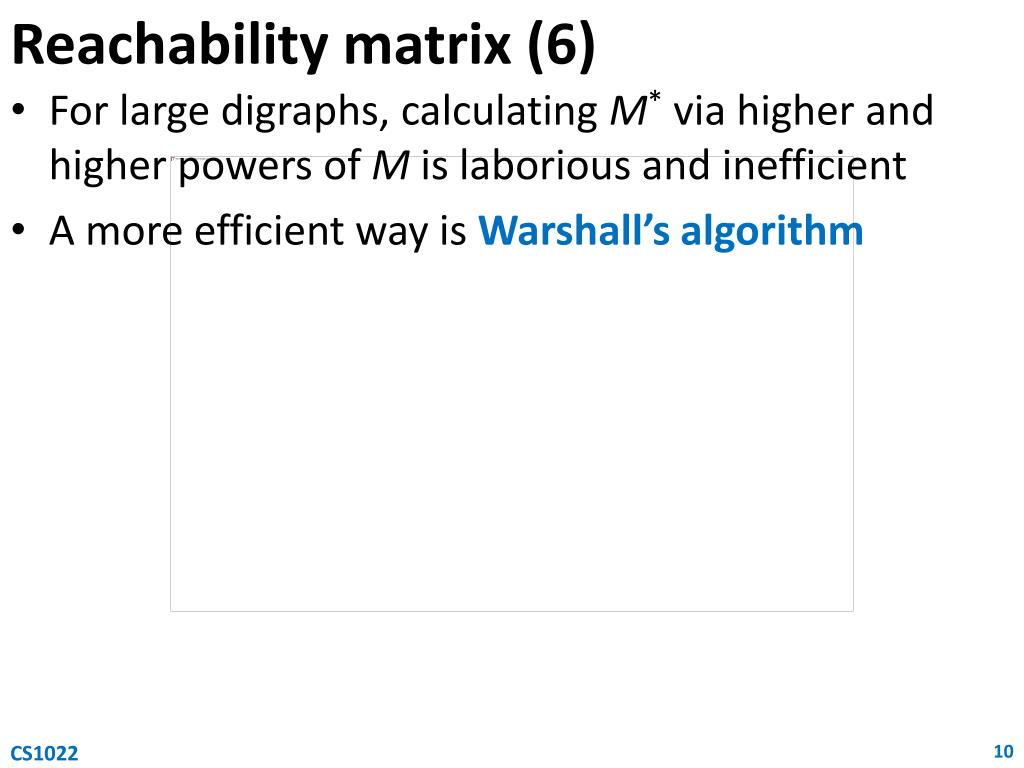

  10. Reachability matrix (6) • For large digraphs, calculating M* via higher and higher powers of M is laborious and inefficient • A more efficient way is Warshall’s algorithm CS1022

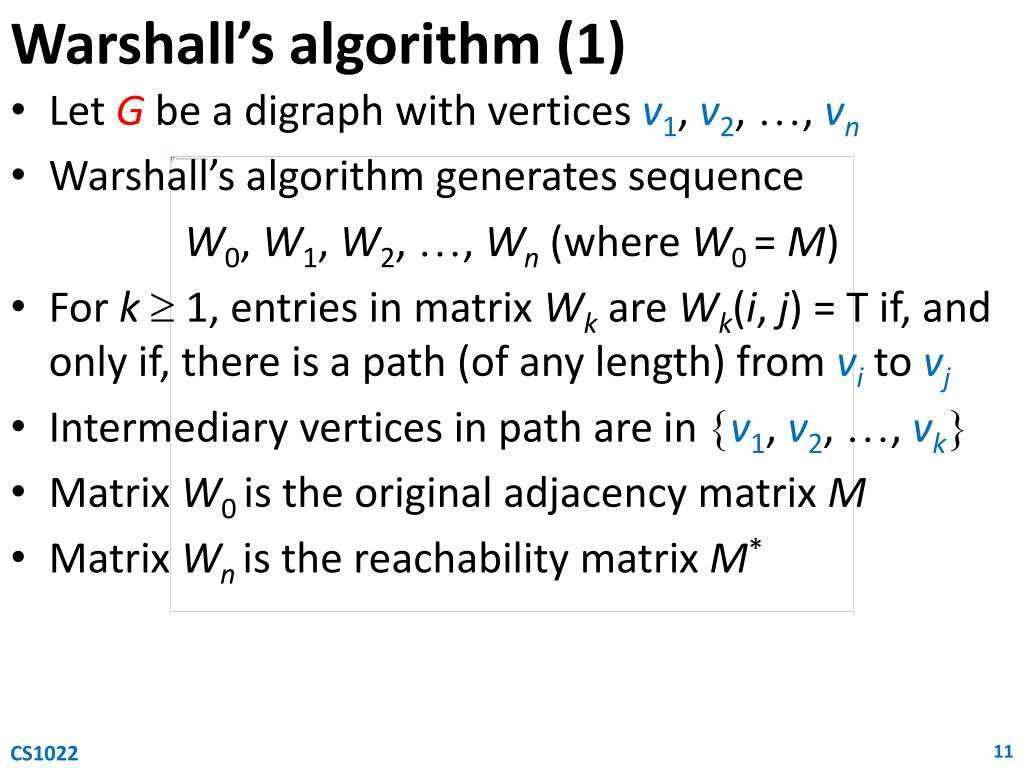

  11. Warshall’s algorithm (1) • Let Gbe a digraph with vertices v1, v2, , vn • Warshall’s algorithm generates sequence W0, W1, W2, , Wn (where W0 = M) • For k 1, entries in matrix Wk are Wk(i, j) = T if, and only if, there is a path (of any length) from vi to vj • Intermediary vertices in path are in v1, v2, , vk • Matrix W0 is the original adjacency matrix M • Matrix Wnis the reachability matrix M* CS1022

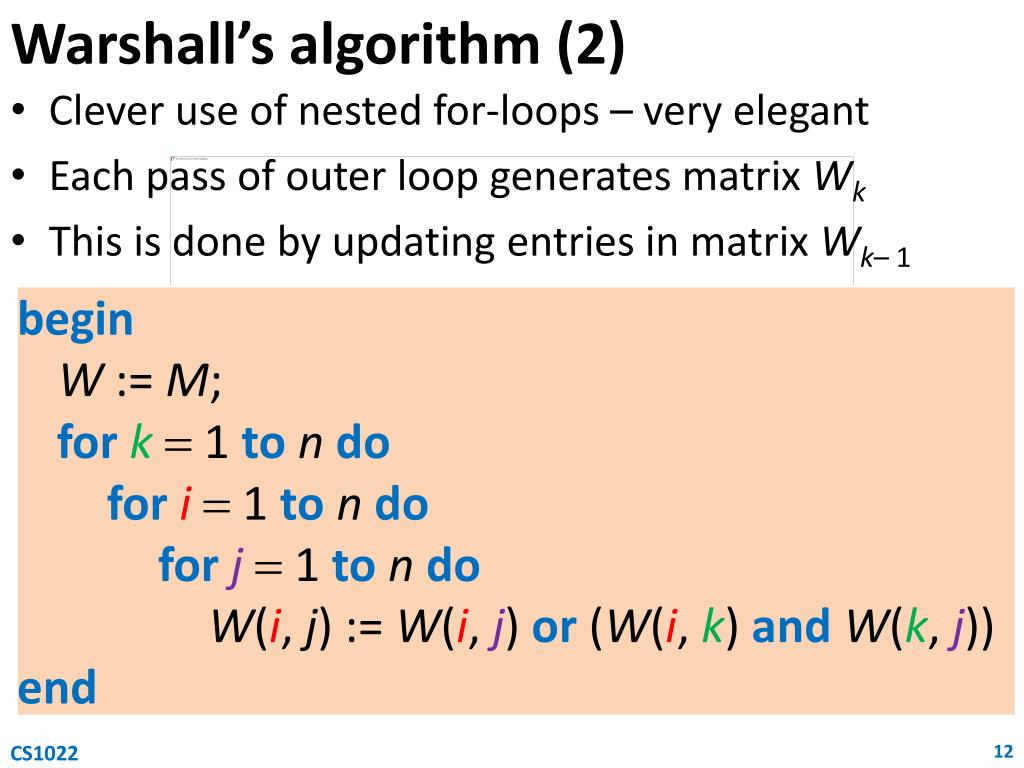

  12. Warshall’s algorithm (2) • Clever use of nested for-loops – very elegant • Each pass of outer loop generates matrix Wk • This is done by updating entries in matrix Wk– 1 CS1022

  13. Warshall’s algorithm (3) • To find row i of Wk we evaluate W(i, j) := W(i,j) or (W(i,k) and W(k,j)) • If W(i,k) = F then (W(i,k) and W(k,j)) = F • So expression depends on W(i,j) • Row i remains unchanged • Otherwise, W(i,k) = T • Expression reduces to (W(i,j) orW(k,j)) • Row i becomes the logical or of the current row i with current row k CS1022

  14. Warshall’s algorithm (4) To calculate Wk from Wk – 1proceed as follows • Consider column k in Wk – 1 • For each “F” row in this column, copy that row toWk • For each “T” row in this column, form the logical or of that row with row k, and write the resulting row in Wk CS1022

  15. Warshall’s algorithm (5) • Calculate reachability matrix of digraph 4 3 2 5 1 CS1022

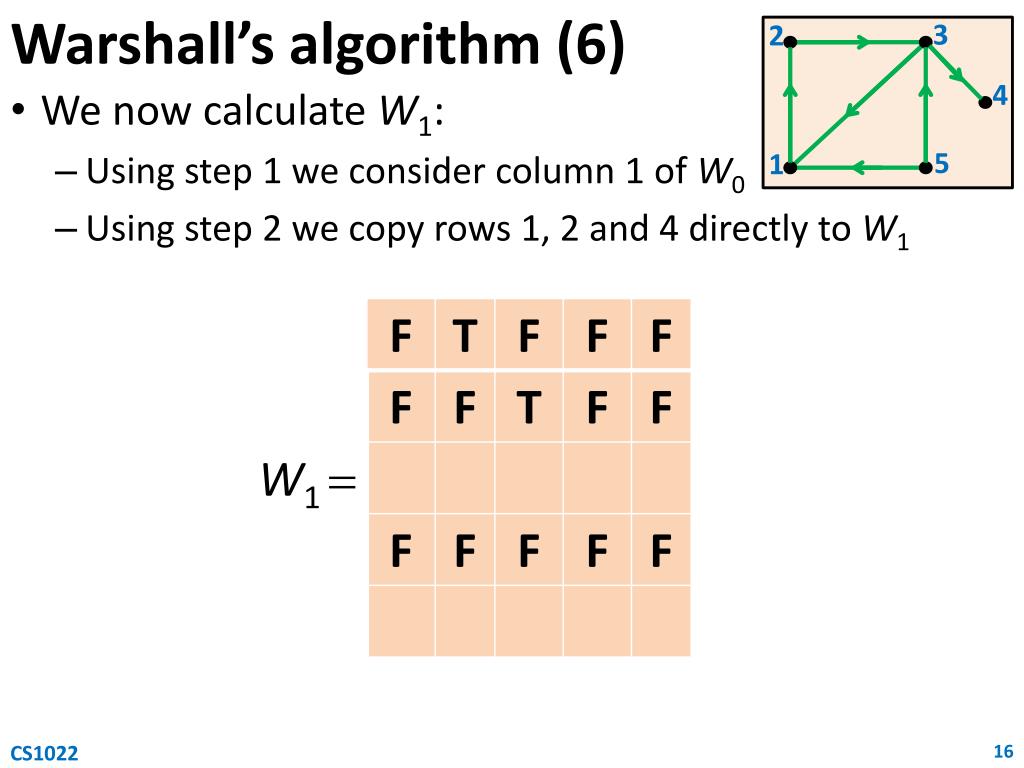

  16. Warshall’s algorithm (6) • We now calculate W1: • Using step 1 we consider column 1 of W0 • Using step 2 we copy rows 1, 2 and 4 directly to W1 4 3 2 5 1 CS1022

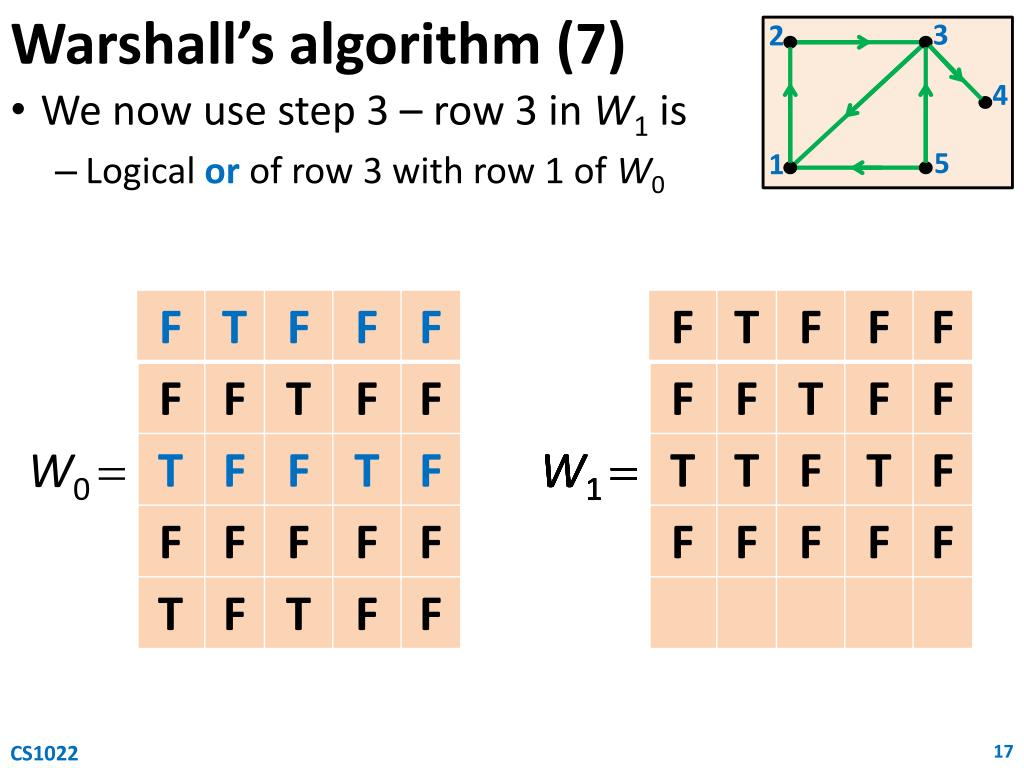

  17. Warshall’s algorithm (7) • We now use step 3 – row 3 in W1 is • Logical or of row 3 with row 1 of W0 4 3 2 5 1 CS1022

  18. Warshall’s algorithm (8) • We use step 3 again – row 5 in W1 is • Logical or of row 5 with row 1 of W0 4 3 2 5 1 CS1022

  19. Warshall’s algorithm (9) • We now compute W2 from W1 • Copy rows 2 and 4 to W2 • Row 1 in W2 is logical or of rows 1 and 2 of W1 • Row 3 in W2 is logical or of rows 3 and 2 of W1 • Row 5 in W2 is logical or of rows 5 and 2 of W1 4 3 2 5 1 CS1022

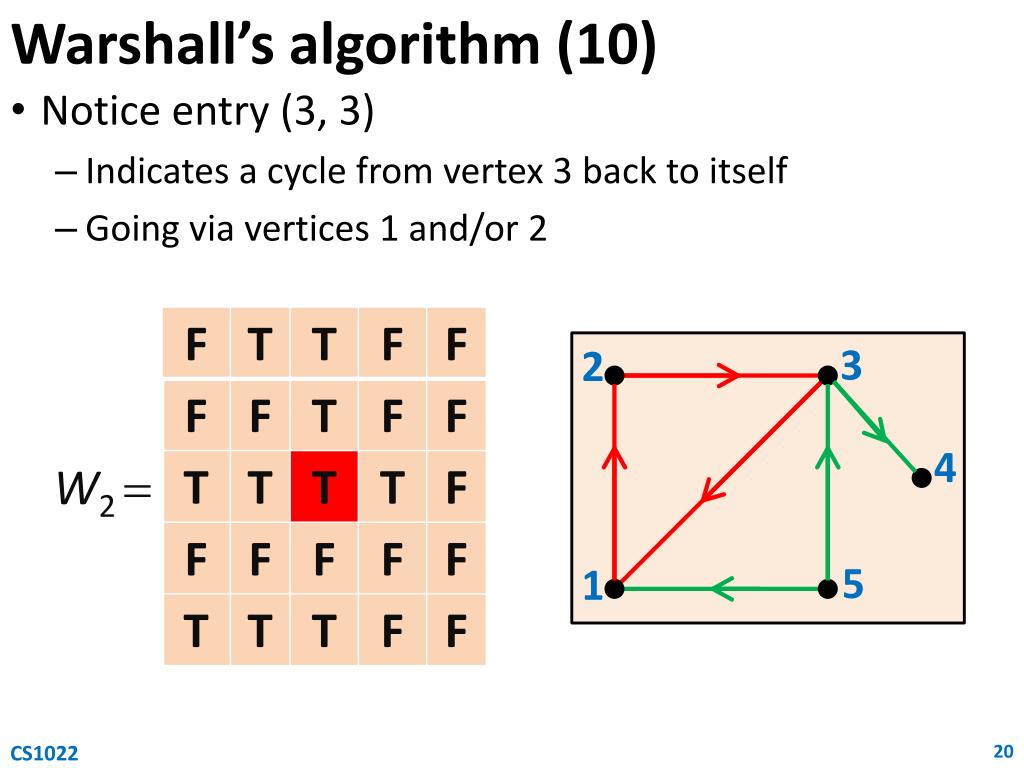

  20. Warshall’s algorithm (10) • Notice entry (3, 3) • Indicates a cycle from vertex 3 back to itself • Going via vertices 1 and/or 2 4 3 2 5 1 CS1022

  21. Warshall’s algorithm (11) • W3 is computed similarly: • Since no arcs lead out of vertex 4, W4 is the same as W3 • For a similar reason, W5 is the same as W4 • So W3 is reachability matrix CS1022

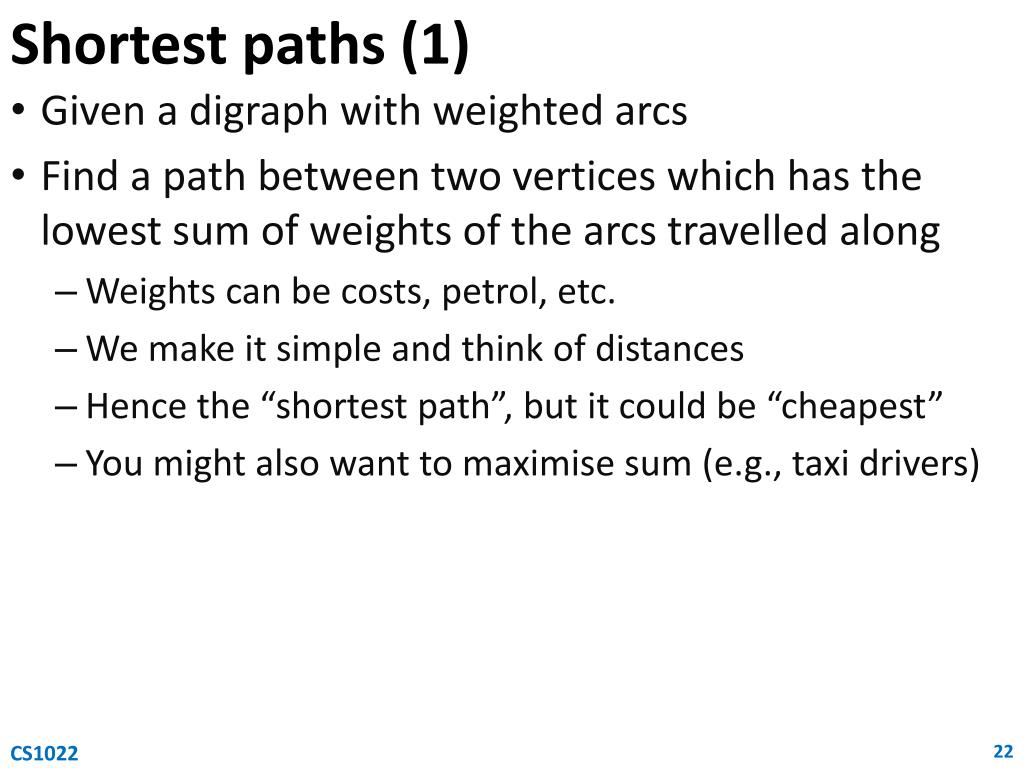

  22. Shortest paths (1) • Given a digraph with weighted arcs • Find a path between two vertices which has the lowest sum of weights of the arcs travelled along • Weights can be costs, petrol, etc. • We make it simple and think of distances • Hence the “shortest path”, but it could be “cheapest” • You might also want to maximise sum (e.g., taxi drivers) CS1022

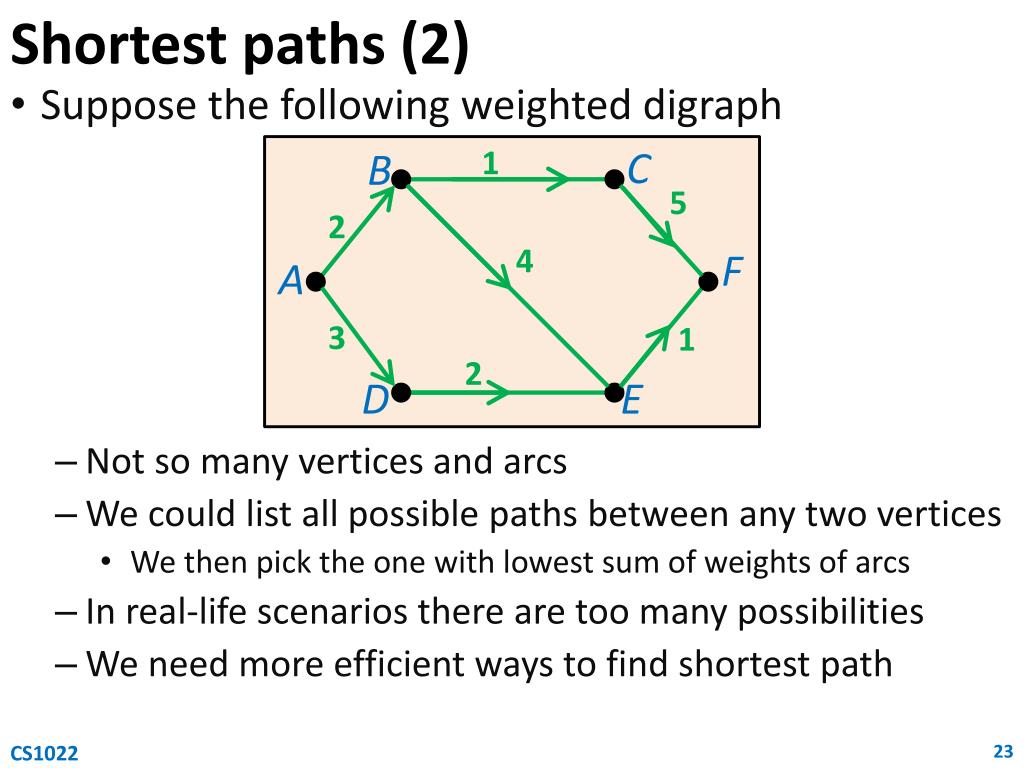

  23. Shortest paths (2) • Suppose the following weighted digraph • Not so many vertices and arcs • We could list all possible paths between any two vertices • We then pick the one with lowest sum of weights of arcs • In real-life scenarios there are too many possibilities • We need more efficient ways to find shortest path 1 5 2 4 F A C B 3 1 2 D E CS1022

  24. Shortest paths (3) • Dijkstra’s algorithm • Let’s see its “effect” with previous digraph • Problem: • Find shortest path between A and other vertices • Shortest = “minimal total weight” between two vertices • Total weight is sum of individual weights of arcs in path Edsger W. Dijkstra CS1022

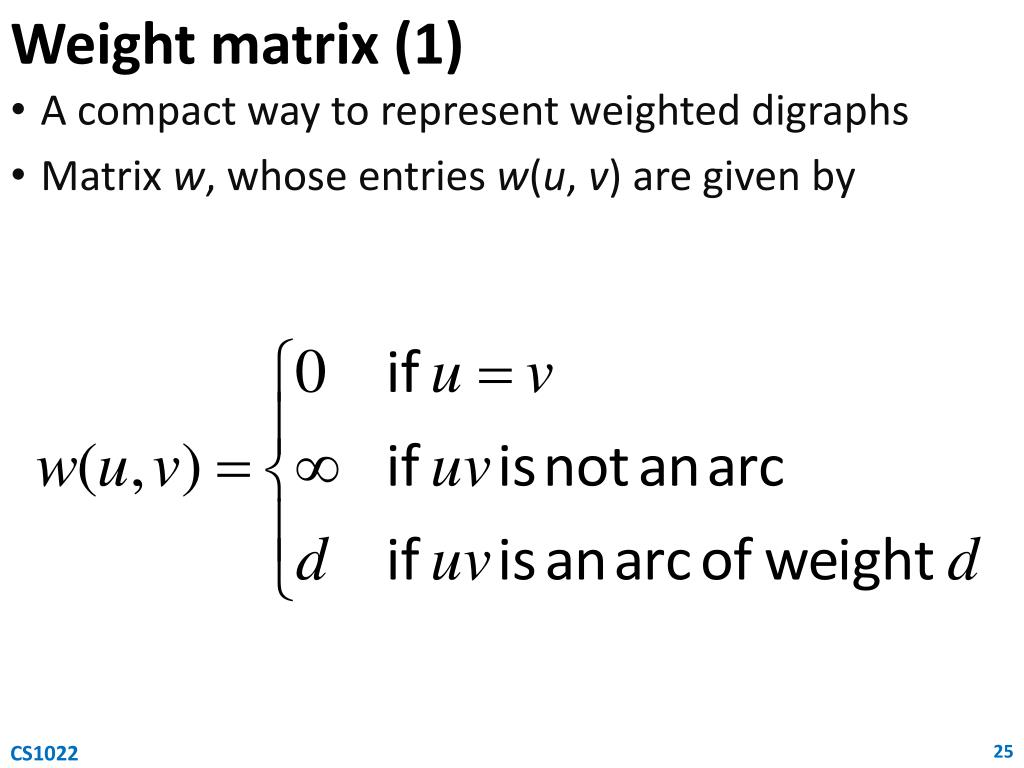

  25. Weight matrix (1) • A compact way to represent weighted digraphs • Matrix w, whose entries w(u, v) are given by CS1022

  26. Weight matrix (2) • Our digraph is represented as 1 5 2 4 F A C B 3 1 2 D E CS1022

  27. Dijkstra’s algorithm (1) • For each vertex v in digraph we assign a label d[v] • d[v] represents distance from A to v • Initially d[v] is the weight of arc (A, v) if it exists • Otherwise d[v]   • We traverse vertices and improve d[v] as we go • At each step of the algorithm a vertex u is marked • This is done when we are sure we found a best route to it • For remaining unmarked vertices v, • Label d[v] is replaced by minimum of its current value and distance to v via last marked vertex u • Algorithm terminates when • All vertices have received their final label and • All possible vertices have been marked CS1022

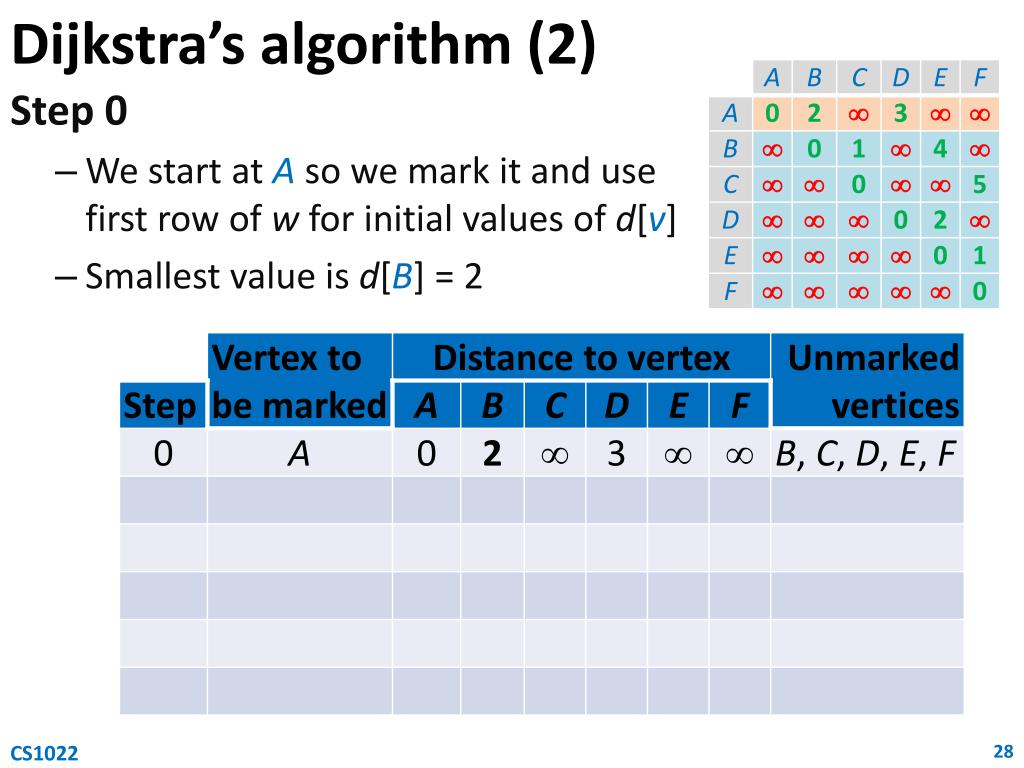

  28. Dijkstra’s algorithm (2) Step 0 • We start at A so we mark it and use first row of w for initial values of d[v] • Smallest value is d[B] = 2 CS1022

  29. Dijkstra’s algorithm (3) Step 1 • Mark B since it is the closest unmarked vertex to A • Calculate distances to unmarked vertices via B • If a shorter distance is found use this • In our case, • A B  C has weight 3 • A B  E has weight 6 • Notice that previously d[C] and d[E] were  1 5 2 4 F A C B 3 1 2 D E CS1022

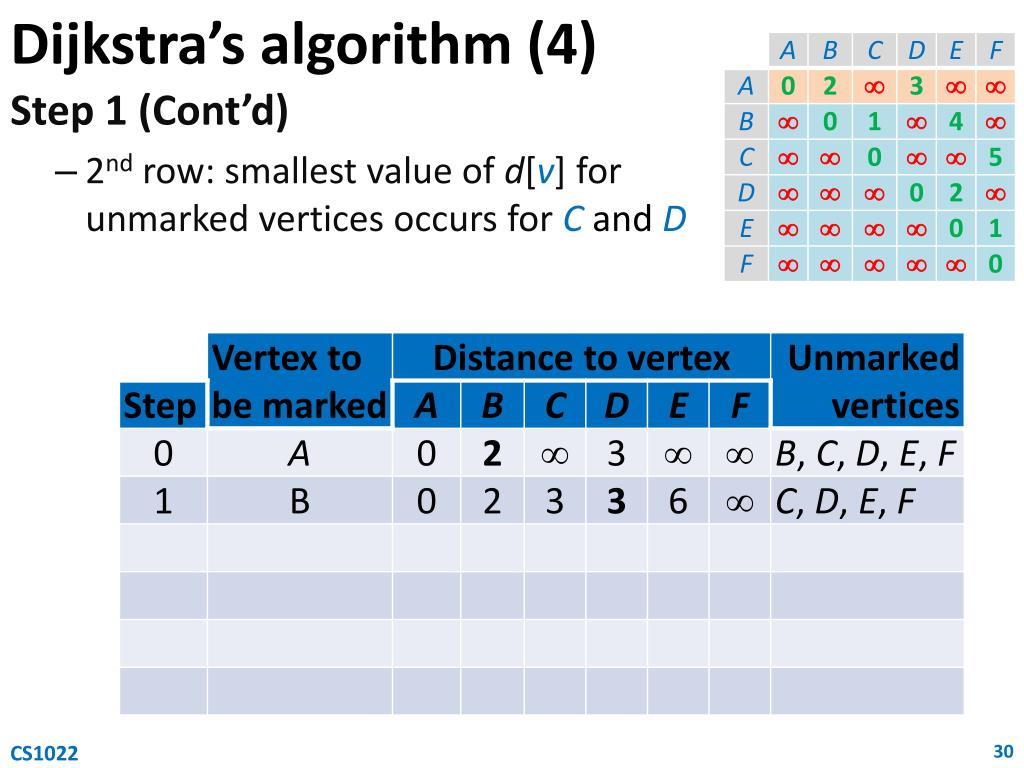

  30. Dijkstra’s algorithm (4) Step 1 (Cont’d) • 2nd row: smallest value of d[v] for unmarked vertices occurs for C and D CS1022

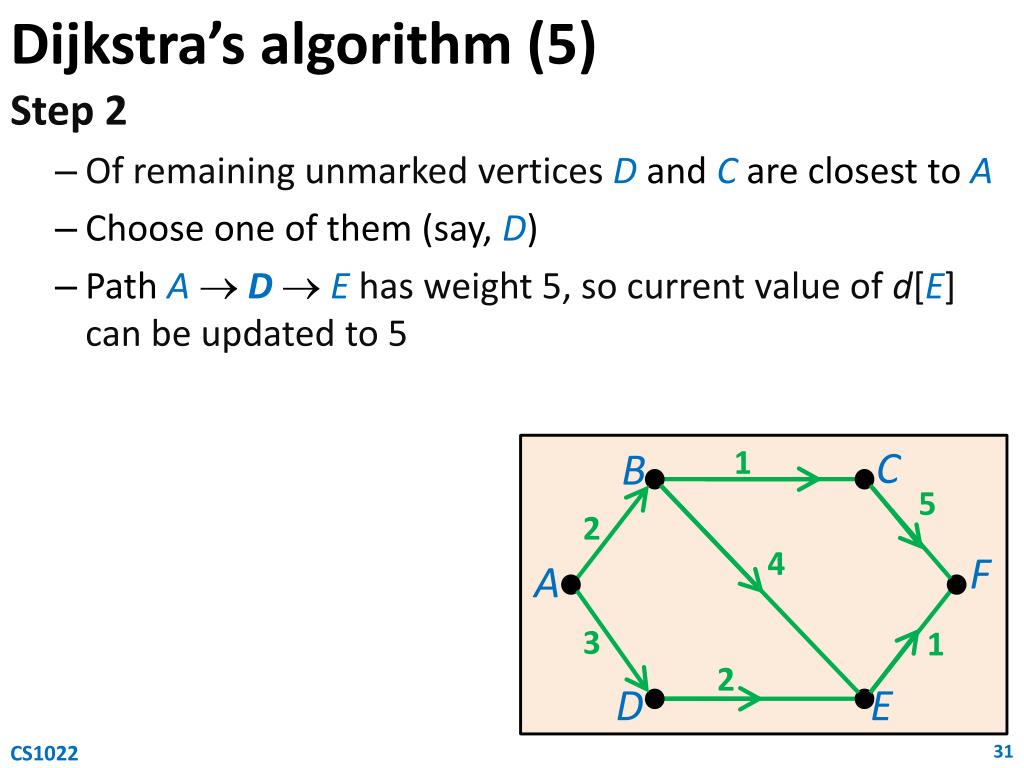

  31. Dijkstra’s algorithm (5) Step 2 • Of remaining unmarked vertices D and C are closest to A • Choose one of them (say, D) • Path A D  E has weight 5, so current value of d[E] can be updated to 5 1 5 2 4 F A C B 3 1 2 D E CS1022

  32. Dijkstra’s algorithm (6) Step 2 (Cont’d) • Next row generated, in which smallest value of d[v] for unmarked vertices occurs for vertex C CS1022

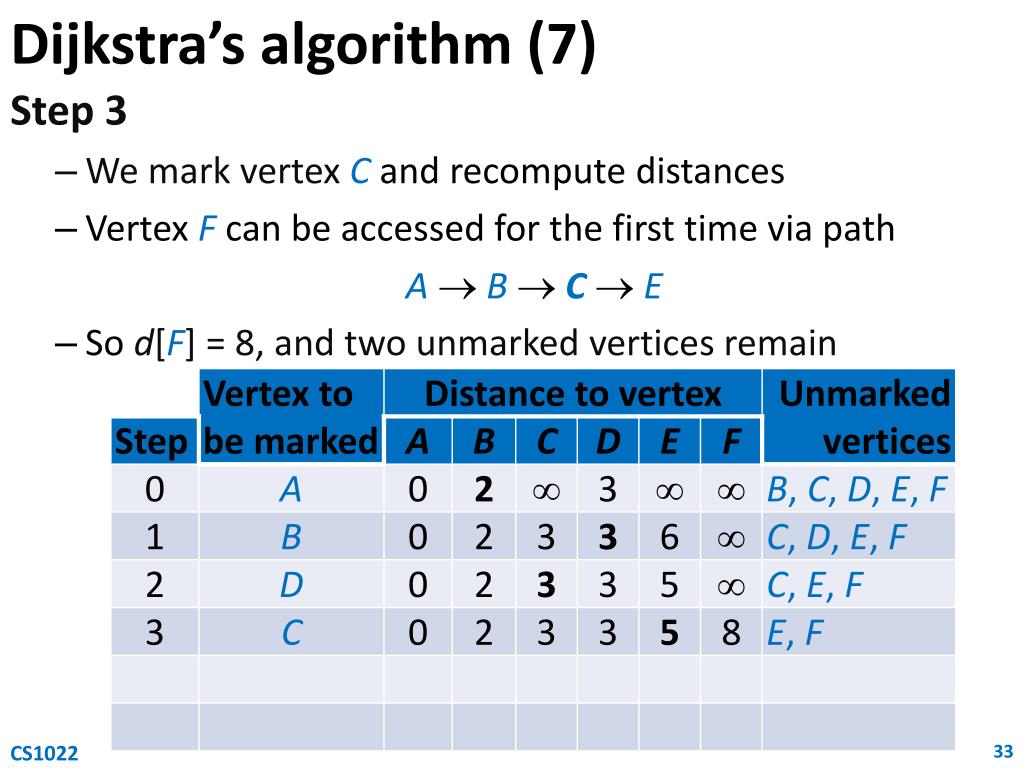

  33. Dijkstra’s algorithm (7) Step 3 • We mark vertex C and recompute distances • Vertex F can be accessed for the first time via path A B  C  E • So d[F] = 8, and two unmarked vertices remain CS1022

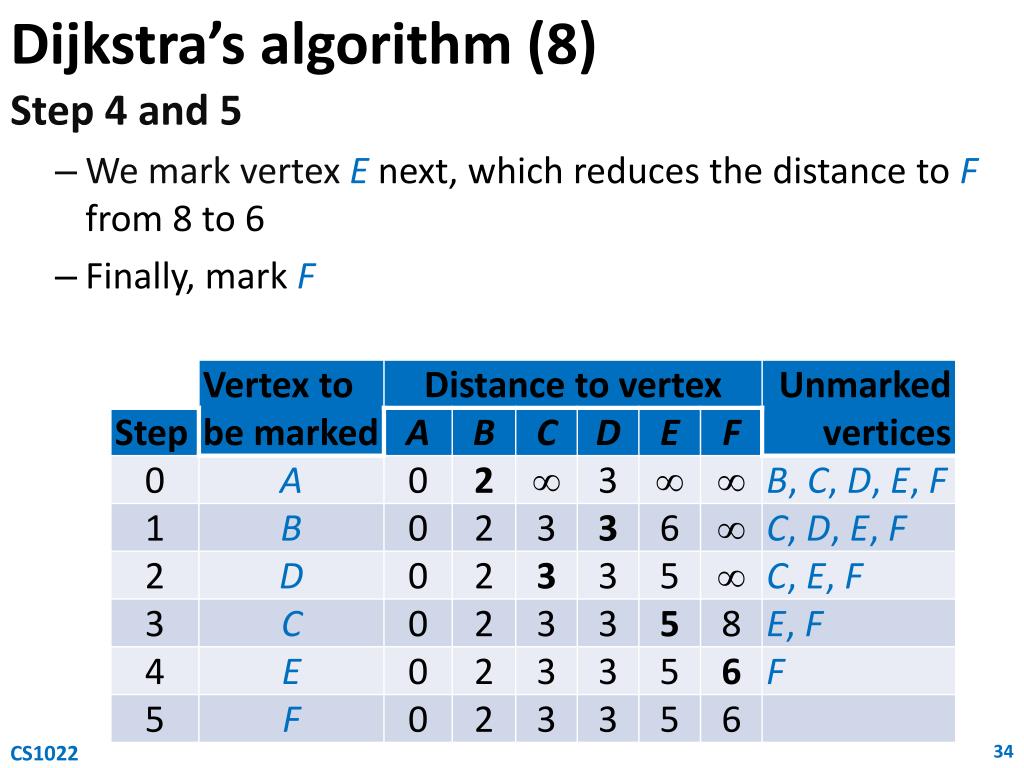

  34. Dijkstra’s algorithm (8) Step 4 and 5 • We mark vertex E next, which reduces the distance to F from 8 to 6 • Finally, mark F CS1022

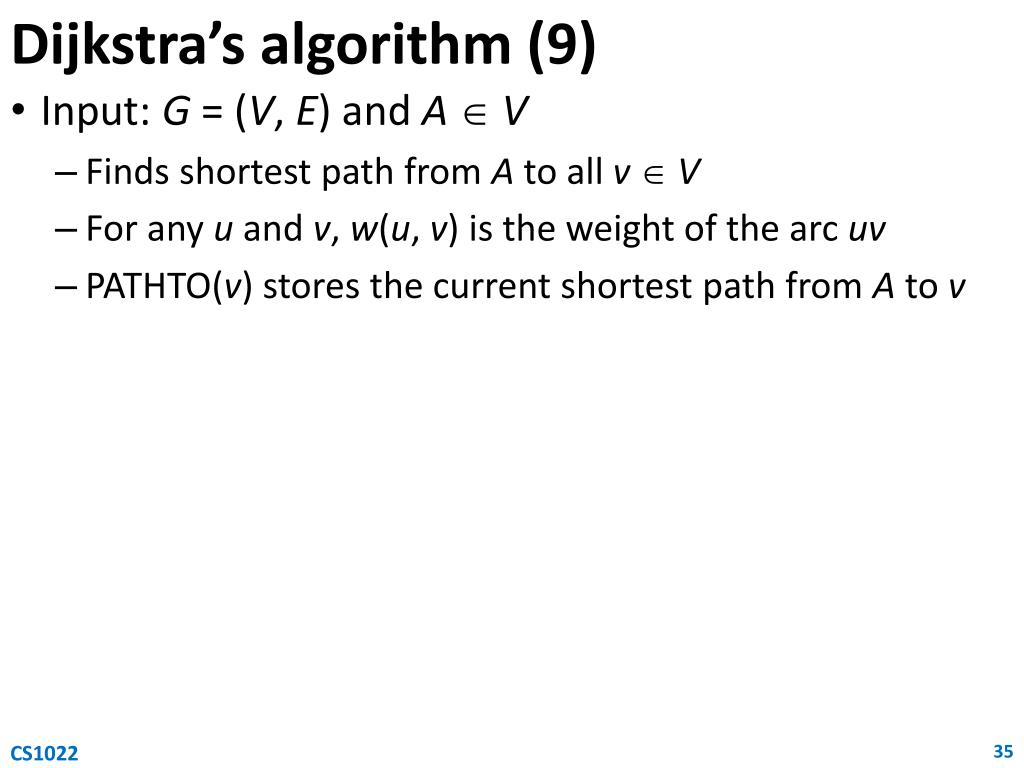

  35. Dijkstra’s algorithm (9) • Input: G = (V, E) and A V • Finds shortest path from A to all v V • For any u and v, w(u, v) is the weight of the arc uv • PATHTO(v) stores the current shortest path from A to v CS1022

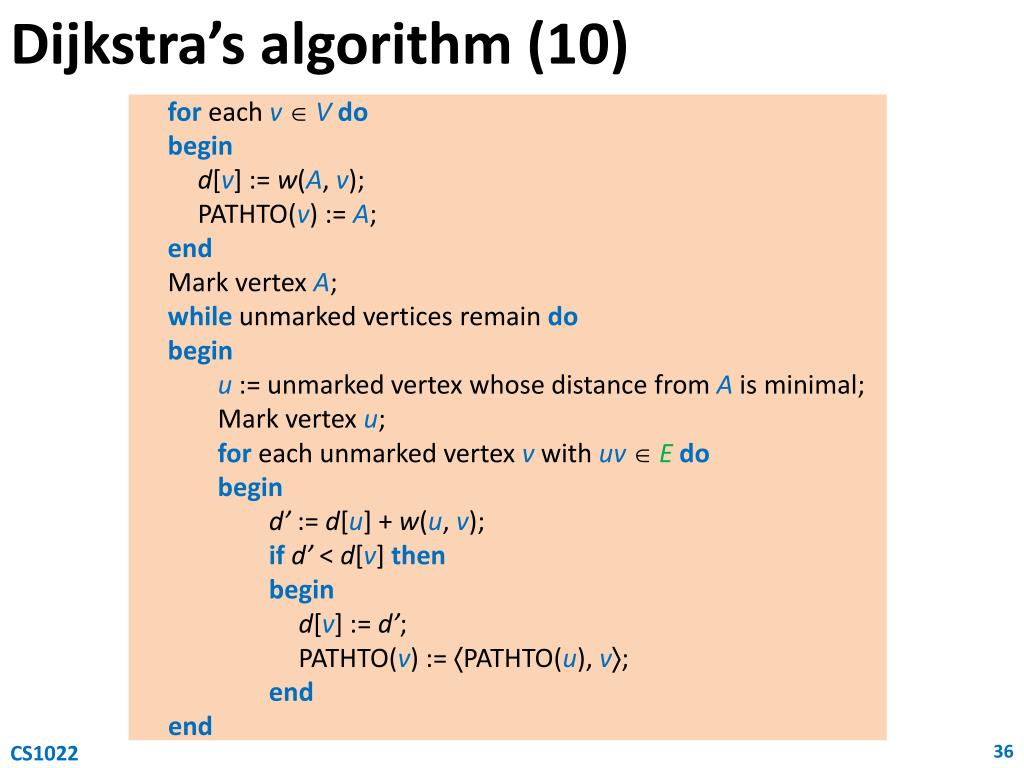

  36. Dijkstra’s algorithm (10) CS1022

  37. Further reading • R. Haggarty. “Discrete Mathematics for Computing”. Pearson Education Ltd. 2002. (Chapter 8) • Wikipedia’s entry on directed graphs • Wikibooks entry on graph theory CS1022
