  1. XRD analysis • Instruments and data acquisition • Getting data and data formats • Analysis software • Phase ID

  2. Equipment • Scintag PAD-V • Pole-Figure attachment • Scintillation detector • Scintag XDS-2000 • Theta-Theta goniometer • i-Ge energy-dispersive detector • Bruker D8 • GADDS area detector

  3. Data Acquisition • Assumption: infinite, randomly distributed particles • Size < ~30mm (320 grit) • watch for preferred orientation • Sample on rotation axis • Good statistics! • Standards important for precision work

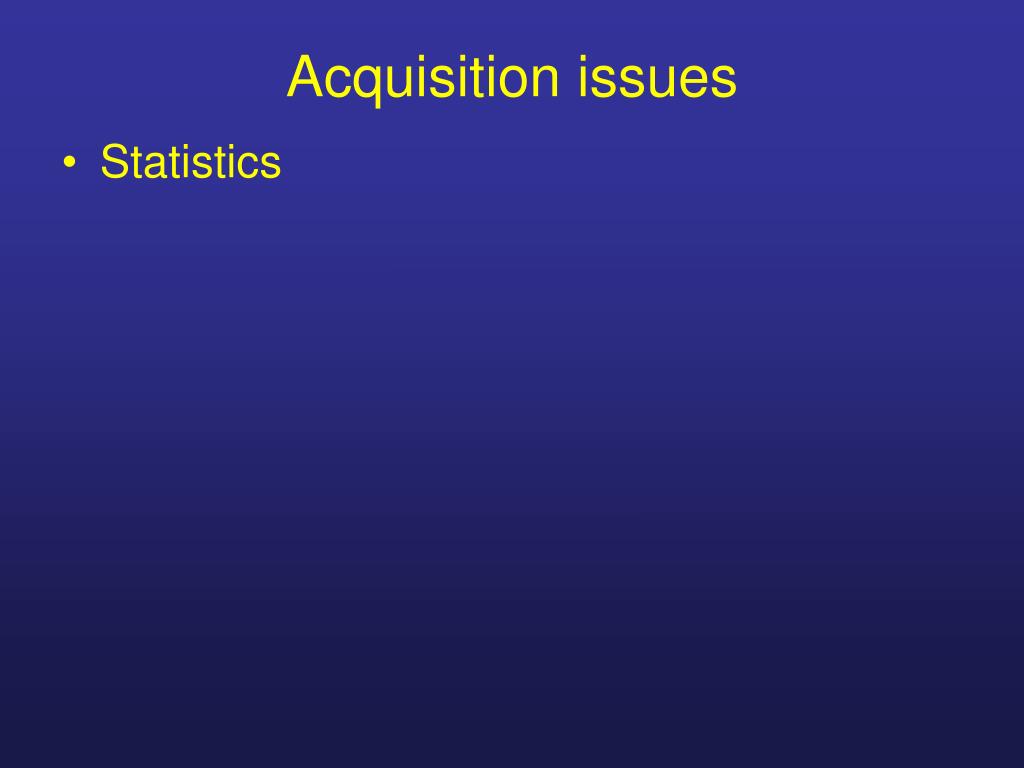

  4. Acquisition issues • Statistics

  5. Poisson distribution • Describes processes where each event is independent and has a constant probability of occurring within a time interval. • Standard Deviation (s) = (I)½ • Var (I) = s2 = I

  6. S/N ratio • Any point on a scan will have a fixed count rate total counts (I) are proportional to time.

  7. S/N = 20/18 = 1 (2s)

  8. S/N = 400/80 = 5 (2s)

  9. S/N continued… • We usually want NET intensity rather than GROSS intensity. • Need to subtract the background • What uncertainty do we have in the NET intensity?

  10. Variances add Cross terms = 0 for independent variables Relative Variances add Uncertainty propagation Source: P.R. Bevington Data Reduction and Analysis for the Physical Sciences, 2nd ed., p. 50

  11. Case when absolute variances add If B is large, then the remainder after subtraction will be small and the relative uncertainty will be very large.

  12. Acquisition issues • Statistics • Fluorescence effects

  13. Fe sample with Cu radiation

  14. What is the difference in the S/N of the net intensity?

  15. Acquisition issues • Statistics • Fluorescence effects • Geometric Effects • Off-axis • Absorption depth (sampling depth)

  16. Aberrations • Bragg-Brentano goniometer is a para-focusing geometry. • All elements must be precisely located. • If the sample is displaced from the rotation axis, there is a peak shift

  17. h < 100mm Illustrate correction process later

  18. Acquisition issues • Statistics • Fluorescence effects • Geometric Effects • Off-axis • Absorption depth (sampling depth) • Spectral Contamination • Cu Kb, W La radiation

  19. Ni Filter • Ka/Kb intensity ratio is 9 • Ni filter attenuates Kb more than Ka • MAC of Ni for Cu Kb = 283 cm2/g • MAC of Ni for Cu Ka = 49 cm2/g • A 20mm Ni filter will produce a Kb/Ka ratio of about 500 while attenuating the Ka by a factor of ~2. • Kb intensity is not 0!

  20. Spectral Contamination • Multiple Cu peaks • Ka1 = 1.540562Å • Ka2 = 1.54439Å • Average =1.5418Å • CuKb = 1.392218Å • W deposits on anode (filament contamination) • W La1 = 1.47639Å

  21. W La Cu Kb

  22. Data Format • EVA needs “.RAW” • Scintag - creates “.RD” • VAX data acquisition computer. Need to download data. • Convert to .RAW with ALL2EVA • Convert to ASCII with RD2ASCII (to read into Excel) • Bruker - .RAW

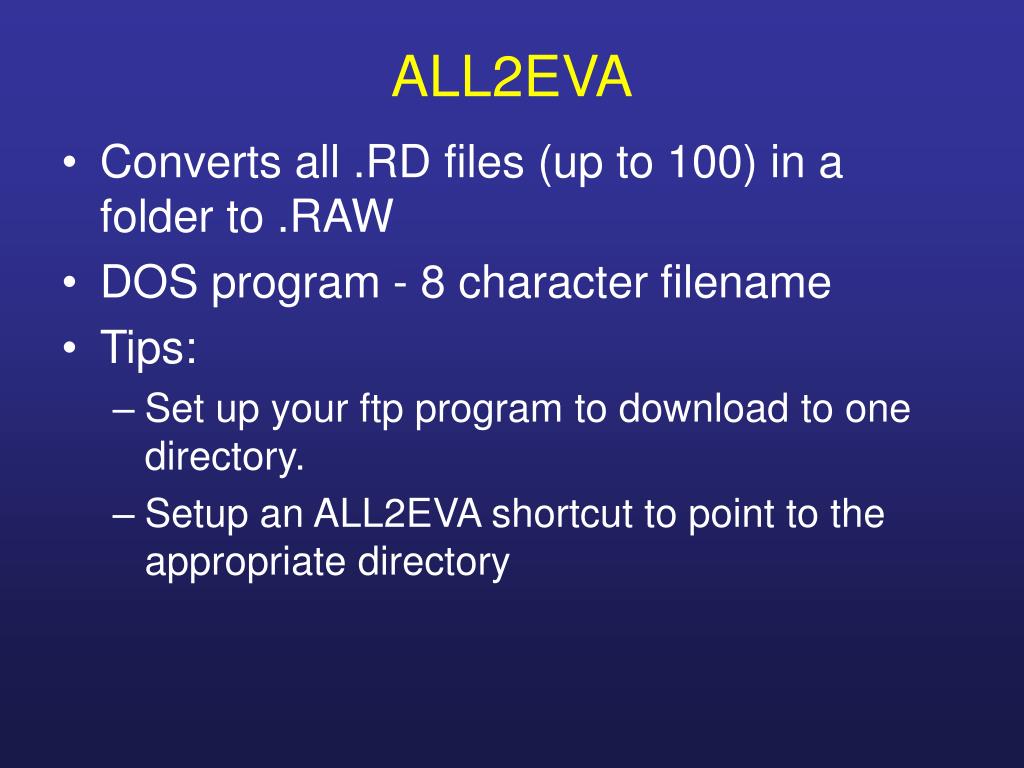

  23. ALL2EVA • Converts all .RD files (up to 100) in a folder to .RAW • DOS program - 8 character filename • Tips: • Set up your ftp program to download to one directory. • Setup an ALL2EVA shortcut to point to the appropriate directory

  24. Set to your download directory ALL2EVA shortcut

  25. Phase ID • EVA or Jade software • EVA available in er6 lab • EVA & Jade in CEOF computer lab • ICDD database (formerly JCPDS) • Tutorials • www.matter.org.uk/diffraction/x-ray • www.ccp14.ac.uk/educate.htm

  26. EVA • tour

  27. EVA • displacement_1.eva

  28. Phase ID steps • Read .RAW file • Subtract background, Strip Ka2 • Use background subtracted scan for Peak Search; Use Ka2 stripped scan for Peak Match. • Match dominant peaks; displacement shift if necessary • If displacement shift; return to RAW data and correct.

  29. EVA • Single phase (min11-01.raw) • Elements: Mg and O

  30. EVA • TQ019-01.raw • Pure Mg, Si, O used in the processing

  31. EVA • DA029.raw • Multi component, initially unknown elements • SEM EDS

  32. EVA • DA029.raw • SEM EDS • Ti, Si, Mn, O, F • K, Na, Al, Mg, Fe
