  1. SRT 251 CONSTRUCTION & STRUCTURES 2 SIMON KENNY 500127623 ARCHITECT NORMAN FOSTER

  2. NORMAN FOSTER ‘I undoubtedly design buildings with my colleagues in the hope that some of them will shift the boundaries of knowledge.’ norman foster ‘The studio has been driven by the pursuit of design excellence, based on a belief that our surroundings directly influence the quality of our lives, whether in the workplace, at home or in the wide variety of public spaces inbetween.’ norman foster

  3. SITE 5m x 5m section

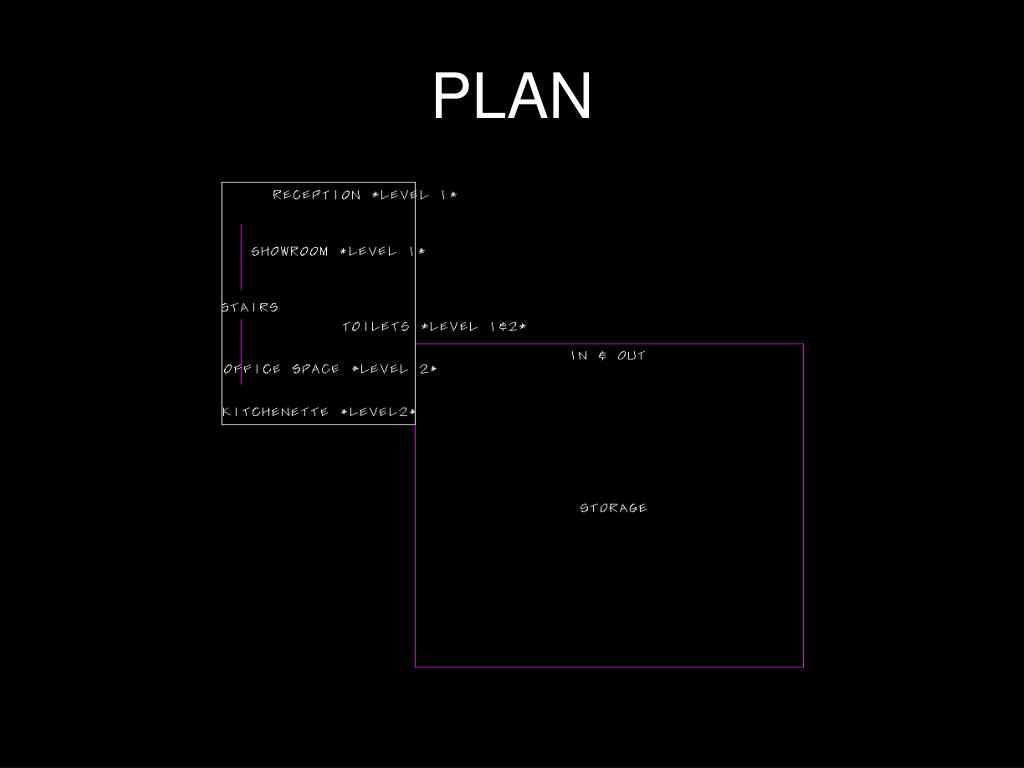

  4. PLAN

  5. FOOTINGS Reinforcement required in concrete footings Footing once concrete is poured

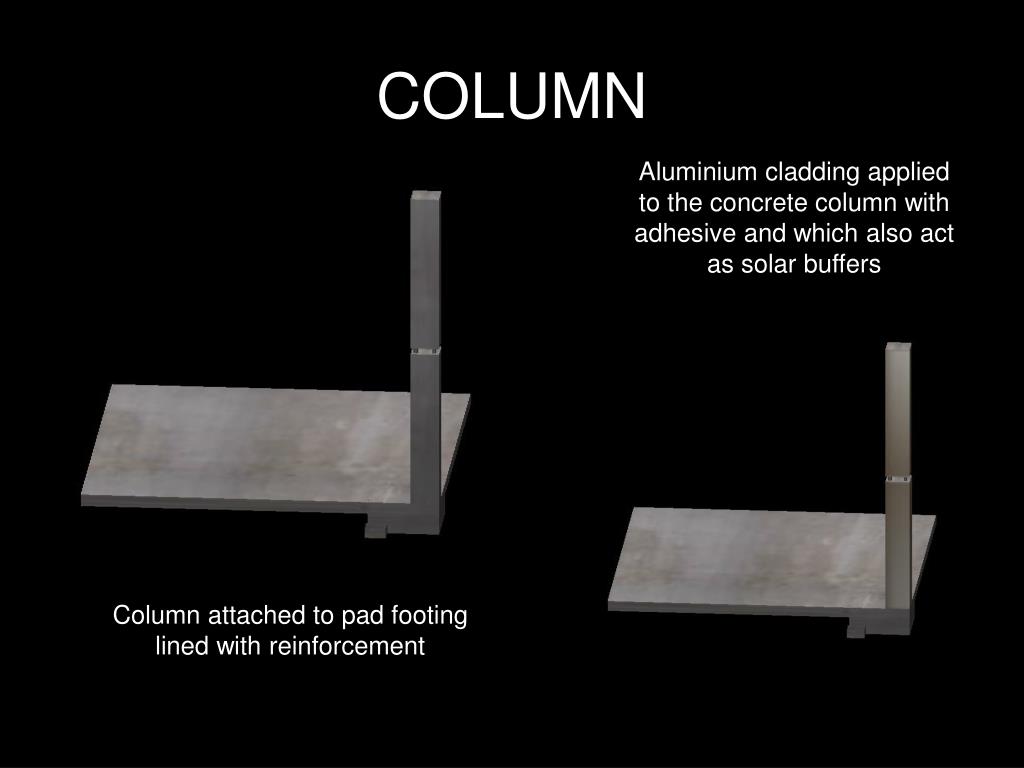

  6. COLUMN Aluminium cladding applied to the concrete column with adhesive and which also act as solar buffers Column attached to pad footing lined with reinforcement

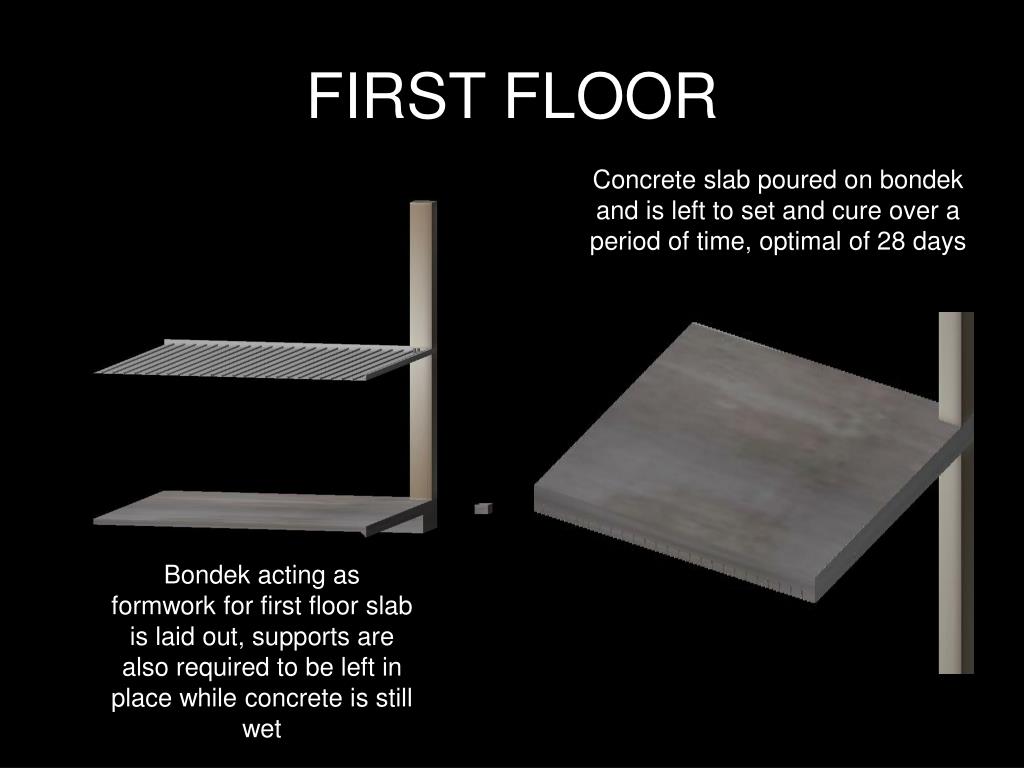

  7. FIRST FLOOR Concrete slab poured on bondek and is left to set and cure over a period of time, optimal of 28 days Bondek acting as formwork for first floor slab is laid out, supports are also required to be left in place while concrete is still wet

  8. WALLS Aluminium window frame welded to steel frame along with flashings to prevent moisture seepage into the building Steel framing lining edge of building, bolted into concrete and welded to aluminium cladded column to give extra rigidity

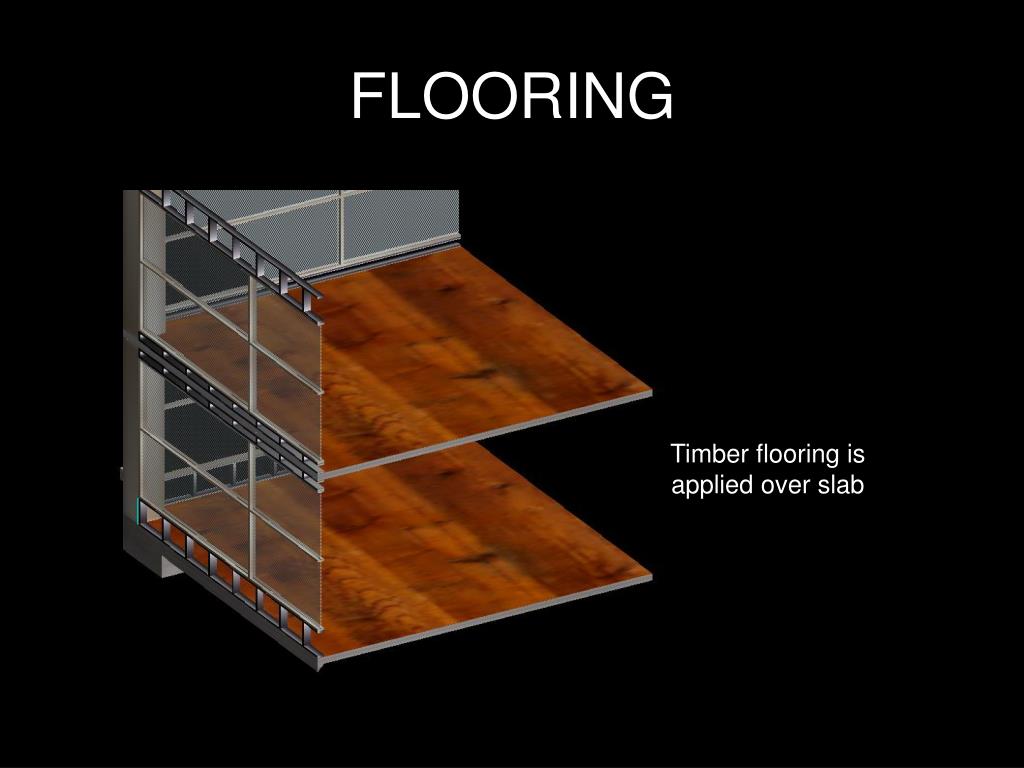

  9. FLOORING Timber flooring is applied over slab

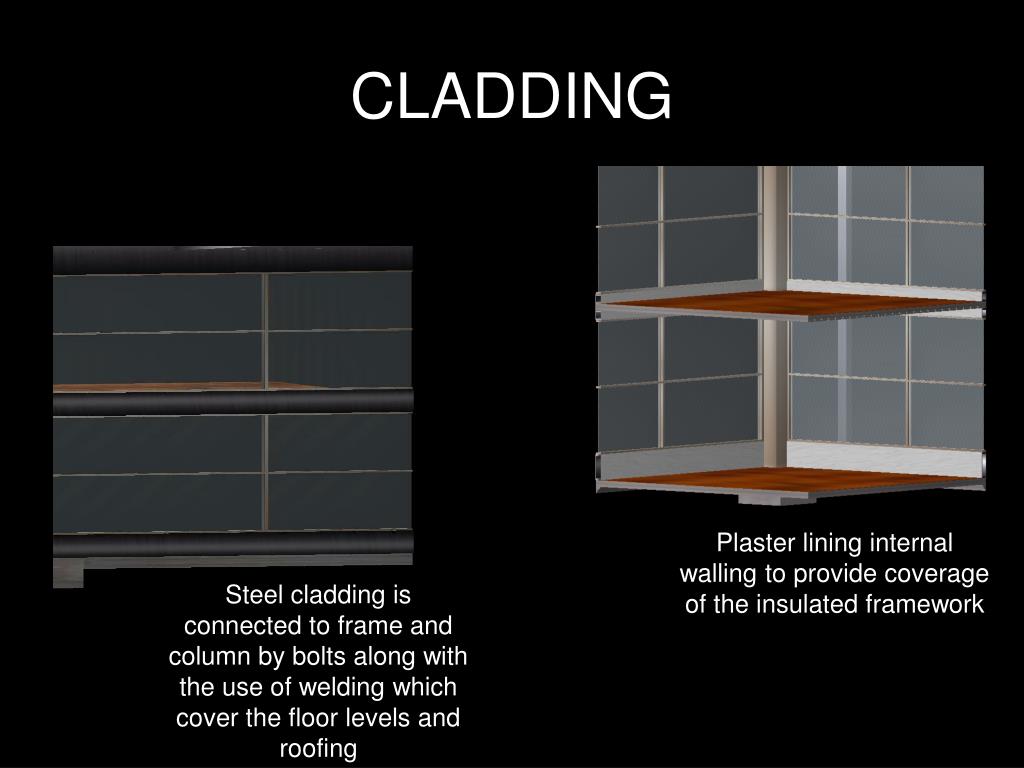

  10. CLADDING Plaster lining internal walling to provide coverage of the insulated framework Steel cladding is connected to frame and column by bolts along with the use of welding which cover the floor levels and roofing

  11. ROOFING C – Purlins placed on steel lining which also acts as a ceiling for first floor Sarking or a Flashing is added over purlins to prevent moisture seeping into the building

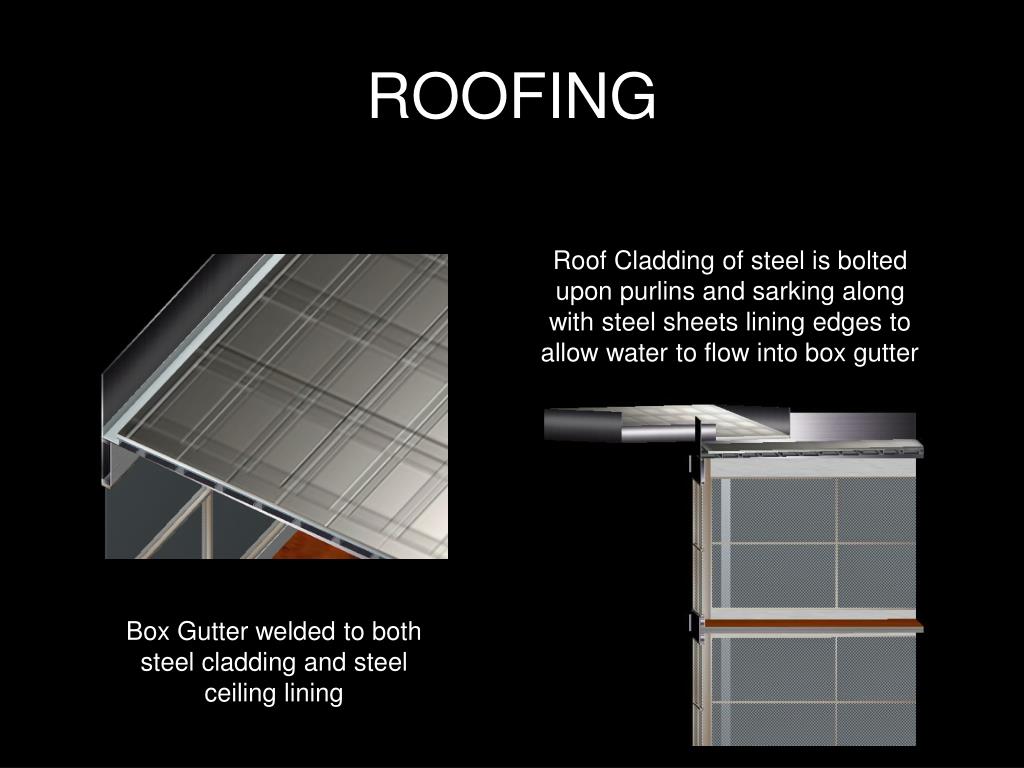

  12. ROOFING Roof Cladding of steel is bolted upon purlins and sarking along with steel sheets lining edges to allow water to flow into box gutter Box Gutter welded to both steel cladding and steel ceiling lining

  13. CEILING The ceiling is made up of strips of metal being suspended from either the bondek or steel linings

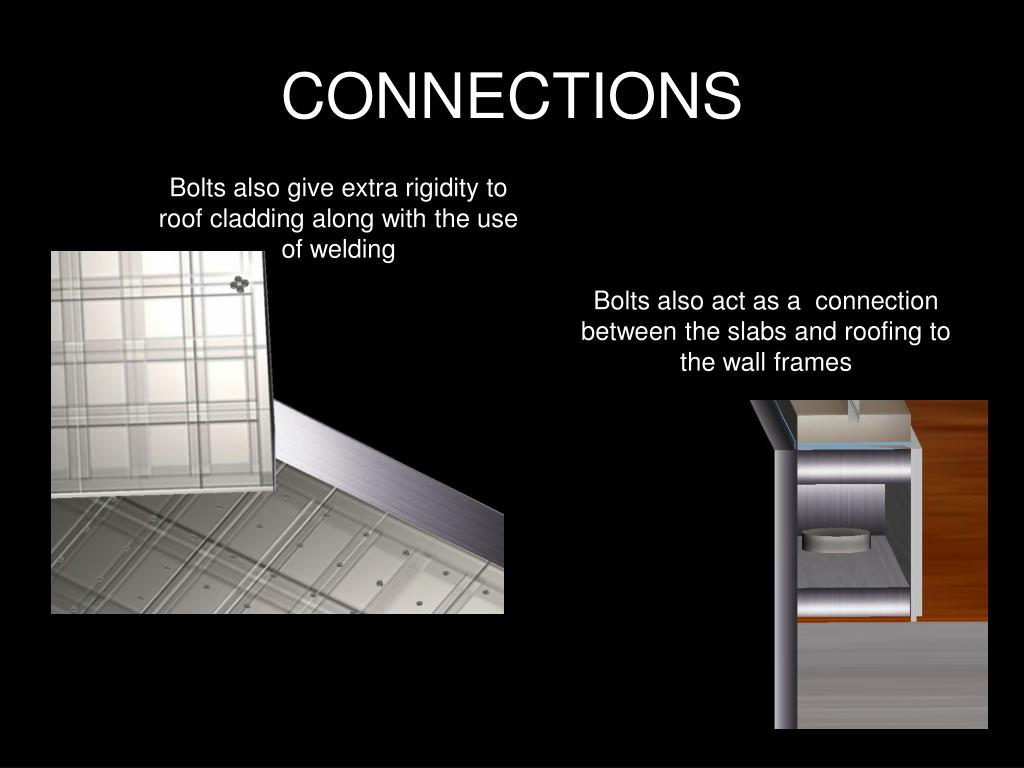

  14. CONNECTIONS Bolts also give extra rigidity to roof cladding along with the use of welding Bolts also act as a connection between the slabs and roofing to the wall frames

  15. DETAIL My overall detail by where I have tried mimic fosters fetish of glass, steel and aluminium while also have components of concrete is demonstrated on both left and right. The extravagant roofing was inspired by differing means of addressing the peak of buildings by foster along with the use of suspending the ceiling
