Presentation Transcript


Geothermobarometry l.jpg

Geothermobarometry


Slide2 l.jpg

  • How do we know P and T?


Geothermobarometry3 l.jpg

Need min. at equilibrium

Good barometer rxn vs. good thermometer rxn

Which has large DV and which has large DS?

D

dP

S

=

D

dT

V

Geothermobarometry


Good thermometer l.jpg

Measure distribution of elements in coexisting phases from experiments at known P and T

Estimate P and T of equilibrium in natural samples

Garnet-biotite exchange reaction

K: (Mg/Fe)Garnet

Good thermometer

(Mg/Fe)Biotite

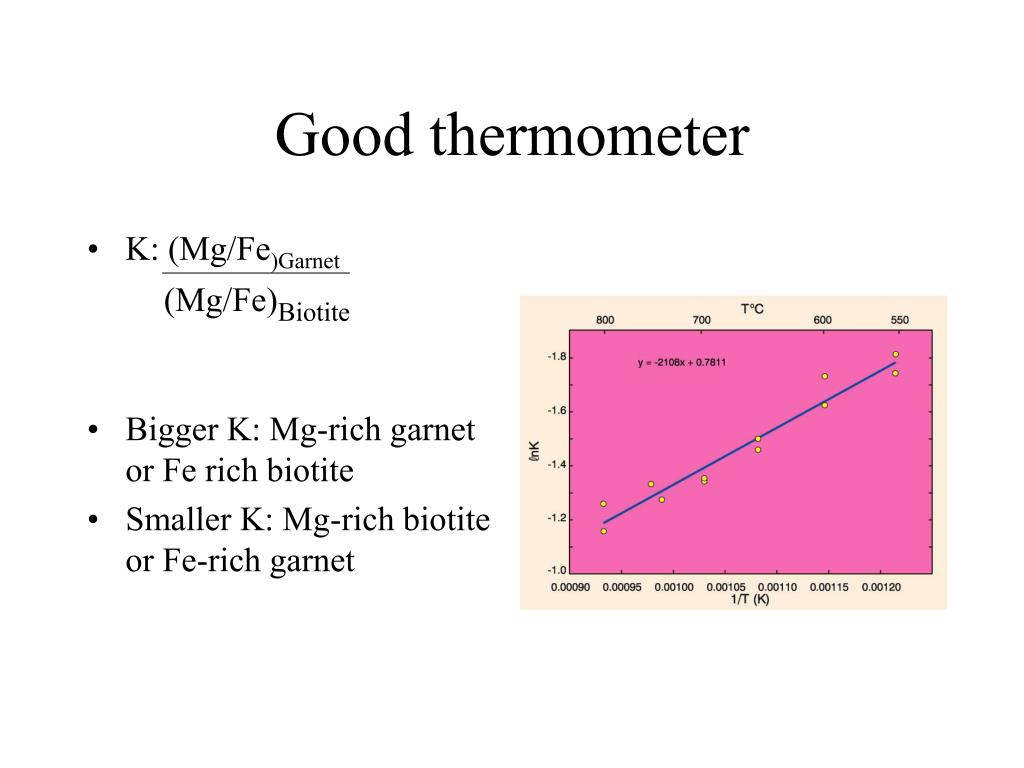

Good thermometer5 l.jpg

K: (Mg/Fe)Garnet

Bigger K: Mg-rich garnet or Fe rich biotite

Smaller K: Mg-rich biotite or Fe-rich garnet

(Mg/Fe)Biotite

Good thermometer


Garnet biotite thermometer l.jpg

Garnet-biotite thermometer


Slide8 l.jpg

Caplag

  • The GASP geobarometer

  • Garnet, aluminosilicate, silica, plag

  • Large DV, shallow slope

  • K: Cagarnet


Slide9 l.jpg

Caplag

  • The GASP geobarometer

  • Garnet, aluminosilicate, silica, plag

  • Large DV, shallow slope

  • K: Cagarnet


How to apply l.jpg

How to apply?

  • Results of garnet-biotite thermometry and GASP barometry

  • 1 sample, different calibrations


Slide11 l.jpg

  • What if minerals zoned?

  • Poikiloblastic garnet with plag inclusions


Slide12 l.jpg

  • Zoned minerals can help with P-T-t paths

  • GASP barometer & garnet-biotite thermometer

  • Look at intersection of P and T


Slide13 l.jpg

  • Want multiple barometers for internal consistency


Slide14 l.jpg

  • Worry about precision vs. accuracy


Calculated uncertainties from various potential sources l.jpg

Calculated uncertainties from various potential sources

  • Red: instrumental

  • Blue: total instrumental/mathematical/calibration

  • Yellow: natural heterogeneity

  • Dark green: uncertainty in the K experiments

  • Light green: combination of all uncertainty


Consider this reaction l.jpg

Consider this reaction:

  • 3 Anorthite -> Grossular + 2 kyanite + quartz

  • Low P -> High P
