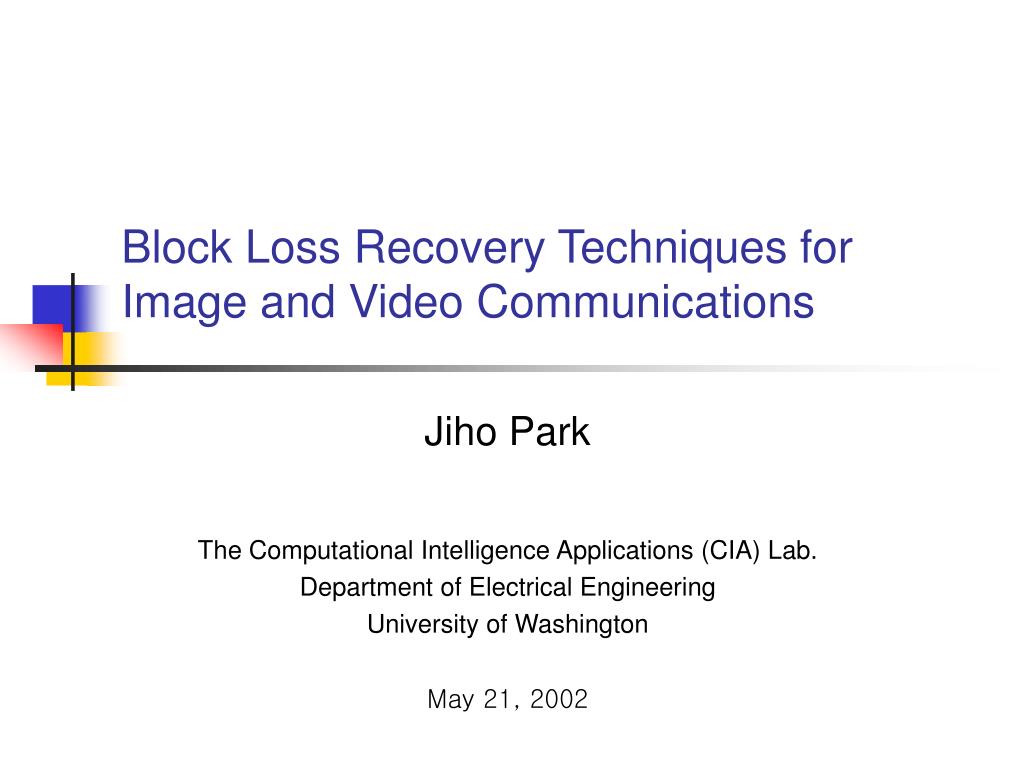

  1. Block Loss Recovery Techniques for Image and Video Communications Jiho Park The Computational Intelligence Applications (CIA) Lab. Department of Electrical Engineering University of Washington May 21, 2002

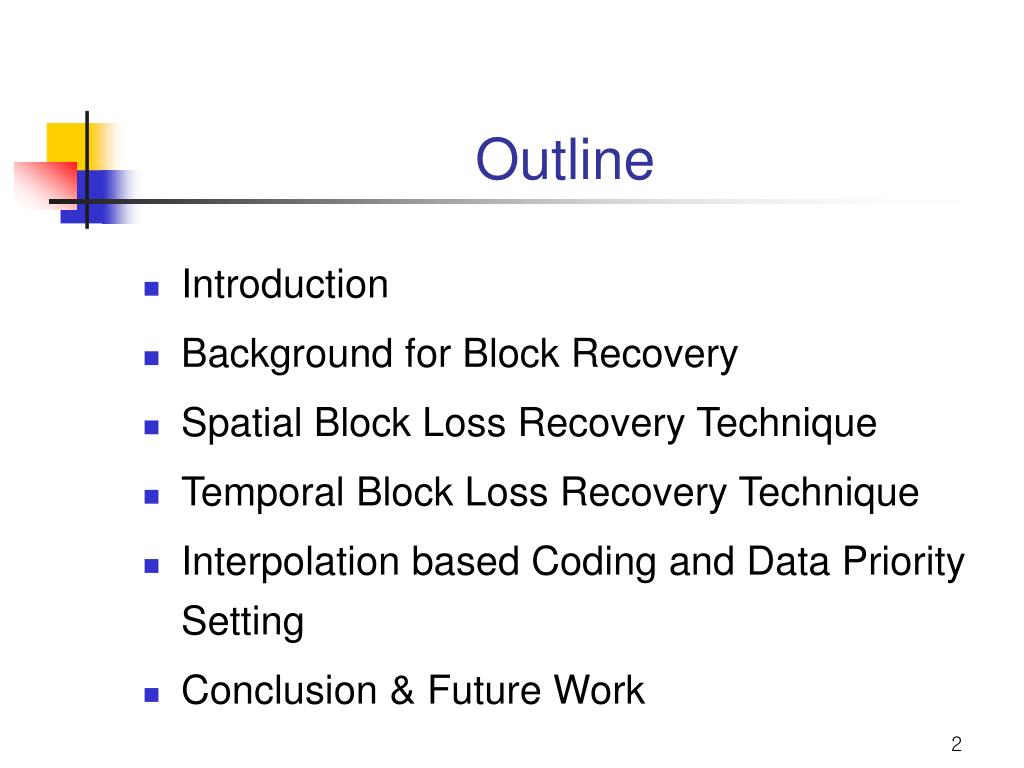

  2. Outline • Introduction • Background for Block Recovery • Spatial Block Loss Recovery Technique • Temporal Block Loss Recovery Technique • Interpolation based Coding and Data Priority Setting • Conclusion & Future Work

  3. Image and Video Coding Standards • Adopt block based coding (e.g. JPEG, MPEG, H.261/3+) • Lossy coding techniques • Images are segmented into blocks • Predictive Coding, Discrete Cosine Transform and Quantization are adopted

  4. Background –Block Coding & Transmission Error • Block based coding technique Discrete Cosine Transform N x N block Q RLC Packet • image/video transmission system. Encoding Packetizing Network Depacketizing Decoding Image/ Video Source

  5. Transmission & Error • Packet error during transmission causes all data loss in a corresponding block. • During transmission, some packets are lost due to bit error, congestion of network, noise burst, or other reasons. Packet

  6. Background – Error Correction • Automatic Retransmission Request(ARQ) – Decoder sends retransmission requests to encoder when error happens. pro : error-free. cons : additional delays, unacceptable for real-time. example : TCP/IP – unreal-time internet file transfer protocol • Forward Error Correction(FEC) – Encoder inserts additional codes so that decoder can correct errors. pro : error resilient. con : additional bits example : 18-bit FEC code in H.261(video-conferencing standard) • Error Concealment/Block Loss Recovery – Post-processing to restore damaged blocks by decoder pro : no additional bits. con : complex decoder

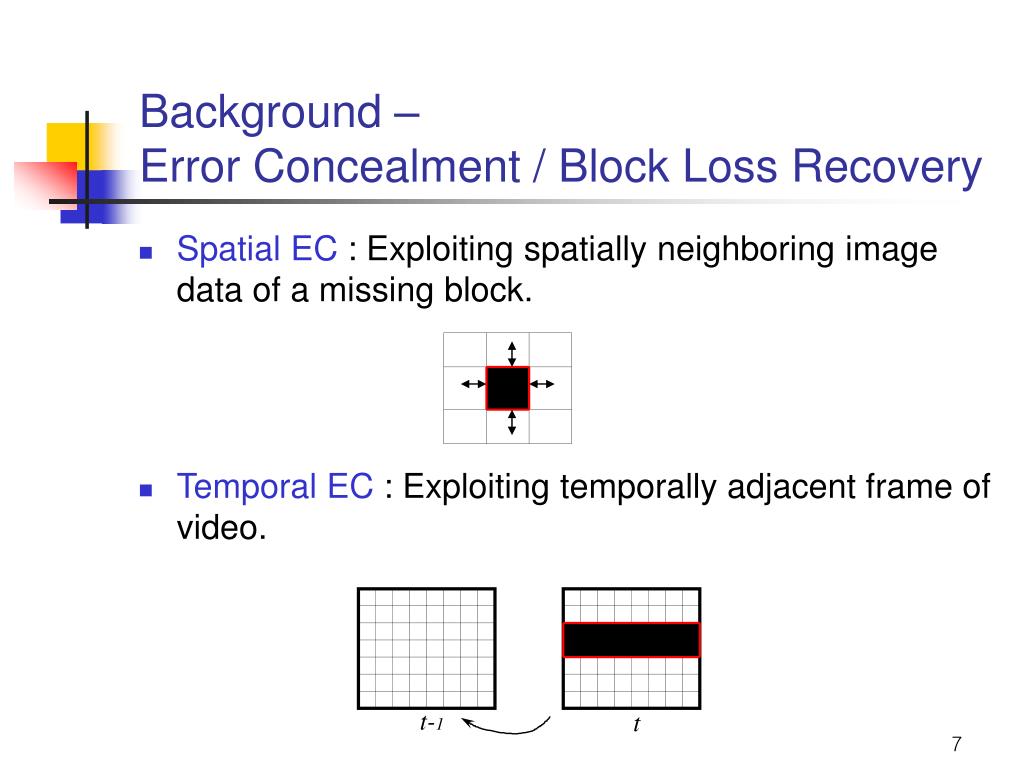

  7. Background –Error Concealment / Block Loss Recovery • Spatial EC : Exploiting spatially neighboring image data of a missing block. • Temporal EC : Exploiting temporally adjacent frame of video. t-1 t

  8. Spatial Block Loss Recovery • Spatial block loss recovery is suitable for image coding data, (e,g, JPEG, Image based coding frame of MPEG/H.261/263+)

  9. Previous Research (Spatial EC) -Edge-based Average Interpolation (Ancis ’99) • Averaging the values of pixels in the same position of surrounding blocks. where wk = 0, 1, according to edges in surrounding blocks

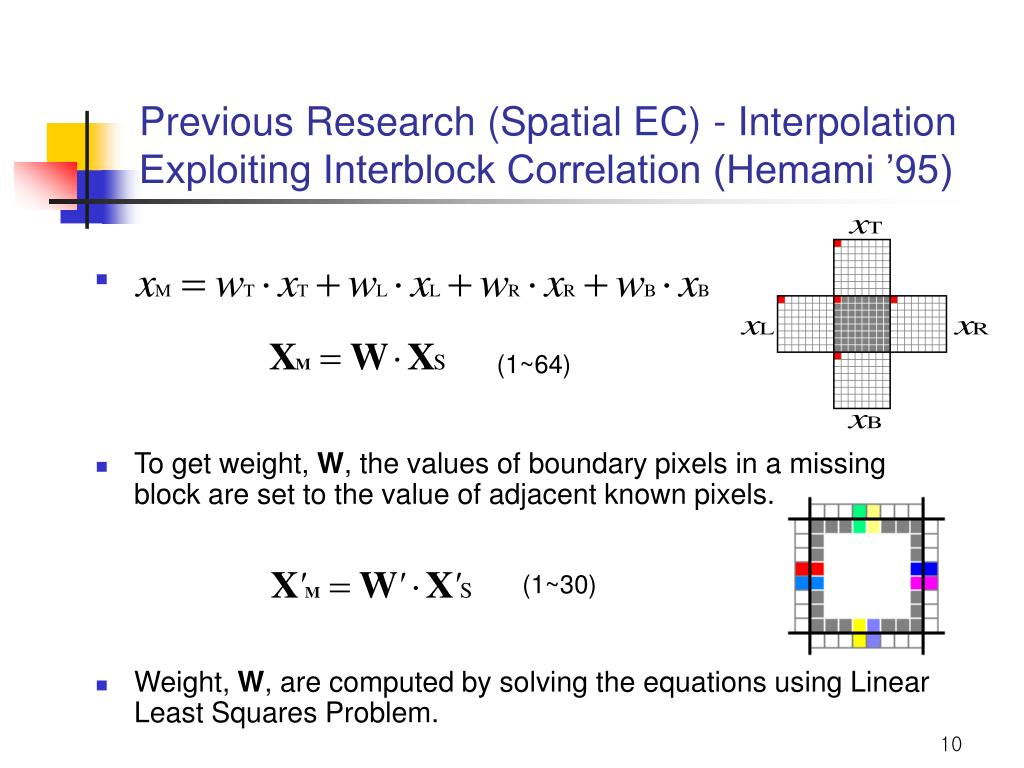

  10. Previous Research (Spatial EC) - Interpolation Exploiting Interblock Correlation (Hemami ’95) • To get weight, W, the values of boundary pixels in a missing block are set to the value of adjacent known pixels. • Weight, W, are computed by solving the equations using Linear Least Squares Problem. (1~64) (1~30)

  11. Previous Research (Spatial EC) – DCT-based interpolation (Ziad, 2000) • Set Y2 to zero =>

  12. Previous Research – Other Algorithms • Maximally Smooth Image Recovery (Wang, ’93) - minimizing errors between a missing block and surrounding pixels • DCT Coefficients Block Recovery (Park, ’97) - minimizing errors between boundary pixels of a missing block and surrounding pixels • Block Recovery using POCS (Sun, ’95)

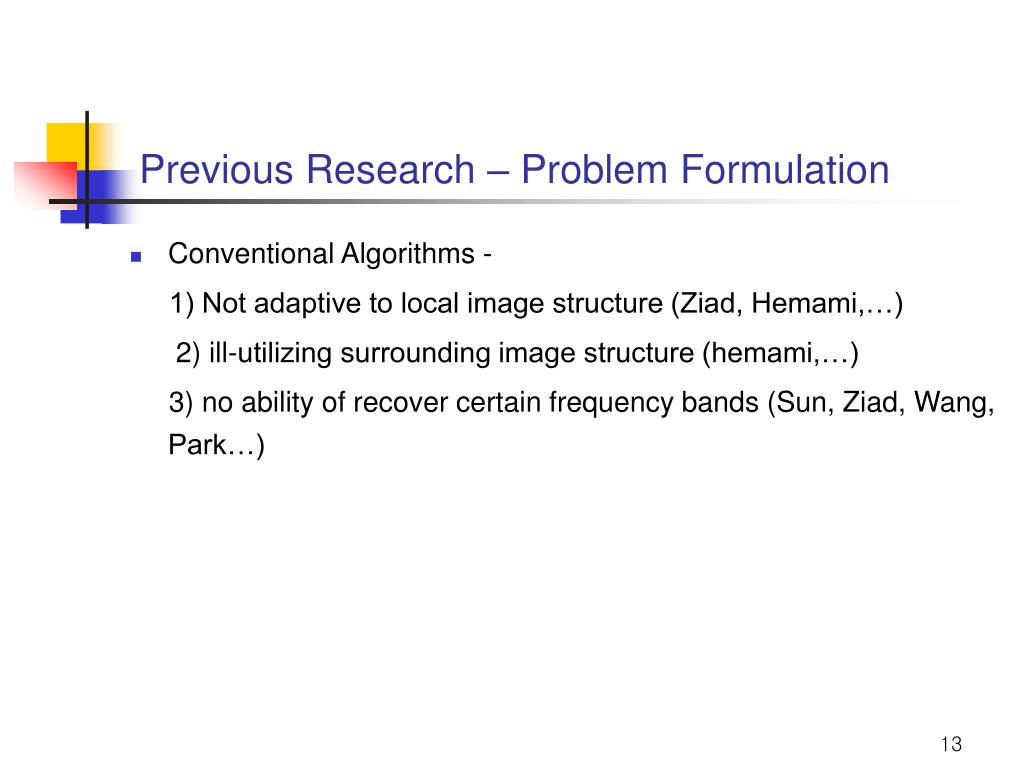

  13. Previous Research – Problem Formulation • Conventional Algorithms - 1) Not adaptive to local image structure (Ziad, Hemami,…) 2) ill-utilizing surrounding image structure (hemami,…) 3) no ability of recover certain frequency bands (Sun, Ziad, Wang, Park…)

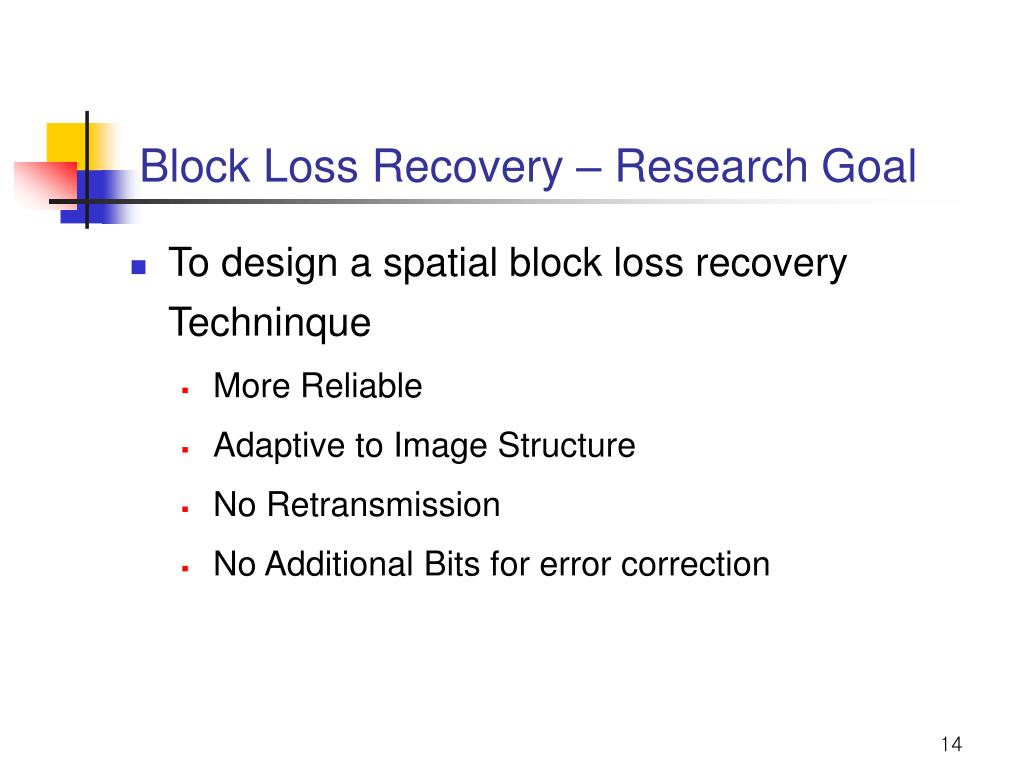

  14. Block Loss Recovery – Research Goal • To design a spatial block loss recovery Techninque • More Reliable • Adaptive to Image Structure • No Retransmission • No Additional Bits for error correction

  15. Projections based Block Recovery – Motivation • Conventional Algorithms use information of all surrounding area. • Using only highly correlated area

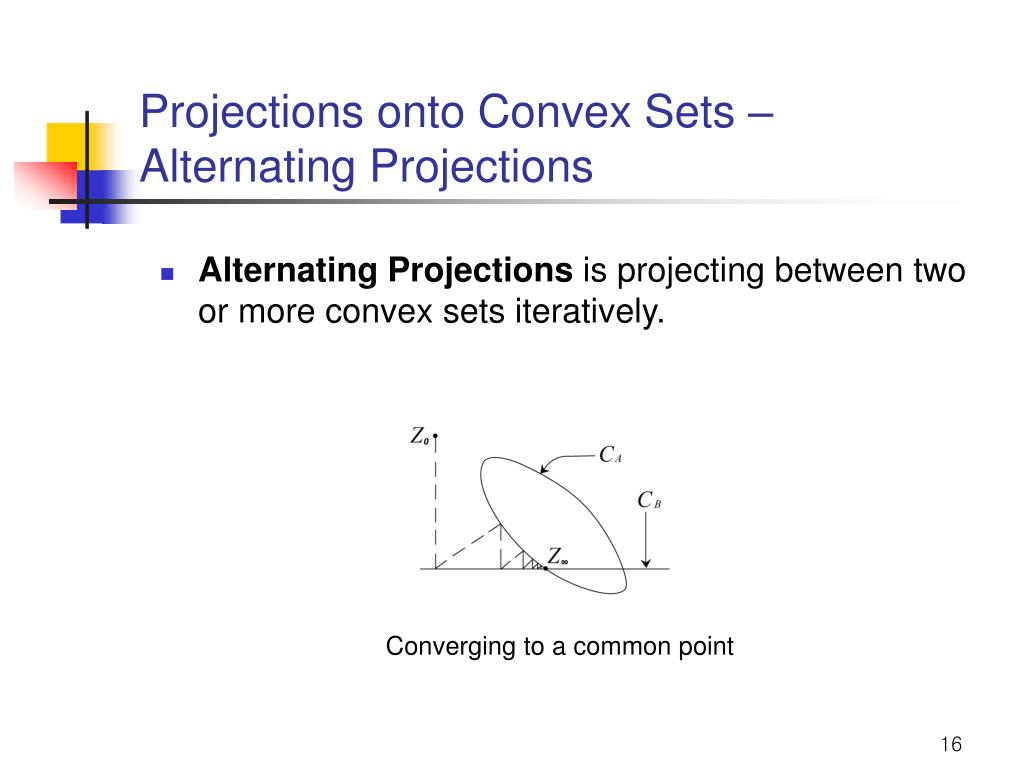

  16. Projections onto Convex Sets –Alternating Projections • Alternating Projections is projecting between two or more convex sets iteratively. Converging to a common point

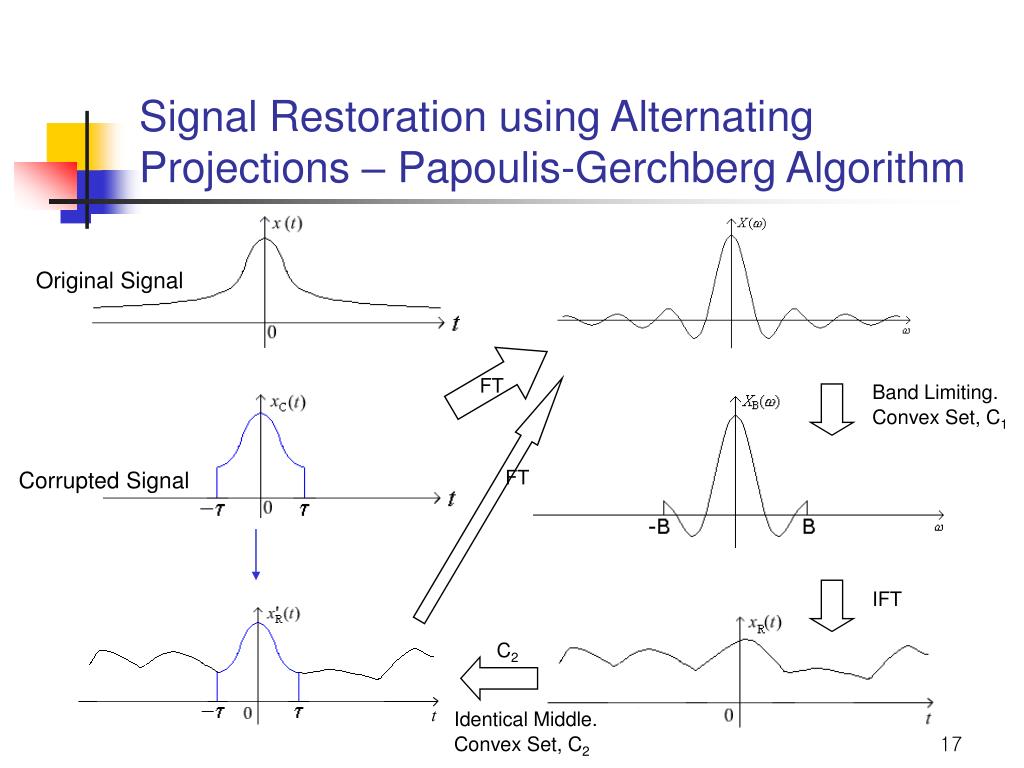

  17. Signal Restoration using Alternating Projections – Papoulis-Gerchberg Algorithm Original Signal FT Band Limiting. Convex Set, C1 Corrupted Signal FT IFT C2 Identical Middle. Convex Set, C2

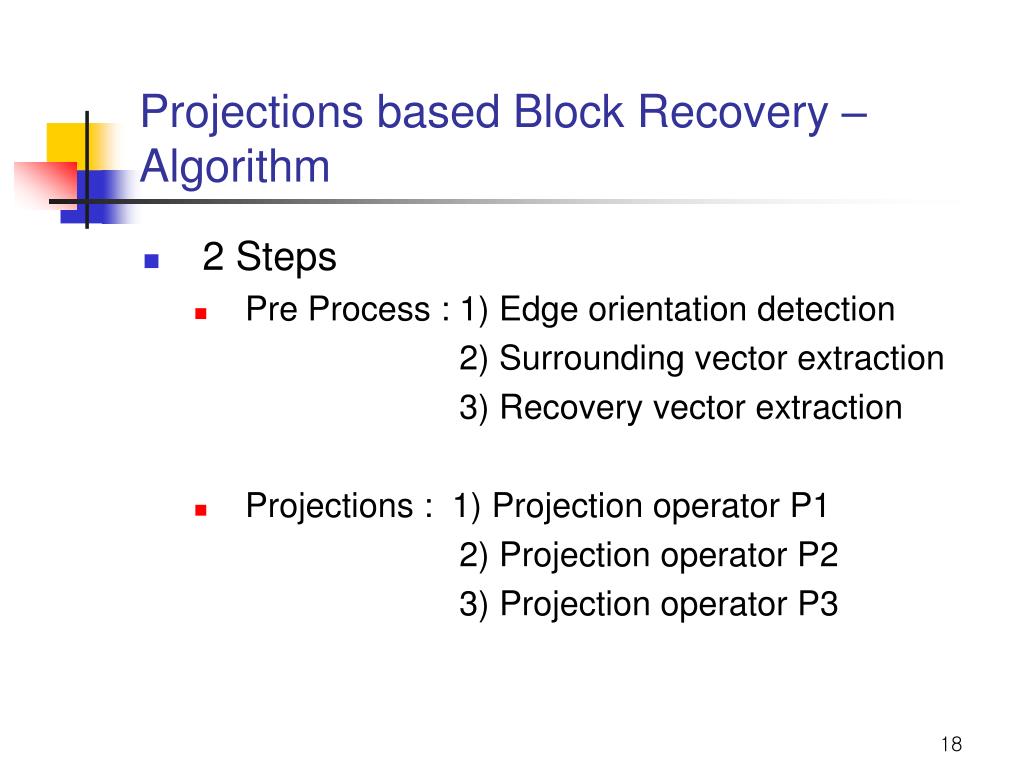

  18. Projections based Block Recovery – Algorithm • 2 Steps • Pre Process : 1) Edge orientation detection 2) Surrounding vector extraction 3) Recovery vector extraction • Projections : 1) Projection operator P1 2) Projection operator P2 3) Projection operator P3

  19. Pre Process 1 –Edge Orientation Detection • Edge orientation in the surrounding area(S) of a missing block(M). In order to extend the geometric structure to the missing block. • Simple line masks at every i, j coordinate in surrounding area(S) of the missing block(M) for edge detection. Horizontal Line Mask Vertical Line Mask

  20. Pre Process 1 – Edge Orientation Detection • Responses of the line masks at window W : • Total magnitude of responses : • Th > Tv ; Horizontal line dominating area Th < Tv ; Vertical line dominating area

  21. Pre Process 2 – Surrounding Vectors • Surrounding Vectors, sk, are extracted from surrounding area of a missing block by N x N window. • Each vector has its own spatial and spectral characteristic. • The number of surrounding vectors, sk, is 8N.

  22. Pre Process 3 – Recovery Vector • Recovery vectors are extracted to restore missing pixels. • Two positions of recovery vectors are possible according to the edge orientation. • Recovery vectors consist of known pixels(white color) and missing pixels(gray color). • The number of recovery vectors, rk, is 2. Vertical line dominating area Horizontal line dominating area

  23. Projections based Block Recovery –Projection operator P1 • Recovery vectors, ri, for i = 1, 2 • Surrounding vectors, sj, for j = 1 ~ 8N • Surrounding vectors, S, form a convex hull in N2-dimensional space • Recovery vectors, R, are orthogonally projected onto the line defined by the closest surrounding vector, si, j : Projection Operator P1.

  24. Projections based Block Recovery –Projection operator P1 • Projection operator P1 : Convex hull (formed by surrounding vectors, containing information of local image structure)

  25. Projections based Block Recovery –Projection operator P1 • Surrounding vectors, sj, for j = 1 ~ 8N • Recovery vectors, ri, for i = 1, 2 • The closest vertex, sdi, from a recovery vector, ri. or equivalently in DCT domain, • P1 :

  26. Projections based Block Recovery –Projection operator P2 • Convex set C2 acts as an “identical middle”. • Projection operator P2 :

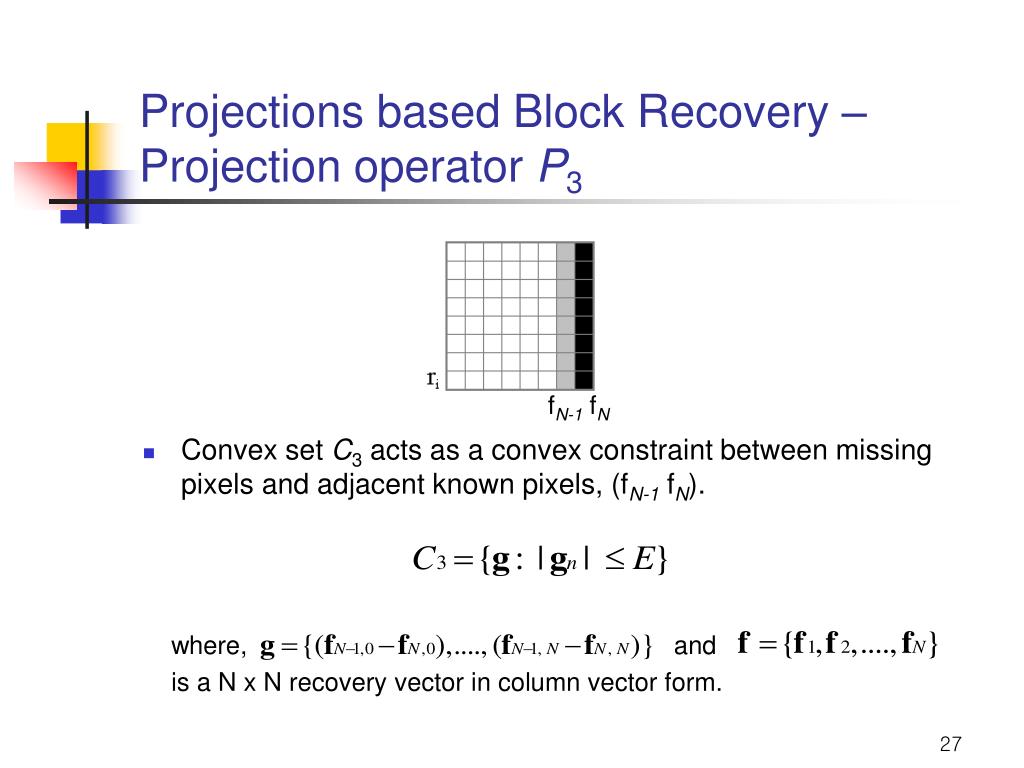

  27. Projections based Block Recovery – Projection operator P3 • Convex set C3 acts as a convex constraint between missing pixels and adjacent known pixels, (fN-1 fN). where, and is a N x N recovery vector in column vector form. fN-1 fN

  28. Projections based Block Recovery – Projection operator P3 • Projection operator P3 :

  29. Projections based Block Recovery –Iterative Algorithm • Missing pixels in recovery vectors are restored by iterative algorithm of alternating projections : • N x N windows moving : Vertical line dominating area Horizontal line dominating area

  30. Projections based Block Recovery - Summary Edge Orientation Detection Surrounding Vector Extraction Recovery Vector Extraction Projection Operator P1 Projection Operator P2 Projection Operator P3 Iteration=I? All pixels?

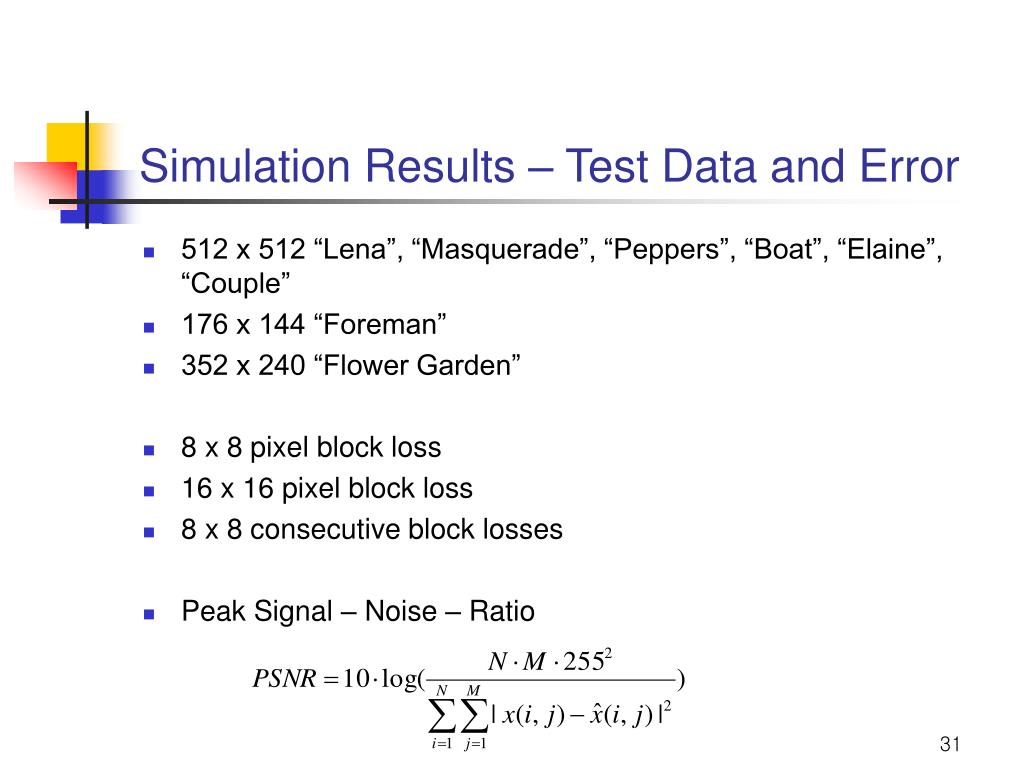

  31. Simulation Results – Test Data and Error • 512 x 512 “Lena”, “Masquerade”, “Peppers”, “Boat”, “Elaine”, “Couple” • 176 x 144 “Foreman” • 352 x 240 “Flower Garden” • 8 x 8 pixel block loss • 16 x 16 pixel block loss • 8 x 8 consecutive block losses • Peak Signal – Noise – Ratio

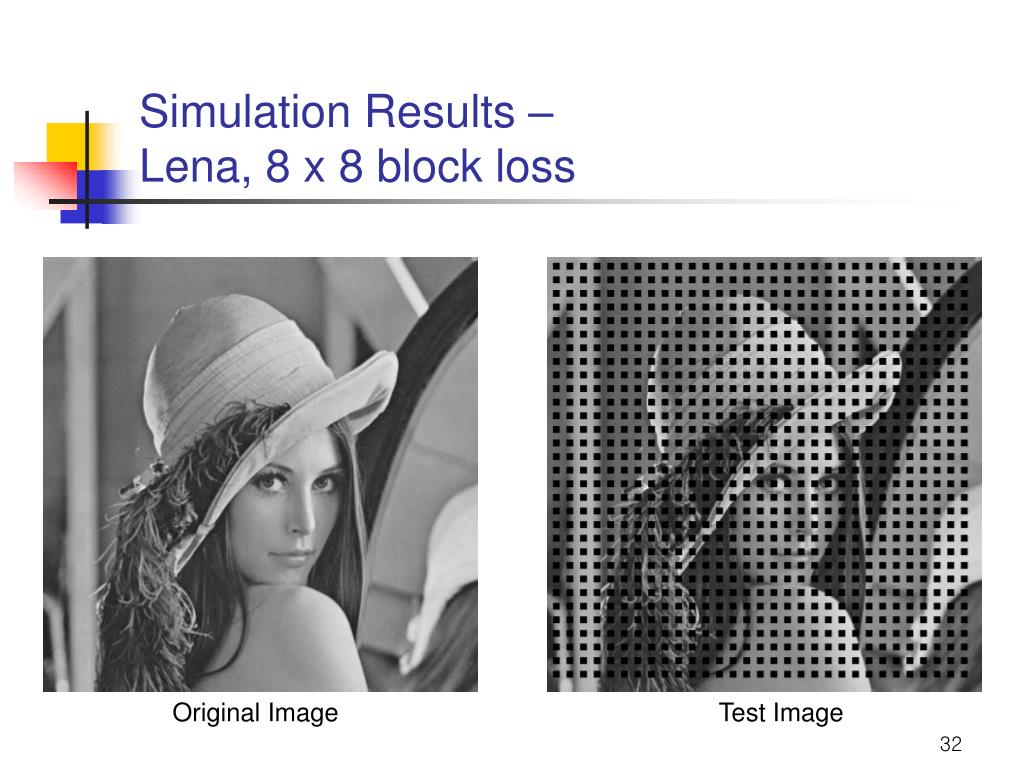

  32. Simulation Results –Lena, 8 x 8 block loss Original Image Test Image

  33. Simulation Results –Lena, 8 x 8 block loss Ancis, PSNR = 28.68 dB Hemami, PSNR = 31.86 dB

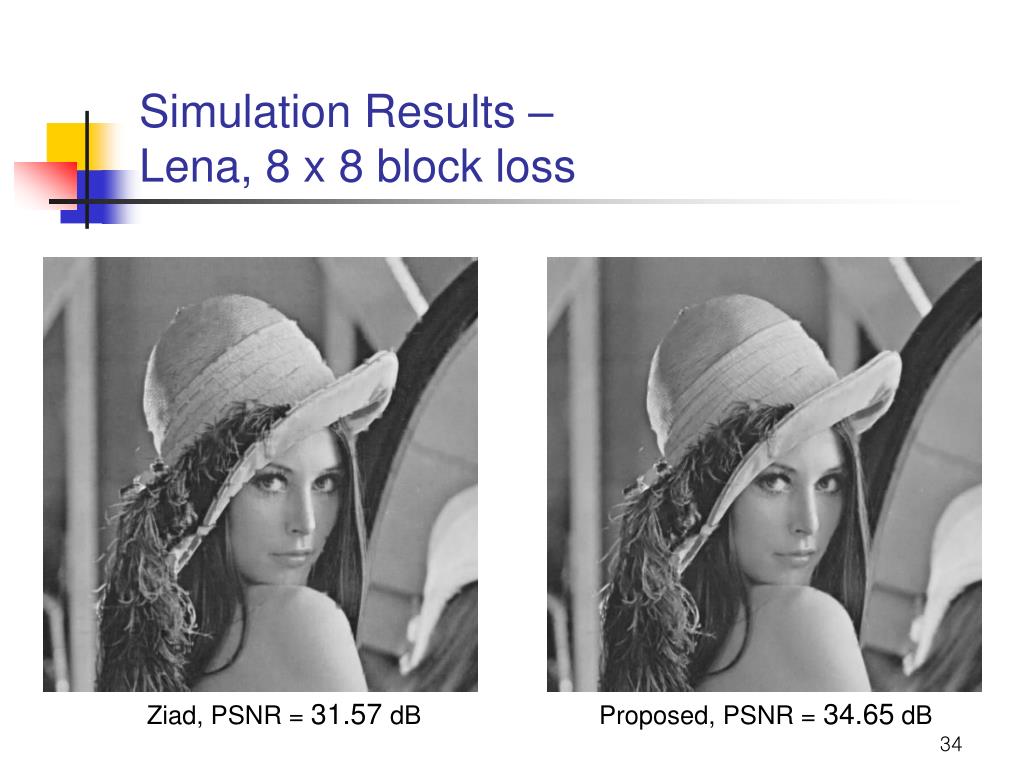

  34. Simulation Results –Lena, 8 x 8 block loss Ziad, PSNR = 31.57 dB Proposed, PSNR = 34.65 dB

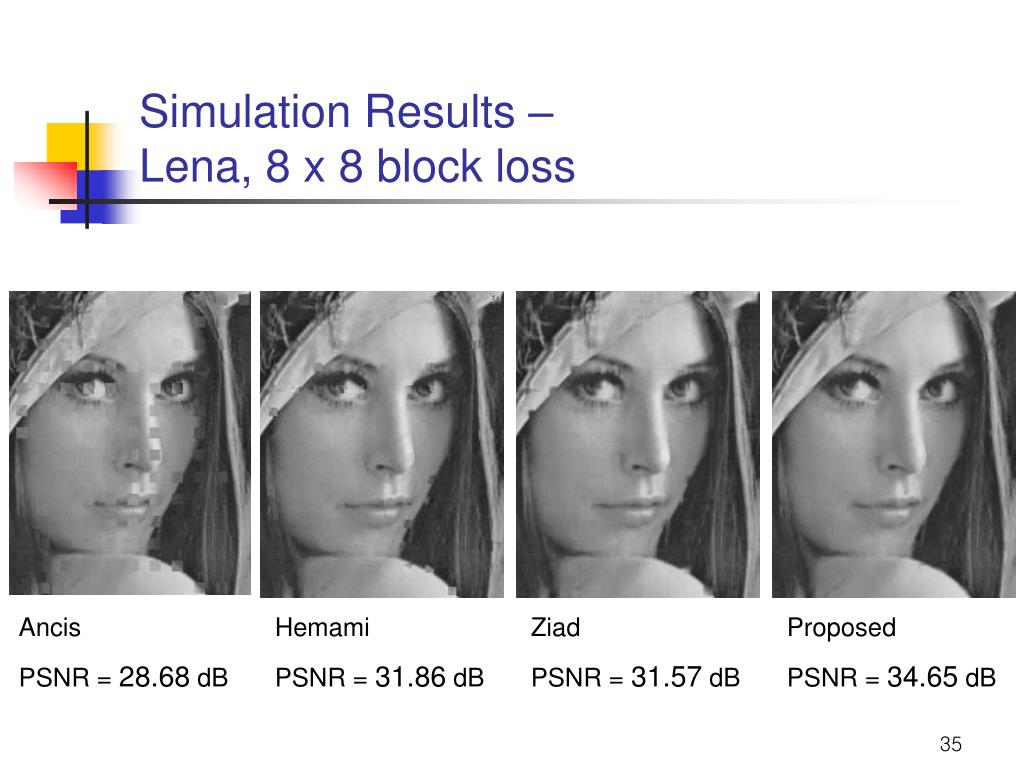

  35. Simulation Results –Lena, 8 x 8 block loss Ancis PSNR = 28.68 dB Hemami PSNR = 31.86 dB Ziad PSNR = 31.57 dB Proposed PSNR = 34.65 dB

  36. Simulation Results – Each Step Lena 8 x 8 block loss (a) (b) (c)

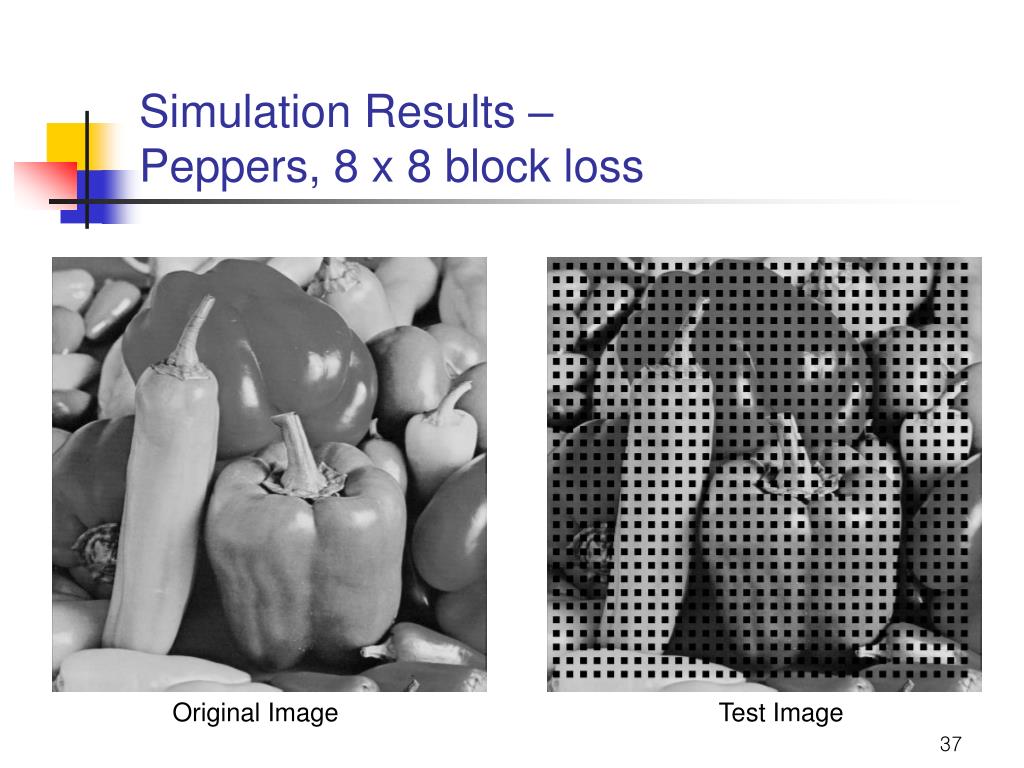

  37. Simulation Results –Peppers, 8 x 8 block loss Original Image Test Image

  38. Simulation Results – Peppers, 8 x 8 block loss Ancis, PSNR = 27.92 dB Hemami, PSNR = 31.83 dB

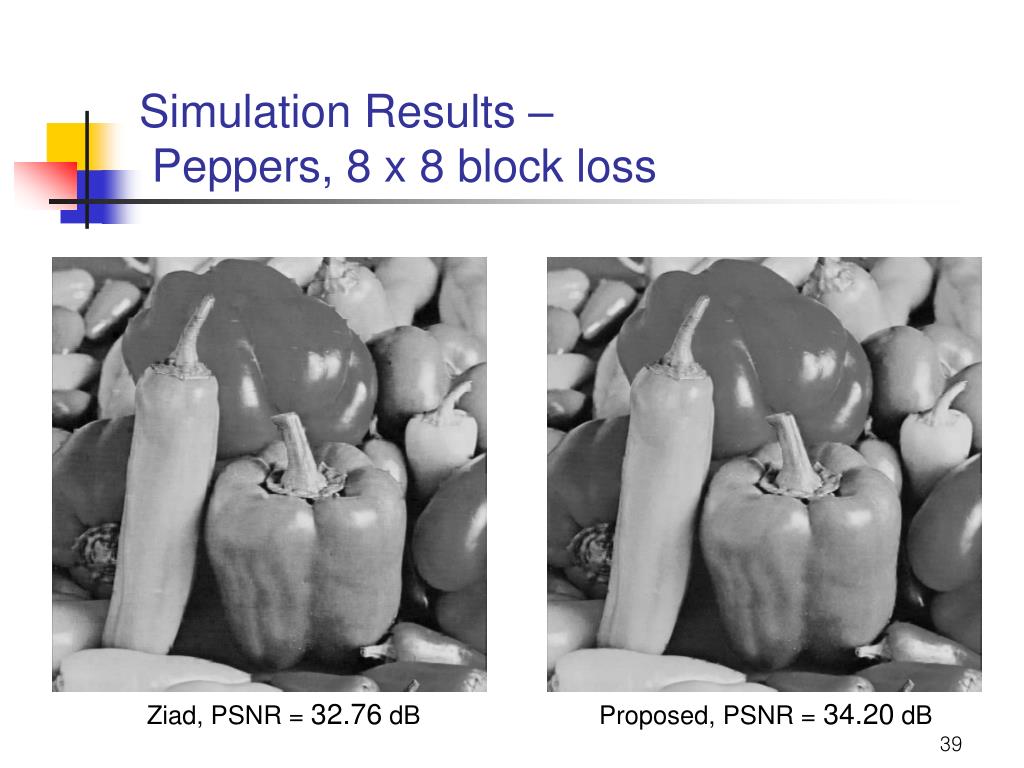

  39. Simulation Results – Peppers, 8 x 8 block loss Ziad, PSNR = 32.76 dB Proposed, PSNR = 34.20 dB

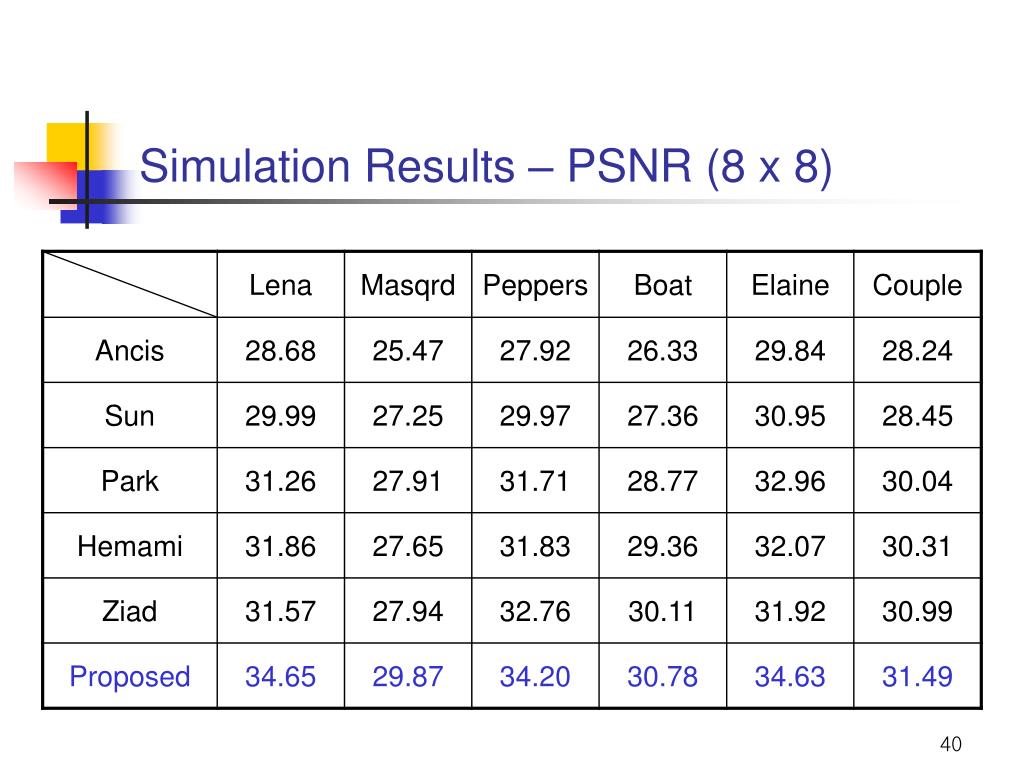

  40. Simulation Results – PSNR (8 x 8)

  41. Simulation Results –Lena, 8 x one row block loss Original Image Test Image

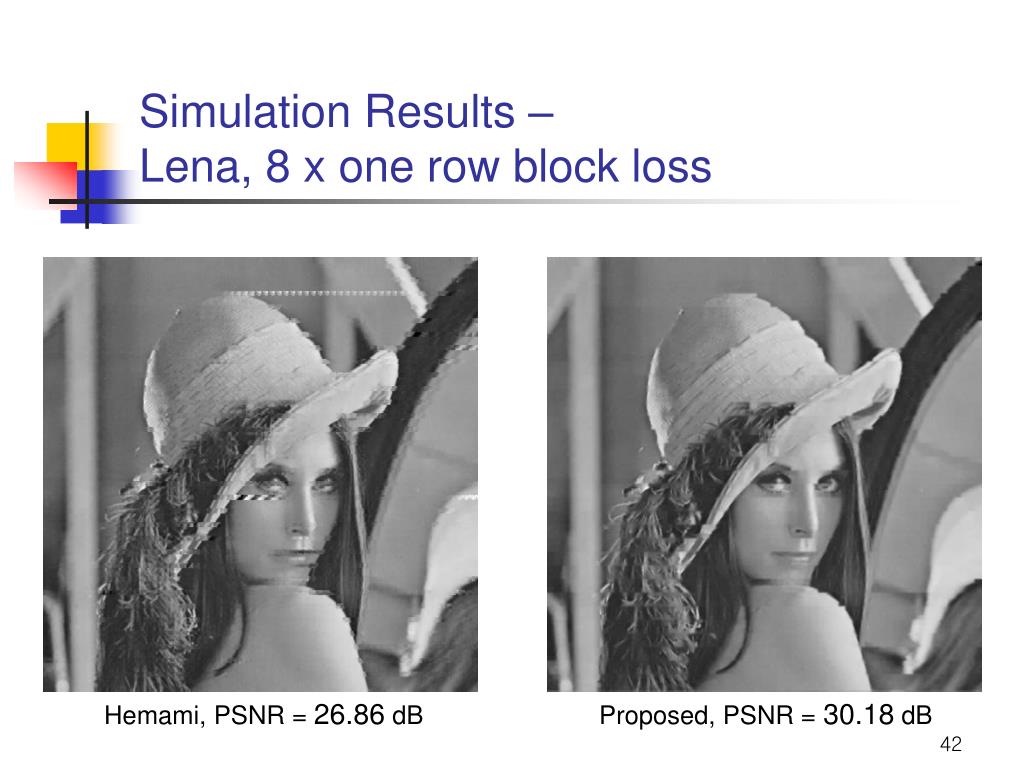

  42. Simulation Results –Lena, 8 x one row block loss Hemami, PSNR = 26.86 dB Proposed, PSNR = 30.18 dB

  43. Simulation Results –Masquerade, 8 x one row block loss Original Image Test Image

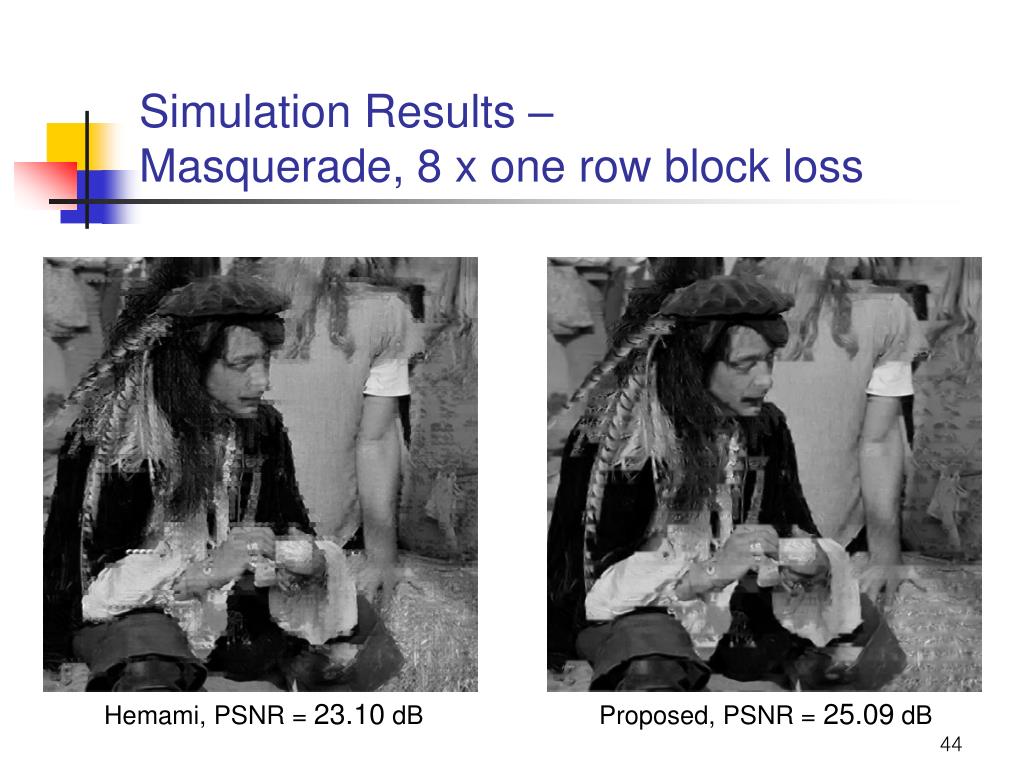

  44. Simulation Results –Masquerade, 8 x one row block loss Hemami, PSNR = 23.10 dB Proposed, PSNR = 25.09 dB

  45. Simulation Results –Lena, 16 x 16 block loss Original Image Test Image

  46. Simulation Results –Lena, 16 x 16 block loss Ziad, PSNR = 28.75 dB Proposed, PSNR = 32.70 dB

  47. Simulation Results –Foreman, 16 x 16 block loss Original Image Test Image Ziad, PSNR = 25.65 dB Proposed, PSNR = 30.34 dB

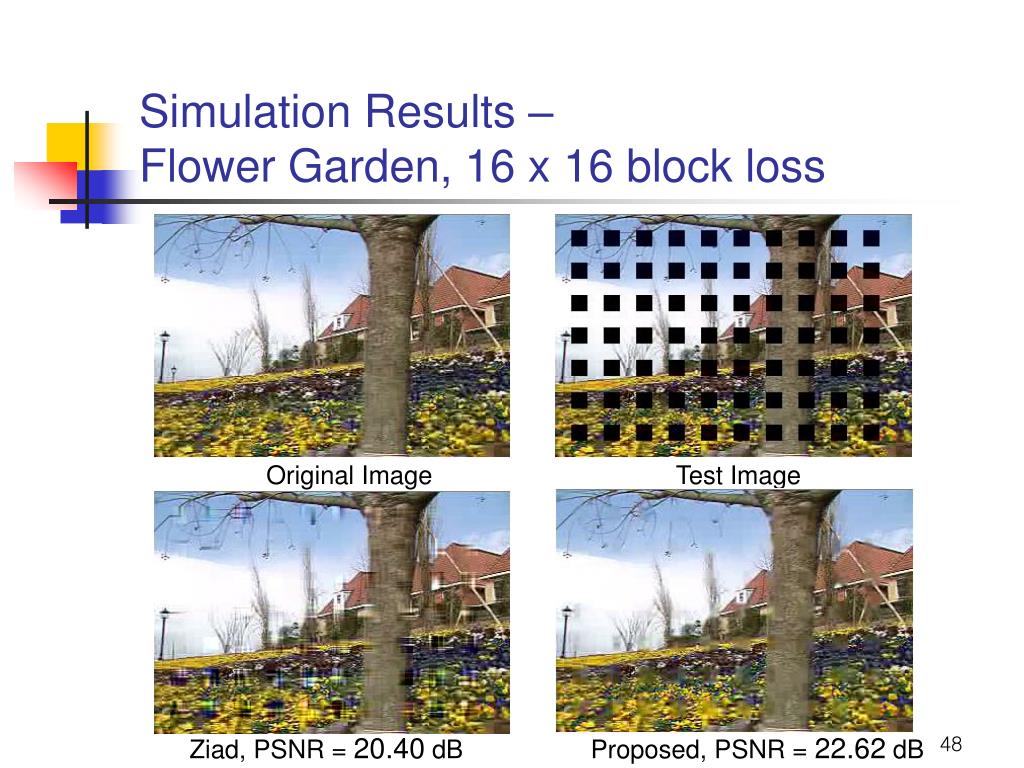

  48. Simulation Results –Flower Garden, 16 x 16 block loss Original Image Test Image Ziad, PSNR = 20.40 dB Proposed, PSNR = 22.62 dB

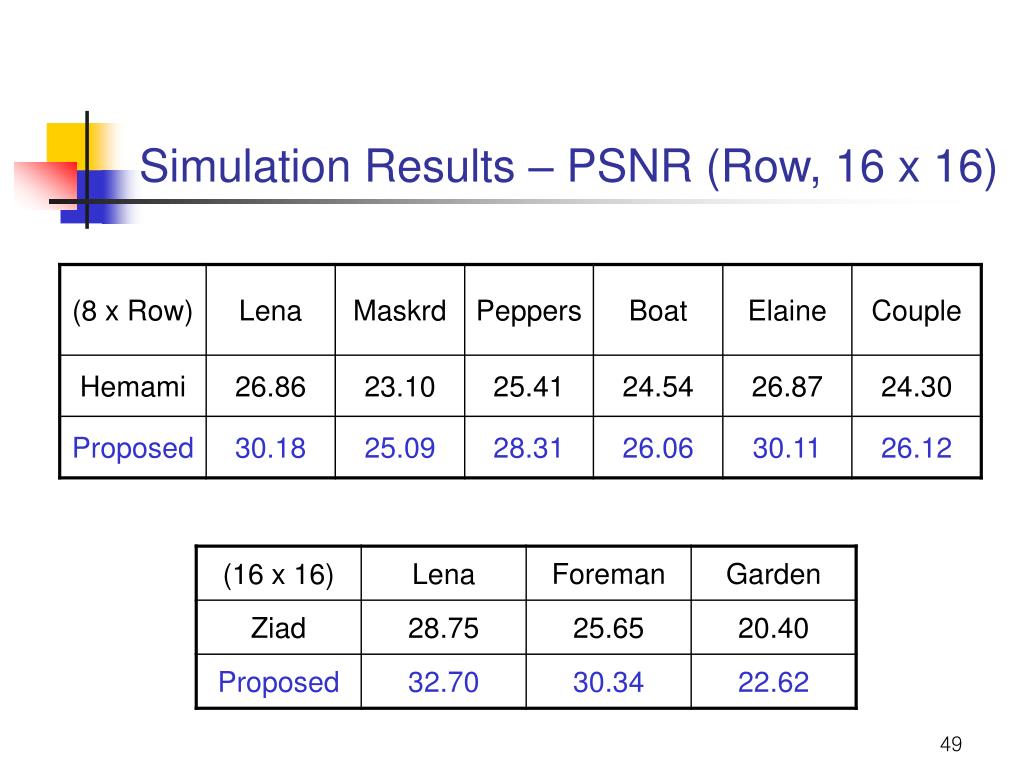

  49. Simulation Results – PSNR (Row, 16 x 16)

  50. Simulation Results –Mean & Variance of Error (8 x 8)
