1 / 18

Calvin Cycle

Calvin Cycle. Chemical energy captured in ATP and NADPH is used to “fix” carbon dioxide in the dark reaction 5C sugar + CO2 _ 2 x 3C sugars CO2 is fixed into a 3 carbon sugar Referred to as C3 photosynthesis

vernon-beasley
Download Presentation

Calvin Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Calvin Cycle • Chemical energy captured in ATP and NADPH is used to “fix” carbon dioxide in the dark reaction • 5C sugar + CO2 _ 2 x 3C sugars • CO2 is fixed into a 3 carbon sugar • Referred to as C3 photosynthesis • The enzyme that catalyzes this reaction is called ribulose bisphosphate carboxylase, or rubisco

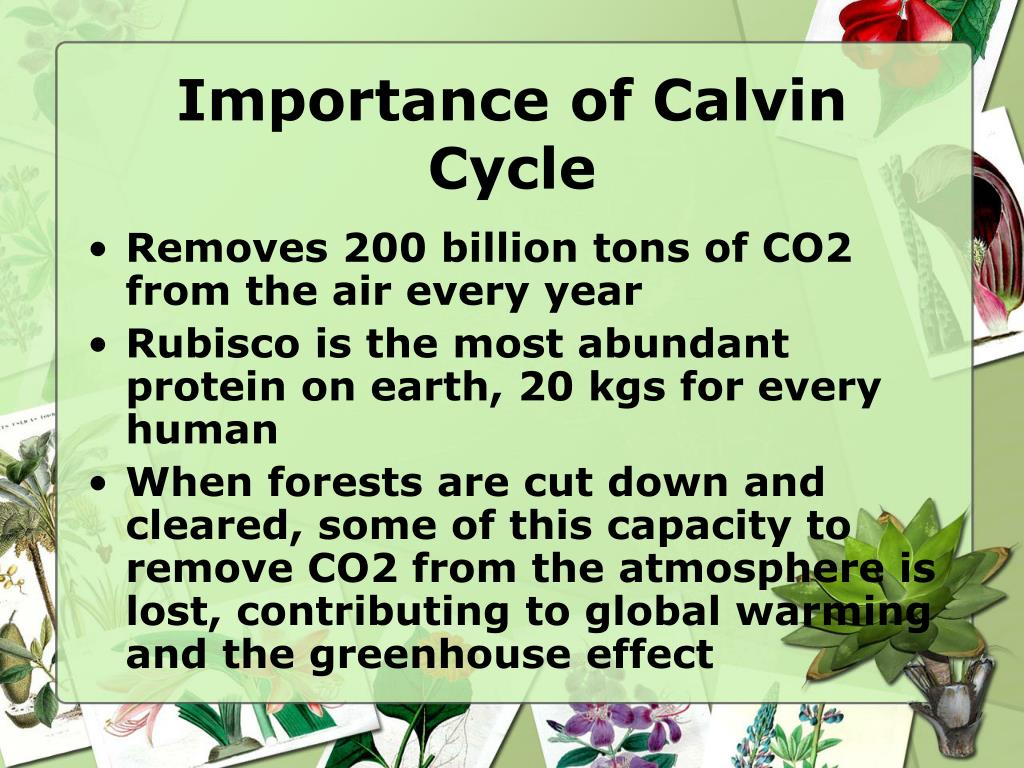

  2. Importance of Calvin Cycle • Removes 200 billion tons of CO2 from the air every year • Rubisco is the most abundant protein on earth, 20 kgs for every human • When forests are cut down and cleared, some of this capacity to remove CO2 from the atmosphere is lost, contributing to global warming and the greenhouse effect

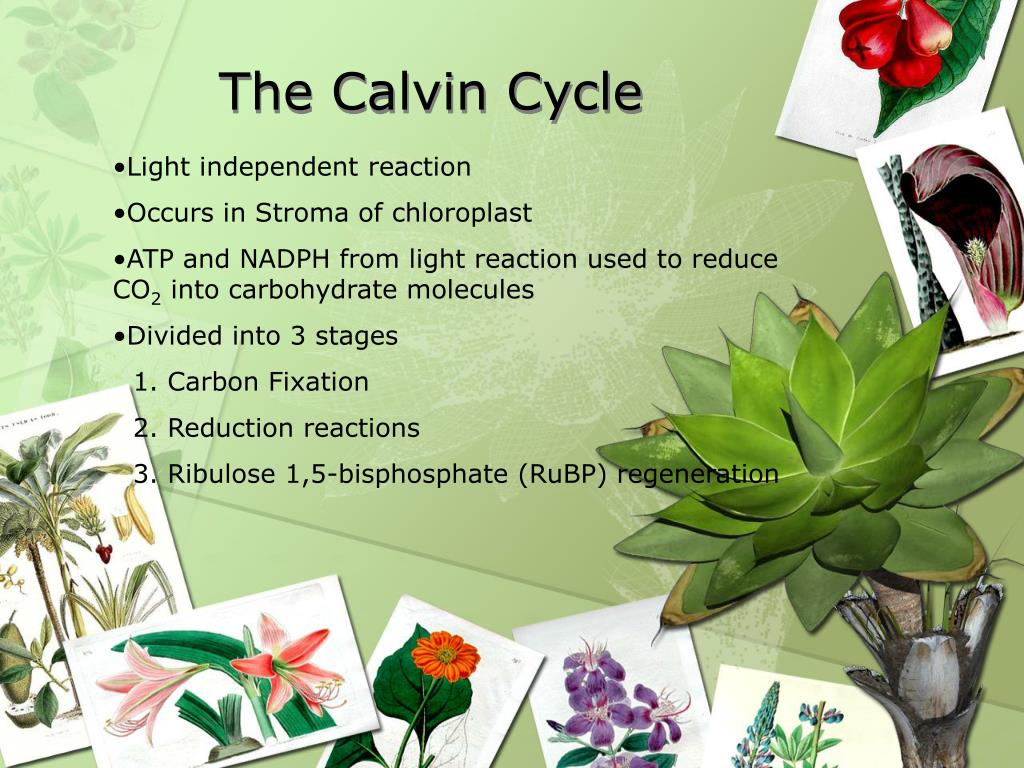

  3. The Calvin Cycle • Light independent reaction • Occurs in Stroma of chloroplast • ATP and NADPH from light reaction used to reduce CO2 into carbohydrate molecules • Divided into 3 stages • 1. Carbon Fixation • 2. Reduction reactions • 3. Ribulose 1,5-bisphosphate (RuBP) regeneration

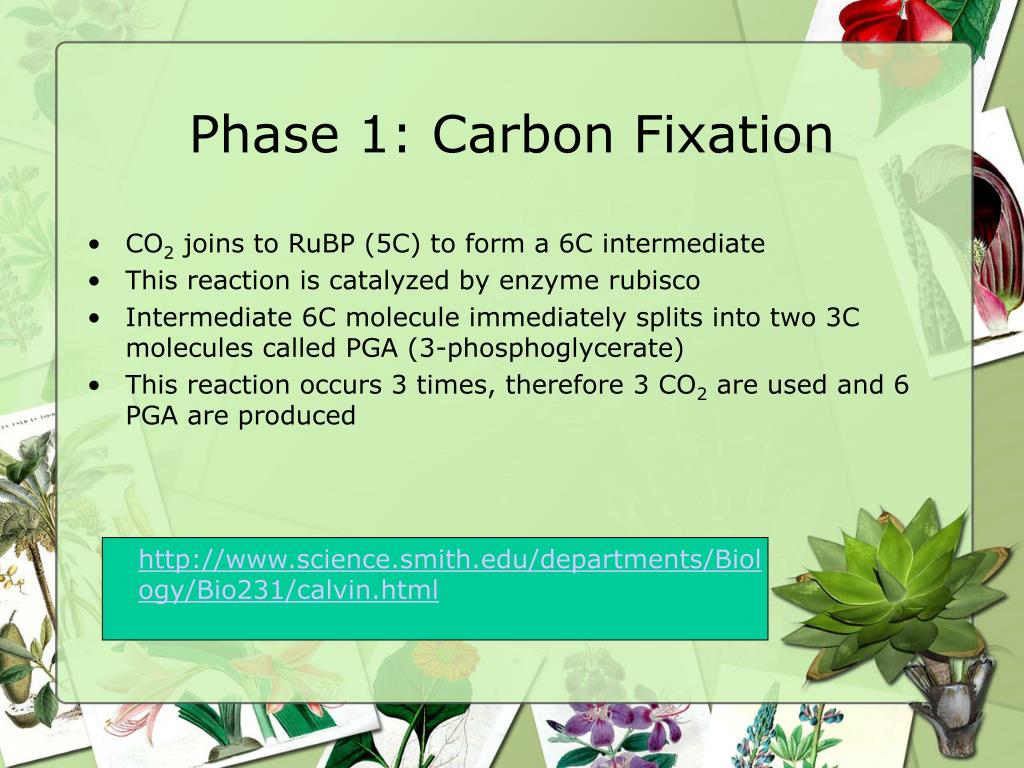

  4. Phase 1: Carbon Fixation • CO2 joins to RuBP (5C) to form a 6C intermediate • This reaction is catalyzed by enzyme rubisco • Intermediate 6C molecule immediately splits into two 3C molecules called PGA (3-phosphoglycerate) • This reaction occurs 3 times, therefore 3 CO2 are used and 6 PGA are produced http://www.science.smith.edu/departments/Biology/Bio231/calvin.html

  5. Phase 2: Reduction Reactions • 6 PGA molecules are phosphorylated by ATP to produce 6 molecules of 1,3-bisphophoglycerate (1,3 BPG) • 6 1,3 BPG are then reduced by NADPH to produce 6 glyceraldehyde 3-phosphate (G3P) – a sugar • One G3P exits the cycle as a final product and the remaining 5 G3P are used in RuBP regeneration • G3P that exited is used to synthesize larger sugars http://www.science.smith.edu/departments/Biology/Bio231/calvin.html

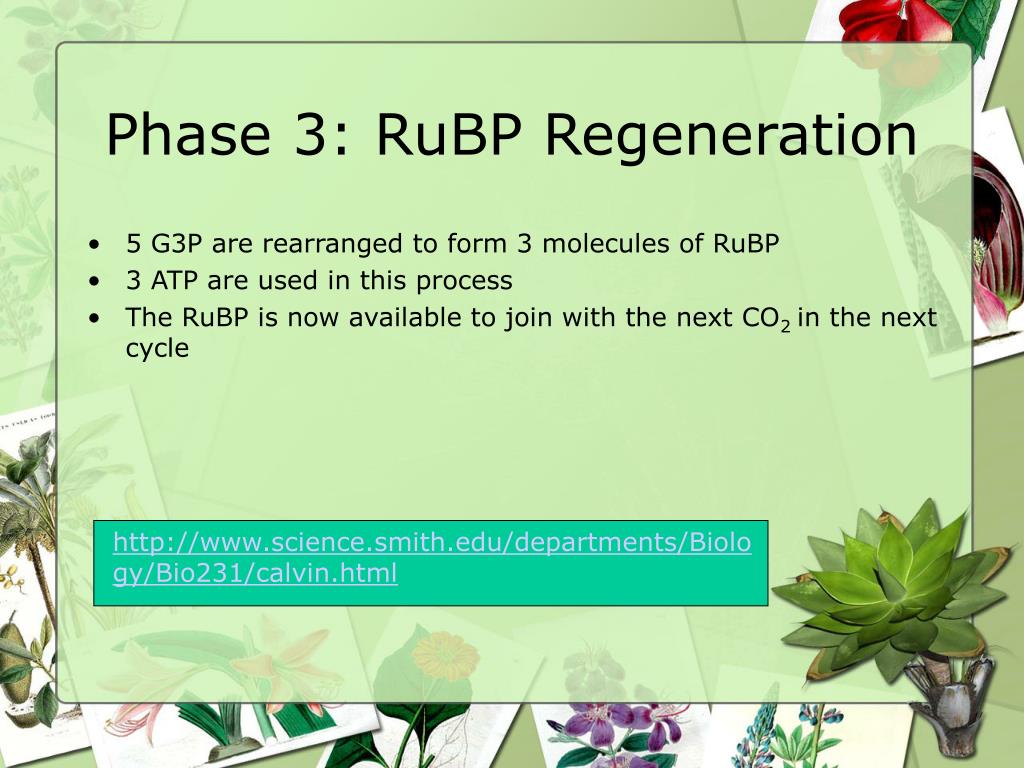

  6. Phase 3: RuBP Regeneration • 5 G3P are rearranged to form 3 molecules of RuBP • 3 ATP are used in this process • The RuBP is now available to join with the next CO2 in the next cycle http://www.science.smith.edu/departments/Biology/Bio231/calvin.html

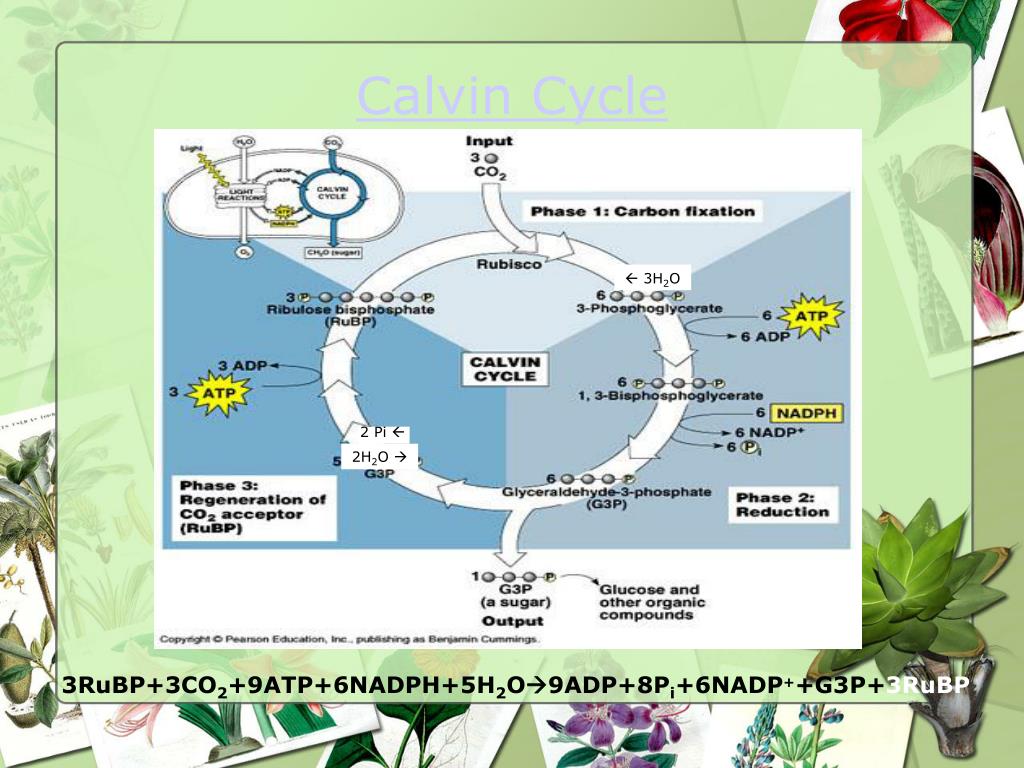

  7. Calvin Cycle  3H2O 2 Pi  2H2O  3RuBP+3CO2+9ATP+6NADPH+5H2O9ADP+8Pi+6NADP++G3P+3RuBP

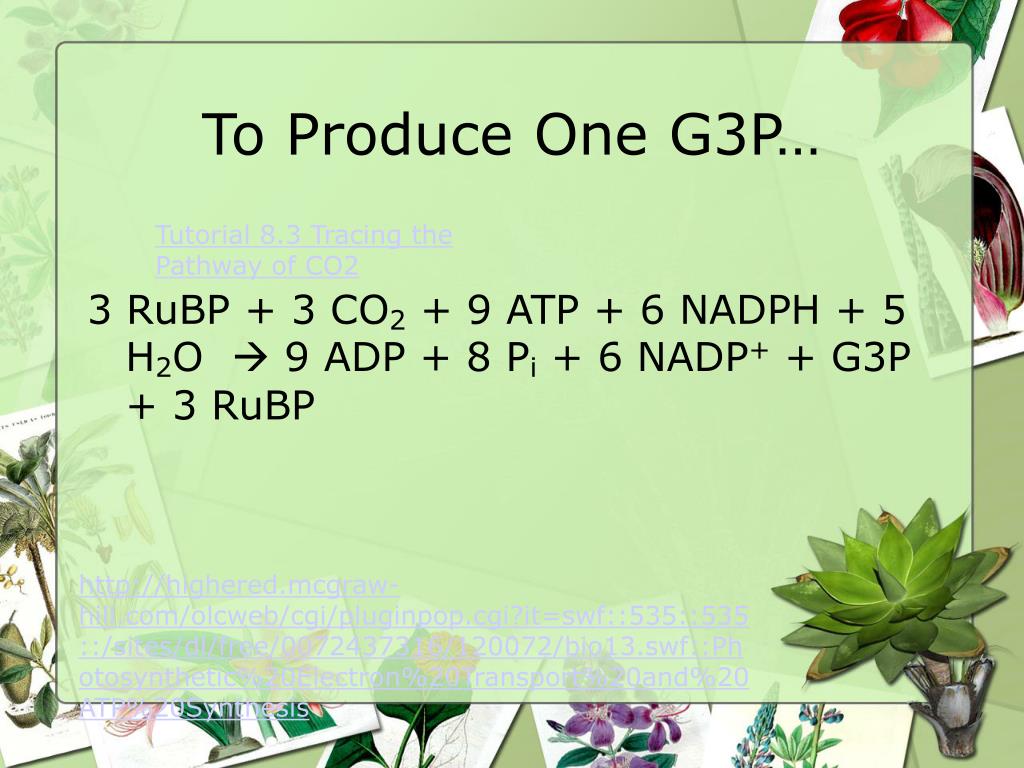

  8. To Produce One G3P… Tutorial 8.3 Tracing the Pathway of CO2 3 RuBP + 3 CO2 + 9 ATP + 6 NADPH + 5 H2O  9 ADP + 8 Pi + 6 NADP+ + G3P + 3 RuBP http://highered.mcgraw-hill.com/olcweb/cgi/pluginpop.cgi?it=swf::535::535::/sites/dl/free/0072437316/120072/bio13.swf::Photosynthetic%20Electron%20Transport%20and%20ATP%20Synthesis
